Luminex GigaCore RPSU User manual

Redundant power supply for GigaCore 14R and 16Xt
GigaCore RPSU
Quick Start Guide
V2.0.0
Rev1
English

GigaCore RPSU Quick Start Guide
Document lu_01_00054_qsg
Copyright © 2002-2015 .
All rights reserved.
No part of this documentation may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, without the prior written permission of Luminex.
The information in this documentation is supplied without warranty of any kind, either directly or indirectly, and is
subject to change without prior written notice. Luminex, its employees or appointed representatives will not be held
responsible for any damages to software, hardware, or data, howsoever arising as a direct or indirect result of the
product(s) mentioned herein.
Issued by:
Publications Department,
Luminex LCE, Berkenlaan 8A, Hechtel Eksel, B-3940, Belgium.
Documentation last reviewed 27 February 2015 by Luminex LCE.
Printed in the EU.
Table of Content
■Safety Instructions 3
■Compliance information 4
■Warranty information 5
■Registration 5
■In the box 5
■Description 6
■Starting 8
■Wiring 8
■Additional documentation 10

3
Safety Instructions
■Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
■Retain Instructions - The safety and operating
instructions should be retained for future reference.
■Heed Warnings - All warnings on the appliance in the
operating instructions should be adhered to.
■Follow Instructions - All operating and user instructions
should be followed.
■Water and Moisture - The appliance should not be used
near water; for example, near a fountain, or submitted to
direct water exposure.
■The apparatus shall not be exposed to dripping or
splashing liquids and no objects lled with liquids, such
as bottles, shall be placed on the apparatus. Do not
touch the appliance with wet hands. Do not handle the
appliance or power cord with wet or damp hands. If water
or any other liquid enters the appliance cabinet, take it to
qualied service personnel for inspection.
■Cleaning - The appliance should be cleaned only as
recommended by the manufacturer. From time to time
you should wipe o the front and side panels and the
enclosure with a soft cloth. Do not use rough material,
thinners, alcohol or other chemical solvents or cloths since
this may damage the nish or remove the panel lettering.
■Ventilation - The appliance should be situated so that
its location or position does not interfere with its proper
ventilation. Place the unit in a well-ventilated location,
leaving at least 5 cm (2 inches) of clearance on front, side
and rear of unit for air ow. If ventilation is blocked, the
unit may overheat and malfunction.
■Heat - The appliance should be situated away from
heat sources such as radiators or heating systems.
■Power Cord Protection - Power supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, receptacles, and the
point where they exit from the appliance.
■Power Sources - The appliance should be connected
to a power supply only of the type described in the
operating instructions or as marked on the appliance.
■Attachments / Options - Only use attachments/options
specied by the manufacturer.
■Object and Liquid Entry - Care should be taken so that
objects do not fall and liquids are not spilled into the
enclosure through the openings.
■Servicing - The user should not attempt to service
the appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualied service personnel.
■Damage Requiring Service - The appliance should
be serviced by qualied service personnel when: A.
The power supply cord or the inlet has been damaged;
B. Objects have fallen, liquid has been spilled into the
appliance; C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally;
or E. The appliance has been dropped or the enclosure is
damaged.
■The equipment shall be used at a maximum ambient
temperature of 50° C / 140° F.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE THE
COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sucient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.

4
Compliance information
Disposal of Waste Equipment by users in the European Union
This symbol on the product or its packaging indicates that this product must not be disposed of
with other waste. Instead, it is your responsibility to dispose of your waste equipment by handing it
over to a designated collection point for the recycling of waste electrical and electronic equipment.
The separate collection
and recycling of your waste equipment at the time of disposal will help conserve natural resources
and ensure that it is recycled in a manner that protects human health and the environment. For
more information about where you can drop o your waste equipment for recycling, please
contact your local city recycling oce or the dealer from whom you purchased the product.
EMC (Electromagnetic Compliance)
This model GigaCore RPSU complies with the following standards regulating interference and EMC:
• EN 55022
• EN 55024
CE Compliance (EMC and Safety)
Luminex is authorized to apply the CE mark on this compliant equipment thereby declaring
conformity to EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.

5
Warranty information
Limited warranty
Unless otherwise stated, your product is covered by a two (2) years parts and labor limited warranty. It is the owner’s
responsibility to furnish receipts or invoices for verication of purchase, date, and dealer or distributor. If purchase date
cannot be provided, date of manufacture will be used to determine warranty period.
Returning under warranty
Any Product unit or parts returned to Luminex LCE must be packaged in a suitable manner to ensure the protection
of such product unit or parts, and such package shall be clearly and prominently marked to indicate that the package
contains returned product units or parts. Accompany all returned product units or parts with a written explanation of
the alleged problem or malfunction.
In the box
1 x GigaCore RPSU
1 x Quick Start Guide ( including warranty information and safety instructions).
4 x 1 meter Molex Micro-Fit 6 pins cable (LU 90 00879)
Registration
Use your favorite web browser, and visit http://www.luminex.be/support.php?show=registration
to register your product online.
By registering, you become eligible to receive the following:
■Technical support information
■Software update and upgrade notices
■Hardware warranty information
Freight
All shipping will be paid by the purchaser. Items under warranty shall have return shipping paid by the manufacturer
only in the European Union.
Under no circumstances will freight collect shipments be accepted. Prepaid shipping does not include rush expediting
such as air freight. Air freight can be sent customer collect in the European Union.
Warranty is void if the product is misused, damaged, modied in any way, or for unauthorized repairs or parts.

LED indication for redundant power supply status
- PSU1
- PSU2
6
Description
Front panel
■2 x LED for backup power over Ethernet supply status (PoE 1 and PoE 2)
■2 x LED for backup power supply status (PoE 1 and PoE 2)
LED indication for redundant PoE supply status
- PoE 1
- PoE 2
The GigaCore RPSU is able to monitor two GigaCore Ethernet switches (14R and 16Xt model) at a time. In the unlikely
event one of the switch’s power supply fails, the unit will deliver power, seamlessly. The unit can backup both power and
power over Ethernet supplies.
Please bear in mind the unit can only deliver power or power over Ethernet to one unit a a time.

Output connectors for
backup power supply
Output connectors for
backup power over
Ethernet supply
7
IEC socket for mains input
Fan
Rear panel
■1 x IEC socket for power input
■1 x Fan
■2 x Molex output connectors for redundant power supply
■2 x Molex output connectors for redundant power over Ethernet supply

8
The GigaCore RPSU should be located in the same rack where the GigaCore switches to protect are installed.
The RPSU is tted with four 1 meter 6 ways MICRO-FIT Molex cables. In the case the distance between the RPSU and the
connected switch to protect is less than one meter, best is to correctly roll the cable to prevent of heating issue.
Starting
Wiring
The device operates with an AC voltage between 100V and 240VAC within a frequency range of 50Hz to 60Hz.
An IEC socket is located at the rear of the unit. Please use an IEC plug compliant cable to feed power to the unit.
Luminex recommends the use of a power cable, tted with a locking mechanism to ensure a reliable connection to the
device. Luminex also recommends to use power cable in accordance with the standards and the relevant authorities of
your country.
!!! WARNING: TO ENSURE A TOTAL PROTECTION, THIS EQUIPMENT MUST BE
EARTHED !!!
Backup PSU
Backup PoE

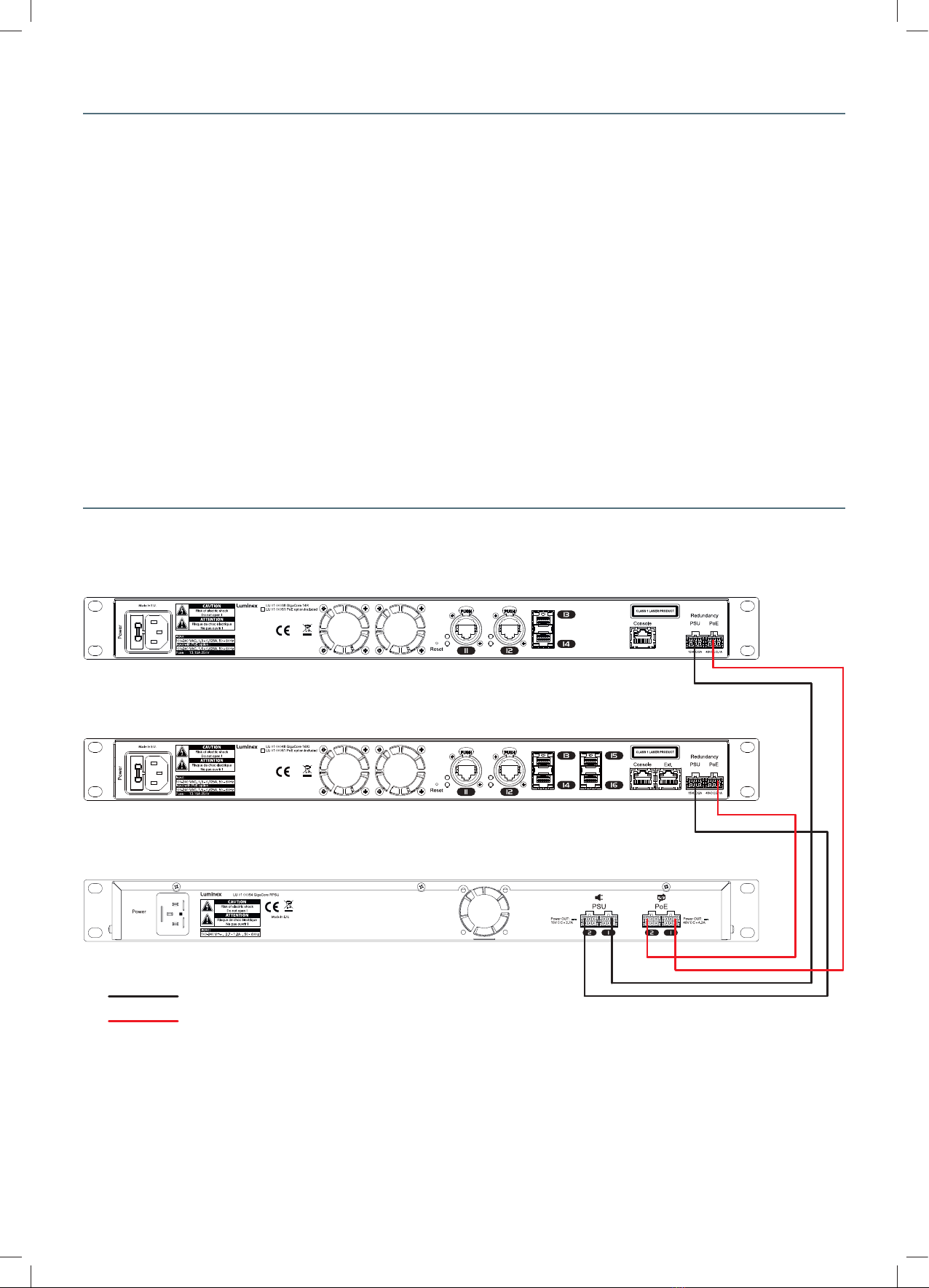

GigaCore RPSU wiring scheme
GigaCore 14R
GigaCore 16Xt
GigaCore RPSU
Above illustration : wiring example

LED Status Meaning
PoE 1 Green Unit is active, ready to source
Red Unit connected to this port has a failed power over Ethernet
supply, and is being fed by the RPSU
Orange The other port is sourcing, this one cannot source
PoE 2 Green Unit is active, ready to source
Red Unit connected to this port has a failed power over Ethernet
supply, and is being fed by the RPSU
Orange The other port is sourcing, this one cannot source
PSU 1 Green Unit is active, ready to source
Red Unit connected to this port has a failed power supply, and is
being fed by the RPSU
Orange The other port is sourcing, this one cannot source
PSU 2 Green Unit is active, ready to source
Red Unit connected to this port has a failed power supply, and is
being fed by the RPSU
Orange The other port is sourcing, this one cannot source
9
Led indicators
The LED indicators of the GigaCore RPSU includes power and power over Ethernet supplies status. The following shows
the LED indicators for the GigaCore RPSU along with an explanation of each indicator.

10
Specications
Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and
improvements to any of the products described in this document above without prior notice. Specications are subject
to change without notice.
Power Input Physical
Power Input 100-240VAC - 50/60Hz
2.7A - 1.2A
Enclosure Metal Housing
Dimensions (W x D x H) 482 x 183 x 44 mm
19” x 17.4” x 1.73”
Power Output Packaging 520 x 235 x 50 mm
20.47” x 9.25” x 1.96”
PSU output 2 x 15VDC / 2.7A on Molex
Micro-Fit 6 pins connector Weight 2.7Kg
POE supply output 2 x 48VDC / 4.2A on Molex
Micro-Fit 6 pins connector Approvals
Environmental CE P
Operating Temperature 0 to + 50°C EN 55022 P
Storage temperature -10 to +70°C EN 55024 P
Humidity 5 to 95 % RH RoHS Compliance P

11
Additional documentation
All additional documenttion can be downloaded from our web pages in the support section :
http://www.luminex.be
--> Support

Berkennlaan 8A
3940 Hechtel Eksel
Belgium
tel: [phone]
[e-mail]
www..luminex.be
