Lutz-Jesco EASYPRO User manual

Dosing
Conveying
Control
Liquids
Gases
Systems
© Lutz-Jesco GmbH 2020 BA-42820-02-V03

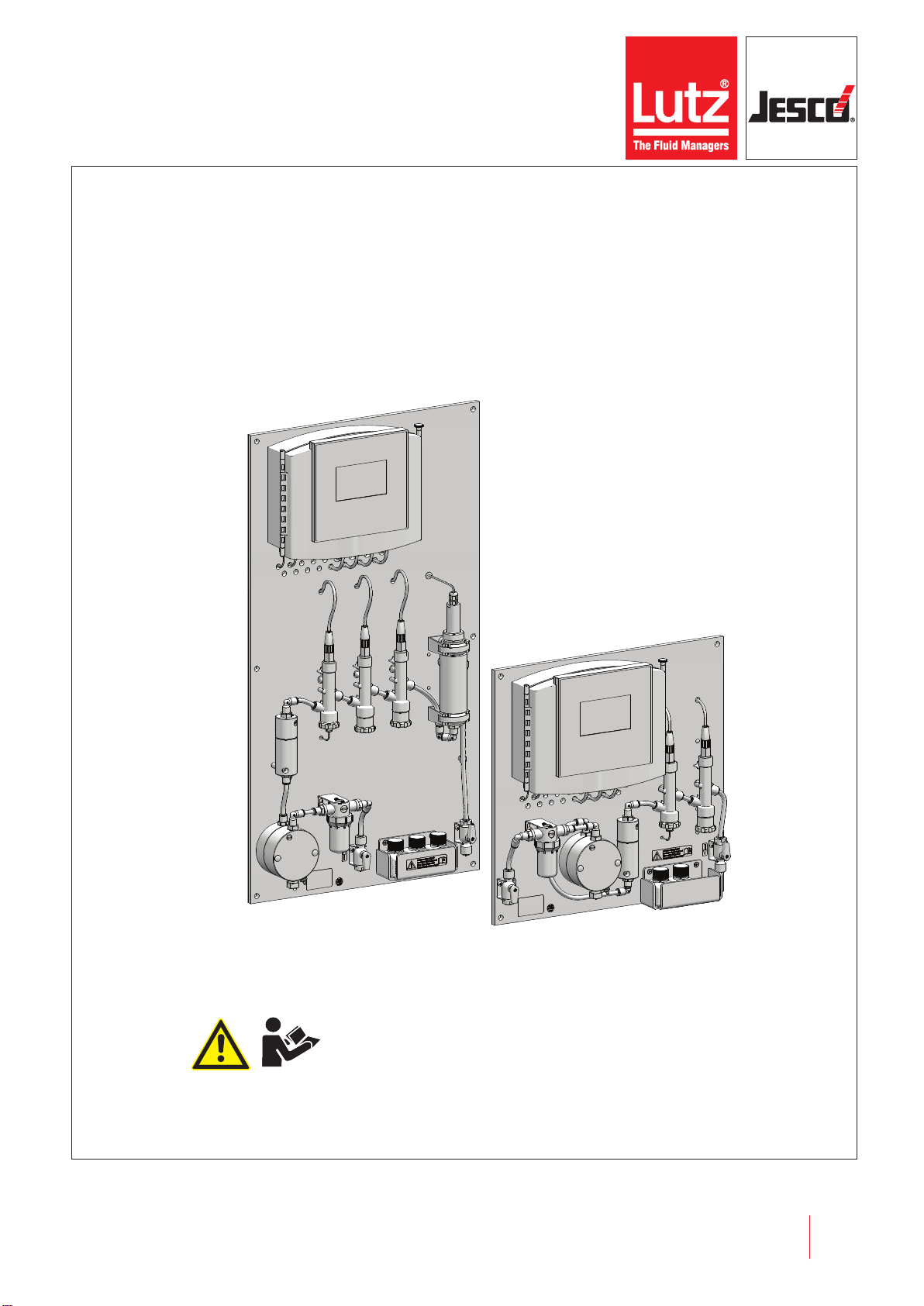

Water sampling station
EASYPRO
Operating instructions
Read the operating manual!
The user is responsible for installation and operation related mistakes!

Table of Contents 3
© Lutz-Jesco GmbH 2020
Subject to technical changes.
200310
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
Table of Contents
1 Notes for the Reader ..........................................................4
1.1 General non-discrimination......................................................4
1.2 Explanation of the signal words ................................................4
1.3 Explanation of the warning signs ..............................................4
1.4 Identification of warnings.........................................................4
1.5 Identification of action instructions ...........................................4
2 Safety .................................................................................5
2.1 General warnings.....................................................................5
2.2 Hazards due to non-compliance with the safety instructions .....5
2.3 Working in a safety-conscious manner .....................................5
2.4 Personnel qualification.............................................................5
3 Intended use ......................................................................7
3.1 Notes on product warranty .......................................................7
3.2 Intended purpose.....................................................................7
3.3 Foreseeable misuse.................................................................7
4 Product description ...........................................................8
4.1 Scope of delivery .....................................................................8
4.2 Design and function .................................................................8
4.3 Position numbers water sampling station .................................9
4.4 The structure of the flow controller .........................................10

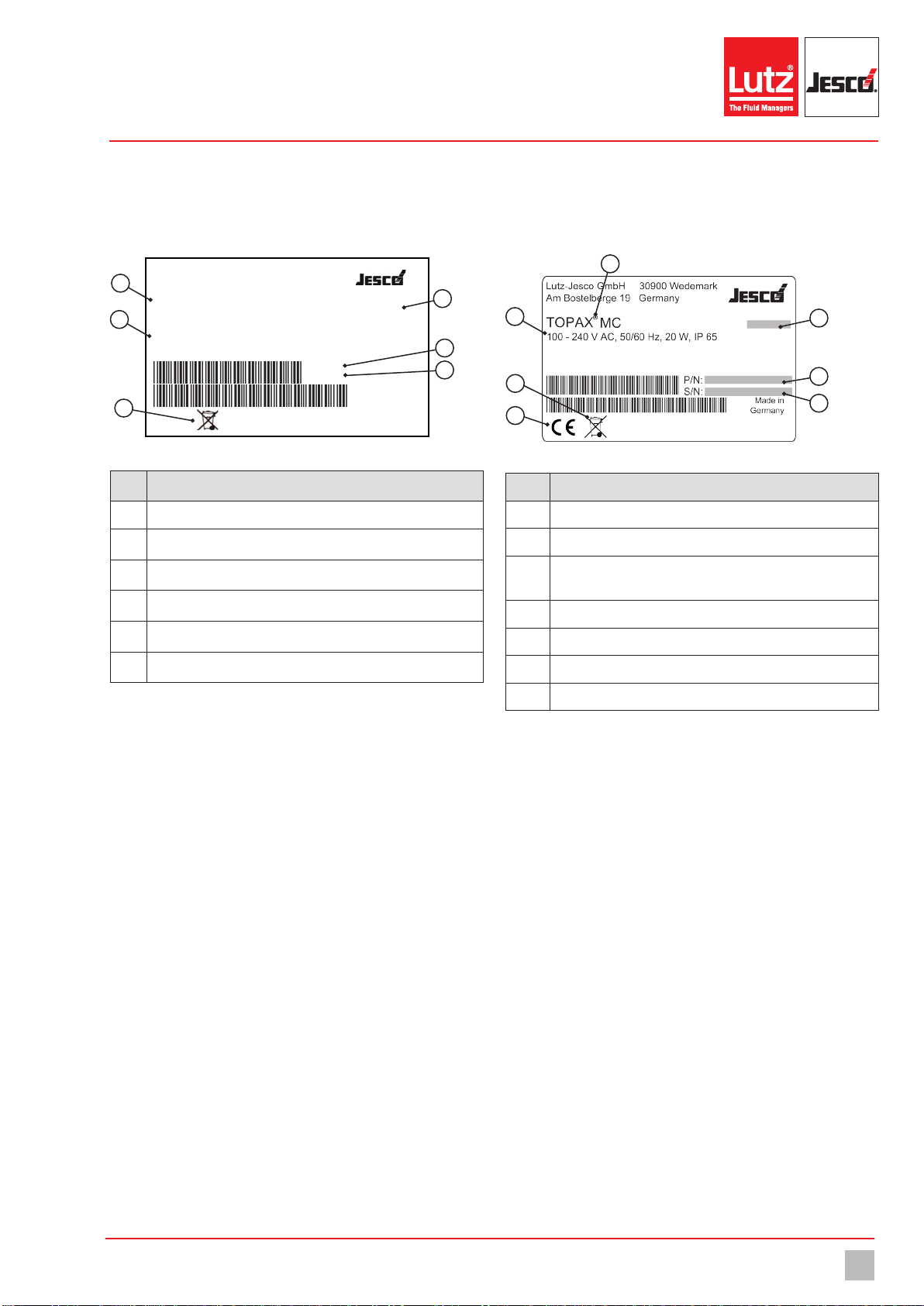

4.5 Rating plate water sampling station EASYPRO ........................10
4.6 multi-channel controller TOPAX®MC rating plate ....................10
5 Technical data.................................................................. 12
5.1 Water sampling stations for swimming pools ..........................12
5.2 Water sampling stations for industrial applications..................13
5.3 measuring cell.......................................................................14
5.4 Technical data multi-channel controller TOPAX®MC ...............16
5.5 Multi-channel controller TOPAX®MC measuring inputs...........16
5.6 Multi-channel controller TOPAX®MC output modules..............17
5.7 Controller functions................................................................17
6 Dimensions ......................................................................18
6.1 Water sampling station EASYPRO 1, 2, MB-C, ME-C ................18
6.2 Water sampling station EASYPRO 3, 4, MC-C, MD-C, MP-C, MK-C 18
6.3 Water sampling station EASYPRO 1/1, 2/2, MBB-C, MEE-C......19
7 Installation .......................................................................20
7.1 Installation location of the water sampling station EASYPRO....20
7.2 Wall mounting........................................................................20
7.3 Installing the hydraulics .........................................................20
7.4 Installation multi-channel controller TOPAX®MC.....................21
7.5 Electrical installation..............................................................21
7.6 Terminal connection...............................................................22
7.7 Connecting sensors ...............................................................23
7.8 Connecting the actors ............................................................25
7.9 Digital inputs .........................................................................26
7.10 RC protection for relay..........................................................26
7.11 Connecting Ethernet ............................................................27
7.12 RS485 interface...................................................................27
7.13 Installing the sensors ...........................................................28
8 Commissioning of the water sampling station ...............29
8.1 First steps..............................................................................29
8.2 Configuration assistant ..........................................................29
8.3 Configuration.........................................................................30
8.4 Password protection ..............................................................35
8.5 Network settings....................................................................36
9 Operation..........................................................................37
9.1 Confirming a message ...........................................................37
9.2 Logbook ................................................................................37
9.3 Configure trend display ..........................................................37
9.4 Manual mode.........................................................................38
9.5 Calibration.............................................................................38
9.6 Setpoints and reference sets..................................................42
9.7 Access via network ................................................................44
10 Shutdown.........................................................................45
10.1 Short-term shutdown...........................................................45
10.2 Long-term shutdown ...........................................................45
10.3 Storage ...............................................................................45
10.4 Transportation......................................................................45
10.5 Disposal ..............................................................................45
11 Maintenance ....................................................................46
11.1 Maintenance intervals..........................................................46
11.2 Finishing maintenance.........................................................46
11.3 Keeping logfiles ...................................................................46
11.4 Measuring cells ...................................................................46
11.5 Flow controller.....................................................................47
11.6 Cleaning the sample water filter ...........................................47
11.7 Updating software................................................................47
11.8 Battery ................................................................................48
11.9 Replacing the fuse ...............................................................48
11.10 Resetting the settings ........................................................48
11.11 Finishing maintenance.......................................................49
12 Fault resolution ................................................................50
13 Modbus addresses...........................................................52
14 Notes to EU conformity EASYPRO .................................... 58
15 EU declaration of conformity TOPAX®MC........................59
16 Declaration of no objection..............................................60
17 Warranty claim................................................................. 61
18 Glossary ...........................................................................62
19 Index.................................................................................63

Notes for the Reader
4© Lutz-Jesco GmbH 2020
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
1 Notes for the Reader
These Operating instructions contain information and behaviour rules for
safe and designated operation of the Water sampling station EASYPRO.
Observe the following principles:
nRead the entire operating manual prior to starting-up the device.
nEnsure that everyone who works with or on the device has read the
operating manual and follows it.
nMaintain the operating manual throughout the service life of the de-
vice.
nPass the operating manual on to any subsequent owner of the device.
1.1 General non-discrimination
In this operating manual, only the male gender is used where grammar
allows gender allocation. The purpose of this is to make the text easy to
read. Men and women are always referred to equally. We would like to
ask female readers for understanding of this text simplification.
1.2 Explanation of the signal words
Different signal words in combination with warning signs are used in this
operating manual. Signal words illustrate the gravity of possible injuries if
the risk is ignored:
Signal word Meaning
DANGER! Refers to imminent danger. Ignoring this sign may
lead to death or the most serious injuries.
WARNING!
Refers to a potentially hazardous situation. Failure
to follow this instruction may lead to death or se-
vere injuries.
CAUTION!
Refers to a potentially hazardous situation. Failure
to follow this instruction may lead to minor injury
or damage to property.
PLEASE NOTE Refers to a danger which, if ignored, may lead to
risk to the machine and its function.
Tab. 1: Explanation of the signal words
1.3 Explanation of the warning signs
Warning signs represent the type and source of a danger:
Warning sign Type of danger
General danger
Danger from electrical voltage
Danger from poisonous substances
Danger of damage to machine or functional
influences
Tab. 2: Explanation of the warning signs
1.4 Identification of warnings
Warnings are intended to help you recognise risks and avoid negative
consequences.
This is how warnings are identified:
Warning sign SIGNAL WORD
Description of danger.
Consequences if ignored.
ðThe arrow signals a safety precaution to be taken to eliminate the
danger.
1.5 Identification of action instructions
This is how pre-conditions for action are identified:
ü
Pre-condition for action which must be met before taking action.
@A resource such as a tool or auxiliary materials required to perform
the operating instructions.
This is how instructions for action are identified:
èSeparate step with no follow-up action.
1. First step in a series of steps.
2. Second step in a series of steps.
4Result of the above action.
ü
Action completed, aim achieved.

Safety 5
© Lutz-Jesco GmbH 2020
Subject to technical changes.
200310
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
2 Safety
2.1 General warnings
The following warnings are intended to help you eliminate the dangers
that can arise while handling the device. Risk prevention measures al-
ways apply regardless of any specific action.
Safety instructions warning against risks arising from specific activities
or situations can be found in the respective sub-chapters.
DANGER!
Mortal danger from electric shock!
Wrongly connected or located cables or damaged ones can injure you.
ðReplace damaged cables without delay.
ðDo not use extension cables.
ðDo not bury cables.
ðSecure cables to avoid being damaged by other equipment.
WARNING!
Increased risk of accidents due to insufficient qualifica-
tion of personnel!
The device may only be installed, operated and maintained by person-
nel with sufficient qualifications. Insufficient qualification will increase
the risk of accidents.
ðEnsure that all action is taken only by personnel with sufficient and
corresponding qualifications.
ðPrevent access to the system for unauthorised persons.
PLEASE NOTE
Do not dispose of the device in the domestic waste!
Do not dispose of electric devices via the domestic waste.
ðThe device and its packaging must be disposed of in accordance
with locally-valid laws and regulations.
ðDispose of different materials separately and ensure that they are
recycled.
2.2 Hazards due to non-compliance with the safety
instructions
Failure to follow the safety instructions may endanger not only persons,
but also the environment and the device.
The specific consequences can be:
nFailure of major unit und system functions.
nFailure of required maintenance and repair methods.
nRisk to persons when working on the device
nDanger to the environment from overdosing.
2.3 Working in a safety-conscious manner
Besides the safety instructions specified in this operating manual, further
safety rules may apply. Always observe all safety-related regulations and
guidelines applicable at the product's location of use. Note in particular
the following items:
nSafety regulations on handling electricity and live components
nSafety regulations on handling hazardous substances
nAccident prevention regulations
nSafety and operating provisions
nEnvironmental protection provisions
nother applicable directives and laws.
2.4 Personnel qualification
Any personnel who work on the device must have appropriate special
knowledge and skills.
Anybody who works on the device must meet the conditions below:
nAttendance at all the training courses offered by the owner.
nPersonal suitability for the respective activity.
nSufficient qualification for the respective activity.
ntraining into the handling of the device.
nknowledge of safety equipment and the way this equipment functions.
nKnowledge of this operating manual, particularly of safety instructions
and sections relevant for the activity.
nKnowledge of fundamental regulations regarding health and safety
and accident prevention.
All persons must generally have the following minimum qualifica-
tion:
nTraining as specialists to carry out work on the device unsupervised,
nsufficient training that they can work on the device under the supervi-
sion and guidance of a trained specialist.
2.4.1 Specialist staff
Thanks to their professional training, knowledge, experience and knowl-
edge of the relevant specifications, specialist staff are able to perform the
job allocated to them and recognise and/or eliminate any possible dan-
gers by themselves.

Safety
6© Lutz-Jesco GmbH 2020
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
2.4.2 Trained electricians
Due to their professional training, knowledge and experience as well as
knowledge of specific standards and provisions, trained electricians are
able to do the electrical work assigned to them and to recognise and
avoid any potential dangers by themselves.
They are specially trained for their specific working environment and are
familiar with relevant standards and provisions.
They must comply with the legally binding regulations on accident pre-
vention.
2.4.3 Trained persons
Trained persons have received training from the operator about the tasks
they are to perform and about the dangers stemming from improper be-
haviour.
Trained persons have attended all trainings offered by the operator.
2.4.4 Personnel tasks
In the table below you can check what qualifications are the pre-condi-
tion for the respective tasks. Only people with appropriate qualifications
are allowed to perform these tasks!
Qualification Activities
Specialist staff
nInstalling the hydraulics
nCommissioning
nShut-down
nFault resolution
nMaintenance
nEntsorgung
Trained electricians nInstalling the electrics
nRectifying electrical faults
Trained persons
nOperation
nStorage
nTransportation
Tab. 3: Personnel qualification

Intended use 7
© Lutz-Jesco GmbH 2020
Subject to technical changes.
200310
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
3 Intended use
3.1 Notes on product warranty
Any non-designated use of the device can impair its function and the pro-
tection provided. This leads to invalidation of any warranty claims!
Please note that liability is on the side of the user in the following
cases:
nThe water sampling station is operated in a manner which is not con-
sistent with these operating instructions, particularly safety instruc-
tions, handling instructions and the section "Intended Use".
nInformation on usage and environment (see section 5 „Technical
data“ on page 12) is not adhered to.
nIf people operate the device who are not adequately qualified to carry
out their respective activities.
nUnauthorised changes are made to the device.
3.2 Intended purpose
The EASYPRO water sampling station is solely designed for sampling and
control applications in the treatment of swimming and bathing water in
swimming pools and whirlpools not operated in accordance with DIN
19643, as well as for the treatment of process water. The operational
safety of the product supplied can only be ensured if used according to
their purpose.
All other types of use are prohibited and will invalidate the warranty.
The controller on the water sampling station monitors the current meas-
ured values during water treatment and controls the dosing systems con-
nected for water treatment. In this way, the controller ensures constant
water values in various applications and can be deployed universally. Its
main application is to maintain the quality of water by evaluating the
measurements of chlorine value, pH value and Redox value as well as
conductivity.
3.3 Foreseeable misuse
The following section provides information regarding the device applica-
tions which are classified as non-intended use.This section is intended to
allow you to detect possible misuse in advance and to avoid it.
Foreseeable misuse is assigned to the individual stages of the product
lifetime:
3.3.1 Incorrect assembly
nConnecting the mains voltage without a protective earth
nNon-fused or non-standard mains voltage.
nNot possible to immediately or easily disconnect the power supply
nWrong connecting cables for mains voltage
nSensors and actors connected to the incorrect terminals or incorrectly
configured.
nProtective earth removed.
3.3.2 Incorrect start-up
nCommissioning with damaged or obsolete sensors.
nCommissioning without the establishment of all protective measures,
fastenings etc.
3.3.3 Incorrect operation
nProtective equipment not functioning correctly or dismantled
nUnauthorised modification of the controller.
nIgnoring of alarm or error messages.
nThe elimination of alarm or error messages by insufficiently-qualified
personnel.
nBridging the external fuse
nDifficult operation due to insufficient lighting or poor access to the de-
vice.
nOperation not possible due to dirty or illegible display.
3.3.4 Incorrect maintenance
nCarrying out maintenance during ongoing operation
nNo adequate or regular inspection of correct functioning
nNo replacement of damaged parts or cables.
nNo securing against reactivation during maintenance work
nUse of the wrong spare parts.

Product description
8© Lutz-Jesco GmbH 2020
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
4 Product description
4.1 Scope of delivery
Please compare the delivery note with the scope of delivery. The follow-
ing components are available for the product. The scope may be less for
this version.
nBase plate with LED lighting for the valves
nMulti-channel controller TOPAX®MC
nSample water filter
nFlow controller with integrated temperature sensor
nFlow control
nMeasuring cell fittings
nBuffer solutions for adjusting each measuring cell
The measuring cells are packaged separately and not pre-installed.
4.2 Design and function
The water sampling station can continuously measure the level of disin-
fection (effective chlorine content), the pH value, the Redox value, the to-
tal chlorine content, conductivity and the sample water temperature. This
water sampling station can therefore be used in the water treatment of
public swimming pools, brine baths, hot-water installations and industrial
water treatment to control connected systems and control points.
Depending on the version, the water sampling stations are fitted with the
relevant measuring technology and a TOPAX®MC controller.

Product description 9
© Lutz-Jesco GmbH 2020
Subject to technical changes.
200310
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions

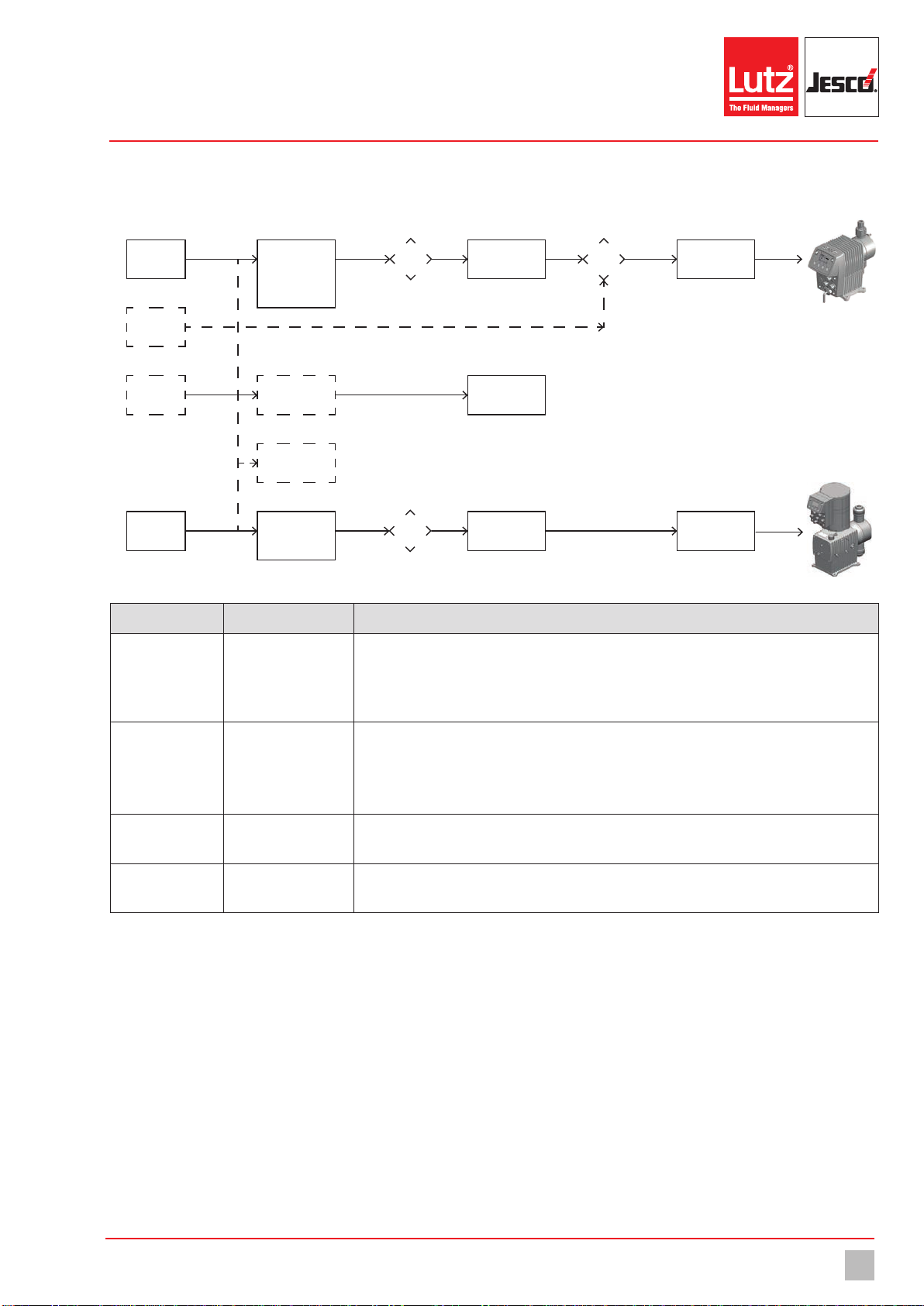

4.2.1 Functional diagram of the TOPAX®MC controller
Fig. 1: Functional diagram of a two-channel controller
Gap Field Description
Sensors
1. Free chlorine
2. Disturbance
variable
3. pH
1. Measuring the free chlorine.
2. The disturbance variable is a variable flow volume which can be taken into account.
3. Measuring the pH value.
Input modules
1. Current module
2. Digital 1
3. Virtual 1
4. pH Redox module
1. Module for 4 − 20 mA signals and sensors with 24 V voltage supply.
2. Digital input for the external control of a function (here: external stop).
3. Parameter calculated (here: effective chlorine).
4. Module for pH and Redox single-rod measuring cells
Control system 1. Controller 1
2. Controller 2
1. Controlling the free chlorine inc. pH/temperature compensation and disturbance variable.
2. Controlling the pH value inc. temperature compensation.
Output modules 1. Module 1
2. Module 2
1. Module on slot 1 to connect an actor (here: MAGDOS LD).
2. Module on slot 2 to connect an actor (here: MEMDOS LP).
Tab. 4: Explanation of functional diagram of a two-channel controller
Sensors Input modules Control system Output modules Actors
free
chlorine
Disturbance
variable
On / Off
pH
Current
module
Digital 1
Virtual 1
(Effective chlorine)
pH Redox
module
Controller 1 Module 1
pH/
Temp
Distur-
bance
variable
Function
(External stop)
Controller 2
Temp Module 2
Compensation
Compensation

Product description
10 © Lutz-Jesco GmbH 2020
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
4.3 Position numbers water sampling station
The figure shows a EASYPRO 4water sampling station. This version has
the maximum equipment. Your water sampling station may differ in
terms of scope and fittings.
1
2
3
4
5
6
7
8
9
10
11
12
Fig. 2: Water sampling station EASYPRO 4
No. Position
1Multi-channel controller TOPAX®MC
2Flow control
3Sample water filter
4Flow controller
5Inflow tap
6Extraction point
7Measuring point 1 (e. g. disinfection measuring cell)
8Measuring point 2 (e. g. pH value measuring cell)
9Measuring point 3 (e. g. redox value measuring cell)
10 Measuring point 4 (e. g. conductivity measuring cell)
11 buffer solutions
12 Outflow tap
Tab. 5: Position numbers water sampling station EASYPRO 4
4.3.1 Main view
The main menu view will appear upon the start of the product or 5 min-
utes after the last input. The main view shows the current values from up
to four sensors and further information.
2
1
45
3
6
Fig. 3: Main view with three sensors
Item Function
1Login/password settings
2 Date/time
3Measured values
4Main menu
5File Browser
6Status row for messages
Tab. 6: Position numbers main view
4.4 The structure of the flow controller
Fig. 4: The structure of the flow controller
Item Description
1Outlet connection
2Inlet connection above (with sealing plugs)
3Setting screw
4Fixing screws
5Inlet connection below
6Extraction point
7Temperature measurement point (with sealing plugs)
Tab. 7: Position numbers flow controller
1
2
3
4
5
6
7

Product description 11
© Lutz-Jesco GmbH 2020
Subject to technical changes.
200310
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
4.5 Rating plate water sampling station EASYPRO
There is information on the product about safety or the product's way of
functioning. The information must stay legible for the duration of the ser-
vice life of the product.
Made in
7/2019
Germany
*428B0000004*
Lutz-Jesco GmbH 30900 Wedemark
Am Bostelberge 19 Germany
Material:
Wassertemperatur:
Wasserdruck:
Wasserbedarf:
P/N
S/N
*42820005*
Made in
7/2019
Germany
*428B0000005*
Lutz-Jesco GmbH 30900 Wedemark
Am Bostelberge 19 Germany
Material:
Water temperature:
Water pressure:
Water requirement:
P/N
S/N
*42820005*
2
1
3
6
4
5
EASYPRO
Fig. 5: Rating plate water sampling station EASYPRO
No. Position
1Product name
2Technical specification
3WEEE label
4Serial number
5Part number
6Month/year of manufacture
Tab. 8: Position numbers rating plate water sampling station EASYPRO
4.6 multi-channel controller TOPAX®MC rating plate
There is also information on the multi-channel controller TOPAX®MC
about safety or the product's way of functioning. The information must
stay legible for the duration of the service life of the product.
7
6
5
2
1
3
4
Fig. 6: Multi-channel controller TOPAX®MCrating plate
Item Description
1Product name
2Technical specifications
3Label showing conformity with applicable European direc-
tives
4WEEE label
5Serial number
6Part number
7Month/year of manufacture
Tab. 9: Position numbers rating plate multi-channel controller TOPAX®MC

Technical data
12 © Lutz-Jesco GmbH 2020
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
5 Technical data
5.1 Water sampling stations for swimming pools
EASYPRO MB-C ME-C MC-C MD-C MP-C MK-C MBB-C MEE-C
Sample water requirement l/h 30 approx. 2 x 30 approx.
Sample water inflow and discharge mm PE hose 6/8 + stop valve with G1/4 connection
Pressure resistance bar max. 6 max. 6, air gap
required max. 6
Pressure loss in the water sampling
station bar 0.3 approx. 2 x 0.3 approx.
Mesh size sample water filter μm 300
Voltage supply 100 – 240 V AC, 50/60 Hz
Power consumption W max. 20
Analogue outputs for remote transmis-
sion 4 x 0/4 – 20 mA, working resistance max. 500 Ω
Disturbance variable input mA 0/4 – 20
Interfaces Ethernet TCP/IP or RS485 Modbus RTU (optional)
Protection class IP65 (electronic controller)
Ambient temperature °C -5 to +45 (no exposure to direct sunlight)
Control characteristic P, PI, PID or PD behaviour, control direction selectable with disturbance variable feed forward,
2-side control selectable
Measuring inputs (depending on version)
Number of measuring inputs 2 3 4 3 2 x 2
Free chlorine
Amperometric
3-electrode measuring
cell with potentiostat
(DMZ3.1)
mg/l
0 – 15
(dependant
on the meas-
uring cell
transcon-
ductance)
-
0 – 15
(dependant
on the meas-
uring cell
transcon-
ductance)
-0 – 15 (dependant on the measuring
cell transconductance)
2 x 0 – 15
(dependant
on the meas-
uring cell
transcon-
ductance)
-
Diaphragm-covered
measuring cell mg/l - - -
0 – 10
(dependant
on the meas-
uring cell)
- -
Total chlorine Diaphragm-covered
measuring cell mg/l - - - -
0 – 10
(dependant on
the measuring
cell)
-
pH value pH single-rod measur-
ing cell pH 2 – 12 or 0 – 14
(depending on the single-rod measuring cell)
2 x 2 – 12 or
2 x 0 – 14
(depending on the single-rod
measuring cell)
Redox value Redox single-rod
measuring cell mV - 0 – 1000 - 2 x 0 – 1000
Conductivity
conductive
Conductivity measur-
ing (k=1) mS/cm - 0–20 or 0–100 -
Temperature Pt100 °C 5 – 45 2 x 5 – 45
Output modules (depending on version)
Number of output modules up to 4
Servomotor relay 2 x 230 V AC, 5 A (ohmic load)
kΩ Potentiometer feedback: 1 – 10
Servomotor 20 mA Constant 0/4 – 20 mA output
Servomotor with 20 mA feedback
Relays 2 x 230 V AC, 5 A (ohmic load)
Optocoupler 2 x 80 V DC, 5 mA
Tab. 10: Technical data water sampling stations for swimming pools

Technical data 13
© Lutz-Jesco GmbH 2020
Subject to technical changes.
200310
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
5.2 Water sampling stations for industrial applications
EASYPRO 1 2 3 4 1/1 2/2
Sample water require-
ment
for CS120 excess chlorine measuring
cell
l/h 45 approx. -
for all other measuring cells l/h 30 approx. 2 x 30 approx.
Sample water inflow and discharge mm PE hose 6/8 + stop valve with G1/4 connection
Pressure resistance for diaphragm-covered measuring cell bar max. 6, air gap required
for all other measuring cells max. 6
Pressure loss in the water sampling station bar 0.3 approx.
Mesh size sample water filter μm 300
Voltage supply 100 – 240 V AC, 50/60 Hz
Power consumption W max. 20
Analogue outputs for remote transmission 4 x 0/4 – 20 mA, working resistance max. 500 Ω
Disturbance variable input mA 0/4 – 20
Interfaces Ethernet TCP/IP or RS485 Modbus RTU (optional)
Protection class IP65 (electronic controller)
Ambient temperature °C -5 to +45 (no exposure to direct sunlight)
Control characteristic P, PI, PID or PD behaviour, control direction selectable with disturbance
variable feed forward, 2-side control selectable
Measuring inputs (depending on version)
Number of measuring inputs 1 2 3 4 2 x 1 2 x 2
Bromine Diaphragm-covered measuring cell mg/l 0 – 5 (dependant on the measuring cell) -
Free chlorine
Amperometric 3-electrode measuring
cell with potentiostat (DMZ3.1) mg/l 0 – 15 (dependant on the measuring cell transconduct-
ance)
2 x 0 – 15
(dependant on the measuring
cell transconductance)
CS120 excess chlorine measuring cell mg/l
0 – 10
(dependant on
the measuring
cell transcon-
ductance)
--
Diaphragm-covered measuring cell mg/l 0 – 10 (dependant on the measuring cell) -
Chlorine dioxide
Amperometric 3-electrode measuring
cell with potentiostat (DMZ3.1) mg/l 0 – 15 (dependant on the measuring cell transconductance)
2 x 0 – 15
(dependant on the measuring
cell transconductance)
CS120 excess chlorine measuring cell mg/l
0 – 10 (de-
pendant on the
measuring cell
transconduct-
ance)
--
Diaphragm-covered measuring cell mg/l 0 – 2 (dependant on the measuring cell) -
Total chlorine Diaphragm-covered measuring cell mg/l 0 – 10 (dependant on the measuring cell) -
Ozone Diaphragm-covered measuring cell mg/l 0 – 2 (dependant on the measuring cell) -
pH value pH single-rod measuring cell pH 2 – 12 or 0 – 14
(dependant on the single-rod measuring cell)
2 x 2 – 12 or
2 x 0 – 14
(depending on the single-rod
measuring cell)
Redox value Redox single-rod measuring cell mV 0 – 1000 2 x 0 – 1000
Conductivity conductive Conductivity measuring (k=1) mS/cm 0 – 100 (depending on the measuring principle)
Chlorite Diaphragm-covered measuring cell mg/l 0 – 2 (dependant on the measuring cell) -
Hydrogen peroxide Diaphragm-covered measuring cell mg/l 0 – 200 (dependant on the measuring cell) -
Temperature Pt100 °C 5 – 45 (standard version)
5 – 60 (configurable)
2 x 5 – 45
(standard version)
2 x 5 – 60
(configurable)

Technical data
14 © Lutz-Jesco GmbH 2020
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
Output modules (depending on version)
Number of output modules up to 4 2 x up to 4
Servomotor relay 2 x 230 V AC, 5 A (ohmic load)
kΩ Potentiometer feedback: 1 – 10
Servomotor 20 mA Constant 0/4 – 20 mA output
Servomotor with 20 mA feedback
Relays 2 x 230 V AC, 5 A (ohmic load)
Optocoupler 2 x 80 V DC, 5 mA
Tab. 11: Water sampling stations for industrial applications
5.3 Measuring cell
Technical data for connecting a TOPAX®MC controller.
5.3.1 Amperometric 3- and open 2-electrode measuring cell
Measuring cell DMZ3.1 CS120 - Pt/Cu CS120 - Pt/Ag
Measuring input all oxidizing ions all oxidizing ions all oxidizing ions
Measuring electrode Gold or platinum
(depending on measurement) Platinum
Reference electrode Silver / silver chloride with KCI gel
filling -
Counter electrode Precious metal Copper Silver
Measuring range 0 – 15 mg/l Cl20 – 20 mg/l Cl20 – 20 mg/l Cl2
Transfer/slope 20 – 30 μA / mg/l
Electrolyte Sample water
Electrical connection N attachment head Free wire end
Hydraulic connections hose 6/8 mm G 5/8
Pressure range 0 – 6 bar
Flow rate 30 l/h 40 – 50 l/h
Measuring principle amperometric 3-electrode measuring
cell with potentiostatic control Amperometric open 2-electrode measuring cell
Tab. 12: Amperometric 3- and open 2-electrode measuring cell
5.3.2 Membrane covered measuring cells for measuring free chlorine
Measuring cell Cl 4.2 Cl 4.2 Cl 4.2 Cl 4.2
Measuring input free chlorine
Measuring range 0 – 0.5 mg/l Cl20 – 2 mg/l Cl20 – 5 mg/l Cl20 – 10 mg/l Cl2
Transfer/slope 4 – 20 mA
Electrolyte Diaphragm cap with electrolyte
Connection Free wire end
Pressure range 0 – 0,5 bar
Flow rate 30 l/h
Measuring principle amperometric diaphragm covered cell measuring cell
Tab. 13: Diaphragm covered measuring cells for measuring free chlorine

Technical data 15
© Lutz-Jesco GmbH 2020
Subject to technical changes.
200310
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
5.3.3 Membrane covered measuring cells for measuring chlorine dioxide
Measuring cell CD 4.2 CD 4.2
Measuring input Chlorine dioxide
Measuring range 0 – 0,5 mg/l ClO20 – 2 mg/l ClO2
Transfer/slope 4 – 20 mA
Electrolyte Diaphragm cap with electrolyte
Connection Free wire end
Pressure range 0 – 0,5 bar
Flow rate 30 l/h
Measuring principle amperometric diaphragm covered cell measuring cell
Tab. 14: Membrane covered measuring cells for measuring chlorine dioxide
5.3.4 Diaphragm covered measuring cell for measuring total chlorine
Measuring cell GCM GCM GCM
Measuring input Total chlorine
Measuring range 0 – 2 mg/l Clges. 0 – 5 mg/l Clges. 0 – 10 mg/l Clges.
Transfer/slope 4 – 20 mA
Electrolyte Diaphragm cap with electrolyte
Connection Free wire end
Pressure range 0 – 1 bar
Flow rate 30 l/h
Measuring principle amperometric diaphragm covered cell measuring cell
Tab. 15: Diaphragm covered measuring cell for measuring total chlorine
5.3.5 Conductivity measurement (conductive)
Description Value
Measuring range mS/cm max. 100 (5 % salt content), depending on input module
C factor 1
Electrical connection M12x1 plug (A-coded)
Pressure range bar 0 – 6
Measuring principle Conductivity measurement (conductive)
temperature measurement Integrated Pt100
Hydraulic connection PG 13,5
Installation dimension mm 120 x 12
Tab. 16: Technical data conductivity sensor

Technical data
16 © Lutz-Jesco GmbH 2020
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
5.4 Technical data multi-channel controller TOPAX®MC
TOPAX®MC
Housing dimensions (W x H x D) mm 302 x 240 x 107
Voltage supply 100 – 240 V AC, 50/60 Hz
Power consumption W max. 20
Analogue outputs for remote transmission 4 x 0/4 – 20 mA, working resistance max. 500 Ω
Disturbance variable input mA 0/4 – 20
Interfaces Ethernet TCP/IP or RS485 Modbus RTU (optional)
Protection class IP65
Ambient temperature °C -5 to +45 (no exposure to direct sunlight)
Control characteristic
P, PI, PID or PD behaviour,
control direction selectable with disturbance variable feed forward,
2-side control selectable
Tab. 17: Technical data multi-channel controller TOPAX®MC
5.5 Multi-channel controller TOPAX®MC measuring inputs
All measuring inputs consist of an input for temperature measurement via Pt100 and a second input for the measurement of a further water parameter.
On some measuring inputs, this input will measure a number of different parameters.
Measuring inputs (depending on version)
Number of measuring inputs up to 4
Free chlorine
Amperometric 3-electrode measur-
ing cell with potentiostat (DMZ3.1) mg/l 0 – 15 (dependant on the measuring cell transconductance)
CS120 excess chlorine measuring cell mg/l 0 – 10 (dependant on the measuring cell transconductance)
Diaphragm-covered measuring cell mg/l 0 – 10 (dependant on the measuring cell)
Chlorine dioxide
Amperometric 3-electrode measur-
ing cell with potentiostat (DMZ3.1) mg/l 0 – 15 (dependant on the measuring cell transconductance)
CS120 excess chlorine measuring cell mg/l 0 – 10 (dependant on the measuring cell transconductance)
Diaphragm-covered measuring cell mg/l 0 – 2 (dependant on the measuring cell)
Total chlorine Diaphragm-covered measuring cell mg/l 0 – 10 (dependant on the measuring cell)
pH value pH single-rod measuring cell pH 0 – 14 (dependant on the single-rod measuring chain)
Redox value Redox single-rod measuring cell mV 0 – 1000 (dependant on the single-rod measuring chain)
Conductivity Conductive conductivity measuring cell inc.
temperature sensor PT100 C = 1 mS/cm 0 – 2, 0 – 20, 0 – 100
Temperature Pt100 °C -10 to +90
Tab. 18: Multi-channel controller TOPAX®MC measuring inputs
5.6 Multi-channel controller TOPAX®MC output modules
Output modules (depending on version)
Servomotor relay 2 x 230 V AC, 5 A (ohmic load)
kΩ Potentiometer feedback: 1 – 10
Servomotor 20 mA Constant 0/4 – 20 mA output
Servomotor with 20 mA feedback
Relays 2 x 230 V AC, 5 A (ohmic load)
Optocoupler 2 x 80 V DC, 5 mA
Tab. 19: Multi-channel controller TOPAX®MC output modules

Technical data 17
© Lutz-Jesco GmbH 2020
Subject to technical changes.
200310
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
5.7 Controller functions
Outputs
Controller functions Behaviour
Relays Optocoupler Servomotor relay Servomotor 20 mA
x On/Off nThe output switches if a value is exceeded.
nHysteresis can be set from 0,1 – 50 %
x x
Pulse frequency
Or 2-sides
Pulse frequency
nRelay: 10 – 100 pulses per minute
nOptocoupler: 10 – 350 pulses per minute
nThe pulse frequency is dependant on the control deviation and the set control
parameters. With a control output power of Y = 25 % and a maximum pulse
frequency of 100 pulses/min., the controller would output 25 pulses/min.
xPulse length or
2-sides pulse length
n0 – 3600 seconds cycle duration
nRelay output (e.g. for solenoid valve)
nDepending on the control deviation and the defined control parameters, the relay
pulls in or drops out for the set cycle duration. If the cycle lasts 30 seconds and the
controller output power is 40 % the relay applies for example for 12 seconds,
followed by 18 seconds of non-application.
xServomotor with
potentiometer
nA feedback potentiometer can be connected (1 – 10 kΩ) for servomotors with
position feedback.
nCompensate the feedback potentiometer. During compensation, the servomotor is
first started and then stopped automatically.
xServomotor without
potentiometer.
nFor servomotors without feedback.
nMeasure and set the runtime of the servomotor.
xContinuous output nContinuous control output from 0/4 – 20 mA for the actuation of constant actors.
xServomotor with 20 mA
feedback
nServomotors which are controlled via 0/4 – 20 mA and have a 0/4 – 20 mA position
feedback.
Tab. 20: Functions of the individual controllers

Dimensions
18 © Lutz-Jesco GmbH 2020
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions

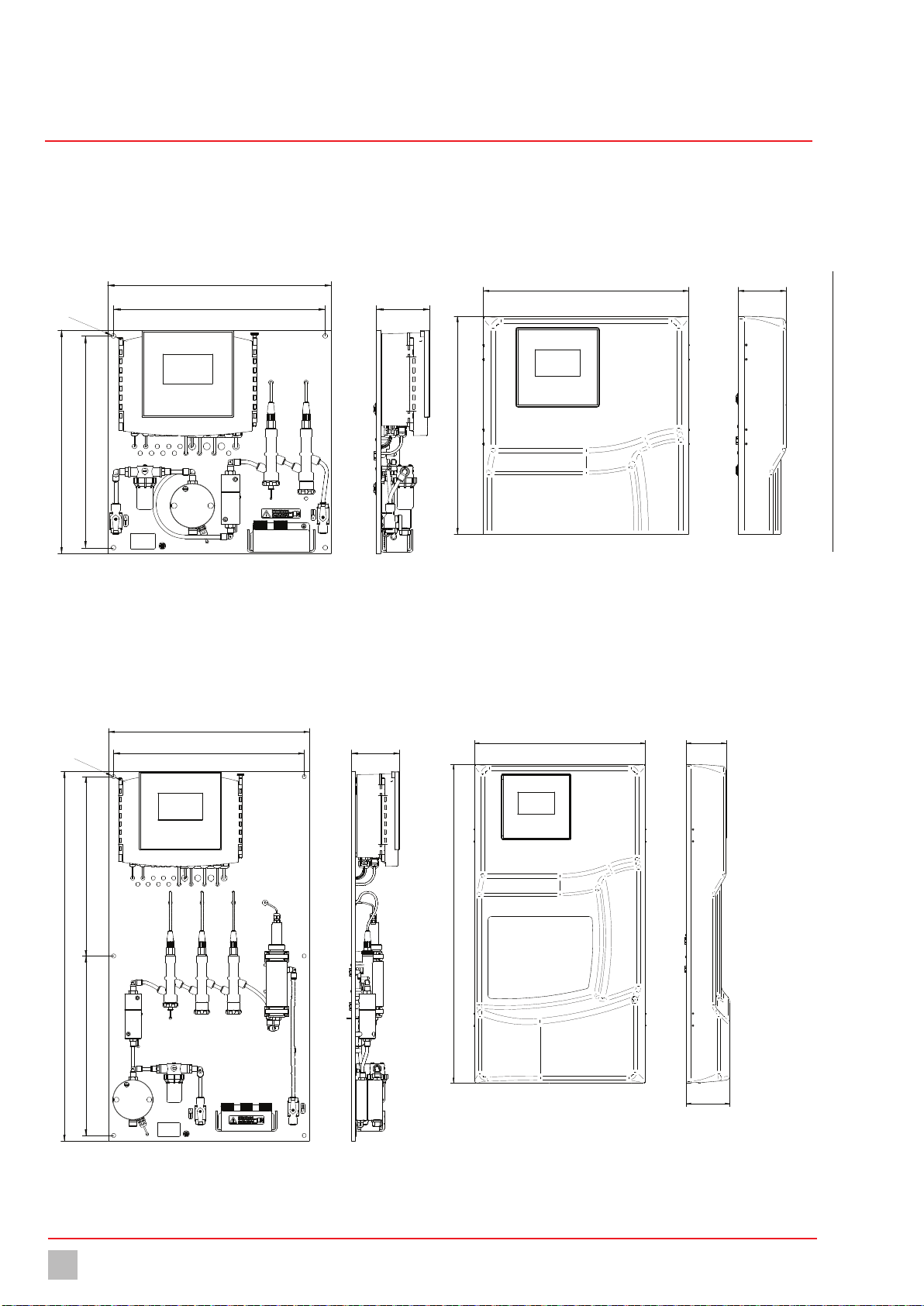

6 Dimensions
6.1 Water sampling station EASYPRO 1, 2, MB-C, ME-C
All dimensions in mm
490
464
490 464
Ø 10
117
Fig. 7: Dimensions water sampling stations EASYPRO 1, 2, MB-C,ME-C
6.2 Water sampling station EASYPRO 3, 4, MC-C, MD-C,
MP-C, MK-C
All dimensions in mm
Fig. 8: Dimensions water sampling stations EASYPRO 3, 4, MC-C,MD-C, MP-C, MK-C
500
42820001_5
Maßbild Messwassertafel EASYPRO 2 mit Abdeckhaube
117
530
Fig. 9: Dimensions cover water sampling stations EASYPRO 1, 2, MB-C,ME-C
500
42840001_5
Maßbild Messwassertafel EASYPRO 4 mit Abdeckhaube
117
933
128
Fig. 10: Dimensions cover water sampling stations EASYPRO 3, 4, MC-C,MD-C,MP-C
490
464
900
437
Ø 10
117
437

Dimensions 19
© Lutz-Jesco GmbH 2020
Subject to technical changes.
200310
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
6.3 Water sampling station EASYPRO 1/1, 2/2, MBB-C,
MEE-C
Ø 10
117
874
900
200
490
464
Fig. 11: Dimensions water sampling station EASYPRO 1/1, 2/2, MBB-C, MEE-C

Installation
20 © Lutz-Jesco GmbH 2020
BA-42820-02-V03
Water sampling station EASYPRO Operating instructions
7 Installation
7.1 Installation location of the water sampling station
EASYPRO
This section takes you through the installation step by step. The following
criteria must be taken into account when selecting the assembly location:
nThe installation surface is even.
nThe installation height is chosen so that the display of the controller is
at eye level for the user.
nBelow the water sampling station there must be at least 20 cm free
space to route the inflow and outflow pipes.
nAll lines and cables must be routed without kinks.
nThe sample water must reach the water sampling station from the ex-
traction point in as short a distance as possible in order to avoid
measured value deviations.
nAvoid direct sunlight or heat radiation.
7.2 Wall mounting
Resources required:
@Mounting set
@Drill
@Phillips screwdriver
The position of the fastening point is to be inferred from the dimensioned
drawings in chapter 6 „Dimensions“ on page 18. All 6 drill-holes have
to be used. The wall panel is clamped on the mounting bolts between two
nuts with washers. The unevenness of the wall can be levelled out by ad-
justing the nuts until the wall panel is kept level and free from tension.

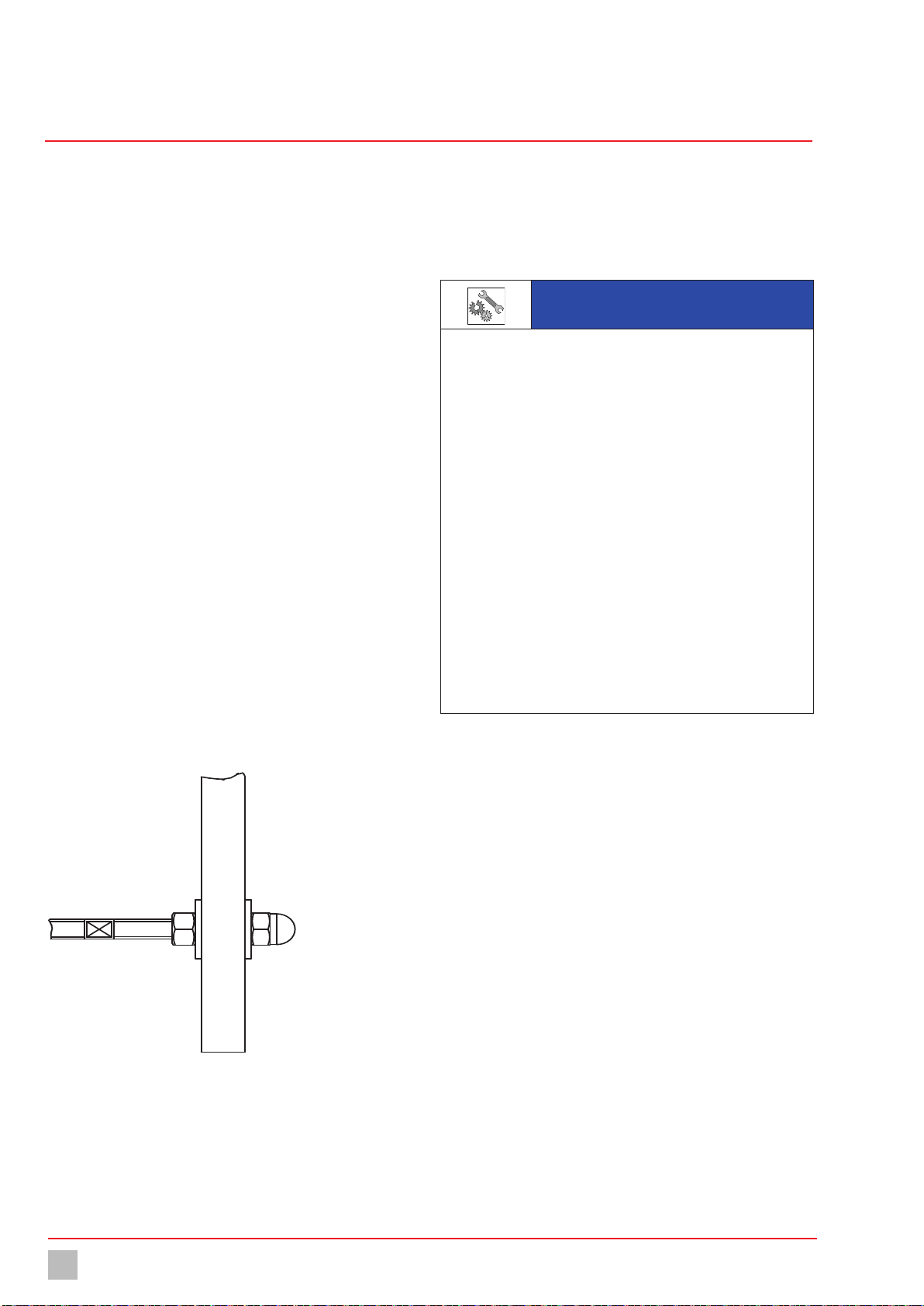

Fig. 12: Wall mounting
7.3 Installing the hydraulics
This section takes you step by step through the installation of the hose
connections to the water sampling station.
PLEASE NOTE
Hydraulic distortion of the measurement results
Incorrect installation of the hydraulic lines can distort the measurement
results. As a result, the controlling of connected systems and control
points may be faulty.
ðComply with all the guideline instructions for installing the water
sampling station and connected products.
ðOnly use hose connections made from polyethylene (PE) with a di-
ameter of 6/8 mm.
ðPrevent misrepresentations of the sample water en route to the
water sampling station by taking the sample water 30 cm above the
bottom of the tank or in the centre of the water pipe. The extracted
sample water must reach the water sampling station within a short
space of time, thereby arriving with a pressure of 0.2 bar.
ðIf the extraction or supply of the sample water does not satisfy these
requirements, an external sample water pump must be installed
before the water sampling station.
ðIf you expect heavy soiling (e.g. leaves,coarse, small floating mate-
rials,etc.) in the sample water,use an external pre-filter.It helps you
prevent blockages in the water sampling station.
Pre-conditions for actions:
ü
The wall mounting and electrical installation have been successfully
completed.
Perform the following work steps:
1. Connect the extraction point of the sample water to the inflow tap
(Fig. 2 „Water sampling station EASYPRO 4“ on page 10, pos. 5) by
plugging the hose into the inflow tap.
2. Connect the return-flow hose of the sample water to the outflow tap
(Fig. 2 „Water sampling station EASYPRO 4“ on page 10, pos. 12)
by plugging the hose into the outflow tap.
ü
The hydraulic of the water sampling station have been
successfully installed.
