Luxair LA-60-ASCENTI-SS Instruction Manual

HOOD INSTALLATION, MAINTENENCE AND USAGE
LA-90-ASCENTI-SS
LA-60-ASCENTI-SS
Please register your warranty at www.luxairhoods.com

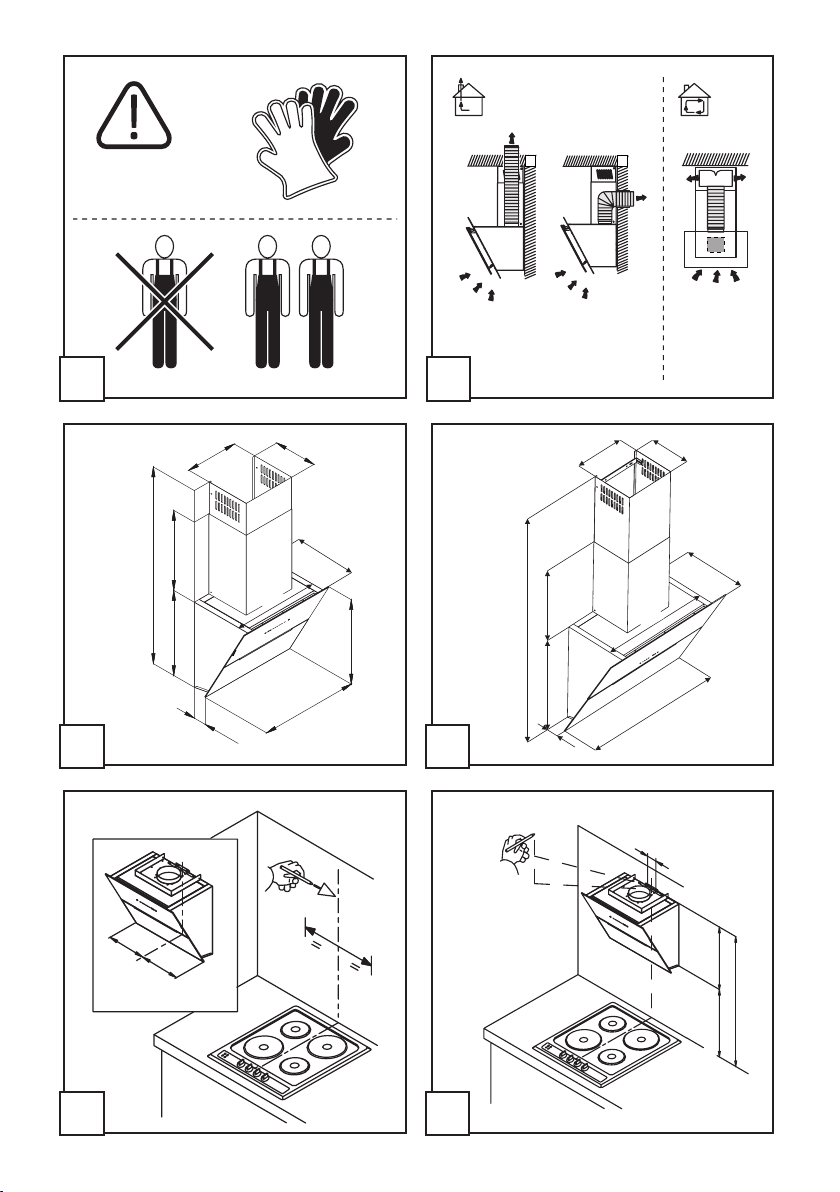

1
5
34
2
6
265
325
600
520 490
518
min 1160 - max 1470
115
900
325
265
416
80
min. 1245 - max. 1585
635 490
=
=
ELECTRICAL 550
GAS 650
Y
A
X
385
530
700

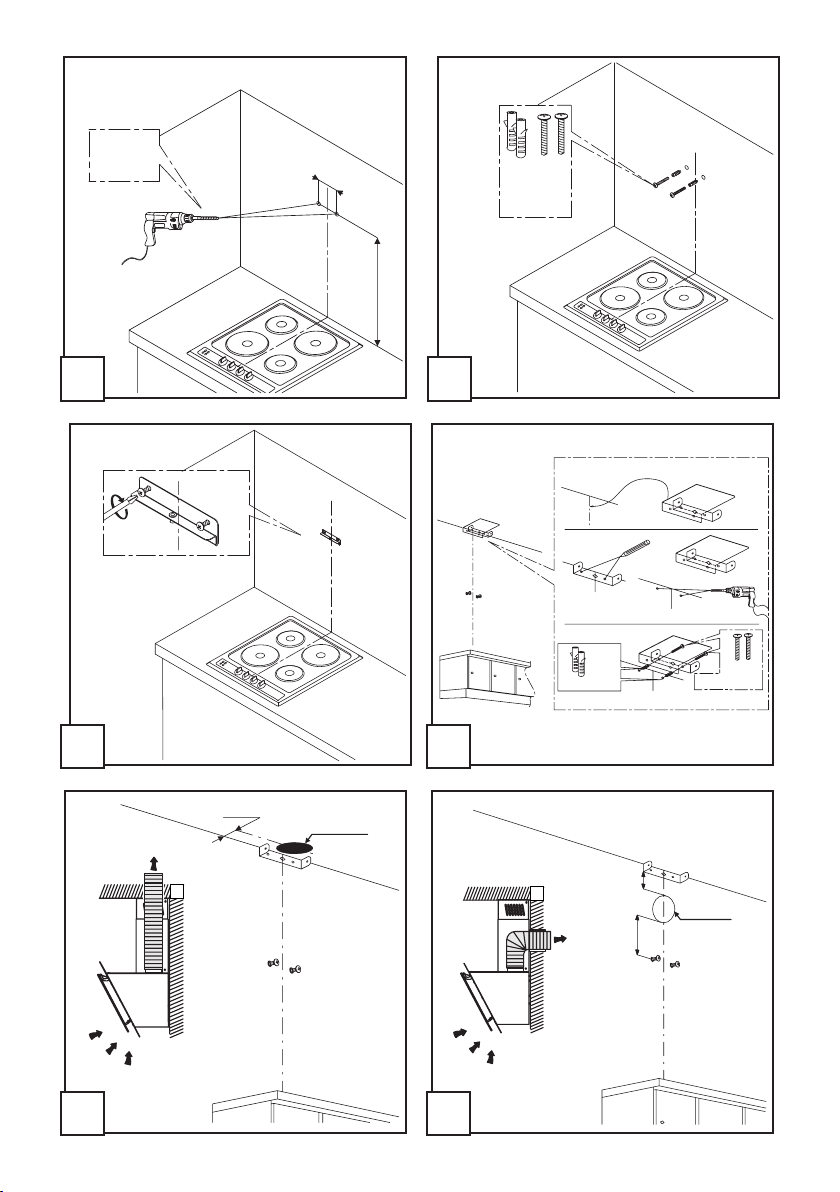

7
11
9
8
10
12
X
Y
2x
2x
10 cm
2x Ć8
Ć16cm
2x
8 x 40 mm
2x
4.5 x 50 mm
Ć
Ć
2x Ć8
8 x 40 mm
Ć4.5 x 50 mm
Ć
>1 cm
>30 cm
Ć16cm
This hood must be installed on minimum 125mm round ducting or rectangular equivalent*

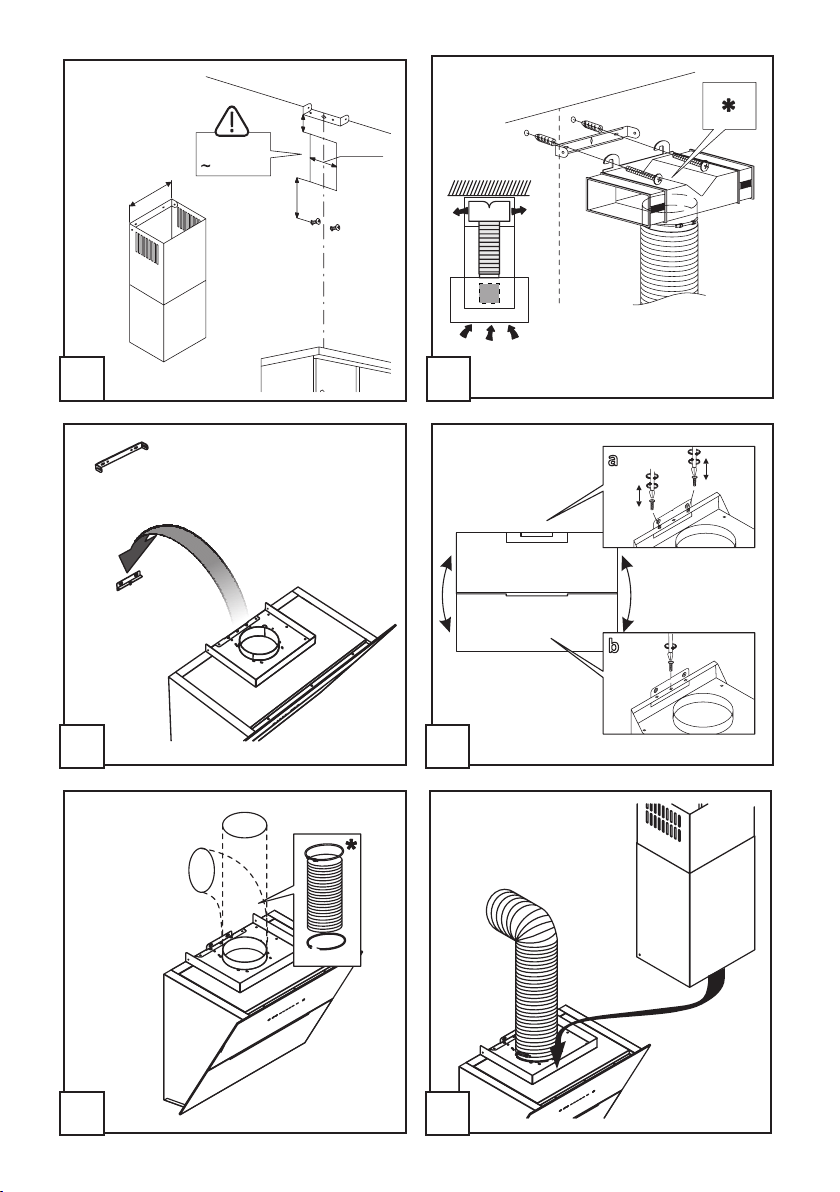

13
17
15
14
16
W cm
220-240V
50-60Hz
W -2 cm
>30 cm
>1 cm
b
a
18
This hood must be installed on minimum 125mm round ducting or rectangular equivalent*

21
20
19
22
4x Ć3.9 x 9.5
23
1
LED 2x3W

7
Closely follow the instructions set out in this manual. All re-
sponsibility, for any eventual inconveniences, damages or fires
caused by not complying with the instructions in this manual, is
declined. The extractor hood has been designed exclusively for
domestic use.
The hood can look different to that illustrated in the drawings in
this booklet. The instructions for use, maintenance and instal-
lation, however, remain the same.
! It is important to conserve this booklet for consultation at any
moment. In the case of sale, cession or move, make sure it is
together with the product.
! Read the instructions carefully: there is important information
about installation, use and safety.
! Do not carry out electrical or mechanical variations on the
product or on the discharge conduits.
Note: the elements marked with the symbol “(*)” are optional
accessories supplied only with some models or elements to
purchase, not supplied.
Caution
WARNING!
! Do not connect the appliance to the mains until the installation
is fully complete.
! Before any cleaning or maintenance operation, disconnect
hood from the mains by removing the plug or disconnecting
the mains electrical supply.
! Always wear work gloves for all installation and maintenance
operations. The appliance is not intended for use by children
or persons with impaired physical, sensorial or mental faculties,
or if lacking in experience or knowledge, unless they are under
supervision or have been trained in the use of the appliance

8
by a person responsible for their safety.
! This appliance is designed to be operated by adults, children
should be monitored to ensure that they do not play with the
appliance.
! This appliance is designed to be operated by adults. Children
should not be allowed to tamper with the controls or play with
the appliance.
! Never use the hood without effectively mounted grating!
! The hood must NEVER be used as a support surface unless
specifically indicated.
! The premises where the appliance is installed must be suf-
ficiently ventilated, when the kitchen hood is used together
with other gas combustion devices or other fuels.
! The ducting system for this appliance must not be connected
to any existing ventilation system which is being used for any
other purpose such as discharging exhaust fumes from appli-
ances burning gas or other fuels.
! The flaming of foods beneath the hood itself is severely pro-
hibited. The use of exposed flames is detrimental to the filters
and may cause a fire risk, and must therefore be avoided in
all circumstances.
! Any frying must be done with care in order to make sure that
the oil does not overheat and ignite.
! Accessible parts of the hood may became hot when used with
cooking appliance.
! With regards to the technical and safety measures to be adopted
for fume discharging it is important to closely follow the regula-
tions provided by the local authorities.
! The hood must be regularly cleaned on both the inside and
outside (AT LEAST ONCE A MONTH).
! This must be completed in accordance with the maintenance

9
instructions provided in this manual). Failure to follow the
instructions provided in this user guide regarding the cleaning
of the hood and filters will lead to the risk of fires.
! Do not use or leave the hood without the lamp correctly mounted
due to the possible risk of electric shocks.
! We will not accept any responsibility for any faults, damage or
fires caused to the appliance as a result of the non- ob-
servance of the instructions included in this manual.
! This appliance is marked according to the European directive
! 2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE). By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the envi-
ronment and human health, which could otherwise be caused
by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product,
indicates that this appliance may not be treated as household waste. Instead it should
be taken to the appropriate collection point for the recycling of electrical and elec-
tronic equipment. Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For further detailed information regarding the process, collection and recycling of this product,
please contact the appropriate department of your local authorities or the local department
for household waste or the shop where you purchased this product.
Use
The hood is designed to be used either for exhausting or filter version. The models with no
suction motor only operate in ducting mode, and must be connected to an external suction
device (not supplied).
The connecting instructions are supplied with the peripheral suction unit.

10
Ducting version
In this case the fumes are conveyed outside of the building by means of a special
pipe connected with the connection ring located on top of the hood. Attention!
The exhausting pipe is not supplied and must be purchased apart.
Diameter of the exhausting pipe must be equal to that of the connection ring. In the horizontal
runs the exhausting pipe must be slightly slanted (about 10°) and directed upwards to vent the
air easily from the room to the outside. Attention! If the hood is supplied with active charcoal
filter, then it must be removed.
Connect the hood and discharge holes on the walls with a diameter equivalent to the air
outlet (connection flange).
Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution
of the suction performance and a drastic increase in noise.
Any responsibility in the matter is therefore declined.
! Use a duct of the minimum indispensible length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! Use a duct with an as smooth as possible inside.
! The duct must be made of certified material.
Filter version (draw. 23)
Active charcoal filter is needed for this and can be obtained from your usual
retailer.
The filter removes the grease and smells from the extracted air before sending it back into
the room through the upper outlet grid.
Warnings
The hood is designed to be installed in a dropped ceiling The dropped ceiling must
be sturdy and have a load-bearing capacity suitable for a product with weight of 30kg.
Do not install the hood directly in the dropped ceiling panels, but use a suitable frame or
support.
The minimum distance between the supporting surface for the cooking equipment on the
hob and the lowest part of the range hood must be not less than 50cm from electric cookers
and 65cm from gas or mixed cookers.
If the instructions for installation for the gas hob specify a greater distance, this must be
adhered to.

11
Electrical connection
The mains power supply must correspond to the rating indicated on the plate
situated inside the hood. If provided with a plug connect the hood to a socket in
compliance with current regulations and positioned in an accessible area, after installation.
If it not fitted with a plug (direct mains connection) or if the plug is not located in an acces-
sible area, after installation, apply a double pole switch in accordance with standards which
assures the complete disconnection of the mains under conditions relating to over-current
category III, in accordance with installation instructions.
Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient
function, always check that the mains cable is correctly assembled.
The hood is provided with a special power cable ; if the cable is damaged, request a new
one from Technical Service.
Mounting
Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However,
a qualified technician must verify suitability of the materials in accordance with the type of
wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not
tile, grout or silicone this appliance to the wall. Surface mounting only.

12

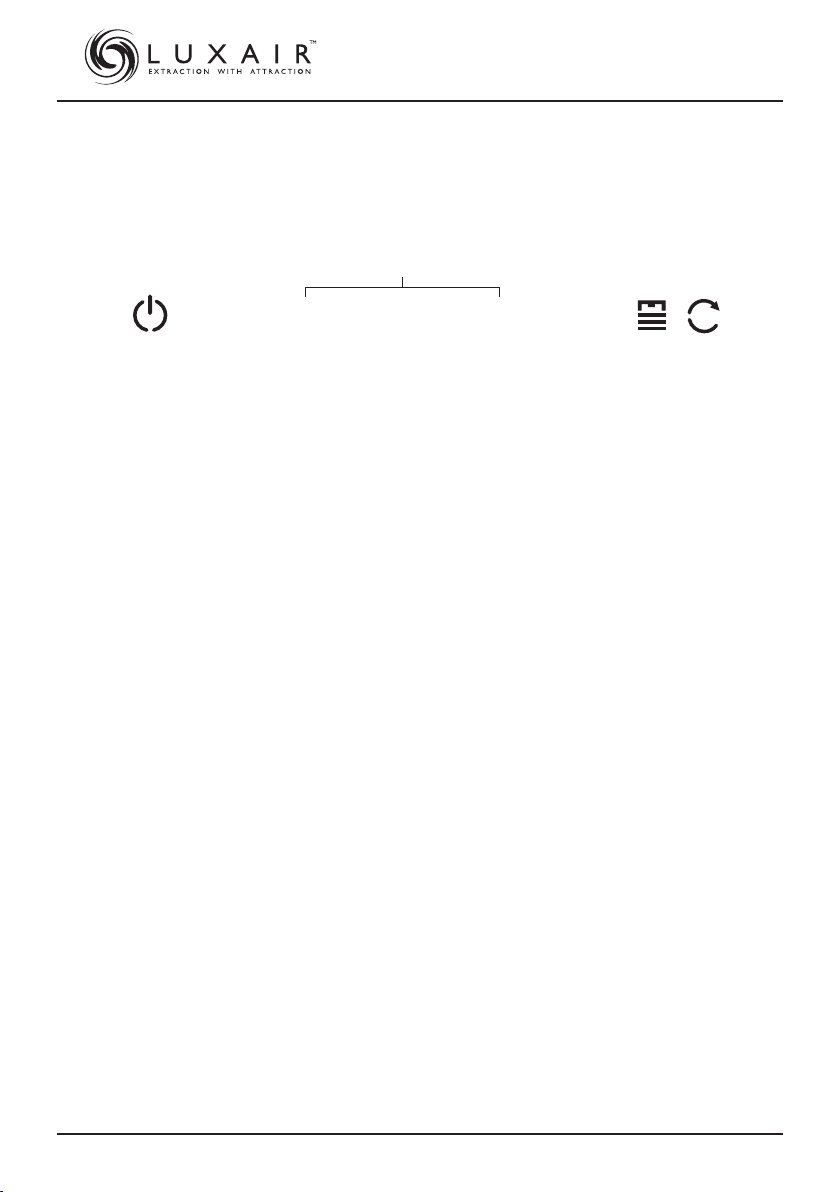

Operation
Use the high suction speed in cases of concentrated kitchen vapours. It is recommended
that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in
operation during cooking and for another 15 minutes approximately after terminating cooking.
To select the functions of the hood, it is enough to lightly touch and hold the control.
"ON / OFF”
Turns on the control panel / turns off the hood
Note: After about a minute of not using the hood (suction and lighting),
it automatically returns to the OFF position
ON/OFF lights
We turn on the lighting regardless of the "ON / OFF" status of the hood.
Manual selection of the suction speed (power):
1: gear (suction power) 1
2: gear (suction power) 2
3: gear (suction power) 3
4: gear, speed of suction intensive "BOOST”
After 5 minutes of "BOOST" operation, the hood returns to the suction power 3.
Timer - Delay in switching off the hood
After approximately 30 minutes, the hood will switch off automatically.
Note: This function is available for speeds selectable manually with the P3 buttons.
Filter saturation indicator and reset
The button will automatically light up steadily when the grease filter needs
maintenance.
The button will flash automatically when the charcoal filter needs to be serviced *.
After maintenance, with the hood off and the button active, press the button for more
than 3 seconds. To reset the filter saturation indicator, repeat this step as necessary
(e.g. if both types of filters are saturated).
ON/OFF operation mode “Refresh”
Every 50 minutes of inactivity, gear (suction power) 1 is engaged for 10 minutes.
P1
P2
P4
P3
P5
P6
* Activation of the carbon filter saturation indicator
The carbon filter saturation indicator is disabled at the factory, as the hood is configured by
default to operate as an exhaust hood. To activate the function of the carbon filter
saturation indicator (to operate the hood as an absorber), perform the following steps:
P6P4
P3 P5P2P1
2
134
LT

13
Cleaning
The cooker hood should be cleaned regularly (at least with the same frequency with which
you carry out maintenance of the fat filters) internally and externally. Clean using the cloth
dampened with neutral liquid detergent. Do not use abrasive products.
DO NOT USE ALCOHOL!
WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and
replacement of the filters may cause fire risks.
Therefore, we recommend observing these instructions. The manufacturer declines all respon-
sibility for any damage to the motor or any fire damage linked to inappropriate maintenance
or failure to observe the above safety recommendations.
Maintenance
ATTENTION! Before performing any maintenance operation, isolate the hood from the
electrical supply by switching off at the connector and removing the co n nector fuse.
Or if the appliance has been connected through a plug and socket, then the plug must be
removed from the socket.
With the control panel turned on (ON) press buttons P4 and P5 simultaneously for more
than 3 seconds, button P5 will light up steadily for about 5 seconds. to confirm activation of
the function.
To disable the indicator function also press the P4 and P5 buttons simultaneously for
approx. 3 seconds, the P5 button will flash for approx. 5 seconds. to confirm the
deactivation of the function.
LED light temperature function
The light adjustment mode is activated by simultaneously holding down the P1 and P2
buttons for approx. 3 seconds, the buttons will light up steadily, and additionally the buttons
1 and 4 will start blinking. Single pressing of the 1 or 4 key adjusts the color to one side by
10%. Holding down one of the keys causes a smooth tone adjustment. The selected color is
confirmed by pressing the P2 key or by no further action.

14
Replacing lamps

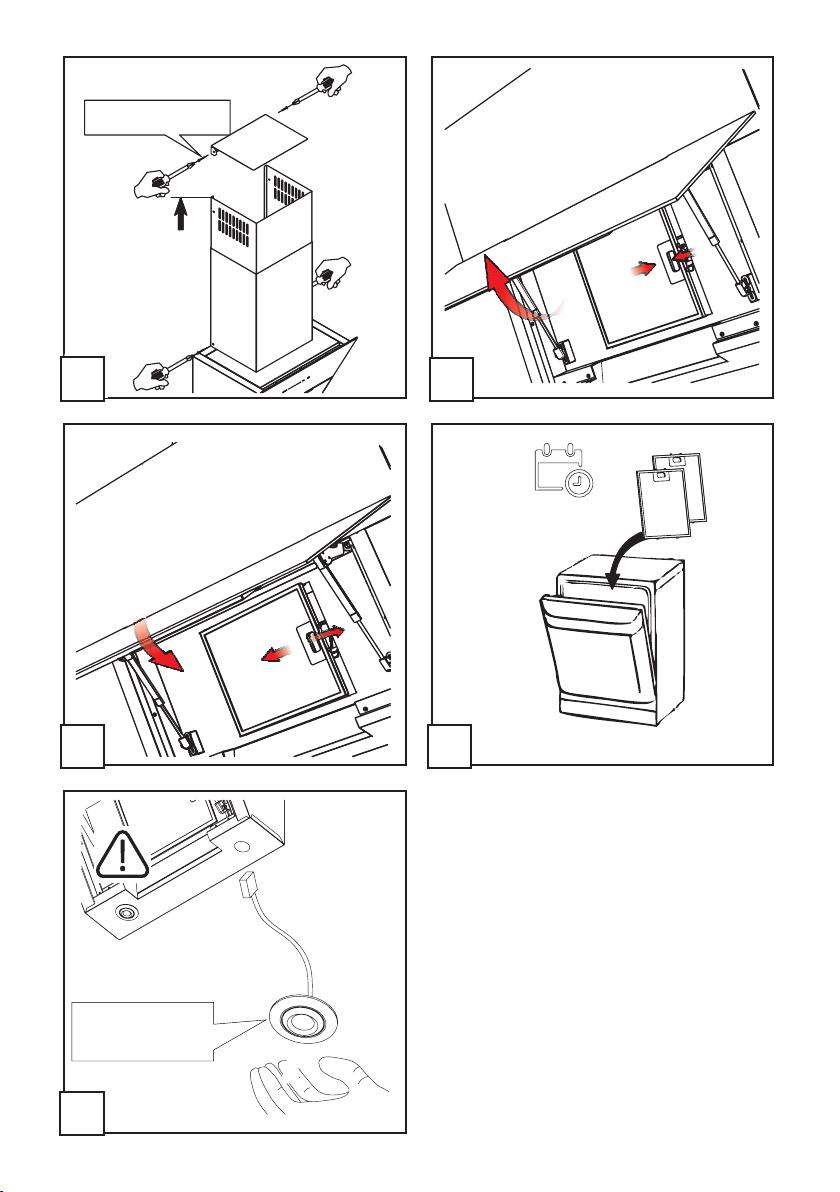

Refer to the drawing on page 6, as shown on the drawing 19-21. Disassemble the aluminium
filters (as shown on the drawing 9) then using your hand push the lighting downwards. Using
your other hand grab the lighting from the outside. Disconnect the complete element and
replace it with a new part. Proceed in reverse order to install the lighting.
IMPORTANT!! Always use the lighting of the same type as installed by the manufacturer.
If you are not sure which part to use contact your nearest dealer.
Grease filter
Traps cooking grease particles. This must be cleaned once a month using non aggressive
detergents, either by hand or in the dishwasher, which must be set to a low temperature and
a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this
does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.
Charcoal filter (filter version only)
It absorbs unpleasant odours caused by cooking. The saturation of the charcoal filter occurs
after more or less prolonged use, depending on the type of cooking and the regularity of
cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every
four mounths. The charcoal filter may NOT be washed or regenerated.
