LUXMAIN QUICK LIFT L520E User manual

73502-V6-19/05/2021
EN 1-24 QUICK LIFT L520E
Translation of the
original notice

2
QUICK LIFT L520E
DIMENSIONS
EN
Hydraulic power pack / weight 22 kg
FEATURES
Maximum Load 2 500 kg
Safety in case of mechanical fall YES (2 positions)
Safety in case of hydraulic hose rupture YES
Electrical installation 220 V (50Hz)
Power 0,75 kW
Hydraulic tank capacity 4L
Noise level < 70dA
Ascent and descent times 30 to 45 seconds
Protection rating IP54
Max. ramp position / weight 41 kg
Flat ramp

3
QUICK LIFT L520E EN
SAFETY AND FUNCTIONAL CHECK
Carried out by the manufacturer according to the following data:
The following elements are present:
 Technical nameplate on the product (hydraulic power unit)
 Instructions for use
 Max. load capacity (2 500 kg)
 Raise «UP», lower «DN» on the wired control unit.
 CE Identication
Controlled operation and safety:
Pressure relief valve set at 180 bars
Check:
 No-load function test over a complete cycle
 Operation of the mechanical safety devices and the emergency stop button
 Controls automatically return to the initial position
 No damage to the cylinders, the power supply cable, and the wired remote control cable
 Tight fastening of all bearing screws
 Condition of the hydraulic hoses (all connections are tightly fastened and sealed).
 Full cycle load operation
Serial No:_________________
Date:______________________
Name:______________________
The builder: Yantai Tonghe Precision Industry Co., Ltd.
Address : No. 151, Middle Road, Xili Industrial Park, Zhifu District Yantai City
Zip code: 264004
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.ytthjg.com & www.yt-tonghe.com
Flat ramp

4
QUICK LIFT L520E EN
EC DECLARATION OF CONFORMITY
Responsible for documentation
Yantai Tonghe Precision Industry Co., Ltd.
No. 151, Middle Road, Xili Industrial Park, Zhifu District Yantai City
Chine
Hereby declares that the machine
named herein
Yantai Tonghe Precision Industry Co., Ltd.
Corresponds to the safety require-
ments in the following EC directives
Elevating platform Type
Quick Lift
Reference
L520E
Serial No
(See page 3)
EC Certicate of Conformity EC Machinery Directive 2006/42/EC ROHS2 directive 2011/65/EU
and its amendment 2015/863
Report No. EN1493 :2010 EN50581 : 2012
Control body TF-C-1212-18-155-04-5A NGBEC1802310202
Organisme de contrôle
CCQS UK Ltd.
5 Harbour Exchange Square,
London, E14 9 GE, UK
ID Number 1105
NINGBI QIAOPU ELECTRIC CO.,LTd
Xiaoluxia Village, Simen Town, Yuyao City,
Zhejiang, China
This declaration of conformity becomes null and void if the design changes specied in the operating instructions have
an eect on the technical data and the intended use of the machine and thus signicantly alter the machine!
Mr Wang
C.E.O
Yantai,
Le 26/03/2020

5
QUICK LIFT L520E EN
Thank you for choosing GYS In order to obtain maximum satisfaction from your QUICK LIFT lifting platform and for
your safety, please read these operating instructions carefully before rst use and keep them in a safe place for future
reference.
BACKGROUND INFORMATION
These operating instructions contain important information for installation in order to ensure proper commissioning and
operational safety of the QUICK LIFT. Complying with the documentation reduces risks and extends the life of the pro-
duct. This manual contains a form to certify regular security checks. Use the «Regular Security Check» form to archive
the checks. (It is advisable to make a copy of the form before lling it in for the rst time.)
Installation and control:
Safety work and safety checks are reserved exclusively for specially trained persons. These persons are referred to in
this documentation as experts and/or skilled persons.
LIMITATIONS OF LIABILITY
The QUICK LIFT is a movable hydraulic lift designed in compliance with standards. All data and advice in this manual
have been collected in accordance with its applicable standards and regulations and our extensive knowledge and expe-
rience.
The manufacturer cannot be held responsible in case of material and physical damage that could lead to
death by:
• Non-compliance with the operating instructions
• Improper or dangerous use
• Use by unskilled persons
• Unauthorized modication of the product
• Insucient maintenance
INTENDED INTENDED USE
The QUICK LIFT is designed for the repair of passenger vehicles. It allows vehicles to be lifted safely. The maximum
load of the QUICK LIFT is 2500 kg.
The QUICK LIFT may only be used by persons who have read and understood the operating instructions.
A safety perimeter must be dened in which no one must be present during the lifting operation (minimum 2m around
the vehicle to allow escape if necessary).
The lifting of persons or other objects is not allowed. No one must be inside the vehicle to be lifted.
The QUICK LIFT must be used inside a work room and protected from bad weather (IP 20, wind, rain and negative
temperature).
The operating temperature range is between 5°C and 40°C maximum. In case of prolonged storage in a place where
the temperature is below 0°C, allow at least 12 hours before use by storing it in the workplace.
Do not use in excessively humid conditions.
This equipment is delivered with a 16 A CEE7/7 type plug and must only be used on a single-phase 220 V (50 Hz)
Never lift loads on sloping ground (>3°). The oor must be at and strong enough to prevent the QUICK LIFT from sin-
king under the weight of the load (35kg/cm²). Under no circumstances should the Quick Lift be placed on an inspection
hatch on the oor.
It is forbidden to use the QUICK LIFT on a boat/vessel (stability problem).
Thoroughly clean the supporting surface of the vehicle and the rubber pads of the QUICK LIFT before each use.
Remove any grease and oil stains that may cause the vehicle to slide.
Work underneath the vehicle during ascent and descent is not permitted.

6
QUICK LIFT L520E EN
Vehicles should only be lifted at the lifting points recommended by the car manufacturers. Make sure that the QUICK
LIFT does not come into contact with areas close to the airbag activation sensors during and after the climb.
Do not place the rubber spacers on an area with plastic lining.
Take care of electrical cables and hydraulic hoses, do not crush them or step on them.
In the event of a violent impact on the load-bearing and/or structural elements of the QUICK LIFT, it is imperative to take
the product out of service and contact your dealer or the manufacturer in order to assess the damage before putting it
back into service.
In case of doubt about the strength of the vehicle structure (presence of rust) - Do not lift the vehicle.
Intended use also includes familiarising yourself with these operating instructions and complying with all the instructions
contained therein, in particular the safety instructions.
Enforce safety and risk prevention standards in the country’s workplaces.
In addition, this also includes the obligation to carry out all inspection and maintenance work at regular intervals.
In the event of improper use of the lift, the operational safety of the QUICK LIFT is not guaranteed.
Damage to persons and property, also on vehicles, caused by improper use of the device is in no way the responsibility
of the manufacturer, but of the operator handling the QUICK LIFT.
QUICK LIFT must not be used in a potentially explosive atmosphere and it is not recommended to work next to a heat
source. The QUICK LIFT was not designed for use in a spray booth.
It is forbidden to use spare parts other than original parts certied by the manufacturer.
Make sure that your QUICK LIFT is in one of the two locked positions before you start working around or underneath.
Also make sure that the wired control unit cannot be manipulated by unauthorized persons.
At the end of a work session, return the vehicle to the ground to avoid operating the QUICK LIFT with a full load for a
long period of time.
PACKAGING AND UNLOADING
In a pocket in the hydraulic power pack, you will nd the QUICK LIFT operating and testing instructions. On delivery,
check for external transport damage. In case of visible damage, leave the goods and packaging as they are. Do not use
the goods and contact your dealer directly. Failing this, a reservation must be made to the carrier.
Unloading can be done either with two people wearing gloves and safety shoes or by means of a forklift truck.
INDIVIDUAL PROTECTION
The operator must be equipped in accordance with the occupational risk prevention standards applicable in his country
and must adopt all necessary measures to maintain safety at his workstation. During manoeuvres, the operator must
ensure his own safety and that of the people and objects around him. The operator must take into consideration all the
recommendations quoted in this manual.
Hydraulic uid is dangerous if splashed in the eyes or if it comes into contact with
blood. In this case, contact your doctor immediately. Never reach over your hand to
check for a hydraulic leak: risk of cut and contamination in the bloodstream that could
lead to death.

7
QUICK LIFT L520E EN
START UP
Make sure you have the necessary protection: pair of glasses, safety shoes and gloves.
Step 1 : Lay the two booms on the ground parallel by aligning the hydraulic hoses.
iThe ramps are very similar but they are not interchangeable.. The mechanical safety
must always be on the outside and the ramps pointing in the same direction.
STOP
UP
DN
Transport handles
Casters
Locking bar
(external side)
areas to receive the
rubber pads
Hydraulic hoses 4 m (x2)
Locking bar
(external side)
Wired telecom (4 m)
Ascent
Descent
AB
Hydraulic power pack
Electrical outlet


8
QUICK LIFT L520E EN
Step 2 : Place the hydraulic power pack at least 2 meters away from the ramps without connecting it to the electricity
supply. Attach the long hydraulic hoses to the hydraulic power pack. Do not overtighten, the sealing is done automati-
cally with the conical seat of the connections.
Step 3 : The tank of the hydraulic unit is empty. It must be lled with hydraulic oil or automatic transmission uid before
starting operation. Approved uids are general purpose hydraulic oils or synthetic automatic transmission oils with a
viscosity index of 32 cSt at 40°C.
Remove the fuel ller cap and ll it with up to 3.5L of oil through a clean funnel. Check the level and adjust if necessary.
Step 4 : Connect the hydraulic power pack to both booms using the quick couplings.

9
QUICK LIFT L520E EN
Step 5 : Turn the 2 ramps upside down and connect the hydraulic power pack electrically to a 220V single-phase socket.
Press the «» button on the remote control to go upwards without stopping (do not extend the cylinder rod to the maxi-
mum - maximum height from the ground to the highest point 40cm), press the «» button to go back down to the ground
without stopping. Repeat 2 or 3 times to expel air from the hydraulic system and cylinders.
Flip over the ramps and your QUICK LIFT is ready for use.
Up
STOP
Down

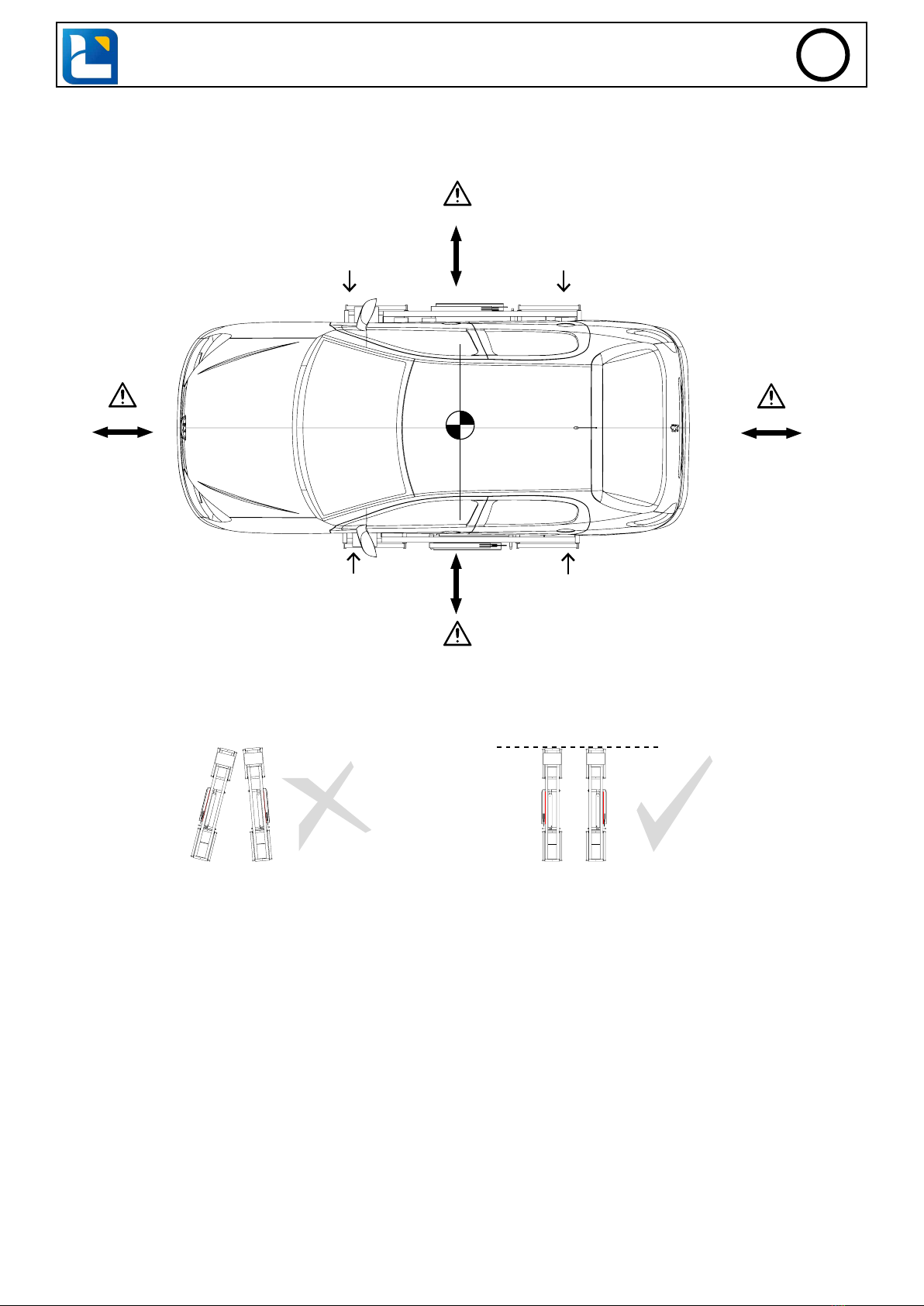

SAFTEY AREA
To achieve optimum safety, it is recommended to dene an area in which other objects or walls will
be at a certain distance (2m minimum). All descent, exit and parking manoeuvres must be carried out
with the best possible attention from the operator. Nobody must be stand in the safety area. In order
to guarantee the operator’s safety, the control box must be located at a distance that allows an escape
route in case of emergency.
INSTALLATION
Once the tool has been removed from its packaging, assembled and positioned on the ground, perform a no-load test
to check the QUICK LIFT’s general operation.
There are two positions for locking the height of the QUICK LIFT, which we will call height 1 and height 2 (max. height)
in the rest of the manual.
Height 1 Height 2
Locking bar in locked
position height 1
Height 1 Height 2
First of all, the QUICK LIFT must never be lifted unladen (without load) to the maxi-
mum stop (above height 2). The ramps could get stuck and never come down again.
They are designed to support a load during lifting. If this happens to you, please refer
to the paragraph «Abnormalities, Causes, Remedies».
Make sure you have the necessary protection: pair of glasses, safety shoes and gloves.
1/ UNLADEN INSTALLATION:
Connect the power cord of the hydraulic unit to a 230 V single-phase supply.

QUICK LIFT L520E EN
10
2/ CHECKING THE AMOUNT: use the wired remote control
a. Press the «UP» button until the QUICK LIFT rises a few centimetres (5 to 10 cm max.). Visually check all hydraulic
connections (cylinders, hoses, couplings, power pack) for hydraulic leakage. If you notice a slight leak, tighten the
connection until there is no more leakage. If you see a large leak, immediately press «DN» (down) until the QUICK
LIFT is lowered to the ground. Tighten the connection rmly and repeat the test until there is no more leakage.
i
It is advisable to place a cardboard box between the oor and the QUICK LIFT and
even at the level of the quick connections in order to identify possible leaks more easily
during the rst start-up.
Be meticulous when applying a sealing tab or Teon to hydraulic connections. Do not
pollute or clog the hydraulic system. There are lters that could become clogged and
prevent the QUICK LIFT from working properly.
3/ CHECKING THE SAFETY SYSTEM AT HEIGHT 1:
Press «UP» again and move a few centimetres higher than height 1 so that the safety devices of both ramps protrude a
few centimetres above the locking block at height 1.
iWhen unladen, there may be a greater oset in the height of the ramps in relation to
each other and therefore in the passage of the locking bars on the blocks. This is nor-
mal. On load, the ramps will be synchronized and the oset will be corrected.
Pressing «DN» (down) will lower the ramps until both locking levers are in the locked position as shown in the diagram
below.
Locking bar
Unlocking cam
Locking block Locking position
4/ DOWN THE RAMPS TO THE GROUND:
a. Press «UP» to raise the QUICK LIFT by 2-3cm and then raise the safety locking bars with your hand or foot so that the
unlocking cam can come into contact with the ground when it is in its resting position.
b. Make sure both release cams are resting on the ground before pressing «DN» (down).
c. Press «DN» (down) until QUICK LIFT has returned to the initial position.
« UP »
« DW»
Locking position
UP DOWN
INSTRUCTIONS
Before lifting a vehicle, make sure the handbrake is released and the vehicle is left in
neutral. The wheels on take-o from the ground need to be free. Otherwise, there is
a risk that the load will slip on the rubber pads and lead to a dangerous and unstable
situation.
Once the tool is correctly positioned under the vehicle, certain rules must be observed:
• Check that no one or bulky objects are inside the safety area. (2 m minimum all around the vehicle).
• Check that the ramps are positioned at the pick-up points given by the car manufacturers. Observe the load distribution
with max. 2/3 at the front of the ramps and max. 1/3 at the back. If in doubt, seek specialist advice.

11
QUICK LIFT L520E EN
• Do not lift any loads directly with the ramps. Always use the supplied rubber spacers in the trays provided for this
purpose.
• The centre of gravity of the vehicle to be lifted shall be midway between the rubber chocks and centred between the
ramps.
PROTOTYPE
Ce document est la propriété de la société GYS et ne peut en aucun cas être transmis à quiconque sans son accord.
Désignation:
Nom du fichier CAO:
Statut:
Indice:
A
Etabli par:
Date:
Feuille:
19_10201
1/1
Mickaël TEXIER
01/10/2019
Études
Assemblage
Produit:
Front ramp
2 m mini. 2 m mini.
2 m mini.
2 m mini.
2/3 1/3
Front ramp
Back ramp
Back ramp
• It is important to ensure that the ramps are parallel to each other and aligned at the front and rear before lifting the
vehicle. Failure to perform this check could result in vehicle instability and lead to a dangerous situation.
There are two special cases when lifting a vehicle with QUICK LIFT, you should be aware of this:
Case 1:
Do not deploy both ramps at full height when unladen. One way to become familiar with the use of your QUICK LIFT is
to raise and lower the ramps several times without putting a load on them (without a vehicle). The frames can lock at
full height when there is no load and if you force the 2 safety bars beyond height 2 simultaneously. If this happens to
you, contact your dealer or the manufacturer.
Case 2:
Do not attempt to lift a vehicle if there is no deployment space above the ramps. Your QUICK LIFT needs a space of a
few centimetres between the wheel chocks and your car so that the pressure gradually increases and lifts the vehicle.
It won’t be able to lift a vehicle in some cases. It’s not a malfunction. This can be problematic if, for example, you lift
a vehicle and once raised you remove the wheels and return the QUICK LIFT to its original position (on the ground).
When you want to pull the vehicle up, the QUICK LIFT will not be able to do so. In this case contact your dealer or the
manufacturer for assistance.

QUICK LIFT L520E EN
12
Please never go below height 1 if the vehicle has the wheels removed. And make sure that both locking bars are locked
if the vehicle is to remain in this position for a long time.
Ramps in lifting position:
When raising and lowering vehicles, always leave your ramps in the locked position using the locking bars. Not all lifts on
the market, including the QUICK LIFT, are designed to hold their full load unless they are placed in the locked position.
For deploying Quick Lift ramps and lifting a vehicle:
a. Verify that the vehicle’s hand brake is o and that there is no gear engaged before deploying the ramps (please refer
to the vehicle manual in some cases for the procedure).
b. Insert the rubber spacers on the ramps and in the areas provided for this purpose.
c. Press and hold the «UP» button on the remote control. The ramps are starting to deploy.
d. Just before the rubber chocks make contact with the vehicle chassis, release the «UP» button.
e. Check the areas where the rubber chocks will come into contact with the vehicle chassis. If necessary, adjust the
rubber lifting wedges at the undercarriage pick-up points (manufacturer’s recommendation).
f. Press the «UP» button on the wired control. When the vehicle leaves the ground, do not stop the deployment of the
ramps until the rst locking position is reached. Never leave a vehicle elevated unless both safety bars are in the locked
position.
g. Test the stability of the vehicle: if this is not the case, return the vehicle to the ground immediately by pressing «DN»
(descend) and check the cause before raising the vehicle.
h. Raise the vehicle to either Lock Height 1 or Lock Height 2. When you have reached the desired locking position, press
«DN» (down) on the remote control to lower and bring both ramps to the locked position.
i. Make sure that both ramps are in the locked position and that all rubber chocks are in contact with the vehicle.
j. Once these 2 points have been checked, carry out a stability test to check that the car is stable..
k. Store the remote control so that it is not used by mistake.
l. It is after these 3 tests that you will be able to work safely around and under the vehicle.
The manufacturer will not assume any civil or criminal liability for damage caused to
persons if the operator does not comply with the above recommendations.
Never stand around or under the QUICK LIFT if you have to remove a heavy object from
the vehicle (engine, gearbox...). The vehicle could become unbalanced and cause the
QUICK LIFT to tip over. Do not take any risks, always be outside the safety zone (mini-
mum 2m) during an ascent or descent manoeuvre.

13
QUICK LIFT L520E EN
Transport handles. Locking bar
The ramps are equipped with directional wheels
moving back and forth and left and right.
Descent:
Before carrying out the lowering manoeuvre, check that there are no persons or obs-
tacles in the safety area. Also check that there are no obstacles in the booms, that
the hydraulic hoses and the remote control cable do not obstruct the booms’ descent.
Position yourself so that you have an overview of the situation and can act quickly in
the event of a problem.
Position yourself outside the security perimeter and press the «UP» button on the wired remote control so as to raise
the ramps by 2-3 cm. Without going under the vehicle, with one hand or foot raise the locking bars so that the 2 cams
rest on the ground.
Press «DN» (down) until the ramps return to the initial position. Please make sure that the cams slide smoothly through
each passage of the locking blocks. Otherwise, pull the vehicle up by pressing «UP» to catch up and until you can put
the release cam back on the ground.
iThe buttons on the remote control always return to their initial position when the ope-
rator does not press them to ensure that all manoeuvres are intended. After operating
the remote control, it is strongly recommended that you place it in a place where unau-
thorized persons or children will not be able to use it.
CONTROLS AND MAINTENANCE
Inspections and maintenance work must be carried out by authorised personnel at the maintenance intervals specied
in this manual. In order to guarantee a long service life and proper use of the QUICK LIFT, the following points must
be observed.

QUICK LIFT L520E EN
14
• Turn o the power to your Quick Lift before performing any maintenance..
• Only original spare parts can be used «Spare parts»
• The recommended maintenance intervals must be observed «Maintenance table»
• For maintenance work that is not covered or indicated in the operating instructions, contact your distributor and/or
the manufacturer.
i
Clean the QUICK LIFT at least once a week to remove all dust and dirt that could de-
grade the proper functioning of the product in the long term. Use auto cleaning cloths.
Do not use any water nor ammable or corrosive liquids.
Visually inspect your QUICK LIFT before each use. Do not use it if you detect damage
or severe wear and tear.

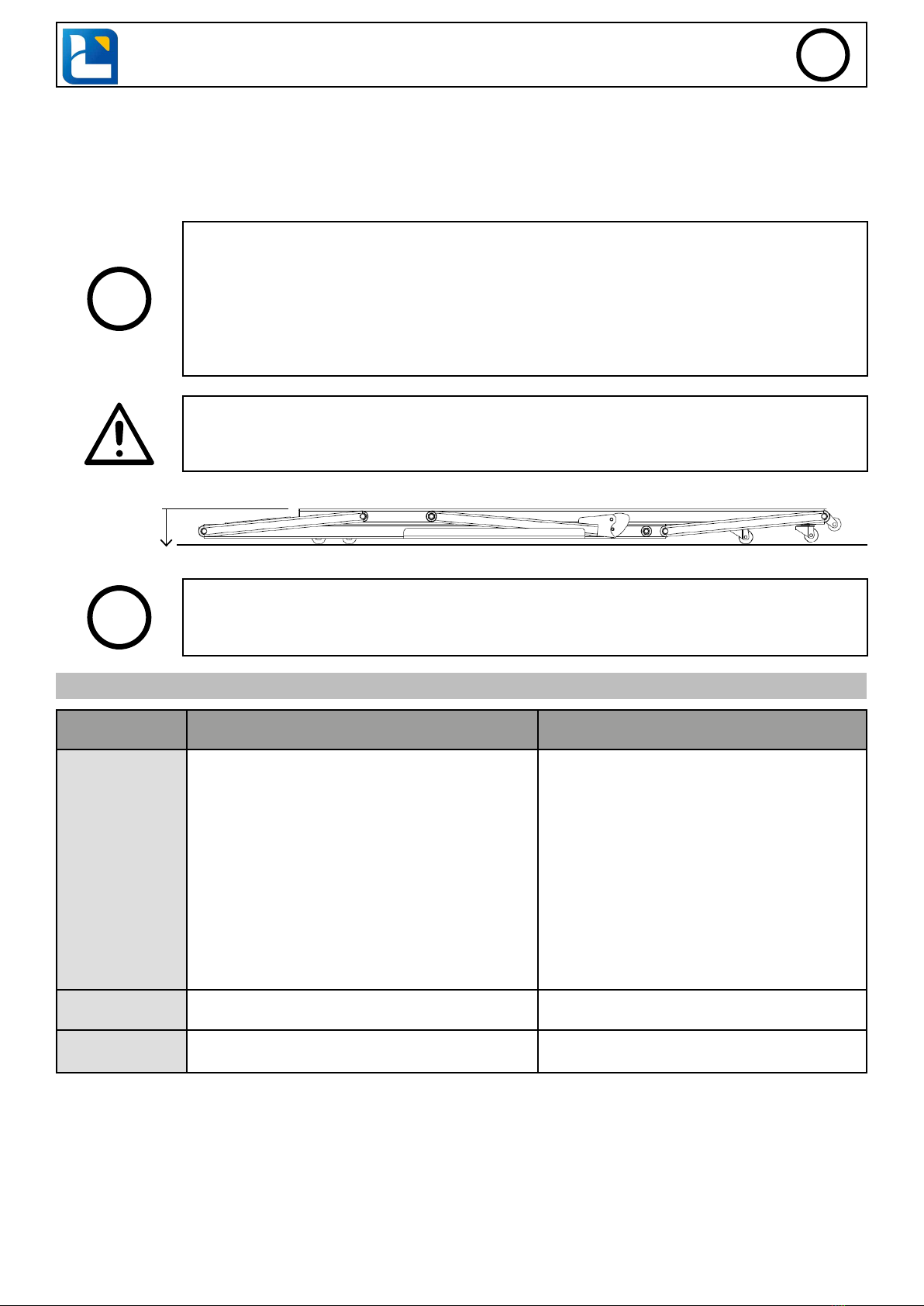

Carry out maintenance work only when the QUICK LIFT is lifted, locked and unloaded.
To disconnect the hydraulic quick couplings make sure that the QUICK LIFT is comple-
tely on the ground as shown in the diagram below. Otherwise there will be hydraulic
leakage when disconnecting.
min
iIf you feel signicant resistance when trying to disconnect a hydraulic coupling, it
means that pressure is still present. Press "DN" on the remote control to make sure
that there is no more pressure in the circuit and that both ramps are on the ground.
MAINTENANCE TABLE
Maintenance
intervals Task Remarks
Monthly
Check, clean and lubricate all moving parts, especially
the pins and sliding surfaces of the locking bars.
Check the condition of the rubber spacers and clean
them.
Check the locking bars, the locking cams and the
condition of the pins.
Check the condition of the hydraulic hoses, the cable
of the wired remote control and the power supply
cable.
Check the hydraulic oil level
Refer to "Check and lubrication point".
Replace if necessary (Refer to the exploded view
"Spare parts")
Complete if necessary:
Synthetic oil (5l) 32 Cst at 40°C (ref. 062160)
Annual
"Regular safety check"
Complete oil replacement"
For the test protocol, refer to "Regular safety
check
Every 5 years of
service
Replace the complete set of hydraulic hoses. "Refer to the exploded view.
«Spare parts»
Maintenance must be carried out at regular intervals.
Use the «Regular Security Check» form and the Maintenance Log to archive regular and annual checks.
Make a copy of the QUICK LIFT status report and attach it to the operating instructions.
Regular safety checks must be carried out by an authorised person. It is recommended to perform maintenance simul-
taneously.

15
QUICK LIFT L520E EN

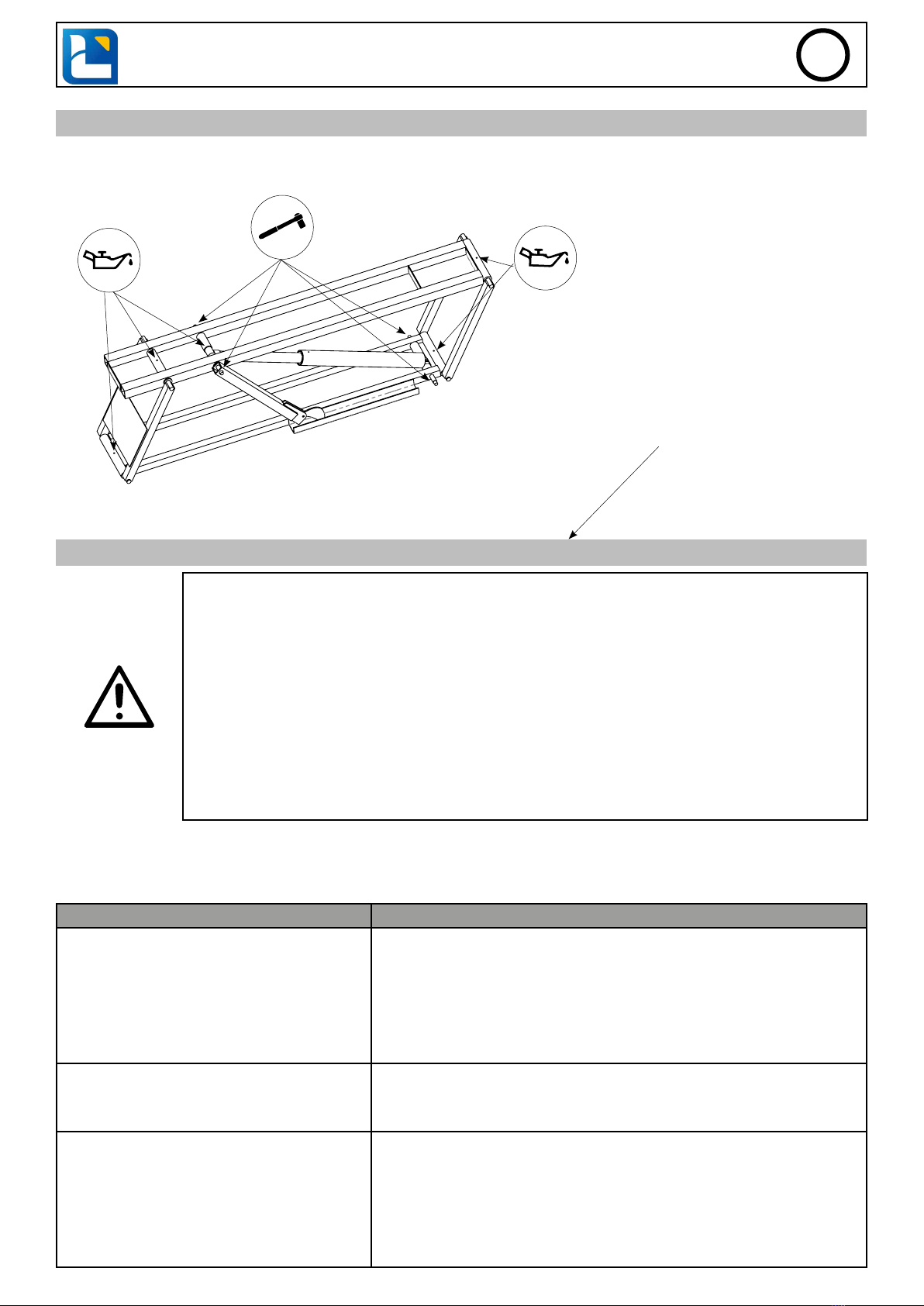

CHECK POINT AND LUBRICATION
All hinge pins are provided with a small hole for lubrication with SAE 90 type oil (uid oil). The 6 lubrication points per
boom are shown opposite.
Check that the axle nuts are correctly tightened (the nuts are tted with a brake to prevent loosening).
Tolérances générales Description Jusqu'à 1000 Jusqu'à 400Jusqu'à 120 Jusqu'à 30 Jusqu'à 6Jusqu'à 3
Mécanique ±0.05 ±0.05 ±0.1 ±0.15 ±0.2 ±0.3 ISO 2768-F
Plan de Contôle
PROTOTYPE
Quick Lift
Format :
23/09/2019
Ce document est la propriété de la société GYS et ne peut en aucun cas être transmis à quiconque sans son accord.
Matière:
Masse:
Surface:
Date modification: Modifié par:
MPF / Commentaire: Indice:
Désignation:
Nom du fichier CAO:
Echelle:
Statut:
Indice:
A
Etabli par:
Date:
Feuille:
19_03176
1/1
(Gys)
Mickaël TEXIER
mickael A
Études
1:10
A4
Traitement:
(Code ST Gys)
PROTOTYPE
Produit:
MECANIQUE
Ra (µm) Sciage: Ra 25 Fraisage: Ra 3.2 Tournage: Ra 1.6 Casser les angles: 0.2 x0.2
11/03/2019
TROUBLESHOOTING, CAUSES, SOLUTIONS
Hydraulic Power System Warning: Failure to follow these precautions can result in se-
rious injury and, in rare cases, death.
All connectors must be properly assembled together before using the Quick Lift or ap-
plying pressure.
Never attempt to connect or disconnect the couplers while the equipment is in opera-
tion or if the hydraulic system is under pressure.
Wear protective equipment (goggles, gloves and safety shoes) when handling the
Quick Lift.
If hydraulic uid comes into contact with the eyes, enters the bloodstream or is swal-
lowed, consult a doctor immediately.
Take every precaution to prevent dust or other debris from entering the hydraulic sys-
tem.
The table below shows the anomalies that can be observed when using the QUICK LIFT. If the problem is not listed in
the table below, stop using the tool and immediately contact your dealer or the manufacturer for instructions.
TROUBLESHOOTING CAUSES
Ramps deploy abnormally or do not des-
cend well. (Trembling)
Check that there are no hydraulic leaks or that one of the hoses is not
pinched or crushed.
Check that the solenoid valve is active (red knob must be in the down
position).
Check that there is sucient hydraulic uid in the tank.
Check that the generating set is working (motor noise).
Bleed the cylinders (procedure p.9).
The ramps are in the maximum position
(unladen, without vehicle) and do not des-
cend.
Contact your dealer or the manufacturer. You need assistance.
The ramps do not deploy from their low
position.
The red button on the remote control has been activated.
Turn the button 1/4 turn to deactivate the stop button.
Check that the weight of the vehicle is not > 2500kg.
Check that your vehicle has its wheels.
There must be a minimum space of 2 to 3 cm between the vehicle's
gripping points and the rubber chocks. For a 2500kg vehicle it will
take several centimetres (about ten).

QUICK LIFT L520E EN
16
The ramps go down slowly without using
the wired remote control.
Check that the ramps are in the locked position. Never leave the
ramps loaded without rst locking the safety bars.
Check that the mechanical control (gold knob) of the solenoid valve
is activated. It must be in the down position. If it is in high position it
means that the circuit is open and the oil automatically returns to the
tank (there is no pressure in the circuit).
When the power is switched on, the ramps
are neither up nor down.
The fuse of the electrical box has blown. Replace the fuse by a new
one.
DEACTIVATION
Any equipment that appears damaged in any way, does not operate normally, or has missing parts should be taken out
of service immediately by removing the power cord from the electrical outlet. Do not use the unit if you notice parts are
broken, bent or cracked.
START-UP
The QUICK LIFT must be disposed of in accordance with the current environmental and disposal guidelines of the
country in which it is located.
WARRANTY CONDITIONS
The warranty covers any defect or manufacturing defect for 2 years from the date of purchase (parts and labor). - The
warranty does not cover incidents due to misuse, fall, disassembly or other damage due to transportation. The warranty
does not cover normal wear and tear of parts if maintenance is not kept up to date. Only spare parts from the manu-
facturer may be used to repair the QUICK LIFT.
The characteristics of maximum load appear on the labels sticked on the product. The user must not remove, dirty or
deface these labels. The warranty will be void if these labels are falsied. Contact the retailer or manufacturer to get
new ones if needed.
In case of failure, return the unit to your distributor together with:
- The proof of purchase (dated bill, ticket ...)
- An explanatory note of the failure.
- Copy of «Regular Security Checks»

17
QUICK LIFT L520E EN
OPTIONS : SKIDS FOR SUV (réf. 065017)
A
A A
A
x2
OPTIONS : EXTENSIONS (réf. 066328)
A A
AA
A A
+
x2

QUICK LIFT L520E EN
18

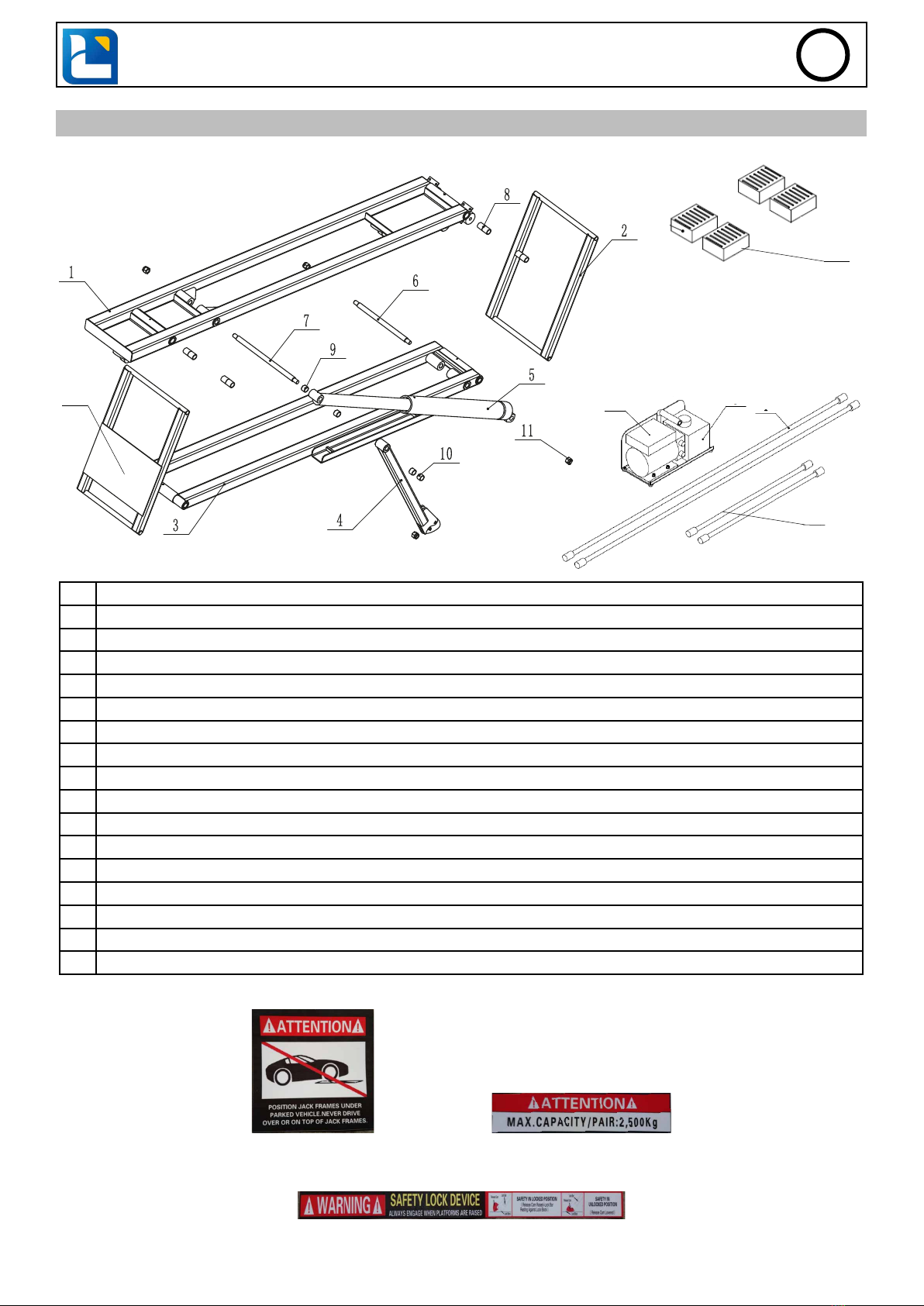

SPARE PARTS
1
2
34
5
6
7
8
11
9
10
Quick Lift components List
1. Lifting Frame (2 pcs)
2. Rubber Plate (4pcs)
3. Power Unit AC 220V/50Hz（DC12V battery holder optional）
4. 4M Hydraulic Tube
5. Supporting Palm for SUV(4pcs) (optional)
Quick Lift components List
1. Lifting Frame (2 pcs)
2. Rubber Plate (4pcs)
3. Power Unit AC 220V/50Hz（DC12V battery holder optional）
4. 4M Hydraulic Tube
5. Supporting Palm for SUV(4pcs) (optional)
Quick Lift components List
1. Lifting Frame (2 pcs)
2. Rubber Plate (4pcs)
3. Power Unit AC 220V/50Hz（DC12V battery holder optional）
4. 4M Hydraulic Tube
5. Supporting Palm for SUV(4pcs) (optional)
Quick Lift components List
1. Lifting Frame (2 pcs)
2. Rubber Plate (4pcs)
3. Power Unit AC 220V/50Hz（DC12V battery holder optional）
4. 4M Hydraulic Tube
5. Supporting Palm for SUV(4pcs) (optional)
13 14
15
16
12 17
1Upper ramp frame
2Connecting rod rear ramp
3 Lower ramp frame (specify right or left)
4Locking bar (complete)
5Jack
6 Axis A
7 Axis B
8 Spacer 15 x 19 x 22 mm
9 Spacer 15 x 19 x 16 mm
10 Spacer 15 x 19 x 10 mm
11 Brake nut M12
12 Connecting rod front ramp
13 Hydraulic power pack
14 Long hydraulic hose (4 m)
15 Short hydraulic hose ( 1 m)
16 Set of rubber chocks (x4)
17 Fusible 10 A - 250 V
Sticker «warning 1» Sticker «warning 2»
Sticker «warning 3»

19
QUICK LIFT L520E EN
ELECTRIC CIRCUIT
SB1 UP SB2 Down
YV
Down Solenoid
Valve
RD Circuit
Breaker
10A250V
M
N
L
L
AC220
PE
JAT Emergency Stop
HYDRAULIC CIRCUIT
Mark N o . Revised Name S i g n i t u r e D a t e
D e s i g n
D a t e
D r a w i n g M a r k Quantity S c a l e
Sheet No.
Total Sheet
Y a n t a i T o n g h e P r e c i s i o n I n d u s t r y C o . , L t d
H y d r a u l i c d i a g r a m
L520E
1 . 5 : 1
M
Filter
Electric machinery
Overflow
valve
Two-position two-way
electromagnetic
reversing valve
Single spring valve
Synchronizing valve
Explosion
proof valve
Oil-Cylinder
Oil-Cylinder
Gear pump
Explosion proof
valve

20
QUICK LIFT L520E EN
REGULAR SAFETY INSPECTION
Product description QUICK LIFT L520E
Serial number
Verication phase OK NOK Remarks
Max. load capacity 2500kg present on the 2 ramps
Up "UP" and down "DN" signal present
Operating instructions (original) present
Tightening of nuts on all axes
Condition of hydraulic hoses and couplings
Condition of the wired remote control and its cord
The buttons on the wired remote control return to the initial
position automatically and charging stops.
The emergency stop button is functional.
Condition of the load-bearing construction (mechanical struc-
ture)
Condition of the locking blocks (height 1 and height 2)
Condition of locking bars, cams and pins
Condition of the jacks (leaks, rust...)
Condition of the rubber chocks (and 4x4 option)
Condition of the power cord of the hydraulic power pack
General condition of the hydraulic power pack
Functional test of the lifting platform with vehicle
Complete replacement of hydraulic circuit oil
Control result
Commissioning is not allowed
No anomalies: commissioning granted
Security check carried out on: ............................................................................................................................
Name and address of the authorised person: .......................................................................................................
Signature of the authorised person
