Luxman S5 User manual

Note: Explanations of required symbols in the operating manual shall precede
any operating instructions.
IMPORTANT SAFETY INSTRUCTIONS
1.Read these instructions – All the safety and operating instructions should be
read before this product is operated.
2.Keep these instructions – The safety and operating instructions should be
retained for future reference.
3.Heed all warnings – All warnings on the appliance and in the operating
instructions should be adhered to.
4.Follow all instructions – All operating and use instructions should be followed.
5.Do not use this apparatus near water – The appliance should not be used
near water or moisture – for example, in a wet basement or near a swimming
pool, and the like.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the
manufacture’s instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding plug. A
polarized plug has two blades with one wider than the other. A grounding plug
has two blades and a third grounding prong. The wide blade or the third prong
is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at the
plugs, convenience receptacles, and at the point where they exit from the
apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart or rack is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.
13.Unplug the apparatus during lightning storms or when unused for long
periods of time.
-1-

WIRELESS STREAMING SPEAKER ARRO Studio Collection S5
14.Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15.CAUTION: These servicing instructions are for use by qualified service personnel
only. To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
16.Do not install this equipment in a confined or building-in space such as a book case
or similar unit, and remain a well ventilation conditions at open site. The ventilation
should not be impeded by covering the ventilation openings with items such as
newspaper, table-cloths, curtains etc.
17.WARNING: Only use attachments/accessories specified or provided by the
manufacturer (such as the exclusive supply adapter, battery etc).
18.WARNING：Please refer the information on exterior bottom enclosure for electrical
and safety information before installing or operating the apparatus.
19.WARNING：To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to dripping or
splashing and that objects filled with liquids, such as vases, shall not be placed on
apparatus.
20.WARNING: The mains plug or appliance coupler is used as disconnect device, the
disconnect device shall remain readily operable. or
21. This equipment is a Class II or double insulated electrical appliance. It has been
designed in such a way that it does not require a safety connection to electrical earth.
22.
- This lightning flash with arrowhead symbol within an equilateral triangle is intended
to alert the user to the presence of non-insulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as there
are no user-serviceable parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance instructions in the literature
accompanying the appliance.
23.No naked flame sources, such as lighted candles, should be placed on the
apparatus.
24.Attention should be drawn to environmental aspects of battery disposal.
25.The product is designed to use in moderate climates.
-2-

Confirmation of bundled items •••••••••••••••••••••••••••••••• 5
Feature •••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 6
Name and use of each part •••••••••••••••••••••••••••••••••• 7
Setup ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••11
Method of operation •••••••••••••••••••••••••••••••••••••••••••15
Specifications ••••••••••••••••••••••••••••••••••••••••••••••••••23
Trademarks of each company •••••••••••••••••••••••••••••••24
Caution on safety ••••••••••••••••••••••••••••••••••••••••••••••26
TABLE OF CONTENTS
-3-

IN THE BEGINNING
Thank you very much for purchasing LUXMAN arro studio
collection S5.Founded as a radio department in the corner of the
frame shop "KINSUIDO" in 1925, when NHK started to broadcast
this radio, LUXMAN has delivered many products to audio and
music fans for over 90 years. In the meantime, the love of audio
and music lovers has never changed.
We believe that the depth of emotion and attachment to the
instrument that faithfully reproduces the artist's passion
embedded in the music is the best value for the audio.
It's a pleasure to be able to share the same passion and values
for audio and music as we have with our choice of LUXMAN
products.
Be sure to read this owner's manual carefully before using the
machine to ensure proper and safe use of the machine. As a
result, the performance of this unit is fully demonstrated, and you
can enjoy playing music with the highest grade. Please keep it
with the warranty card after reading.
Thank you for your continued patronage.
WIRELESS STREAMING SPEAKER ARRO Studio Collection S5
14.Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15.CAUTION: These servicing instructions are for use by qualified service personnel
only. To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
16.Do not install this equipment in a confined or building-in space such as a book case
or similar unit, and remain a well ventilation conditions at open site. The ventilation
should not be impeded by covering the ventilation openings with items such as
newspaper, table-cloths, curtains etc.
17.WARNING: Only use attachments/accessories specified or provided by the
manufacturer (such as the exclusive supply adapter, battery etc).
18.WARNING：Please refer the information on exterior bottom enclosure for electrical
and safety information before installing or operating the apparatus.
19.WARNING：To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to dripping or
splashing and that objects filled with liquids, such as vases, shall not be placed on
apparatus.
20.WARNING: The mains plug or appliance coupler is used as disconnect device, the
disconnect device shall remain readily operable. or
21. This equipment is a Class II or double insulated electrical appliance. It has been
designed in such a way that it does not require a safety connection to electrical earth.
22.
- This lightning flash with arrowhead symbol within an equilateral triangle is intended
to alert the user to the presence of non-insulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as there
are no user-serviceable parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance instructions in the literature
accompanying the appliance.
23.No naked flame sources, such as lighted candles, should be placed on the
apparatus.
24.Attention should be drawn to environmental aspects of battery disposal.
25.The product is designed to use in moderate climates.
-4-

CONFIRMATION OF BUNDLED ITEMS
Body Power cable
Cleaning cloth
Owner's manual
(this book)
-5-

WIRELESS STREAMING SPEAKER ARRO Studio Collection S5
FEATURE
• Correspondence to music
service
We cope with streaming service
and music reproduction from
server installed in home.
• Equipped with Amazon
Alexa
It is equipped with voice control
technology Amazon Alexa, and it
can instruct music playback
and information acquisition by
voice.
• Bluetooth connection
You can play the music currently
playing on your smartphone
wirelessly by connecting to this
unit with a simple operation.
• Various connectivity
It enables playback from USB
memory and digital / analog
connection with conventional
audio devices.
• Multi-room playback
By preparing multiple recorders,
you can control the music played
in different rooms at one
time.
• Powerful and high sound
quality
We realize powerful music
reproduction of low-pass 30W +
high-pass 15W * 3 although
beinga compact case.
• Object design
The refined and simple
appearance using aluminum
material matches rooms with
various
• Dedicated application
We prepared exclusive application
for iOS and Android that you can
easily operate the
functions of this unit.
-6-

① ② ③ ④
⑤
⑥
NAME AND USE OF EACH PART
Top panel
①Wheel
• power on / off
press and hold the wheel for 3
seconds directly below the product
to turn on the machine.
when the machine is on, hold the
wheel down the product for 3
seconds to turn off the
machine.
while playing music, briefly press
the wheel directly below the
product to pause the music.
press the wheel a short time again
to cancel the pause.
• Adjust volume
turning the wheel towards the
back of the product will increase
the volume. Turning the
wheel towards you will reduce the
volume.
The maximum volume is achieved
by rotating the wheel three times
from silence.
② Alexa button
Used to call Amazon Alexa with a
button instead of voice.
-7-

WIRELESS STREAMING SPEAKER ARRO Studio Collection S5
⑤INPUT indicator
This indicator shows the input
operated by the INPUT switching
button.
The volume of this unit is indicated
by the number of green LEDs.
In addition, when the operation of
Amazon Alexa changes, the status
is displayed by the color
of the LED.
*Please refer to the explanation
information of Amazon Alexa for
the details of the color
change by the operation situation
of Amazon Alexa.
③ Microphone mute button
Disable the microphone for calling
Amazon Alexa by voice.
When the microphone is disabled,
press this button again to enable
the microphone.
④ INPUT button
It is a button to switch to the
sound source you want to listen to
the input of this unit. Every time
this button is pressed, the input
changes in the order of
NET → USB → BT → AUX →
OPT. After OPT,
it returns to NET, and repeats
USB → BT → AUX → OPT.
⑥microphone
It is a microphone for calling
Amazon Alexa by voice.
# Please be aware that if you
cover this part, voice input to the
microphone will be blocked
and you may not be able to call
Alexa by voice.
Indicator
Front panel
-8-

④OPTICAL IN terminal
Digitally connect an audio device
with an OPTICAL output with an
optical cable.
①
②
③
④ ⑤
⑥
⑦
⑧ ⑨
Rear panel
②Wired LAN terminal
Connect to your home router or
network hub using a LAN cable.
*When connecting this unit via
Wi-Fi (wireless LAN), do not
connect a LAN cable to this
terminal.
③USB terminal
Insert a USB flash drive with
saved music data.
* You can play music by
connecting a USB device
compatible with the USB Mass
Storage
standard to this terminal.
①AC IN terminal
Connect the supplied power cable.
-9-

WIRELESS STREAMING SPEAKER ARRO Studio Collection S5
⑦ ANALOG OUT connector
Connect an analog device with an
audio device with an analog input
using a line cable (stereo / mini
plug
type).
⑥ ANALOG IN terminal
Connect an analog device with an
audio device with analog output
using a line cable (stereo
mini plug type).
⑤ OPTICAL OUT terminal
Digitally connect an audio device
with an OPTICAL input with an
optical cable.
⑨RESET button
It is a button to reset the settings
of this machine to the factory
default.
To reset, gently press the ballpoint
pen for 3 seconds and then
release.
*LAN cable, optical cable and line
cable are not included with this
unit.
⑧ PAIR button
Use during Wi-Fi setup or
Bluetooth pairing setup.
For more information on Wi-Fi
setup, please refer to P9, and for
Bluetooth pairing setup, please
refer to
P20.
-10-

• Various connectivity
It enables playback from USB
memory and digital / analog
connection with conventional
audio devices.
• Multi-room playback
By preparing multiple recorders,
you can control the music played
in different rooms at one
time.

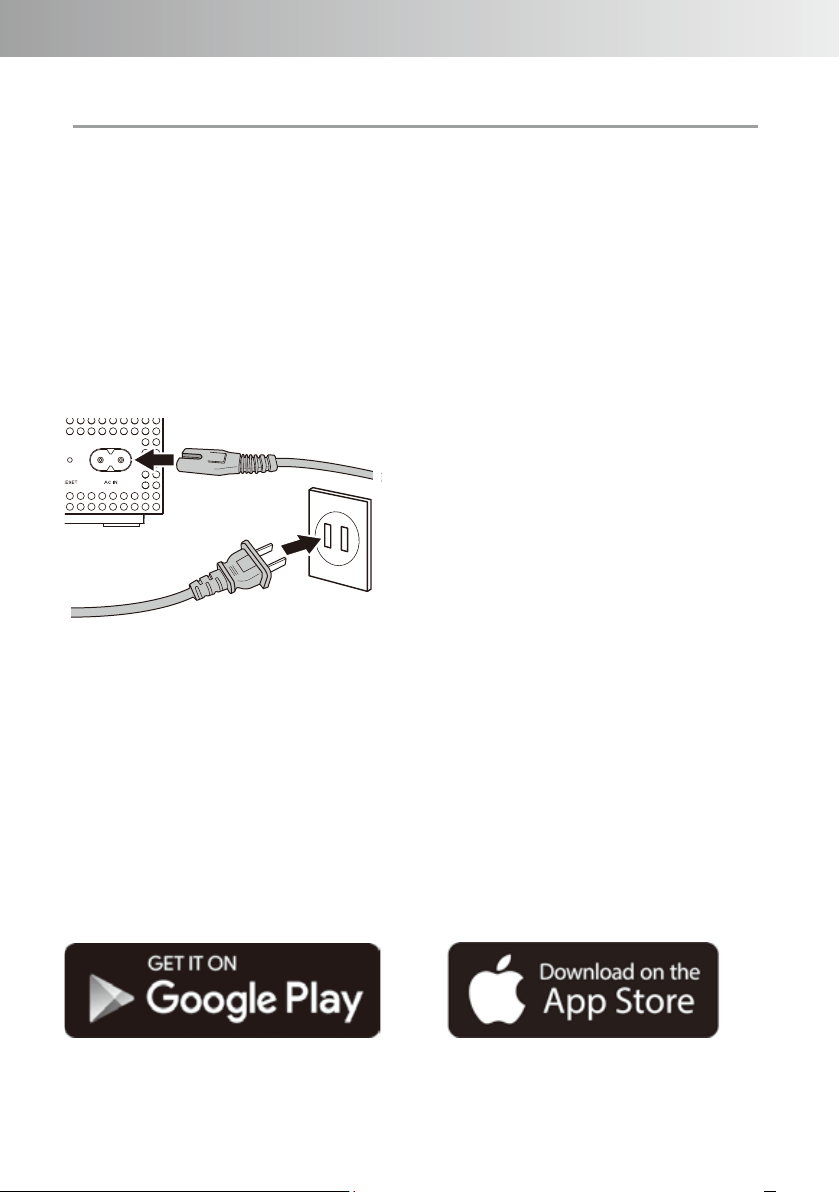

- Connection of power supply
Connect the AC IN terminal on the
back of the unit to a 100 V AC
household outlet using the
supplied power cable.
- Wired LAN connection
When connecting this unit to a
home network by wire, prepare a
separate LAN cable and
connect the wired LAN terminal on
the back of this unit to a home
router or a network hub.
*Please use LAN cable of
category 5 or more type.
*When connecting this unit via
Wi-Fi (wireless LAN), do not
connect a LAN cable to this
terminal.
- Download the app
Download and install the
dedicated application "LUXMAN
CONNECT" from the Google Play
Store or App Store according to
the smartphone or tablet OS used.
SETUP
-11-

② Alexa button
Used to call Amazon Alexa with a
button instead of voice.
WIRELESS STREAMING SPEAKER ARRO Studio Collection S5
Press "Add Device"
to start setup.
1. Before starting setup, make
sure that the NET indicator on the
top panel is lit or blinking.
If anything other than NET is lit,
press the INPUT button several
times until NET lights or
flashes.
2. Press the PAIR button on the
rear panel for 3 seconds to put the
unit into Wi-Fi setup
mode. At this time, the INPUT
indicator NET starts blinking.
3. Launch the "LUXMAN
CONNECT" app and follow the
on-screen instructions to proceed
with the setup.
Switch your smartphone
or tablet to the i-Fi setting
screen.
It is an application
launch screen.
-12-

The volume of this unit is indicated
by the number of green LEDs.
In addition, when the operation of
Amazon Alexa changes, the status
is displayed by the color
of the LED.
*Please refer to the explanation
information of Amazon Alexa for
the details of the color
change by the operation situation
of Amazon Alexa.
Follow the instructions on the
screen to connect to your
smartphone or tablet Wi-Fi
network.
Then, set up an Amazon Alexa
account that provides voice
control to this unit.
Network connection is complete
when this screen is displayed.
Switch your smartphone
or tablet to the i-Fi setting
screen.
Device list screen.
SETUP
-13-

WIRELESS STREAMING SPEAKER ARRO Studio Collection S5
④OPTICAL IN terminal
Digitally connect an audio device
with an OPTICAL output with an
optical cable.
③USB terminal
Insert a USB flash drive with
saved music data.
* You can play music by
connecting a USB device
compatible with the USB Mass
Storage
standard to this terminal.
①AC IN terminal
Connect the supplied power cable.
You can give this machine a name
you like so that you can
distinguish individual products
when using multiple machines or
products of this series.
Follow the onscreen instructions
to log in to Amazon.
The setup is complete when the
device name is displayed on the
device list screen.
When this screen is displayed,
preparation for Amazon Alexa is
complete.
-14-

Device list screen.
Network playback by dedicated
application
This section describes network
playback using the dedicated
application of this unit.
Press the unit's INPUT button to
select NET (Network).
Launch the dedicated application
"LUXMAN CONNECT" from your
smartphone or tablet.
METHOD OF OPERATION
1. Add device
2. Device List Update
3. Device settings
4. Audio channel selection
Main menu screen.
This screen is for selecting music
service or input of this unit.
1. Move to main menu screen
2. Move to device list screen
3. Add music being played as a
favorite
4. How current playlist
5. Toggle repeat / shuffle play
6. Adjust the volume
7. Regeneration operation
This screen displays a list of
devices (including this unit) set up
in the same network.
This screen is displayed first when
the app is launched.
-15-

WIRELESS STREAMING SPEAKER ARRO Studio Collection S5
Music playback screen.
This is a screen to control the
music being played.
1. Search
2. Favorite
3. My music
4. Internet music service
5. Add service
6. AUX input
7. Bluetooth
8. USB device
9. Optical digital input
Main menu screen.
Voice control by Amazon Alexa
Press the unit's INPUT button to select NET (Network).
Talking to "Alexa" to this unit starts the voice control service by
Amazon Alexa.
*This message indicates that Amazon Alexa has started up normally
when a response sound
of "Pong" is returned from the unit by calling "Alexa". If there is no
response, please approach
this unit and try again when the surroundings are quiet. Also, even if
the Wi-Fi signal is weak,
Amazon Alexa may not start properly.
Example:
Alexa, good morning
Alexa, tell us the weather today?
Alexa, what day is it today?
Alexa, tell me a delicious ramen shop nearby?
-16-

Press "Add Device"
to start setup.
Switch your smartphone
or tablet to the i-Fi setting
screen.
It is an application
launch screen.
Wireless playback by AirPlay
function
Press the unit's INPUT button to
select NET (Network).
This unit is compatible with
Apple's AirPlay.
First, play the AirPlay compatible
music playback app on your
iPhone or iPad. When you
press the AirPlay icon of the
application, you can play your
music wirelessly by selecting this
unit (ASC-S5) from the AirPlay
compatible devices listed.
Reproduction by DLNA renderer
function
Press the unit's INPUT button to
select NET (Network).
This unit operates as a DLNA
renderer device.
By specifying this unit as a
Renderer from your DLNA
compatible device, you can
wirelessly
play music from your DLNA
compatible device.
METHOD OF OPERATION
-17-

WIRELESS STREAMING SPEAKER ARRO Studio Collection S5
Then, set up an Amazon Alexa
account that provides voice
control to this unit.
Network connection is complete
when this screen is displayed.
Switch your smartphone
or tablet to the i-Fi setting
screen.
Bluetooth playback
Press the unit's INPUT button to select BT (Bluetooth).
The same applies even if Bluetooth is selected from the main
menu screen of the dedicated
application.
Pairing with playback equipment
Please do the following pairing operation to play Bluetooth.
1. Before starting setup, make sure that the BT on the top
panel INPUT indicator is lit. If
anything other than BT is on, press the INPUT button several
times until BT is on.
2. Press the PAIR button on the rear panel for 3 seconds to put
the unit in Bluetooth pairing
mode. At this time, BT of the INPUT indicator starts blinking.
Open the Bluetooth settings on your smartphone or tablet and
select "LUXMAN ASC-S5"
from the list of available devices. It may take some time for
your device to detect this unit and
to be displayed in the list.
When paired successfully, BT of the INPUT indicator of this unit
changes from blinking to
lighting.
Start playing music on your smartphone or tablet. If the volume
of the music being played is
low, turn up the volume of your smartphone or tablet before
performing volume control on
the unit.
*This unit can store pairing with multiple Bluetooth compatible
devices.
-18-

You can give this machine a name
you like so that you can
distinguish individual products
when using multiple machines or
products of this series.
The setup is complete when the
device name is displayed on the
device list screen.
USB memory playback
By inserting a USB memory into the USB (A type) terminal on
the back of this unit, you can
play music data built in the USB memory.
When a USB memory is inserted into this unit, the input of this
unit automatically switches to
USB, and playback of the built-in music data starts in
alphabetical order of file name.
If you want to stop playback, switch to another input with the
INPUT button or remove the
inserted USB memory.
*You can not use music pause / stop / song operation with the
USB memory playback function
of this unit.
*You can change the playback order of music data by putting
playlist files (such as m3u
specifications) in the root folder in USB memory.
METHOD OF OPERATION
-19-
