LY International Electronics HS-80R User manual

Central Audio System
Wired Remote Controller
HS-80R
Welcome to use the central audio system. For better
use of this equipment, please read this manual
thoroughly before use.
Functional Characteristics:
Wired remote controller for family audio
control center, quick and convenient.
Touch key operation, deluxe appearance and
vivid LCD display.
Provided with the basic operating functions of
the host, including: audio source selection,
volume / tone control, query of MP3 playlist
and query of radio storage number from tuner,
etc.
One wired remote controller can control one
subzone by setting the address.
Able to control the external DVD and TV by
means of infrared learning functions of the
host.
Accept the control from infrared remote
controller.
Controllable distance up to 300m.

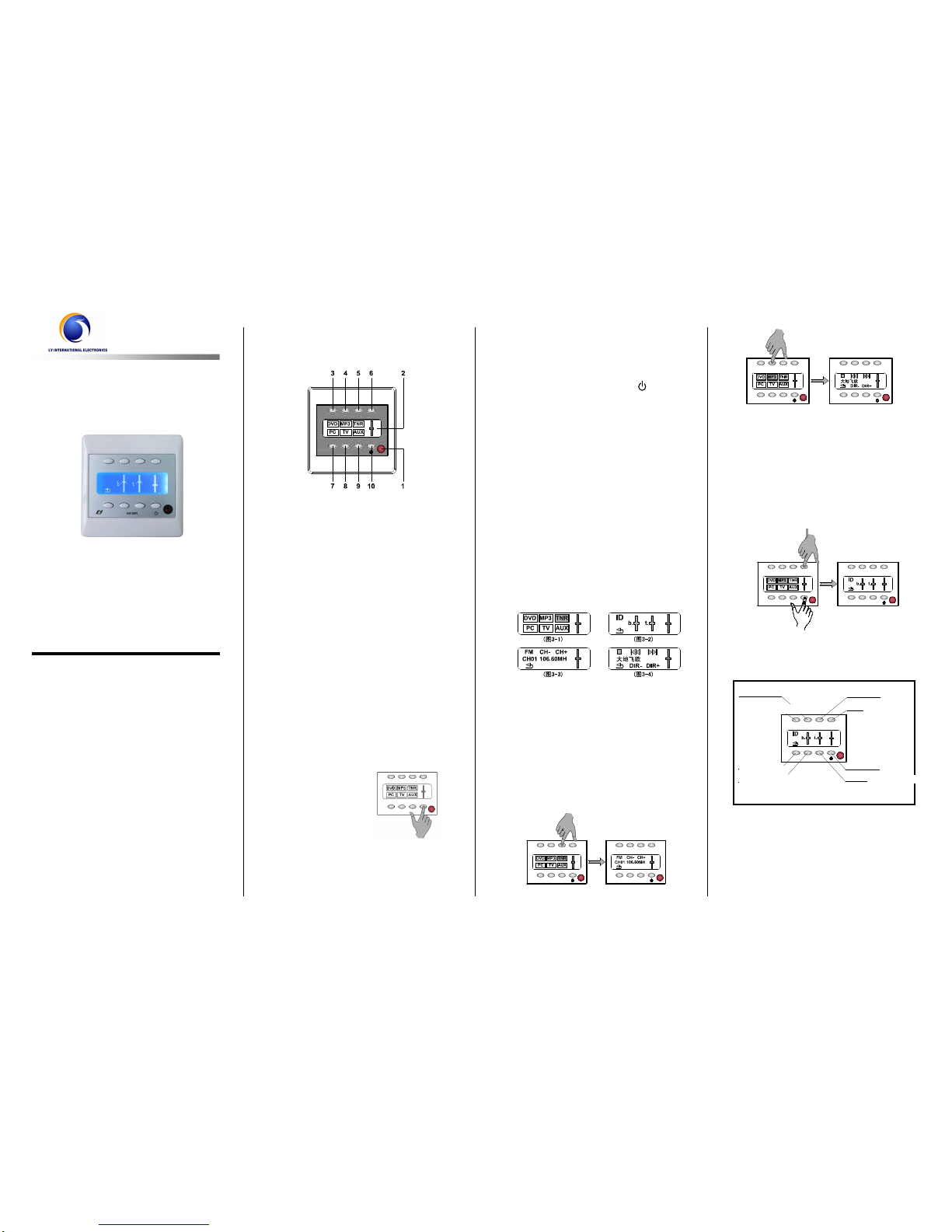

I. Description of Panel Functions
1. Infrared window
2. LCD screen
3. Select DVD Audio Source / Enter DVD Play
Interface / Enter Address Setting Interface
4. Select MP3 Audio Source / Enter MP3 Play
Interface / Enhance Bass Effect
5. Select Radio Audio Source / Enter Radio Play
Interface / Enhance Treble Effect / Adjust Address
Settings
6. Enter Volume & Tone Control Interface / Increase
Volume
7. Select PCAudio Source / Return to Main Interface
8. Select TV Audio Source / Enter TV Play Interface /
Attenuate Bass Effect
9. Select AUX Audio Source / Attenuate Treble Effect /
Adjust Address Settings
10. Remote Controller On/Off / Enter Volume & Tone
Control Interface / Decrease Volume / Confirm
Address Setting
II. Turn On/Off Remote Controller
1. Turn on Remote Controller
Switch on the power of the host and open the
related subzone from the host, so that this
remote controller is turned on. After that, the
main interface is
displayed on the
screen.
When the host has
been switched on,
you may press
any audio source
key from the
remote controller
to turn on this
remote controller.
In this case, the
screen displays the status before the
remote controller is turned off.
2. Turn off Remote Controller
You may switch off the power of the host to
turn off this remote controller.
You may hold down “ “key (as shown in Fig.
2-1) for over 5 seconds to turn off this remote
controller.
III. Description of Remote
Controller Status
Main Interface (Fig. 3-1): This interface
displays the status of 6 audio sources and
the volume in this subzone. What is displayed
in high brightness is the audio source being
played in this subzone.
Volume / Tone Control Interface (Fig. 3-2):
Under this interface, you may control the
volume and tone of this subzone.
Status Interface under Tuner Mode (Fig. 3-3):
Under this interface, you may switch the band
of tuner mode and load the radio stored on
the host.
Status Interface under MP3 Mode (Fig. 3-4):
Under this interface, you may select and play
the music for MP3 mode.
IV. Operating Instructions
1. Selection of Audio Source
Please refer to main interface. From the
interface, press down a key corresponding to
your desired audio source. When this audio
source is displayed in high brightness, this
indicates that it has been selected. Press down
the selected TNR or MP3key again, so that the
screen will display the play status and
operating interface of tuner or MP3.
2. Volume Control and Tone
Adjustment
Press the volume / tone control key as shown
in Fig. 4-3 to enter the volume / tone control
interface. (Note: From any interface except the
volume / tone control interface, you may press
down the key of corresponding volume
indicating bar “ “ to enter the volume / tone
control interface).
The operation of volume / tone adjustment key is
as shown below:
3. Operating Instructions for Tuner Mode
Press down TNR key from main interface to
enter tuner mode interface (Fig. 4-1). Under
this interface, you may switch between FM and
AM band, select ration station and adjust the
volume. The key functions are as shown below:
（ Fig. 4-1）
（ Fig. 4-2）
（ Fig. 4-3）
（图 4-4）
(Fig. 2-1)
Enhance bass
Attenuate treble
Increase volume
Address Setting Interface
Enhance treble
Attenuate bass
Decrease volume
Return to the
main interface

Note: 1) You may press “Return to Main Interface”
key from any interface to return to the
main interface as shown in Fig. 3-1.
2) You may touch “Close Subzone” key and
“Tone Control” key to enter volume / tone
control interface.
4. Operating Instructions for MP3 Mode
Press MP3 key from main interface to enter
MP3 mode interface (Fig. 4-2). Under this
interface, you may carry out Play / Pause
operation, select the music and control the
volume / tone. The key functions are as shown
below:
5. For the functions of infrared remote
controller and its receiving angle
schematics, please see the User
Guide for HS-6818.
V. Setting of Remote Controller
Address
Address is set for the controller in order to divide
12 subzones, so that one remote controller
corresponds to one subzone. The remote
controller address is set as follows:
①Press volume key to enter into volume / tone
control interface. (Fig. 5-1)
② Under volume control interface, press the “ID”
corresponding key to enter the address
setting interface. Then, press the triangle
symbol corresponding key on the screen as
shown below (Fig. 5-2) to adjust the number
and select the address of your remote
controller. Then, press OK to validate the
setting.
For the connection of wired remote
controller, please refer to the user guide for
AM8150 (Central Audio System Host).
VI. Marking of Overall Dimension
Connection Wire between Host and Remote
Controller
The host is connected to the remote controller via
twisted pair, with the connector fabricated from
network cable and the two ends matched. See
below:
VII. Performance Index
VIII. Installation Instructions
Note: When mounting the base box into the wall,
the two screw holes for fixing the wired
remote controller shall be installed
longitudinally (as shown below), that is,
install in up and down direction.
Installation Procedures:
1. Connect the wire to the host.
2. Install the wired remote controller and its
front panel properly according to the steps
shown below.
http：//www.lyintlcorp.com
（图 4-6）
Installation
Direction
Schematics
for Mounting
Box of Wired
Remote
Controller in
Wall
（ Fig. 4-5）
（ Fig. 5-1）
（ Fig. 5-2）
Marking of Front
Dimension
Marking of Mounting
Box Dimension
Note: The wire colors marked in this figure are for
illustration as an example only. The actual
connection shall be based on physical goods.
Power ON/OFF
Return to the
main interface
Volume control
Switch between FM/AM
Next radio
Previous radio
Next Directory
Previous Directory
Power ON/OFF
Return to the
main interface
Volume control
Play / Pause
Next Music
Previous Music
Wire Inlet Hole
Front Panel
Net weight Size Power supply Control functions Address setting Communication distance Infrared remote control Connection to the host Item
66g 86 x 86 x 25mm (exclusive of base seat) 30V(+/-10V). Electric power and data transmitted separately.
Audio source election, treble, bass, volume, subzone switch, control of MP3 play, tuner band and selection, DVD play and selection, TV tuning Set by jumper. 12 addresses in total, corresponding to 12 subzones respectively Line distance over 300m All functions of current subzone may be controlled from infrared remote controller 4-wire, twisted pair Index
HS-80R Performance Index
Remote Control
Cover
Mounting box
Wired Remote
Controller
