LYNKED INDUSTRIAL GATEWAY CG-100
Installation and Operation Manual
Model: CG-100
Last Modified: October 10, 2018

CG-100 Industrial Gateway
Page 2
Copyright Information
Copyright © 2018 by Lynked
Lynked and CG-100 are trademarks of Lynked
Other brand and product names are trademarks or registered trademarks of their respective holders.
U.S. Government Restricted Rights: Use, duplication or disclosure by the Government is subject to restrictions set forth in subparagraph (a)
through (d) of the Commercial Computer Restricted Rights clause at FAR 52.227-19 when applicable, or subparagraph (c) (1) (ii) of the Rights
in Technical Data and Computer Software clause at DFARS 252.227-7013, and in similar clauses in the NASA FAR Supplement.
Limited Warranty
LYNKED IS PROVIDING THIS WARRANTY IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY IS BUYER'S EXCLUSIVE
REMEDY FOR ALL CLAIMS AGAINST LYNKED. LYNKED SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES. LYNKED’S TOTAL LIABILITY FOR ALL CLAIMS SHALL BE LIMITED TO THE PRICE PAID FOR ITS PRODUCT.
Lynked promises buyer that any standard product manufactured by Lynked shall be free from all material defects in design, material, or
manufacturing for a period of 2 years from the manufacture date; provided, however, that the warranty shall not extend to ordinary wear and
tear or to normally replaceable components (e.g., batteries). During the warranty period, Lynked may repair or replace (at its sole discretion)
any product suffering from a warranty defect and returned freight prepaid by buyer, with no charge to buyer for any warranty repair or
replacement. The warranty shall remain in full force and effect for such 2 year period, provided that the product: (1) was installed, operated,
and maintained properly; (2) has not been abused or misused; (3) has not been repaired, altered, or modified outside of Lynked’s authorized
facilities; (4) has not been sold subject to other warranty terms specified at the time of sale; and (5) is still owned by the original purchaser.
This warranty provides specific legal rights that may be varied by state law. Lynked's products are not designed for life or safety applications.
Product Application Limitation
Lynked products are not intended for use in critical applications such as nuclear facilities, human implantable devices or life support. Lynked
is not liable, in whole or in part, for any claims or damages arising from such uses.
Lynked strongly believes in continuous improvement, therefore we must reserve the right to change specifications and product offerings
without notice. Where possible, we will substitute products with equivalent functionality when necessary.
FCC Part 15 Information
Note: This equipment has been tested by the manufacturer and found to comply with the limits of a class A digital device, pursuant to part 15
of the FCC rules. These limits are designed to provide reasonable protection against interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Modifications of this product without the express authorization of Lynked nullify this statement.

CG-100 Industrial Gateway
Page 3
Contents
PRODUCT OVERVIEW ........................................................................................................................................................ 4
HARDWARE SPECIFICATIONS ............................................................................................................................................ 5
DEVICE INSTALLATION....................................................................................................................................................... 6
GETTING STARTED ............................................................................................................................................................. 7

CG-100 Industrial Gateway
Page 4
Product Overview
The Lynked CG-100 gateway system is designed to allow owners and managers of commercial and
industrial facilities with a cost-effective means of gathering MBUS data in a timely manner. To meet these
requirements, the system provides the installer with all the tools necessary to install and configure the
hardware and software with a minimum of time and investment.
Typical Applications
• Remote reading of electricity, heat, water and gas meters
• Individual reading in homes
• Problem detection and diagnosis through web-based interface
What’s in the Box
• CG-100 Industrial Gateway
• Power Supply: 24VDC
• Ethernet Cat-5e cable (required for LAN connection)
Required for Installation (not provided)
• Twisted pair 2 wire (shielded) for Powered MBUS connection
• Internet connectivity (through Ethernet).
• Appropriate mounting screws/anchors for wall installation

CG-100 Industrial Gateway
Page 5
Hardware Specifications
CG-100 Features and Specifications
Processor ARM Cortex-A53 1.4GHz CPU
Operating System Linux Kernel 4.14
Memory 1 GB SRAM, 16 GB flash
LED Ethernet, MBUS TX/RX, power
LAN RJ45 1000 Ethernet (limited to 300Mbps), full/half duplex, auto polarity
Protocols MBUS RTU, TCP/IP, PPP, HTTP/HTML, SFTP, FTP, NTP, XML
Power Supply 24VDC - 2A, required (included)
Note: Only use the provided power supply in order to meet the requirements for the
MBUS powered devices.
Interval Recording Hourly intervals
MBUS Port MBUS, standard support for 40 external devices (expandable with custom
configuration)
M-Bus per EN 13757-2, screw-type terminal
Isolation RJ45 Ethernet is isolated from the main board.
Power input, and USB port and are non-isolated.
Environmental Pollution Degree 2, Altitude up to 2000M.
For indoor and outdoor use when used in an appropriate enclosure.
North America: Indoor, temperature -30ºC to +70ºC, 0 - 95% humidity, non-condensing.
Size 6” x 5.25” x 1.625” (149mm x 130mm x 42mm)
Mass 0.63 lbs (0.286 kg)
The CG-100 must be mounted inside a NEMA rated electrical enclosure for safety and isolation
requirements.
* if the product is used in a manner not specified by the manufacture, the protection provided by the
equipment may be impaired.

CG-100 Industrial Gateway
Page 6
Device Installation
Step 1 – Unpack materials
• Remove all materials from shipping box and verify all components are available
Step 2 – Mount CG-100
• Physically mount device on to wall, panel or other appropriate location.
Step 3 – Connect MBUS devices to CG-100

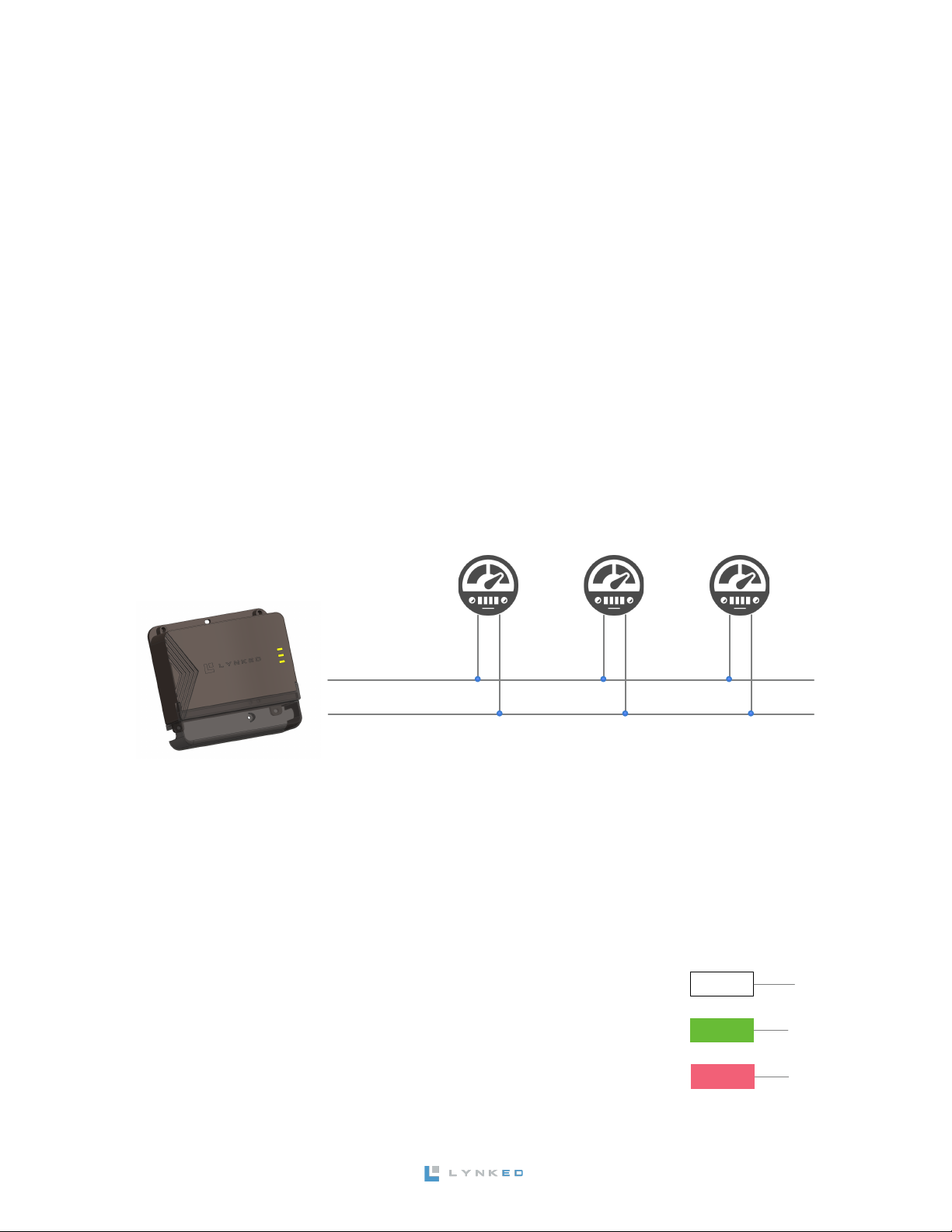

• Connect each MBUS device in the chain by “daisy-chaining” them together on a single bus. MBUS
devices should be laid out as per the block diagram below.
• Many MBUS devices can be powered from the CG-100 Gateway. Follow the manufacturer’s
instructions for installing and powering the MBUS devices.
• The CG-100 gateway does not require the user to set the MBUS primary address for each individual
device. Instead, secondary addresses are detected automatically when initial scan is initiated. This
process ensures that no two devices will ever have the same address.
Step 4 - Power-up and diagnostics
• Ensure that the power supply provided with the CG-100 is connected. After power is applied, a white
Power light in the upper right of the GC-100 should come on (the boot sequence will require up to 30
seconds to complete).
• If the “Power” light does not come on, verify that the power cord is plugged in. If after cycling the power
the unit still does not power up contact technical support. After the CG-100 has been powered up for a
minute, the green Alive LED should blink slowly once per second during normal operation.

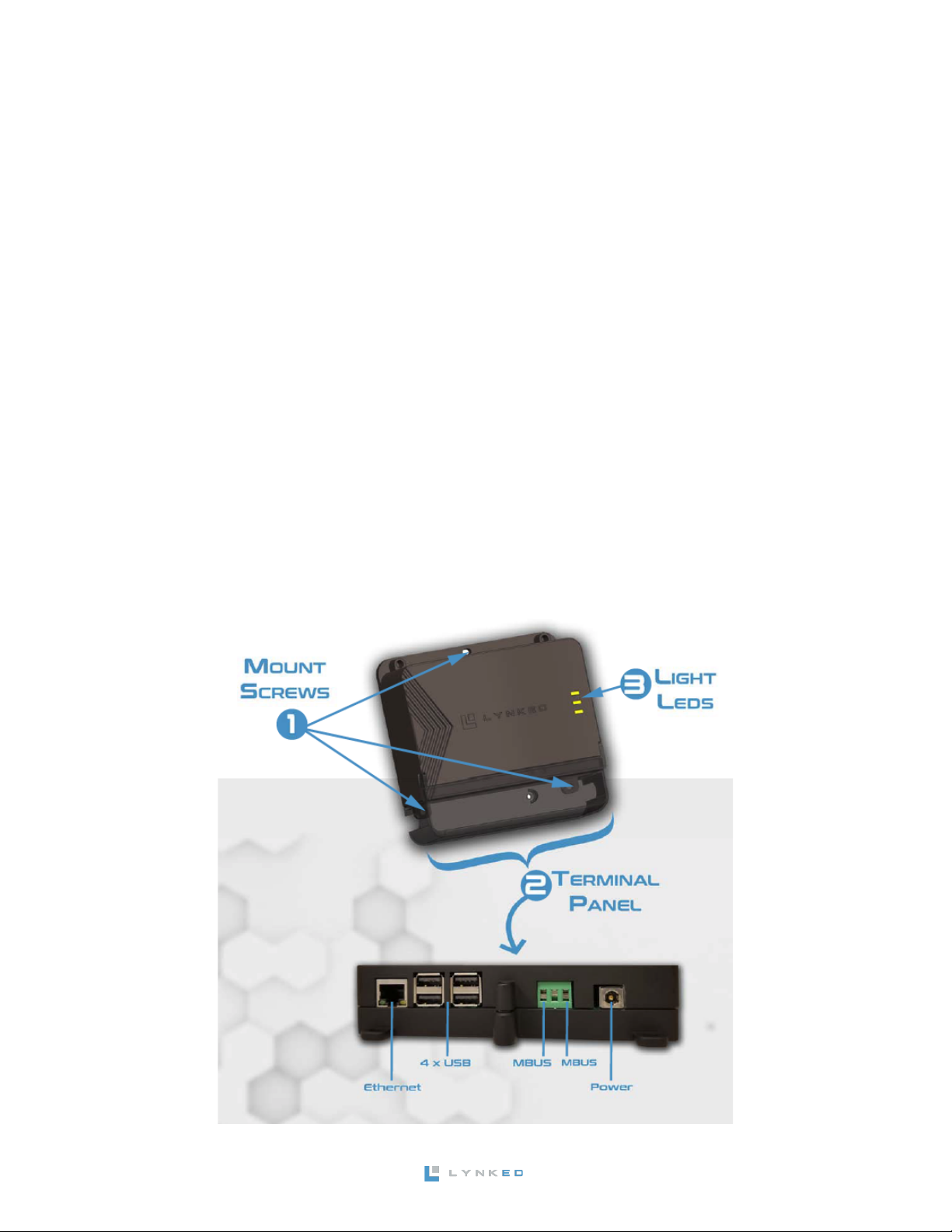

• POWER (White): A Solid light means the system is powered correctly.
• MBUS Transmit (Green): Blinks when sending data across the MBUS
network
• MBUS Receive (Amber): Blinks when receiving data from the MBUS
network
• Ethernet Link/Act (on RJ45 connector): Amber - On when connected
to a hub or switch, off when not connected. Green - Blinks when Lan
traffic is being sent or received.
MBUS Slave
CG-100 Gateway
MBUS Slave MBUS Slave
Power - White
MBUS Tx - Green
MBUS Rx - Amber

CG-100 Industrial Gateway
Page 7
Getting Started
The CG-100 should now be available on the local area network for you to access using a web browser such as
Google Chrome or Firefox.
Step 1 - Use your web browser to connect to the CG-100 by entering http://ipaddress/. Where ‘ipaddress’ is the
IP address given to the CG-100 by your DHCP Server.
In order to see what the IP address of your device is, you may use various net discovery tools such as NMAP or
ARP, given the MAC address as noted on the nameplate on the side of the device.
Step 2 - When prompted, use the following default login information
Login: admin
Password: password

CG-100 Industrial Gateway
Page 8

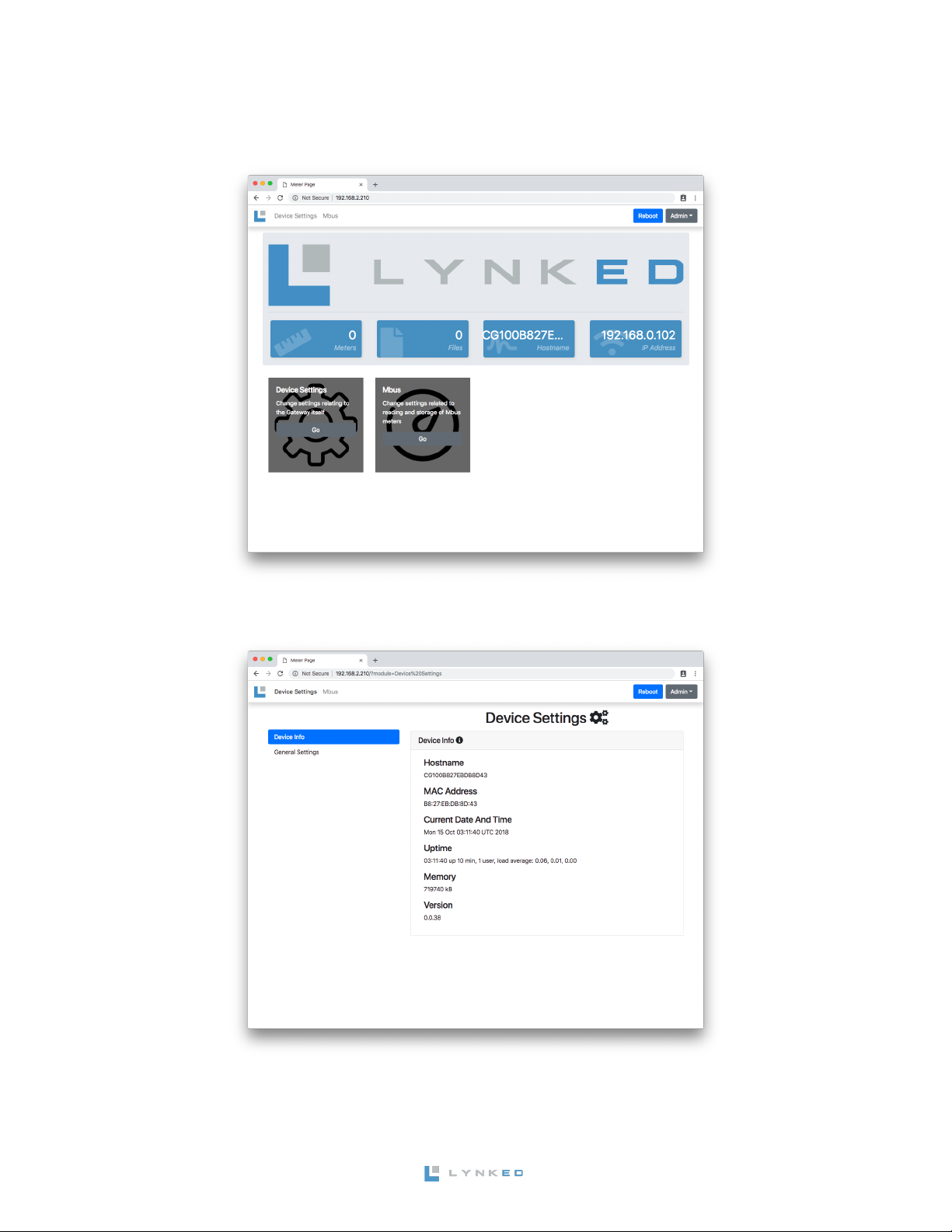

You will be presented with the front page giving a basic overview of your connected devices and links to
available setting pages. You can also change your password on this screen and reboot the device from here in
the top menu. Please note: Rebooting the device takes approximately 30 seconds to complete its boot cycle.

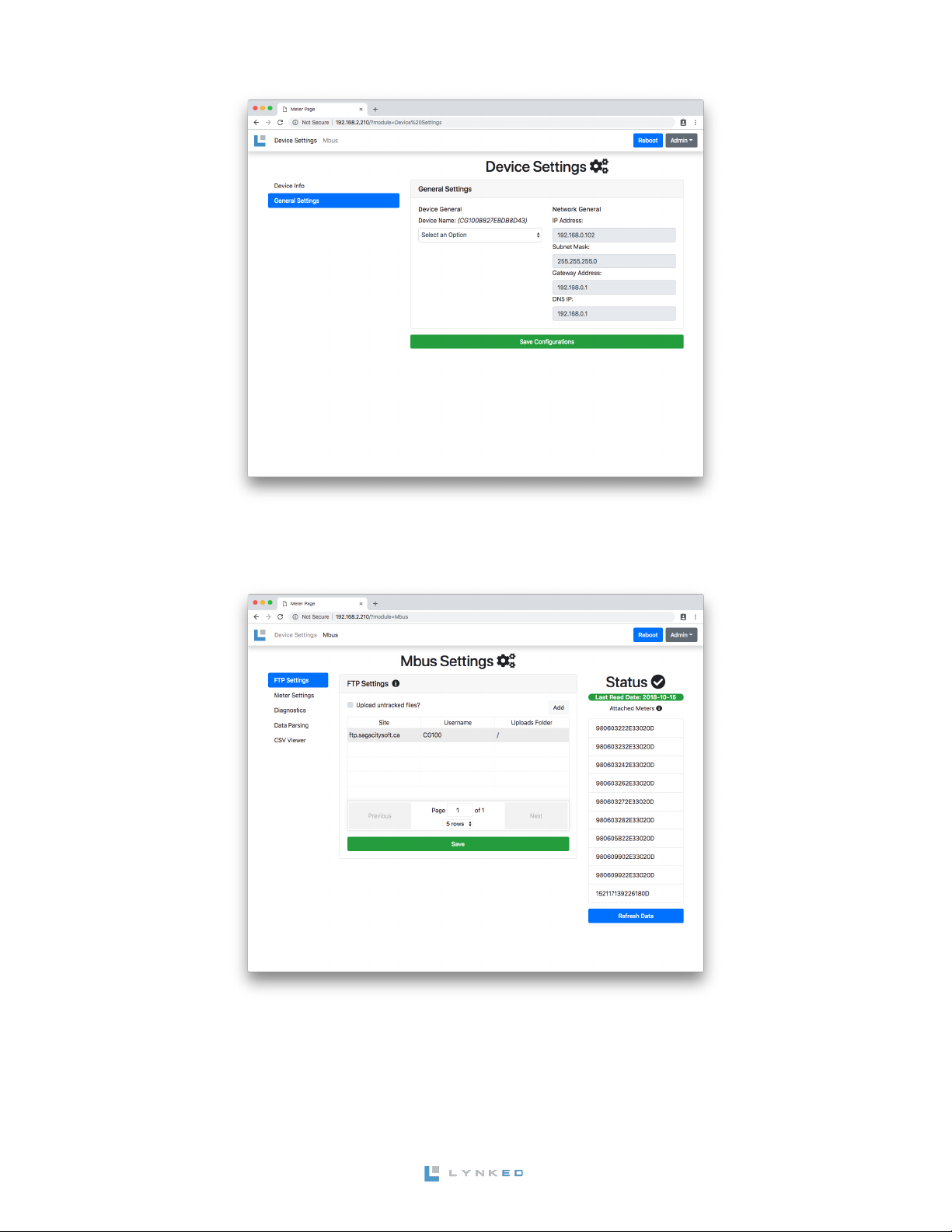

By selecting Device Information, you can view the specific fields related to your specific device. In order to
update Hostname or IP configurations, click on General Settings.

CG-100 Industrial Gateway
Page 9
The hostname can be customized to your network needs. The default name selected is CG100 followed by the
MAC Address of your specific gateway for easy identification. Currently this gateway ships with DHCP settings,
an updated version will provide static IP settings control.
By clicking on the Mbus Menu, you can setup your FTP settings (where you would like to receive your CSV
files). Multiple FTP sites can be defined by clicking the Add button. The device currently collects MBUS data
from all connected meters each hour and sends data to specified FTP sites once per day.

CG-100 Industrial Gateway
Page 10

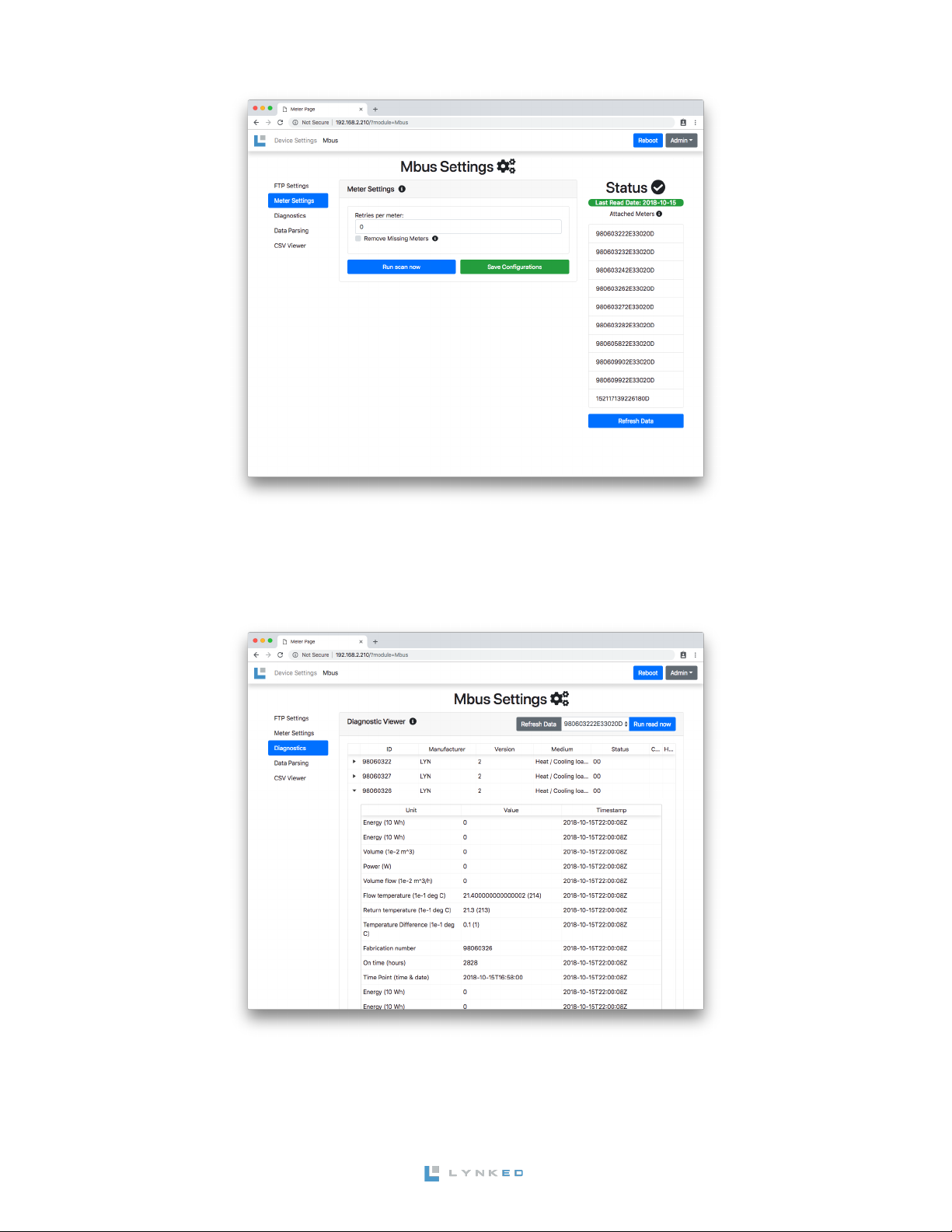

After connecting your MBUS meters to the gateway, click “Run Scan Now”. This will perform a scan across the
MBUS network and add any meter connected to the device (up to 100 meters). Depending on the size and
scope of your network this scan could take up to 30 minutes. If Lynked meters are connected, this scan will only
take approximately 3 to 5 minutes. Attached meters will then show up in the status list on the right (which will
provide a quick view of your meter reads.)
In order to ensure that meters are connected and to get real-time readings, the diagnostics view will allow you to
poll your devices in real time and provide an online viewer to ensure no data corruption. Please note that these
values will not be stored in the hourly CSV recording files.

CG-100 Industrial Gateway
Page 11

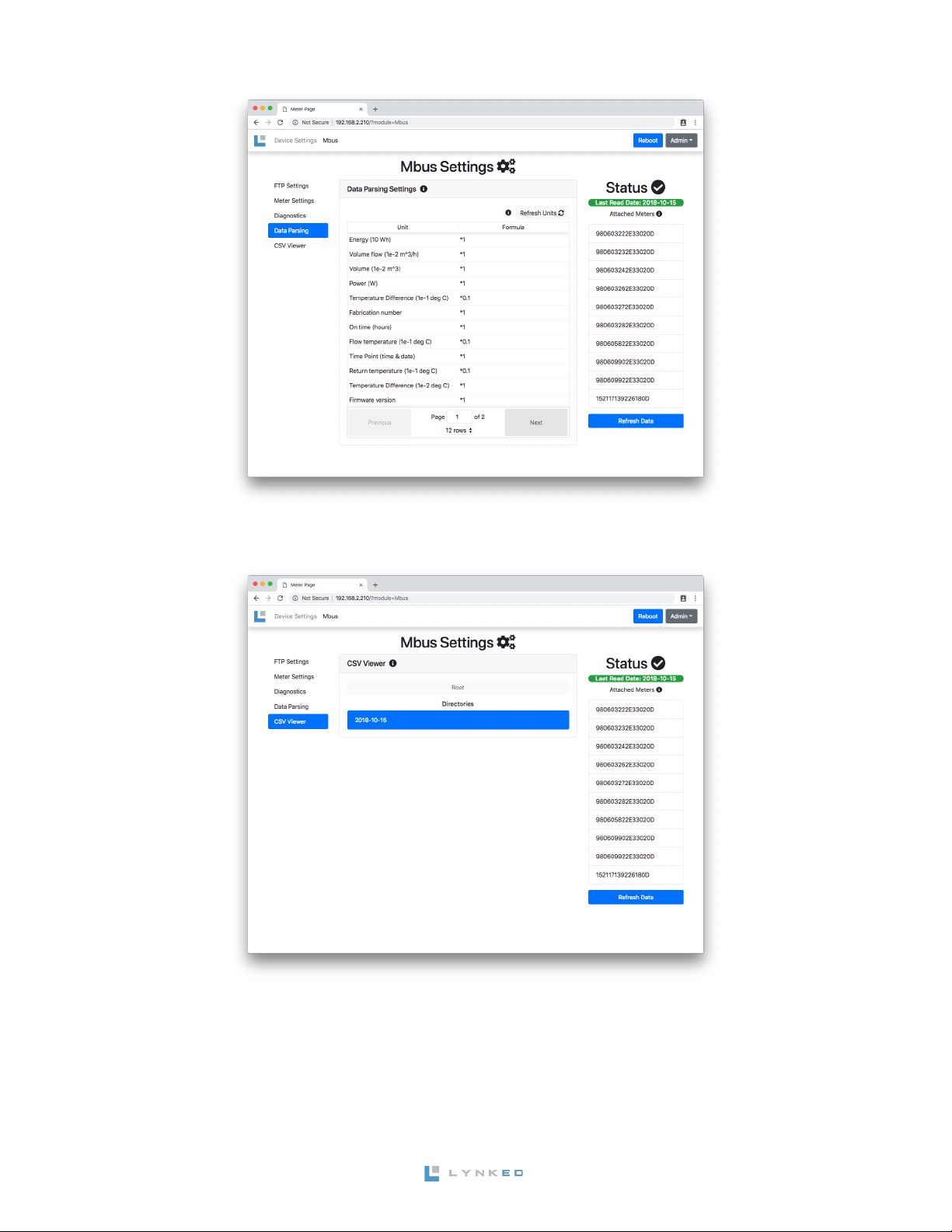

Data Parsing allows you to customize the view of your data such that raw values are formatted for your needs
when diagnosing the raw meter reads.
The CSV viewer allows you to review any data stored on the gateway. Readings are added to the CSV’s hourly
and saved to this repository for review. Transmission of CSV files via FTP are nightly (Midnight UTC). Data will
remain on the gateway for up to 90 days before being purged.
