Lynx Sedona LFPC-S User manual

MAKE THE MOST OF YOUR
SEDONA
BY
TM
Warning: Improper installation, adjustment, alteration. Service or maintenance can cause severe injury or death, and may result in prop-
erty damage. Read these installation, operating and maintenance instructions thoroughly before installing or servicing this appliance.
INSTALLER: THIS MANUAL MUST BE LEFT WITH THE APPLIANCE.
CONSUMER: KEEP THIS MANUAL FOR FUTURE USE.
CARE & USE/ICE ‘N FIRE PIT INSTALLATION

2
|CARE & USE/ FIRE PIT INSTALLATION
WARNINGS
READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE USING YOUR OUTDOOR APPLIANCE TO
REDUCE THE RISK OF:
1. Fire
2. Burn hazard, personal injury or property damage
3. Unapproved installation or servicing.
THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or death.
Read this manual thoroughly before installation, use, or servicing of this product.
1. The burning of gaseous fuel generates some by-products which are on the list of substances which are
known by the State of California to cause cancer or reproductive harm.
2. California law requires businesses to warn customers of potential exposure to such substances. To minimize
exposure to the substances, always operate this unit according to the use and care instructions found in this
manual. Be certain to provide adequate ventilation when in operation
IF YOU SMELL GAS:
1. Shut off all gas supply lines to the appliance.
2. Extinguish any open flames.
3. If odor continues, keep everyone away from
the appliance and immediately call your gas
supplier or your fire department.
1. DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
S’IL Y A UNE ODEUR DE GAZ:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute flamme nue.
3. Si l’odeur persiste, èloignez-vous de
l’appareil et appelez immèdiatement le
fournisseur de gaz ou le service d’incendie.
1. Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de l’appareil, ni de tout
autre appareil.
2. Une bouteille de propane qui n’est pas rac-
cordée en vue de son utilisation, ne doit pas
être entreposée dans le voisinage de cet
appareil ou de tout autre appareil.
WARNING
DANGER
WARNING
DANGER
AVERTISSMENT
WARNING! CALIFORNIA PROPOSITION 65
SEDONA

CARE & USE/ FIRE PIT INSTALLATION |3
WARNINGS
WARNING
To obtain replacement parts or service contact:
Lynx Grills
7300 Flores Street
Downey, CA 90242
888-289-5969
•Never use dented, rusty or damaged propane cylinders. Never store additional or empty propane
cylinders in the cabinet or in the vicinity of this or any other appliance. Do not store propane cylinders
indoors or on their sides.
•Children should NEVER BE LEFT ALONE or unattended in an area where an appliance is located. Place
your appliance well away from areas where children play. Do not store items that may interest children in
or around the area of your appliance, in your appliance cart, or in the enclosure.
•Never move the appliance when hot. When in use, portions of the appliance are hot enough to cause
severe burns.
•Always maintain the required clearances from combustibles as detailed. These appliances are designed for
outdoor use only. Never use in a garage, building, shed, breezeway, or other enclosed area. Do not use
this equipment under any overhead combustible construction.
•Fire pits are not designed or certified for and are not to be installed in or on recreational vehicles, portable
trailers, boats or any other moving installation.
•Always have an ABC Fire Extinguisher accessible.
•STORING YOUR appliance: Store your appliance in a well-ventilated area. If stored indoors, detach and
leave L.P. cylinder outdoors in a well-ventilated area away from heat and away from where children may
tamper with it.
•Do not repair or replace any part of the appliance unless specifically recommended in this manual. Other
service should be performed by a qualified technician.
•If the appliance is installed by a professional installer or technician, be sure that he/she shows you where
your gas supply shut-off is located. All gas lines must have a shut-off that is readily and easily accessible.
If you smell gas, check for gas leaks immediately. Check only with a soap and water solution. (See INDEX:
“Leak Testing” for further details.) Never check for gas leaks with an open flame.
•Inspect the LP gas supply hose prior to each use of the appliance. If there is evidence of excessive abrasion
or wear, or the hose is cut, it must be replaced before using the appliance.
•Never remove the grounding prong from the plug or use this product with an ungrounded, 2-prong
adapter.
THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE.
Part No. 34776 02/2014

4
|CARE & USE/ FIRE PIT INSTALLATION
WARNINGS
STATE OF MASSACHUSETTS
DANGER
1. Massachusetts requires all gas be installed using a plumber or gas fitter carrying the appropriate
Massachusetts license.
2. All permanently-installed natural gas or propane installations require a “T” handle type manual gas valve be
installed in the gas supply line to this appliance.
3. This does not apply to portable propane installations using a 20 pound cylinder.
1. This appliance produces carbon monoxide which has no odor.
2. Using this appliance in an enclosed space can cause death.
3. Never use this appliance in an enclosed space. Never use in a garage, building, shed, breezeway, or other
enclosed area.
WARNING
1. This outdoor appliance and its individual shutoff valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
2. This outdoor appliance must be isolated from the gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less
than 1/2 psi (3.5 kPa).
Prior to assembly of your new Lynx Ice ‘N Fire Pit you may want to consider the location of the fire pit. Do you
have prevailing winds which may effect the burner operation? Is the ground you plan on installing the fire pit
level and firm? Do you have an assistant to help with positioning the fire pit and table top. The table top may
be heavy and awkward to handle alone.
Before you can use the fire pit you must install the table top on the fire pit base, and install the burner assem-
bly to the table top. The LP gas tank must be installed and connected properly to the burner assembly and the
controls connected for proper operation.
Please read these instructions carefully and completely before proceeding. Incorrect installation and assembly
may result in fire, damage or personal injury or death.
SEDONA

CARE & USE/ FIRE PIT INSTALLATION |5
IMPORTANT SAFETY PRECAUTIONS
PLEASE REVIEW THESE IMPORTANT SAFETY
PRECAUTIONS BEFORE YOU USE YOUR FIRE PIT.
1. NEVER LEAVE THE FIRE PIT UNATTENDED WHILE IN USE.
2. Follow the instructions in this manual carefully to reduce the risk or personal injury, deathor property loss.
3. Ensure all tie-down wires have been removed from the burners.
4. Always use caution when operating the appliance in a windy area.
5. Avoid wearing loose-fitting garments or long sleeves while adjusting fire pit media. They could ignite.
6. Never touch the appliance rocks or immediate surrounding surfaces with your bare hands while in operation.
7. Use only the type of fuel specified on the appliance rating plate. Verify the fuel gas is correct and the proper
pressure is available. Never use wood, charcoal or any other solid fuel or liquid fuel in this fire pit.
8. Never replace the appliance rocks with any other material such as granite, marble or any other dense stone as
these may crack or burst under flame and heat.
9. Do not use the appliance unless a leak check has been performed on all gas connections.
10. Never operate the appliance while under the influence of alcohol or drugs.
11. Do not lean on table shelves and never place a load weighing more than 25 pounds on the shelf.
12. If the burner does not light or goes out during operation, turn off all gas control knobs and wait five (5) minutes
before attempting to re-light.

6
|CARE & USE/ FIRE PIT INSTALLATION
STEP1: Unpack the table top and the base. Remove all packing materials, tie down straps and any other packaging.
STEP2: Place the fire pit base on a flat firm surface. The Fire Pit must be on solid ground or pavers so it will not sink over time.
STEP3: With the help of an assistant, place the table top on top of the base, making sure the table top is centered properly.
SEDONA FIRE PIT ASSEMBLY INSTRUCTIONS
BURNER AND IGNITION CONTROLS ...continued

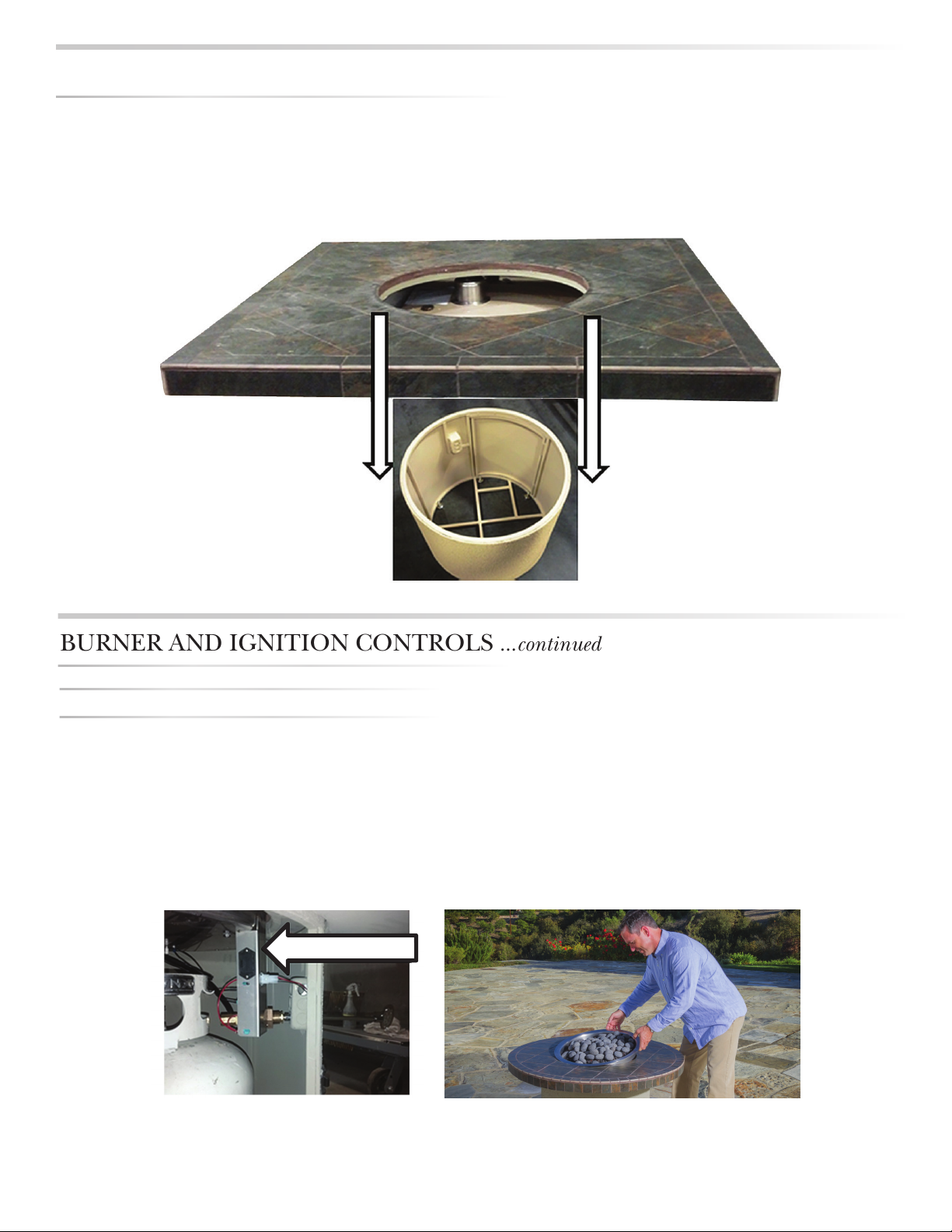

Install burner and burner pan in the table top opening. This can be accomplished In one or two ways.
Before dropping the burner pan into the enclosure, connect the LP hose to the LP cylinder, and the ignition wire from
the igniter module to the power button.
As an alternative you can install the burner pan into the table top, and working from the base access door, connect the
LP hose to the LP Tank, connect igniter module to the power button.
Do not add the burner media until you check the spark ignition in the next step.
Ignition Wire Connector
Step 1
9 volt battery

CARE & USE/ FIRE PIT INSTALLATION |7

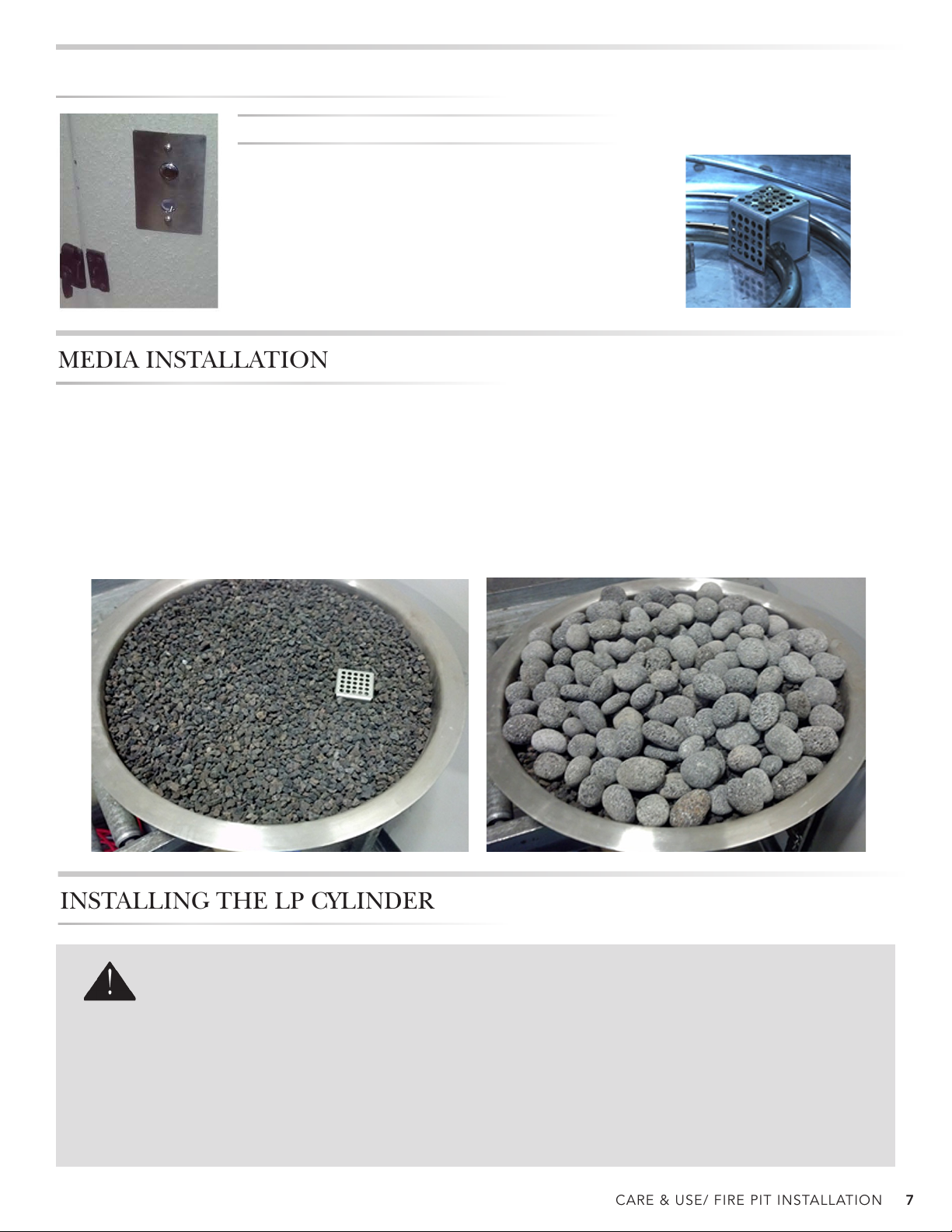

Press the ignition button and verify a spark is present at
the spark electrode at the burner assembly. If you do not
see or hear a spark, please refer to the trouble shooting
section of this manual.
If the ignition spark is present, proceed to the next step,
addition of burner media.
MEDIA INSTALLATION
BURNER AND IGNITION CONTROLS ...continued
Step 2
STEP1: Install the burner pan as described above
STEP2: Add lava rocks and spread evenly to cover the entire burner assembly, and an additional ½ - 1” deep. Be careful
not to block the ignition box openings as this will affect proper ignition.
STEP3: Add river rocks in a single layer, to cover the lava rock. The ignition box may be loosely covered with the river rocks.
Your Ice ‘N Fire Pit needs burner media in order to create realistic, natural looking flame effects. Follow the instructions
outlined below to create safe and pleasing fire effects.
INSTALLING THE LP CYLINDER
The LP Gas cylinder, or tank, must comply with U.S Department of Transportation (D.O.T.) Specifications for
LP Gas Cylinders or the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods
and Commission CAN/CSA-B339. The cylinder must be protected with a listed overfill prevention device and
provided with a connection device compatible with the appliance connector. Failure to meet this requirement
may create a hazardous condition resulting in personal injury, death or damage to personal property, and may
pose a risk of fire or explosion.
WARNING

8
|CARE & USE/ FIRE PIT INSTALLATION
INSTALLING THE LP CYLINDER...continued

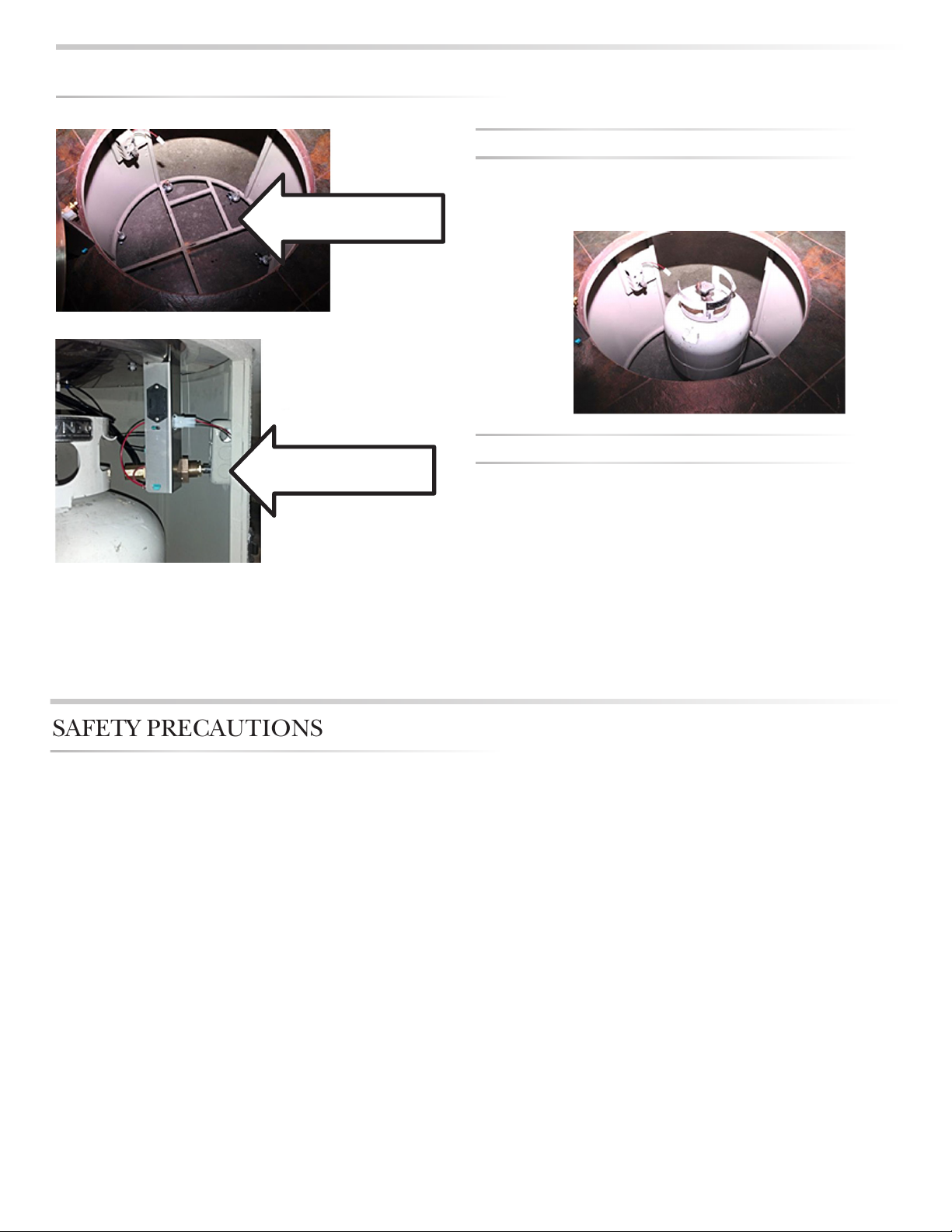

The LP tank is brought into the fire pit enclosure and
secured to the square base frame by the bottom ring of
the cylinder.
Connect the LP hose and regulator assembly to the LP
Cylinder. Do not use tools when making this connection,
the knob must be hand tightened only.
Rotate the burner pan until the gas valve lines up with
the opening for the gas valve key. Make sure the burner
control valve is in the OFF position before opening the
cylinder valve.
Step 1
Step 2
SAFETY PRECAUTIONS
Inspect the LP gas hose and connections before each use. If there is any damage from normal operating conditions,
weather, rodents or other adverse conditions do not use the hose. Turn OFF the LP tank valve and replace the hose and
regulator assembly. Replacement parts are available from the Lynx Grills, Inc..
Before using your fire pit you must test all gas connections to ensure leak-free connections. Gas connections can be
tested with a solution of 1 part dish soap to 3 parts water. Turn on gas at the cylinder gas valve. Brush or spray the solu-
tion on all connections and look for the formation of bubbles. NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
If you find any leaks, tighten the connections and retest. If you cannot stop the leak, turn off the gas at the cylinder gas
valve and call a qualified repair technician, or contact Lynx Grills to arrange a service call.
Inspect the burner assembly regularly for damage. Clean any blocked ports. Be aware that insects like to make webs
inside burner assemblies and hoses.
LP Tank Bottom Collar
Support
Line up gas valve with
key control opening

CARE & USE/ FIRE PIT INSTALLATION |9
LIGHTING INSTRUCTIONS
STEP1: Make sure the gas shut-off valve on the LP Tank is in the open position
STEP2: Start the spark igniter by pressing the ignition button. The starter will stay on until the button is pressed again.

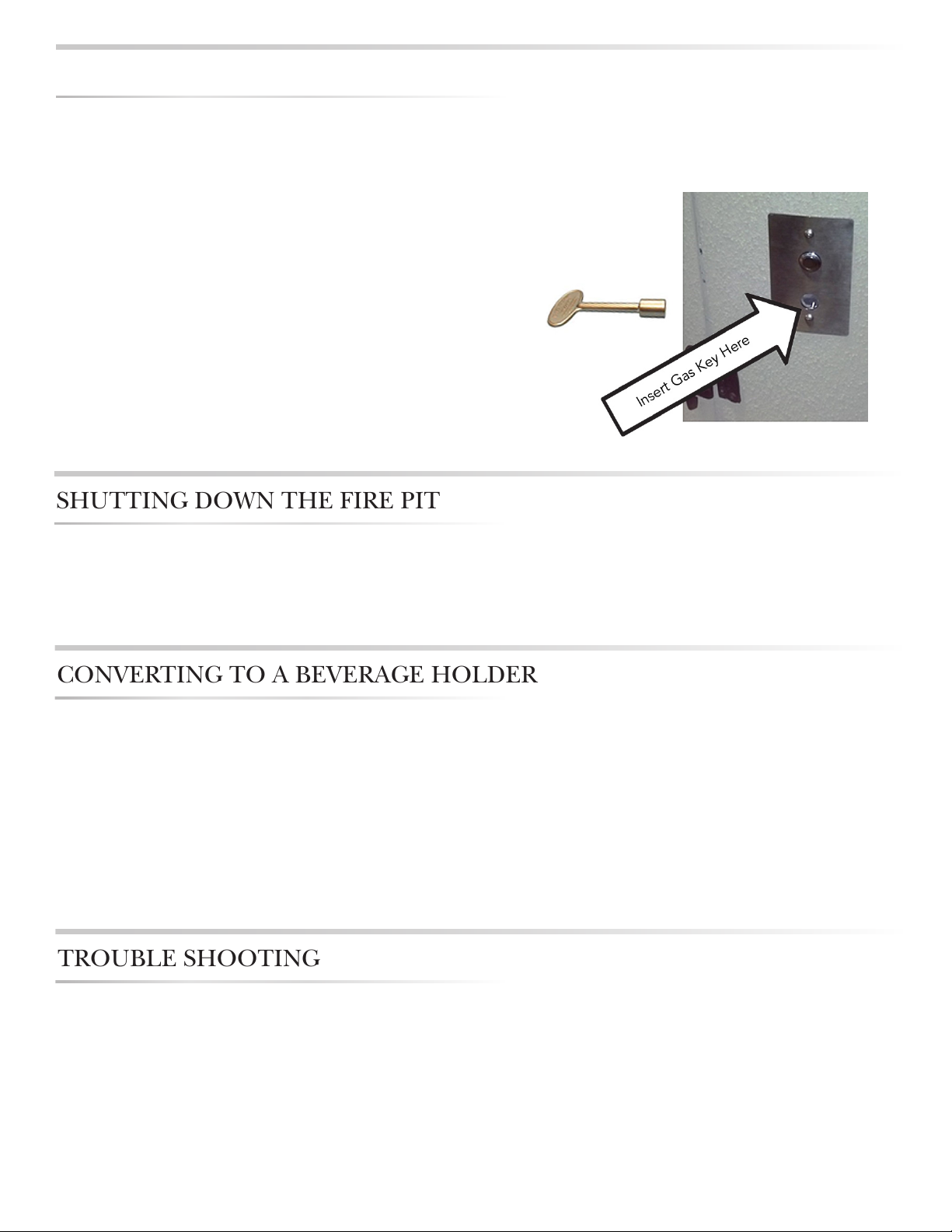

STEP3: Using the Gas Valve Key, open the gas burner control valve
through the opening in the control panel. Turn the key to the left
(counter-clockwise) until it is full open. The burner should light
immediately. If the burner does not light in 4 seconds, turn the gas valve
OFF, push the ignition button to turn off the igniter, Wait 5-minutes for
any gas to dissipate, then repeat steps 2 and 3 again. If the burner fails
to light contact Lynx Customer Care.
STEP4: After the burner lights push in the ignition button to shut off the
ignition module.
STEP5: Use the gas valve key to adjust the flame to a comfortable level.
DO NOT LEAVE A LIT FIRE-PIT UNATTENDED!
SHUTTING DOWN THE FIRE PIT
STEP1: Using the Gas Valve Key Turn off the gas to the burner by turning the Key to the right (clockwise) until the
valve is fully closed
STEP2: Shut OFF the LP tank gas valve
CONVERTING TO A BEVERAGE HOLDER
You new Lynx Fire Pit is easily converted into an icy beverage holder for those warm days when a fire pit Is not needed.
STEP1: Shut off gas from the LP cylinder
STEP2: Disconnect the ignition wire at the connector
STEP3: Lift out the burner pan using the convenient handle
STEP4: Insert the Ice pan into the cutout opening
STEP5: Fill with ice and your favorite beverages and enjoy.
TROUBLE SHOOTING
1. Make sure a fresh 9 volt battery has been installed
2. Make sure all wire connectors are firmly attached. They may have come loose in shipping
3. Check to see that the LP tank is full and properly connected.
If you have any problems or concerns, please contact Lynx Customer care
Lynx Grills, Inc.
7300 Flores Street
Downey, CA 90242
888-289-5969

10
|CARE & USE/ FIRE PIT INSTALLATION
REFRESHMENT BOWL CONVERSION
44.00
TOP VIEW
TOP VIEW
FRONT VIEW
44.00
22.00
22.00
FIRE/REFRESHMENT
BOWL
44.00
44.00
24.00
28.00
44.00
TOP VIEW
TOP VIEW
FRONT VIEW
44.00
22.00
22.00
FIRE/REFRESHMENT
BOWL
44.00
44.00
24.00
28.00
44.00
TOP VIEW TOP VIEW
FRONT VIEW
44.00
22.00
22.00
FIRE/REFRESHMENT
BOWL
44.00
44.00
24.00
28.00
FEATURES
PERFORMANCE
TECHNICAL
ACCESSORIES
PRODUCT DIMENSIONS
Model No. LFPC-S & LFPC-G. LFPS-S & LFPS-G
Tumbled volcanic variegated stone.
Access door provides easy accessibility to LP Tank and battery compartment.
65,000 BTU max.
Fuel Type: LP Standard / NG Kit available.
Electric pushbutton ignition with manual valve for flame setting.
NG Conversion Kit available.
Caster Kit available.
Vinyl Cover (included).
Overall diameter 44"
Overall height approx. 24"
2. Place refreshment bowl
into top
1. Remove gravel pan
from top 3. Refreshment bowl
44” round top on round pedestal with unique
nautilus burner. 44” square top on round pedestal with unique nautilus burner.

CARE & USE/ FIRE PIT INSTALLATION |11
1
14
11
9
22
17
16
15
3
8
4
5
12 2
217
6
13
10
ITEM PART No. DESCRIPTION QTY.
1 80884 FIREPAN WELDMENT 1
2 34641 NAUTILUS BURNER 1
3 34640 IGNITER SHIELD 1
4 31217 SPARK ELECTRODE, 15" 1
5 34654 BRACKET, BURNER RETAINER 2
6 34644 HANDLE, PAN 1
7 34652 KEY VALVE, FIREPIT 1
8 31162 IGNITOR, 2 SPARK 1
9 70231 BATTERY HOLDER 1
10 34773 MOLEX PLUG, PANEL MOUNT 1
11 34774 LOCK NUT, ELECT., 3/4"-14 NPSM 2
12 34775 COTTER PIN, .093 X .750 2
13 31582 UNION COUPLER, 1/2" NPT 1
14 34695 ORIFICE, VENTED, #41 1
15 14030 SCREW, 1/4-20 X 1/2, HHD, SS 2
16 31876 NUT, 1/4-20, LKN, STEEL, W/ESL 2
17 33706 SCREW, #10-32 X 3/8, PHP, SS 2
18 32768 NUT, #10-32, INSERT, STEEL, ZINC 2
19 80661 WIRE, GROUND, 16" 1
20 70230 WIRE, IGNITION, 6" 1
21 13012 NIPPLE, 1/2 CLOSE BLACK 1
22 13054 ELBOW, 3/8" FLARE TO 1/2^ FIP 1
23 30751 SCREW, #6-32 X 1/2, FHP, SS 2

12
|CARE & USE/ FIRE PIT INSTALLATION

Lynx Grills
7300 Flores Street
Downey, CA 90242
Service: (888) Buy-Lynx (888-289-5969)
Fax: [phone]
www.lynxgrills.com
SEDONA
BY
TM
PN #34776 RevC, 02/2014
