Lynx ADP-12S User manual

USER MANUAL
V.12.11
ADP-12S
Lynx Pro Audio S.L.
Valencia, Spain - www.lynxproaudio.com - [e-mail]

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
Class D Powered
Integrated Digital Processing
Internal temperature control
Electronic protection
High quality components
Online monitoring available

Manufacturer
CB SCHEME, IEC SYSTEM FOR CONFORMITY TESTING AND CERTIFICATION
OF ELECTRICAL EQUIPMENT
CE CERTIFICACTION, EUROPEAN PRODUCT
ADP-12S bass-reflex sub unit
LYNX Pro Audio S.L.
Calle 7 - Pol. Ind. Picassent
E-46220 Picassent (Valencia)
This user manual is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited.
Copyright 2012. All rights reserved.

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
CONTENTS
-SAFETYPRECAUTIONS 5
-CABINET INTRO
SPECIFICATIONS 6
BACKPANEL 7
CONNECTORSANDCONNECTIONS 7
-CONFIGURINGTHECABINET DSPOPTIONS
CONFIGURATIONPANEL 9
SELECTANDRUNPRESET 9
ONLINECONTROLSYSTEM 11
CONFIGURINGETHERNET 12
-SOFTWARE,RAINBOW

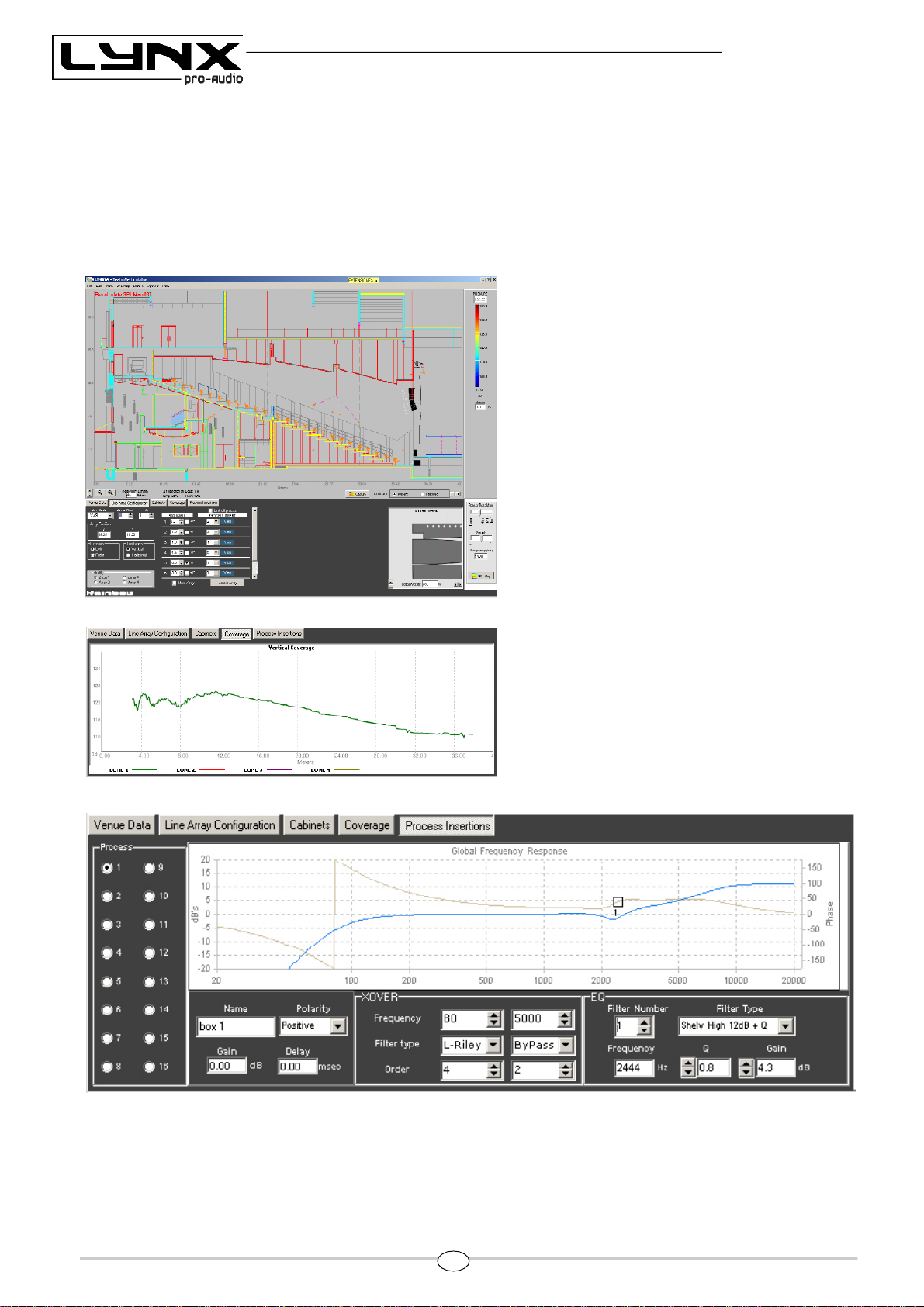

ACOUSTICALPREDICTIONSOFTWARE 18
FEATURES 19
-ACCESSORIES 20
-GUARANTEE 21

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S

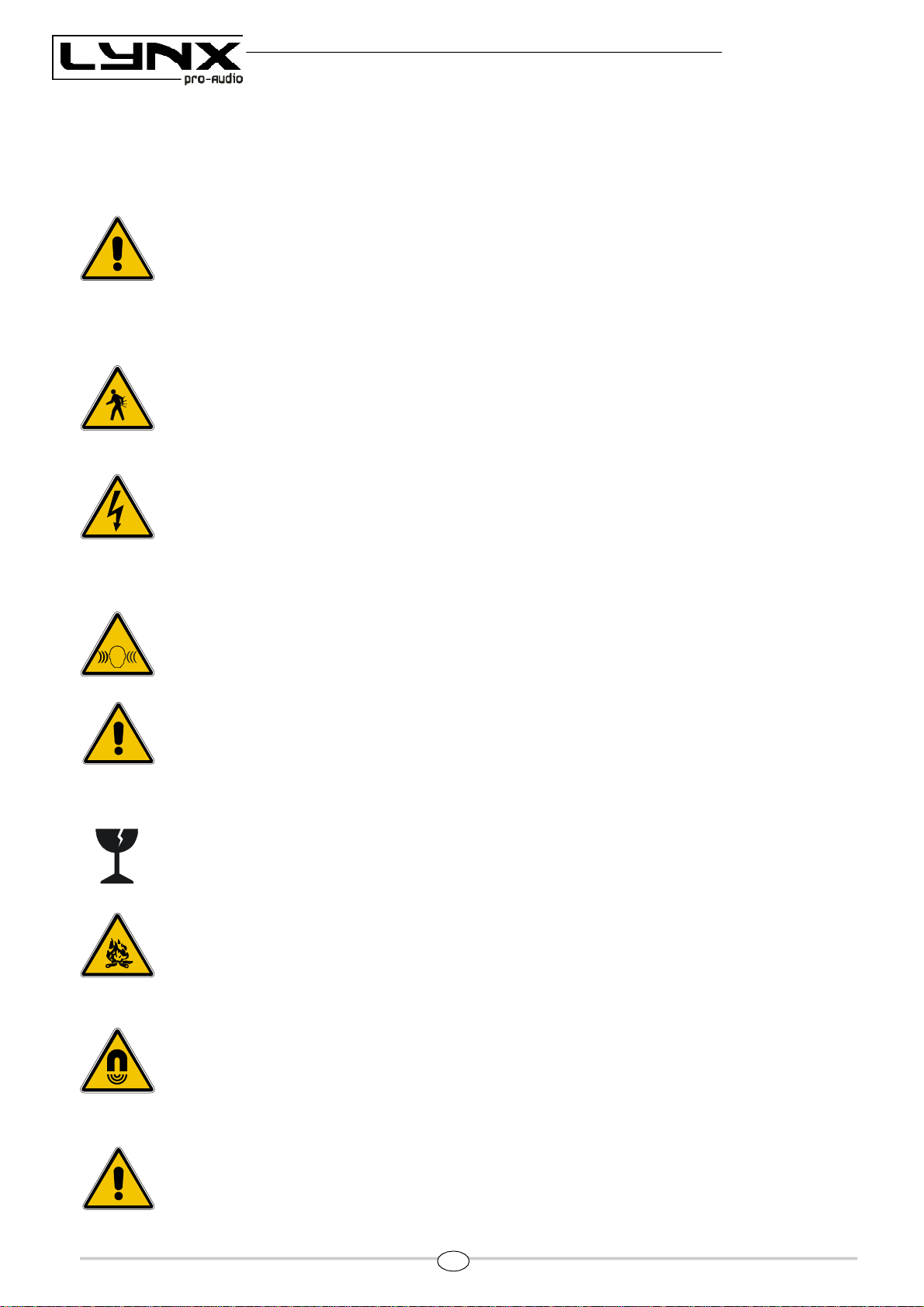

Before starting tousethisdevice, please read thisinstructionmanual carefully.
Keep theseinstructionsin the place where the equipment will be used and witheasy accessto them.
- Electrical appliance.
Theexclamation mark within atriangle identifies the presenceof electricity. Use the system carefully
without wet handsor feet.Avoidinstallingthe speakerin wet or excesivelly humidplaces. Do not place
material that containsliquidonor near theunit.Avoiddrippingor splashingwater or any liquidoverthe
unit. Regularly check the condition of the cables and make sure these are not being walked on or
pinched. Connect the speaker to bipolar, earthed mains. The mains plug must be connected to the
appropriate protection (fuse or breaker). Connection to any other type of mains could result in an
electrical shockandviolatelocalelectrical codes.CAUTION: DONOTCONNECTORDISCONNECT
THEACPOWERCONNECTORSUNDERLOAD.
- Heavy equipment.
Apply back protection when using the system. Avoid loading andunloadingat heights.
-Electrical shockrisk.
Thediagonal mark withina triangle identifies thepresenceof dangerousvoltage.
Do not open or handle the interior of the box. These parts are not to be adjusted by the user. For
maintenance and/or repair please goto an authorized service centre.
In order to reduce the risk of electric shock, disconnect from AC before plug in or unpluggingAudio
signal cables. Reconnect toAC only if all signal connectionsare made and secured.
Nevermanipulatethegroundtypeplugprovided.
TheAC mainsplugs should always remain accessible for operation.
Unplug theloudspeaker during storms or when it’s being used for a long time.
- Hearing damage risk.
These systems can reproduce large quantities of sound pressure which can damage hearing. Take
precautions if you aregoing to benear them for extended amountsof time anddo not get too close.
- Hanging – Flying.
Donot hangthecabinetsfrom thehandlesor from anyother partother thanthe designatedhanging
point. Whenflyingthissystem please observethetechnical and softwaredatacarefully. Never exceed
the maximum safe working loads or ignore the instructions included within this manual. Use Only
flying accessoriesprovided by Lynx ProAudio S.L.
Rigging mustbe always carried out by professionals.
- Delicate Material.
Pleaseensurenoforeignobjectorwaterentersthespeaker. Onlycleantheunit withdrycloths.Donot
use solvents.
-Overheating – Fire risk.
Toreduce therisk of the speakeroverheating, avoiddirect contactwithsunlight.Avoidplacingthe unit
closeto heat inducing objects such asradiators.Do not cover the equipment in use and donot block
anyventilationopenings. Do not put nakedflame, suchaslightedcandles, closeoron top of theunit.
- Electromagnetic and interferente emissions.
Avoid placing objects which through electromagnetic waves can damage the unit, such as mobile
phones, lap tops, magnetic strip cards etc.
Thissystem complieswith normatives EN55103-1(1)
EN55103-2(2)
(1) This device may not causeharmful interferences.
(2) This device may receive interference includinginterferencesthatmay causeundesired working.
-IMPORTANT NOTE.
This Equipment must be used in accordance with these instructions and by trained professional
personnel only.
Thisequipmentshouldnotbeusedinplaceswithextremetropicalclimates.Don’texposethisapparatus
toextremehumidityandortemperaturevalues.
5

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
INTRODUCTION
To facilitate, correct and reliable use of the powered cabinetADP-12S we have designed this instruction manual.
Please read the manualcarefullybeforeproceedingto install thesystem.
Pleaseobserve the technical data carefully anddo not ignore the instructions included within thismanual.
6
SPECIFICATIONS:
FREQUENCY RANGE 40Hz -180Hz
FREQUENCY RESPONSE 45Hz- 150Hz ± 3dB
COVERAGE 360º one unit
MAX SPL 131dB/ 134dB peak 1w@ 1m
TRANSDUCER 12" Custom Neodimium + 4’’ ISV voice coil
CONFIGURATION Bass-reflex, Direct radiation
POWER AMPLIFIER 1000W Class D with Switching Power supply
DSP Internal LYNX digital processor DSPB-22®
CABINET ADJUSTMENT Back panel LCD screen
INTERNAL CONTROLS Temperature sensor / Fan Speed control
SIGNAL CONNECTION NEUTRIK connectors XLR Male Input
XLR Female Loop Thru
CONTROL CONNECTIONS USB (DSP programming),
ETHERNET* (Online Monitoring System OMS®)
AC POWER 230v / 115v selectable. 50/60 Hz 5A
AC CONNECTIONS 16A NEUTRIK POWERCON with Looping Output
CONSTRUCTION 18 mm Premium Birch plywood
FINISH High resistant water-based black paint
FRONT DESIGN Black antirust steel grille
DIMENSIONS (H x W x D) 495 x 380 x 644 mm
WEIGHT 29 Kg (64 lbs)
*Ethernet connection is optional.

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
7
CONNECTORS AND CONNECTIONS
1.- SIGNAL INPUT.
2.- SIGNAL LINK.
3.- AC INPUT.
4.- AC LINK (máx. +2 cabinets).
5.- USB.
6.- DSP CONTROL.
7.- ETHERNET (optional)
ADP-12S BACK PANEL.-
XLRAEREALCONNECTORS
Connecttooutput
Connecttoinput
2 Live(+)
3 Live(-)
1 Earth
3 Live(-)
1 Earth
2 Live(+)
1
2
3
4
5
6
7

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
8

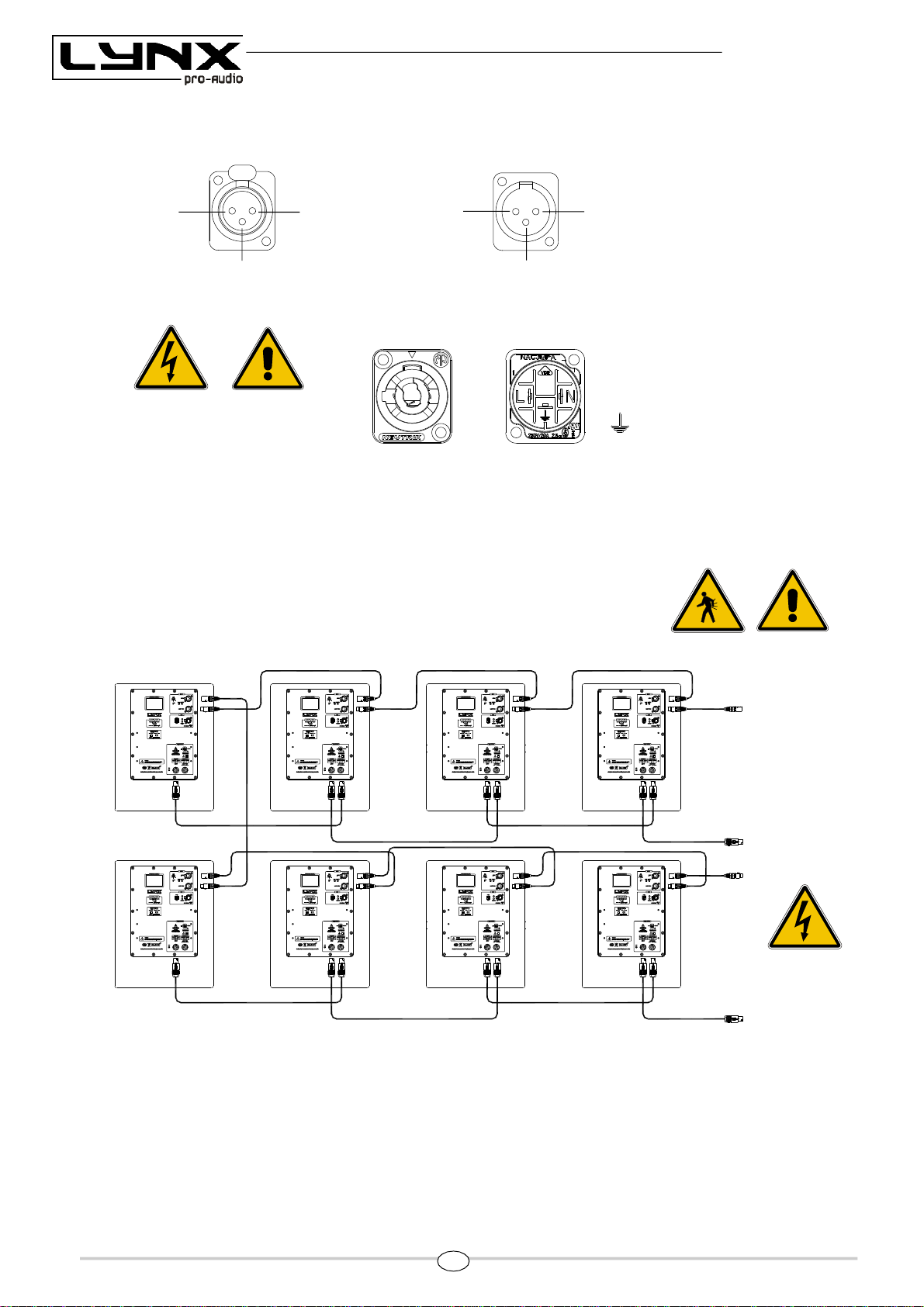

OUTPUTS
1.- EARTH
2.- LIVE (+)
3.- LIVE (-)
1
3
2
INPUTS
1.- EARTH
2.- LIVE (+)
3.- LIVE (-)
2
3
1
XLRSOCKETCONNECTORS
CONNECTION EXAMPLE: 6 ADP-12S CABINETS
Connectto
signaloutput
Connectto
ACoutput
SOCKET POWERCON CONNECTORS
L - Line
N - Neutral
- Earth
CAUTION:
DONOTCONNECTOR DISCONNECTTHEACPOWERCONNECTORS
UNDER LOAD.
CAUTION: Do not connect or
disconnect the AC Power
connectors under load.
Connectto
signaloutput

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
CONFIGURING THECABINET DSP OPTIONS
From the buttons below the display on the cabinet’s back panel you are able to configure the Basic adjustment
functionsof theinternalDSP. Depending onthemodel,youcanfindthefollowingconfigurations:
Note:
You must apply the desiredconfiguration in eachonecabinet. Thisis donevia the buttons locatedon the back panel
of thecabinet and requires electrical power towork.
9

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
Fig 1
Fig 2 Fig 3 Fig4

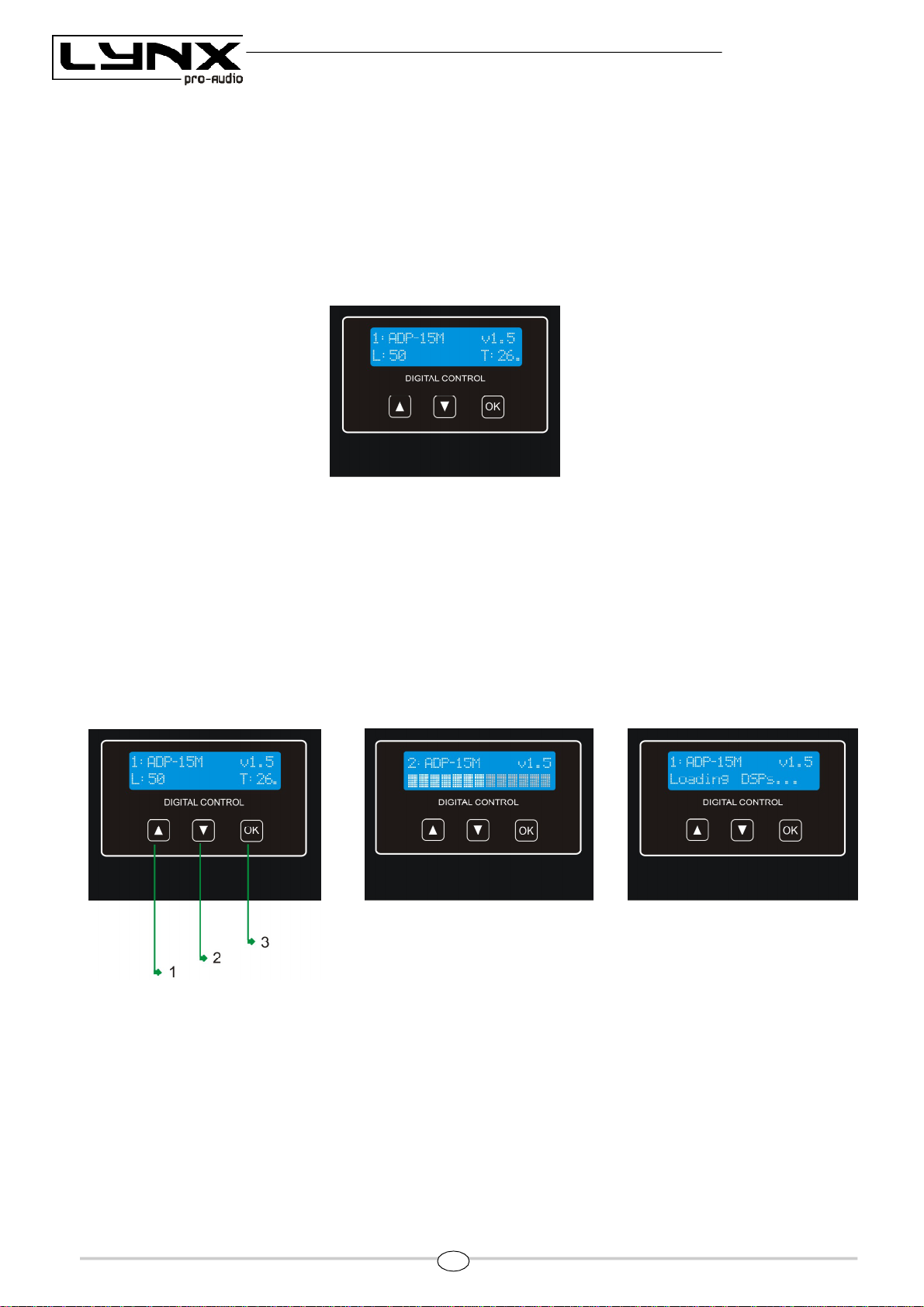

CONFIGURATIONPANEL
On the back panel you will see 3 buttons and an information screen, on which you can read the established
parametersandinformation such asamplification module temperature,input signal level and nameof thecurrent
preset (Fig1). If changesarenotmadethedisplaywill automaticallydim to saveenergy andavoid unnecessary light
in situationswhere light is not wanted. To re-activate thelight simply press the OK button.
SELECT ANDRUNPRESET
To change thepreset configurationjust presstheup button (Fig2(1))anddown button (Fig2(2)) until yousee the
title andpreset number required. Once found,pressOK (Fig2(3)) until the progressbar finishes(Fig3).The
displaywill indicate“LoadingDSP” (Fig4)
Note:
In case of a power cut, the DSP will save its last configuration when restarted.
10

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
11

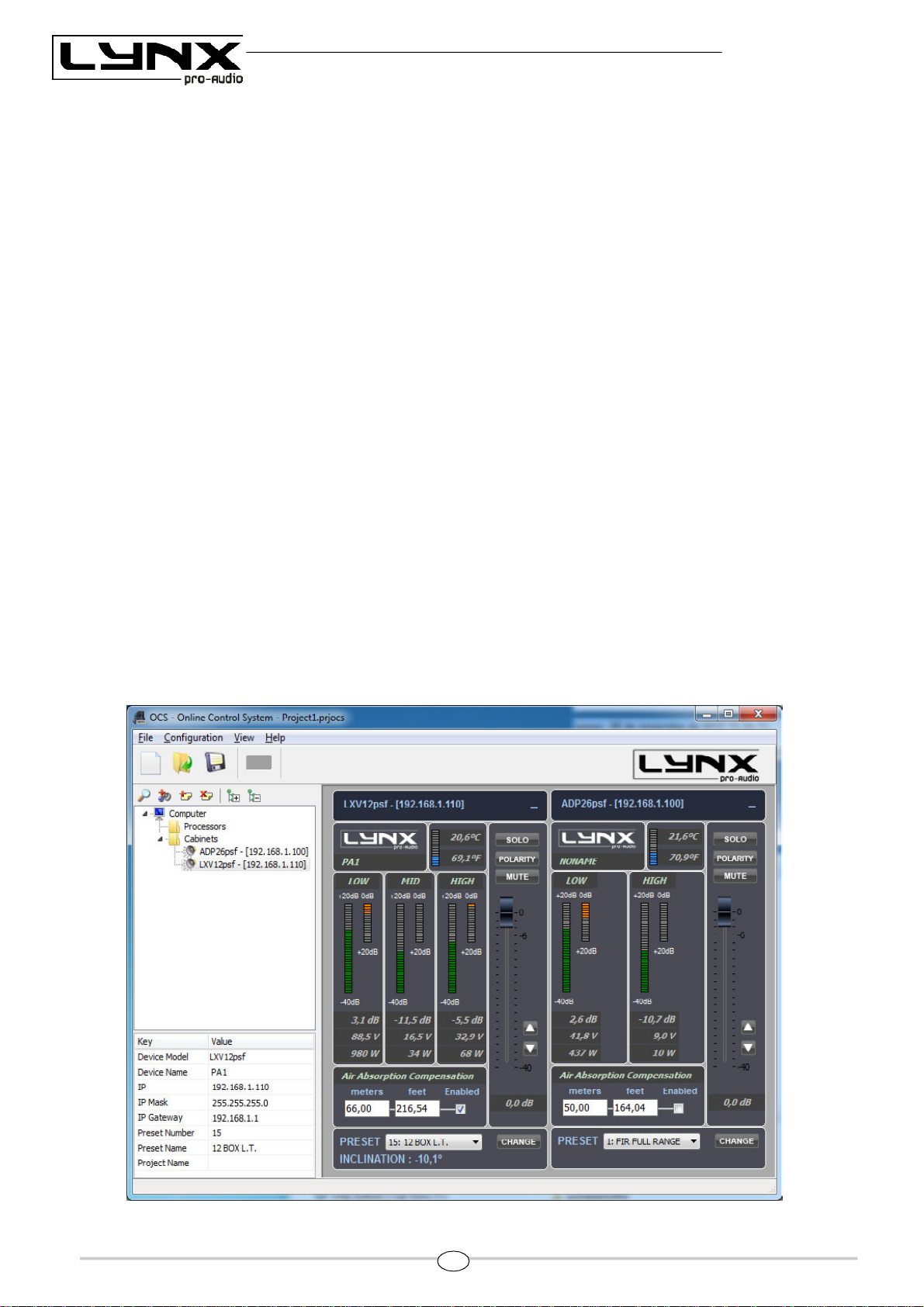

ONLINE CONTROL SYSTEM
Who is it for?
Usersof Self poweredDSPincorporatedLynx ProAudioCabinetswheretheuser hasrequestedthecabinetsbe
supplied with the Ethernet Module kit.
What is it for?
Obtain detailed informationof cabinetbehaviourandmonitor thecabinet/sin real time.You canchangethe
preset, gain, mute, polarity and phase.Youcan also activate the air absorption compensation and select the
«SOLO»mode.
How does it work?
Via Ethernet (cable or wireless). Once installed, the O.C.S. softwareautomatically detects all the cabinets
connected to the network and displays them in the O.C.S. windowon the users PC.
What does it show?
As well as displayingthe cabinet model and IP address theO.C.S will be monitoring in real time andtheuser will
beable to viewRMS levels, Input clip,power moduletemperature, compression levels,air absorption
compensationandcabinetangulation.

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
CONFIGURING ETHERNET TO WORK WITH THE ADP-12S
Thereare two possible waysto connect:
1.-ConnectingthroughanETHERNETSWITCH/HUB::
-Youwill needanormalCAT5Cable.
2.- Connectingthrougha Wirless ETHERNET.

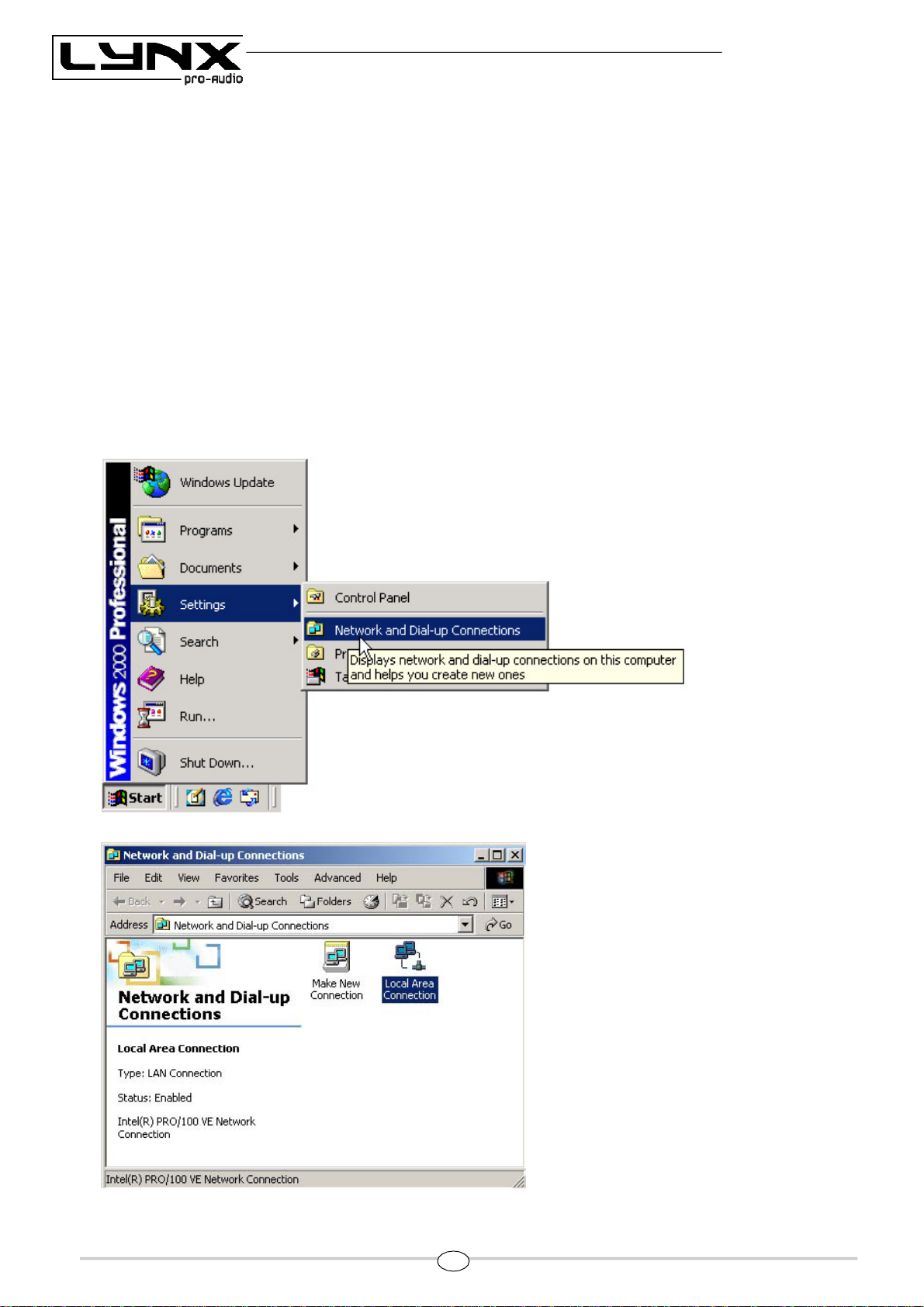

Let usnow proceed to configurethe Ethernet network, setting the IPaddress of the computer asstatic.To do this
go to:
START > CONFIGURATION> NETWORK CONFIGURATION
We will launch the properties of "Local
Area Connection" by clicking the right
mousebuttonandclickingonproperties.
12

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
13

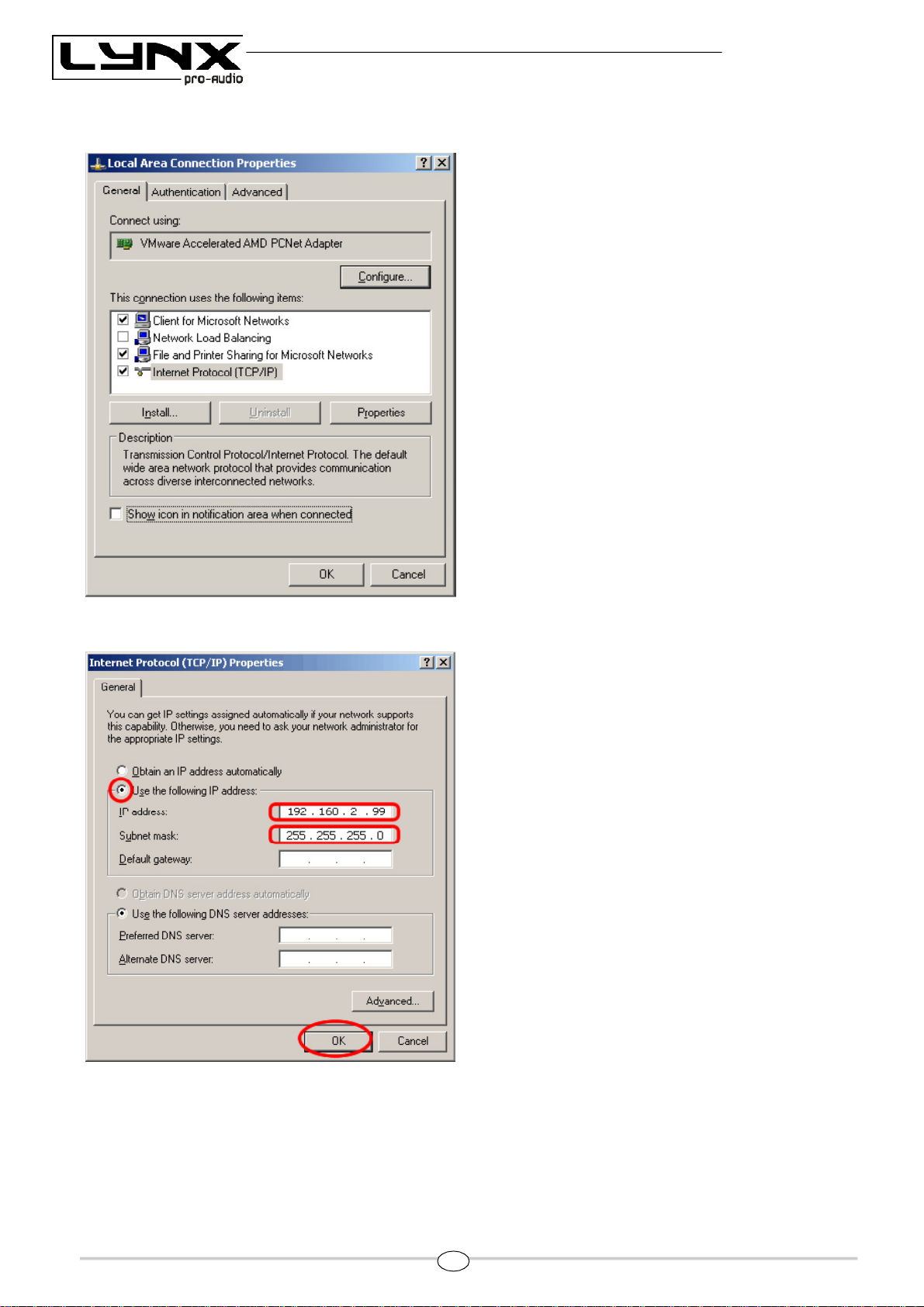

Select "Internet Protocol (TCP / IP)" and click on
properties.
Select: “Use next IPAddress” And write as you wish, in
ordertoconfigureyournetwork.
Normally, Ip valueswill besomethinglike this:
IPAddress:192.168.2.xxx
Subnet Mask:255.255.255.0
Wherexxx will be a number between 1and 254
Accept to quit the network settings and again to apply
them at thenext screen. Depending onthe Windows Ver-
sion, you will be asked to reboot or not.
Oncethe Computer isconfigured with a static IP proceed
to connect to the line array system through the O.M.S.
(onlinemonitoringsystem) software.
Open the O.M.S Software and from the Initial Screen
chooseETHERNET.
It will opena different screen, asfollows, there youcan seeyour Network configuration, and the cabinetscurrently
connected.

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S

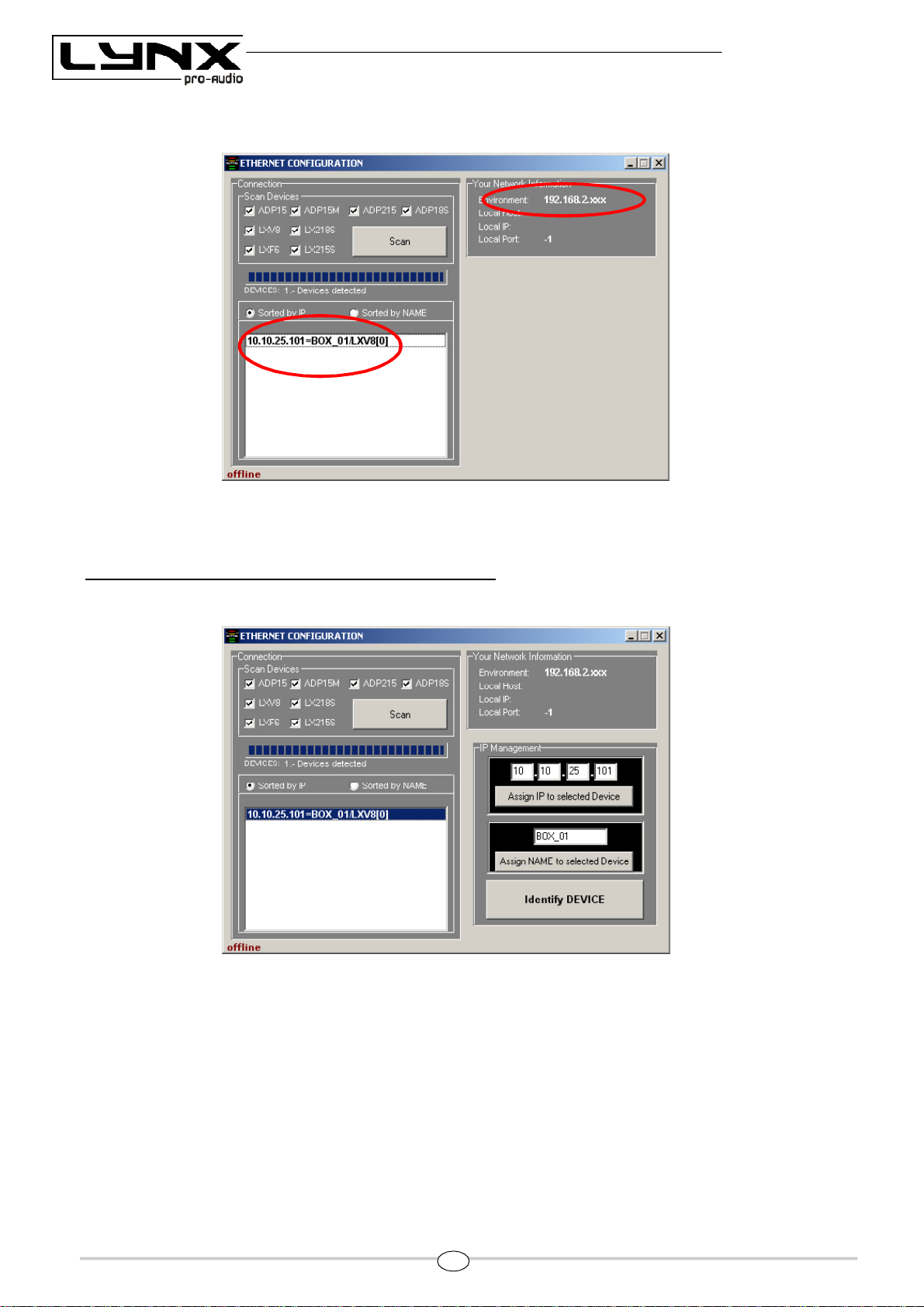

Inthiscase,wecan seethatthecabinet donot have thesame IPenvironmentasthePC.So, selectthecabinetand
modify the assignedIP in order to be able to connect to it.
By default, the Cabinet will have this IP 192.168.2.100 (Versions before 2009 could been asigned with IP
10.10.25.101orIP192.168.1.100)
TheNetworkenviromentconsistsinthefirst3setsofthreenumbersseparatedbydots.Inordertodetect/communicate
with thecabinets, thesoftware and the cabinets must have the same Network settings.
If it isnotin the same environmentWindowsProfesional(2000, XP, VISTA) will detectit, but isnot going tobe able
to establish connection. In Windows Home, the processorisnot goingto be detecteduntil thesame enviroment is
applied.
In order to change the IP settings to have thesame configuration asthe PC, we can changethe IP address of the
cabinets by clicking in the Assign IP to select Device button after writing in the box above the desired data.
Rememberthere cannot betwo deviceswith exactly the same IP address, thelast set of three numbershastobe
different anduniquetoeachoneof thedevices.
14

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
forexample, write 192.168.2.101andclick "Assign IPto select Device"button.
TheOMSsoftwarewillsendthenewIPtothecabinet anditwill scanthenetworkagainshowingthesameinformation
asbefore, plus more informationsuchas Pc name, IP addressand Portin which the communication isestablished.
Whenwe havea lot of cabinetsconnected inthenetwork wecanuse the button“Identify Device” toseewhichbox
is selected (two activity LEDS will blink for one second). With that information then we can “Change NAME”
assignedtothisCabinetbyclickinginthe“Assign NAMEto select Device”button after writingin the box above the
desiredName.
We can sort all the detected cabinets by Name or IPAddress.
Returningtothemainscreen,wecanseeeachcabinetshowing:Model,IPaddressandName,aswellasmonitoring:
RMS Level, Input Clip, Cabinet angulation,amplifier temperature and fanspeed.
15

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S

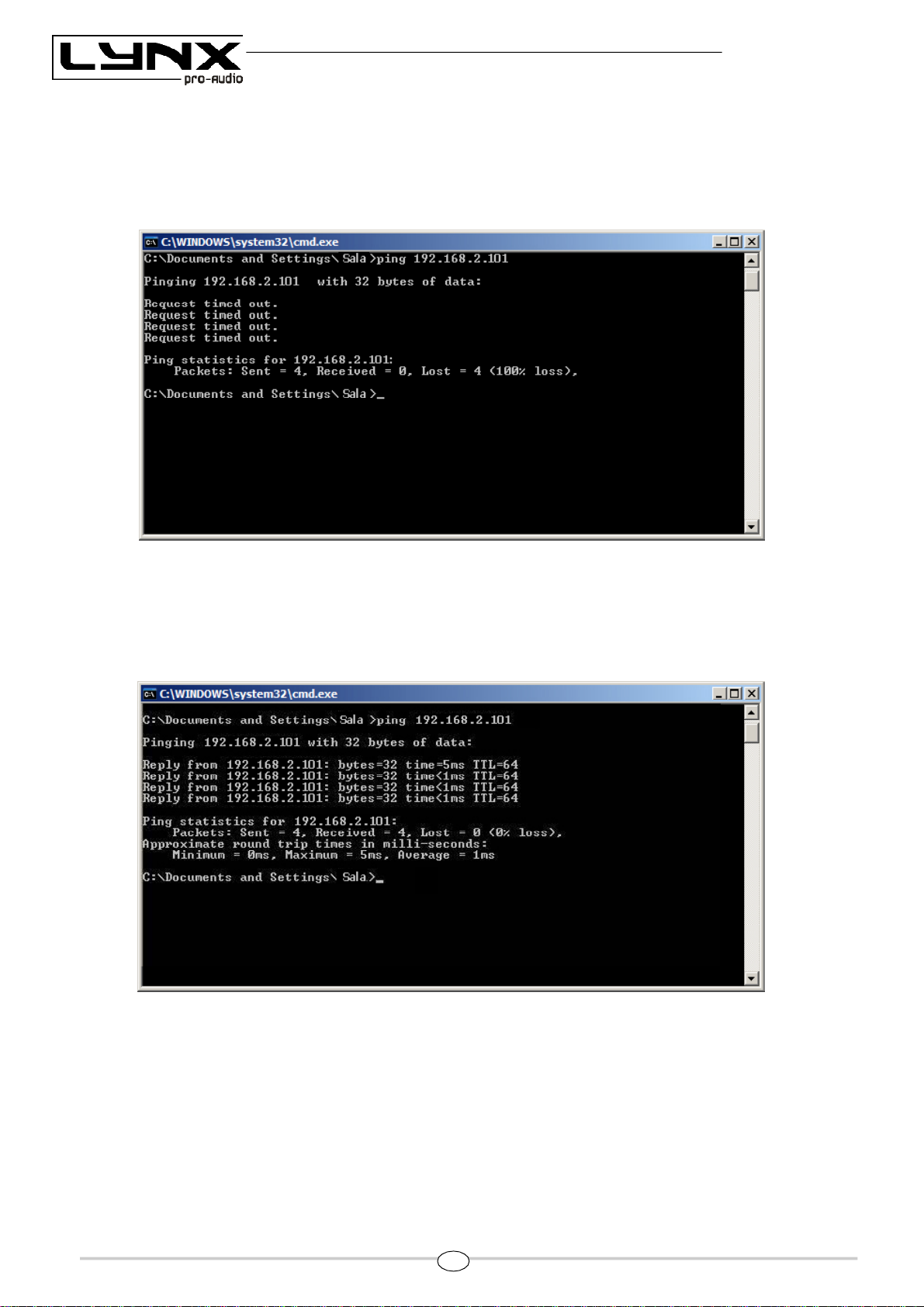

If you need to knowthe PC Network settings go to:
START >ALL PROGRAMS > ACCESSORIES > Command Prompt
It will openthe cmd.exefrom whereyoucan type theIPCONFIG command( ipconfig+ Enter), which will showyour
actual IP settings.
Here we can see that this PC has IP set as 192.168.2.99.
16

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
You can also use the command promt to know if an IPis already in use by another device. In this case type "ping
IP" (ping 192.168.2.xxx) and pressenter. If there isno devicewith thisIP you will see the following information:
If the IP is in use, thedevice will respond to the Ping, and we will obtain this information:
YounowhavetheCabinets workingintheETHERNETNetworkEnviroment.
17

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
RAINBOW – ACOUSTICAL PREDICTION SOFTWARE
Thanks to the RAINBOW software, you will be able to “virtually” determine the acoustical response of one or
various cabinets at the same time.
Basedon polar responsemeasurements,taken
meticulously with a360º coverage both vertically
andhorizontally, the Rainbowsoftware isable to
calculate the SPLresponse including the
interaction between them taking into account the
magnitudeand phaseresponse, in orderto enable
the user to correct cancellationsand even to
createthem if theacoustical design sorequires.
Rainbowisveryeasy to use and offers avery
intuitivedesign,multitoolinterfaceandon-line
updatabledatabase.
TheRainbowsoftware hasbeendesignedbyand
for sound technicians. Itsaim is to help installers
andusers of Lynx products.
This software is able to import WMF Vector Files
with technical drawingsand insert them directly
intotheprediction windowandthusenablingreal
measurementpredictions.
Thisalsohelpstodetermine deadzonesand
obtain themaximum performance from eachof the
cabinetsinstalled.
18

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
Features
TheRAINBOW acoustical predictionsoftwareallowsamongotherthings:
- Prediction up to 4 LINEARRAYS of 24 cabinets each simultaneously, together with multiple points
with cabinets
- Flying pointsinformation according tothe inclination of the cabinets
- Weight calculation of the different systems
- Sub-bass simulation(for instanceto achieve cardiod configurations)
-Orientationof cabinets(Horizontal/vertical)
-ThrowDirectionof cabinets(right/ left)
- Individual delay per cabinet/system
- Polarity selection for each cabinet
- Up to 40 process insertionswith Equalization and CrossOver assignable percabinet.
- Simulation of theAir absorption soundloss with the distance
-SPLPressure information
-Distancemeasurement
-Importof CADfiles
- Up to 4 audienceor hearing zones
-Coveragecurvesonthehearingzones.
- Export of SPLMapandcoverage curveson jpgor bmp format
- Print project report (SPL prediction, flying points, weights, cabinet inclination, polarities, process
aplied,EQCurves…)
19

LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com [e-mail]
ADP-12S
INSTALLATIONANDRIGGING
TheADPseriesinclude a rangeof accessories for installation, rigging and transport.
VSM-V1
35mm speaker
mountingtophat
TU-C01
35mm connectingpole
forsatellitecombination
withADP-15.Spring-
loadedlocking screw
and safety bolt
TU-C02
M20 pole support for
satellitecombination
withADP-15.Spring-
loadedlocking screw
and safety bolt
VSM-V2
M20connector plate
20
