Lynx yellobrik OET 1510 User manual

yellobrik Quick
Reference
®
OET 1510
Ethernet to Fiber Transceiver (switch)
Fiber I/O Electrical
Ethernet Ports (2)
TX Active
yellobrik
®
LYNXTechnik AG Broadcast Television Equipment
DC Power Input
WARNING
WARNING
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
RX Active
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
®
Port LEDs
Green LED
3 blinks = 1Gbit
2 Blinks = 100Mbit
3 blinks = 10Mbit
Yellow LED = Activity
USB
(rmware update)
Power
Technical Specifications
Ethernet 2 x Ethernet ports, RJ 45 Connectors.
10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs)
Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
Automatic crossover detection or force manually for each port (selectable)
Port speed / activity LED indication (next to Ethernet port)
Fiber Optic 1 x fiber optic input (TX)
1 x fiber optic output (RX)
Duplex using LC/PC Connections
IEEE 802.3z
(1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s)
Singlemode Version
TX wavelength 1310nm, power -3dBm
RX input range 1260nm to 1620nm, sensitivity -3dBm to -21dBm
Max distance 10km (6.2miles)
Multimode Version
TX wavelength 850nm, power -2dBm to -7dBm
RX input 850nm sensitivity 0dBm to -15dBm
Max distance approx 550m (1804 feet)
Fiber TX active and RX active LEDs on side of module
Power +12VDC @ 2.2W nominal - ( supports 7 - 15VDC input range )

Connections
The module functions as a 3 port Ethernet switch with 2 standard RJ45
electrical Ethernet ports and two ber Ethernet ports using LC optical
connections. Note a separate RX and TX ber link is needed between
locations. Two versions of this module are available:
OET 1510 - which uses a Singlemode 1310nm SFP for up to 10km
OET 1510 MM - which uses a Multimode 850nm SFP for up to 550m
Please use the correct type of ber cable with the module.
Operation
The module maintains a constant 1Gbit ber communication speed
regardless of the speed of the 2 electrical ports. The electrical Ethernet
ports can be congured independently using the module dip switch if
required. This facilitates the use with older legacy electrical networks.

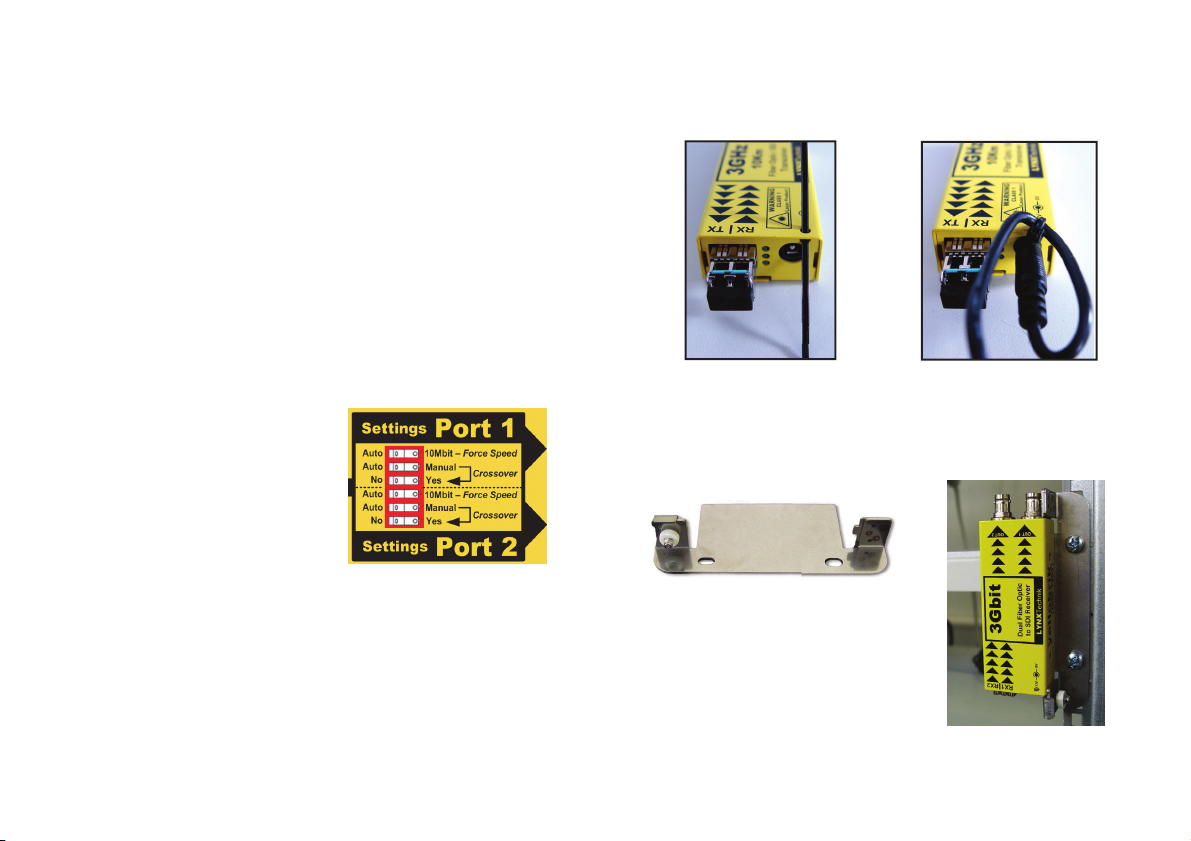

Power Lead Strain Relief
The module has a small hole in the case located above the power
connection to prevent the power lead being accidentally pulled out.
Use the supplied tie-wrap and secure the lead as shown below.
The electrical port speeds can be set to
automatic mode (10/100/1000) or
forced to 10Mbit if required. It is also
possible to congure automatic or
manual crossover for the electrical
ports (forced manual crossover is
sometimes needed for older networks)
Note. If ber RX LED is OFF this indicates no signal is present,
signal to weak or is a non a valid signal.
Power
The module requires a 12V DC power input and a LED is provided
to conrm power is connected. A power supply is provided, but if
applying your own power, please provide a clean 7-15V DC power
input (12VDC nominal). Power consumption is approx 2.2W
Optional Mounting Bracket
The optional RFR 1001 mounting bracket can be used to permanently
mount the module on any at surface or on 19” rack rails.
