yellobrik Quick
Reference
®
ORR 1402
Dual Channel 12Gbit Fiber to SDI Receiver
LC Fiber Optic
Inputs (2)
SDI Video
Outputs (2)
RX 2 Active
yellobrik
®
LYNXTechnik AG Broadcast Television Equipment
DC Power Input
Power
Connected
RX 1 Active
®
Technical Specifications
Optical Inputs 2 x fiber optic Inputs
Duplex (Singlemode) using LC/PC Connectors
SMPTE 297M - 2006
Hot pluggable
Input range (wavelength) 1260nm to 1620nm
RX sensitivity -10dBm / -9dBm @ 12Gbit/s
RX active LEDs on side of module
SMF (Singlemode) fiber
SDI Outputs 2 x SDI video on 75 Ohm BNC connector
SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
Multi-standard operation from 1.5Gbit/s to 12Gbit/s
Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz
Power +12VDC power supply (included)
( supports external power input from 7 - 24 VDC )
Power LED on side of module
Size 105mm x 40mm x 22mm ( 4.13” x 1.57” x 0.86”)
Model # ORR 1402
Includes Module, 12V DC power supply and wall mounting
brackets (�fiber optic cable not included)
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com

Connections
The SDI video outputs are connected to the 75 Ohm BNC connections
(up to 12Gbit). The ber input connection is LC Duplex SMF

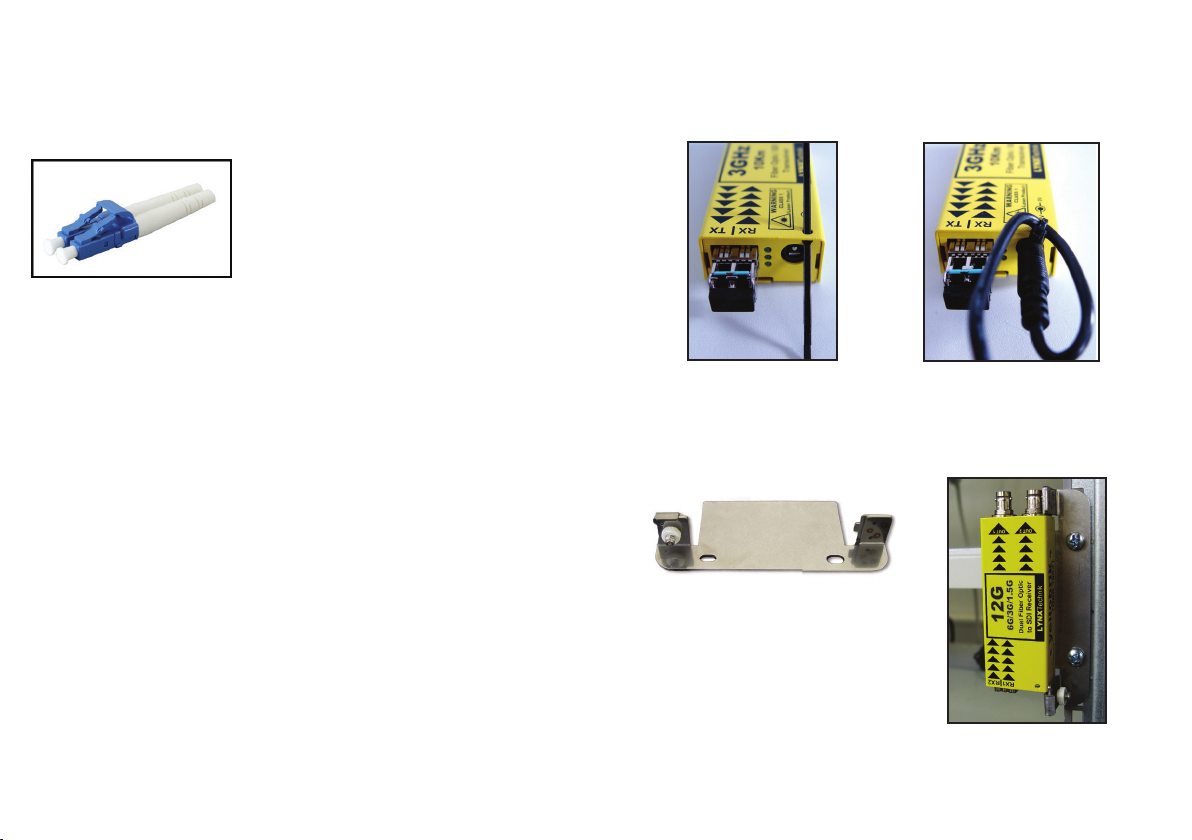

(Singlemode). An example of the LC connector shown below (ber Optic
cable and LC connectors are not supplied)
Operation
The module has two identical (and fully independent) channels.
Operation is fully automatic. The Fiber Input video rates are
automatically detected, reclocked and provided on the BNC output
connectors.
The ORR 1402 supports any SDI video signal from 1.5Gbit/s to 12Gbit/s.
The ber Input wavelength range is 1270nm - 1610nm and is suitable for
both basic ber (1310nm) and CWDM applications. Data reception
activity is indicated by the RX LEDs on the side of the module.
Note. If RX LED is OFF this indicates no signal is present, signal to weak
or is a non a valid input.
The module supports hot swapping and hot plugging of connections.
No user settings are provided for this module.
Power
The module requires a 12V DC power input and a LED is provided to
conrm power is connected. A power supply is provided, but if applying
your own power, please provide a clean 12V DC power source. Module
power consumption is approx 220mA (2.64VA)
Power Lead Strain Relief
The module has a small hole in the case located above the power
connection to prevent the power lead being accidentally pulled out. Use
the supplied tie-wrap and secure the lead as shown below.
*Note
The module is designed for use with SMF
(Singlemode) ber cable. While it is possible to
use Multimode cable, performance (distance) is
greatly degraded and not guaranteed.
Optional Mounting Bracket
The optional RFR 1001 mounting bracket can be used to permanently
mount the module on any at surface or on 19” rack rails.
