LYNXTechnik Yellobrik RFR 1001 User manual

RFR 1001
Mounting Bracket for Single yellobrik
Mounting Holes
Holes on 19”rack mount centers
for installation on rack rail
Thumb Screw
yellobrik Quick
Reference
®
yellobrik
®
LYNXTechnik AG Broadcast Television Equipment
®
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
RFR
1001
M
ountin
g
Bracket for Sin
g
le
y
ellobrik
M
ounti
ng
Hol
es
Hol
es
on
19”
ra
ck
mou
nt
cen
ter
s
for installation on rack rail
Th
um
b
Sc
re
w
More Rack Mount Solutions For yellobrik
RFR 1000 - 19” 1RU Rack Frame for 14 yellobriks
This frame can accommodate up to 14 yellobriks, any mix small or
large and features an integrated central power bus.Use a single
external power supply (RPS 1000) for power, and add a second for full
redundant protection. Also includes power fail alarm GPO outputs.

Description
The RFR 1001 is a mounting bracket for any single yellobrik module.
The bracket can be mounted on any surface using the appropriate
screws to hold it securely in place (screws not supplied). The mounting
holes are positioned on standard 19”rack rail centers, so the bracket
can also be secured in the rear of an equipment rack if needed.

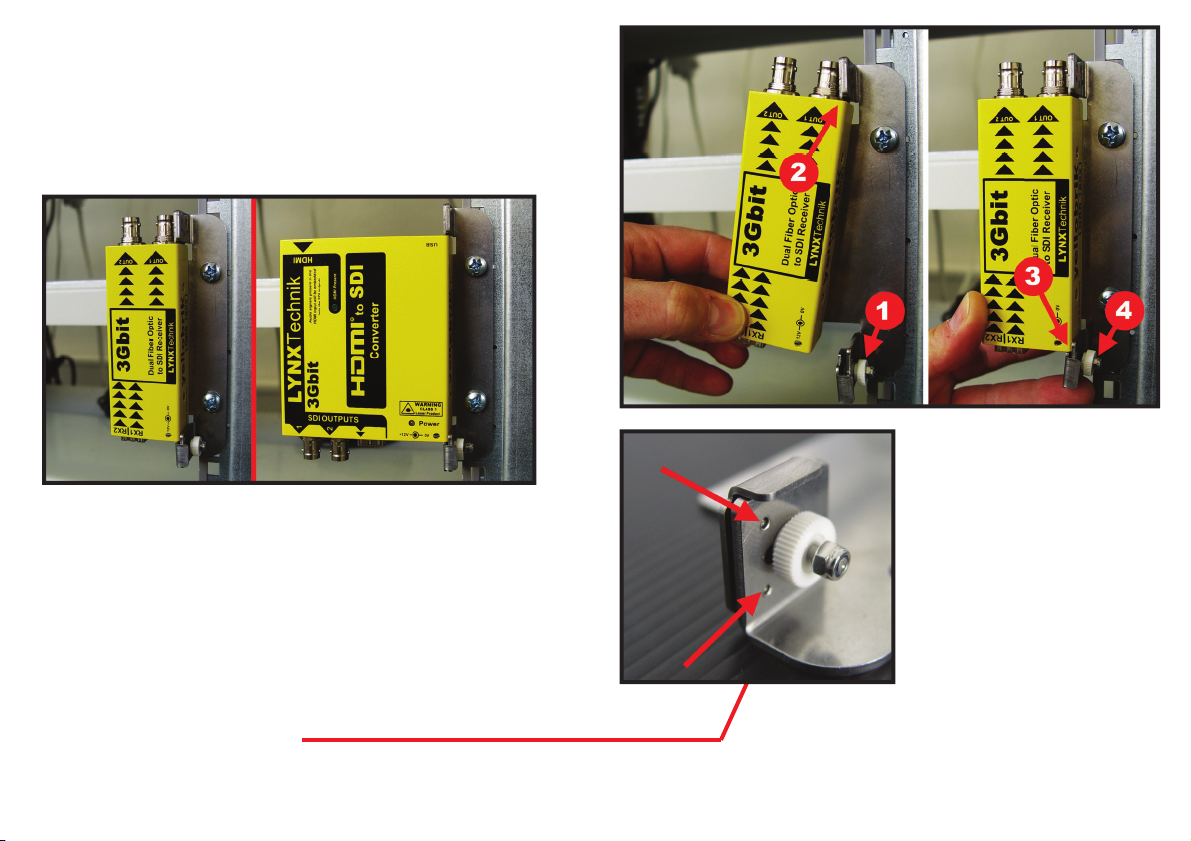

Mounting a module in the bracket
No tools are required to insert and remove a module from the bracket.
Please refer to the diagram (opposite) and follow these instructions to
insert or remove a module.
1. Loosen the white thumbscrew to allow the clip to move down
2. Insert one end of the module as shown, locating the bracket tab into
the module slot
3. Move the module to position the other end above the lose clip and
insert the clip into the module slot. Ensure the two pins locate
correctly to lock the clip in place.
4. Tighten the thumbscrew
Try to move the module to ensure the t is secure.
