Introduction
1
Thank you for choosing the Studiophile AV 40 professional desktop multimedia audio monitors. Top recording engineers and producers in studios around the world use M-Audio monitors.
Now, with the Studiophile AV 40 monitors, you can enjoy the same professional standard of audio
quality right on your desktop.
The Studiophile AV 40 has been designed and tested by veteran audio engineers to meet your needs
in a desktop audio monitoring environment. Custom-tuned cabinets, optimized speaker design, and
advanced crossover technology deliver the best sound you can get in monitors this size. Complete
with magnetic shielding for desktop use, Studiophile AV 40 delivers great audio experiences from
your music and multimedia applications. The Studiophile AV 40 monitor is self-powered, directly
accepting a line-level signal from a variety of sources.
What’s in the Box?
2
Your Studiophile AV 40 box contains:
< Two Studiophile AV 40 speakers (Left and Right)
Left: built-in amp and power supply; volume control, headphone jack, and
auxiliary stereo input on the front; main RCA stereo input, 1/4" TRS input and
right channel signal output on the back
Right: audio connection from left speaker on back
< One 1/8" stereo mini-to-RCA audio cable for use with the main inputs
< 2-conductor standard (keyed) power cable
< 1/8" stereo to 1/8" stereo audio cable (black color) for use with the “Aux” input
< Tinned bare wire audio cable to send right channel audio to the right speaker
(transparent color)
< Acoustic/traction pads for speakers
< Owner’s manual

2 | Studiophile AV 40 User Guide

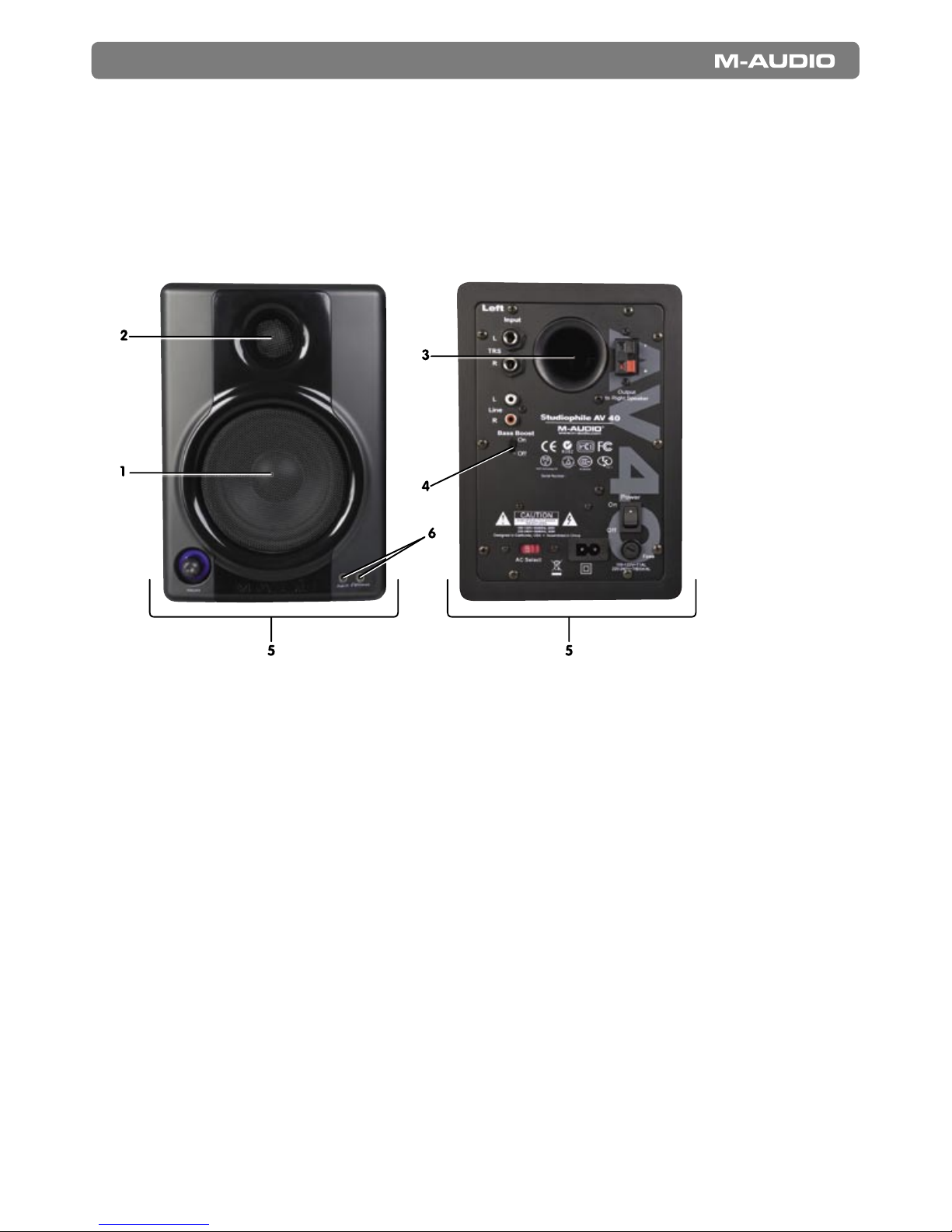

Studiophile AV 40 Features
3
1. Woofer
The woofer unit is 4" in diameter and is
magnetically shielded to protect your computer
video monitor from interference. It includes a
high-temperature voice coil and 4" polypropylene
treated paper cone. The woofer delivers balanced
mid- and low-frequency response.
2. Tweeter
By employing a specially developed 1" treated
silk dome with protective magnetic shielding,
the tweeter can deliver an extremely natural
response. It minimizes resonance by adapting a
unique internal damping technology.
3. Bass Reflex Port
The hole in the rear panel is a bass reflex port.
It is designed to discharge very low frequency
signals and enhance the overall bass response.
4. Bass-Boost Control
The back panel Bass-Boost control on the
Studiophile AV 40 gives you additional low-
frequency gain and makes the monitors versatile
for different spaces and listening preferences.
5. Enclosure
Along with the other components, the Studiophile
AV 40's enclosure plays an important role. In
order to provide more stable performance, we
used a special medium-density fiberboard (MDF)
and unique interior reinforcement designed to
absorb vibration and impact generated under
extreme conditions. Additionally, our innovative
speaker monitor cabinet includes carefully placed
acoustic material that makes the Studiophile AV
40 sound much bigger than it is—resulting in a
smooth, natural bass response.

EnglishFrançaisDeutschEspañolItaliano
日本語
Studiophile AV 40 User Guide | 3
6. Stereo Auxiliary Input
and Headphone
Output
For maximum flexibility, we have included a
stereo “Aux” input which allows you to plug in a
secondary audio source (such as your portable
music player) in addition to the main RCA and
1/4" TRS inputs in the back. The volume control
works on all inputs simultaneously. Additionally,
there is a stereo headphone output next to the
“Aux” jack that mutes the sound coming out of the
speakers and redirects it to your headphones.
7. Network & Power
Amplifiers
The power amplifiers and crossover network, for
the Studiophile AV 40 are specially designed for
this woofer and tweeter. The network distributes
low-, mid-, and high-frequency audio signals
to the proper components in order to minimize
distortion and to achieve a balanced sound.
Installation
4
For optimal performance of the Studiophile AV 40, please read the following directions carefully before installation.
Precautions
Connections: Your Studiophile AV 40 monitors have a variety of inputs for use with a multitude of
devices. Soundcards or other devices with RCA line outputs (e.g., M-Audio Delta Audiophile 24/96)
can be connected to the RCA inputs on your left speaker’s back panel. Professional audio devices
with balanced or unbalanced 1/4” outputs should be connected to the 1/4” TRS back panel inputs. If
your soundcard or portable music player has an 1/8” output, you can connect it to the front panel aux
input, using the provided 1/8” to 1/8” cable.
Correct Power Operation: Since the Studiophile AV 40 contains amplifiers, it must be connected
to a power outlet using the detachable AC cable that is provided. Before connecting power, please
make sure that the On/Off switch on the back of the Studiophile AV 40 is set to the off position.
WARNING! - Use of improper voltage may result in hazardous conditions and/or damage to speaker
components not covered by speaker warranty. Please make sure the voltage is set appropriately
by checking the the position of the red "AC Select" switch on the back before powering on your
speakers.

4 | Studiophile AV 40 User Guide
Acoustic/Traction Pads
In order to minimize vibrations and maximize
physical stability, we recommend you use the
provided acoustic/traction pads on the bottoms
of the Studiophile AV 40 monitors.
Speaker Wire
Connections 1
Use the transparent tinned bare wire cable
included in the Studiophile AV 40 package to
connect the Left and Right speakers via the red
/black spring-clip terminals on the back of each
speaker.
Connecting to a
Computer Sound Card
or Other Audio Output
Device 2
Before connecting the Studiophile AV 40
monitors, make sure the power from the computer
or other output device has been turned off and
the Studiophile AV 40 system is also turned off.
Connect the 1/4" or RCA input jacks to the
corresponding output connectors of a computer
sound card, portable music player, etc. You
can also use the black 1/8" stereo mini cable to
connect a secondary audio device to the “Aux”
input on the front of the Studiophile AV 40.
Setting the “Bass Boost”
EQ Switch 3
This 2-position switch provides a subtle increase
in bass response. The On mode increases
the low-frequency gain slightly via the woofer
and bass-reflex port. The Off mode produces
a natural, even response for most listening
conditions.
Please see Appendix C for the “Bass Boost”
frequency response curve.
1
2
3

EnglishFrançaisDeutschEspañolItaliano
日本語
Studiophile AV 40 User Guide | 5
Placing the Studiophile AV 40
5
The way you position your speaker monitors can greatly affect the way they sound. Please refer to the following description for correct Studiophile AV 40 placement.
1. The two speaker monitors and the listener
should align to form an equilateral triangle.
2. Ideally, the tops of the woofers should be level
with the listener's ears.
Your Studiophile AV 40 Warranty
6
Warranty Terms
M-Audio warrants products to be free from defects in materials and workmanship, under
normal use and provided that the product is owned by the original, registered user. Visit
www.m-audio.com/warranty for terms and limitations applying to your specific product.
Warranty Registration
Immediately registering your new M-Audio product entitles you to full warranty coverage and helps
M-Audio develop and manufacture the finest quality products available. Register online at www.m-
audio.com/register to receive FREE product updates and for the chance to win M-Audio giveaways.
© 2006 Avid Technology, Inc. All rights reserved. Product features, specifications, system
requirements and availability are subject to change without notice. Avid, M-Audio and Studiophile
AV 40 are either trademarks or registered trademarks of Avid Technology, Inc. All other trademarks
contained herein are the property of their respective owners.
Left Monitor Right Monito
r

6 | Studiophile AV 40 User Guide
Appendices
7
Appendix A - Technical Specifications
Type: Two-way desktop reference monitor
LF Driver: 4" diameter, magnetically shielded and curved cone with
high-temperature voice coil
HF Driver: 1" diameter, magnetically shielded silk dome tweeter
Frequency Response: 85 Hz - 20 kHz
Crossover Frequency: 2.7 kHz
RMS SPL: 101.5dB @ 1 meter
S/N Ratio: > 90dB (typical, A-weighted)
Input Connectors: left and right RCA Line input, left and right 1/4" TRS input and
1/8" aux input
Polarity: positive signal at “+” input produces outward low-frequency
cone displacement
Dynamic Power: 20 watts continuous, per channel into 4 Ω
Input Impedance: 10 k Ω unbalanced, 20 k Ω balanced
Input Sensitivity: 100 mV pink noise input produces 90 dBA output SPL at 1
meter with volume control at maximum
Protection: RF interference, output current limiting, over temperature, turn
on/off transient, subsonic filter
Indicator: Blue power LED ring around volume knob on front panel
Power Requirements: 100-120V/~50/60Hz, 220~240V/~50/60Hz; powered via
detachable 2-conductor line cord
Cabinet: Vinyl-laminated MDF
Dimensions: 8.75" (H) x 6" (W) x 7.25" (D)
Weight: 14 lbs./6.34 kg
Specifications subject to change without notice

EnglishFrançaisDeutschEspañolItaliano
日本語
Studiophile AV 40 User Guide | 7
Appendix B - Block Diagram
Appendix C - “Bass Boost”
Frequency Response Curve
noisicerP oidu
A
03:62:90 60/6
2
/9
0
02-
0
1
+
51-
01-
5-
0
+
5+
d
B
r
A
02 k02
05 001 00
2005 k1 k2 k5 k01
zH
