M Climate LoRaWAN MC-LW-Flood User manual

User manual
MClimate Flood Sensor LoRaWAN®

mclimate.eu/lorawan-resources
Scan the QR Code
to access MClimate
Flood Sensor LoRaWAN®
extended documentation
За да разберете как се
инсталира MClimate Flood
Sensor LoRaWAN®,
сканирайте QR кода или
посетете линка до него.
Bulgarian
Et teada saada, kuidas installida
MClimate Flood Sensor
LoRaWAN®, QR-koodi või
külastada linki kõrval.
Estonian
Chcete-li zjistit, jak
nainstalovat MClimate Flood
Sensor LoRaWAN®,
prohlédněte si kód QR nebo
navštivte odkaz vedle něj.
Czech
A MClimate Flood Sensor
LoRaWAN® telepítésének
kiderítéséhez keresse meg a
QR-kódot, vagy keresse fel a
mellette található linket.
Hungarian
Tutustu MClimate Flood
Sensor LoRaWAN®-laitteen
asentamiseen, skannaa
QR-koodi tai vierailla sen
vieressä olevassa linkissä.
Finnish
Chun a fháil amach conas a
shuiteáil MClimate Flood
Sensor LoRaWAN®, scanadh
an cód QR nó tabhair cuairt ar
an nasc in aice leis é.
Irish
For at finde ud af, hvordan du
installerer MClimate Flood
Sensor LoRaWAN®, scan
QR-koden eller besøg linket
ud for det.
Danish
Pour savoir comment installer
MClimate Flood Sensor
LoRaWAN®, scannez le code QR
ou visitez le lien à côté de
celui-ci.
French
Per installare MClimate Flood
Sensor LoRaWAN®
scannerizzare il codice QR
oppure aprire il link al suo lato.
Italian
Om te weten te komen hoe u
MClimate Flood Sensor
LoRaWAN® installeert, scan de
QR-code of bezoek de link
ernaast.
Dutch
Um herauszufinden, wie man
MClimate Flood Sensor
LoRaWAN® installiert, scannen
Sie den QR-Code oder
besuchen Sie den Link
German För att ta reda på hur du
installerar MClimate Flood
Sensor LoRaWAN®, skanna
QR-koden eller besök länken
bredvid den.
Swedish
Lai uzzinātu, kā instalēt
MClimate Flood Sensor
LoRaWAN®, skenēt QR kodu
vai apmeklējiet saiti blakus
tai.
Latvian Para saber como instalar
MClimate Flood Sensor
LoRaWAN®, digitalize o código
QR ou visite o link ao lado dele.
Portuguese
Para saber cómo instalar
MClimate Flood Sensor
LoRaWAN®, escanee el código
QR o visite el enlace al lado.
Spanish
Norėdami sužinoti, kaip
įdiegti MClimate Flood Sensor
LoRaWAN®, nuskaitykite QR
kodą arba apsilankykite
nuorodą šalia jo.
Lithuanian
Pentru a afla cum să instalați
MClimate Flood Sensor
LoRaWAN®, scanați codul QR
sau accesați link-ul de lângă
acesta.
Romanian
Biex issir taf kif jinstallaw
MClimate Flood Sensor
LoRaWAN®, skennjati l-kodiċi
QR jew żur il-link li jmiss lilu.
Maltese
Για να μάθετε πως να
εγκαταστήσετε τον MClimate
Flood Sensor LoRaWAN®,
σκανάρετε τον QR κωδικό ή
επισκεφτείτε τον σύνδεσμο
δίπλα του.
Greek
Ak chcete zistiť, ako nainštalovať
MClimate Flood Sensor
LoRaWAN®, skenujte kód QR
alebo navštívte odkaz vedľa nej.
Slovak
Aby dowiedzieć się, jak
zainstalować MClimate Flood
Sensor LoRaWAN®, zeskanuj
kod QR lub odwiedź link obok
niego.
Polish
Чтобы узнать, как установить
MClimate Flood Sensor
LoRaWAN®, отсканируйте
QR-код или перейдите по
ссылке, расположенной рядом
с ним.
Russian
00359 800 3 1010
Monday-Friday 09:00 - 18:00
Sofia, Bulgaria
Aleksandar Malinov Boulevard 31, Campus X, Building 2,
floor 1, office 1-2
Need some help?
For more product information and issues related to it, visit:
mclimate.eu/lorawan-resources
or write us to:
loraw[email protected]
1

Table of content What’s inside the box?
What is in the box?
01 2
MClimate Flood Sensor LoRaWAN®
Device parts
03 4
Commissioning
04 5-6
LEDs, Buttons and behaviour
05 7
Installation
06 8
Technical details, Safety instructions,
Legal Notices & Compatibility
02
3
2

In order to operate MCllimate Flood
Sensor LoRaWAN, you will need:
LoRaWAN® network
Battery
Battery type: 1xCR123A battery 3VDC
Device operating voltage: 2.7 - 3.6VDC
Description: LoRaWAN® flood sensor
Model: MC-LW-Flood
Dimensions: 70 x 70 x 19mm
Weight: 33gr
Frequency range: 863÷870MHz
Pwer supply: 1xCR123A battery 3VDC
Sensors: 3-pin flood sensor, 1xNTC temperature sensor
Work temperature: 0°С to +60°С
Material: ABS
Environmental conditions, in which the device is intended to operate:
- Indoor using;
- for altitude up to 2000m;
- for an ambient temperature:0°С to +60°С;
- for maximum relative humidity of 80% for temperature up to 31°С,
decreasing linearly to 25% relative humidity at temperature 50°С;
- for environment with a degree of contamination 2 (PD2).
Storage and transportation conditions:
- for an ambient temperature :-40°С to +85°С;
- for relative humidity 5% to 90% without condensation
Manufacturer
Melissa Climate Jsc
Gen. Gurko 4 street
1000 Sofia,Bulgaria
Compliance with the WEEE Directive
The appliance marked with this symbol should not be disposed of with
other household waste. It must be handed over to the relevant
collection point for the recycling of electrical and electronic equipment.
Legal Notices
All information, including but not limited to, features,
functionality, and / or other product specifications are
subject to change without notice. MClimate retains all rights
to review or update its products, software or documenta-
tion without being required to notify any private or legal
person. The MClimate and MClimate logo are trademarks of
Melissa Climate Jsc. All other brands and product names
mentioned herein are trademarks of their respective
owners.
Please read the safety instructions before installing the
device! Failure to follow the recommended instructions in
this manual may be dangerous or in violation of the law. The
manufacturer Melissa Climate Jsc., is not responsible for any
loss or damage caused by failure to follow the instructions
in the operating manual.
Technical specifications CompatibilitySafety Instructions
3

Device on the inside, PCB
Device parts
LoRa Radio Module & Antenna
Positive battery terminal
Status LED
Anti-tamper button
Negative battery
terminal
Button
Buzzer
Device, back
SN: xxxxxxxxxxxxxxxx
Model: LoRaWAN®
Flood Sensor
Input: 3.6
Serial number (QR and text)
Flood detection pins
4

Continue the Installation with the instructions of your
LoRaWAN® Network provider.
2
Device ID: 9X7621HS
DevEUI: 70B3D25DD30009E1
AppEUI: 70B3D25DD3000000
AppKey: a0658dfae72131saf1249abc11
Register
You can get DevEUI, AppEUI (JoinEUI) & AppKey
information from the LoRaWAN® credentials .csv file we
sent you with the fulfillment confirmation.
Commissioning
1Open your LoRaWAN® Network provider access panel and add the
device using the supplied Serial Number, DevEUI, AppEUI
(JoinEUI) and AppKey.
The data is example. Do not use.
5

3In order to remove the top plastic cover, apply pressure with
two hands on the device from the top and bottom sides. Then
gently twist the device counterclockwise until you feel a soft
click and lift the top plastic cover.
Commissioning
4After inserting the 1xCR123A 3VDC battery in the device, it will
automatically connect to a network. In order to see whether the
device has connected to the network, please check section LED,
Buttons and behaviour.
CR123A 3VDC battery
6

The device has 1 Button, 1 Anti-tamper button, 1 LED and 1
Acoustic buzzer. The anti-tamper button is activated when
the device is opened. A special uplink will be sent at the
earliest convenience. The second button is used during
commissioning in order to check if the device has
connected to the network.
- When you click the Button, the device will activate the
LED with the corresponding animation indicating whether
the device is connected to a network or not.
- 5 fast blinks mean that the device is not yet connected
to a network. A single slow blink means the device is
connected to a network.
The Buzzer of the device activates when a flood has been
detected. One can change this behaviour using the
appropriate downlink. Please consult MClimate’s website
for full documentation of available downlink commands
for the device.
In order for the device to detect a flood, all three flood
detection pins should be in contact with the conductive
media.

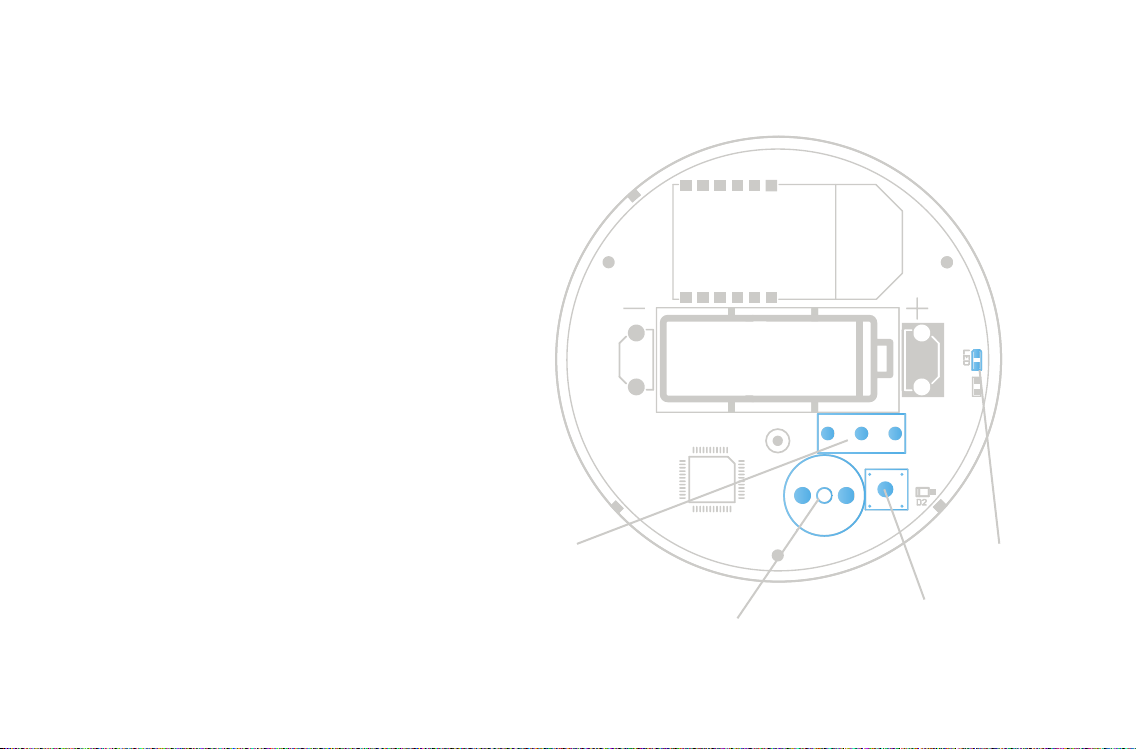

LED, Buttons, Buzzer and behaviour
Buzzer Button
Status LED
Anti-tamper button
Button
Buzzer
7

There are no special instructions regarding the installation. One must consider NOT installing the device directly under appliances (e.g.
washing machine) as the metal parts will influence the RF performance. Instead, please keep the device 1-2cm away from the appliance.
Installation
8

Designed & Manufactured by MClimate in Europe.
www.mclimate.eu
