Table of content What’s inside the box?
What is in the box?
01 2
MClimate CO2 Sensor and Notifier
LoRaWAN®
Device parts
03 4
LED, Buttons and behaviour
04 5
Commissioning
05 6-7
Installation
06 8
Technical details, Safety instructions,
Legal Notices & Compatibility
02
3
2

In order to operate MClimate CO2 Sensor
and Notifier LoRaWAN®, you will need:
LoRaWAN® network
Battery
Battery type: 2xAA battery 1,5VDC
Device operating voltage: 2.7 - 3.6VDC
Description: MClimate CO2 Sensor and Notifier
Model: MC-LW-CO2-01
Dimensions: 80 x 80 x 20mm
Weight: 107gr
Frequency range: 863÷870MHz
LoRaWAN® Device type: Class A End-device
Power supply: 2xAA batteries 1,5VDC
Sensors: built-in CO2 sensor, pressure sensor, temperature & humidity
sensor
Work temperature: 0°С to +60°С
Material: ABS
Environmental conditions, in which the device is intended to operate:
-Indoor using;
-for altitude up to 2000m;
-for an ambient temperature:0°С to +60°С;
-for maximum relative humidity of 80% for temperature up to 31°С,
decreasing linearly to 25% relative humidity at temperature 50°С;
-for environment with a degree of contamination 2 (PD2).
Storage and transportation conditions:
- for an ambient temperature :-40°С to +85°С;
- for relative humidity 5% to 90% without condensation
Manufacturer
Melissa Climate Jsc
Gen. Gurko 4 street
1000 Sofia,Bulgaria
Compliance with the WEEE Directive
The appliance marked with this symbol should not be disposed of with
other household waste. It must be handed over to the relevant
collection point for the recycling of electrical and electronic equipment.
Legal Notices
Please read the safety instructions before installing the
device! Failure to follow the recommended instructions in
this manual may be dangerous or in violation of the law. The
manufacturer Melissa Climate Jsc., is not responsible for any
loss or damage caused by failure to follow the instructions
in the operating manual.
Technical specifications CompatibilitySafety Instructions
3
All information, including but not limited to, features,
functionality, and / or other product specifications are
subject to change without notice. MClimate retains all rights
to review or update its products, software or documenta-
tion without being required to notify any natural or legal
person.
The MClimate and MClimate logo are trademarks of Melissa
Climate Jsc. All other brands and product names mentioned
herein are trademarks of their respective owners.
EU Declaration of Conformity
This device complies with the essential requirements and
other applicable provisions of the following EU directives:
EEU 300 220-1 V3.1.1:2017
EEU 300 220-2 V3.1.1:2017
EN 60950-1:2006+A11:2009 +A1:2010+A12:2011+
А2:2013 + AC:2015
EN 301 489-1 V2.1.1:2017
2014/53/ЕС
EN 50491-3:2009

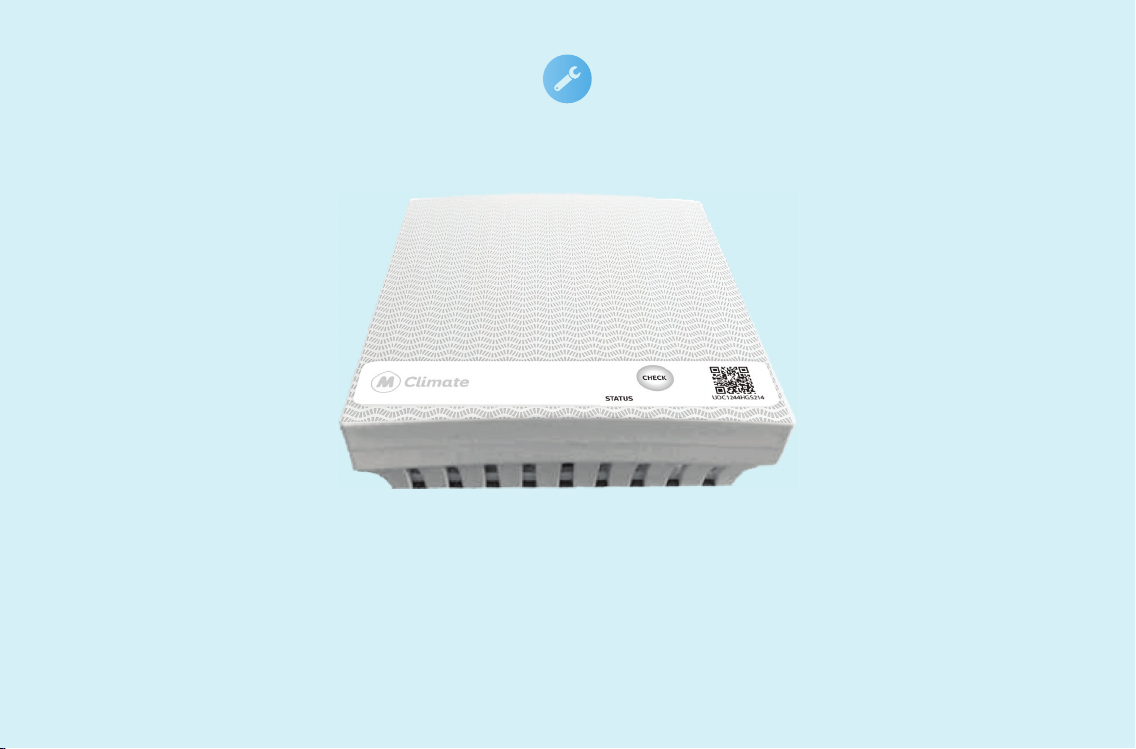

Assembled MClimate CO2 Sensor and Notifier LoRaWAN®, top view Disassembled MClimate CO2 Sensor and Notifier LoRaWAN®, top view
Device parts
4
LED status
Buzzer
Status
button
Batteries
holder
LED status Status
button

When you press the button, the device indicates the current:
1.CO2 Level
- Green: Good CO2 levels (less than 900ppm by default)
- Yellow: Medium CO2 levels (>900ppm and <1500ppm)
- Red: Bad CO2 levels (>1500ppm)
Acoustic alarm:
The acoustic alarm activates when the CO2 reading is in medium or
bad level. The default settings are as follows:
Good: No alarm
Medium: 1 short beep every 10 minutes
Bad: 2 short beeps every 10 minutes.
2.Connection status
- Constant indication: The device is connected to a LoRaWAN®
network
- Blinking indication: The device is not connected to a LoRaWAN®
network

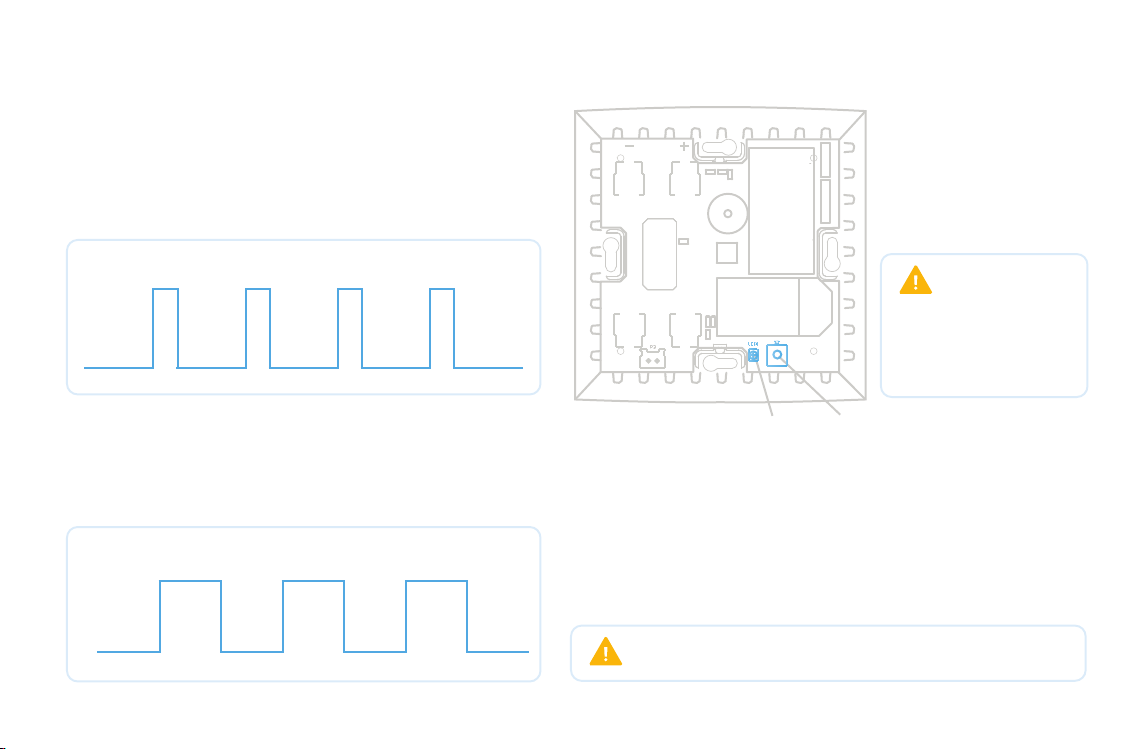

800ms 800ms 800ms 800ms 800ms
30ms30ms30ms30ms
Device is connected to a network
LED, Buttons and behaviour
5
LED status Status button
800ms
800ms 800ms 800ms
800ms 800ms 800ms
Device is NOT connected to a network
Warning: CO2 levels
thresholds as well
as the color of the
indication can be
changed through a
downlink
command.
Warning: Acoustic notification behavior can be changed with a
downlink command!

Continue the Installation with the instructions of your
LoRaWAN® Network provider.
2
Device ID: 9X7621HS
DevEUI: 70B3D25DD30009E1
AppEUI: 70B3D25DD3000000
AppKey: a0658dfae72131saf1249abc11
Register
You can get DevEUI, AppEUI (JoinEUI) & AppKey
information from the LoRaWAN® credentials .csv file we
sent you with the fulfillment confirmation.
You can get DevEUI, AppEUI (JoinEUI) & AppKey
Commissioning
1Open your LoRaWAN® Network provider access panel and add the
device using the supplied Serial Number, DevEUI, AppEUI
(JoinEUI) and AppKey.
The data is example. Do not use.
6

3In order to remove the frontal plastic cover, apply pressure on
the bottom and top and bottom sides of the device and gently
lift one of the sides.
Commissioning
4After inserting the 2xAA 1.5VDC batteries in the device, it will
automatically connect to the network. In order to see whether the
device has connected to the network, please check LED, Buttons
and behaviour.
7
Disassembled MClimate CO2 Sensor and Notifier LoRaWAN®, top

We recommend installing the device in an open environment
(e.g. not in a recess) at 1.5m height. Do not install the device
near air vents as it will negatively impact the measurements.
Avoid big metal as it will worsen the RF performance. Use
double-sided tape to attach it or remove the frontal plastic
cover and use screws to attach it in a more permanent
manner.
We recommend installing the device so that the QR code with
the serial number stays on the bottom-right side of the
device in order to ensure good measurements.
Installation
8

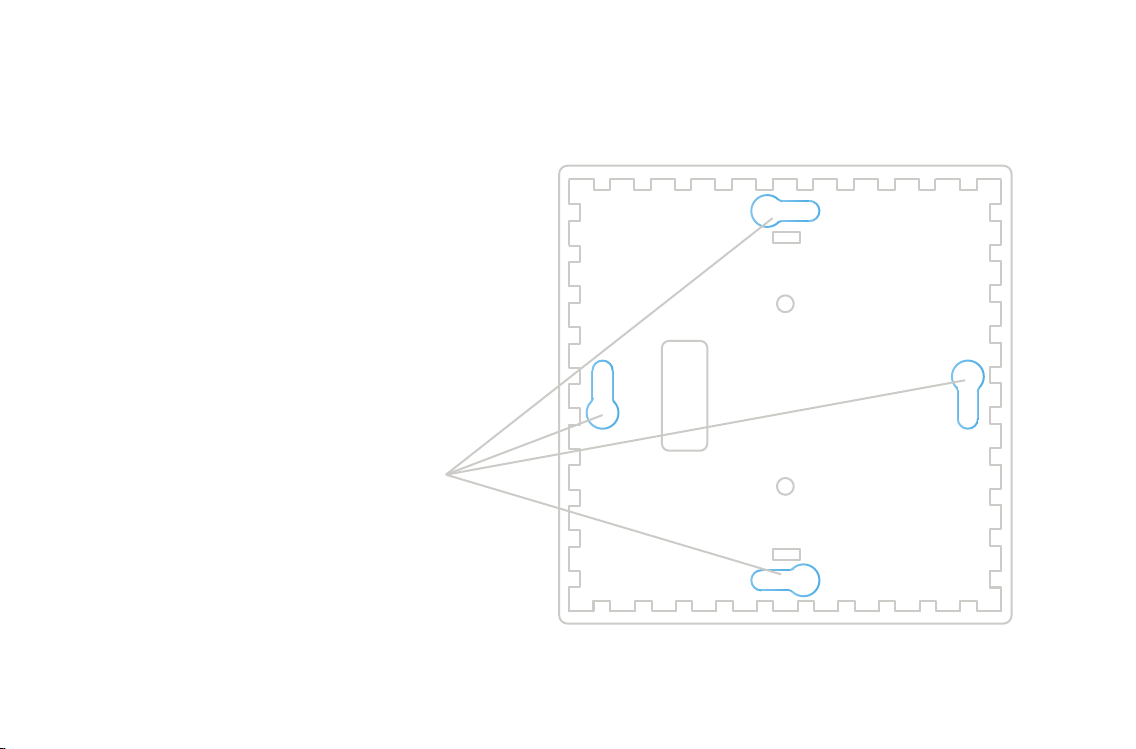

Disassembled MClimate CO2 Sensor and Notifier LoRaWAN®, back view
Screw holes
