M Climate Maya V2 User manual

Installation guide

Thanks for choosing Maya V2

1
1. Safety Regulations
Before using this product, please read the following safety instructions and follow
all safety precautions.
Please read the instructions carefully. Please keep the instructions.
Any operation inconsistent with this instruction manual may cause damage to the
product.
Notes:
1. Only authorized technicians can disassemble the product. Users are not
recommended to disassemble this product by themselves.
2. Please use the original power adapter only. Other adapters may cause damage to
the product.
3. Do not touch wires, sockets or power adapters while your hands are wet.
4. Be cautious of clothes or curtains getting stuck into the wheels of the product.
5. Do not place the product near cigarette butts, lighters and other smoldering fires.
6. Please clean the product after each charging.
7. Do not bend wires excessively or place heavy or sharp objects on the machine.
8. This product is intended for only indoors environment. Do not use it outdoors.
9. Do not sit on the product.
10. Do not use the product in wet environment (e.g. bathroom).
11. Before using the product, please remove all vulnerable items (e.g. glasses,
lamps, etc.) on the ground as well as items (e.g. wires, paper sheets, curtains) that
may entangle the side brushes and air suction opening.
12. Do not put the product in places where it is easy to fall (e.g. on desks and
chairs).
13. Please check carefully whether the power adapter is connected to the socket
before use, otherwise the battery may get damaged.
14. For safety purposes, please inform all of the members in the household when
the product is in usage.
15. Please empty the dust box before using the product or when it is full.
16. The operating temperature range of the product is 0-40 degrees Celsius.
17. Do not use the product in high temperature environment.
18. In case you are scrapping the product, please remove the battery.
19. Please make sure that the product is not powered on when removing the
battery.
20. Please recycle the discarded batteries appropriately.

2
1. Safety Regulations
Warnings:
1. Use only the original rechargeable battery and charging station specially
equipped by the manufacturer. Non - rechargeable batteries are strictly prohibited,
please refer to the "product parameters" for battery specification information.
2.We strongly advise against using the product in environments with open flames or
fragile objects.
3. We strongly advise against using the product in extremely hot (above 40 °C) or
extremely cold (below 0 °C) weather.
4. It is forbidden for human hair, clothes, fingers and other parts to approach the
opening and operating parts of the product.
5. It is forbidden for the product to absorb any burning objects, such as cigarettes,
matches, ashes and other articles that may cause fire.
6. We strongly advise against placing items at the suction opening. Do not use the
product when the suction opening is blocked. Clean up dust, cotton wool, hair, etc.
to ensure smooth air circulation.
7. Use the power cord carefully to avoid damage. It is forbidden to use the power
cord to drag or pull the product and its charging station. It is forbidden to use the
power cord as a handle. We strongly advise against clamping the power cord in the
crack of the door.
8. Do not use a damaged charging station.
9. Even if the product has been severely damaged, burning of the product is
prohibited, which may lead to explosion of the battery of the product.
10. The warranty does not cover defects or malfunction caused by misuse or
improper maintenance of the product, failure to follow operating instructions, or
use with equipment with which the product is not intended to be used.

3
2. Package Contents
3. Meet the product
Top Bottom
Ground sensor
Start/Pause button
Cover
Omnidirectional
lens
Dust box/Water
container button
Side brushes
Drive wheel
Dust box
Battery
Charging ports
Front wheel
Main brush
Dust box
Charging dock
Water container and mop
HEPA filter
Filter net holder
Dust box metal sheet
HEPА filter cover
Dust box slide cover
Dust box side cover
DC socket
Signal indicator
Charging ports
Mop
Water tank
Drainage port
Maya V2 Charging
dock
Remote control
with batteries
Water container Dust box Mop Cleaning
brush
Side brushes
Remote control
Schedules
Start/Pause
Manual control
Time settings
Recharging
Display
Auto cleaning mode
Modes

4
4. Product Usage
5. Product usage and Charging
Remove Protection
Before using Maya V2, please remove the protective strip of the robot and peel the
the protective film of the charging station.
Remove the protective strip Remove the protective strip
1. Placing and charging: The charging station should be placed against the
wall, on a flat ground. Do not place objects within the range of 0.5m left
and right and 1.5m ahead.
2. Connect the power supply.
3. Installing side brushes: Install the side
brushes according to the left and right
(L/R).

5
5. Product usage and Charging
2.
3.
4.
Attention:
During the cleaning process, Maya V2 can sense that its power is insufficient
and automatically start the recharging mode to find its charging dock. You can
also send Maya V2 a command to start recharging mode by using the
button of the remote control.
In order to ensure the optimal working of Maya V2, please fully charge it before
each use.
When charging, please remove the water container, in order to ensure the
safety of charging and prevent damaging of the floor.
1. Charging: Place Maya V2 on the charging dock. During charging, the indicator
flashes. When the charging is over, the indicator starts shining constantly.
The time it takes to fully charge Maya V2 is about 5 hours.
2cm

6
6. Usage and Cleaning
Automatic Cleaning
According to the different cleaning needs, Maya V2 provides a variety of cleanings
modes to choose from.
Set up method: When in shutdown state, press and hold the button for a few
seconds, until the light indicator turns on. When Maya V2’s button is pressed for a
short duration time, or when you press the automatic cleaning button of the
remote control, the device starts cleaning automatically.
Single Room Cleaning
Applicable scenario: Used for cleaning a single room
Set up method: Click the button of the remote control to select and start the
single room cleaning mode.
Usage tips: If you need to clean only a singe room, please close the door and let
Maya V2 clean the room. If there is no charging station in the room, Maya V2
Maya V2 will return to the starting point of the cleaning.
Edge Cleaning
Applicable scenario: For indoor corner cleaning. Maya V2 cleans along the perimeter of
fixed objects (such as walls), and returns to the charging dock after the cleaning is
finished.
Set up method: Click the button of the remote control to select and start the Edge
cleaning mode.
Manual Control
Applicable scenario: Suitable for manual control cleaning.
Set up method: Use the remote controller's buttons to navigate Maya V2
forward, backwards, left or right.

7
6. Usage and Cleaning
Pause, Wake-up and Shutdown
Pause: During cleaning, press Maya V2's button, or the remote control pause
button to pause the operation of Maya V2.
Wake-up: If Maya V2 stops working for more than ten minutes, it will automatically
enter sleep into mode (all the light indicator will turn off). You can wake Maya V2 up
by clicking its button or any of the remote control's buttons.
Shutdown: After Maya V2 finishes cleaning, press and hold its button for a few
seconds. The light of the button will turn off, indicating that Maya V2 has been shut
down.
*After Maya V2 finishes its work, it is recommended not to shut it down, but to
initiate initiate automatic recharge for the next cleaning session.
Scheduling

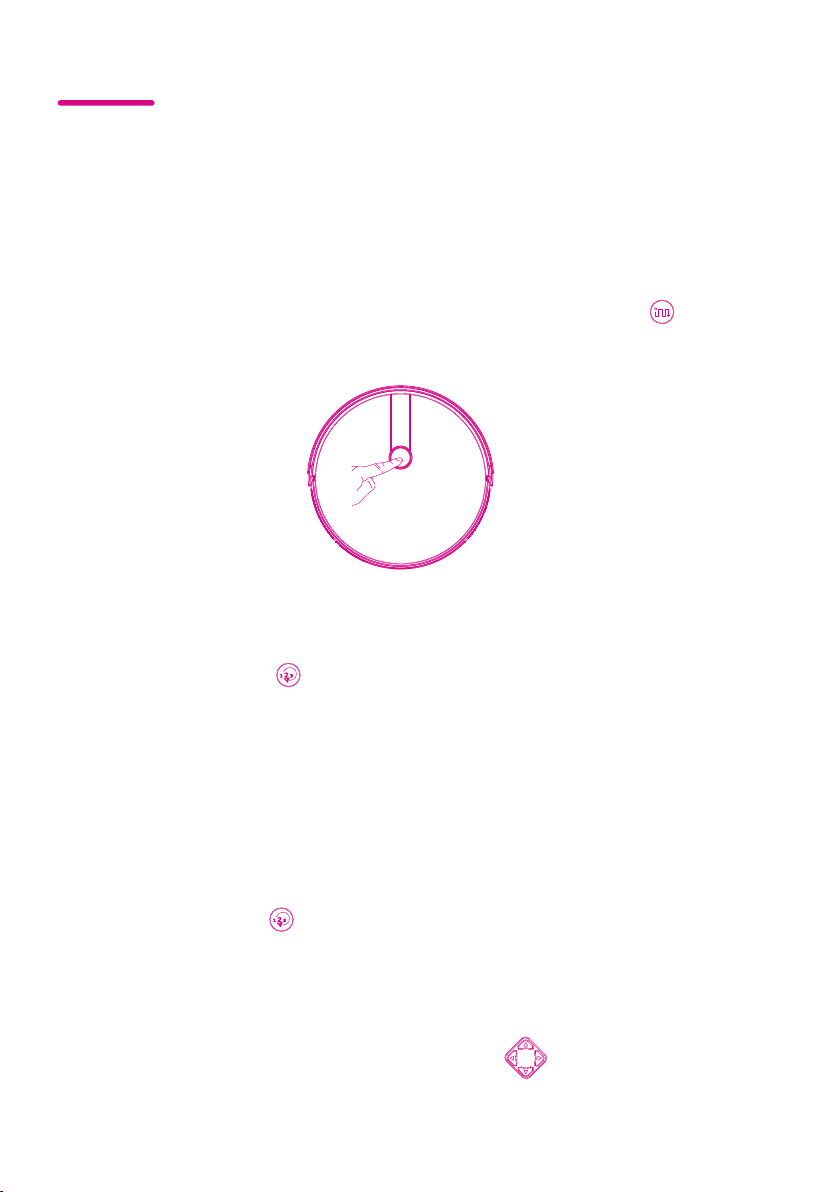

Preparations: Please adjust Maya V2's clock by pressing the button, followed
by adjusting to the correct time with . Once you have set the time, please press
to save your settings.
How to schedule an automatic cleaning:
In order to schedule a cleaning, please press the button and adjust to the
desired period with the . Once you have selected the time slot, press
once again to save the settings. Maya V2 will automatucally clean up according to
the set schedule.

8
7. Water container
8. Dust box
Do not use floor mopping on carpets.
After mopping the floor, please empty the water container and remove the
mop.
Open the net lter cover, and remove the
HEPA lter. Please do not wash the lter
itself, but tap gently to remove the dust.
Clean the dust box with a
wet napkin. Please mind
that any droplets entering
the fan port may cause
damage.
Add water Install the mop Start mopping the loor
Install the
water container
Assembly
1 2 3 4
Press the dust box button
to take out the dust box
Open the dust
box side cover
Open the net
lter cover
Dump the
content
1 2 3 4
Rinse the net
container.
5 6 7

9
8. Dust box
8Dry the dust box components, and keep them
dry and clean to ensure its service life.
Note: It is highly recommended to wash the
dust box once every 15-30 days to ensure high
quality of service. Please avoid using the filter
for a prolonged period longer than 3 months.
Assemble the dust box. Put the filter net and the HEPA filter back into its place.
Notes:
1.Before installing the HEPA filter, please ensure that both net filter holder and dust
box are dry.
2. Do not expose the dust box and the net filter holder to direct sunlight.
Close the dust box cover and install it on Maya V2.

10
9. Component maintenance

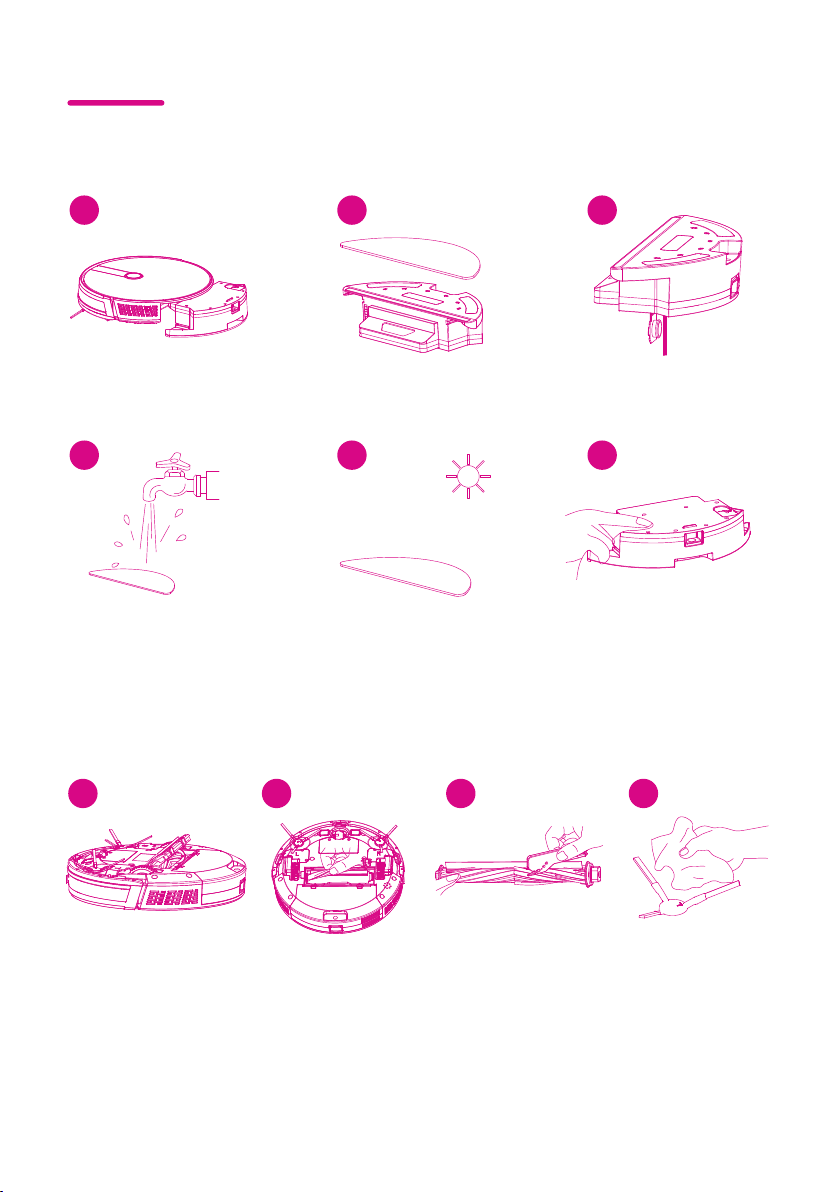

Water container and mop
Main brush and side brushes
Take out the water
container assembly
Remove the mop Empty the water container
1 2 3
Wash the mop Let the mop dry Mop up any left
droplets with a cloth
4 5 6
Open the main brush
cover
Take out the
main brush
Clean the side
brushes
Clean the main
brush
1 2 3 4

11
9. Component maintenance
If you do not use the product for a long time,
please fully charge it before storing. Shut down
Maya V2 and recharge it every 3 months to
prevent the battery from over discharge.
If the battery is over-discharged or is not used for
a long time, this may lead to shorter battery life
and even impossibility of charging. Please contact
our company for after-sales maintenance, and do
not disassemble it by yourself.
Charging dock pins, down view sensor, drive wheel and
universal wheel
Usage Tips: The charging dock and Maya V2's charging ports contain sensitive
electronic components. Please use dry mop to clean them to prevent any water
damages.
Clean up the charging
dock pins
Clean the
down-view sensor
Clean the drive wheels
and the navigational wheel
1 2
3

12
10. Troubleshooting
11. Technical description
*Due to the continuous improvement of the product, this information product is subject to the physical object, and our
company reserves the right to update the product.
Problem
1. Wheels o the ground - Please put Maya V2 back to the ground and
press its button again.
2. Dust box not installed The dust box is removed or not
installed
Return the dust box to the Robot and
press the cleaning key again.
3. Battery failure Abnormal battery charging Contact our Support Center.
4. Please check if the wheel is stuck Wheel jammed Check whether the wheel is entangled
with any objects and remove if any are.
6. Robot connection failed Maya V2 has failed to connect Check if Maya V2 is connected to the
Wi-Fi.
7. The battery is low, please charge
the machine
Battery power less than 20 % Maya V2 aitomatically enters into
recharging mode.
8. Please check whether the side
brush is tangled or jammed
Abnormal edge brushing Please check and remove any objects that
may be stuck in the side brush.
9. Please move Maya V2 to an open
area.
Maya V2 is unable to proceed further
because it's being prevented by an
object.
Please move Maya V2 to an empty area and
press the cleaning button again.
5. Please check if the front collision
is stuck
Front impact bracket stuck Check whether the front collision can
rebound normally.
Cause of failure Solution
Structural class Diameter
Height
Net weight
330 mm
76 mm
2.7 kg
Robot Rated power (w)
Operating voltage (v)
28W
14.4V
Battery Voltage
Battery
14.4V
2500 mAh rechargeable lithium battery
pack
Parameter Dust Bin capacity
Water tank capacity
Charging type
Cleaning mode
Primary charging time
Working time
600 ml
350 ml
Automatic charging/manual charging
Auto/single room/xed point/edge/mop
oor
About 5 hours
About 100 minutes

13
12.Harmful substances
Component Pb/Pb
compound
Hg/Hg
compound
Cd/Cd
compound
Cr(VI)/Cr(VI)
compound
PBB PBDE
Plastic O O O O O O
Hardware X O O O O O
PCB X O O O O O
Electronic O O O O O O
Battery O O O O O O
Plug power cord (metal part) X O O O O O
Description: This form is prepared in accordance with the provisions of SJ/T 11364
OIndicates that the content of the hazardous substance in all homogeneous
materials of the part is below the limit requirement specified in the current valid
version of GB/T26572.
X It indicates that the content of the hazardous substance in at least one of the
homogeneous materials of the part exceeds the limit requirement stipulated in the
current effective
version of GB/T26572, and there is no mature alternative in the industry, which
meets the environmental protection requirements of the EU RoHS Directive.
The number in this logo indicates that the product has
an environmental protection period of 10 years under normal use.
Standarts:
GB4706.1-2005
GB4706.7-2014
GB4343.1-2009
GB17625.1-2012
Need some help?
For more product information and issues
related to it, visit:
support.mclimate.eu
00359 800 3 1010
Monday - Friday 09:00 - 18:00
110, Bulgaria Blvd., Section B, floor 1
Sofia, Bulgaria

Made in China.
