Mäktig 810000 User manual

INSTRUCTIONS
Retractable Garden Hose Reel
with 1/2” x 65’ Hybrid PVC Garden Hose
Model 810000
Read this manual carefully before using this product, and retain for future
reference.
This product is not intended for use by children. Protect yourself and others by
observing all safety information, warnings and cautions. Failure to comply with
instructions could result in personal injury and/or damage to product or property.
The warnings, cautions and instructions discussed in this manual cannot cover all
possible conditions and situations that may occur.

SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
INSTALLATION
This reel is designed for installation near a water source. The 6 feet inlet hose allows you to install the reel
to the most suitable surface (wall, post, or even a beam or rafter).
1. Attach the inlet hose to the reel by turning the brass thread onto the brass inlet shaft; connect the
opposing end to the water source outlet. If necessary, apply Teflon tape to prevent leakage. Ensure the
fittings are securely tightened.
2. Using the mounting bracket as a guide, mark the screw positions, and install the mounting bracket in a
position that will provide the most suitable work access.
WARNING
The mounting bracket must be installed using the 4 M8 screws provided. Use lock washers to
ensure the bracket remains secure.
3. Attach the hose reel to the mounting bracket using the pull-pin, and secure for safety.

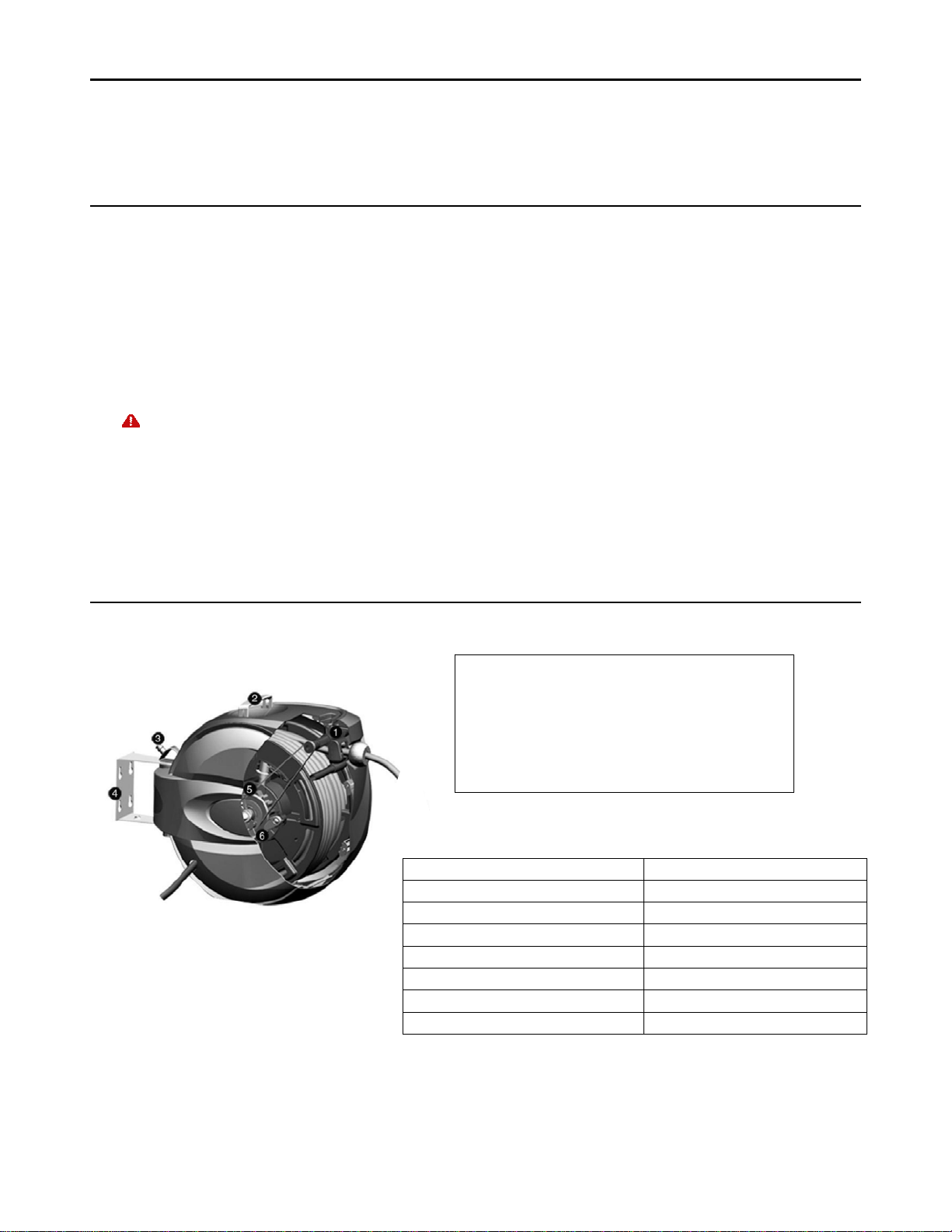

COMPONENTS AND SPECIFICATIONS
2
4 5
HOSE LENGTH 65’
HOSE LEAD LENGTH 6’
MAX. WORKING PRESSURE 100 PSI
REEL MATERIAL Polypropylene
HOSE MATERIAL Hybrid PVC
FITTING MATERIAL Solid Brass
HOSE DIAMETER 1/2"
FITTING 3/4" (F) GHT
1. Self-Laying System
2. Metal Handle
3. Fitting Rest
4. Metal Mounting Bracket
5. Multi-Position Lock
6. Low Speed Retraction System
