M-Spa MONO C-MO04 User manual

Where Luxury Is Affordable
®
www.the-mspa.com
Owner’s Manual
C-MO04 / C-MO06
MONO
EN
DO NOT RETURN MERCHANDISE TO YOUR DEALER STORE DIRECTLY.
CALL MSPA AFTER SALES SERVICE CENTER FOR PRODUCT QUES-
TIONS OR CONTACT MSPA AT [email protected]
Due to MSpa continuous product improvement, MSpa reserves the right to change
specifications and product appearance, which may result in updates to the instruc-
tion manual without notice.

2
ENTER THE WORLD OF MSPA
ThankyouforchoosingMSpaandforyourconfidenceinourbrand.Webelievethatyouwillenjoymanybenefits
of using MSpa products for years to come.
Toguide you inyour initial MSpaexperience, we arepleased to presentyou with thisinstruction manual. Please
carefully and thoroughly read this manual entirety before using the product for the first time.
We are delighted to welcome you to the MSpa family, and look forward to sharing with you the full spectrum of
our expertise.
Enjoy your MSpa!
Scan the QR code to enter the MSpa official website
Welcome,
CONTENT
Safety precautions............................………………………….........……………………...........................………
Specifications…………………………………........................................................................................…….....
Product overview………………………............................……..............................................................……….
First use and set-up preparation......................................................................................................................
Spa set-up........................................................................................................................................................
Controller operation…………………….............................................................................................................
Water maintaince and chemicals……………................................………..…...................................................
Drainage, cleaning and storage.......................................................................................................................
Disposal and environmental protection.......................................…..................................................................
Troubleshooting…………………………….....……………………….….........................................…..................
MSPA limited warranty........………....................................………...................................................................
3
8
9
10
12
14
16
18
20
21
23

3
SAFETY PRECAUTIONS
For your own safety and that of your product, make sure to follow the safety
precautions below. Fail to follow the instruction may result in serious injury,
property damage or death. Improper installation or operation will void the warranty.
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS
KEEP THE MANUAL FOR FUTURE REFERENCE
! DANGER
Risk of Accidental Drowning. Extreme caution must be exercised to prevent
unauthorized access by children.
Risk of drowning. Inspect the spa cover regularly for leak, premature wear and
tear, damage or signs of deterioration. Never use a worn or damaged cover: it
will not provide the level of protection required to prevent unsupervised access
to the spa by a child.
Risk of drowning. Always lock the spa cover after each use.
Risk of injury. If the supply cord is damaged, it must be replaced by the manu-
facturer, its service agent or similarly qualified persons in order to avoid a
hazard.
Risk of Electric Shock. Do not permit any electrical appliances, such as a light,
telephone, radio or television within 1.5m (5 feet) of a spa tub.
Risk of Electric Shock. Do not use the spa when it is raining, thundering or
lightning.
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
To reduce the risk of electric shock, do not use an extension cord, timers, plug
adaptors or converter plugs to connect the unit to electric supply; provide a
properly located outlet.
Transportable whirlpool baths and swimming pools with incorporated heating
elements must be connected to a grounded mains supply socket with a supply
cord fitted with a plug and PRCD with a tripping current of 10mA.
Parts containing live parts, except parts supplied with safety extra-low voltage
not exceeding 12V, must be inaccessible to occupants in the spa.
Parts incorporating electrical components, except remote control devices, must
be located or fixed so that they cannot fall into the spa.
Ɣ
Ɣ
Ɣ
Ɣ
! WARNING

4
Electric installation should fulfill the local requirement or standards.
The wired controller shall be properly stored at the side pocket when not used,
to protect the controller from falling or other factors.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
To reduce the risk or injury, do not permit children use this product unless they
are closely supervised all times.
To reduce the risk of child drowning, supervise children all times. Attach and
lock spa cover after each use.
Make sure the floor is capable of supporting the expected load, which you can
find from the spec sheet, calculate the expected load of water capacity plus total
weight.
Adequate draining system must be provided around the spa to deal with
overflow water.
To reduce the risk of injury:
a) Lower water temperatures are recommended for young children and when
spa use exceeds 10 minutes. In order to avoid the possibility of hyperthermia
(heat stress) occurring it is recommended that the average temperature of
spa-pool water should not exceed 40°C(104°F).
b) Since excessive water temperatures have a high potential for causing fetal
damage during the early months of pregnancy, pregnant or possibly pregnant
women should limit spa water temperatures to 38°C(100°F).
c) Before entering a spa or hot tub the user should measure the water
temperature with an accurate thermometer since the tolerance of water
temperature regulating devices varies.
d) The use of alcohol, drugs or medication before or during spa use may lead to
unconsciousness with the possibility or drowning.
e) The use of alcohol, drugs, or medication can greatly increase the risk of fatal
hyperthermia in spas.
f) The causes and symptoms of hyperthermia may be described as follows:
Hyperthermia occurs when the internal temperature of body reaches a level
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ

5
several degrees above the normal body temperature 37°C(98.6°F). The
symptoms of hyperthermia include an increase in the internal temperature of
body, dizziness, lethargy, drowsiness, and fainting. The effect of hyperemia
include failure to perceive heat; failure to recognize the need to exit spa;
unawareness of impending hazard; fetal damage in pregnant women;
physical inability to exit the spa; and unconsciousness resulting in the danger
of drowning.
g) Obese persons or persons with a history of heart disease, low or high blood
pressure, circulatory system problem, or diabetes should consult a physician
before using a spa.
h) Persons using medication should consult a physician before using a spa
since some medication may induce drowsiness while other medication may
affect heart rate, blood pressure, and circulation.
i) Check with doctor before use if pregnant, diabetic, in poor health, or under
medical care.
People with infectious disease should not use a spa or hot tub.
To avoid injury exercise care when entering or existing the spa or hot tub.
Water temperature in excess of 42°C(108°F) may be injurious to your health.
Never use a spa or hot tub alone or allow others to use the spa alone.
Do not use a spa or hot tub immediately following strenuous exercise.
Spa heat in conjunction with alcohol, drugs, or medication can cause uncon-
sciousness.
Exit immediately if uncomfortable, dizzy, or sleepy. Spa heat can cause hyper-
thermia and unconsciousness.
Do not put the spa under 0°C(32°F) environment in order to avoid freezing if
there is still water in the pool.
It’s helpful to put temp barrier mat in between the spa pool and the ground.
Similar mat which is made of foam material or other materials with heat barrier
function can also be used. Do not turn on the spa when the water is frozen.
Never pour water with a temperature higher than 40°C(104°F) into the spa
directly.
Always unplug this product from the electrical outlet before removing, cleaning,
servicing or making any adjustment to the product.
Never jump or dive into a spa or any shallow body of water.
No part of the electric appliance is to be located above the bath during use.
Do not bury the electrical cord. Locate the cord where it will not be damaged by
lawn mowers, hedge trimmers and other equipment.
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ

6
Do not attempt to plug in or unplug this product while standing in water or when
your hands are wet.
Do not use the spa if damaged in delivery and/or malfunctioning in any way.
Contact the MSpa service center for further direction.
Keep all pets away from the spa to avoid any damage.
Do not add bath oil or bath salt to the spa water.
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Always add chemicals to water, never add water to chemicals. Adding water to
chemicals may cause strong fumes or violent reactions and hazardous chemical
spray.
For water already used, discharge it in time or use water chemicals for cleaning.
Usually,change water every 3-5 days.
Use Mspa chemical kit for disinfection in accordance with manufacture’s
instructions.
Do not leave or set up the spa in temperature lower than 4°C(39°F) if heater is
not operating.
Always enter and exit the spa or hot tub slowly and cautiously. Caution of wet
floor.
To avoid damage to the pump, never turn on the spa or hot tubs unless it is
filled with water to the minimum water line.
Place the spa or hot tub only on a properly prepared site that can withstand the
floor loading requirement of the spa.
Do not leave the spa empty for extended period of time. Drain away water
inside the pool thoroughly for long time disuse. Do not expose the spa under
direct sunshine. Check regularly before each use. Put away the spa or fence it
up in time after using.
Open the spa top lid when the Bubble function is on.
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through an external switching device, such
as a timer, or connected to a circuit that is regularly switched on and off by the
utility.
Refer to relevant chapter for details concerning cleaning and other
maintenance.
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
! CAUTION

Zone 2 Zone 2
h
h
Zone 1
Zone 0
Zone 0
2.5 m
2.5 m
1.5 m 1.5 m2.0 m 2.0 m
7
Warning: Water protection levels of appliance at different product zones are
different see the following scheme. ( Installation regulations comply to IEC
60364-7-702)
NOTE - The measured zone dimensions are limited by walls and fixed partitions.
Zones
Zone 0
Zone 1
Zone 2
Description of the zones
Zone 0 is the interion of the basin including any recesses in their
walls or floors.
Zone 1 is limited by
Zone 0
A vertical plane 2m from the rim of the basin.
The floor or the surface expected th be occupied by persons
The horizontal plane 2.5m above the floor or the surface
Zone 2 is limited by
A vertical plane external th zone 1 and parallel plane 1.5m
from the former.
By the floor or surface intended to be occupied by persons.

8
Model No.
/ Code Shape Seating
Capacity Water Capacity Outside Dimensions Inside Dimensions Height Weight
Round
720 L
(190 Gal) ijP
60” ij1.43m 56” 0.65m 26”
0.65m
26”
32kg
(70.5lbs)
SPECIFICATIONS
Control System
Total Power
Heater
Massage Air Blower
Filter Pump
Control System Specs
AC 220-240V,50Hz
2100W
1500W
600W
AC 12V/35W
C-MO04 / C-MO06
4
Round 6
BUBBLE SPA
C-MO04
Mono
C-MO06
Mono 930 L (245 Gal) ijP
68” ij1.63m 64” 35kg (77.2lbs)

9
PRODUCT OVERVIEW
Packaging content
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
UP DOWN
HEATER
BUBBLE
FILTER
TIMER
°C
A. B. C.
D. E.
F. G. H.
I. J. K.

10
REF. NO. PARTS DESCRIPTION QTY.
SPA cover with buckle and inflatable bladder
Spa tub
Control box , wired controller and U-shape cover
JOMBO 23.5” high pressure pump, inflation hose, pressure gauge, seal ring
Heat preservation foam mat
Filter cartridge
Spa drain valve adaptor
Wrench for filter
Wrench for valve
Repair kit
Instruction DVD
NOTE: When ordering parts, be sure to quote the model number and part numbers.
A
B
C
D
E
F
G
H
I
J
K
1
1
1
1
9
2
1
1
1
1
1
FIRST USE AND SET-UP PREPARATION
The spa can be installed indoor and outdoor around 15 minutes by at least one person. For household use
only. For household use only.
The spa must be set up on a flat, smooth and supporting surface that is capable of supporting the
maximum load of the filled spa with listed maximum occupants.
Make sure the area is free of sharp objects under or around the spa. Uneven of unsound surfaces can
damage the spa and void your warranty. Level the surface before filling spa with water.
Provide adequate drainage system around the spa to deal with overflow water and splashes.
Make sure there is enough clearance around the spa for full access to the spa equipment for maintenance
and/or service.
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Site preparation and requirements
Verify the supporting floor can support the filled weight of spa with maximum number of occupants. Check
with a qualified contractor or structural engineer to verify the requirement.
Make sure the floor is water resistant and provides non-slip surface. Do not install the spa on a carpet of
any other material that could damaged by the moisture.
Humidity is a naturally side effect of indoor spa installation. The room shall be properly ventilated to allow
moisture to escape. Install a ventilating system to prevent excess condensation moisture in the room.
Ɣ
Ɣ
Ɣ
Additional requirements for indoor installation

11
Make sure to set up the spa on a firm, level and smooth surface that is strong enough to support the full
weight of the filled spa and maximum occupants.
Do not set up the spa on grass or dirt, as this increases the amount of debris entering the spa, and
damage the spa floor.
Do not leave the spa tub exposed to direct sun light for extend period of time.
It is the possible to install and leave the spa outside at a temperature not lower than 4°C(39°F) and the
water inside the circulation system, pump, pipe are not frozen. Put a Heat Preservation Mat in between the
spa bottom and the ground to prevent heat loss from the bottom of the spa and to provide better heat
retention.
Ɣ
Ɣ
Ɣ
Ɣ
Additional requirements for outdoor installation
Plug the machine into the mains.
Press the RESET button on the PRCD. The indicator turns red.
PresstheTESTbuttononthePRCD. ThePRCDindicatorshouldshut off.IfthePRCDindicator does notturn
off, the PRCD is faulty. Do not use the spa. Contact a qualified electrician to correct the fault.
Press the RESET button on the PRCD again. The indicator should turn red. If yes, the spa is ready for use.
1.
2.
3.
4.
PRCD Testing
Risk of electric shock: This product is provided with a PRCD located at the end of the power cord. The
PRCD must tested before each use. Do not use the spa if the PRCD does not function properly. Disconnect
the power cord until the fault has been identified and corrected. Contact a licensed electrician to correct the
fault. There are no serviceable parts in side the PRCD. Opening the PRCD will void the warranty.
! WARNING
LOAD
LINE
TEST BEFORE USE
TEST
RESET
TEST
RESET
ONOFF
RED BLACK
1. 2.
RESET
3.
TEST
LOAD
LINE
TEST BEFORE USE
TEST
RESET
TEST
RESET
ONOFF
RED BLACK
Spa Control Unit Connected External Equipotential Bonding Conductors
A qualified electrician shall wire the spa control unit to the household equipotential terminal using a minimum
1.5mm² solid copper conductor.

12
SPA SET-UP
1
3
2
3. Connect the control box to the spa pool in right order. (There should be sealing ring at each connection point.)
4. Unscrew the valve cap and make sure that the center valve pin is in the “UP” position. If it is in the “DOWN”
position, press down on the valve pin and turn it counterclockwise until it pops up.
5.Attachthepressuregaugeandthepumphosetothegaugehousingonthepumpandsecureittightly.Connect
the pump nozzle into the valve receptacle on the spa body, and tighten it clockwise.
6. Start pumping air into the board by sliding the pump piston up and down, inflate until you reach the required
pressure 12 - 15PSI. Otherwise there will be fold mark on the spa body.
1. Spreadoutand connect the 9 pcsfoammatat a cleared area. HeatPreservationMat prevents heat loss from
the bottom of the unit.
2. Put the pool body on the mat (note that the drain valve is in the appropriate area)
1
2
3

13
7.7 Turn on the Heater on the controller, refer to the “Controller operation” section. Maximum heating
temperature is 42°C(108°F). Hourly heating rate is about 2°C-2.5°C(3.5°F-4.5°F) for 2 and 2+2 persons,
1.5°C-2°C(2.5°F-3.5°F) for 4 persons and 1.2°C-1.8°C(2°F-3°F) for 6 persons.
7
7.6
7.5
Lock Unlock

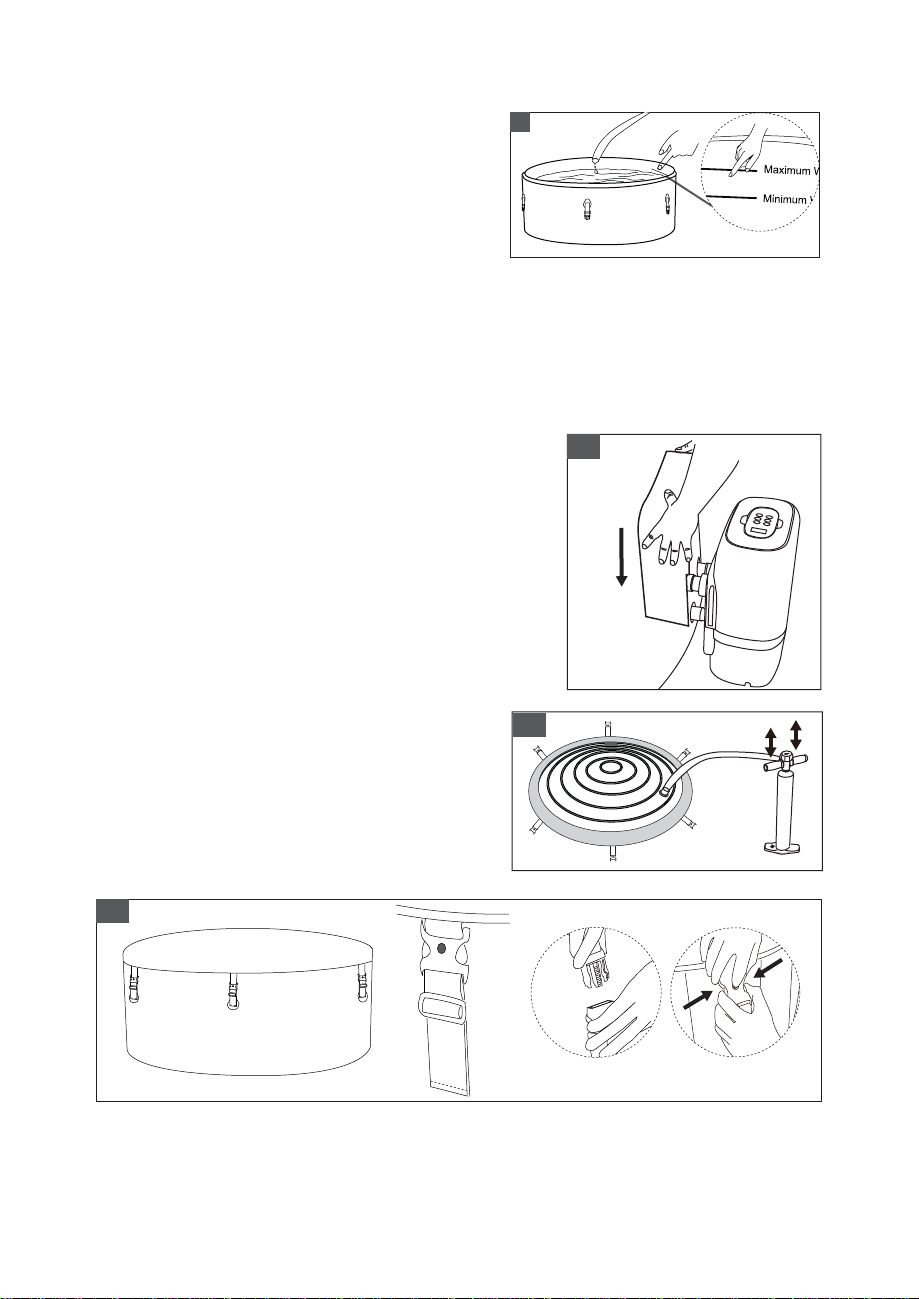

7. Water Filling
7.1 Check the spa liner is at the selected area and point the
drain valve toward a suitable draining area before
inflation. Make sure the drain valve is securely
tightened.
7.2 Fill the spa tub with fresh water to a level between
Minimum and Maximum line marked on the inside of the
spa wall.
Do not over fill the spa. It is recommended to fill the spa with lukewarm water for quick heating and energy
saving.
WARNING:
Ɣ:DWHUOHYHOPXVWUHDFKWKH0LQLPXPZDWHUOLQHEXWQRWH[FHHGWKH0D[LPXPOLQHWRDYRLGSXPS
failure.
Ɣ1HYHUSRXUZDWHUZLWKDWHPSHUDWXUHKLJKHUWKDQ
40°C(104°F) into the spa directly.
Ɣ7RDYRLGFRQWUROV\VWHPIDLOXUHGRQRWRSHUDWHWKHVSDXQWLO
water reaches the Minimum line.
7.3 Check the connecting tub and make sure there is no water
seeping. Assemble the “U” shape cover.
7.4 Insert the inflatable bladder into the buckled cover. (Keep valve
and printing towards outside)
7.5 Inflate the bladder with the hand pump.
7.6 Place the cover over the spa tub and insert the buckle to the
base that attached on the spa tub.
7.3
Lock the Buckle
Ɣ,QVHUWWKHEXFNOHRQWKH*URXQG0DWLQWRWKH6SD
cover buckle, until you hear a “Click” sound.
Unlock the Buckle
Ɣ3LQFKERWKVLGHVRIWKHORFNHGEXFNOHDQGSUHVV
down the round dot in center in the same time. Press
down the center button and release the lock.

UP DOWN
HEATER
BUBBLE
FILTER
TIMER
°C
CONTROLLER OPERATION
Temperature display: press RESET on PRCD, the screen shows current temperature
Heater Button: Press HEATER button to turn the function on/off.
Meanwhile, the filter will automatically run and test for 15s. The HEATER button is green within
15s. If there is no abnormality, the heating starts until the temperature reaches setting value. After
the current water temperature drops below the setting temperature, the heating system will restart
automatically. When the HEATER button is red, the heating system is activated. When the
HEATER button is green, the heating system is at rest as the water is at the set temperature.
Filter Button: Press FILTER button to turn the function on/off. The light of FILTER button display
green when activated.
NOTE: Filtration cannot be turned off when Heating is activated. When the Heating function is
turned off, Filtration will be stopped after 30 seconds.
NOTE: Auto-filtration system every 4 hours.
Bubble Button: To activate the bubbling massage function, which has a 20-minutes auto off for
10-mintues feature. The light of Bubble button displays green when activated.
Heater Button
Bubble Button
Up Button
Filter Button
Timer Button
Down Button
FILTER
HEATER
14
BUBBLE

15
LED
READING CAUSE SOLUTION
E0
E1
E1 immediately shows after pressing
FILTER or HEATING
Contact the MSpa Service Center.
Clean parts and tubes that water goes through
1. Add more water to the minimum line;
2. Clean parts and tubes that water goes through;
3. Contact the MSpa Service Center.
Adjust water temperature
ERROR CODE CHART
MAINTENANCE
Water temperature is lower than zero degree
or exceed 55°C
Temperature sensor failure
Cumulative use up to 150hrs, or cleaning
reminder is activated Clean the filter cartridge or change a new one
Check water quality in time and adjust to
recommended range
Not in used for 2~3 days or longer Use an overall cover for protection
Use water treatment products to adjust
UP
DOWN
TIMER
Filter Cartridge Cleaning Reminder: When red light keeps flashing (Filter function is OFF) or red and
green lights alternately flashing (Filter function is ON), the filter cartridge shall be cleaned or replaced.
After that, press Filter button for 3s to delete the reminder.
E1 shows 15s after pressing FILTER
or HEATING
FREQUENCY ACTION
Filter
Cartridge
SPA
Adjustment Buttons: Press UP or DOWN button, the screen flashes setting temperature.
Re-set the temperature within 3s. Otherwise the temperature setting mode will automatically end.
If other button is pressed during the setting , the setting will also stopped. The current
temperature shown on the screen is confirmed.
NOTE: Default setting temperature is 40°C; Temperature setting range: 20 - 42°C.
Controller Locking: Press UP and DOWN button at the same time for 3s, the buzzer will ring 3
times, meaning that the controller is locked. In this mode, function will not be turned on/off if the
button is pressed. Press UP and DOWN button at the same time again for 3s to unlock the
controller.
Timer Button: Press the TIMER button to enter intelligent pre-setting mode. By press UP and
DOWN button, you can set and start heating automatically in up to 99 hours. The TIMER setting
is confirmed if no further operation in more than 3 seconds or press TIMER button again. The
heater will start working after current setting hours. The setting hour can also be changed by
entering the pre-setting mode again. The light of TIMER button flashes green when activated.
Cancel: Press the TIMER button for 3s to cancel the pre-setting.
Note: The pre-setting function cannot be turned on during heating process. The pre-setting mode
will also end after heating function is on or after the spa is reboot.

16
WATER MAINTAINCE AND CHEMICALS
Maintenance of Spa Water and Cartridge
Protect all the spa occupants from possible water related illness by keeping the spa water clean and sanitized.
Always practice good hygiene. To ensure proper spa water quality by following these procedures:
1. Inspect and clean the filter cartridge after each use, and change the filter cartridge after it works
continuously for 150 hours.
ƔUnscrew the cartridge assembly from the spa tub wall and remove the cartridge by turning it counter
clockwise (Fig. 1.1)
ƔUse a garden hose to rinse off the cartridge. If the cartridge remains soiled and discolored it should be
replaced. Keep spare cartridges on hand.(Fig.1.2).
ƔReinstall the clean or spare cartridge back onto the spa tub wall but turning it on clockwise. (Fig.1.3)
1.1 1.3
2. Change the spa water every 3-5 days depends on the spa use. See “Cleaning, draining and storage”
section for instruction.
3. Use spa chemicals to maintain proper water chemistry. Spa damage resulting from misuse of chemicals
and mismanagement of spa water is not covered by the warranty. Consult with your local spa or pool
retailer for more information on chemical use.
4. All occupants must shower before entering the spa.
5. When spa inlet or outlet is stuck with dirt. Use the
Wrench to check the problem and clean the inlet
or outlet.
5
Water Sanitation
The spa owner must regularly check and keep the spa water sanitized with scheduled maintenance (daily, if
necessary). Adding sanitizer or other chemical will control bacteria and viruses present in the spa water. The
maintenance of a proper water balance through appropriate use of sanitizers is the most important factor in
maximizing the life and appearance of the spa as well as ensuring clean, healthy and safe water.
Proper technique is important for water testing and treating the spa water. See your spa professional for
chemical, sanitizer, test kit and testing procedures questions.
1.2
CAUTION:
Ɣ$OZD\VIROORZWKHFKHPLFDOPDQXIDFWXUHU¶VGLUHFWLRQDQGWKHKHDOWKDQGKD]DUGZDUQLQJ
Ɣ'RQRWDGGFKHPLFDOVLIWKHVSDLVRFFXSLHG7KLVFDQFDXVHVNLQRUH\HLUULWDWLRQ
Ɣ&RQFHQWUDWHGFKORULQHVROXWLRQVFDQGDPDJHWKHVSDWXE,PSURSHUFKHPLFDOXVHZLOOYRLGWKHZDUUDQW\

17
IMPORTANT:
Ɣ3UHVVWKH%XEEOHEXWWRQRQWKHVSD control panel to turn on the bubble air blower and help to
dissolve the chemicals into the water.
Ɣ1HYHUPL[FKHPLFDOVWRJHWKHU$GGWKHFKHPLFDOVWRWKHVSDZDWHUVHSDUDWHO\7KRURXJKO\GLVVROYHHDFK
chemical before adding one to the water.
NOTE:
Ɣ/RZS+ZLOOGDPDJHWKHVSDWXEDQGSXPS'DPDJHUHVXOWLQJIURPWKHFKHPLFDOLPEDODQFHZLOOYRLGWKH
warranty.
Ɣ+LJKS+KDUGZDWHUZLOOUHVXOWLQZKLWHFRDJXODWLRQVLQVLGHWKHILOWHUSXPSZKLFKPD\OHDGWRSXPS
damage.
BUBBLE
Water Balance
Maintain the spa water pH level between 7.2 and 7.8, total alkalinity between 80 and 120ppm and free chlorine
level between 3 to 5ppm. Use the *optional Test Strips to test the spa water chemistry before each use of the
spa and continue to test the water no less than once a week.
The Test Strips can test the “Free Chlorine”, “pH”, and “Total Alkalinity” level at the same time:
1. Dip the entire strip into the water and remove immediately
2. Hold the strip level for 15 seconds. Do not shake excess water from the strip
3. Compare the strip pad to the color chart on the packaging label. If necessary, adjust the chemical level in
the pool water
Water Treatment:
Ɣ%URPHRUFKORUHLVKLJKO\UHFRPPHQGHGIRUJRRGZDWHUTXDOLW\
Ɣ3OHDVHQRWHWKDWFKORULQHDQGEURPLQHSURGXFWVVKRXOGQHYHUEHPL[HG7KLVLVH[WUHPHO\GDQJHURXV,I\RX
usually use chlorine-based products and you want to switch to bromine-based products, or vice versa, it is
mandatory to completely change the spa water before any product changes.
Ɣ'RQRWRYHUXVHWKHFKHPLFDOVRWKHUZLVHWKHUHZLOOEHVWURQJFKHPLFDORGRUDQGSRWHQWLDOKD]DUGWR\RXU
skin.

18
Spa Tub Cleaning
If dirt is visible in the water or water becomes cloudy and proper water chemistry does not clear it up, change
the water and clean the spa tub.
While spa water is empty, remove the cartridge from the inside of the spa tub wall, clean and /or replace the
filter cartridge. Use a sponge and mild soap solution to wipe away any soil or stains on the inside of the spa
wall. Rinse thoroughly before refilling with clean water.
IMPROTANT: Do not use steel wool, hard brushes or abrasive cleaners.
Spa Tub and Air Bladder(*Optional) Repair
Use the enclosed repair patch to repair any puncture:
1. Clean and dry the area to be repaired thoroughly
2. Apply the glue to the PVC patch and quickly attach it onto the damaged surface. (Glue is not included)
DRAINAGE, CLEANING AND STORAGE
garden hose
Spa Drainage
1. Turn off all the buttons (heater, filter and bubble) on the control panel unit.
2. Connect the drain valve adapter to a garden hose and point the other end of the garden hose to a
suitable draining area with local environmental regulations (Fig.1)
3. Remove the drain valve cap from the outside of the spa tub and attach the drain valve adapter with the
garden hose to the drain valve (Fig.2)
4. From the inside of the spa tub, open the drain valve cap, water will start to flow out through the garden
hose (Fig.3)
5. When the water stops draining, lift the spa tub wall from the opposite to the drain, leading any remaining
water to the drain and empty the spa water completely. (Fig.4)
6. Press Bubble button to dry out any water in the piping system. Operate the bubbling function for
15 minutes to blow out all the remaining water. (Fig.5)
7. When the water stops draining, use a clean towel to wipe up any remaining water and moisture on the spa
tub and spa control panel. (Fig.6)
BUBBLE
123
45
6
15
minutes
UP DOWN
HEATER
BUBBLE
FILTER
TIMER
°C

1 32
pin holepin hole
19
3. Smooth the surface to remove any air bubbles and allow it dry for 5-10 minutes
NOTE: Glue is not included.
Inflatable Valve Sealing Washer Blow-out
For leakage on the valve cover
A. Use wrench to disassemble the valve and check the position.
B. Valve's position deviate:
i. Find out the correct position;
ii. Cut out the extra trim edge;
iii. Put an extra seal ring on top;
iv. Assemble the valve back and charge to recommended air pressure.
C. No deviation:
i. Clean the thread on the surface of the base or inner part.
ii. Assemble the valve back.
iii. Inflate the SPA.
iv. Tighten the valve further and inflate to recommended air pressure.
open
close

20
DISPOSAL AND ENVIRONMENTAL PROTECTION
This marking indicates this product should not be disposed with other household
wastes. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. You can obtain information on disposal from your local authorities.
To return your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for
environmental safe recycling.
Storage and Prepare for the Next Time Use
1. Drain and clean the spa by following the
“Drainage” and “Spa Cleaning” sections
2. Reserve the set up instructions to deflate and
disassemble the spa tub, spa control unit and air
bladder
3. Make sure all the spa components and
accessories are thoroughly clean and dry before
storage. Air-dry the spa tub in the mild sun for
an hour before folding
4. Fold the spa tub loosely and avoid any sharp
corners to prevent damage or leakage to the spa
SUN
®
liner
5. Prepare new additional cartridge for next time use
6. Store the spa and accessories in a dry, temperature controlled, between 0°C- 40°C(32°F- 104°F) storage
location
7. Original packaging is recommended to be used for storage
For air leak from inside the valve
A. Disassemble the valve and check the position.
B. Disassemble the sealing rubble on the valve and clean both.
C. Assemble the valve back.
D. Inflate the SPA.
E. Tighten the valve further and inflate to recommended air pressure.
open
close
NOTE: Correctly use the wrench by pressing it with one hand on top.
