M-TI AUTOFRY OFS User manual

E167654
AUTOFRY OFS
Oil Filtration System
Operator’s Manual

E167654
AUTOFRY
A Patented Product of
Motion Technology, Inc.
10 Forbes Road
Northborough, MA. 01532
Tel.: [phone]
508-460-9800
Fax: [phone]

AutoFry
OFS Operator’s Manual
1
OFS OM REV 02/19 63-0108
TABLE OF CONTENTS
TABLE OF FIGURES .................................................................................................................1
WARRANTY INFORMATION....................................................................................................2
GENERAL INFORMATION........................................................................................................3
SAFETY SYMBOLS...................................................................................................................3
DESIGNATED / NON-DESIGNATED USE....................................................................................3
IMPORTANT INFORMATION...................................................................................................4
OFS BREAKDOWN ..................................................................................................................5
CHANGING THE CARBON PAD FILTER......................................................................................6
VALVE INFORMATION............................................................................................................7
HOSE CONNECTIONS..............................................................................................................8
PREPARING THE OFS ..............................................................................................................9
FILLING WITH FRESH OIL.......................................................................................................10
FILTERING OIL......................................................................................................................11
DISPOSAL OF OLD OIL...........................................................................................................12
CLEANING & MAINTENANCE ................................................................................................13
WASTE DISPOSAL.................................................................................................................13
TROUBLESHOOTING GUIDE ..................................................................................................14
TABLE OF FIGURES
FIGURE 1 –OFS BREAKDOWN.................................................................................................5
FIGURE 2 –QUICK DISCONNECTS............................................................................................5
FIGURE 3 –CARBON PAD FILTER INSTALLATION......................................................................6
FIGURE 4 –VALVE ACCESS PANEL ...........................................................................................7
FIGURE 5 –VALVE DECAL........................................................................................................7
FIGURE 6 –DRAIN VALVES......................................................................................................7
FIGURE 7 –HOSE CONNECTIONS.............................................................................................8
FIGURE 8 –DISCHARGE WAND ASSEMBLY ..............................................................................8
FIGURE 9 –FILL LINES...........................................................................................................10
FIGURE 10 –DISCHARGE WAND ASSEMBLY ..........................................................................12
FIGURE 11 –PUMP / MOTOR ASSEMBLY ..............................................................................13

AutoFry
OFS Operator’s Manual
2
OFS OM REV 02/19 63-0108
Motion Technology, Inc.
Limited Warranty
Nature of Warranty
This equipment is warranted to be free of
manufacturing defects in workmanship and
materials of construction for one (1) full year
beginning from the date of original retail purchase
and subject to the limitations set forth below. The
controls package consisting of the main circuit board
and keypad are warranted for three (3) years (parts
only, excludes labor). Any part found to be defective
during the warranty period will be replaced with
new or rebuilt replacement parts free of charge by
Motion Technology, Inc. (MTI). Shipping charges are
the responsibility of the purchaser. Service labor is
included for a period of one (1) full year beginning
from the date of original retail purchase when
performed by an authorized MTI service company or
designated agent based on straight time rates for
work performed during normal working hours. This
labor coverage is limited to a fifty (50) mile radius
(each way) and/or 1-hour travel time to a customer’s
location. Any and all other service travel charges will
be the responsibility of the customer.
Scope of Warranty
This warranty is extended to the original purchaser
for products purchased and retained in the 50 states
of the U.S.A. and District of Columbia. This warranty
shall not be effective unless the equipment was
purchased from a dealer or other person authorized
by MTI to sell its equipment and it is not
transferable.
Exclusions from Coverage
This warranty does not cover any damage to the
equipment resulting from accident, misuse, abuse or
negligence, failure to follow operating, cleaning and
periodic maintenance instructions, mishandling,
alteration, failure to install in strict conformity with
local fire and building codes and regulations,
ordinary wear and tear resulting from use, failure to
change filters using only manufacturers’ supplied at
the recommended intervals, or if the installation
does not comply with set-up and installation
instructions or any other circumstance beyond the
control of MTI.
The equipment shall not have been previously
altered, repaired or serviced by anyone other than a
service facility authorized by MTI to render such
service.
How to Obtain Service
Notification of a defect in the material or
workmanship of the equipment shall be to the MTI
Factory Service Department at the number shown
below or the dealer from whom you purchased the
equipment. We want you to be a satisfied customer.
If a problem does come up that cannot be resolved
to your satisfaction, please let us know. Write to
Service Manager, Motion Technology, Inc., 10 Forbes
Road, Northborough, MA 01532. Please be sure to
include the model number, serial number and the
date of original purchase.
Exclusion of Incidental or Consequential
Damage
Repair or replacement under this warranty is the
purchaser’s sole and exclusive remedy. Neither MTI
nor the dealer from whom you are purchasing this
equipment will be responsible for any and all
incidental or consequential damages resulting from
the use of the equipment or from a breach of any
expressed or implied warranty on this equipment.
These warranties are in lieu of all other warranties,
expressed or implied, including, but not limited to
the implied warranties of merchantability or fitness
for a particular purpose.
Legal rights of Warranty
Retain this warranty. It gives the purchaser specific
legal rights. The purchaser may also have other
rights which vary from state to state. MTI suggests
that the dealer’s dated bill of sale be retained as
evidence of the date of purchase. Some states do
not allow the exclusion or limitations on how long an
implied warranty lasts, so the above limitations or
exclusions may not apply to all purchasers.
Technical Service / Support: [phone] x. 112.

AutoFry
OFS Operator’s Manual
3
OFS OM REV 02/19 63-0108
General Notes:
These operating instructions contain important information about the handling of the OFS
oil filtration system. Read this information carefully before using. Keep this manual
available for more information. The OFS is an oil filtration system designed for the cleaning
of frying oil. Frying will contaminate the oil with burned particles. With the OFS, the oil can
be filtered underneath the AutoFry and then pumped back into the oil vat. Filtering with
the OFS prolongs the lifetime of the oil. We recommend filtering once or twice per day.
The OFS carbon pad filter should be changed after every use or every other use, depending
on the pollution of the oil. Used carbon pads should be disposed according to local
regulations. Safety Symbols:
Caution –Important Risk of Electric Shock Danger of Slipping Danger of Burning
Risk of Fire Caution –Hot Operation Instruction
Designated Use:
•The OFS is designed for use in the AutoFry MTI-40E in commercial kitchens.
•Follow safety instructions! Filtration is only possible if the oil is liquid.
•The OFS should only be used by suitably trained staff.
Non-Designated Use:
•The nonobservance of the contents described in this manual can lead to damage or malfunction
of the OFS.
•The OFS is NOT approved for cleaning / filtering of liquids other than frying oil.
•Do NOT use or store the OFS outside. It will be damaged by rain or humidity.
•Do NOT touch the power cord with wet hands!
•Do NOT jam or bend the power cord.
•Do NOT turn the AutoFry on while filtering!
•The pump / motor assembly is not to be cleaned with jet water or steam.
•No water should come in contact with the frying oil.
•Do NOT run the pump dry as it will cause rapid wear of the gears and bearings, reduced pump
performance and shortened pump life.

AutoFry
OFS Operator’s Manual
4
OFS OM REV 02/19 63-0108
Important Information:
MTI-40E’s with OFS systems are tested with oil prior to leaving the factory.
There may be oil present in the lines.
CAUTION:
Always wear protective clothing and eyewear when working with hot oil.
There is a risk of burns from hot oil.
IMPORTANT!
This oil filtration system is not intended for use with solid oil.
CAUTION:
Ensure that the AutoFry is turned OFF prior to filtering or draining the oil vat(s).
There is a risk of fire due to a low or no oil condition.
NEVER operate the filtration system without oil.
NEVER use the filtration system to pump water. Water will damage the pump
assembly enough to require a replacement.
IMPORTANT
Ensure the OFS Vat is empty prior to draining the oil to avoid potential overflow!
Closely monitor your progress / oil level when filtering or replenishing your oil.
Filter the oil as often as needed to maintain a quality food product.
Change the oil as often as needed to maintain a quality food product.
Older oil has a reduced flash point.
Older oil is prone to surge boiling.

AutoFry
OFS Operator’s Manual
5
OFS OM REV 02/19 63-0108
OFS Breakdown:
Figure 1 shows the OFS fully assembled. To disassemble follow these steps.
1. Disconnect the hose 2 from the top of the filter foot stem
by pulling back on the white (round) female quick
disconnect. Figure 2.
When reconnecting, pull back on the female quick
disconnect and be sure the male end is firmly seated
before releasing. The two should lock together.
2. Turn the vat cover lock and lift to remove the vat cover.
You will need to maneuver the stem through the vat
cover clearance hole.
3. Lift the stem and filter foot out of the OFS vat.
Quick Disconnects
Figure 1
Figure 2

AutoFry
OFS Operator’s Manual
6
OFS OM REV 02/19 63-0108
Changing the Carbon Pad Filter:
Once the stem and filter foot have been removed from the OFS vat;
1. Turn the release handle on the filter foot to open and remove the carbon pad filter.
Figure 3.
2. Install a new carbon pad by aligning the notch of the filter with notch on the filter foot.
3. Close the release handle.
4. Reverse the steps on page 5 to reinstall the filter foot and stem back into the OFS vat.
The Carbon pad filter should be replaced after each filtration or as needed.
To reorder carbon pad filters:
Call 1-800-348-2976 x.154
Or order online at:
www.autofrywebstore.com
P.N. 48-0035 –30 piece case of carbon pad filters.
Figure 3

AutoFry
OFS Operator’s Manual
7
OFS OM REV 02/19 63-0108
Valve Information:
Pull down the front panel below the main AutoFry door to
access the OFS replenishment valve and the OFS System
ON / OFF switch. Figure 4.
Replenishment Valve:
This valve determines whether oil is replenished to the left
or right AutoFry oil vat.
THIS VALVE MUST BE RETURNED
TO OFF AFTER REPLENISHING OIL!
Figure 5.
Open the lower AutoFry doors to access the drain valves. Figure 6.
Drain Valves:
These valves are used to drain the oil from the
AutoFry oil vats. Turn valve handle down to
open.
Figure 6 shows the drain valves in the closed
position.
THESE VALVES MUST REMAIN CLOSED
ANYTIME OTHER THAN DRAINING!
Figure 4
Figure 5
Figure 6

AutoFry
OFS Operator’s Manual
8
OFS OM REV 02/19 63-0108
Hose Connections:
Hose 1 –Connected to the bottom of the AutoFry and connects to the pump discharge fitting.
This hose will remain attached to the AutoFry when removing the OFS.
Hose 2 –Connects the filter foot stem to the pump inlet fitting.
Disconnect this hose from the stem when changing the carbon pad filter.
Discharge Wand Assembly –Connects to the pump discharge fitting when disposing of old oil.
Can also be used to manually pump oil into the AutoFry through the front door. This allows you
to pump oil throughout the AutoFry vat to flush out built up sediment in the AutoFry vat.
Should be stored in a safe place when not in use.
Figure 7
Hose 1
Hose 2
Figure 8

AutoFry
OFS Operator’s Manual
9
OFS OM REV 02/19 63-0108
Preparing the OFS System:
1. Completely clean the OFS before its first use to remove any oil or debris from the
factory. Use warm soapy water followed by a clear water rinse. Thoroughly dry all parts.
2. Ensure that there is a carbon pad filter installed in the filter foot. Figure 3.
3. Ensure that the OFS Vat is empty; otherwise there will be a risk of overflow.
4. Ensure the hose from the filter foot to the pump inlet is firmly connected on both ends.
5. Ensure the hose from the AutoFry to the pump discharge is firmly connected.
6. Ensure that the power cord from the OFS to the machine outlet is firmly seated on both
ends and the pump on / off switch is in the ON position.
7. Ensure that the ON / OFF Switch behind the valve access door is in the OFF position.
8. Ensure that the power cord from the machine outlet is plugged into a 110AC Grounded
wall outlet.
9. Ensure the splash guards are inserted into the cutouts on the vat cover.

AutoFry
OFS Operator’s Manual
10
OFS OM REV 02/19 63-0108
Filling the AutoFry with Fresh Oil:
1. Fill the OFS Vat with fresh oil. The vat is large enough to hold oil for both sides of the
AutoFry.
BE SURE THE AUTOFRY IS TURNED OFF UNTIL IT IS FILLED WITH OIL!
2. Be sure both AutoFry oil vats are clean and empty.
3. Ensure both drain valves are closed.
4. Turn the main valve to “Left Vat” or “Right Vat” (whichever you want filled first).
5. Flip the ON / OFF switch to the left of the valve to the ON position to begin pumping.
6. When the lower (cold) fill line is reached, flip the ON / OFF switch to the OFF position.
7. Turn the valve to the opposite side vat.
8. Flip the ON / OFF switch to the ON position to begin pumping.
9. When the lower (cold) fill line is reached, flip the ON / OFF switch to the off position.
10. Return the valve to the “OFF” position.
Figure 9

AutoFry
OFS Operator’s Manual
11
OFS OM REV 02/19 63-0108
Filtering Oil in the AutoFry:
**FILTER OIL BELOW 300°F BUT ABOVE 200°F
**BE SURE TO ALWAYS WEAR PROTECTIVE GEAR**
1. Make sure the OFS Vat is clean and empty to avoid overflow.
BE SURE THE AUTOFRY IS TURNED OFF UNTIL IT IS FILLED WITH OIL!
2. Ensure the splash guards are inserted into the cutouts in the vat cover to avoid
leaking.
3. Slowly open the drain valves and let the oil completely drain into the OFS Vat.
4. Close the drain valves.
5. Turn the main valve to “Left Vat” or “Right Vat” (whichever you want filled first).
6. Flip the ON / OFF switch to the left of the valve to the ON position to begin pumping.
7. When the upper (hot) fill line is reached, flip the ON / OFF switch to the OFF position.
8. Turn the valve to the opposite side vat.
9. Flip the ON / OFF switch to the ON position to begin pumping.
10. When the upper (hot) fill line is reached, flip the ON / OFF switch to the off position.
11. Return the valve to the “OFF” position.

AutoFry
OFS Operator’s Manual
12
OFS OM REV 02/19 63-0108
Disposal of Old Oil:
1. Ensure the OFS Vat is completely empty to avoid overflow.
BE SURE THE AUTOFRY IS TURNED OFF UNTIL IT IS FILLED WITH OIL!
2. Unplug the OFS from the machine outlet.
3. Ensure the splash guards are inserted in the cutouts of the vat cover to avoid
leaking.
4. Slowly open the drain valves and let the oil completely drain into the OFS Vat.
5. Close the drain valves.
6. Carefully lift the splash guards up and start to remove the OFS from underneath the
AutoFry.
7. Disconnect the hose to the pump discharge fitting. This hose will remain attached to the
AutoFry.
8. Completely remove the OFS and turn the pump ON /OFF switch to the OFF position.
9. If the disposal requires transportation to a remote location, use extreme caution to
avoid spilling.
10. Firmly connect the discharge wand to the pump discharge fitting.
11. With the pump switch in the OFF position, plug the power cord into a 110AC Grounded
outlet.
12. Hold the discharge wand into a suitable container with enough free space to hold the
volume of oil to be disposed of.
13. Move the pump ON / OFF switch to the ON position and allow all of the oil to pump
from the oil tank.
14. Flip the pump ON / OFF switch to the OFF position.

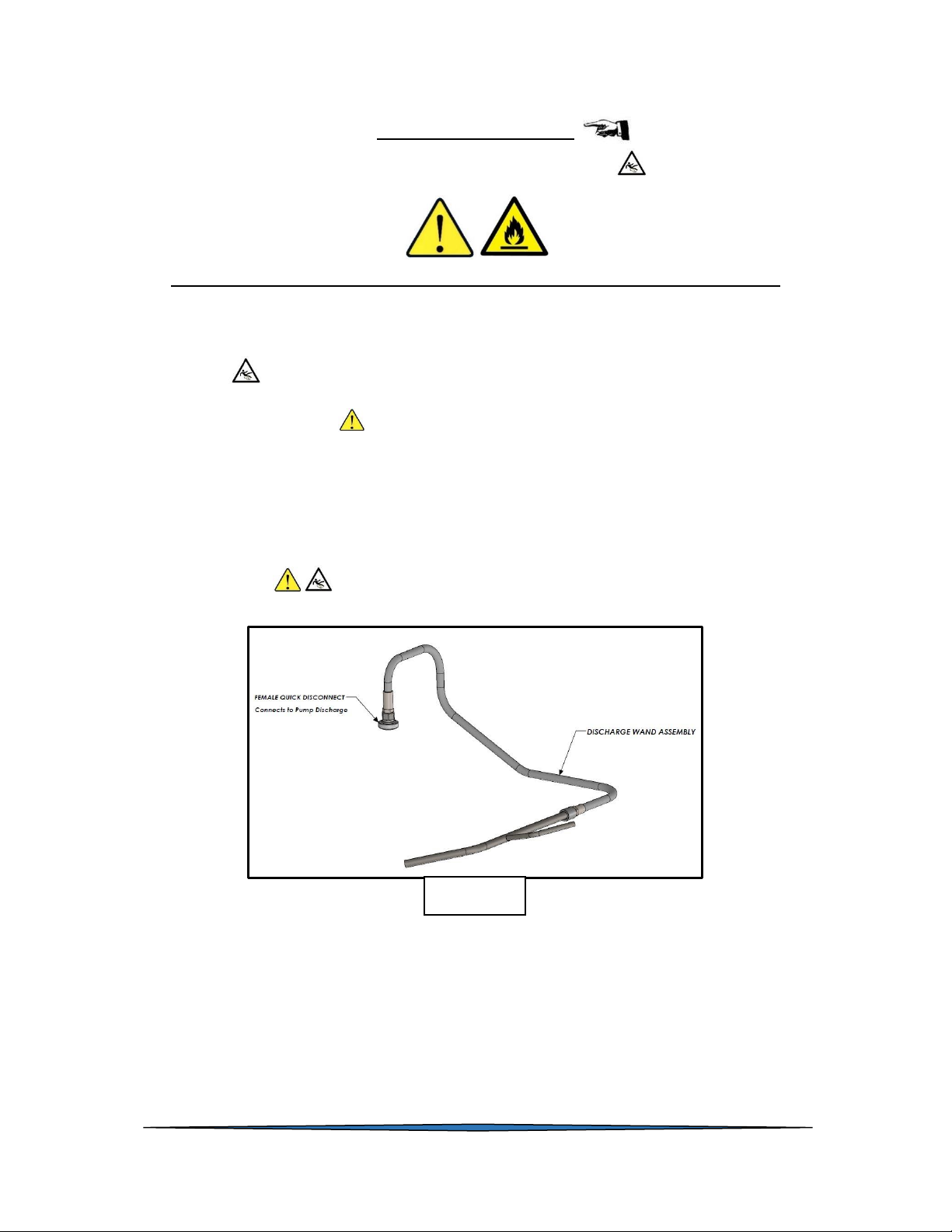

Figure 10

AutoFry
OFS Operator’s Manual
13
OFS OM REV 02/19 63-0108
Cleaning & Maintenance:
The OFS should be cleaned during every carbon pad change.
The OFS should only be cleaned when cool. DO NOT clean when hot.
NEVER soak or spray the pump / motor assembly with liquid or damage to the pump / motor
will result.
Spray cleaner on a rag and wipe the outside of the pump / motor housing while it is unplugged.
The following should be completely cleaned:
1. OFS Vat
2. Vat Cover
3. Filter Foot
4. Stem
5. Outside of the pump / motor assembly
6. Quick Disconnect Fittings
All parts should be cleaned with warm soapy water followed by a clear water rinse.
Thoroughly dry all parts.
Install a new carbon pad filter. See page 5.
Reassemble and install OFS underneath AutoFry.
Waste Disposal:
Packaging Disposal: The packaging should either be recycled or kept carefully.
Filter Disposal: Used filters must be disposed of in the country specific way.
Device Disposal: If the OFS reaches its end of life, it must be disposed of accordingly.
Motion Technology, Inc. supports the European Parliament Directive 2002/96/EC for recycling of waste electrical
and electronic equipment (WEEE).
When your AUTOFRY has reached the end of its life DO NOT DISPOSE OF IT IN THE MUNICIPAL WASTE.
Most of the materials used in its construction can be recycled. Return to your distributor for preparation and recycling.
Figure 11

AutoFry
OFS Operator’s Manual
14
OFS OM REV 02/19 63-0108
