grandMA3
Nodes
QUICK MANUAL

1
The grandMA3 xPort Nodes and grandMA3 onPC xPort Nodes control all kinds of lighting genres such as conventional, moving lights,
LEDs, video, and media via DMX signal or within a network environment.
All grandMA3 components, despite different hardware solutions, use the same software.
All components are fully integrable into the network environment.
Use all grandMA3 components and accessories within closed rooms and in the permissible environmental conditions only. Installation
and connection of the devices are explicitly to be carried out by trained personnel in compliance with all safety regulations.
4
Intended Use
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Symbols and Warning Labels
Warning – Danger area
Caution– Risk of electric shock
Risk of Electric Shock
The device is to be serviced by qualified personnel only as live parts may be exposed when opening and/or removing coverings.
Touching live parts may cause electric shock.
5
Safety
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Dispose of as hazardous waste. Follow the applicable regulations. For more information see Disposal.
Declaration of conformity. For more information see Conformity.
Operating voltage ON/OFF.
6
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Warning:
The device has to be grounded.
Do not ignore the safety purpose of the grounding-type plug. A grounding-type plug has two blades and a third grounding
connection. The third connection is provided for your safety.
Read all the instructions in this Quick Manual thoroughly, especially the General Safety Instructions further down and Limitations.
Follow the instructions and keep this Quick Manual for future use.
Follow all cautions and warnings stated in this Quick Manual and indicated on the device.
Important:
All repair and service work has to be exclusively performed by qualified service technicians.
This device is state-of-the-art technology;
However, residual risks cannot be ruled out;
To avoid risks, follow the safety instructions;
This device is intended for professional use only and is not suitable for residential use.
MA Lighting Technology GmbH does not bear the damage which may occur due to the inobservance of the safety instructions.
7
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Warning:
Changes or modifications to these devices not expressly approved by the party responsible for the compliance could void
the user's authority to operate them.
Note:
These devices have been tested and found to comply with the limits of a Class A digital device, pursuant to Part 15 of the
FCC Rules and the CE Standards. These limits are designed to provide reasonable protection against possible
interference when the devices are operated in a commercial environment. These generate, use, and can radiate radio
frequency energy and, if not installed and used in accordance with this Quick Manual, may possibly cause interference to
radio communications.
Operation of these devices in a residential area is likely to cause interference in which case the user will be required to
correct the interference at their own expense.
8
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Avoid Risks Caused by Electric Current
A defective device or defective power cable can cause severe or fatal injury due to electrical shock.
Follow the safety instructions to avoid the risks caused by electric current.
Do not use a defective power cable;
Do not open screwed down covers from the housing;
Use the device only if it is in a technically impeccable condition;
Do not repair the device on your own;
Do not reverse engineer the device, and make any changes to its components, and accessories;
Do not expose the device to rain or moisture;
Do not submerge the device in water.
General Safety Instructions
To avoid injury or damage to the device:
Do not put your hands inside the device during operation;
Device and power cable must be kept away from children under the age of 8;
Children are not allowed to play with the device;
Disconnect the power supply from electric voltage during thunderstorms;
Disconnect the power supply from electric voltage if it is unattended for a longer period of time;
Disconnect the power supply before cleaning the device;
Do not use any liquid or spray cleaner. Use a dry cloth only;
Do not use the device in the vicinity of water;
Do not expose it to a humid environment;
Do not pour any liquids over the device.
Do not block or cover any ventilation holes in the housing. These are essential for the airflow within the device and protect the
device from overheating;
9
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Do not insert any objects into the ventilation holes of the device as these could get in contact with live parts or could cause short
circuits, fire and/or an electric shock;
Do not place any objects on the power cable. Protect it from being walked on or pinched, particularly at the connector and where
the cables exit the device;
When using an extension cable, make sure the rated output of all devices connected in series does not exceed the maximum rated
output of the extension cable;
Do not support yourself on the device;
Do not place any heavy objects on top of the device;
Do not use excessive force on keys, buttons, switches, connectors, or rotary knob;
If the power cable or the main power plug is defective, let a qualified technician replace it immediately;
Place the device on stable surfaces only. If it is placed on unstable surfaces, it may fall and break;
Only use power cables which are safety-marked;
Do not use any high-power walkie-talkies or cell phones near the device;
The device is provided with a safety plug. This plug can only be used with safety outlets.
As with all industrially manufactured goods, the use of substances that induce an allergic reaction such as aluminum cannot be
generally excluded. If you develop an allergic reaction (such as a skin rash, frequent sneezing, red eyes or respiratory difficulties),
consult a physician immediately to determine the cause.
If one of the following conditions occurs, disconnect the main power plug and call your local distributor or the technical support!
Power cable or the main power plug is damaged or worn;
Ingress of liquids;
The device was exposed to rain or high ambient humidity;
The device does not function properly, even if you followed all the instructions of this Quick Manual. Only operate the controls as
stated in the Quick Manual. Incorrect control settings may damage the device;
The device fell damaging the housing.
10
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Contact us for any questions about your MA product.
MA Lighting and its extensive distributor network offer an unparalleled technical support. Call on our expertise for help with any
problem, no matter if it is about operation, software features, software installations or trouble shooting.
Help Pages
The help pages are included in every software installer package and are automatically loaded into the software (exception: Nodes and
Processing Units).
To access and read the help pages, press Help + Please . The help pop-up opens on the main screen.
To jump directly into a special help topic, use the context-sensitive help:
-Press and hold Help and tap the desired user interface element (UI element) to open the corresponding help topic.
-Tap in the control bar and tap a UI element to open the corresponding help topic.
Please note that the help topics included in the software represent the status and volume of the help pages at release date.
The help system is constantly being updated and extended. You can find the latest update of the help pages in the internet.
Online Manuals
All MA product related manuals are available as online versions. Just select your MA product and click on the according link. All further
documents can be found in our download area. Go to www.malighting.com.
Video Tutorials
Get tips and tricks from our MA experts on your MA product.
MA offers a whole range of videos on how to use your MA product in the best possible way. Just select your series and click on the
links to watch the videos on our YouTube channel. Go to www.malighting.com.
11
Support
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Community
Share your knowledge and get help from other MA users.
A community can be stronger and better than the individual. Be part of the MA community! Go to www.malighting.com.
Local Support
If you have a question regarding your MA Lighting product, please first of all contact your local MA product specialists.
Central Support
If you are in need of further assistance or manufacturer support, please fill out an email request on www.malighting.com in Training
and Support. Your request will automatically be send to support@malighting.com (in English or German). This email service is
monitored during MA Lighting's regular business hours in Germany from 8.30 am until 5 pm, Monday through Friday.
Emergency Hotline
In any case of a show critical emergency please contact the MA Lighting support hotline.
Phone +49 5251 68 88 65 99
Please note that this 24/7 hotline is strictly for emergency cases.
12
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
The grandMA3 xPort Nodes must be protected from environmental factors such as physical shocks and vibration during
transportation;
Remove all cables before transport;
The user is responsible for securely fastening the products for transport and for following the manufacturer´s safety instructions
when transporting the device;
Noncompliance of the safety instructions can result in personal injury or material damage;
Do not place the grandMA3 xPort Nodes on unstable surfaces;
Do not place any objects on top of the grandMA3 xPort Nodes.
Warning:
-Pay attention to temperature and humidity during transport. For more information see Limitations.
-After the transport check the device.
-If the device or its display is damaged (dented, bent or broken), do not connect the grandMA3 xPort Node to power!
13
Transport
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Temperature
Operation: 0 °C up to 40 °C / 32 °F up to 104 °F
Caution:
Higher temperatures can stress the cooling system of the device and destroy hardware components.
Storage / Transport: -10 °C up to +50 °C / 14 °F up to 122 °F
Humidity
Operation: 20 % up to 90 % relative humidity (no condensation)
Storage / Transport: 10 % up to 90 % relative humidity (no condensation)
Environment
Follow all safety instructions;
Only use the device within its operating limits;
Only use the device indoors;
Air must be free of dust and any hazardous or explosive substances;
Avoid jolting;
This device is not protected against splash water. Do not use it near water;
Do not use the device in rain or moisture;
Do not place the device where it can come in contact with corrosive gases or saline air as this can cause maloperation.
14
Limitations
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1

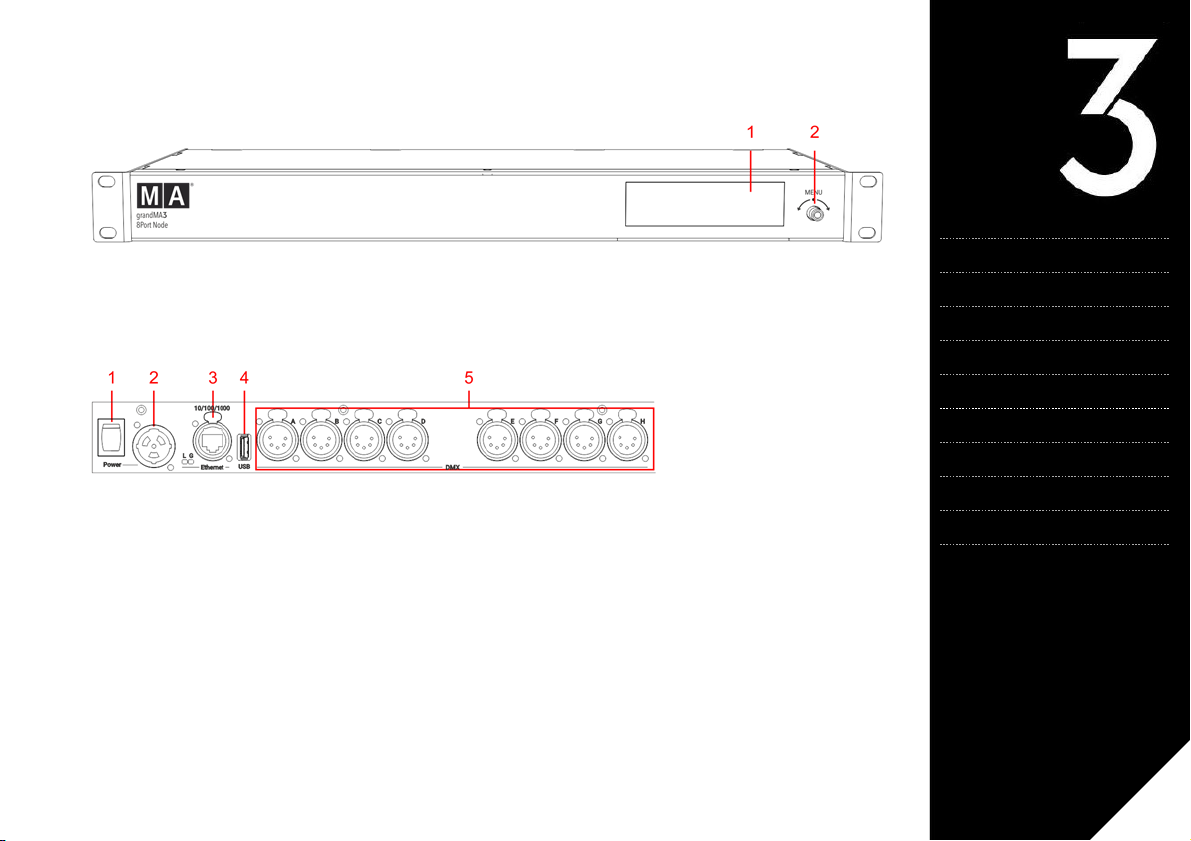

grandMA3 8Port Node front panel
1. Display
2. Rotary knob
grandMA3 8Port Node rear panel
1. Power switch
2. powerCON TRUE1
3. Ethernet with L (link) and G (gigabit) LEDs
4. USB port
5. DMX
15
Quick Start
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Start-up
1. Unpack the device.
2. Remove the packaging and cushioning material.
3. Place the device indoors on a stable surface.
4. Connect the grandMA3 xPort Node with your PC or laptop (with an onPC software), or a grandMA3 console using
etherCON/RJ45 connector.
5. Start the grandMA3 console or grandMA3 onPC.
6. Switch on the grandMA3 xPort Node:
-Insert powerCON TRUE1 into the corresponding jack.
-Connect the main power plug.
-Turn on the power switch:
-Set it to position I.
-The power switch lights up in red.
OR
Connect the grandMA3 xPort Node PoE with a PoE switch, or a PoE injector.
7. The device starts booting.
8. To make basic settings, turn the rotary knob on the front panel of the device.
9. To turn off the grandMA3 xPort Node, set the power switch to position O or disconnect the RJ45 connector to turn off the
grandMA3 xPort Node PoE.
Important:
You can disconnect the grandMA3 xPort Node using the grandMA3 console or the grandMA3 onPC software. The DMX
output will then be interrupted immediately.
16
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Update the software
1. To update a grandMA3 device, download the latest software version from www.malighting.com.
The required installer is called grandMA3 Software x.x.x.x.
2. Extract the zip file and copy the folders EFI, ma, and the update.scr file into the root directory of your USB flash drive.
3. Insert the USB flash drive in the device's USB port.
4. Turn off the grandMA3 device.
5. Power up the grandMA3 device.
6. Follow the onscreen instructions during the update process.
Important:
To configure the device, or to update or downdate the installed software, use a grandMA3 console or your PC or laptop
with the grandMA3 onPC software installed. For more information see the topics Control other MA Devices and Update
the Software via Network Update in the grandMA3 User Manual online available at www.malighting.com.
17
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Warning:
All repair and service work has to be exclusively performed by qualified service technicians as live parts may be exposed
when opening and/or removing coverings. Touching live parts may cause electric shock.
Hint:
The grandMA3 xPort Nodes only require minor attention.
Disconnect power supply before cleaning;
Clean the surface with a dry cloth only;
Do not use liquid cleaner or compressed air;
Do not use solvent;
Check if the ventilation holes are blocked;
Depending on the environment, we recommend to professionally clean the device every 2 to 5 years.
18
Maintenance
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
According to the directive 2011/65 EU (RoHS) the device was produced in the European Union, and is hence to be disposed of as
stated in the directive.
If the device is used within the European Union, follow the directive WEEE 2012/19/EU.
If the device is used outside the European Union, the corresponding country´s waste disposal regulations apply.
19
Disposal
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1
Hint:
grandMA3 xPort Nodes PoE can also be powered by a direct power connection using a PoE switch, or a PoE injector.
Important:
Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²).
The required power cable must meet the country's standards.
Only qualified personnel is allowed to perform work on the power cable!
Important:
Use the USB port for updates only. Do not connect any peripheral devices (for example, mouse, keyboard).
Each 5pin DMX512-A Out can be individually configured as DMX In.
DMX: The maximum length of the cable is 350 m (in ideal conditions).
Use CAT-5e Ethernet cable or higher. Max. length of the cable 75 m.
20
Technical Data
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English

1

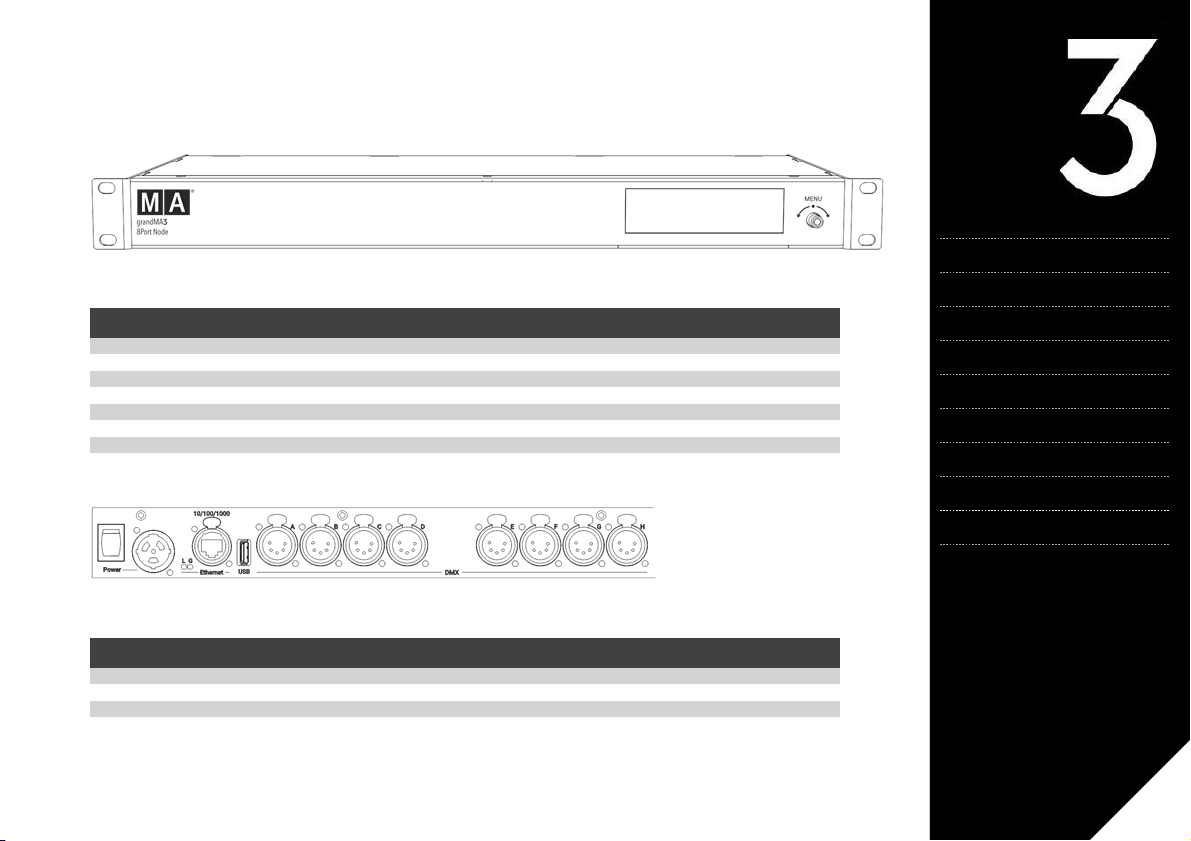

grandMA3 8Port Node and grandMA3 8Port Node PoE
grandMA3 8Port Node – front panel
Technical Data
Parameters None
Display 3.9 '' TFT color
Operating voltage (electrical grid) AC 100 - 240 V; 50/60 Hz
Operating voltage (PoE) IEEE 802.3af; 48 V DC/max. 12 W
Net weight 2 kg / 5 lbs
Power max. 15 VA
Dimensions 482 x 189 x 43 mm / 19 x 8 x 2 in (width x depth x height)
Outputs grandMA3 8Port Node and Outputs grandMA3 8Port Node PoE
grandMA3 8Port Node – rear panel
Number Connector
1 x powerCON TRUE1*
1 x etherCON/RJ45
8 x 5pin XLR (DMX512-A Out)
1 x USB 2.0 (type A), for update via USB flash drive only.
* registered trademark of Neutrik AG, Liechtenstein
21
Intended Use
Safety
Support
Transport
Limitations
Quick Start
Maintenance
Disposal
Technical Data
Declaration of Conformity
English
Other manuals for grandMA3
16
Table of contents
Languages:
Other MA Music Mixer manuals
