owner's manual
window type air conditioner
models
MEV07VV
MEV09VV
MEV12VV
MEV18VV
read this manual before installing your new air conditioner
PM01

2

3
Before using your air conditioner, please read this manual carefully
and keep it for future reference.
Prior to installation, this air-conditioning unit must be submitted for
approval by the utility service which provides electricity.
contents
read this manual
Inside you will find many helpful hints on how to use and maintain
your air conditioner
properly. Just a little preventive care on your part can save you a
great deal of time and money over the life of your air conditioner.
You'll find many answers to common problems in the troubleshoot-
ing tips section. Review the troubleshooting tips section first, you
may not need to call for service.
When using this unit in the European countries, the following infor-
mation must be followed:
DISPOSAL: Do not dispose this product as unsorted munici-
pal waste. Collection of such waste separately for special
treatment is necessary.
It is prohibited to dispose of this appliance in domestic
household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems,
where electronic waste can be disposed of at least free of
charge to the user.
B) When buying a new product, the retailer will take back
the old product at least free of charge.
C) The manufacturer will take back the old appliance for dis-
posal at least free of charge to the user.
D) As old products contain valuable resources, they can be
sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers
human health when hazardous substances leak into the
ground and water and find their way into the food chain.
Important safety information ............................................................... 4
Parts of the unit ..................................................................................... 9
Operation instructions ......................................................................... 11
Installation instructions ....................................................................... 18
Troubleshooting tips ............................................................................ 23
Specifications ........................................................................................ 25

4
important safety information
To prevent injury to the user or other people and property damage,
the following instructions must be followed. Incorrect operation due
to ignoring of instructions may cause harm or damage. The serious-
ness is classified by the following indications.
WARNING. This symbol indicates the possibility of death
or serious injury.
CAUTION. This symbol indicates the possibility of injury or
damage to property.
WARNINGS:
• Plug in power plug properly. Otherwise, it may cause electric
shock or fire due to excess heat generation.
• Do not operate or stop the unit by inserting or pulling out the
power plug. It may cause electric shock or fire due to heat gen-
eration.
• Do not damage or use an unspecified power cord. It may cause
electric shock or fire. If the power cord is damaged, it must be
replaced by the manufacturer or an authorized service centre
or a similarly qualified person in order to avoid a hazard.
• Do not modify power cord length or share the outlet with
other appliances. It may cause electric shock or fire due to heat
generation.
• Do not operate with wet hands or in damp environment. It
may cause electric shock.
• Do not direct airflow at room occupants only. This could dam-
age your health.
• Always ensure effective earthing. Incorrect earthing may cause
electric shock.
• Do not allow water to run into electric parts. It may cause fail-
ure of machine or electric shock.
• Always install circuit breaker and a dedicated power circuit. In-
correct installation may cause fire and electric shock.
• Unplug the unit or disconnect the power supply to the unit, if
strange sounds, smell, or smoke comes from it. It may cause
fire and electric shock.
• Do not use the socket if it is loose or damaged. It may cause
fire and/or electric shock.
• Do not open the unit during operation. It may cause electric
shock.
• Leave the door closed while the air conditioner is running. It is
not designed to cool the entire house.
• Do not use the power cord close to heating appliances. It may
cause fire and electric shock.

5
• Do not use the power cord near flammable gas or combus-
tibles, such as gasoline, benzene, thinner, etc. It may cause an
explosion or fire.
• Ventilate room before operating air conditioner if there is a
gas leakage from another appliance. It may cause explosion,
fire and burns.
• Do not disassemble or modify unit. It may cause failure and
electric shock.
CAUTIONS
• When the air filter is to be removed, do not touch the metal
parts of the unit. It may cause an injury.
• Do not clean the air conditioner with water. Water may enter
the unit and degrade the insulation. It may cause an electric
shock.
• Ventilate the room well when used together with a stove, etc.
An oxygen shortage may occur.
• When the unit is to be cleaned, switch off, and turn off the cir-
cuit breaker. Do not clean unit when power is on as it may
cause fire and electric shock, it may cause an injury.
• Do not put a pet or house plant where it will be exposed to di-
rect air flow. This could injure the pet or plant.
• Do not use for special purposes. Do not use this air conditioner
to preserve precision devices, food, pets, plants, and art ob-
jects. It may cause deterioration of quality, etc.
• Stop operation and close the window in storm or hurricane.
Operation with windows opened may cause wetting of indoor
and soaking of household furniture.
• Hold the plug by the head of the power plug when taking it
out. It may cause electric shock and damage.
• Turn off the main power switch when not using the unit for a
long time. It may cause failure of product or fire.
• Do not place obstacles around air-inlets or inside of air-outlet.
It may cause failure of appliance or accident.
• Always insert the filters securely. Clean filter once every two
weeks. Operation without filters may cause failure.
• Ensure that the installation bracket of the outdoor appliance is
not damaged due to prolonged exposure. If bracket is dam-
aged, there is concern of damage due to falling of unit.
• Do not use strong detergent such as wax or thinner but use a
soft cloth. Appearance may be deteriorated due to change of
product color or scratching of its surface.
• Do not place heavy objects on the power cord and ensure that
the cord is not compressed. There is danger of fire or electric
shock.

6
• Do not drink water drained from air conditioner. It contains
contaminants and could make you sick.
• Use caution when unpacking and installing. Sharp edges could
cause injury.
• If water enters the unit, turn the unit off at the power outlet
and switch off the circuit breaker. Isolate supply by taking the
power-plug out or disconnect the power supply to the unit,
and contact a qualified service technician.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the ap-
pliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervi-
sion. (be applicable for the European Countries).
• This appliance is not intended for use by persons (including
children) with reduced physical ,sensory or mental capabilities
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appli-
ance by a person responsible for their safety. (be applicable for
other countries except the European Countries).
• Children should be supervised to ensure that they do not play
with the appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• The appliance shall be installed in accordance with national
wiring regulations.
• Do not operate your air conditioner in a wet room such as a
bathroom or laundry room.
• The appliance with electric heater shall have at least 1 meter
space to combustible materials.
• Contact the authorized service technician for repair or mainte-
nance of this unit.
• Contact the authorized installer for installation of this unit.
• When there are wide differences between the USER'S
MANUAL and the remote control illustration on function de-
scription, the description on USER'S MANUAL shall prevail.
• If the air conditioner is knocked over during use, turn off the
unit and unplug it from the main power supply or disconnect
the power supply to the unit, immediately. Visually inspect the
unit to ensure there is no damage.
• If you suspect the unit has been damaged, contact a technician
or customer service for assistance.
• During a thunderstorm, the power must be cut off to avoid
damage to the machine due to lightning.

7
• To reduce the risk of fire or electric shock, do not use this fan
with any solid-state speed control device.
• Do not run the power cord under carpeting. Do not cover cord
with rugs, runners, or similar coverings. Do not route cord un-
der furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
• If connecting power to fixed wiring, an all-pole disconnection
device which has at least 3 mm clearances in all poles, and have
a leakage current that may exceed 10 mA, the residual current
device (RCD) having a rated residual operating current not ex-
ceeding 30 mA, and disconnection must be incorporated in the
fixed wiring in accordance with the wiring codes.
• To know how to fix the appliance to its support, read the in-
stallation instructions section in this manual.
• All wiring must be performed strictly in accordance with the
wiring diagram located inside of the unit.
safety PRECAUTIONS (prior to operation)
Preparing for operation
• Contact an installation specialist for installation.
• Plug in the power plug properly.
• Do not use a damaged or nonstandard power cord.
• Do not share the same outlet with other appliances.
• Do not use an extension cord.
• Do not start or stop operation by plugging and unplugging the
power cord.
operation PRECAUTIONS
• Exposure to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants
to direct airflow for extended periods of time.
• Due to the possibility of oxygen deficiency, ventilate the room
when used together with stoves or other heating devices.
• Do not use this air conditioner for non-specified special purposes
(e.g. Preserving precision devices, food, pets, plants, and art ob-
jects). Usage in such a manner could harm such property.
cleaning and maintenance PRECAUTIONS
• Do not touch the metal parts of the unit when removing the filter.
Injuries can occur when handling sharp metal edges.
• Do not use water to clean inside the air conditioner. Exposure to
water can destroy the insulation, leading to possible electric shock.
• When cleaning and maintenance the unit, first make sure that the
power and circuit breaker are turned off.

8
operating temperature
Note: Performance may be reduced outside of these operating tem-
peratures.
Cooling operation
Outdoor
temperature
Indoor
temperature
18-43°C/64-109°F (18-52°C/64-
125°F for special tropical models.
17-32°C/62-90°F
power point requirement
• Power cord conductors are distinguished according to color as fol-
lows (see Fig. a).
• For your safety and protection, this unit is earthed through the
power cord (see Fig. b).
• Please contact the manufacturer or its service agent or a similar
qualified person if you want to replace it.
• Be sure that the unit has being correctly grounded. The wall outlet
(air-break switch) should be provided with reliable earth wire.
• The unit should be provided with an individual circuit and the cir-
cuit breaker/fuse rating should be the same as that of the power
cord and wall outlet.
Power cord
L
E
N
E- Earth wire, Yellow/Green
N-Neutral wire, Blue
L-Live wire, Brown
Fig. A
Wall outlet Air- reak switch
Fig. B
NOTE: To be in compliance EN61000-3-11, the product MWT2F-
21CM-QB4 shall be connected only to a supply of the system imped-
ance: |Zsys|=0.156 ohms or less; the product MWT2F1-22CM-QB4
shall be connected only to a supply of the system impedance:
|Zsys|=0.132 ohms or less; the product MWT2F1-22CM-QB8 shall be
connected only to a supply of the system impedance: |Zsys|=0.077
ohms or less. Before connecting the product to public power net-
work, please consult your local power supply authority to ensure the
power network meet above requirement.

9
Inserts placed into
the side louvers
Remove inserts
placed into the
side louvers
CAUTION: Before installing, remove all packaging from in-
side the carton, along with any inserts placed into the side
louvers.

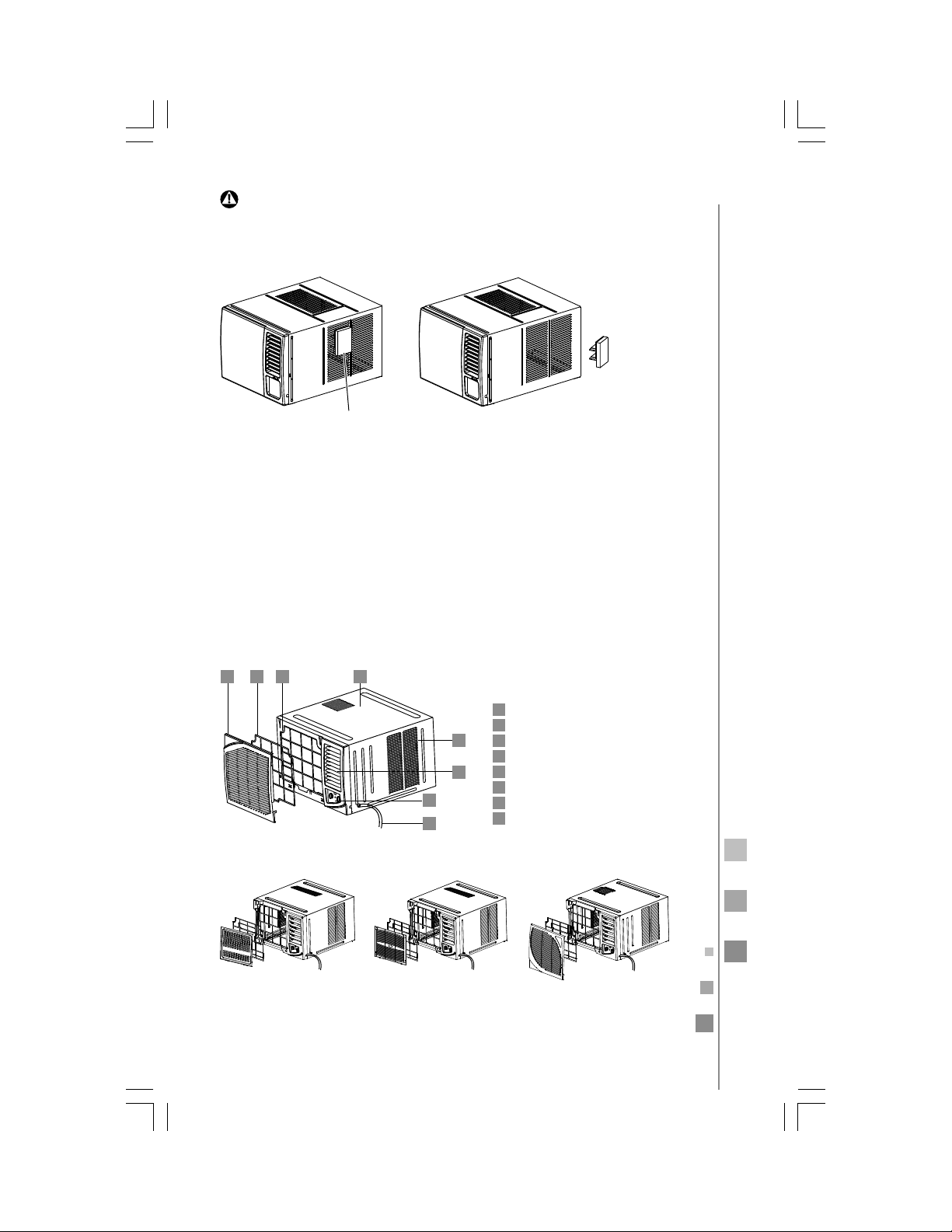

parts of the unit
Note: The front panel and cabinet may be slightly different accord-
ing to the models, but the functions are the same. The following il-
lustration is for explanation purpose only, the actual shape of the
machine you purchased may be slightly different.
Model A
1 2 3 4
5
6
7
8
1Front panel
2Air filter
3Frame
4Cabinet
5Air inlet grille (outdoor grille)
6Air outlet grille
7Operation knob
Power supply cord
Model B Model C Model D

10

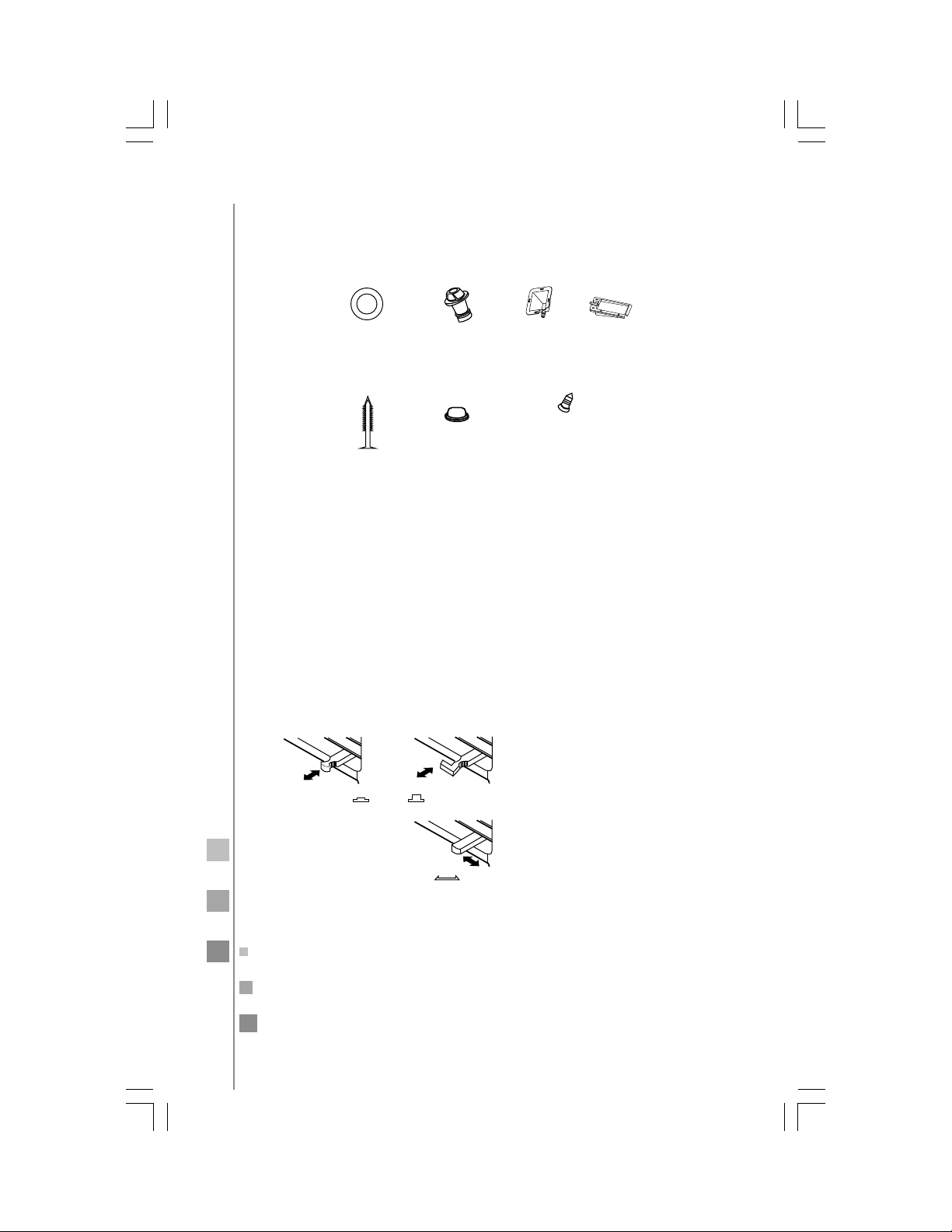

accessories
Note: There are optional parts according on model you purchased.
Note: All the illustrations in the manual are for explanation purpose
only. Your air conditioner may be slightly different. The actual shape
shall prevail.
Seal
(optional)
(Used on
drain joint)
1 piece
Drain joint
(optional)
1 piece
Drain tray (optional)
1 piece 1 piece
or
Wood screw
(optional)
pieces
Rubber
plug
1 or 2 pieces
(depends on
model)
Screw
2 pcs (For >1 000 BTU/h
models only: Used to fasten
the front panel).
2 or 4 pcs. Used to install
the drain tray.
vent control
The vent control is located above the control knobs. The operation
method is different on different models (see the following figures).
For maximum cooling efficiency, CLOSE the vent. It will allow inter-
nal air circulation. OPEN the vent to discharge stale air.
CLOSE VENT OPEN
OPEN OPEN
To open the vent, pull the lever
toward you
To close it, push it in.
To open the vent, set the lever to
the right position
To close it, set the lever to the
left position.

11
THERMOSTAT
SELECTOR
AUTO SWING
SELECTOR THERMOSTAT
THERMOSTAT SELECTOR
THERMOSTAT SELECTOR
operation instructions
operation panel (cooling only models)
The control panel of the unit you purchased will look like one of the
following:
POWER indicator (optional)
This indicator light remains on when the unit is on and goes off
when the SELECTOR is on OFF position. On some models, COMP. in-
dicator light is instead of POWER indicator light. This indicator light
shows the status of the compressor. When the compressor starts up,
it lights on; when the compressor shuts down, it lights off.
Note: AUTO SWING switch is optional. All the illustrations in this
manual are for explanation purposes only. Your air conditioner may
be slightly different. The actual shape shall prevail.
The controls featured in this manual are representative of
many available models. Your model may offer slightly differ-
ent features.

12
thermostat
The thermostat is used to set the desired room temperature when
the unit is being operated in the COOL MODE.
To set the desired room temperature, rotate the thermostat switch
to the desired setting. After the set temperature is achieved, the
thermostat will automatically start and stop the compressor in order
to maintain the desired set temperature.
Rotate the thermostat selector clockwise for higher cool settings.
Higher cool settings will provide lower room temperature. Rotate
the thermostat selector counterclockwise for lower cool settings.
Lower cool settings will provide higher room temperature.
Note: During the cooling operation of the unit, when the thermo-
stat knob is rotated clockwise, allow at least three minutes before
turning back the knob to the 1 direction. Otherwise the fuse may
blow due to an overload of the unit.
DO NOT rotate the THERMOSTAT knob
beyond the range from 1 to 12.
THERMOSTAT
6
39
COOLER
121
SELECTOR

13
The controls featured in this manual are representative of many
available models. Your model may offer slightly different features.
• HIGH FAN permits high fan speed operation without cooling ef-
fect.
• MED FAN permits med fan speed operation without cooling effect.
• LOW FAN permits low fan speed operation without cooling effect.
• FAN permits high fan speed operation without cooling effect.
Note: When selecting a fan speed, the compressor will not run.
• HIGH HEAT has maximum heating effect and airflow.
• LOW HEAT has minimum heating effect and airflow.
• OFF will completely shut off the unit.
The desired cool/Heat setting is selected by rotating the knob to the
right to the appropriate location.
• HIGH COOL has maximum cooling effect and airflow.
• MED COOL has the intermediate cooling effect and airflow.
• LOW COOL has minimum cooling effect and airflow.
Note: When turning the SELECTOR knob from "LOW COOL (HEAT)"
to "HIGH COOL (HEAT)", keep the speed slow as far as possible. Do
not change the operation mode between "LOW COOL (HEAT)" and
"HIGH COOL (HEAT)" too often.

14
adjust air flow direction
Horizontal airflow adjustment
For the units with AUTO SWING feature (automatically) (on some
models):
When the AUTO SWING switch is turned to ON position, the vertical
louvers automatically oscillate right and left sweeping the cold air
alternately to obtain comfortable cooling.
The vertical louvers may be stopped at any position when the AUTO
SWING switch is turned OFF.
for the units without AUTO SWING feature
(manually):
To adjust horizontal airflow direction, move the lever gently to the
left or right by hand until the desired horizontal airflow direction is
obtained.
Note: Only For the units with hand-operat-
ing lever.
Manual lever

15
vertical air flow adjustment (manually)
Airflow in vertical direction can be changed by adjust-
ing horizontal louver manually when the unit is run-
ning.
Note: Adjusting angle of horizontal louver depends on
model.
To avoid generating condensing water on the surface
of horizontal louver, horizontal louver should not be at
the maximum upwards or downwards angle position
for a long time in cooling or drying mode.
air filter
The air filter behind the inlet grille should be checked and cleaned
at least once every 2 weeks (or as necessary) to maintain optimal
performance of the air conditioner.
how to remove the air filter
Turn off the unit, disconnect/unplug from the power supply.
1. Hold the slot under the front panel, then lift it outwards and re-
move the front panel.
2. Pinch the handle under the air filter and make the air filter
arched, remove it from the slot from underside to upside.
3. Clean the filter with warm, soapy water. The water should be be-
low 40°C to prevent distortion of the filter.
4. Rinse off and gently shake off excess water from the filter. Allow
the filter to dry before replacing it. To prevent distortion of the
filter, do not dry in direct sunlight.

16
cleaning the cabinet
• Be sure to unplug the air conditioner to prevent shock or fire haz-
ard. The cabinet and front may be dusted with an oil-free cloth or
washed with a cloth dampened in a solution of warm water and
mild liquid dishwashing detergent. Rinse thoroughly and wipe dry.
• Never use harsh cleaners, wax or polish on the cabinet front.
• Be sure to wring excess water from the cloth before wiping
around the controls.
• Excess water in or around the controls may cause damage to the
air conditioner.
• Plug in air conditioner.
Note: Never use water over 50 °C, alcohol, gasoline, acid, solvent or
brush to clean the front panel as this will damage the surface of the
part.
winter storage
If you plan to store the air conditioner during the winter, remove it
carefully from the window according to the installation instructions.
Cover it with plastic or return it to the original carton.
CAUTION: NEVER OPERATE THE AIR CONDI-
TIONER WITHOUT THE AIR FILTER, AS DUST
AND/OR DIRT PARTICLES CAN CONTRIBUTE TO
EQUIPMENT FAILURE.
drainage
To treat condensed water will be as follows:
1. Bottom drainage. Connect drain hose to the bottom drain tray. It
will slightly affect cooling performance, but will reduce the noise
caused by spraying the condensed water.
Note: Only optional for models with bottom drain hole. For
pump heating, the bottom drainage must be chose.
Back
drain hole Bottom drain hole

17
2. Back drainage. Connect drain hose to the back drainage hole. It
will slightly affect cooling performance, but will reduce the noise
caused by spraying the condensed water.
3. Non-drainage. Block the drain hole(s) by rubber plug(s).
The condensed water will be sprayed to condenser, and will im-
prove the cooling performance.

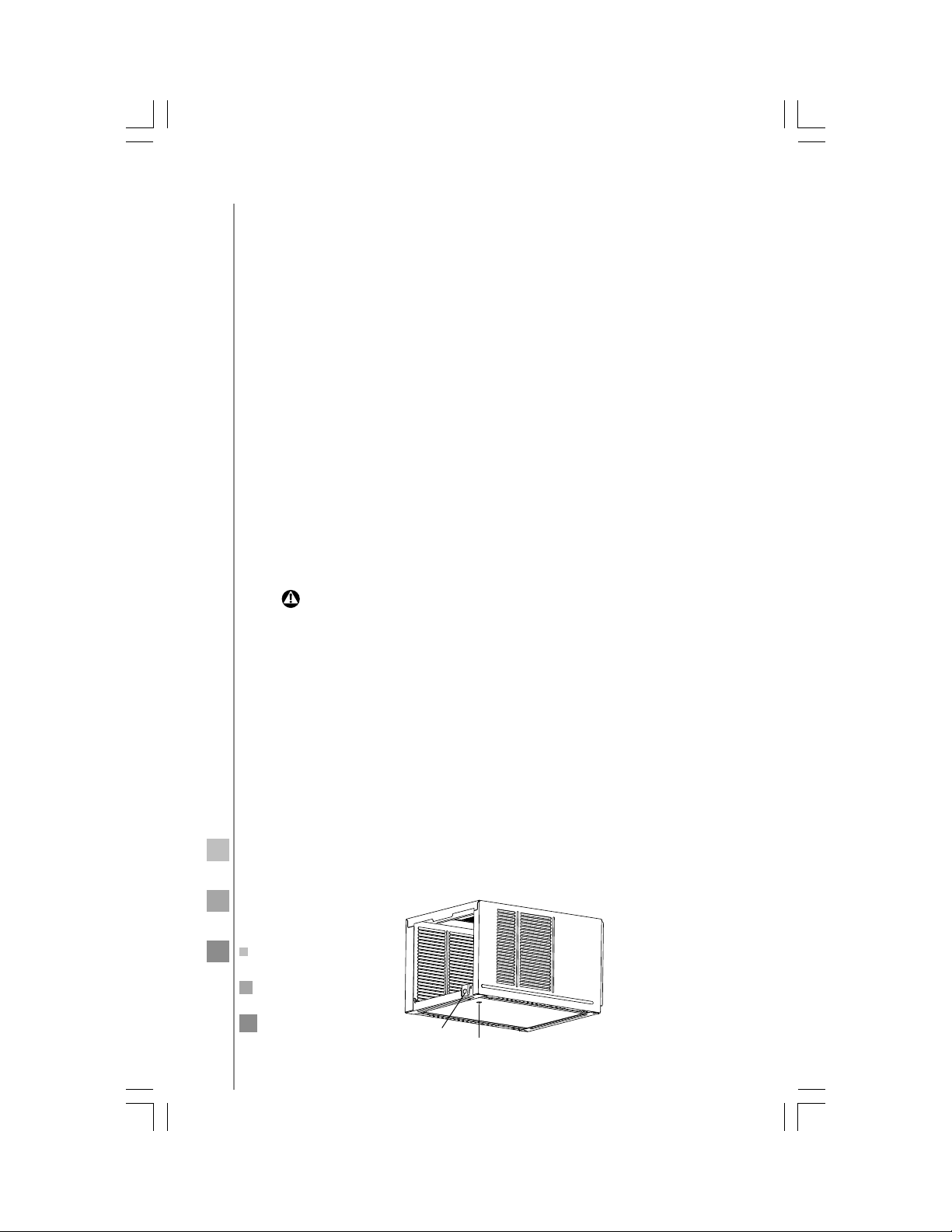

Installation procedure of bottom drainage:
1. Remove the rubber plug from the bottom of cabinet (if installed).
2. Take out the drain tray and screws from accessory.
3. Fix the drain tray onto the bottom of cabinet by screws.
4. Connect an extension drain hose (locally purchased) to the outlet
of drain tray.
Bottom drain hole
Ru er plug
Ru er
plug
Screw
Drain pan
Drain
outlet
Installation procedure of back drainage:
1. Fit the seal (provided as accessory) onto the drain joint.
2. Insert the drain joint to the back drainage hole, and rotate it 90°
to be well fitted.
3. Connect an extension drain hose (locally purchased) to the drain
joint.
4. Make sure to block the bottom drain hole by rubble plug.
Note: Drain hose is locally purchased according to installation
length request.
Ru er
plug
Seal
Drain
joint
Back drain
hole

18
Note: If you choose non-drainage when cooling, both the bottom
and the back drain holes of the unit should be inserted with rubber
plugs. When you choose non-drainage the air conditioner will be
perfect cooling efficiency, but big noise may be caused by spraying
the condensed water. Does not recommend to use.
Note: The rated cooling performance is tested under non-drainage
status.
Note: Make sure that water will not leak from the surrounding area
when rubber plug and joint were used. Please seal it in case leakage
is found.
installation instructions
Note: Before installing, remove all packaging from inside the car-
ton, along with any inserts placed into the side louvers.
select the best location
1. To avoid vibration and noise, make sure the unit is installed se-
curely and firmly.
2. Install the unit where the sunlight does not shine directly on the
unit. If the unit receives direct sunlight, build an awning to shade
the cabinet.
3. There should be no obstacle, such as a fence or wall, within 50 cm
from the back of the cabinet because it will prevent heat radia-
tion of the condenser.
Restriction of outside air will greatly reduce the cooling and heat-
ing efficiency of the air conditioner.
4. Install the unit a little obliquely downward to outside not to leak
the condensed water into the room (about 3~40 with level).
5. Install the unit with its bottom portion 75~150cm above the floor
level.
6. The power cord must be connected to an independent circuit. The
yellow/green wire must be grounded.
Awning Fence
Level
Unit
A out 3~4°
Over 50 cm
75~150
cm
Awning
Fence
Level
Unit
A out 3~4°
Over 50 cm
75~150
cm

19
CAUTION: All side louvers of the cabinet must remain ex-
posed to the outside of the structure.
installation of housing
Step 1. Remove the air conditioner from it's packaging, remove fix-
ing screws and slide the air conditioner out of its housing (refer to
installation steps).
Step 2. Prepare the hole in the wall so that the bottom of the hous-
ing is well supported, the top has minimum clearance and the air in-
let louvers have clearance as shown below in options A and B. Holes
from the outside through to the cavity should be sealed. The hous-
ing should slope down towards the rear by about 5 mm to allow wa-
ter formed during operation to drain.
Step 3. Install the housing into the wall and secure. Ensure the
foam seals are not damaged. Flash, seal or fill gaps around the in-
side and outside to provide satisfactory appearance and protection
against the weather, insects and rodents.
Note: Unit may e supported y a
solid frame from elow or
y a hanger from a solid
overhead support.
Flash or seal around external
wall frame or architrave.
Sturdy tim er
frame all
round unit
Tim er framed
wall or partition
Alternatively, rackets
may e used as illustrated.
External support
frame at alance
point of air conditioner.
Drain pan
Preferred method of installation into a
tim er framed wall, partition or window.

20
installation of the unit into the housing
1. Slide the unit into the housing until it is firmly against the rear of
the housing. Care is required to ensure the foam sealing strips on
the housing remain in position.
2. Connect the air conditioner to the power and position excess cord
length beneath the air conditioner base.
3. Engage the chassis fixing brackets into the bottom housing rail
and secure to the base with the screw provided.
4. Remove the front panel from it's carton and plastic bag and fit as
per the Installation instruction.
5. Switch unit on. Check for operation of the unit and check for vi-
bration in the installation.
6. Fit the drain pan to the housing and run a drain line to a suitable
location if required.
Flash or seal around external
wall frame or architrave.
Ensure louver
is entirely
outside the wall
Drain pan
Steady racket
(one per side).
Solid tim er support
Sturdy tim er
frame
Tim er framed
wall or partition
Alternative installation method if
external support cannot e provided.
installation of the unit into the wall
Air IN
Air IN
Air OUT
Air IN
100 mm minimum
OPTION A
45° Brick cut away
to clear louver
45° Brick cut away
to clear louver Front
Brick
wall
Brick
wall 100 mm
TOP VIEW
Air IN
Louver
Air OUT
100 mm
Air IN
OPTION B
