welcome! in this manual you will find relevant information
you should know before using your new dryer.
we invite you to read it carefully.
owner’s manual
dryer
234D2556P031
index
important safety instructions ....................................................................................... 3
safety recommendations when using the dryer.................................................... 4
operating instructions ..................................................................................................... 5
temperature / dry cycles ................................................................................................ 6
start button /dryer functions ........................................................................................ 7
loading and using the dryer ......................................................................................... 7
models with sensor dry .................................................................................................. 8
dryer care and cleaning .................................................................................................. 9
dryer ventilation............................................................................................................... 10
drying labels ..................................................................................................................... 10
troubleshooting .............................................................................................................. 11
warning:
The appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and
by a utility.
· A carpet must not obstruct the openings in the base.
· Exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
· The appliance must not be installed behind a lockable door, a sliding
door or a door with a hinge on the opposite side to that of the tumble
dryer, in such a way that a full opening of the tumble dryer door is
restricted.
· Means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules such as an accessible plug or a switch.
· Instructions are also available in website: www.mabearabia.com
2
3

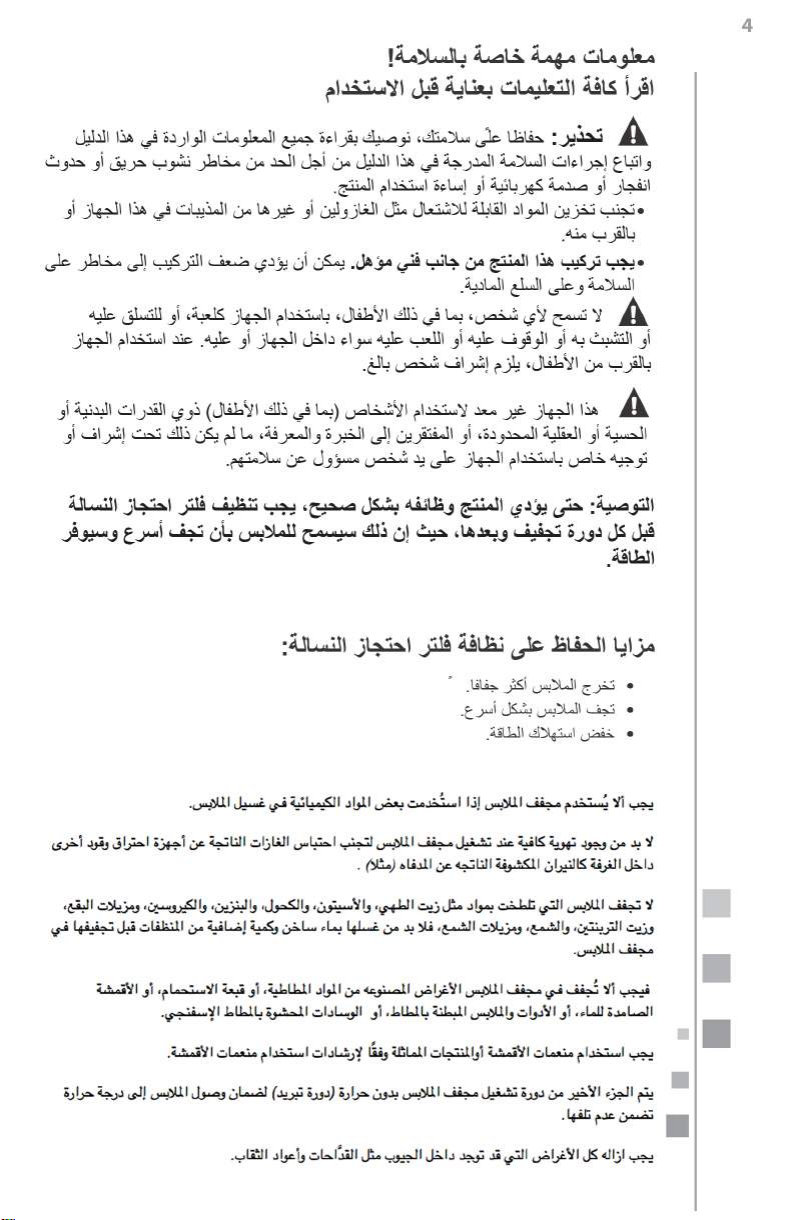

important safety information!
read all instructions before use
:
The clothes come out dryer.
The clothes dry faster.
Less energy use.
warning: for your own safety, we recommend you read all of
the information in this manual and follow the safety measures
electric shock, or misuse of the product.
solvents in or near this appliance.
• This product must be installed by a qualified technician. Poor
installation can cause risks to your safety and that of your material
goods.
Do not allow anyone, especially children, use this appliance as a
toy, to climb on, hang on, stand on, play on, in or on the appliance.
When the appliance is used near children, adult supervision is
required.
This appliance is not designed for use by persons (including
erent or reduced physical, sensory, or mental
capacities or those who lack experience or knowledge of how to use it,
unless said persons are supervised or taught by someone responsible
for their safety.
recommendation: for proper functioning of the product, the
lint tr ter every dry
cycle. doing so will allow the clothes to dry faster and you
will save in energy .
Tumble dryer must not be used if chemicals have been used for cleaning.
the tumble dryer.
Do not dry Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax
removers should be washed in hot water with an extra amount of detergent
before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
be dried in the tumble dryer.
softener instructions.
4

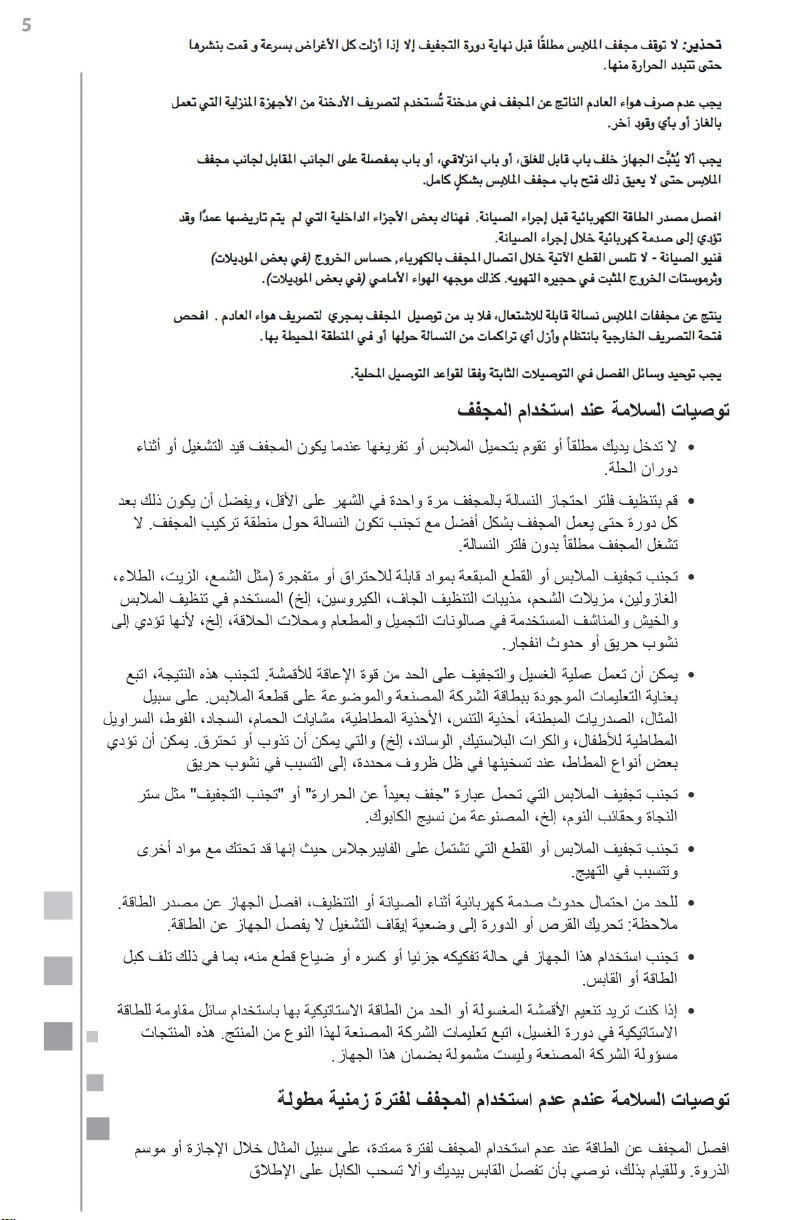

safety recommendations when using the dryer
• Never insert your hands or load or unload clothing when your dryer is in
operation or when the drum is turning.
• Clean the dryer’s lint trap at least once a month, preferably after each
cycle in order for the dryer to perform better and avoid lint around the area
where the dryer is installed. Never operate the dryer without the lint trap
• Do not dry clothing or articles that are stained with combustible or explosive
substances (such as wax, oil, paint, gasoline, degreasers, dry cleaning
solvents, kerosene, etc.) applied on cleaning cloths, sackcloth, towels used
in
beauty salons, restaurants, barber shops, etc., because they could catch
on
or cause an explosion.
• The washing and drying process can reduce the retardant capacity of
the
fabrics. To avoid this result, carefully follow the instructions found on
the
manufacturer’s tag on the clothing item. For example, padded bras, tennis
shoes, rubber shoes, bath mats, rugs, bibs, rubber underpants for babies,
plastic balls, pillows, etc.) which could melt or burn. Some rubber materials,
when heated, under certain circumstances can cause
ensure that the items are left at a temperature that ensures that the items will
not be damaged.
Remove all objects from pockets such as lighters and matches.
warning: Never stop a tumble dryer before the end of the drying cycle
unless all items are quickly removed and spread out so that the heat is dissipated.
fumes from appliances burning gas or other fuels.
The appliance must not be installed behind a lockable door, a sliding door or a
door with a hinge on the opposite side to that of the tumble dryer, in such a way
that a full opening of the tumble dryer door is restricted.
intentionally not grounded and may present a risk of electric shock during
servicing.
Service personnel -
energized. Outlet thermistor (some models) and outlet thermostat installed in
A clothes dryer produces combustible lint, the dryer must be connected to an
exhaust duct to the outdoors. Regularly inspect the outdoor exhaust opening
and remove any accumulation of lint around the outdoor exhaust opening and
in the surrounding area.
with the local wiring rules.
5
operating instructions
about the control panel of the dryer
You can locate the model number on the label located in front of the left side of
the door opening
B A C
• Do not dry articles marked with the phrases “Dry away from heat” or“Do not
tumble dry” such as life jackets, sleeping bags, etc. made with Kapok.
• Do not dry articles or objects that have as it could rub
onto
other articles and cause irritation.
• To minimize the possibility of electric shock during maintenance or cleaning,
disconnect the appliance from the power source. note: moving the dial or
cycle to the position does not disconnect the appliance from the power.
• Never try to use this appliance if it is partially disassembled or if it has broken
or missing pieces, including a damaged power cord or plug.
• If you want to soften washed fabrics or reduce their static using an antistatic
liquid for fabric in the wash cycle, follow the manufacturer’s instructions
for this kind of product. These products are the responsibility of their
manufacturer and are not covered by this appliance’s warranty.
safety recommendations when not using your dryer for an
extended period of time
Disconnect the dryer from the power when your dryer will not be used for
an extended period, for instance during vacation or the hot season. To do so,
we recommend that you disconnect the plug using both hands and never by
pulling on the cord.
6
important: clean the lint filter every time you use the dryer.
a. temperature (Not all of the models have all of these characteristics)
high (cottons)
medium (permanent press garments)
delicates
just air (no heat)
Less
Dry
More Dry
b. drying cycles Not all of the models have all of these characteristics)
cottons
Sanitized This option reduces certain types of bacteria including: Staphylococcus
aureus, Pseudomonas aeruginosa and Klebsiella pneumoniae. The anti-bacterial
process occurs when high heat is used during a portion of the drying cycle.
NOTE: Do not use this cycle on delicate fabrics.
Optimum.
permanent press
delicates
timed dry
dewrinkle
air flu
