MABIS 04-790-001 User manual

Model 04-790-001
Please read this instruction manual
completely before operating this unit.
English • S anish
Wrist
Blood Pressure
Monitor
Instruction Manual

MABIS Healthcare guarantees that its Wrist Blood Pressure Monitor will be free from
manufacturing defects under normal use for as long as the original purchaser owns the product.
This warranty covers only normal use, and does not apply to use in any clinical or
commercial applications. This warranty does not cover batteries or other power sources that may
be provided with or used with the Wrist Blood Pressure Monitor. This warranty is voided if the
Digital Blood Pressure Monitor product is misused or abused in any manner.
If the Wrist Blood Pressure Monitor fails to operate during the time the original
purchaser owns it, return it postage prepaid along with $5.00 for return shipping and
insurance to: MABIS Healthcare, Attn: Repair Department, 1931 Norman Drive South, Waukegan,
IL 60085. When returning a product, please also include a letter with your name, address, phone
number and brief description of the specific problem. Please carefully package the product to
avoid any damage that may occur while in the transit. Packaging insurance with returned receipt
is recommended. MABIS will repair or replace the defective unit at the option of MABIS
Healthcare. Repair or replacement of the defective unit, at the warrantor’s option, is the sole
remedy under this warranty.
ANY IMPLIED WARRANTIES WHICH THE PURCHASER MAY HAVE ARE LIMITED IN DURA-
TION TO THE TIME THAT THE ORI INAL CONSUMER PURCHASER OWNS THE PRODUCT.
Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you.
This warranty constitutes the warrantor’s only responsibility and obligation to repair and/or
replace materials or components, or refund the purchase price. MABIS will not be
responsible for any indirect, incidental, special, consequential, or punitive damages or
other loss, including, but not limited to, damage to or loss of other property or
equipment and personal injuries, whether to purchaser or others. MABIS shall in no event be
liable to the purchaser for any amount in excess of the cost of repair and/or
replacement of the unit, or the purchase price of the unit. Some states do not allow the exclusive
or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Toll-Free Customer Care Help Line:
1-800-622-4714
Monday - Friday 8:00 am - 4:30 pm CST
Lifetime Limited Warranty
1931 Norman Drive South • Waukegan, IL 60085
847-680-6811 • FAX [phone] • www.mabisdmi.com

1
Introduction ...............................................2
ProductIdentificationandCaution..............................3
eneral Blood Pressure Information . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
ImportantInformationBeforeUse ..............................7
World Health Organization (WHO) Indicator . . . . . . . . . . . . . . . . . . . . . . 8
IrregularHeartbeatDetection .................................9
Battery Installation/Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SettingtheDate/Time.......................................11
Applying Your Blood Pressure Cuff . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Taking Your Blood Pressure Reading . . . . . . . . . . . . . . . . . . . . . . . 14-15
Recalling Measurements in Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Description of Display Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
Troubleshooting ...........................................19
CareandMaintenance .....................................19
ProductSpecifications......................................20
SampleBloodPressureLog .................................21
BloodPressureLog .....................................22-23
Index

2
To chieve the m ximum benefit from your blood pressure monitor, we
recommend th t you first consult with your physici n or tr ined he lth c re
profession l.
Thank you for purchasing an Automatic Blood Pressure Monitor. With
proper care and use, your monitor will provide you with many years of
reliable readings.
The method of measurement that your Automatic Monitor uses is called the
oscillometric method. The monitor detects your blood’s movement through
the artery in your wrist and converts the movements into a digital reading.The
oscillometric method does not require a stethoscope, making the
monitor easy-to-use. The preformed cuff requires little effort to apply and is
comfortable to wear.
Clinical research has proven a direct relationship between blood pressure in
the wrist and blood pressure in the arm. Because the arteries in the wrist
and arm are connected, changes in wrist blood pressure reflect changes in
arm blood pressure. Frequent wrist blood pressure measurements will
provide you and your physician with an accurate indication of change in your
true blood pressure.
People with severe hypertension, severe arteriosclerosis or severe
diabetes should consult their physician about monitoring blood
pressure at the wrist.
Blood pressure re dings determined with this device re equiv lent to
me surements obt ined by tr ined observer using the cuff/stethoscope
uscult tion method, within the limits prescribed by the Americ n N tion l
St nd rd for Electronic or Autom ted Sphygmom nometers.
Introduction

3
CAUTION
While taking a measurement, you can stop the inflation or deflation
process of the cuff at any time by pressing the POWER button.

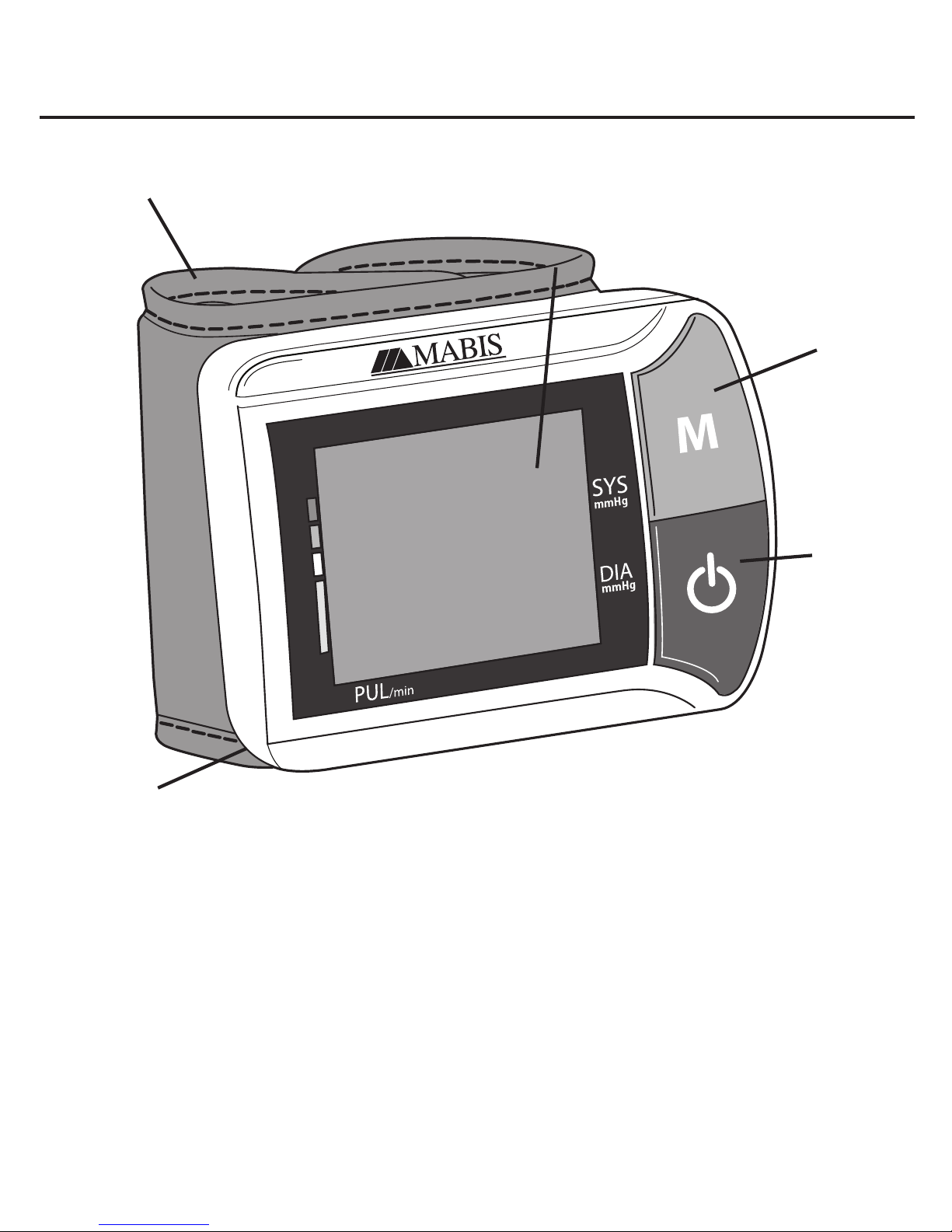

Digital Display
Wrist Cuff
Battery
Compartment
POWER
(on/off)
Button
MEMOR
Recall
Button
Product Identification and Caution

4
What is Blood Pressure?
Blood pressure is the pressure that is exerted by blood flowing against the
walls of the blood vessels throughout your body.
Your heart, which is the center of the circulatory system, provides the force
for the blood to flow or circulate. When your heart contracts or beats, the
blood is forced through the blood vessels increasing the pressure. This is
the highest pressure in the cycle or what is referred to as SYSTOLIC BLOOD
PRESSURE. In between beats, your heart relaxes and your blood pressure
decreases. This is referred to as
DIASTOLIC BLOOD PRESSURE.
This complete series of events which occurs in a single heartbeat is known
as the CARDIAC CYCLE.
Your Digital Blood Pressure Monitor will automatically read your blood
pressure and display both systolic and diastolic readings on the screen.Your
systolic will be positioned as the upper number and the diastolic
reading will be the lower number.
(systolic) 120/80 (diastolic)
Blood pressure is measured in millimeters (mm) of Mercury (Hg) and is
generally recorded with the systolic pressure (120) listed first and the
diastolic pressure (80) listed second.The numbers are typically separated by
a slash mark (/) as shown above.
Both pressure re dings, the SYSTOLIC nd the DIASTOLIC, re necess ry
for physici n to ev lu te the st tus of p tientʼs blood pressure.
Ple se cont ct your physici n for specific inform tion reg rding your own
blood pressure.
General Blood Pressure Information

5
What Influences Blood Pressure?
Many factors such as genetics, age, sex, altitude, physical activity, anxiety,
muscular development, certain medications or even the time of day can in-
fluence blood pressure. Influences such as sleep or relaxation decreases
blood pressure, while anxiety or exercise increases blood pressure.
Why Monitor Your Blood Pressure at Home?
A visit to a physician’s office can be a stressful situation for a patient, and
anxiety is a known factor in raising blood pressure. This temporary
occurrence of elevated blood pressure at the physician’s office is
commonly referred to as “white coat syndrome”.
Whether or not you experience “white coat syndrome”, home blood
pressure monitoring provides you with the opportunity to supplement your
physician’s office measurements.These home readings, when taken over a
period of time, can show an accurate indication of change. Furthermore,
your records can assist your physician in evaluating your health and in mak-
ing important decisions in the diagnosis and treatment of your
condition. Because of this, it is important to take consistent, daily
measurements of your blood pressure.
The v ri tions in your individu l re dings should only be interpreted by your
physici n or tr ined he lth c re profession l.
WHO Blood Pressure Classifications
Standards for assessment of high or low blood pressure, regardless of age,
have been established by the World Health Organization (WHO) as shown
in the chart on the following page.

6
This ch rt is only gener l guideline. Ple se cont ct your physici n to
determine your NORMAL BLOOD PRESSURE.

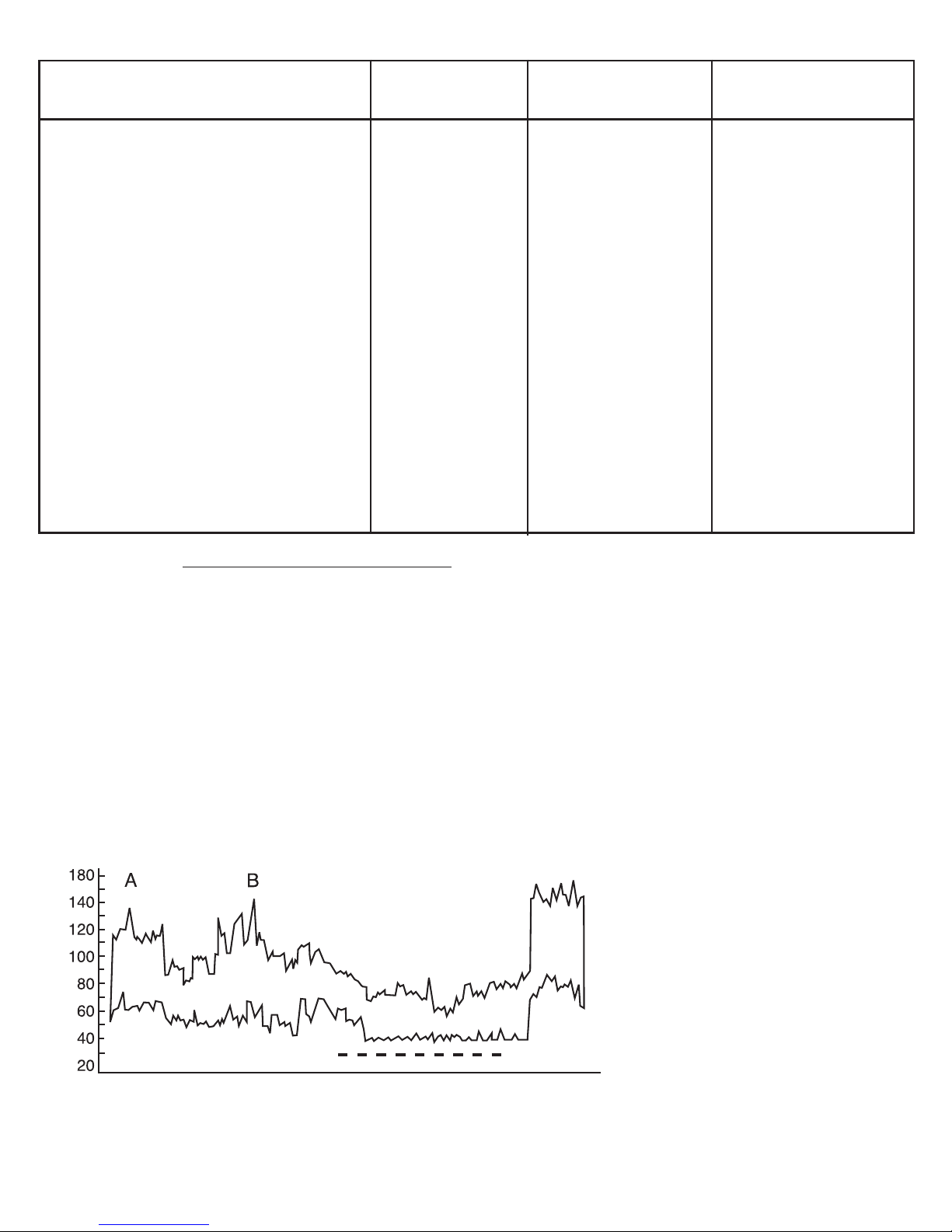

Variations in Blood Pressure
Blood pressure can be influenced by many factors. This change can occur from
moment to moment. Normally, blood pressure is lowest during the sleeping pe-
riod and rises during the day.The graph below represents the variations in blood
pressure shown over a day with measurements taken every 5 minutes.
The dotted line
represents the sleep
period. The rise in blood
pressure at 1p.m. (A in
the gr ph) corresponds
to a stressful occurrence
and at 7 p.m. (B in the
gr ph) a period of
exercise.
12 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11
AMPMTime
Blood Pressure(mmHg)
II
II
IIII
II
IIIIII
II
II
II
IIIIIIIIII
II
II
II
IIIIIIIIII
sleep
Optimal
Normal
High - Normal
Stage 1 -
Mild Borderline Hypertension
Stage 2 -
Moderate Hypertension
Stage 3 -
Severe Hypertension
Isolated Systolic Hypertension
CATEGOR
<120
120-129
130-139
140-159
160-179
≥180
≥140
140-159
160-179
≥180
<80
80-84
85-89
90-99
100-109
≥110
<90
<90
<90
<90
S STOLIC
(mmHg) DIASTOLIC
(mmHg) COLOR
INDICATOR
REEN
REEN
REEN
YELLOW
ORAN E
RED
YELLOW
ORAN E
RED

1. Blood pressure measurements should only be interpreted by a physician or a trained
health care professional who is familiar with your medical history. Through regular use
of this device and recording of your measurements, you can keep your physician
informed of the changes in your blood pressure.
2. Perform your measurement in a quiet place. You should be seated in a relaxed
position.
3. Avoid smoking, eating, taking medication, alcohol consumption or physical activity 30
minutes prior to taking a reading. If you are exhibiting signs of stress, avoid taking
your measurement until the feeling subsides.
4. Rest 15 minutes prior to taking a reading.
5. Remove any constrictive clothing or jewelry that may interfere with the cuff placement.

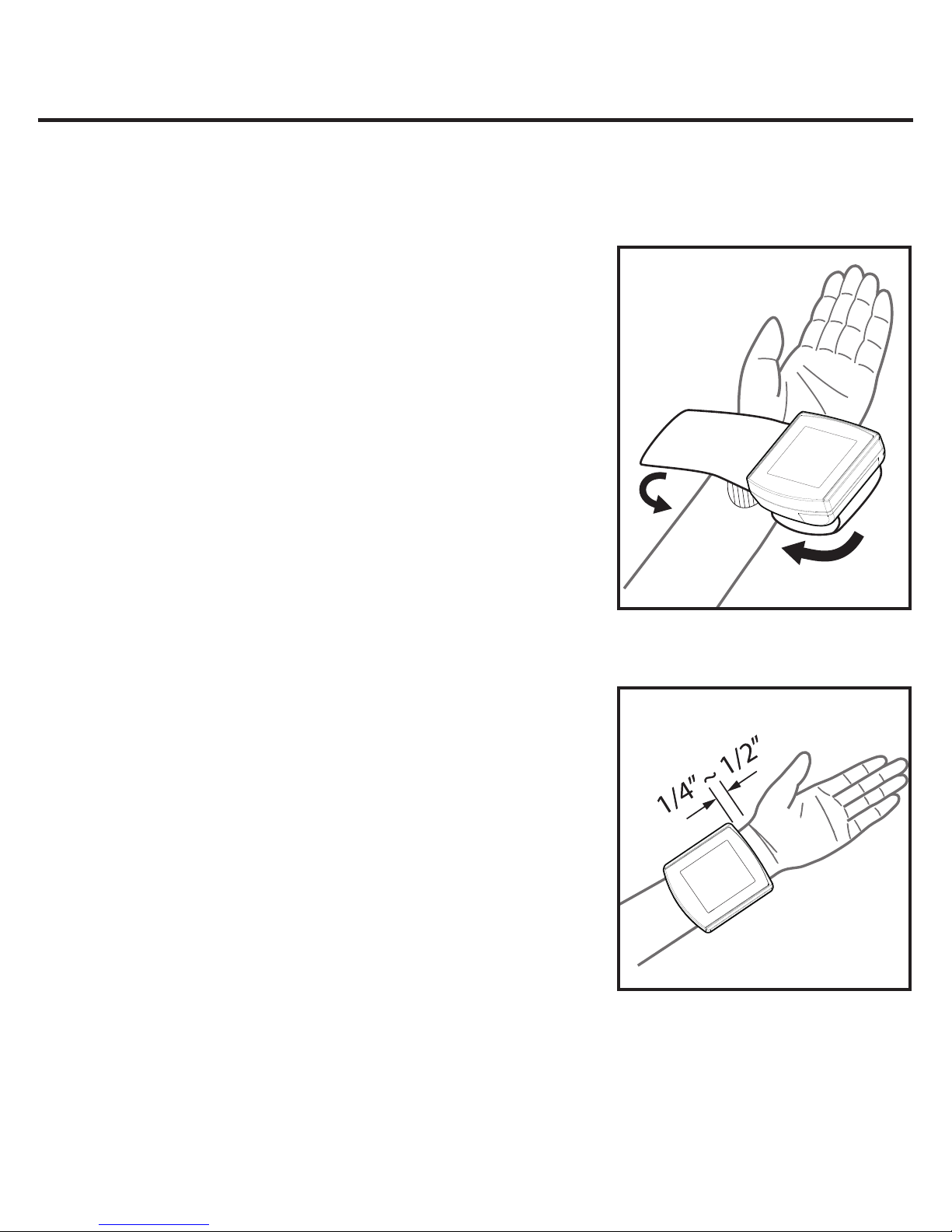

6. Apply the cuff to the proper position on the left wrist. The unit should be located on the
inside of your left wrist with the display panel in view.
7. Keep the monitor stable during measurement to achieve an accurate reading.
Remain still; do not talk during the measurement.
8. Record your daily readings on the chart provided.
9. Take your readings at the same time, each day (or as recommended by your
physician) to get an accurate indication of change in your true blood pressure.
10. Wait a minimum of 15 minutes between readings to allow for the blood vessels to
return to normal. The wait time may vary depending on your individual physiological
characteristics.
11. Although such cases are rare, for those with an extremely weak pulse or irregular
pulse, errors may result which prevent proper measurement. If abnormal variations
are noticed, consult with your physician or trained healthcare professional.
12. This device is intended for adult use.
While t king me surement, you c n stop the infl tion or defl tion process of the cuff t
ny time by pressing the POWER button.
Important Information Before Use
7

8

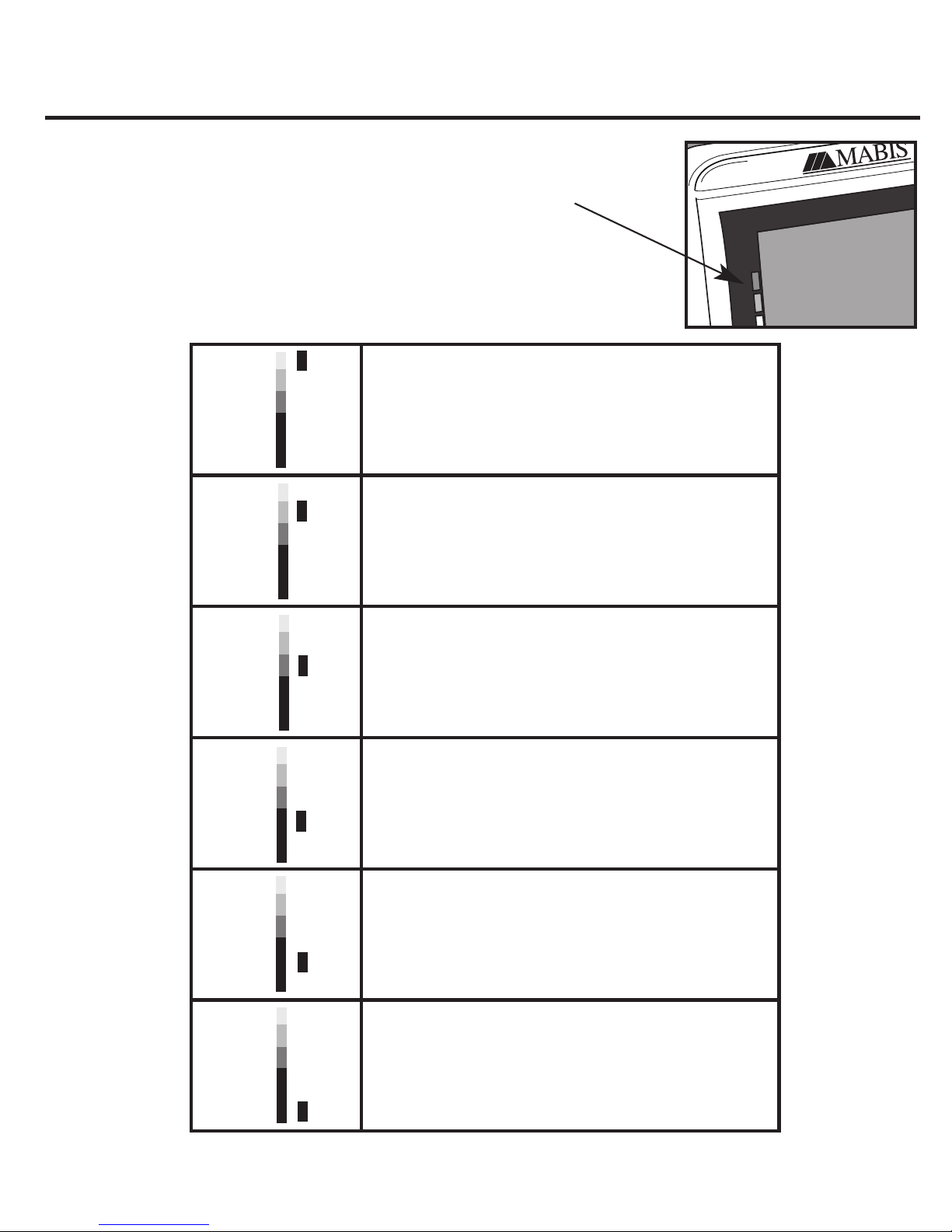

The WHO Indicator, located on the left side of the
LCD screen, will identify your reading within a range
in accordance with the guidelines set by the World
Health Organization (WHO). See the chart below for
reference.
World Healt Organization (WHO) Indicator
Stage 3 Hypertension
Systolic pressure: ≥ 180 mmHg
Diastolic pressure:
≥ 110 mmHg
Stage 2 Hypertension
Systolic pressure: 160-179 mmHg
Diastolic pressure: 100-109 mmHg
Stage 1 Hypertension
Systolic pressure: 140-159 mmHg
Diastolic pressure: 90-99 mmHg
High Normal
Systolic pressure: 130-139 mmHg
Diastolic pressure: 85-89 mmHg
Normal
Systolic pressure: 120-129 mmHg
Diastolic pressure: 80-84 mmHg
Optimal
Systolic pressure: <120 mmHg
Diastolic pressure: <80 mmHg
DIA
SYS
DIA
SYS
DIA
SYS
DIA
SYS
DIA
SYS
DIA
SYS
-or-
-or-
-or-
-or-
-or-
- nd-

9
Your digital blood pressure monitor features Irregular Heart-
beat Detection. This feature allows users to
accurately monitor blood pressure even if an irregular
heartbeat should occur.

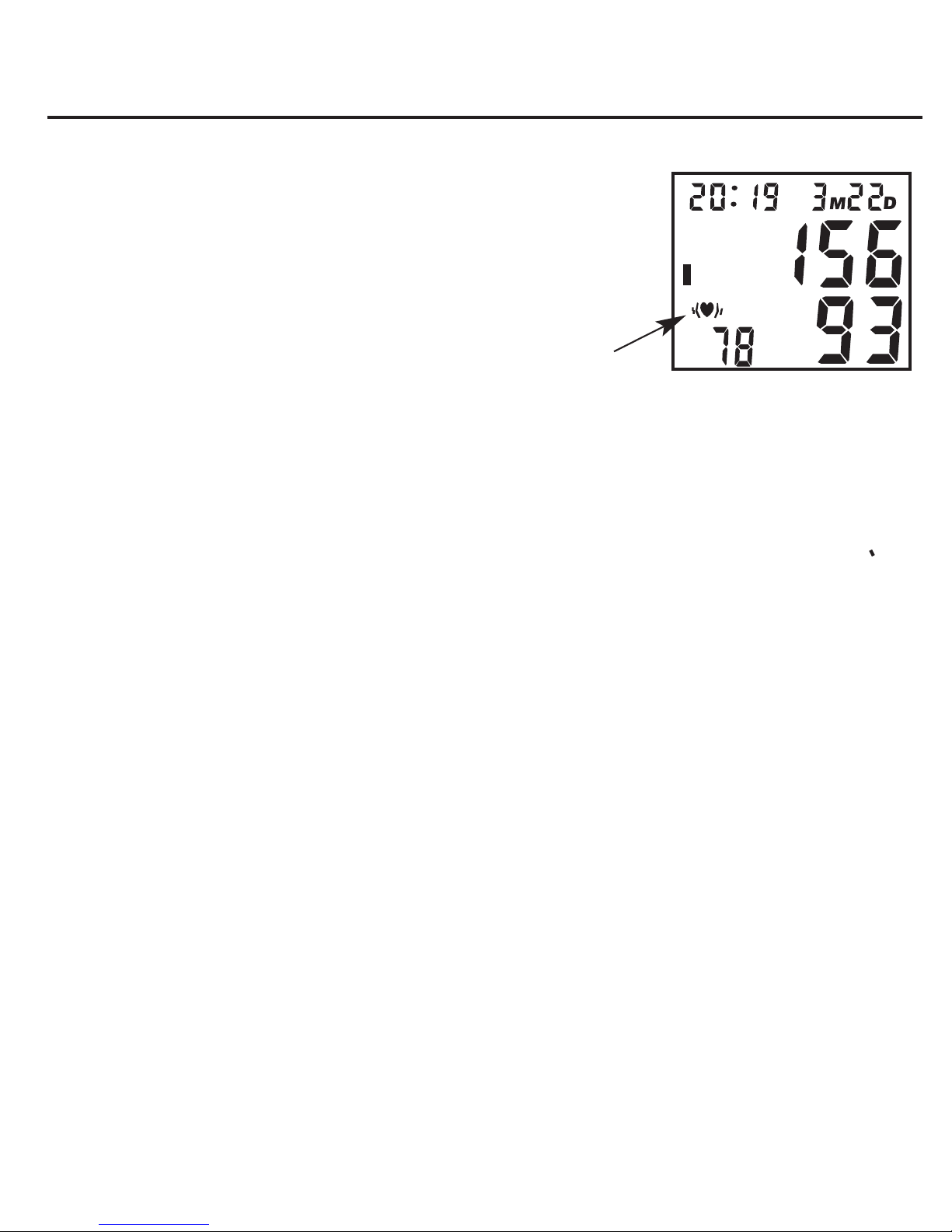

When an irregular heartbeat is detected, the IHB icon will
appear on the display, Fig. 1.
NOTE: Please consult with your physician or trained
healthcare professional for further information regarding an
irregular heartbeat and if this symbol appears frequently at
the end of a reading.
Fig. 1
Irregular Heartbeat Detection

10

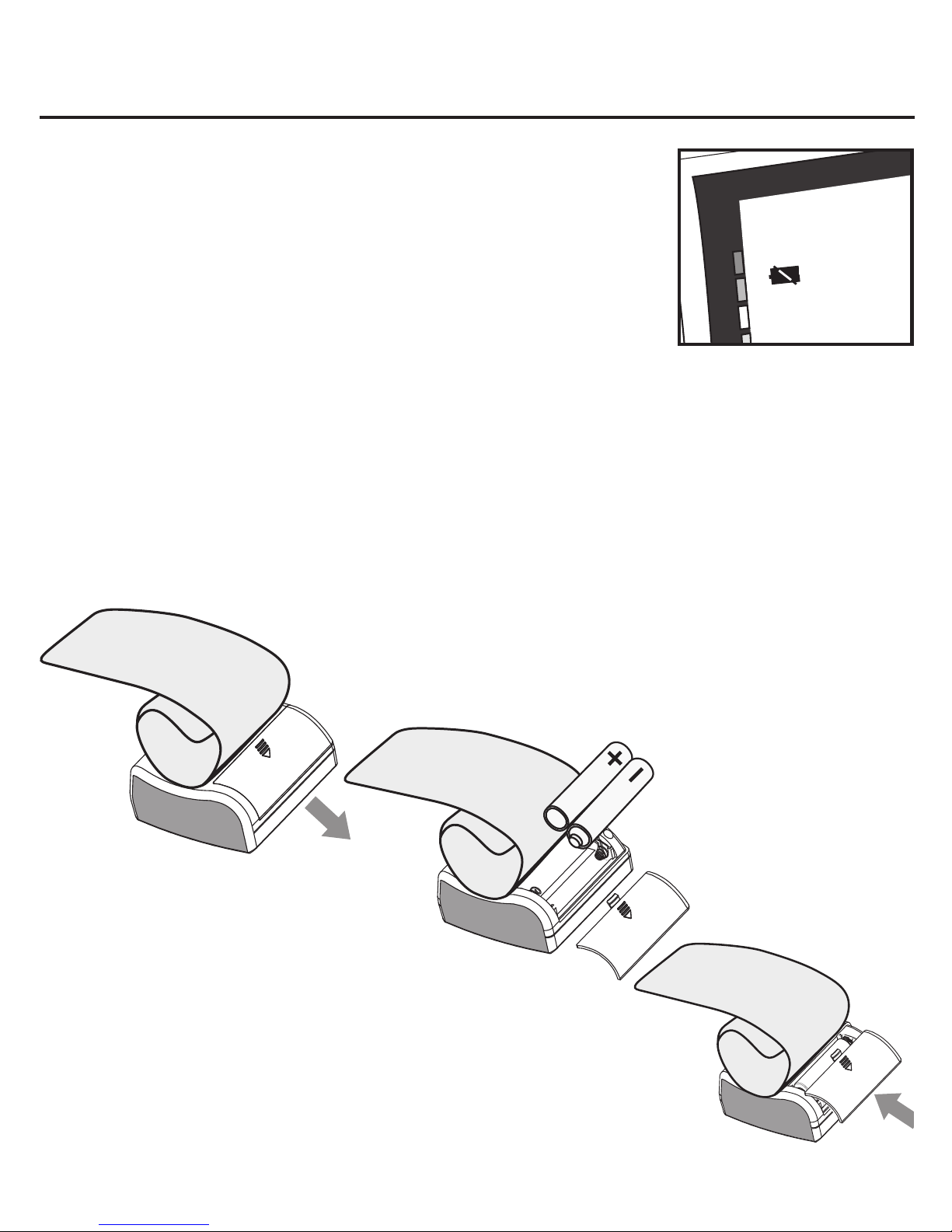

Replace the batteries when the Low Battery symbol
appears on the display, Fig. 1, or when the display
remains blank when the POWER Button is pressed.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Battery Installation/Replacement
To change the batteries:
1. Open the battery cover, Fig. 2.
2. Install two AAA alkaline batteries, making
sure they are placed as shown in Fig. 3.
3. Close the battery cover, Fig. 4.
NOTE: It is recommended you remove the batteries if the unit will not be used
for an extended period of time.

Setting t e Date/Time
11
NOTE: When the unit is off, the date and time will still appear at the top of the
screen.

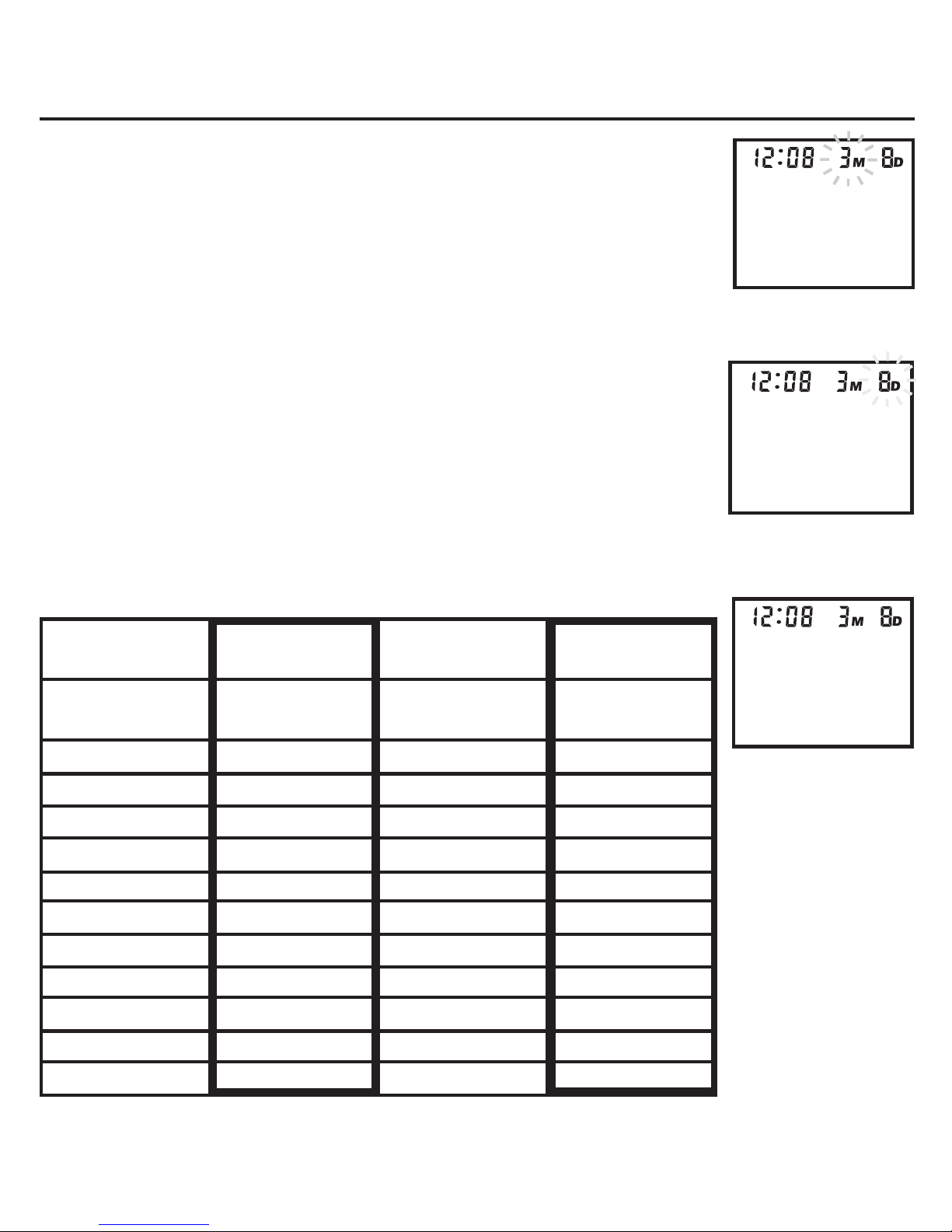

1. When the unit is off, press and release both the POWER and MEMORY
button at the same time. The month will begin to flash, Fig. 1.
2. Press the MEMORY button to change until the desired number appears.
NOTE: To scroll through the numbers quicker, hold down the
MEMORY button.
3. Press the POWER button to set the entry.
4. The date, Fig. 2, followed by the hour and minutes will blink. Repeat
steps 2 and 3 to adjust the date/time setting.
5. After setting the minutes, the unit will automatically exit out of
the date/time setting mode, Fig. 3.
NOTE: The time is expressed in 24hr military time. The chart below explains
the time conversion.
Fig. 1
Regular Time
(12 hours)
Military Time
(24 hours)
Regular Time
(12 hours)
Military Time
(24 hours)
12 am
Midnight 012 pm Noon 12
1 am 1 1 pm 13
2 am 2 2 pm 14
3 am 3 3 pm 15
4 am 4 4 pm 16
5 am 5 5 pm 17
6 am 6 6 pm 18
7 am 7 7 pm 19
8 am 8 8 pm 20
9 am 9 9 pm 21
10 am 10 10 pm 22
11 am 11 11 pm 23
Fig. 3
Fig. 2

12
Cuff Dimensions 3-1/3” x 2-1/2” x 1-1/8”
Wrist Circumference Range Suitable for 5-1/2” – 7-5/8” (14 – 19.5 cm)
Avoid smoking, eating, taking medication, alcohol
consumption or physical activity 30 minutes prior to
taking a reading. If you are exhibiting signs of
stress, avoid taking your measurement until the feel-
ing subsides. Rest 15 minutes prior to taking a read-
ing.
1. Remove any constrictive clothing or jewelry
that may interfere with the cuff placement.
2. You should be seated with your feet flat on
the floor.
3. Hold your left arm in front of you with your
palm facing upward.
4. Apply the preformed cuff to your left wrist.
The digital display panel should be
positioned on the inside area of your wrist
facing you, Fig. 1.
5. Adjust the cuff as shown in Fig. 2 from the
edge of the ‘Head of the Ulna Bone.’
Fig. 1
Fig. 2
Applying Your Blood Pressure Cuff

13
6. Wrap and fasten the cuff securely, yet
comfortably around your wrist, Fig. 3.
NOTE: The left wrist should be used unless
you are unable to or should not use your left
arm or wrist. In consultation with your
physician, you may modify the following
instructions and apply the cuff to your
right wrist.
Fig. 3

14
1. Rest your left elbow on a solid surface with your palm facing
upward. Elevate your hand so that the cuff is at the same
level as your heart, Fig. 1. Relax your left hand.
2. Press the POWER button to turn the unit on. The unit will run
a self-test, Fig. 2.
3. Select the memory bank you want your reading to be stored
in by pressing the MEMORY button to alternate between
memory bank 1 or 2. Press the POWER button to confirm
your selection. After your selection, the last measured
reading will show, Fig. 3, or if there is no previous
measurement, “0” will be shown Fig. 4.
4. When the display appears as shown, Fig. 5, the cuff will
automatically begin to inflate.
5. The display will show the increasing pressure in the cuff,
along with the measurement progress on the left side of the
screen.
6. The cuff will automatically inflate to approximately 190
mmHg or 40 mmHg higher than the last systolic pressure
stored in memory.
Proceed only fter re ding the previous sections of this m nu l.
Taking Your Blood Pressure Reading
Fig. 2
Fig. 5
Fig. 4
Fig. 3
Fig. 1

7. Once the cuff inflates to the appropriate pressure level, the
unit will begin to automatically delfate and the numbers
appearing on the display will decrease.

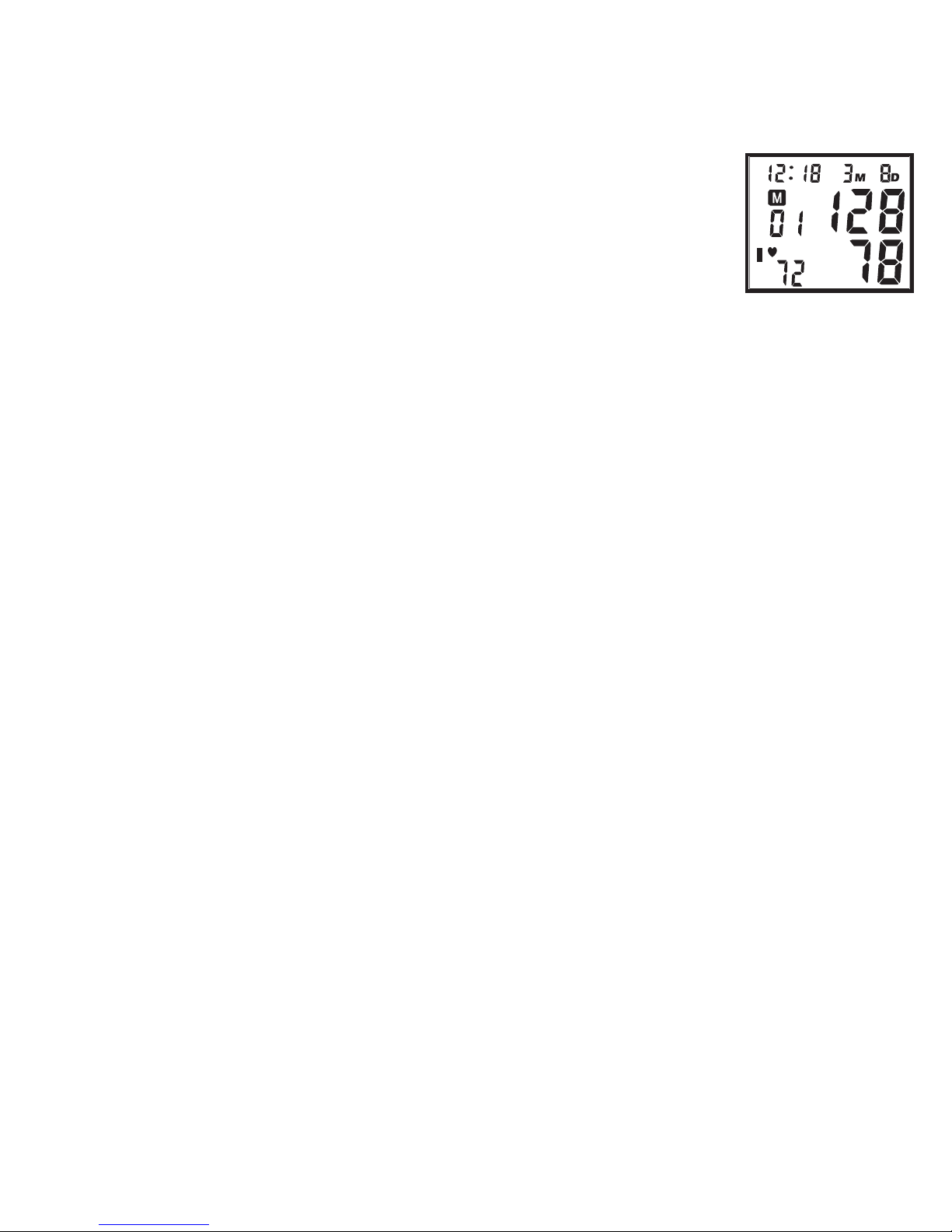

8. When all the air is deflated, the measurement is complete.
The unit will display your blood pressure (systolic and
diastolic) measurements and pulse rate, Fig. 6.
9. Record you readings on a chart.
10. Your measurements will be automatically saved in memory.
11. To conserve the batteries, press the POWER button to turn
the power off. Otherwise, the unit will automatically shut off
after approximately 1 minute.
NOTE: This monitor inflates the cuff to approximately 190 mmHg
or 40 mmHg higher than the last systolic pressure stored in
memory. If the system detects that the cuff needs additional
pressure, it will automatically reinflate to approximately 40mmHg
higher than the last pressure level.
15
Fig. 6

16
You can recall up to 120 total measurements in memory (60
per memory bank). These measurements can be shared with
your physician or trained healthcare professional.
1. Press and release the MEMORY button. The unit will display
either U1 or U2 depending upon the user bank selected. It
will also show how many measurements are stored within
that bank, Fig. 1.
2. To select the appropriate user bank press the POWER
button to switch between U1 and U2.
3. Once the desired user memory bank is selected, press the
MEMORY button again to scroll through the saved
measurements. After you’ve scrolled through all the
readings, the unit will automatically turn off.
NOTE: Each memory bank can store up to 60 readings. When
the number of readings exceeds 60, the oldest data will be
replaced with the new record.
To erase all stored measurements:
1. Press and release the MEMORY button. The unit will display
either U1 or U2 depending upon the user bank selected and
how many measurements are stored within that bank.
2. Select the desired user bank by pressing and releasing the
POWER button.
3. Press and hold down the Memory button until two horizontal
lines flash, Fig. 2. This indicates that all measurements
within the selected memory bank have been erased.
Recalling Measurements in Memory
Fig. 1
Fig. 2

17
Description of Display Symbols
Indicates a measurement within Stage 3
Hypertension.
Indicates a measurement within Stage 2
Hypertension.
Indicates a measurement within Stage 1 Hypertension.
Appears when batteries should be replaced.
DIA
SYS
DIA
SYS
DIA
SYS
-- Description of Displ y Symbols Continued

18
Shows the pulse rate per minute.
Occurs when an error was made during measurement.
Appears when there is an irregular heartbeat detected during
measurement.
Appears when a measurement error has occurred. Restart the
measurement.
Appears when the cuff is unstable or it has too much air left in it.
Once the arrow stops flashing, the unit is ready to take a
measurement.
Appears when recalling a measurement from memory.
Indicates the memory user’s memory bank.
