Mac Slicers LEADER 350G/LI Specification sheet

LEADER Slicers
350G/LI –370G/LI
GRAVITY FEED
TRANSMISSION GEAR
Instructions for use and maintenance
Edition June 2018

Thank you for having bought one of our products. We would like to recommend
that you read our manual carefully before using the slicing machine.
As regards safety against mechanical risks, the machines described in this manual
follow the 2006/42/CE –2014/35/UE –2014/30/UE - Reg. 1935/2004,
2011/65/UE and European norms EN 1974.
The safety measures against electrical risks have been carried out in conformity
with regulations EN 60204 and EN 60335-2-64. We are at your complete disposal
for any doubts that may arise when using the machine, for more information and
any proposals to improve this manual so that it can further meet the
requirements for which it has been prepared.

Use and maintenance
1
LIST OF CONTENTS
Page
1. INTRODUCTION ................................................................................................................. 2
1.1 Purpose of the manual ................................................................................................................2
1.2 Keeping the manual ....................................................................................................................2
1.3 Use of the machine .....................................................................................................................2
2. GENERAL INFORMATION .................................................................................................... 2
2.1 Machine limits, safety regulations ................................................................................................2
2.2 Guarantee and manufacturer’s responsibility ................................................................................3
2.3 The user’s obligations..................................................................................................................4
2.4 Markings - Plates.........................................................................................................................4
3. TECHNICAL CHARACTERISTICS............................................................................................. 5
3.1 Technical data sheet....................................................................................................................5
3.2 Furnished items and accessories...................................................................................................6
3.3 Products that can be sliced...........................................................................................................6
3.4 Products that cannot be sliced......................................................................................................6
4. DESCRIPTION..................................................................................................................... 6
4.1 Unpacking ..................................................................................................................................6
4.2 Main components .......................................................................................................................8
4.3 General description.....................................................................................................................9
5. INSTALLATION ................................................................................................................. 10
5.1. Installing the machine ..............................................................................................................10
5.2. Command description...............................................................................................................10
5.3 Electrical connection .................................................................................................................10
5.4 Checking direction of blade rotation (only for machines with three phase motor)...........................11
6. USING THE SLICER ............................................................................................................ 11
6.1 Loading the goods on the meat table and cutting.........................................................................11
6.2 Cleaning the slicer .....................................................................................................................12
7. MAINTENANCE AND REPAIRS ........................................................................................... 16
7.1 General information..................................................................................................................16
7.2 Sharpening the blade.................................................................................................................16
7.3 Lubricating the guide bars of the carriage (weekly).......................................................................18
7.4 Lubricating the transversal guide rods of the plate and food press (weekly) ...................................18
8. LOCATING AND ELIMINATING FAILURES ............................................................................ 19
9. FEED DIAGRAM................................................................................................................ 20
10. DISMANTLING THE SLICING MACHINE ............................................................................. 22
11. SUMMARY OF RESIDUAL RISKS AND ATTENTION OF THE USE OF THE MACHINE................. 22
The manual is made up of 23 progressively numbered pages.
The contents are divided into progressively numbered paragraphs, if in any doubt about the contents and for
any further explanation contact the manufacturer or the authorized technical assistance, stating the paragraph
number of the pertinent subject.

Use and maintenance
2
1. INTRODUCTION
1.1 Purpose of the manual
This publication contains all the information necessary for the use and maintenance of the “LEADER” slicing
machines with gear transmission to be used for food, with circular blade, models Ø350 and Ø370 mm.
The purpose of this manual is to allow the user, above all the direct user, to take every precaution and arrange
all human and material means necessary for a safe and lengthy use of these machines.
1.2 Keeping the manual
This manual must be given to the person who will use and maintain the machines and this person will keep the
manual in a safe and dry place, ready to be used. We recommend that a copy be kept on file.
For any information exchange with the maker or authorized personnel, please refer to the information on the
plate and the machine serial number.
The manual must be kept for the entire life of the machine and in case of need (ex. any damage to even a part
of the manual that makes consulting it difficult) the user must acquire a new copy exclusively from the maker.
The user must let the manufacturer know the address of any new owner of the machine.
Note: The terms Front, Back, Right and Left used in this manual refer to the machine as seen from the
operator’s side in normal working conditions.
1.3 Use of the machine
The use and configurations of the machine are the only ones allowed by the manufacturer; do not try to use
the machine differently from the indications. The indicated use of the machine is only valid for machines with a
complete structural, mechanical and system efficiency.
The machines are to be used for cutting only food products of the type and size indicated in this manual. The
maker declines all responsibility derived from an improper use or use by untrained personnel, changes and/or
repairs carried out on one’s own or by unauthorized personnel, the use of spare parts that are not original or
not specific for the type of machine.
For any explanation or doubts on the contents of this manual, please contact immediately the manufacturer
or an authorized technical assistance service and quote the paragraph number of the required subject.
2. GENERAL INFORMATION
2.1 Machine limits, safety regulations
The machine has been designed and made to slice food products, with a continuous service, of the type and
size as indicated in paragraphs 3.2, 3.3 and 3.4.
2.1.1 Environmental conditions for using the machine
The slicer cannot be used in opened places and/or atmospheric agents. It cannot be used in rooms with steams,
fumes or corrosive and/or abrasive dusts with fire or explosion risk and everywhere they are used anti-
deflagration components.
- Temperature from -5°C to +40°C
- Humidity max. 95%

Use and maintenance
3
2.1.2 General safety regulations
The slicing machine must be used only by an adequately trained person who has carefully read the contents of
this manual. The operators must be over 18 years of age, in perfect mental-physical conditions, have the right
attitude and capacity and necessary knowledge for maneuvering and normal maintenance of simple
mechanical and electrical components.
For a better use of the machine follow the instructions below:
•Install the machine according to the instructions in the paragraph “Installation”;
•Install the machine so that it is far from people who must not use it, especially children;
•Do not become distracted while using the machine;
•Do not use loose clothing or open sleeves;
•Do not let anyone come close to the machine while in use;
•Do not remove, cover or change the plates that are on the machine and, if they are damaged, contact
qualified and authorised personnel;
•Do not remove the transparent protection and do not change or exclude the mechanical and electrical
protections;
•Only slice permitted products; do not try slicing any products that are not allowed;
•The area around the machine, where the food is laid and the floor where the operator works must always
be kept clean and dry;
•Do not use the machine as a support surface and do not place any object on it that does not pertain to
normal cutting operations;
•Do not use the slicing machine when, after a normal use, the distance between the cutting edge of the
blade and the blade protection ring is over 6 mm. (see paragraph 7.2);
•Do not use the machine with electrical connections of a “temporary” nature, with temporary or not
insulated wires;
•Periodically check the state of the power cable and the cable gland on the machine body, when necessary
have it replaced without delay by qualified personnel;
•Immediately stop the machine in the case of a defect, anomalous function, suspected breakage, incorrect
movements, unusual noise;
•Before cleaning or carrying out any maintenance, disconnect the machine from the electric supply
mains;
•Use protective gloves for cleaning and maintenance;
•The goods to be cut must be placed on and removed from the sliding plate with the carriage in a retracted
position and the thickness regulating knob in the “O” position;
•Only use the moving handle placed on the arm or the handle on the food press for moving the food plate
during slicing;
•The use of accessories for cutting is not allowed unless supplied by the maker specifically for the machine;
•For any exceptional maintenance (replacing grindstones, blade, etc.) please contact the manufacturer
or qualified and authorized personnel.
2.2 Guarantee and manufacturer’s responsibility
The guarantee of a good function and a complete conformity of the machines, that are to be used accordingly,
depends on the correct application of the instructions contained in this manual.
The manufacturer declines all direct and indirect responsibility deriving from:
-Not following the instructions in the manual;
-Untrained personnel using the machine;
-Using the machine so that it does not conform to specific regulations in force in the country of
installation;

Use and maintenance
4
-Unauthorized changes and/or repairs to the machine;
-The use of accessories and spare parts that are not original;
-Outstanding events.
If the machine is sold or given away, this automatically means that the manufacturer is no longer responsible
for the machine in question except for anything regarding the EEC directive 1999/34 (responsibility for any
construction faults of the product).
2.3 The user’s obligations
The user must scrupulously observe the instructions in this manual for the manufacturer’s guarantee to be
valid and particularly:
-always respect the limits of the machine;
-always carry out a constant and diligent maintenance;
-make sure the people using the machine are qualified and able.
2.4 Markings - Plates
The following plate is installed on the machine: manufacturer’s identification plate, machine plate, technical
data plate and EC marking.
In requests for technical assistance or ordering spare parts, always refer to the data plate
and the serial number of the machine.

Use and maintenance
5
3. TECHNICAL CHARACTERISTICS
3.1 Technical data sheet
DIMENSIONS
Mod.
350G/LI
370G/LI
A
mm
600
600
B
mm
695
695
C
mm
825
825
D
mm
445
445
E
mm
695
695
F
mm
550
550
G
mm
690
690
H
mm
285
285
I
mm
330
330
TECHNICAL DATA
Mod.
350G/LI
370G/LI
Blade
mm
350
370
Blade turns/1’
giri/min
210
210
Carriage movement
mm
365
365
Cut’s capacity Ø
mm
260
270
Cut’s capacity □
mm
210×300
220x300
Thickness adjuster
mm
13
13
Net weight
Kg
42
44
Motor single phase
kW
0.37
0.37
Motor three phase
kW
0.37
0.37

Use and maintenance
6
3.2 Furnished items and accessories
The following documents are supplied with the machine, unless otherwise requested:
- instruction manual for use and maintenance;
- EC conformity declaration.
3.3 Products that can be sliced
The following are products that can be sliced:
- all types of cold cuts (cooked, raw smoked);
- boneless meat (cooked or raw at a temperature of no lower than +3°C);
- bread and cheeses (those that can be sliced, such as Gruyere, Fontina, etc.).
3.4 Products that cannot be sliced
The following are products that cannot be sliced because they could cause damage to people and
equipment:
- frozen food;
- deep-frozen food;
- food with bones (meat and fish);
- vegetables;
- any other product not meant for consumption.
WARNING: Please do not make cutting tests with forbidden products.
Any improper use of the machine releases the manufacturer from any responsibility for
accidents to persons or situations and invalidate the warranty provided.
4. DESCRIPTION

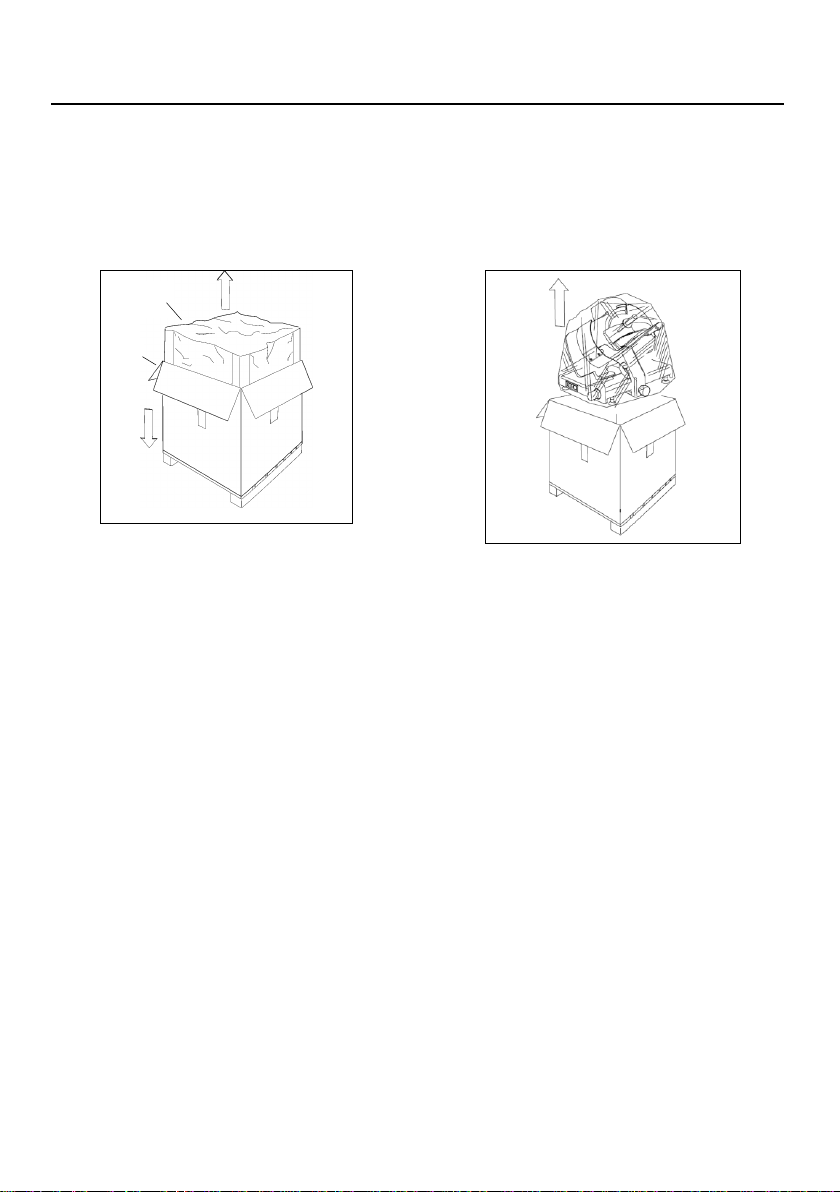

4.1 Unpacking
Check that the packaging is unopened and
undamaged; otherwise immediately inform the
forwarding agent or the area agent.
To take the machine out of the packaging proceed
as follows:
1. Cut and remove the plastic straps;
2. Remove the staples from the top of the
box;
3. Open the box and take out the copy of the
instruction manual which is on top of the
polyurethane protection;
4. Continue as indicated in the manual;

Use and maintenance
7
5. Push the upper cardboard box down (1)
using the flaps so that the next step is
easier, that is removing the polyurethane
protection and the corner reinforcements
(2);
6. Remove the above mentioned protection
and the corner reinforcements;
7. Lift and take out the machine which is
wrapped in a sheet of transparent
polyethylene;
ATTENTION: The machine must be lifted by two
people, taking into account that it weighs more on
the side where the blade is.
8. Once this operation is over, check the contents of the box and make sure it corresponds to the label
on the outside.
WARNING: The packaging components (plastic straps, cardboard, polyurethane foam) can be thrown
away with normal solid wastes and therefore there is no difficulty in disposing of them.
However it is advisable to dispose of products separately (differential collecting) in conformity with
the regulations in force for adequate recycling.
DO NOT DISCARD THE PACKAGING PRODUCTS IN THE ENVIRONMENT!
1
2

Use and maintenance
8
4.2 Main components
1. Feed cable
2. Identification plate, technical
data and EC marking
3. ON/OFF push button
4. Graduated knob for slice
thickness
5. Meat table
6. Meat pusher handle
7. Safety guard
8. Blade
9. Slice deflector
10. Foot
11. Knob for plate pushing
12. Meat table support
13. Plate blocking handle
14. Base
15. Blade guard ring
16. Sharpener cover
17. Gauge plate
18. Tie rod
19. Lubricating screw
20. Blade cover
1
3
4
5
6
7
9
15
10
20
14
13
16
17
18
19
12
8
2
11

Use and maintenance
9
4.3 General description
The slicing machine has been designed and made according to the EEC Directive 2006/42. The machine
offers the user:
-maximum safety when in use, during cleaning and ordinary maintenance;
-maximum hygiene from the use of stainless materials or adequately protected against
oxidization together with an attentive design of all the parts that come into contact with food;
-maximum cutting precision and capacity together with sturdiness and reliability of the
structure;
-the chance to work continuously.
The machine is essentially made up of a base that holds a circular blade that is inclined, operated by an
electric motor, which slices the food and a sliding carriage on bars, placed under the above mentioned
base, which in turn supports the food plate, parallel to the cutting edge of the blade.
The food plate also has an appropriate self-stopping device to keep the product in its proper place
during cutting operations (food press).
The thickness of the slice is regulated by a thickness plate behind the blade; this plate, on which the
food is placed, can be moved transversally to the blade at the thickness of the desired slice.
All the components of the machine are made of a light aluminum alloy and magnesium Peraluman 3,
polished and anodized, in stainless steel and plastic for food products as according to the sanitary
regulations in force so the structure is sturdy, reliable, easy to clean and does not alter in time.
The cutting blade is operated by a self-ventilated motor, under the base; the motor transmission is
obtained with gears, guaranteeing a quiet running. The transmission gear is the top in terms of
reliability, strong efforts, and it is able to cut the product even harder.
Starting and stopping is carried out by using the two buttons at the front of the machine which are
easily identifiable by their color and position; there is a light which indicates the machine is running.
This command system prevents accidental starting of the machine after a possible electric circuit
interruption; this means the slicing machine can only be re-started intentionally.
The machine has a sharpener which is extremely easy and safe to use.
Slice deflector, sharpener and blade cover can be removed for cleaning.
4.3.1 Safety
The mechanical safety devices are the following:
•Irremovable safety ring around the blade (blade protection);
•Food plate which can only be tilted if the index knob of the thickness plate is in the ‘zero’
position and the carriage is at the end of its position on the operator’s side. Once the arm
complete with food plate has been tilted the thickness plate is locked in the above mentioned
position;
•Safety guard on meat table;
The electric safety devices are the following:
•Start-up with start and stop buttons with a low tension control circuit that also requires a
voluntary re-start of the machine in the case of an electric circuit interruption.
4.3.2 Residual risks
WARNING: The safety ring around the blade is made according to the European regulation
(EN 1974:1998) but this protection does not completely eliminate risks in the sharpening
area

Use and maintenance
10
DO NOT use the machine if you are not in perfect psychological and physical conditions and NOT
allow anyone to get close during use.
Operate with great attention; NOT get distracted!
Slice only the permitted products; please do NOT try any cutting test with prohibited products.
WHEN CLEANING, LUBRICATING SHARPENING THE BLADE, ALWAYS USE PROTECTIVE GLOVES AND
CUT RESISTANT TO TEARING.
5. INSTALLATION
5.1. Installing the machine
Install the machine on a surface which is level,
smooth, dry and suitable for the weight of the
machine plus the food to be sliced; refer to
paragraph 3.1.
WARNING: Check that there is nothing that can get
in the way of the meat table and the food that is to
be cut on the plate.
5.2. Command description
5.2.1 Start and stop buttons
- Press the I button (1) to start the blade;
- Press the 0 button (2) to stop the blade moving.
The machine is working correctly when the light in
the switch is on.
5.2.2 Graduated knob for slice thickness
The thickness of the slice is regulated by turning the
graduated scale knob (3) counterclockwise.
Regulating field: see paragraph 3.1.
5.3 Electrical connection
The machine must be installed close to an EEC
regulation socket in a system which conforms to
the regulations in force with:
- magnetothermal protection;
- automatic differential switch;
- grounding system.
Before connecting, verify that the electric supply
mains is suitable for the machine by checking
the technical data plate on the machine.
The slicer is fitted with a power supply cord of
about 2m length, complete with a plug to allow a
Max height
0.9 mt
1
2
3

Use and maintenance
11
simple disconnection from the electric supply
mains. ALWAYS indicate the presence of the
power supply cord if the slicer cannot be installed
near a socket and if in the installation zone there
is a transit of people.
If the power supply cord is not long enough you
will require the technical assistance service and
do not proceed with a temporary electrical
connection.
5.4 Checking direction of blade rotation (only for
machines with three phase motor)
1. Start the machine;
2. Check the working light is on;
3. Check the blade rotates in the direction indicated
by the arrow (counterclockwise looking at the
machine from the side of the blade cover);
4. If the blade goes round in the opposite direction
(clockwise) stop the machine immediately and call
a qualified person to invert the feed wires of the
plug.
5. Check the food plate and food press move
smoothly.
6. Check the working and regulation of the
thickness plate.
6. USING THE SLICER
6.1 Loading the goods on the meat table and
cutting
Before the first use of the machine,
carry out a thorough cleaning, as
described in paragraph 6.2.
You must load the products when the
machins is turned off in order to avoid
hits that could damage the blade.
1. Check that the regulating knob for slice thickness
is on ‘0’;
2. Pull back the carriage completely (towards the
operator) to the loading position.
3. Lift up the food press and put it in the rest
position;

Use and maintenance
12
4. Place the food to be sliced on the plate against
the operator’s side. The food will press against the
thickness plate because of its weight. Block it with
the food press by pressing down slightly;
5. Regulate the thickness of the slice.
Start the blade by pressing the I button. Grip the
handle attached to the meat table support and
begin an alternate cutting movement;
6. When the weight or size of the goods do not
allow a proper cutting for reasons of weight, use
the food press hand-grip;
7. At the end of the cutting operations turn the
thickness regulating knob back to ‘0’ and pull back
the carriage.
Stop the blade movement by pushing the 0
button.
6.2 Cleaning the slicer
6.2.1 General information
The machines must be properly cleaned at least
once a day; if necessary even more.
If the machines have not been used for a while
they must be cleaned before use as well.
6.2.2 Disassembling the machine for cleaning
1. Disconnect the plug from the electric mains
supply;
2. Turn the regulating knob of the thickness plate
to ‘0’;
3. Remove the various components as described in
the following paragraphs.

Use and maintenance
13

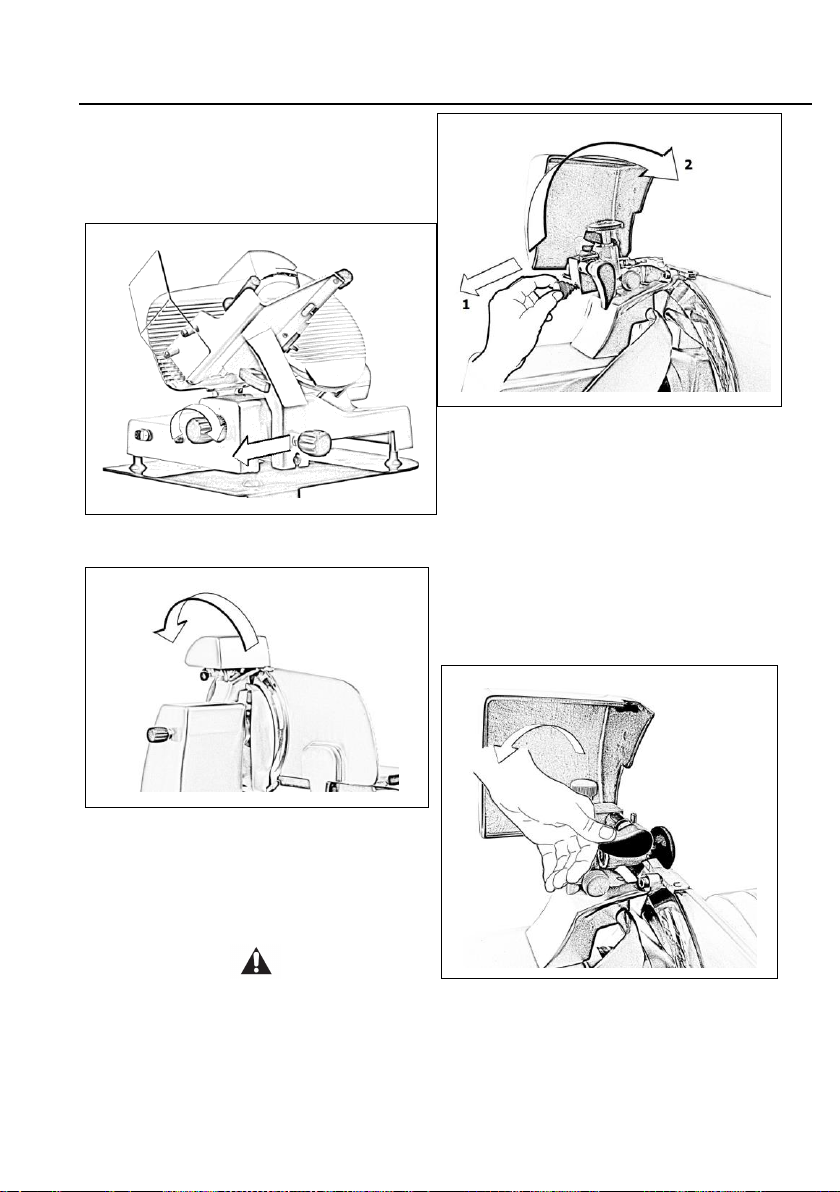

Tilting the meat table
1. With the regulating knob of the thickness plate
on ‘0’ pull back the meat table support all the way
towards the operator;
2. Turn the locking knob counterclockwise all the
way while keeping the support at the end until the
safety device of the thickness plate can be heard.
WARNING: To correctly carry out this operation it
could be necessary to move the thickness
regulating knob at the same time taking it 1-2 mm
over the ‘0’ position.
3. Take out the whole group by pulling it upwards.
Disassembling the blade cover
1. Completely unscrew (counterclockwise) the
knob of the tie rod;
2. If the blade cover is tight, loosen it with
pressure on the tie rod knob. Take out the tie rod
and remove the blade cover.
Disassembling the slice deflector
1. Manually, turn upwards the slice deflector as
shown in the picture. Disassembling is not required,
but you can remove it pulling it towards yourself.

Use and maintenance
14
Disassembling the sharpener
1. Lift the sharpener cover;
2. Loosen the side knob of the sharpener block and
remove it;
3. Remove the whole sharpener.
6.2.3 Cleaning the machine and the parts have
been removed
PRODUCTS TO BE USED
Only use hot water and a biodegradable detergent
for dishes with a 7-8 PH, at a temperature of no
lower than 30°C using a soft, spongy cloth and
nylon brush for the sharp food press.
WARNING: For cleaning the sharp areas of the
plates, the food press and the blade, we
recommend using protective gloves.
Rinse off detergent using a clean cloth dampened
with fresh water.
Do not use abrasive, acids products or brushes
that could damage the machine. Do not clean the
slicer with water or stream jets or similar
methods. Do not put the removed parts in the
dishwasher.
Cleaning the blade
DANGER!!
WARNING: Use protective gloves and
concentrate on the job at hand.
1. Press a damp cloth on the surface of the blade
and move it slowly from the center to the edge, as
shown in the picture, on the side of the blade cover
and on the other side;
2. Dry in the same way using a dry cloth.
Cleaning the machine body
Clean the machine body with a damp cloth or a
sponge rinsing frequently with hot water. Dry
carefully.
Cleaning the sharpener
Clean the body with a damp cloth and the
grindstones with a semi-rigid nylon brush.
Cleaning the components in the base
The components contained in the base do not need
any special cleaning; occasionally remove the dust
that can accumulate in the end area of the carriage
and of the thickness plate regulation.

Use and maintenance
15
6.2.4 Reassembling the slicing machine
Reassembling the sharpener
1. Replace the sharpener by inserting the locking tie
rod in its proper place (1);
2. Turn the side knob of the sharpener block all the
way (2);
3. Close the sharpener cover (3).
Reassembling the slice deflector
1. Insert the slice deflector pin in its proper place
and rotate the slice deflector carefully putting it in
its original position, as shown in the picture.
Reassembling the blade cover
1. Replace the blade cover as shown in the picture
making sure the section joint is in its proper place;
2. Insert the tie rod for locking and screw
completely.
Repositioning the meat table
1. Insert the entire group on the carriage as shown
in the picture;
2. Tighten the locking knob;
3. Check that the carriage moves freely;
4. Check that the slice thickness regulator works
correctly.

Use and maintenance
16
7. MAINTENANCE AND REPAIRS
7.1 General information
The operator is allowed to carry out the following maintenance:
- Blade sharpening, periodically;
The interval and length of the sharpening obviously depend on the use of the machine (work times
and type of product used)
- Lubrication of the carriage guide bars, weekly;
- Lubrication of guide rod/s of the plate and the food press, weekly;
- Check the conditions of the electric cable and the cable gland on the base of the machine,
periodically.
Maintenance to be carried out exclusively by personnel authorized by the manufacturer is as follows:
- Replacing the blade;
- Replacing the sharpener grindstones;
- Replacing the components of the electric system under the base;
- Repairing the structural parts, repairing and/or replacing components under the base.
7.2 Sharpening the blade
Note: The sharpening operation is to be carried out only when the machine has been carefully cleaned as
described in the previous paragraphs.
WARNING: The blade can be sharpened up until the distance between the cutting edge of the blade and
the inside border of the blade guard ring is no more than 6 mm., corresponding to a decrease of about
10 mm. of the size of the original diameter. Once this value has been reached, it is NECESSARY TO
REPLACE THE BLADE and this operation must be carried out EXCLUSIVELY by personnel authorized by
the manufacturer.
6mm

Use and maintenance
17
7.2.3 Carrying out the sharpening
NOTE: Before starting this operation, check that the
grindstones have been cleaned.
1. Position the slice thickness regulating knob on ‘0’;
2. Pull back the food plate all the way.
3. Lift the sharpener cover.
4. Push the knob (1) so that the sharpener assembly
is closer to the blade (2);
5. Sharpener is now hooked in the correct position
for the sharpening operation;
6. Start the blade by pressing the I button;
WARNING: This operation must be performed
carefully and attentively. DANGER!
7. Push the sharpener lever downwards so that the
sharpening stone can work. Sharpen the blade 10-
15 seconds;
8. After this operation, push the lever more
downwards to make the sharpening burr with the
appropriate stone;
9. Stop the machine;
Note: Don’t insist to much (more than 2-3 seconds)
with the deburring operations in order to avoid
damage to the blade edge.
10. Return the sharpener body to the rest position
and close the cover.

Use and maintenance
18
7.3 Lubricating the guide bars of the carriage (weekly)
WARNING: Only use white Vaseline oil.
DO NOT USE VEGETABLE OILS!
1. Move the carriage as close
as possible to the operator;
2. Insert the oiler in the special
hole;
3. Squeeze the oiler so that a
small amount of oil goes into
the hole;
4. Remove the oiler and slide
the carriage 3/4 times.
7.4 Lubricating the transversal guide rods of the plate and food press (weekly)
WARNING: Only use white Vaseline oil.
DO NOT USE VEGETABLE OILS!
1. Put a small amount of oil on the rod and slide the group 3/4 times;
2. Clean as necessary removing any excess oil.
