MacArtney OptoLink User manual

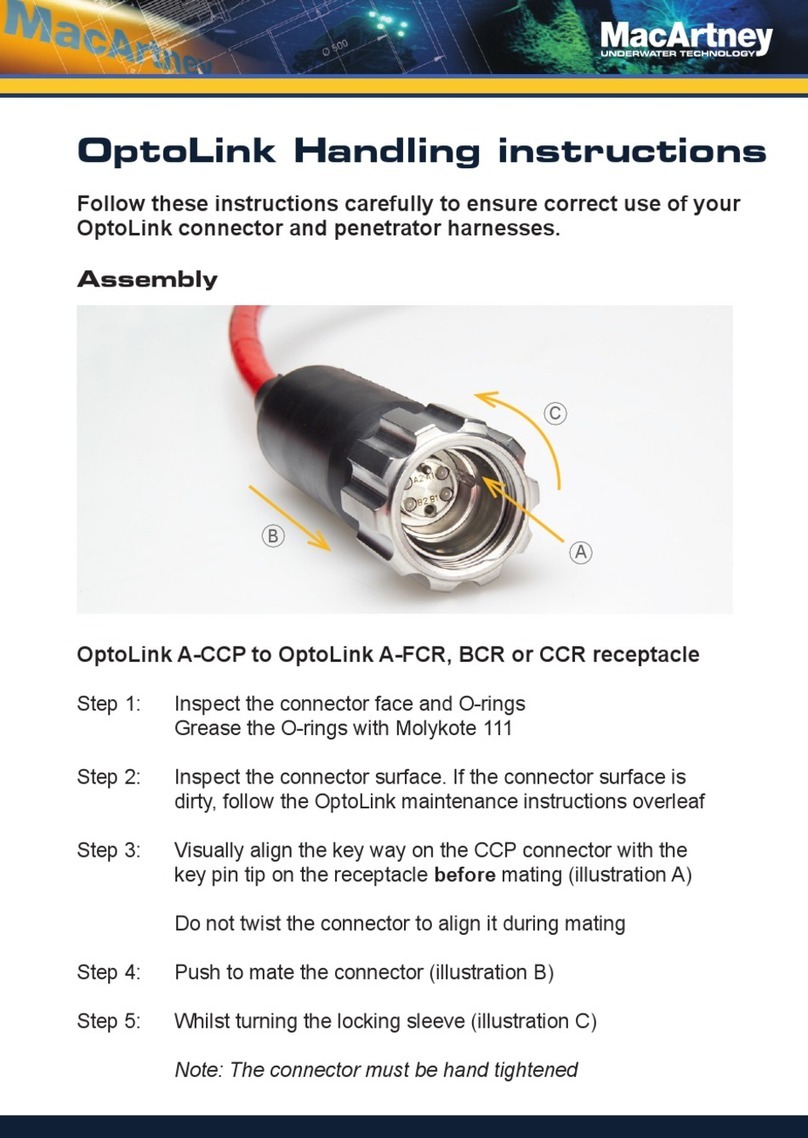

OptoLink Handling Instructions
OptoLink A-CCP to OptoLink A-FCR, BCR or CCR receptacle
Step 1: Inspect the connector face and O-rings
Grease the O-rings with Molykote 111 if necessary
Step 2: Inspect the connector surface. If the connector surface is
dirty, follow the OptoLink maintenance instructions overleaf
Step 3: Visually align the key way on the CCP connector with the
key pin tip on the receptacle before mating (see picture)
Do not twist the connector to align it during mating
Step 4: Push to mate the connector (see picture)
Step 5: Whilst turning the locking sleeve (see picture)
Note: The connector is only hand tightened
Step 5
Step 4 Step 3
06-2013
Follow these instructions carefully to ensure you get the best out of
your OptoLink connector.
Assembly

OptoLink A-CCP, CCR, FCR and BCR
■If the optical lenses are dirty, clean with a dry cotton swab
■If the optical lenses are greasy, clean with an alcohol soaked
cotton swab followed by a dry cotton swab
■Repeat the cleaning process if necessary
■O-rings must be checked before mating and will require
replacing if they show signs of damage
■Always grease O-rings with Molykote 111
Note: Always install dust caps when connectors are unmated
For further support and advice, please contact MacArtney or your
local OptoLink distributor.
www.macartney.com
Maintenance
