Mackie THUMP GO User manual

8" PORTABLE BATTERY-POWERED LOUDSPEAKER
QUICK START GUIDE
J @ @
I~
®
~@
@ w
u_____L_JJ
LL.l...____lJ

a:
LI.I
:::ii::
cc
LI.I
a..
Cl)
Cl
:::::,
C)
....I
Cl
LI.I
a:
LI.I
==
C)
a..
>-
cc
LI.I
I-
!;:
CICII
LI.I
....I
CICII
~
a:
C)
a..
:::
00
C)
c,:,
a..
:E
:::::,
:::c
I-

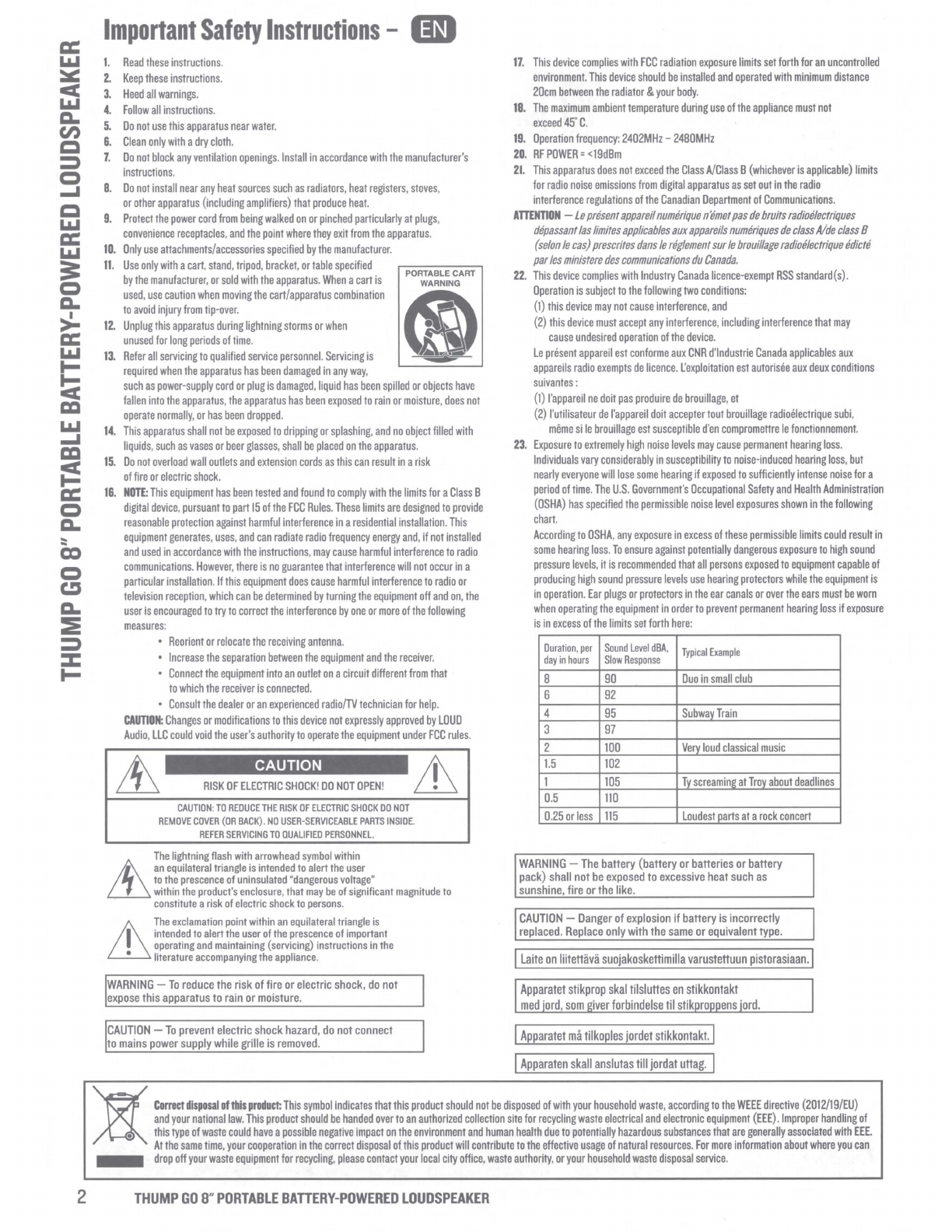

Important Safety Instructions - OD
I. Read these instructions .
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer .
11. Use only with a cart , stand , tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
12. Unplug this apparatus during lightning storms or when
unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
PORTABLE CART
WARNING
(9
such as power - supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus , the apparatus has been exposed to rain or moisture , does not
operate normally, or has been dropped .
14. This apparatus shall not be exposed to dripping or splashing, and no object filled with
liquids, such as vases or beer glasses, shall be placed on the apparatus.
15. Do not overload wall outlets and extension cords as this can result in a risk
of fire or electric shock.
16. NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules . These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures :
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications to this device not expressly approved by LOUD
Audio , LLC could void the user's authority to operate the equipment under FCC rules.
CAUTION
RISK OF ELECTRIC SHOCK! DO NOT OPEN!
~
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE .
REFER SERVICING TO QUALIFIED PERSONNEL.
The lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the user
to the prescence of uninsulated "dangerous voltage"
within the product's enclosure , that may be of significant magnitude to
constitute a risk of electric shock to persons .
The exclamation point within an equilateral triangle is
intended to alert the user of the prescence of important
operating and maintaining (servicing) instructions in the
literature accompanying the appliance.
WARNING - To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
CAUTION - To prevent electric shock hazard, do not connect
to mains power supply while grille is removed.
17. This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This device should be installed and operated with minimum distance
20cm between the radiator & your body.
18. The maximum ambient temperature during use of the appliance must not
exceed 45 ' C.
19. Operation frequency: 2402MHz - 2480MHz
20. RF POWER= <19dBm
21. This apparatus does not exceed the Class A/Class B (whichever is applicable) limits
for radio noise emissions from digital apparatus as set out in the radio
interference regulations of the Canadian Department of Communications.
ATTENTION - Le present appareil numerique n'emet pas de bruits radioelectriques
depassant las limites app/icab/es aux appareils numeriques de class A/de class 8
(selon le cas) prescrites dans le reglement sur le brouil/age radioelectrique edicte
par /es ministere des communications du Canada.
22. This device complies with Industry Canada licence-exempt RSS standard(s) .
Operation is subject to the following two conditions:
(1) this device may not cause interference , and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le present appareil est conforme aux CNR d'lndustrie Canada applicables aux
appareils radio exempts de licence. t:exploitation est autorisee aux deux conditions
suivantes:
(1) l'appareil ne doit pas produire de brouillage , et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi,
meme si le brouillage est susceptible d'en compromettre le fonctionnement.
23. Exposure to extremely high noise levels may cause permanent hearing loss.
Individuals vary considerably in susceptibility to noise-induced hearing loss, but
nearly everyone will lose some hearing if exposed to sufficiently intense noise for a
period of time. The U.S. Government's Occupational Safety and Health Administration
(OSHA) has specified the permissible noise level exposures shown in the following
chart.
According to OSHA, any exposure in excess of these permissible limits could result in
some hearing loss. To ensure against potentially dangerous exposure to high sound
pressure levels, it is recommended that all persons exposed to equipment capable of
producing high sound pressure levels use hearing protectors while the equipment is
in operation. Ear plugs or protectors in the ear canals or over the ears must be worn
when operating the equipment in order to prevent permanent hearing loss if exposure
is in excess of the limits set forth here:
Duration , per Sound Level dBA ,
Typical Example
day in hours Slow Response
B
90 Duo in small club
6
92
4
95
Subwav Train
3
97
2
100
Verv loud classical music
1.5 102
1
105
Tv screamin!! at Troy about deadlines
0.5 110
0. 25 or less 115
Loudest oarts at a rock concert
WARNING - The battery (battery or batteries or battery
pack) shall not be exposed to excessive heat such as
sunshine, fire or the like.
CAUTION - Danger of explosion ifbattery is incorrectly
replaced. Replace only with the same or equivalent type.
Laite on liitettava suojakoskettimilla varustettuun pistorasiaan.
Apparatet stikprop skal tilsluttes en stikkontakt
med ·ord, som iver forbindelse Iii stik ro ens ·ord.
I Apparatet ma tilkoples jordet stikkontakt. I
I Apparaten skall anslutas till jordat uttag. I
Correct disposal of this product: This symbol indicates that this product should not be disposed of with your household waste, according to the WEEE directive (2012/19/EU)
an _d your national law. This product should be _handed over to an authorized collection site for recycling wast~ electrical and electronic equipment (EEE). Improper handling of
this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE.
At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can
- drop off your waste equipment for recycling, please contact your local city office, waste authority, or your household waste disposal service.
2 THUMP GO 8" PORTABLE BATTERY-POWERED LOUDSPEAKER

a:
LI.I
::.::
cc
LI.I
a..
Cl)
Cl
:::,
C)
...I
Cl
LI.I
a:
LI.I
==
C)
a..
>
a:
LI.I
I-
!;;:
ca
LI.I
...I
ca
.:!:
a:
C)
a..
:::
00
C)
C,
a..
:E
:::,
::c
I-
Hookup Diagrams • Diagramas de conexilin
Schemas de ciblage • Anschlussdiagrammes
Stereo Speaker Hookup
Conexi6n de altavoz stereo
Connexion en stereo
Stereo Setup
Using a microphone and daisy-chaining
Uso de un micr6fono y conexi6n en cadena
Utilisation d' un micro et connexion en cascade
Verwendung eines Mikrofons mit Boxen in Relhenschaltung
6 THUMP GO 8" PORTABLE BATTERY-POWERED LOUDSPEAKER
--
C H1 CH2 /BT
- -
CH1 CH2 /BT

THUMP GO
VOICIJ,+GMODES OUll>OOII.....: F&......:i< -
"""""- DUCDtCI e.-TQ!t UD
·- r 0 0 0 0
-~
o•o
-M-
..
..
CH1 CH
2/ BT
MAIN
-·
' @
·-
.
Line
•
(t) (t) (t)
THUMP GO THUMP GO
CH1 CH2/BT MAIN
CH1 CH2/BT
DRM18S
~
■:■
=:=
~=~
o-0
. ~ ~if
1 .. 1 ..... ..,.. -
@ 1 2 :, @• 5-,e 1111.MO FX @ MAIN
~~~~~~~~~
DRM18S THUMP GO
DRM18S
VOIClf,IGMODlcS ""'1>000'--.- - -
"""'"DUCDOG~TDIOU!II
;r 0 0 0 0
o*o
-M-
.. ..
CH2/BT
MAIN
-i@
·-
. •
(t) (t) (t)

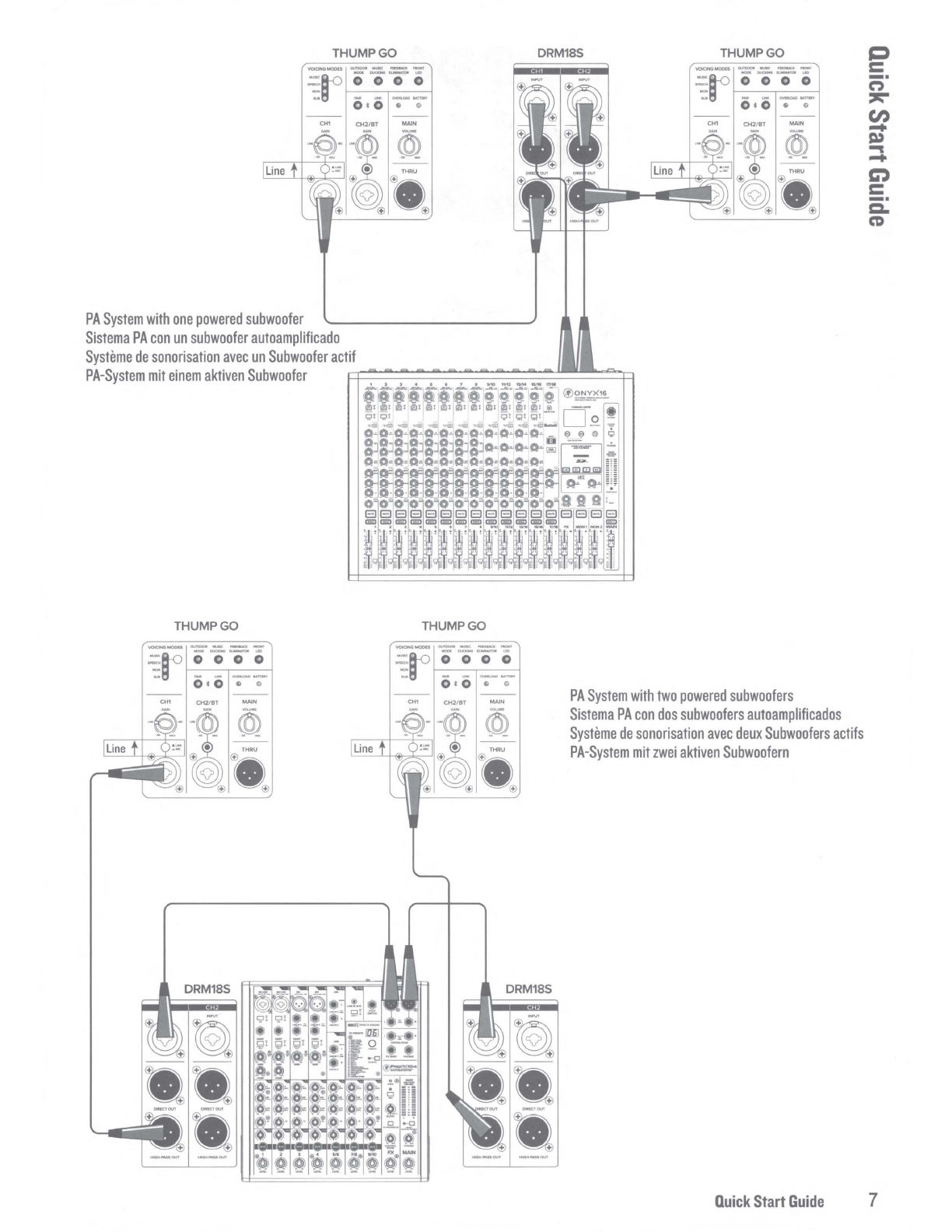

PA System with two powered subwoofers
Sistema PA con dos subwoofers autoamplificados
Systeme de sonorisation avec deux Subwoofers actifs
PA-System mit zwei aktiven Subwoofern
C,
C
-·
C")
=-=-
en
,..
D)
....
,..
C,
C
-·
a.
CD
Quick Start Guide 7

a:
LI.I
:::.::
C
LI.I
CL.
Cl)
Cl
::::,
c::,
....I
Cl
LI.I
a:
LI.I
==
c::,
CL.
>-
a:
LI.I
I-
~
m
LI.I
....I
m
~
a:
c::,
CL.
:::
C0
c::,
c::,
CL.
:E
::::,
:::c
I-
VOICING MODES OUTDOOR MUSIC FEEDBACK FRONT

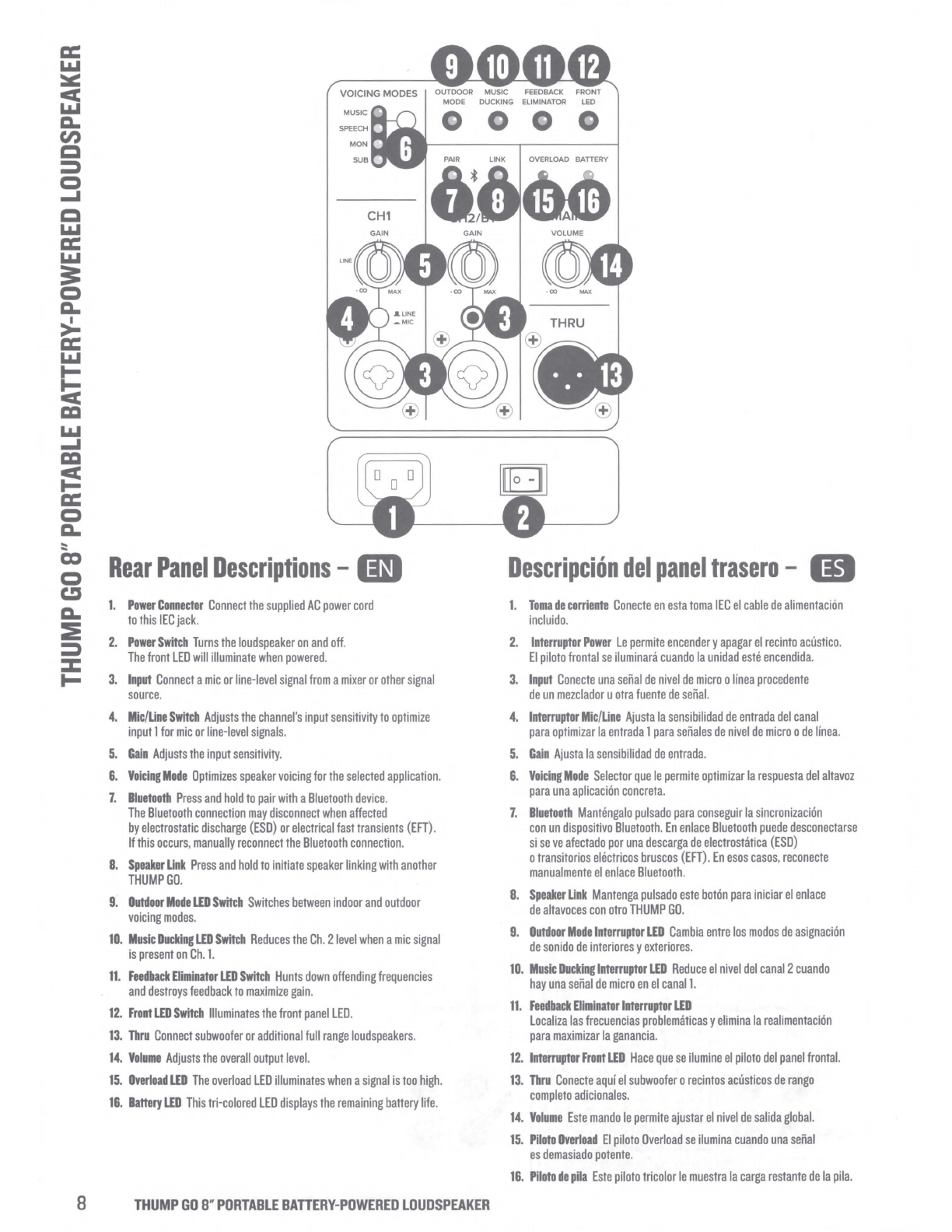

Rear Panel Descriptions -U
1. Power Connector Connect the supplied AC power cord
to this IEC jack.
2. Power Switch Turns the loudspeaker on and off.
The front LED will illuminate when powered.
3. Input Connect a mic or line-level signal from a mixer or other signal
source.
4. Mic/Line Switch Adjusts the channel's input sensitivity to optimize
input 1 formic or line-level signals.
5. Gain Adjusts the input sensitivity.
6. Voicing Mode Optimizes speaker voicing for the selected application.
7. Bluetooth Press and hold to pair with a Bluetooth device.
The Bluetooth connection may disconnect when affected
by electrostatic discharge (ESD) or electrical fast transients (EFT) .
If this occurs, manually reconnect the Bluetooth connection.
8. Speaker Link Press and hold to initiate speaker linking with another
THUMP GO.
9. Outdoor Mode LED Switch Switches between indoor and outdoor
voicing modes.
10. Music Ducking LEO Switch Reduces the Ch. 2 levei when a mic signal
is present on Ch. 1.
11. Feedback Eliminator LED Switch Hunts down offending frequencies
and destroys feedback to maximize gain.
12. Front LED Switch Illuminates the front panel LED.
13. nru Connect subwoofer or additional full range loudspeakers.
14. Volume Adjusts the overall output level.
15. Overload LED The overload LED illuminates when a signal is too high.
16. Battery LEO This tri-colored LED displays the remaining battery life.
MODE DUCKING ELIMINATOR LED
G O 0
Descripcion del panel trasero -1B
1. Toma de corriente Conecte en esta toma IEC el cable de alimentacion
incluido.
2. lnterruptor Power Le permite encender y apagar el recinto acustico.
El piloto frontal se iluminara cuando la unidad este encendida.
3. Input Conecte una seiial de nivel de micro o linea procedente
de un mezclador u otra fuente de seiial.
4. lnterruptor Mic/Line Ajusta la sensibilidad de entrada del canal
para optimizar la entrada 1 para seiiales de nivel de micro o de lfnea.
5. Gain Ajusta la sensibilidad de entrada.
6. Voicing Mode Selector que le permite optimizar la respuesta del altavoz
para una aplicacion concreta.
7. Bluetooth Mantengalo pulsado para conseguir la sincronizacion
con un dispositivo Bluetooth. En enlace Biuetooth puede desconectarse
si se ve afectado por una descarga de electrostatica (ESD)
o transitorios electricos bruscos (EFT). En esos casos, reconecte
manualmente el enlace Bluetooth.
8. Speaker Link Mantenga pulsado este boton para iniciar el enlace
de altavoces con otro THUMP GO.
9. Outdoor Mode lnterruptor LED Cambia entre los modos de asignacion
de sonido de interiores y exteriores.
10. Music Ducking lnterruptor LED Reduce el nivel del canal 2 cuando
hay una seiial de micro en el canal 1.
11. Feedback Eliminator Interrupter LED
Localiza las frecuencias problematicas y elimina la realimentacion
para maximizar la ganancia.
12. lnterruptor Front LED Hace que se ilumine el piloto del panel frontal.
13. nru Conecte aquf el subwoofer o recintos acusticos de rango
completo adicionales.
14. Volume Este mando le permite ajustar el nivel de salida global.
15. Pilato Overload El piloto Overload se ilumina cuando una seiial
es demasiado potente.
16. Pilato de pila Este piloto tricolor le muestra la carga restante de la pila.
8 THUMP GO 8" PORTABLE BATTERY-POWERED LOUDSPEAKER

a:
LI.I
::=a:::
cc
LI.I
a..
Cl)
Cl
=
0
.....
Cl
LI.I
a:
LI.I
==
0
a..
>
a:
LI.I
1-
!c
m
LI.I
.....
m
~
a:
0
a..
:::
C0
0
c.:,
a..
:E
=
::c
I-
Getting Started - OD
1.
Read and understand the Important Safety Instructions
on page 2.
2.
Make all initial connections with the power switches
OFF on all equipment. Make sure the master volume,
level and gain controls are all the way down.
3.
If not using a subwoofer, connect the outputs from
the mixing console (or other signal source) to the inputs
on the rear panel of the loudspeakers.
4. If using a subwoofer, connect the outputs from the
mixing console (or other signal source) to the inputs on
the rear panel of the subwoofer, then connect the high
pass outputs from the subwoofer to the inputs of the
loudspeakers.
5.
Push the line cord securely into the subwoofer's/
loudspeaker's IEC connectors and plug the other ends
into grounded AC outlets. The subwoofer/loudspeaker
may accept the appropriate voltage as indicated near
the IEC connector.
6.
Turn the mixer (or other signal source) on.
7. Turn the subwoofer on.
8.
Turn the loudspeakers on.
9.
Be sure that the volume of the input is the same as it
would be during normal use.
10. Start the signal source and raise the mixer's main
L/R fader up to a comfortably loud listening level.
Puesta en marcha - lit
1. Lea y tenga en cuenta las lnstrucciones importantes
de seguridad de la pagina 3.
2. Realice todas las conexiones iniciales con todos los aparatos
APAGADOS. Asegurese de que los controles de volumen
master, nivel y ganancia esten al minima.
3. Si no esta usando un subwoofer, conecte las salidas
de la mesa de mezclas (u otra fuente de seiial)
a las entradas del panel trasero de los recintos acusticos.
4. Si esta usando un subwoofer, conecte las salidas de la mesa
de mezclas (u otra fuente de seiial) a las entradas del panel
trasero de los subwoofer y conecte despues las salidas pasa-
altos del subwoofer a las entradas de los altavoces.
5. lntroduzca completamente el cable de alimentacion
en las tomas IEC del subwoofer/altavoz y el otro extrema
a una salida de corriente alterna con toma de tierra.
El subwoofer/altavoz acepta el voltaje/amperaje indicados
al lado de su conector IEC.
6. Encienda el mezclador (u otra fuente de seiial).
7. Encienda los altavoces.
8. Encienda los subwoofer.
9. Asegurese de que el volumen de la entrada sea el mismo
que tendra durante su uso normal.
10. Ponga en marcha la fuente de seiial y suba el fader
L/R principal de la mesa hasta llegar a un nivel de
escucha adecuado .
IO THUMP GO 8" PORTABLE BATTERY-POWERED LOUDSPEAKER
Mise en muvre - Iii
1.
Lisez les instructions importantes sur la securite page 4
et assurez-vous de les avoir bien comprises.
2.
Avant d'effectuer toute connexion, assurez-vous que tous
les appareils soient hors tension. Verifiez que le volume
general, le niveau et le gain soient regles au minimum.
3.
Si vous n'utilisez pas de Subwoofer, connectez les sorties
de votre console de mixage ( ou de toute autre source de
signal) aux entrees situees sur la face arriere des enceintes.
4. Si vous utilisez un Subwoofer, connectez les sorties de la
console de mixage (ou d'une autre source) aux entrees situees
sur la face arriere du Subwoofer, puis connectez les sortie
High Pass du Subwoofer aux entrees des enceintes.
5.
Poussez completement le cordon secteur dans l'embase CEI
de l'enceinte/du Subwoofer et connectez l'autre extremite a
une prise de courant reliee a la terre. La tension acceptee par
l'enceinte/le Subwoofer est indiquee a cote de l'embase CEI.
6.
Mettez la console de mixage (ou autre source) sous tension.
7.
Mettez l'enceinte sous tension.
8.
Mettez le Subwoofer sous tension.
9.
Assurez-vous que le volume d'entree est regle de la miime
maniere que lors d'une utilisation normale.
10. Activez la source du signal et montez les Faders L/R
de la console jusqu'a un niveau d'ecoute confortable.
Erste Schritte -B
1. Lesen und beachten Sie die ,,Wichtigen Sicherheitshinweise"
auf Seite 5.
2. Schalten Sie alle Geriite AUS, bevor Sie die notwendigen
Anschliisse herstellen. Achten Sie darauf, dass die Master
Volume-, Pegel- und Gain-Regler ganz zuriickgedreht sind.
3. Wenn Sie keinen Subwoofer verwenden, verbinden Sie die
Ausgiinge des Mischpults (oder einer anderen Signalquelle)
mil den riickseitigen Eingiingen der Lautsprecher.
4. Wenn Sie einen Subwoofer verwenden, verbinden Sie die
Ausgiinge des Mischpults (bzw. andere Signalquellen) mil
den riickseitigen Eingiingen der Subwoofer und dann die
Hochpass-Ausgiinge der Subwoofer mil den Eingiingen der
Lautsprecher.
5. Stacken Sie das Netzkabel fest in den IEC-Anschluss des
Subwoofers/Lautsprechers und schlieBen Sie das andere
Ende an eine geerdete Netzsteckdose an. Der Subwoofer/
Lautsprecher akzeptiert die entsprechende Spannung,
die neben dem IEC-Anschluss angegeben isl.
6. Schalten Sie den Mischer (bzw. andere Signalquelle) ein.
7. Schalten Sie die Lautsprecher ein.
8. Schalten Sie die Subwoofer ein.
9. Achten Sie darauf, dass der Eingangspegel genauso hoch
isl wie bei einem normalen Einsatz.
10. Aktivieren Sie die Signalquelle und schieben Sie den
L/R-Hauptfader des Mischers auf eine angenehme
Abhiirlautstiirke hoch.

Technical Specifications / Especificaciones tecnicas
Caracteristiques techniques / Technische Oaten
Frequency Range (-10 dB)
Rango de frecuencias (-10 dB)
Plage de frequence (-10 dB)
Frequenzbereich (-10 dB)
Coverage Pattern
Patron de cobertura
Couverture sonore
Abstrahlverhalten
Maximum SPL Peak
SPL maximo en picos
Niveau de pression sonore max (peak)
Maximaler Schalldruck
Total System Power
Potencia total del sistema
Puissance totale du systeme
Gesamtleistung des Systems
Low Frequency
Graves
Basses frequences
Basse
High Frequency
Agudos
Hautes frequences
Hiihen
Crossover Point
Frecuencia de corte del crossover
Frequence de coupure
Trennfrequenz
Input Type
Tipo de entrada
Type d'entree
Eingangstyp
Output
Salida
Sortie
Ausgang
Power Requirements
Alimentacion
Alimentation
Spannungsbedarf
Protection Features
Funciones de proteccion
Protections
Schutzfunktionen
Size (H xWx D)
Tamaiio (A xLx P)
Dimensions (H xLx P)
Abmessungen (H xBx T)
Weight
Peso
Poids
Gewicht
THUMP GO
57 Hz - 20 kHz
90" horizontal x so · vertical (vertikal)
115 dB
200 watts peak
200 watios en picos
200 watts crete
200 Watt Spitze
8in/ 203 mm woofer, 175 watts peak, Class D power amplifier
Woofer de 8in/ 203 mm, Etapa de potencia clase Dy 175 watios en picos
Woofer de 8" / 203 mm, Ampli de puissance Classe D 175 watts crete
8" / 203 mm Woofer , 175 Watt Spitze Class D Endstufe
1.0" / 25 mm polymer compression driver - 25 watts peak Class D power amplifier
Cabezal de compresion fabricado en polfmero de 1.0" / 25 mm - Etapa de potencia de clase Dy 25 watios en picos
Moteur de compression en polymere d'l,0" / 25 mm - Ampli de puissance Classe D 25 watts crete
1,0" / 25 mm Polymer-Kompressionstreiber - 25 Watt Spitze Class D Endstufe
2.0 kHz
2x Female XLR -1/4" balanced TRS combo jack, 1/8" TRS and Bluetooth
2x clavijas combo XLR - TRS de 6,3 mm balanceadas hembra, TRS de 3,5 y Bluetooth
2 connecteurs combines XLR - Jack symetrique 6,35 mm , 3,5 TRS et Bluetooth
2 symmetrische XLR / 6,3 mm TRS-Kombibuchsen, TRS-3,5 mm und Bluetooth
Male XLR balanced [Thru]
XLR macho balanceado [Thru]
XLR male symetrique [Thru]
XLR-Stecker symmetrisch [Thru]
100 - 240 VAC, 50-60 Hz , 150W
Peak and RMS limiting, power supply and amplifier thermal protection
Limitacion de picos y RMS, proteccion contra recalentamiento de fuente de alimentacion y amplificador
Limitation crete et efficace, protection contre la surchauffe de l'alimentation et de l'amplificateur
Peak- und RMS-Limiting, 0berhitzungsschutz fiir Netzteil und Verstiirker
18.Q X 9.1 X 11.2 in
457 x 230 x 285 mm
17.6 lb
8.0 kg
All specifications subject to change
Todas estas especificaciones estan sujetas a cambios sin previo aviso
Les caracteristiques peuvent etre modifiees
Technische Anderungen und Erganzungen vorbehalten
C
C
-·
n
~
en
,..
D)
-.:
,..
C,
C
-·
Cl.
CD
Quick Start Guide 11

WARUNTYANDSUPPORT
Visit WWW.MACKIE.COM to:
• Identify WARRANTY coverage provided in your local market.
Please keep your sales receipt in a safe place.
• Retrieve afull-version, printable OWNER'S MANUAL for your product.
• DOWNLOAD software, firmware and drivers for your product (ifapplicable).
• REGISTER your product.
• CONTACT Technical Support.
GAUNTIA Y SOPORTE TECNICO
Visite la pagina web WWW.MACKIE.COM para:
• Conocer la cobertura en periodo de GARANTiA correspondiente a su pais. Le recomendamos
que conserve su recibo de compra ofactura en un lugar seguro.
• Conseguir una version completa e imprimible del MANUAL DE INSTRUCCIONES de este aparato.
• DESCARGUESE lo ultimo en software, firmware y drivers para este producto (cuando sea aplicable).
• REGISTRAR este aparato.
• PONERSE EN CONTACTO con el departamento de soporte tecnico.
GAUNTIE ET ASSISTANCE TECHNIQUE
Consultez WWW.MACKIE.COM pour:
• Connaitre la couverture de la GARANTIE dans votre region. Merci de conserver vos factures dans
un lieu sur.
• Recuperer une version complete imprimable du MODE D'EMPLOI de votre appareil.
• TELECHARGER le logiciel, le firmware et les pilotes de votre produit (le cas echeant).
• ENREGISTRER votre produit.
• CONTACTER le departement d'assistance technique.
GAUNTIE UND SUPPORT
Besuchen Sie WWW.MACKIE.COM, um:
• Die GARANTIE-Bedingungen fur 1hr Land zu finden. Bitte bewahren Sie lhren Kaufbeleg gut auf.
• Ein ausfuhrliches druckbares BEDIENUNGSHANDBUCH fur 1hr Produkt zu finden.
• Software, Firmware und Treiber fur 1hr Produkt (falls anwendbar) HERUNTERZULADEN.
• 1hr Produkt zu REGISTRIEREN.
• Den Technischen Support zu KONTAKTIEREN.
www.mackie.com
19820 NORTH CREEK PARKWAY #201 • BOTHELL, WA 98011 • USA 1i7 ~ ~ fjiiij7
Phone: [phone] • Toll-free: 800. 898.3211 • Fax: [phone] L!J ~ ~ ~
Part No . 2053580 Rev. A 05/21 © 2021 LOUD Audio, LLC. All Rights Reserved .

OWNER’S MANUAL
8" Portable Battery-Powered Loudspeaker

Thump GO 8" Portable Battery-Powered Loudspeaker
2Thump GO 8" Portable Battery-Powered Loudspeaker
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Use only with a cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart
is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
12. Unplug this apparatus during lightning storms or when unused
for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
14. This apparatus shall not be exposed to dripping or splashing, and no object filled
with liquids, such as vases or beer glasses, shall be placed on the apparatus.
15. Do not overload wall outlets and extension cords as this can result in a risk of fire
or electric shock.
16. NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 5 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications to this device not expressly approved by LOUD
Audio, LLC could void the user’s authority to operate the equipment under FCC rules.
17. This device complies with FCC/IC RSS-02 radiation exposure limits set forth
for an uncontrolled environment. This device should be installed and operated
with minimum distance 20cm between the radiator & your body.
18. The maximum ambient temperature during use of the appliance must not
exceed 45˚ C.
19. Operation frequency: 2400MHz – 2483.5MHz
20. RF POWER = <20dBm
PORTABLE CART
WARNING
CAUTION
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the prescence of uninsulated
“dangerous voltage” within the product’s enclosure, that may be of
significant magnitude to constitute a risk of electric shock to persons.
RISK OF ELECTRIC SHOCK! DO NOT OPEN!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
The exclamation point within an equilateral triangle is intended
to alert the user of the prescence of important operating and
maintaining (servicing) instructions in the literature accompanying
the appliance.
21. This apparatus does not exceed the Class A/Class B (whichever is applicable) limits
for radio noise emissions from digital apparatus as set out in the radio
interference regulations of the Canadian Department of Communications.
ATTENTION
— Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant las limites applicables aux appareils numériques de class A/de class B
(selon le cas) prescrites dans le réglement sur le brouillage radioélectrique édicté
par les ministere des communications du Canada.
22. This device complies with Part 5 of the FCC Rules [and contains license-exempt
transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s license-exempt RSS(s)]. Operation is subject to the following
two conditions:
() this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d’Innovation, Sciences et Développement économique Canada
applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes:
() l’appareil ne doit pas produire de brouillage, et
(2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
23. Exposure to extremely high noise levels may cause permanent hearing loss.
Individuals vary considerably in susceptibility to noise-induced hearing loss,
but nearly everyone will lose some hearing if exposed to suciently intense
noise for a period of time. The U.S. Government’s Occupational Safety and Health
Administration (OSHA) has specified the permissible noise level exposures shown
in the following chart.
According to OSHA, any exposure in excess of these permissible limits could result
in some hearing loss. To ensure against potentially dangerous exposure to high sound
pressure levels, it is recommended that all persons exposed to equipment capable
of producing high sound pressure levels use hearing protectors while the equipment
is in operation. Ear plugs or protectors in the ear canals or over the ears must
be worn when operating the equipment in order to prevent permanent hearing loss
if exposure is in excess of the limits set forth here:
Duration, per
day in hours Sound Level dBA, Slow Response Typical Example
8 90 Duo in small club
6 92
4 95 Subway Train
3 97
2 00 Very loud classical music
.5 02
 05 Ty screaming at Troy about deadlines
0.5 0
0.25 or less 5 Loudest parts at a rock concert
Correctdisposal of thisproduct: This symbol indicates that this product should not be disposed of with your household waste, according to the WEEE directive (202/9/EU)
and your national law. This product should be handed over to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste
could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation
in the correct disposal of this product will contribute to the eective usage of natural resources. For more information about where you can drop o your waste equipment for recycling, please
contact your local city oce, waste authority, or your household waste disposal service.
WARNING — To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
CAUTION — To prevent electric shock hazard, do not connect
to mains power supply while grille is removed.
WARNING — The battery (battery or batteries or battery
pack) shall not be exposed to excessive heat such as
sunshine, fire or the like.
CAUTION — Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan.
Apparatet stikprop skal tilsluttes en stikkontakt
med jord, som giver forbindelse til stikproppens jord.
Apparatet må tilkoples jordet stikkontakt.
Apparaten skall anslutas till jordat uttag.

Owner’s Manual
3
Owner’s Manual
Features
Part No. SW34 Rev. C 04/22
©2022 LOUD Audio, LLC. All Rights Reserved.
Ultra-ecient 200W Class-D amplifier
8" Custom high-output woofer
" Compression driver
Removable lithium-ion battery (included)
Tri-color battery life indicator
Up to 2 hours of battery life
Bluetooth® connectivity for music streaming
Wireless control via the Thump Connect 2 app
Link to a second Thump GO via Bluetooth for music
playback and control
2-channel digital mixer with XLR thru output
Feedback Eliminator prevents nasty squeals
and unwanted rumble
4 application-specific speaker modes
Music Ducking mode automatically lowers Ch.2 level
when Ch. receives signal
Indoor / Outdoor voicing modes
Precision digital crossover and driver alignment
Smart input and thermal limiters
Durable, lightweight molded enclosure
45-degree monitor angle
Built-in pole mount
Rugged powder coated steel grille
Weight: 7.6 lb / 8 kg
Dimensions (H x W x D): 8 x 9. x .2 in /
457 x 230 x 285 mm
Contents
Important Safety Instructions........................... 2
Features / Contents............................................ 3
Introduction / Getting Started........................... 4
Hookup Diagrams ............................................... 5
Thump GO: Rear Panel Features........................9
Thump Connect 2 App ........................................9
. Power Connection ..................................9
2. Power Switch..........................................9
3. XLR and /4" Combo Input Jacks..........9
4. /8" Input Jack [Ch. 2] ........................ 0
5. Mic / Line Switch [Ch. ]...................... 0
6. Gain Knobs [Ch.  and 2] ..................... 0
7. Thru Jack.............................................. 0
8. Main Knob............................................. 0
9. Voicing Modes ...................................... 0
0. Outdoor Mode........................................
. Music Ducking.......................................
2. Feedback Eliminator..............................
3. Front LED................................................ 
4. Bluetooth / Pair......................................2
5. Speaker Link..........................................2
6. Overload LED .........................................3
7. Battery LED............................................3
Final Thoughts ...................................................3
Factory Reset...............................................3
Battery Replacement ..................................3
Thump Connect 2 App.................................4
Protection Circuitry...........................................4
Limiting.........................................................4
Overexcursion Protection...........................5
Thermal Protection......................................5
AC Power ............................................................5
Care and Maintenance ......................................5
Placement ..........................................................5
Room Acoustics.......................................... 6
Appendix A: Service Information......................7
Appendix B: Technical Information ................. 8
Thump GO Block Diagram.......................... 9
Thump GO Dimensions............................... 9
Limited Warranty...............................................2

Thump GO 8" Portable Battery-Powered Loudspeaker
4Thump GO 8" Portable Battery-Powered Loudspeaker
Getting Started
Introduction
So, you need the sound of a powerful, professional
loudspeaker with the portability of a boom box?
Meet Thump GO; the take-it-anywhere, Bluetooth®
equipped, ultra-flexible, battery-powered loudspeaker.
Built to make your life a whole lot easier, Thump GO
oers lightning-fast setup and simple-yet-powerful
sound processing, plus flexible inputs, Bluetooth®
streaming, and wireless control via the Thump Connect 2 app.
Most importantly, Thump GO will amplify the real you
with clear, punchy, and accurate sound wherever you
call your stage. Take the performance of the renowned
Thump Series anywhere, with the Thump GO Portable
Battery-Powered Loudspeaker.
How to Use This Manual:
Afer this introduction, a getting started guide will help
you get things set up fast. The hookup diagrams show
some typical Thump GO loudspeaker setups, including
some that involve the Thump 8S subwoofer.
This icon marks information that is critically
important or unique! For your own good, read and
remember them...it is a good idea to pay special
attention to these areas in the Owner’s Manual
marked with the “VERY IMPORTANT” hand icon.
There’s an illustration of a microscope,
so, of course, you’re going to get more
detailed information when you see this
little guy. There are explanations of
features and practical tips listed here.
It’s a good idea to pay attention to text displayed
next to a note icon, as this icon draws attention
to certain features and functions relating to
the usage of the Thump GO.
The following steps will help you set up the Thump GO quickly.
. Make all initial connections with the power switches
OFF on all equipment. Make sure the master volume,
level and gain controls are all the way down.
2. If not using a subwoofer, connect the outputs
from the mixing console (or other signal source)
to the inputs on the rear panel of the loudspeakers.
3. If using a subwoofer, connect the outputs from
the mixing console (or other signal source) to the inputs
on the subwoofer, then connect the high pass outputs
from the subwoofer to the inputs of the loudspeakers.
4. Push the line cord securely into the subwoofer’s /
loudspeaker’s IEC connectors and plug the other ends into
grounded AC outlets. The subwoofer/loudspeaker may accept
the appropriate voltage as indicated near the IEC connector.
5. Turn the mixer (or other signal source) on.
6. Turn the subwoofer on (if applicable).
7. Turn the loudspeakers on.
8. Make sure the loudspeaker’s channel gain knob(s)
are set to mic or line.
9. Be sure that the volume of the input is the same
as it would be during normal use.
0. Start the signal source and raise the mixer’s main
L/R fader up to a comfortably loud listening level.
Things to Remember:
• Never listen to loud music for prolonged periods. Please see
the Safety Instructions on page 2 for information on hearing
protection.
• As a general guide, the mixer (or other signal source) should
be turned on first, subwoofers next, and the Thump GO
last. As such, the Thump GO should also be turned o first,
followed by the subwoofers, then the mixer. This will reduce
the possibility of any turn-on or turn-o thumps and other
noises generated by any upstream equipment from coming
out of the speakers.
• Save the shipping boxes and packing materials! You may
need them someday. Besides, the cats will love playing
in them and jumping out at you unexpectedly. Remember
to pretend like you are surprised!
• Save your sales receipt in a safe place.
Please write the serial numbers here for future reference
(i.e., insurance claims, tech support, return authorization,
make dad proud, etc.)
Purchased at:
Date of purchase:

Owner’s Manual
5
Owner’s Manual
Hookup Diagrams
Thump GO loudspeakers are the perfect tool for singer-songwriters touring the local coee shops.
Bring your favorite axe and mic, Thump GO loudspeakers and cables and power cords.
In this example, a Mackie EM-89D dynamic microphone is connected to the channel  input of a Thump GO,
used for monitoring purposes. The gain knob should be set to mic and the mic/line switch engaged (mic).
Now grab your axe and plug it directly into the channel 2 input. Or if you use eects, connect the guitar to the eects
input and another cable from the eects output to the channel 2 input. The gain knob should be set to line and the mic/line
switch disengaged (line).
Another Thump GO loudspeaker will be used for the main PA. Simply connect a cable from the Thump GO monitor’s
THRU jack to the Thump GO PA’s channel  input.
For the output, you will want to set a voicing mode, described in detail on page 0-. For this type of setup, ‘Music’
works well for the main Thump GO. Select the ‘Monitor’ mode for the Thump GO monitor.
Singer-Songwriter Setup

Thump GO 8" Portable Battery-Powered Loudspeaker
6Thump GO 8" Portable Battery-Powered Loudspeaker
House Parties / BBQ / Karaoke / Picnic System
Hookup Diagrams continued…
Thump GO loudspeakers are great for house parties, BBQs, karaoke competitions and picnics, too!
In this example, we connected a Mackie EM-89D dynamic microphone to the channel  input of a Thump GO. The gain knob
should be set to mic and the mic/line switch engaged (mic). Additionally, a phone is connected to channel 2’s /8" input
for music playback. The gain knob of this input should be set to line. The volume of the phone should be up, as well.
Another Thump GO loudspeaker will be used for extra “punch”. Simply connect a cable from the first Thump GO’s
THRU jack to the other Thump GO’s channel  input. The gain knob of this input should be set to line.
For the output, you will want to set a voicing mode, described in detail on page 0-. For this type of setup, ‘Music’
works well for both Thump GO loudspeakers.
Now here’s where it could get interesting... I’m talkin’ cables, baby (or rather, the lack thereof). Cables may be accidentally
removed and/or intermittent (at best) and injury – even death (at worst) – could occur. All it takes is one person to catch
it on their foot and trip. Ah, how devastating, but... there are solutions!
First, we would suggest using the EM Wave XLR transmitter / receiver system. Now you have a wireless mic!
Next, instead of connecting the phone to the channel 2 /8" jack, just connect via Bluetooth. Boom, another cable gone!
The final cable is attached from the first Thump GO Thru output to the second Thump GO channel  input.
However, you can link the Thump GO loudspeakers together and set aside that third and final cable to go totally
wireless! Heck, if the batteries are charged, you won’t even need the power cables!
But wait, there’s more! Thump GO loudspeakers have three additional features that are worth discussing here: Outdoor Mode,
Music Ducking and Feedback Eliminator. Outdoor Mode may be engaged if one (or both) loudspeakers are outside.
Levels may be easily raised and lowered via the Thump Connect 2 App. Music Ducking should be engaged if someone
will be speaking while music is playing in the background. It should not be engaged during a karaoke battle royale, though.
Lastly, it’s always a good idea to engage the Feedback Eliminator. More information about all of these features (and then
some) may be found on the following pages.

Owner’s Manual
7
Owner’s Manual
Small Club System
USB 1-2
USB 3-4
MUTE MUTE MUTE MUTE MUTEMUTE MUTE
USB 1-2
USB 3-4
MUTE MUTE MUTE MUTE MUTEMUTE MUTE
Hookup Diagrams continued…
In this example, a ProFX0v3 mixer is connected directly to two Thump GO loudspeakers. It is the perfect setup for a small
club. Simply connect the L/R outputs of the ProFX0v3 mixer to the channel  input of each Thump GO loudspeaker.
The gain knob on both should be set to Line. Don’t forget to set the Voicing Mode on both loudspeakers to ‘Music’!
If you desire a little more boom, add a Thump 8S subwoofer to the mix. Here, the L/R outputs of a ProFX0v3 mixer
are connected directly to the channel A and B inputs of the Thump 8S subwoofer. Then the High-Pass Outs of the subwoofer
are connected to the channel  inputs of a pair of Thump GO loudspeakers. The gain knob on both should be set to Line.
Here you will want to set the Voicing Mode to ‘Music’.

Thump GO 8" Portable Battery-Powered Loudspeaker
8Thump GO 8" Portable Battery-Powered Loudspeaker
Daisy-Chaining Multiple Thump GO Loudspeakers
Hookup Diagrams continued…
MON 2
48V
PHONES
PHANTOM
POWER
POWER
OL
1
USB 1
2
LINE
13/14
MON 1
dB
10
5
U
5
10
20
30
40
50
60
PHONES
dB
10
5
U
5
10
20
30
40
50
60
MAX
L-R
-15 +15
ONYX MIC PRE
MIC
5/6
5/6
7/8
LOW CUT
7/8
SD
9/10
LOW CUT
9/10
USB 3
4
MID
2.5kHz
11/12
LOW CUT
11/12
3 4
FX
dB
10
5
U
5
10
20
30
40
50
60
L-R
dB
10
5
U
5
10
20
30
40
50
60
L-R
dB
10
5
U
5
10
20
30
40
50
60
L-R
100Hz 100Hz 100Hz
LINE IN 13/14
GAIN
-20dB +20dB
U
OL
2
dB
10
5
U
5
10
20
30
40
50
60
L-R
ONYX MIC PRE
MIC/LINE
OL
3
dB
10
5
U
5
10
20
30
40
50
60
L-R
ONYX MIC PRE
MIC/LINE
OL
4
dB
10
5
U
5
10
20
30
40
50
60
L-R
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
LOW CUT
HI
12kHz
LOW
80Hz
OL
dB
10
5
U
5
10
20
30
40
50
60
L-R
-15 +15
-15 +15
OUT
IN
100Hz
-15 +15
ONYX MIC PRE
MIC
MID
2.5kHz
HI
12kHz
LOW
80Hz
OL
dB
10
5
U
5
10
20
30
40
50
60
L-R
-15 +15
-15 +15
OUT
IN
-15 +15
ONYX MIC PRE
MIC
MID
2.5kHz
HI
12kHz
LOW
80Hz
OL
dB
10
5
U
5
10
20
30
40
50
60
L-R
-15 +15
-15 +15
OUT
IN
-15 +15
ONYX MIC PRE
MIC
MID
2.5kHz
HI
12kHz
LOW
80Hz
OL
dB
10
5
U
5
10
20
30
40
50
60
L-R
-15 +15
-15 +15
OUT
IN
13/14
OL
dB
10
5
U
5
10
20
30
40
50
60
L-R
HOLD TO PAIR
ON/OFF
OL
0dB=0dBu
MAIN
METERS
15
10
6
3
0
2
4
7
10
20
30
L R
RUDE SOLO
AFL
PFL SOLO
SOLO
MASTER
MAX
CONTROL
ROOM
MAX
GAIN
U+60dB
M
I
C
G
A
I
N
GAIN
U+60dB
M
I
C
G
A
I
N
GAIN
U+60dB
M
I
C
G
A
I
N
GAIN
U+60dB
M
I
C
G
A
I
N
HI
12kHz
MID
FREQ
LOW
80Hz
-15 +15
ONYX MIC PRE
MIC/LINE
1
PAN
MON 1
MON 2
AUX
OFF MAX
OFF MAX
OFF MAX
L R
-15 +15
100 8k
1K
-15 +15
OUT
IN
100Hz
GAIN
U
-20dB +40dB
+60
HI
12kHz
MID
FREQ
LOW
80Hz
-15 +15
ONYX MIC PRE
MIC/LINE
2
HI-Z
PAN
MON 1
MON 2
AUX
LOW CUT
OFF MAX
OFF MAX
OFF MAX
L R
OFF
ON
OFF
ON
HI-Z
LOW CUT
-15 +15
100 8k
1K
-15 +15
OUT
IN
100Hz
GAIN
U
-20dB +40dB
+60
HI
12kHz
MID
FREQ
LOW
80Hz
-15 +15
PAN
MON 1
MON 2
AUX
LOW CUT
OFF MAX
OFF MAX
OFF MAX
L R
-15 +15
100 8k
1K
-15 +15
OUT
IN
100Hz
GAIN
U
-20dB +40dB
+60
OFF
ON
HI
12kHz
MID
FREQ
LOW
80Hz
-15 +15
PAN
MON 1
MON 2
AUX
LOW CUT
OFF MAX
OFF MAX
OFF MAX
L R
-15 +15
100 8k
1K
-15 +15
OUT
IN
100Hz
GAIN
U
-20dB +40dB
+60
PAN
MON 1
MON 2
AUX
OFF MAX
OFF MAX
OFF MAX
L R
PAN
MON 1
MON 2
AUX
OFF MAX
OFF MAX
OFF MAX
L R
PAN
MON 1
MON 2
AUX
OFF MAX
OFF MAX
OFF MAX
L R
PAN
MON 1
MON 2
AUX
OFF MAX
OFF MAX
OFF MAX
L R
PAN
MON 1
MON 2
AUX
OFF MAX
OFF MAX
L R
FX FX FX FX FX FX FX FX
MAIN
TO
MON 1
TO
MON 2
OFF MAX OFF MAX
PRESS TO SELECT
HOLD FOR SETTINGS
STUDIO COMMAND
STEREO RECORDING
AND PLAYBACK
SD
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE
SOLO
MUTE MUTE MUTE MUTE
SND
PAIR
EQ EQ EQ EQEQ EQ EQEQ EQ EQ EQ EQEQ EQ EQEQ
Onyx12 Mixer
To next Thump GO
loudspeaker input
To next Thump GO
loudspeaker input
Main
Outs
To next Thump GO
loudspeaker input
Thump GO loudspeakers may be daisy-chained via the male XLR connector labeled “THRU”. Simply plug the signal
source (i.e., mixer output or microphone) into the input jack(s), and patch that loudspeaker’s thru jack to the next
loudspeaker’s input jack, and so on, daisy-chaining multiple Thump GO loudspeakers. See above for visual representations
of daisy-chaining.
NOTE: Make sure to set the gain knob(s) correctly. In the top diagram, all input channes are set to “LINE”
and in the bottom diagram, input channel  of the first Thump GO is set to “MIC”, but the remaining ones should be set
to “LINE”. Keep in mind that these “MIC” and “LINE” markings are for reference only and may need to be raised or lower.

Owner’s Manual
9
Owner’s Manual
Thump GO: Rear Panel Features
Thump Connect 2 App
The Thump GO is designed to be used
in conjunction with the Thump Connect 2 App.
With it, all of the hardware features listed here –
and more! – may be controlled remotely via Bluetooth
connection. The only thing the Thump Connect 2 App
can’t do is turn the Thump GO on and o.
More information about the Thump Connect 2 App
may be found by visiting the Thump Connect 2 App
Reference Guide.
. Power Connection
This is a standard 3-prong IEC power connector.
Connect the detachable power cord (included in
the packaging with the Thump GO) to the power
receptacle, and plug the other end of the power
cord into an AC outlet.
Make sure that the AC power is matched
to the AC power indicated on the rear panel
(near the IEC receptacle).
Disconnecting the plug’s ground pin is
dangerous. Don’t do it!
2. Power Switch
Press the right side of this rocker switch inwards
to turn on the Thump GO. Press the lef side of this
rocker switch inwards to turn o the Thump GO.
As a general guide, the mixer (or other
signal source) should be turned on first,
subwoofers next, and loudspeakers last.
As such, the loudspeakers should also be turned
o first, followed by the subwoofers, then the mixer.
This will reduce the possibility of any turn-on or
turn-o thumps and other noises generated by any
upstream equipment from coming out of the speakers.
3. XLR and /4" Combo Input Jacks
Input channels  and 2 may accept a balanced XLR
connector. Both channels accept line-level inputs,
but only channel  accepts a mic. They are wired
as follows, according to standards specified by
the AES (Audio Engineering Society).
XLR Balanced Wiring:
Pin  = Shield (ground)
Pin 2 = Positive (+ or hot)
Pin 3 = Negative (– or cold)
2
31
SHIELD
COLD
HOT
SHIELD
COLD
HOT
3
2
1
In addition to accepting a balanced mic signal
using an XLR connector, these input channels may
also accept /4" line-level signals driven by balanced
or unbalanced sources.
To connect balanced lines to these inputs, use
a /4" Tip-Ring-Sleeve (TRS) plug. “TRS” stands
for Tip-Ring-Sleeve, the three connection points
available on a stereo /4" or balanced phone jack
or plug. TRS jacks and plugs are used for balanced
signals and are wired as follows:
/4" TRS Balanced Mono Wiring:
Sleeve = Shield
Tip = Hot (+)
Ring = Cold (–)
To connect unbalanced lines to these inputs,
use a /4" mono (TS) phone plug, wired as follows:
/4" TS Unbalanced Mono Wiring:
Sleeve = Shield
Tip = Hot (+)
NEVER connect the output of an amplifier
directly to a Thump GO input jack. This could
damage the input circuitry!
SLEEVE
TIPSLEEVE
TIP
RING
RING
TIP
SLEEVERING
SLEEVE
TIP
TIPSLEEVE
TIP
SLEEVE
2
3
6
9 0
4 6

5 7
2 3
5
7
8
4

Thump GO 8" Portable Battery-Powered Loudspeaker
10 Thump GO 8" Portable Battery-Powered Loudspeaker
Thump GO: Rear Panel Features continued...
4. /8" Input Jack [Ch. 2]
This input channel may accept an /8" line-level
signal from a phone, tablet, MP3 player, or other signal
source.
NEVER connect the output of an amplifier
directly to a Thump GO’s input jack.
This could damage the input circuitry.
The /8" line-level connection may be used
simultaneously with channel 2’s combo
jack – XLR or /4" – and/or Bluetooth
connection. In other words, if there is a physical
connection to the /8" line input, another physical
connection to the combo jack AND a device is
connected via Bluetooth, none of those inputs
will be interrupted. An easy way to look at it is...
there are extra inputs! The /8" line-level connection
and XLR (or /4") connection sum together
and do not override each other.
5. Mic / Line Switch [Ch. ]
Because an XLR connector may be connected
to a mic or an instrument, this switch adjusts
the channel’s input sensitivity to optimize channel 
for mic or line-level signals. If a mic is connected,
this switch should be engaged and the gain knob –
more below – set to mic. If an instrument is connected
to channel  (via XLR), this switch should be
disengaged and the gain knob set to line.
6. Gain Knobs [Ch.  and 2]
If you haven’t already, please read the “Quick Start”
section on page 4. Setting the gain correctly will ensure
that the preamplifier’s gain is not too high, where
distortion could occur, and not too low, where
the quieter, exquisitely-delicate passages might
be lost in background noise.
The gain knobs – in conjunction with the overload
LED – adjust the input sensitivity of the mic [Ch. ]
and line inputs. This allows signals from the outside
world to be adjusted to run through each channel
at optimal internal operating levels.
If the signal originates through the mic XLR jack,
there will be 0 dB of gain with the knob fully down,
ramping to 40 dB of gain fully up, with unity gain “U”
at 2:00.
Through the /4" line inputs, there is –20 dB
of attenuation fully down and +20 dB of gain fully
up, with unity gain “U” at 2:00.
If connecting mixer outputs to Thump GO
inputs, set the gain knobs to 9:00 [“LINE”]
for optimal sound and performance.
Keep in mind that these “MIC” and “LINE”
markings are for reference only and may
need to be raised or lower.
7. Thru Jack
This is a balanced male XLR-type connector
that produces a mono-summed pre-DSP mix
from all input jacks. It is not aected by the main
volume. Use it to connect an additional Thump GO
or subwoofer o of the same signal source.
It is wired as follows, according to standards
specified by the AES (Audio Engineering Society):
Balanced XLR Output Connector
Pin  – Shield (ground)
Pin 2 – Positive (+ or hot)
Pin 3 – Negative (– or cold)
8. Main Knob
The level knob adjusts the overall signal level
at the input to the built-in power amplifiers.
It ranges from – (o, knob fully down) up
to max (+6 dB, knob fully up), with unity gain
at the center position (2 o’clock).
• Thump GO is designed to operate with a +4 dBu
average line signal when the main knob and the line
input gain are at the center position (unity).
• Thump GO may accept up to a +20 dBu line signal
by turning down the line input gain accordingly
(with the Ch.  mic / line switch disengaged – line).
If the overload LED illuminates, slowly turn down
the input gain until the warning disappears.
• If the Ch.  mic / line switch is engaged [mic],
turning up the channel  gain knob will provide
enough gain to connect a microphone directly.
Start with the main at the center position,
and don’t be afraid to crank the channel  mic gain.
9. Voicing Modes
The voicing mode allows you to change the
Thump GO’s voicing to tailor it to best suit your
particular application. Press the voicing mode
button repeatedly until the LED of the voicing
mode you desire is illuminated.
The four speaker modes are as follows:
• MUSIC Voicing Mode – This mode is full range,
but focuses on increased bass and brilliant high
frequencies. This is the place to start for most DJ /
music playback applications.
• SPEECH Voicing Mode – This mode features
a significant low frequency roll-o to attenuate
low-end vocal boom. It also adds boost to high
2
1
SHIELD
COLD
HOT
3
SHIELD
COLDHOT
3
2
1

Owner’s Manual
11
Owner’s Manual
frequencies – critical for speech intelligibility – and
notches part of the spectrum where feedback squeal
commonly lives. Additionally, a dedicated compressor
engages in this mode to help control the aggressive
dynamics generated by speech. This process chain
is perfect for applications where highly amplified,
intelligible speech is the desired output.
• MONITOR Voicing Mode – Monitor mode
was tailored to reduce excess low frequency output
when coupled with the ground, while also reducing
mid-range bite for the artist(s).
This mode should only be engaged when
the speaker is in its monitor orientation
on a stage or floor... if not, the low-end
will sound very lean.
• SUB Voicing Mode – This mode rolls o a little
bit of the low end so you get approximately 3 dB
of extra output from the Thump GO. If you are also
using the Thump GO to high-pass the signal to be sent
to a subwoofer – instead of using the high-pass out
of a subwoofer – then you can use this mode in place
of ‘Music’ mode to benefit from the extra output.
• MEGAPHONE Voicing Mode – This mode
automatically amplifies the overall output.
Megaphone is the voicing mode to select when
“quiet talkers” are giving a speech or presentation.
• WHISPER Voicing Mode – This mode automatically
reduces the overall output. Whisper is the voicing
mode to select when exceptionally “loud talkers”
are essentially shouting a speech or presentation.
0. Outdoor Mode
Regarding outdoor mode... in a sentence, choose
whether you are using Thump GO inside or outside.
The speaker’s voicing is altered to the environment.
That’s all you need to know, but we’re going to give
you more!
When speakers are outside, a combination
of low and high frequencies don’t build up
the way they do inside. Thump GO corrects
for that by boosting the frequency ranges that
become deficient so the speaker sounds the same
outside as when it’s inside. You make the selection,
we’ll do the rest!
The outdoor mode LED will illuminate green when
engaged (outdoors).
W
20 39 
. Music Ducking
Have you been to an event where music was playing,
then when someone spoke into the mic, that the music
volume decreased greatly (but was still there)? That’s
called “music ducking”!
When the music ducking switch is engaged,
the channel 2 level will decrease when a mic signal
is present on channel . Additionally, the LED will
illuminate green. As if by magic, once the speaking is
completed, the music will return back to its previous
level. True wizards, those engineers... and none of them
have long grey beards, robes and pointy hats.
The audio nerds out there might like
to know that the channel 2 level decreases
by 5 dB when a mic signal is present
in channel  (and when auto-ducking
is engaged, of course).
2. Feedback Eliminator
The multi-band feedback eliminator hunts
down oending feedback frequencies and applies
up to six notch filters automatically to destroy
feedback and maximize gain prior to feedback.
This is a great tool for when an engineer is not present.
• O [Default] – The feedback eliminator is not
engaged. If filters have been applied, this setting will
retain its current filter settings if there are any, but they
will not be engaged until it is turned back on.
• On – When the automatic feedback eliminator is
turned on, scanning occurs continuously. The six filters
will engage sequentially when feedback is present until
all are used and then it will be locked. If feedback is
identified on an existing filter, the notch will deepen in
three steps to further destroy the oending feedback
frequency. Pretty cool, huh?! The LED will illuminate
green when engaged.
The feedback eliminator ONLY aects
channel  (mic and line mode).
When two Thump GO loudspeakers
are linked together in stereo mode,
the feedback eliminator should only
be engaged on the primary Thump GO.
3. Front LED
There is a single horizontal LED bar located near the
bottom-front of each Thump GO. This LED illuminates
green when the front LED switch is engaged.
Additionally, the switch’s LED will illuminate green.
Disengage the switch if you do not want the front panel
LED to illuminate. We like to call this ‘stealth’ mode.
An important note regarding the LED
on the front of your Thump GO.
When Thump GO is powered o
(but still plugged in), the LED functions
as the battery charging level indicator. The front LED
will slow-flash green in increments of 700 ms (700ms
on / 700 ms o). Once fully charged, the LED will stay
illuminated green (no flash).
Thump GO: Rear Panel Features continued...

Thump GO 8" Portable Battery-Powered Loudspeaker
12 Thump GO 8" Portable Battery-Powered Loudspeaker
4. Bluetooth / Pair
While not a “physical” connection, stereo channel 3/4
is considered the Bluetooth channel and its volume
is raised and lowered via the device.
This is how to connect your device to the Thump GO
via Bluetooth! Read on...
Upon powering up the Thump GO, the Bluetooth
function is either:
() In sleep mode. See ‘Pairing and connecting
for the first time’ (below) or...
(2) ...Paired and connected. See ‘Previously paired
and connected devices’ (also below).
Pairing and connecting for the first time:
To enter pairing mode, press and hold the pair switch
down for at least three seconds. The LED will illuminate
and slow flash blue for approximately 30 seconds while
in pairing mode. [The LED will continue to flash until it
has successfully paired and connected].
While Thump GO is in pairing mode, simultaneously
scan for Bluetooth devices on your device. You should
see Thump GO appear in the list of “available devices”.
Select it by tapping it. From there, your Bluetooth
device should indicate that it is successfully
connected. Additionally, the pair button will stop
flashing and remain solid blue. If it does not, start
the pairing process again, and make sure that Thump
GO and your device are both in pairing mode at the
same time.
Previously paired and connected devices:
The Bluetooth connection will disconnect if it’s out
of range or if Thump GO is powered o. Previously
paired and connected devices will automatically
reconnect (unless turned o via the Thump Connect 2
App) and the pair button will once again illuminate a
brilliant blue.
To drop the device from being paired with
the Thump GO, press and hold the ‘Bluetooth
Pair’ button down for at least three seconds.
The Bluetooth connection may disconnect
when aected by electrostatic discharge
(ESD) or electrical fast transients (EFT).
If this occurs, manually reconnect the Bluetooth
connection.
As mentioned earlier, a Bluetooth connection
may be used simultaneously with the combo
jacks – XLR or /4" – and/or /8" line-level
connection. In other words, if there is a physical
connection to the /8” line input, another physical
connection to the combo jack AND a device
is connected via Bluetooth, none of those inputs
will be interrupted. An easy way to look at it is...
there are extra inputs!
If a phone – or two dierent phones – have
been paired via Bluetooth with two Thump GO
loudspeakers, they will not link.
The options are either () one phone connected
via Bluetooth and Thump GO loudspeakers may
be linked or (2) two phones connected via Bluetooth
to two dierent Thump GO loudspeakers and they
may be not be linked.
5. Speaker Link
Two Thump GO loudspeakers may either be linked
together or separate (i.e. not linked). Additionally, there
are options when linked, as they support stereo and
zone (dual mono) linking. However, those features are
only available when connected to the Thump Connect 2
App. It will default to stereo with just the hardware.
To link:
In order to link two Thump GO loudspeakers, press
and hold the ‘Link’ momentary switch / LED down on
the primary Thump GO loudspeaker until the blue LED
illuminates and begins slow-flashing.
Within (approximately) 30 seconds, a quick press
and release of the ‘Link’ button on the secondary
Thump GO allows both units to “see” each other,
handshake and link. The LEDs on both units will stop
flashing and remain solid, indicating great success!.
The Thump GO loudspeakers will continue
to auto-link on every power-up unless this
feature is turned o via the Thump Connect
2 App.
To unlink:
In order to unlink the two Thump GO loudspeakers,
press and hold the ‘Link’ momentary switch / LED down
on one of the Thump GO loudspeakers until the blue
LED turns o. The other Thump Go will automatically
unlink and the LEDs on both units will turn o.
If a phone – or two dierent phones – have
been paired via Bluetooth with two Thump GO
loudspeakers, they will not link. The options
are either () one phone connected via Bluetooth and
Thump GO loudspeakers may be linked or (2) two
phones connected via Bluetooth to two dierent Thump
GO loudspeakers and they may be not be linked.
4 5 6 7
Thump GO: Rear Panel Features continued...
