MacroMedics ®CT CouchTops
for Siemens cradles
MANUAL 140000
Instructions for use
English Instructions

Manual
Instructions for use CT CouchTops for Siemens cradles
2
26042021V4IFU140000 MacroMedics ®
Table of Contents
1. Warnings 3
2. MRI Safety Information 3
3. Intended Use 3
4. Installation Instructions 4
5. Cleaning, Storage and Disposal 18
6. Warranty 18
7. Notices 18
8. Glossary of Symbols 19

Manual
Instructions for use CT CouchTops for Siemens cradles
3
26042021V4IFU140000 MacroMedics ®
1. Warnings
• Inspect the device thoroughly before use. Do not use the device if damaged or if missing parts.
• Check individual components on MR-safety when used together in a patient positioning system.
• Do not use MR unsafe items in an MR environment.
• Place and x the device properly before positioning the patient. Only position the patient if
the CouchTop is locked properly.
• Make sure that the patient lays down calmly.
• Prevent the surface from damaging and scratching.
• Do not sit at the cranial side of the CouchTop.
• Only unlock the CouchTop from the Siemens Cradle when the CouchTop is unloaded.
• In the USA, federal law restricts this device to sale by or on the order of a licensed healthcare
practitioner.
2. MRI Safety Information
MR UNSAFE:
The following devices are MR unsafe:
• 140100 CT Couchtop, CT140100
• 140120 CT Couchtop, CT140120
• 140150 CT Couchtop, CT140150
• 140170 CT Couchtop, CT140170
• 140220 CT CouchTop, CT140220
• 140250 CT Couchtop, CT140250
• 140260 CT Couchtop, CT140260
• 140270 CT Couchtop, CT140270
• 140280 CT Couchtop, CT140280
• 140290 CT Couchtop, CT140290
• 140300 CT CouchTop, CT140300
• 140340 CT Couchtop, CT140340
• 140350 CT CouchTop, CT140350
• 140450 CT Couchtop, CT140450
• 140470 CT Couchtop, CT140470
• 140490 CT Couchtop, CT140490
3. Intended Use
Positioning of the patient during radiotherapy and radiodiagnostics, including MR where indicated.

Manual
Instructions for use CT CouchTops for Siemens cradles
4
26042021V4IFU140000 MacroMedics ®
4. Installation Instructions
4.1 CouchTop installation for the Siemens Sensation cradles.
(CouchTop 140100 & 140120)
I. At the cranial end of the CouchTop, loosen the four screws of the spoon (circled) with an Allen
key and position the CouchTop above the cradle.
II. Carefully place the CouchTop on the cradle as shown below.
III. Slide the CouchTop towards the caudal end. Make sure that the CouchTops’ spoon, at the
cranial end, slides into the designated hole in the cradle.

Manual
Instructions for use CT CouchTops for Siemens cradles
5
26042021V4IFU140000 MacroMedics ®
IV. Check if the indexing plunger, at the caudal end, has correctly slided into the designated hole
in the CouchTop.
V. Tighten the four screws from step one.
4.2 CouchTop installations for the Siemens Somatom Denition cradles.
(CouchTop 140150 & 140170)
I. Place the xation strip on the caudal side of the cradle and tighten the screws (circled) on both
sides.

Manual
Instructions for use CT CouchTops for Siemens cradles
6
26042021V4IFU140000 MacroMedics ®

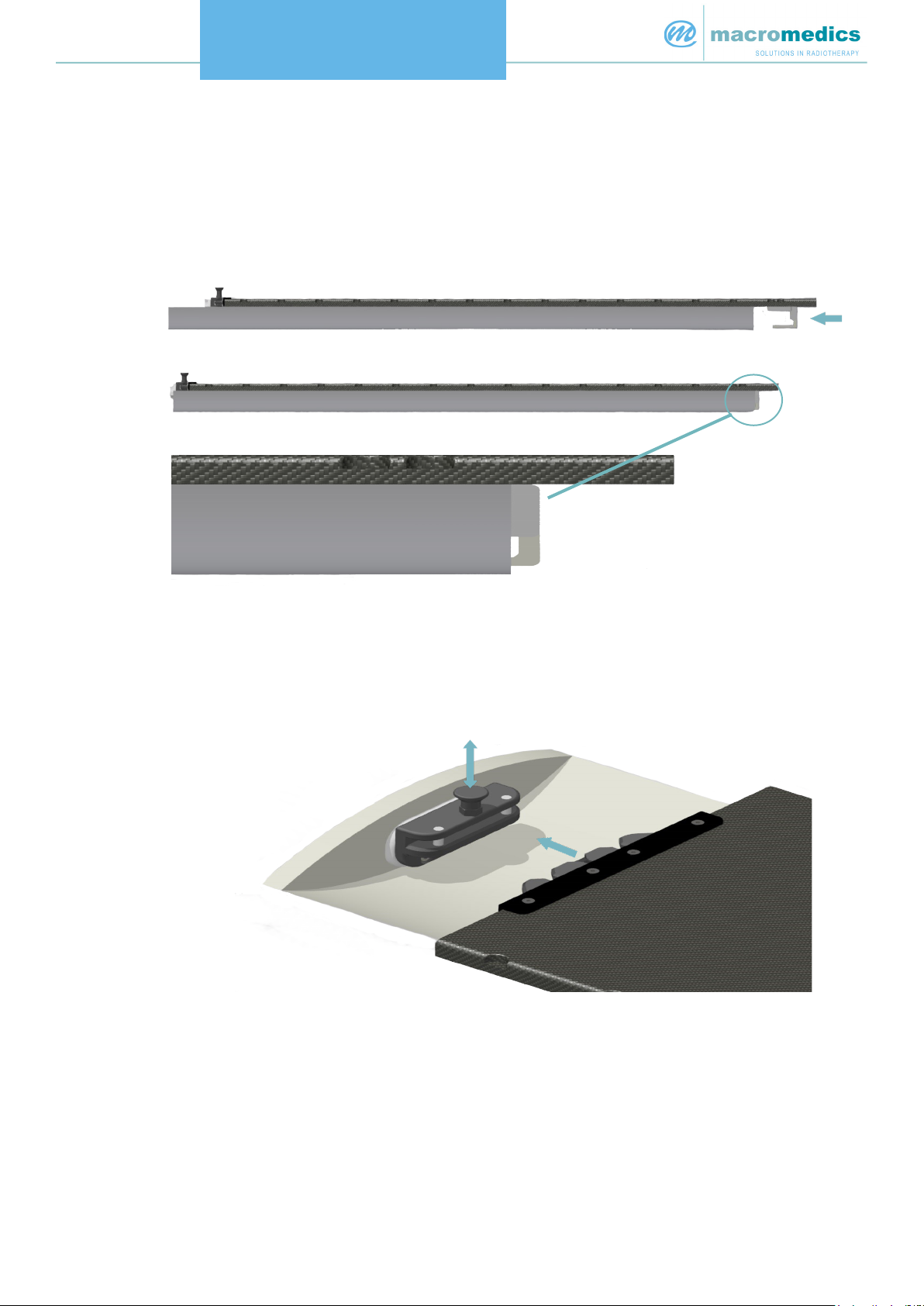

II. At the cranial end of the CouchTop, loosen the four screws of the spoon (circled) with an Allen
key.
III. Position the CouchTop above the cradle and carefully place the CouchTop on the cradle.
IV. Slide the CouchTop towards the caudal end of the cradle.
Now that the caudal strip is approaching, pull the indexing plunger knobs and place the
CouchTop against the caudal strip. After placing the CouchTop, release the indexing plunger
knobs to x the CouchTop to the cradle.

Manual
Instructions for use CT CouchTops for Siemens cradles
7
26042021V4IFU140000 MacroMedics ®
V. Make sure that the CouchTops’ spoon, at the cranial end (circled), slides into the designated
hole in the cradle.
VI. Tighten the four screws from step two.
4.3 CouchTop installation for the Siemens Somatom Emotion cradle.
(CouchTop 140220)
I. Mount the caudal block to the the cradle as shown below:
II. At the cranial end of the CouchTop, loosen the four screws of the spoon (circled) with an Allen
key.

Manual
Instructions for use CT CouchTops for Siemens cradles
8
26042021V4IFU140000 MacroMedics ®

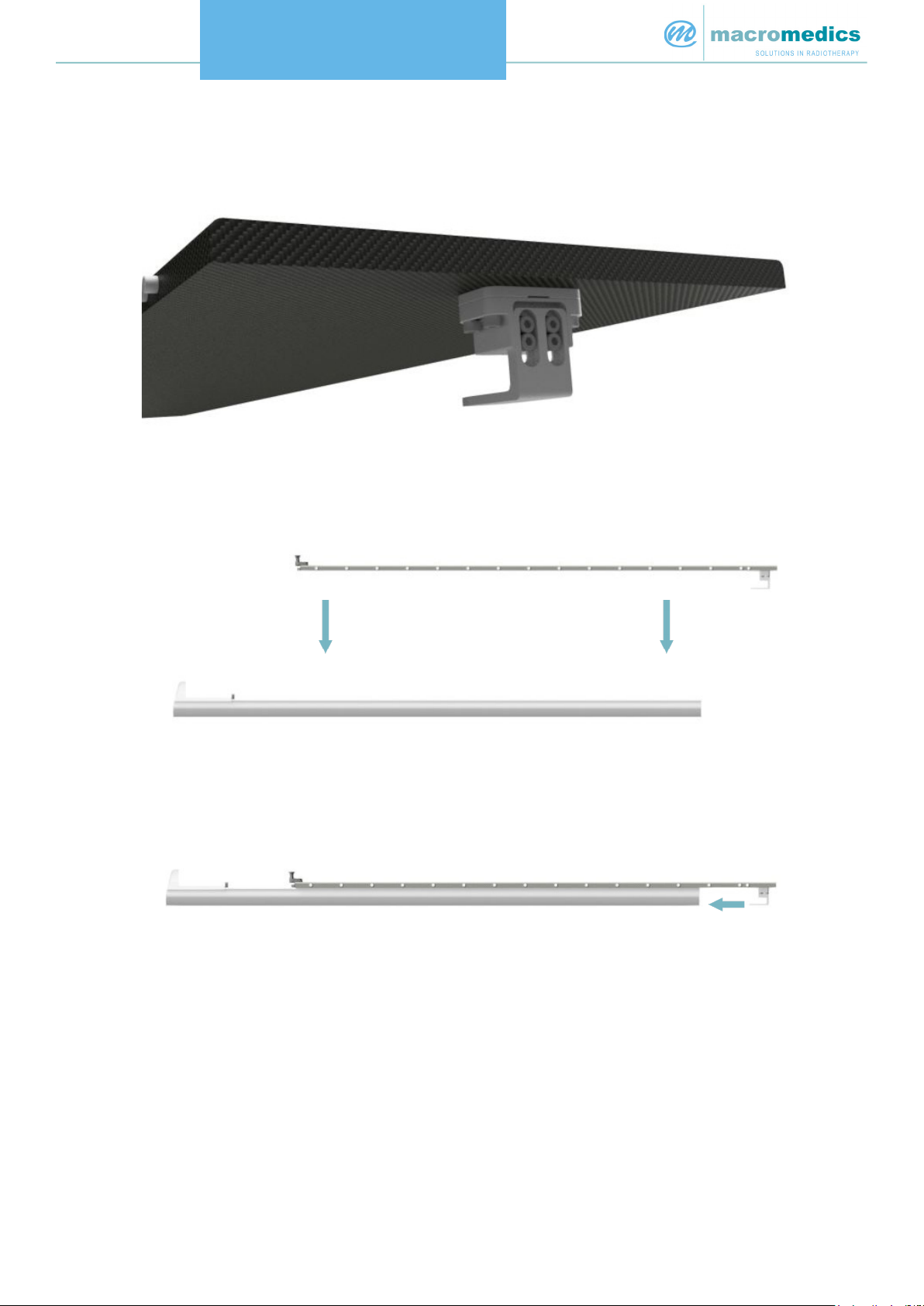

III. Position the CouchTop above the cradle and carefully place the CouchTop on the cradle.
Slide the CouchTop towards the caudal end of the cradle.
Make sure that the CouchTops’ spoon, at cranial end (circled), slides into the designated hole in
the cradle.
IV. Now that the caudal end is approaching the caudal block, pull the indexing plunger knob and
push the CouchTop against the caudal block. Once in place, release the indexing plunger knob
to secure the CouchTop to the cradle.
V. Tighten the four screws from step two, located at the cranial side.

Manual
Instructions for use CT CouchTops for Siemens cradles
9
26042021V4IFU140000 MacroMedics ®
4.4 CouchTop Installation for the Siemens Biograph mCT New Couch.
(CouchTop 140250, 140260, 140270, 140280 & 140290)
I. Open the cradle cover and place the metal cradle plate, with the use of the original screws.
II. Place the holding block on the metal cradle plate. Adjust the height if necessary and tighten the
screws (circled) with an Allen key.

Manual
Instructions for use CT CouchTops for Siemens cradles
10
26042021V4IFU140000 MacroMedics ®
III. At the cranial end of the CouchTop, loosen the four screws of the spoon (circled) with an Allen
key and position the CouchTop above the cradle.
IV. Slide the CouchTop towards the caudal end of the cradle. Take care that the CouchTop
aperture ts the holding block.
V. Make sure that the CouchTops’ spoon, at cranial end (circled), slides into the designated hole in
the cradle.

Manual
Instructions for use CT CouchTops for Siemens cradles
11
26042021V4IFU140000 MacroMedics ®

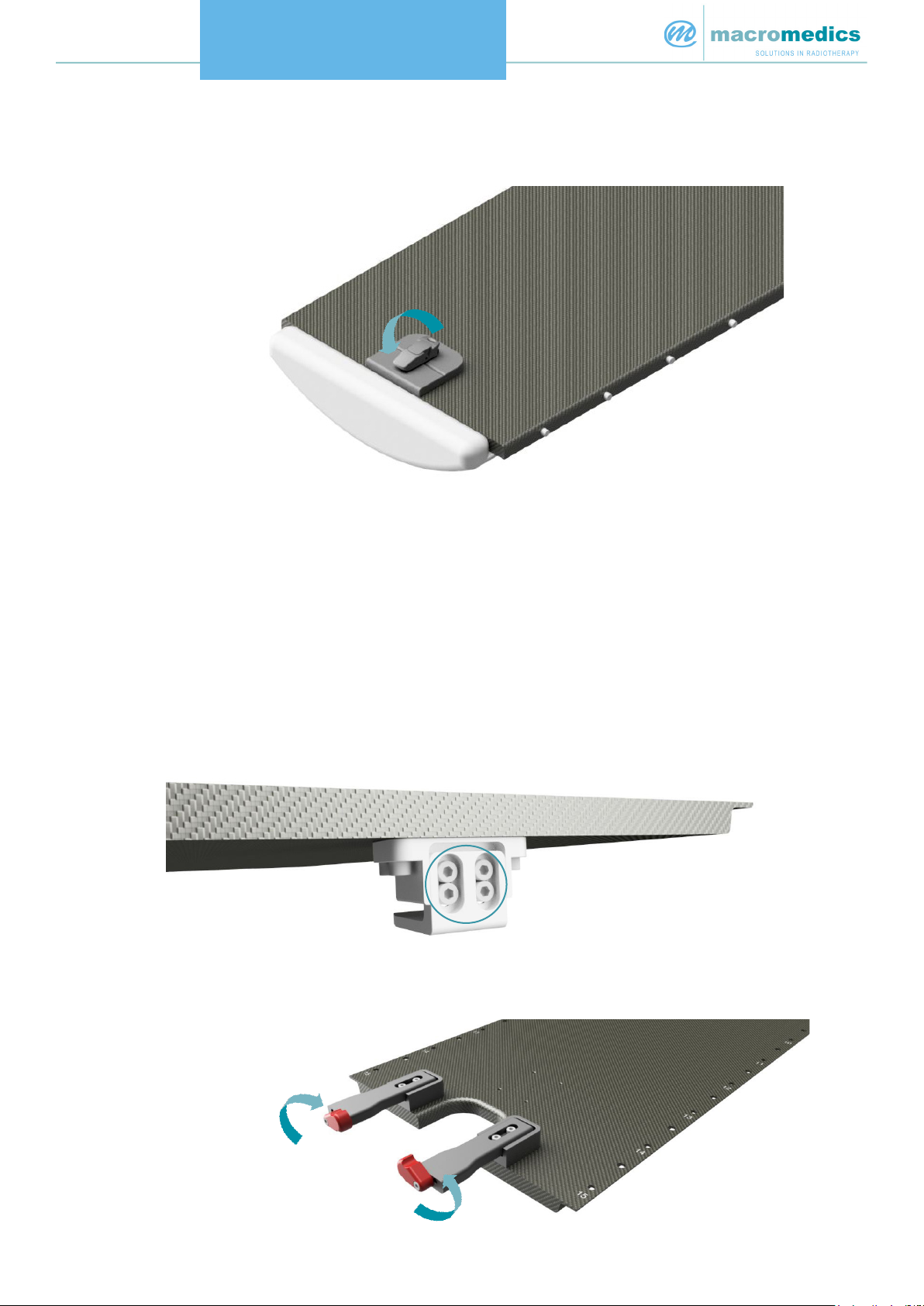

VI. Lock the caudal side of the CouchTop by turning the knob of the latch in caudal direction.
VII. Tighten the four screws from step three, located at the cranial side.
4.5 CouchTop installation for the Siemens Gammacamera & Symbia cradles.
(CouchTops 140300 & 140340)
I. At the cranial end of the CouchTop, loosen the four screws of the spoon (circled) with an Allen
key and position the CouchTop above the cradle.
II. Loosen the four CT locker screws with an Allen key at the caudal side of the CouchTop and
turn the clamps to medial.

Manual
Instructions for use CT CouchTops for Siemens cradles
12
26042021V4IFU140000 MacroMedics ®

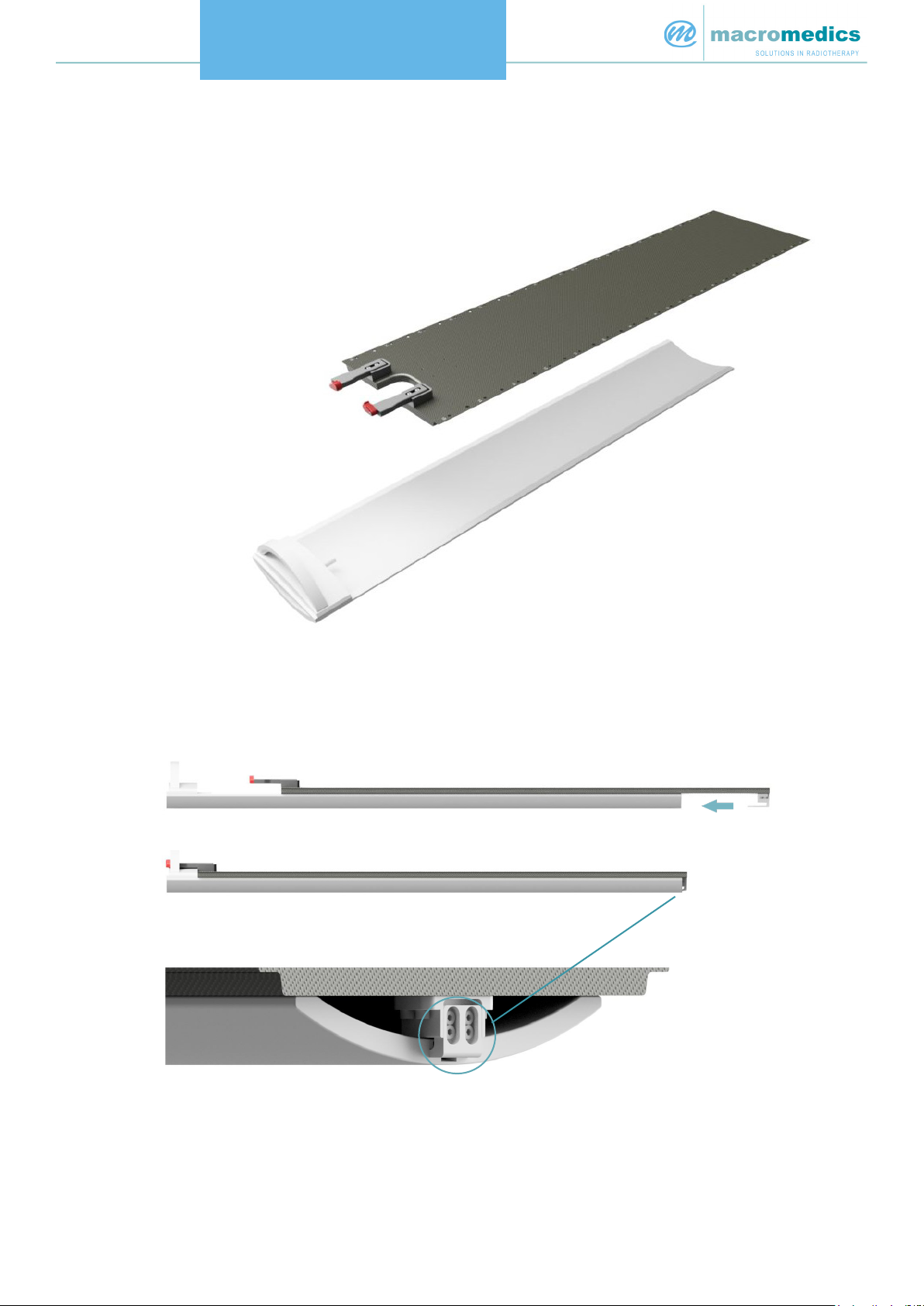

III. Position the CouchTop above the cradle and carefully place the CouchTop onto the cradle.
IV. Slide the CouchTop towards the caudal end of the cradle. Make sure that the CouchTops’
spoon, at cranial end (circled), slides into the designated hole in the cradle and that the
CouchTop lays at against the caudal part of the cradle.

Manual
Instructions for use CT CouchTops for Siemens cradles
13
26042021V4IFU140000 MacroMedics ®
V. If needed, adjust the CT lockers to eliminate play in longitudinal direction. Turn the clamps
lateral, place them against the caudal arch and tighten the screws.
VI. Tighten the four screws from step one.
4.6 CouchTop installation for the Siemens Biograph mCT old Couch.
(CouchTop 140350, 140370 & 140390)
I. Screw the caudal block on the caudal side of the cradle using the original screws.
Place shims if necessary.

Manual
Instructions for use CT CouchTops for Siemens cradles
14
26042021V4IFU140000 MacroMedics ®
II. At the cranial end of the CouchTop, loosen the four screws of the spoon (circled) with an Allen
key.
III. Position the CouchTop above the cradle and carefully place the CouchTop on the cradle.
IV. Slide the CouchTop towards the caudal end of the cradle.
V. Make sure that the CouchTops’ spoon, at cranial end (circled), slides into the designated hole in
the cradle and that the CouchTop lays at against the caudal part of the cradle.

Manual
Instructions for use CT CouchTops for Siemens cradles
15
26042021V4IFU140000 MacroMedics ®

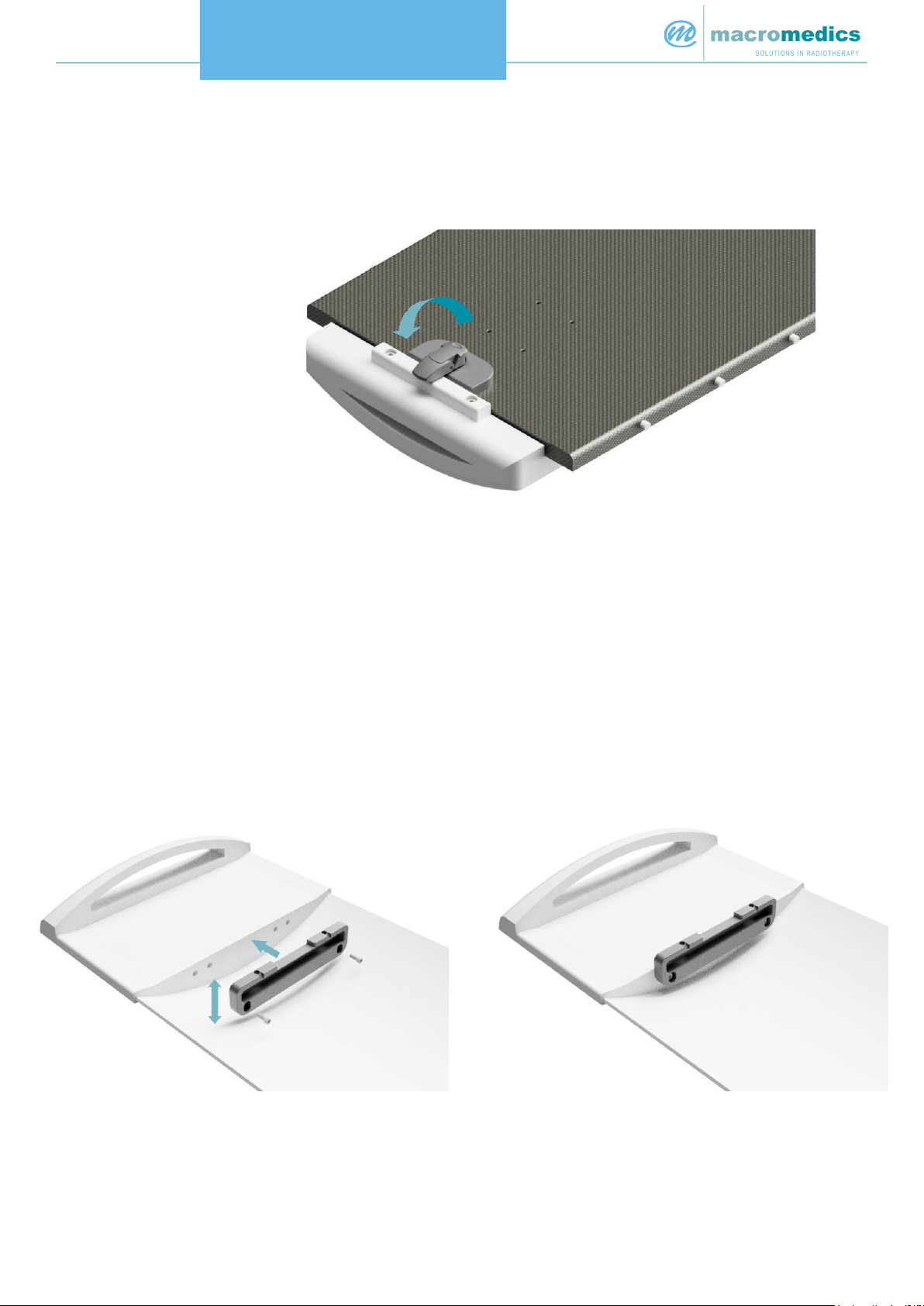

VI. Turn the latch caudal to lock the CouchTop in longitudinal direction. Check if the latch can
close properly without any play in longitudinal direction after locking. If necessary, the latch
block can be adjusted in longitudinal position to remove any logitudinal play.
VII. Tighten the four screws from step two, located on the spoon at the cranial side.
4.7 CouchTop installation for the Siemens Somatom Denition AS cradles.
(CouchTops 140450, 140470 & 140490)
I. Attach the caudal block with the delivered screws and use an Allen key to tighten them.
If needed, the caudal block can slightly be adjusted in height.

Manual
Instructions for use CT CouchTops for Siemens cradles
16
26042021V4IFU140000 MacroMedics ®
II. Loosen the screws of the CouchTops’ spoon with an Allen key at the cranial side of the
CouchTop.
III. Position the CouchTop above the cradle and place the CouchTop carefully on the cradle.
IV. Slide the CouchTop towards caudal.

Manual
Instructions for use CT CouchTops for Siemens cradles
17
26042021V4IFU140000 MacroMedics ®
V. As the CouchTop approaches the caudal block of the cradle, pull the two indexing plunger
knobs and place the CouchTop at against the caudal block. When the couchtop is in place,
release the indexing plunger knobs to secure the couchtop to the cradle.
VI. Make sure that the CouchTop spoon slides in the cradle and tighten the screws.

Manual
Instructions for use CT CouchTops for Siemens cradles
18
26042021V4IFU140000 MacroMedics ®
5. Cleaning, Storage and Disposal
• Clean the device before and after every use with 70% Isopropanol or soapy water, applied with a
soft cloth. Rinse with water and dry properly. Follow the cleaning precautions detailed on the
bottle of the cleaning agent.
• If unsure about the cleaning uid, do not use it. Never use Ethanol (Ethyl alcohol), aerosol sprays,
corrosive cleaning agents, solvents or abrasive detergents.
• Make sure that there is no residue of the cleaning agent left on the device prior to use.
• The devices are not suitable for sterilization or thermal disinfection.
• Store the device in a clean, ventilated environment.
• Dispose of the device in accordance with the local laws and regulations applicable to your
country.
6. Warranty
The MacroMedics products are warranted to be free from defects in manufacturing, material and
construction. The warranty is for 1 year starting from the date of delivery.
Product warranties remain valid provided the product was installed and/or used according to the
instructions. Defects, malfunctions or failures caused by nature, misuse, abuse and unauthorised
alteration or repair are not warranted.
This warranty is limited to the repair and/or replacement at the sole discretion of MacroMedics.
7. Notices
Any serious incident that has occurred in relation to the device should be reported to the manufacturer
and the competent authority of the Member State in which the user or patient is established.

Manual
Instructions for use CT CouchTops for Siemens cradles
19
26042021V4IFU140000 MacroMedics ®
8. Glossary of Symbols
Symbol Symbol Name Description of Symbol
European Conformity
EC declaration of conformity by manufacturer.
Manufacturer
Indicates the medical device manufacturer.
Catalogue Number
Indicates the manufacturer’s catalogue number so that the
medical device can be identied.
GS1 Code: (21)
Serial Number
Indicates the manufacturer’s serial number so that a specic
medical device can be identied.
Consult Instruction for Use
Indicates the need for the user to consult the instructions for
use.
Caution
Indicates the need for the user to consult the instructions for
use for important cautionary information such as warnings
and precautions that cannot, for a variety of reasons, be
presented on the medical device itself.
Prescription Only
Devices for sale to physicians or trained healthcare providers
only.
MR Unsafe
An item which poses unacceptable risks to the patient,
medical staff or other persons within the MR environment.
