Maddog MDGX17l User manual

Maddog™ Portable Mixing System Owner’s Manual
1

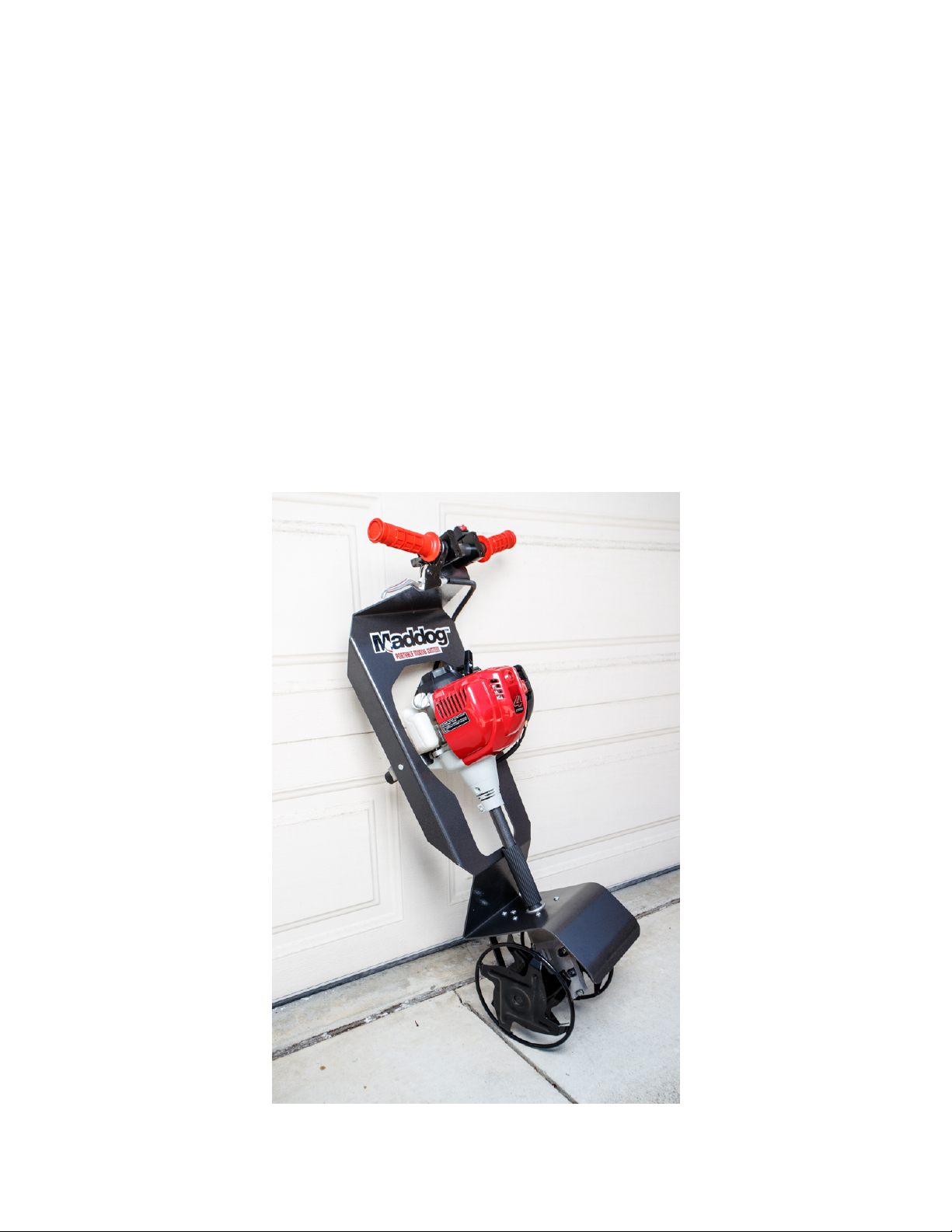

MaddogTM
Portable Mixing System
With Honda 4-Stroke Engine
Owner’s Manual

Maddog™ Portable Mixing System Owner’s Manual
2
Table of Contents
INTRODUCTION 3
SAFETY RULES AND WARNINGS 2
TRANSPORTING MADDOG™ 7
STARTING MADDOG™ 8
STOPPING MADDOG™ 8
OPERATING INSTRUCTIONS 9
CLEANING INSTRUCTIONS 10
REPLACING BLADES 11
STORAGE 12
LIMITED WARRANTY INFORMATION 12

Maddog™ Portable Mixing System Owner’s Manual
3
Introduction
Congratulations on your purchase of a MaddogTM Mixer - the world’s best portable
cement mixing system - designed specifically for mixing various types of aggregate by
the construction professional!
The MaddogTM portable mixing system comprises a unique, portable hand-held cement
mixer that integrates with a specialized tub and can thoroughly mix cement, grout, stucco
and mortar quickly and easily at virtually any job site. The MaddogTM mixing system is
available in both a gas-powered and electric-powered models.
The MaddogTM portable mixing system offers a complete portable “mixing system”
(MPMS) that combines the portability and performance of a hand-held aggregate mixer
and a specially designed mixing tub that acts as a convenient carrying case. The entire
system weighs less than 40 pounds and can fit in the bed of a truck, or the trunk or back
seat of most sedans. The tub’s design allows for precise batch mixing of all types of
bagged aggregate and specialty materials commonly found in the construction trades.
Consistent blending of materials is achieved through the interaction of the unique mixing
blades and the shape of the interior of the mixing tub.
The MaddogTM portable mixing system has the ability to adapt to the size of the mixing
job through either the rapid replenishment of mix in the tub, or the utilization of
additional tubs, such that one tub is being poured while the additional tub is being mixed.
The ability to more precisely match the amount mixed with the demands of the job
enables MaddogTM portable mixing system to provide an immediate cost reduction and
labor savings to the end user. Extensive marketing and field research has shown that the
MaddogTM portable mixing system fills an important niche between two existing mixing
technologies: the inexpensive, but very unproductive paddle mixers and the far more
expensive traditional tow-behind drum mixers that most contractors detest.
The MaddogTM portable mixing system provides a truly simple, but unique design
concept that will absolutely revolutionize the cement mixing world.

Maddog™ Portable Mixing System Owner’s Manual
4
Safety Rules & Warnings
You will notice Safety Rules and Important Notes throughout this Owner’s Manual.
Make sure you understand and obey these warning for your own protection.
Also pay attention to any and all warnings included in the Honda gas-powered engine
owner’s manual or electric-powered owner’s manual.
I. Special Safety Information
“WARNING DANGER: ATTENTION: THIS SYMBOL POINTS OUT OUR
IMPORTANT SAFETY INSTRUCTIONS. WHEN YOU SEE THIS SYMBOL,
HEED ITS WARNING!! STAY ALERT!!”
“WARNING DANGER: TO REDUCE THE POTENTIAL FOR ACCIDENTS,
COMPLY WITH THE SAFETY INSTRUCTIONS IN THIS MANUAL. FAILURE
TO COMPLY MAY RESULT IN SERIOUS PERSONAL INJURY, AND/OR
EQUIPMENT AND PROPERTY DAMAGE.”
II. Safety & Warnings.
“WARNING DANGER: IMPROPER USE OR CARE OF THIS MIXER OR
FAILURE TO WEAR PROPER PROTECTION CAN RESULT IN SERIOUS
INJURY. READY AND UNDERSTAND THE RULES FOR SAFE OPERATION
AND ALL INSTRUCTIONS IN THE MANUAL. WEAR HEARING AND EYE
PROTECTION.”
WARNING: The Engine Exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects or other reproductive harm.

Maddog™ Portable Mixing System Owner’s Manual
5
Safety Decal Information
An important part of the safety system incorporated in this mixer is the warning and
information decals found on various parts of the mixer. These decals must be replaced
over time due to abrasion, etc. It is your responsibility to replace these decals when they
become hard to read. The location and part numbers (P/N) of these decals are illustrated
below.
“WARNING DANGER: IF THE MIXER IS USED IMPROPERLY OR SAFETY
PRECAUTIONS ARE NOT FOLLOWED, THE USERS RISK SERIOUS INJURY
TO THEMSELVES AND OTHERS. READ AND UNDERSTAND THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MIXER.”
WARNING – Do’s
Read and understand the owner’s manual. Pay particular attention to all sections
regarding safety.
1. Always keep a firm grip on both handles while the mixing blades are moving
and/or the engine is running. BE AWARE!! The tine may coast after throttle
trigger is released. Make sure blades have come to a complete stop and engine is
off before letting go of the mixer.
2. Always maintain a firm footing and good balance. Do not overreach while
operating the mixer. Before you start to use the mixer, check the work area for
obstacles that might cause you to lose your footing, balance or control of the
machine.
3. Thoroughly inspect the area where equipment is to be used and remove all
objects, which can be thrown by the machine.
4. Always keep area clear of children, pets and bystanders.
5. Always stay alert. Watch what you are doing and use common sense. Do not
operate unit when fatigued.

Maddog™ Portable Mixing System Owner’s Manual
6
6. Always dress properly. Do not wear
loose clothing or jewelry as they might
get caught in the moving parts. Use
sturdy gloves. Gloves reduce the
transmission of vibration to your
hands. Prolonged exposure to vibration
can cause numbness and other
ailments.
7. While working, always wear substantial footwear and long trousers. Do not
operate the equipment when barefoot or wearing open sandals.
8. Always, wear ear and eye protection. Eye protection must meet ANSI Z 87.1. To
avoid hearing damage, we recommend hearing protection be worn whenever
using the equipment.
9. To reduce fire hazard, keep the engine, and petrol/gas storage area free of
vegetative material and excessive grease.
10. Start the engine carefully, according to the manufacturer’s instructions and with
feet well away from tool(s).
11. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working
condition.
12. Use extreme caution when reversing or pulling the machine towards you.
13. Work only in daylight or good artificial light.
14. Always be sure of your footing on slopes.
15. Exercise extreme caution when changing direction on slopes.
16. Always keep a safe distance between two or more people when working together.
17. Always inspect your unit before each use and ensure that all handles, guards and
fasteners are secure, operating, and in place.
18. Always maintain and examine your mixer with care. Follow maintenance
instructions given in manual.
19. Always store mixer in a sheltered area (a dry place), not accessible to children.
The mixer as well as fuel should not be stored in a house.

Maddog™ Portable Mixing System Owner’s Manual
7
WARNING – Don’ts
Don’t use mixer with one hand. Keep both hands on handles with fingers and thumbs
encircling the handles, while blades are moving, and engine is running.
Don’t overreach. Keep a good footing at all times.
Don’t run with the machine, walk.
Don’t work on excessively steep slopes.
Don’t attempt to clear blades while they are moving. Never try to remove jammed
material before switching the engine off and making sure the blades have stopped
completely.
Don’t allow children or incapable people to operate this mixer.
Don’t operate while under the influence of alcohol or drugs.
Don’t attempt to repair this mixer. Have repairs made by a qualified dealer or repairman.
See that only original Maddog™ parts are used.
“WARNING DANGER.: HANDLE FUEL WITH CARE, IT IS HIGHLY
INFLAMMABLE. FUELING A HOT ENGINE OR NEAR AN IGNITION CAN
CAUSE A FIRE AND RESULT IN SERIOUS PERSONAL INJURY AND/OR
PROPERTY DAMAGE.”
Transporting Maddog™
Carry it.
Make sure the engine is off then use one hand to grasp the convenient carrying handle.
Use the other hand to hold the handlebars. Then lift your mixer and carry it to your job
site. Since it weighs only 30 pounds, it should not strain your muscles or tire you out!
Picture 1.1: How to carry the Mixer

Maddog™ Portable Mixing System Owner’s Manual
8

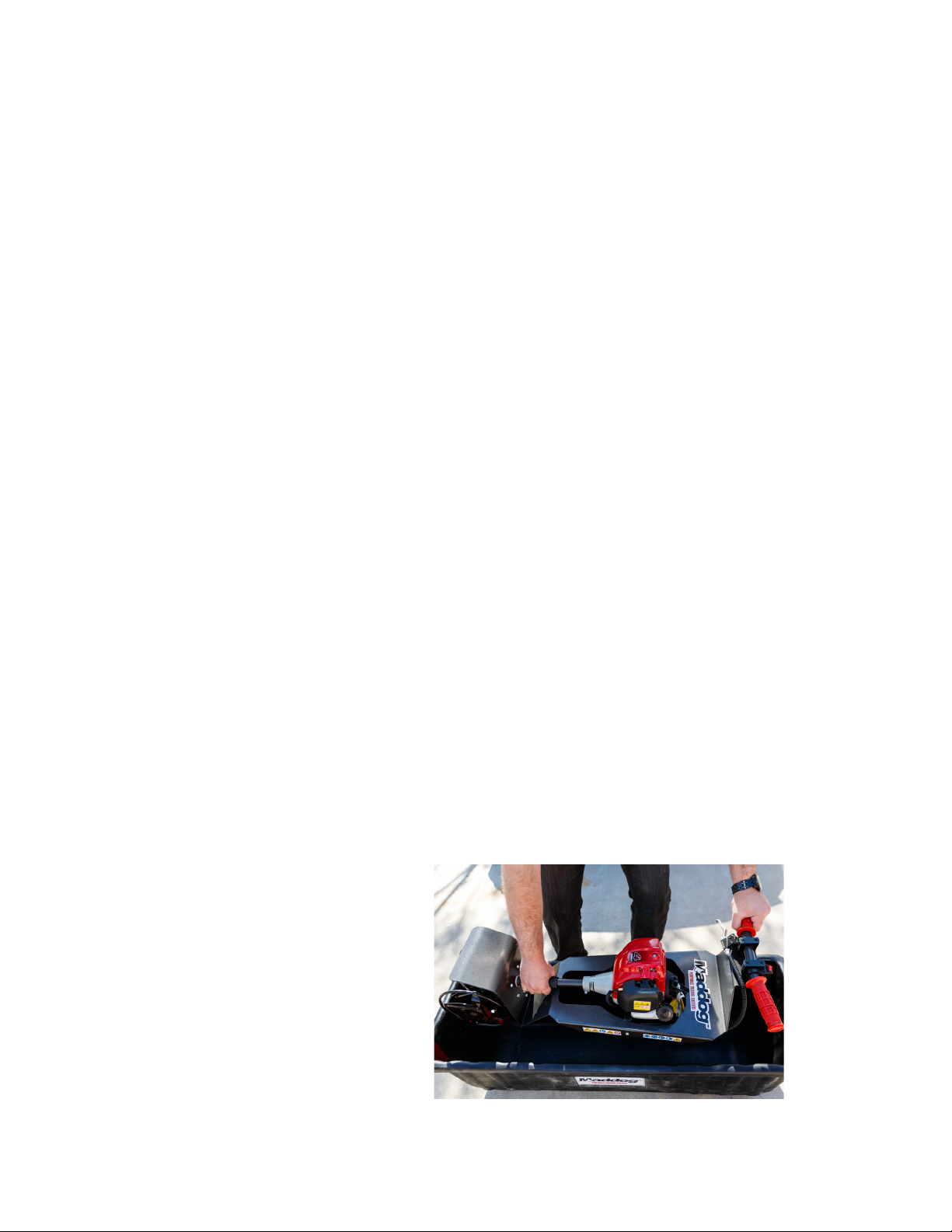

Take it for a Ride.
You can easily transport your Maddog™
Portable Mixing System to a friend’s or
relative’s house. Just empty the fuel tank.
(This is crucial.) Then stow your mixer in
the trunk of your car or truck. It fits easily.
And you can put it in and take it out
without straining your back.
“WARNING: NEVER CARRY YOUR MIXER AS
THE PERSON IN PICTURE 1.2 IS DOING. YOU
MAY SUFFER SERIOUS INJURY.”
Picture 1.2 – How NOT to hold/carry mixer
Starting Maddog™
For gas-powered models, refer to the Honda owner’s manual included in the
shipping box of your mixer.
For electric-powered models, refer to the owner’s manual included in shipping box.
Stopping Maddog™

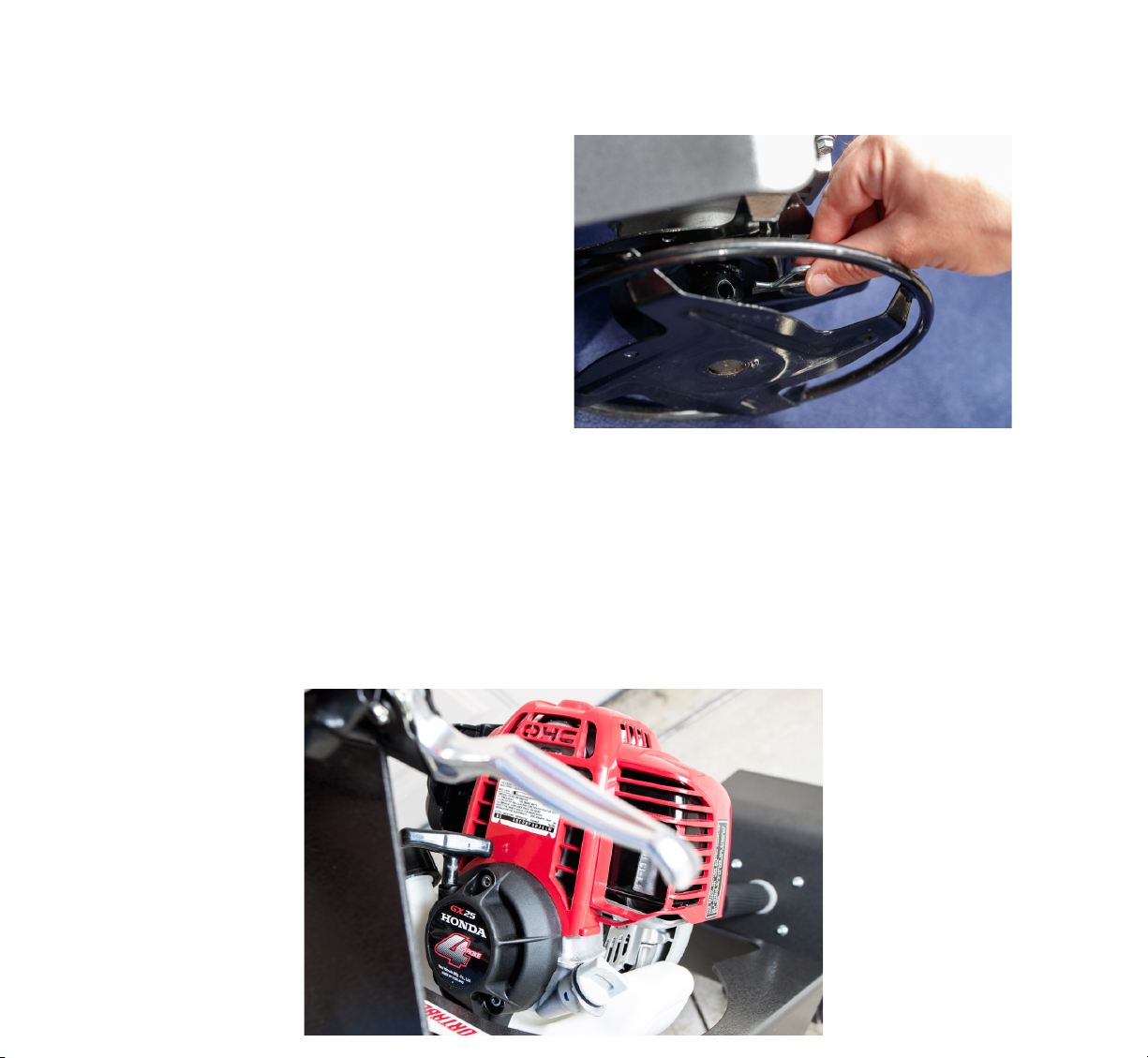

To turn off the Honda engine, press the
red kill-switch button. This will stop
the engine instantly.
If it should ever fail to do so, just pull
the choke up to the closed position.
The engine will stop at once.

Maddog™ Portable Mixing System Owner’s Manual
9
Also refer to Honda owner’s manual for gas-powered models or owner’s manual for
electric-powered models.
Operating Instructions
Now you’re ready to use your Maddog™ Portable Mixing System. Watch the
instructional video on the website at www.MaddogMixer.com
Special Mixing Note: Always add the water into the
tub BEFORE adding your dry materials. If the dry
ingredients are added first, you may have
inconsistent mixing with unmixed materials at the
bottom of the tub.
With the engine running, and both hands on
the handles, squeeze the throttle trigger
gradually to increase the engine speed and
engage the blades. NOTE: This step must
be repeated each time your mixer trigger is
released.
Maddog™ is designed so the blades naturally pull the mixer forward in the mixing tub.
Simply glide the mixer back and repeat this forward and back motion until your materials
are thoroughly mixed.

Maddog™ Portable Mixing System Owner’s Manual
10
“WARNING DANGER: THE OPERATOR OF THIS MIXER IS RESPONSIBLE
FOR ACCIDENTS OR HAZARDS OCCURRING TO HIMSELF, OTHER
PEOPLE OR THEIR PROPERTY.”
“WARNING DANGER: IF YOUR BLADES GET JAMMED OR ENTANGLED,
SHUT OFF THE ENGINE AT ONCE. REMOVE THE OBSTRUCTION WHILE
THE ENGINE IS OFF. NEVER TRY TO REMOVE AN OBSTRUCTION WHILE
THE ENGINE IS RUNNING SERIOUS INJURY CAN RESULT.”
Cleaning Instructions
Move all material from the tub. Add
enough water to the tub to cover the height
of the mixing blades.
Run the mixer the same method as mixing
materials – in a forward and back motion
until the blades are clear of all materials.
Let the blades air dry.

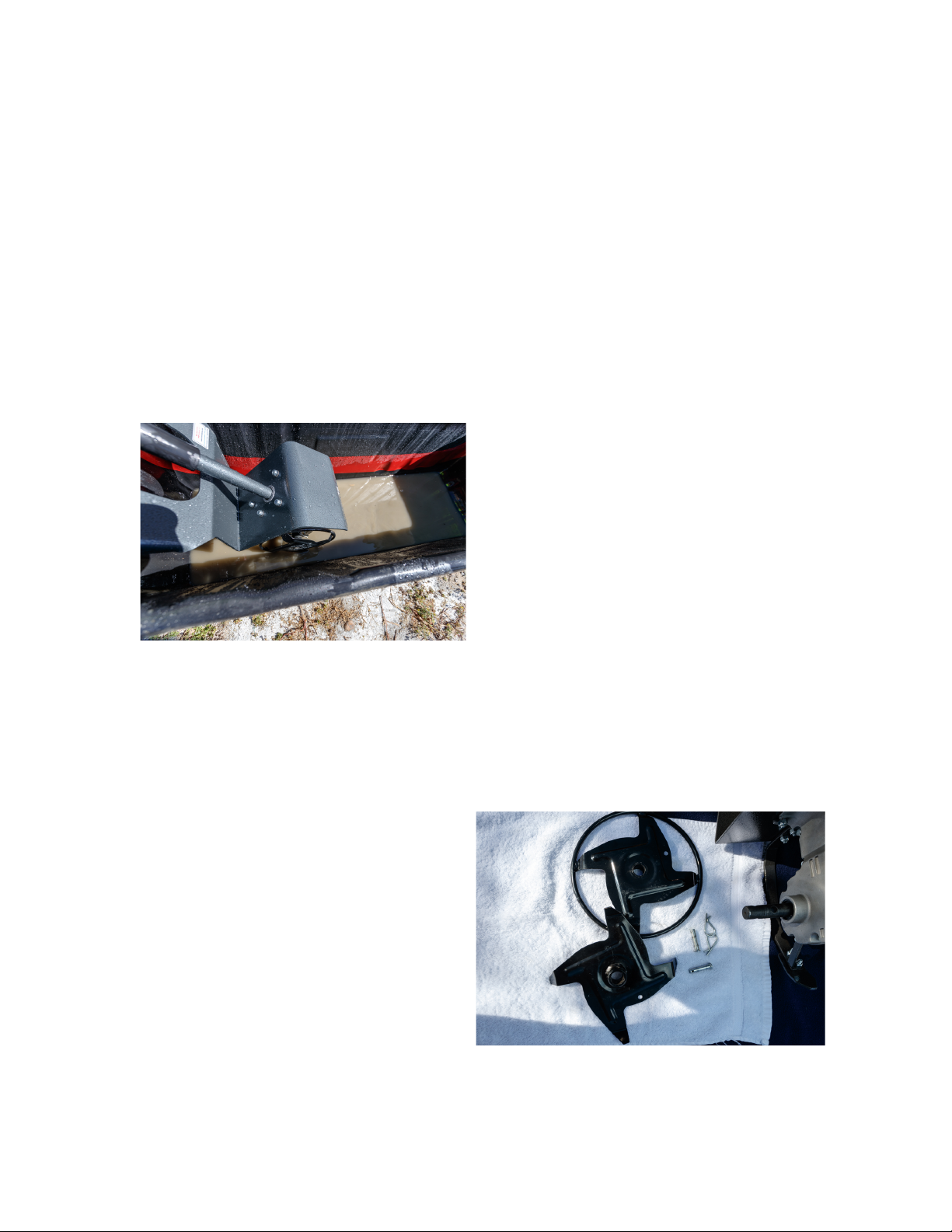

Replacing Blades
WARNING DANGER: TURN OFF POWER TO MIXER AND UNPLUG
ELECTRIC MODEL BEFORE ATTEMPTING TO REMOVE BLADES
1. Make sure your Mixer is off.
2. Remove the cotter pin.
3. Remove the cotter pin bolt.

Maddog™ Portable Mixing System Owner’s Manual
11
4. Slide blades off of axle.
5. Slide new blades onto axle
6. Replace and secure cotter pin bolt
and cotter pin.
Storage
“WARNING DANGER: DO NOT STORE IN AN AREA WHERE FUEL FUMES
MAY ACCUMULATE AND REACH A FLAME OR SPARK.”
See Honda gas-powered or electric-powered engine owner’s manual for details regarding
proper storage.
Limited Warranty Information
Refer to limited warranty card available for viewing and download on website:
http://www.rhmventures.com/customer-support/
