The Rearview Mirror HandsFree Car Kit (MHF-R220BT or
MHF-R330BT) is a wireless device that utilises the latest
Bluetooth* technolo y to communicate with your compatible
phone within a 10-metre ran e. This allows you to talk throu h its
built-in hi h quality loudspeaker and external hi h sensitivity
microphone without the need to hold the phone or take your hands
off the steerin wheel.
So easy to install, just plu into your vehicle li hter socket and
simply clip the MHF-R220BT (MHF-R330BT) unit over the
existin Rearview mirror and once set up, you will be able to
answer, end, reject, redial, place calls or adjust the loudspeaker
volume by the simple press of a button. Wherever your phone is in
your car, there will be no need to take out your phone from your
pocket or ba .
The MHF-R220BT (MHF-R330BT) also supports voice diallin **
which enables you to dial your favourite contacts without the need
to touch the phone and allow you to remain concentrated on safely
drivin your car.
* Voice Announcing for Caller ID
Choosable 2 kinds (with voice & without voice)
Notes :
* Bluetooth wireless technology is an international standard for short
range wireless communication. It allows you to establish a wireless
connection within a range of 10 metres between your MHF-R220BT
(MHF-R330BT) and a compatible device. Bluetooth is a registered
trademark of Bluetooth SIG Inc.
** unctions only with cellular phones with voice dialling capability.
Introduction
Introduction
Features
Box Content
Part description
Installation guide
Pairing your Bluetooth cellular phone
with the MHF-R220BT or MHF-R330BT
- Pairing in “HandsFree” mode
- Cellular phone pairing
- Tip Useful tips for Bluetooth connection
Using the MHF-R220BT or MHF-R330BT
as a HandsFree Device
- When the handsfree is ringing with incoming call
- During conversation
- Audio transfer
- Call waiting
- Last number dialling during idle
- Voice dialling during idle
HandsFree Call (Send Call) in the Car
Specification
Pairing instruction for the Smart Phones
Troubleshooting
Safety precautions
Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . 9
. . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Contents
Bluetooth HandsFree Car Kit
2 3
All manuals and user guides at all-guides.com

MHF-R330BT Installation Ima e
●Rearview Mirror HandsFree Car Kit 1EA
●Power Adapter Cable 1EA
●User’s Manual 1EA
Box Content (HandsFree Car Kit)
D.C Power Input - Connect to the ci arette li hter
USB Upgrade Port - For firmware up rade
Speaker - The back side
Caller ID Indicators - 12 di its
(phone with handsfree profile required)
LED Indicators - 4 LEDs - Li ht on (durin handsfree use)
Bluetooth Link LED - Li ht twinklin (Pairin mode)
Li ht on (Bluetooth mode)
VOL ▼▼- For adjustin the loudspeaker volume down. Voice Mute.
VOL ▲▲- Volume up. Also used durin the initial set up and pairin process.
TALK - Controls ‘Answer & Talk’, ‘Redial’, ‘Voice Diallin ’ and
‘Bluetooth Link Reconnection’
END - ‘End’, ‘Reject’ and ‘Audio Transfer’, ‘Bluetooth Link Disconnection’
MUTE - Stand by link
Part description
●Universal bluetooth handsfree car kit for all kind of bluetooth phone.
(Compatible with all kinds of GSM / CDMA / TDMA / WCDMA
bluetooth phones.)
●Rearview mirror type. (Anti- lare & Safety mirror function)
●12 Di it Caller ID. (phone with handsfree profile required)
●Voice announcin for incomin telephone number.
●Voice announcin Mute function. (ELod 2)
●Di ital noise & echo suppression system.
●Full two ways (Duplex) conversation.
●Hi h powered amplifier and speaker.
●Directional hi h sensitive microphone.
●Voice diallin , redial and audio transfer function.
●USB firmware up rade.
●Automatic re-connection.
●Loudspeaker mute button.
●Easy set up and simple operation.
●Modern & ele ant desi n.
●Provides the best sound clarity with little or no distortion.
(Superior sound quality)
●Sur e prevention circuit
Features
4 5
All manuals and user guides at all-guides.com

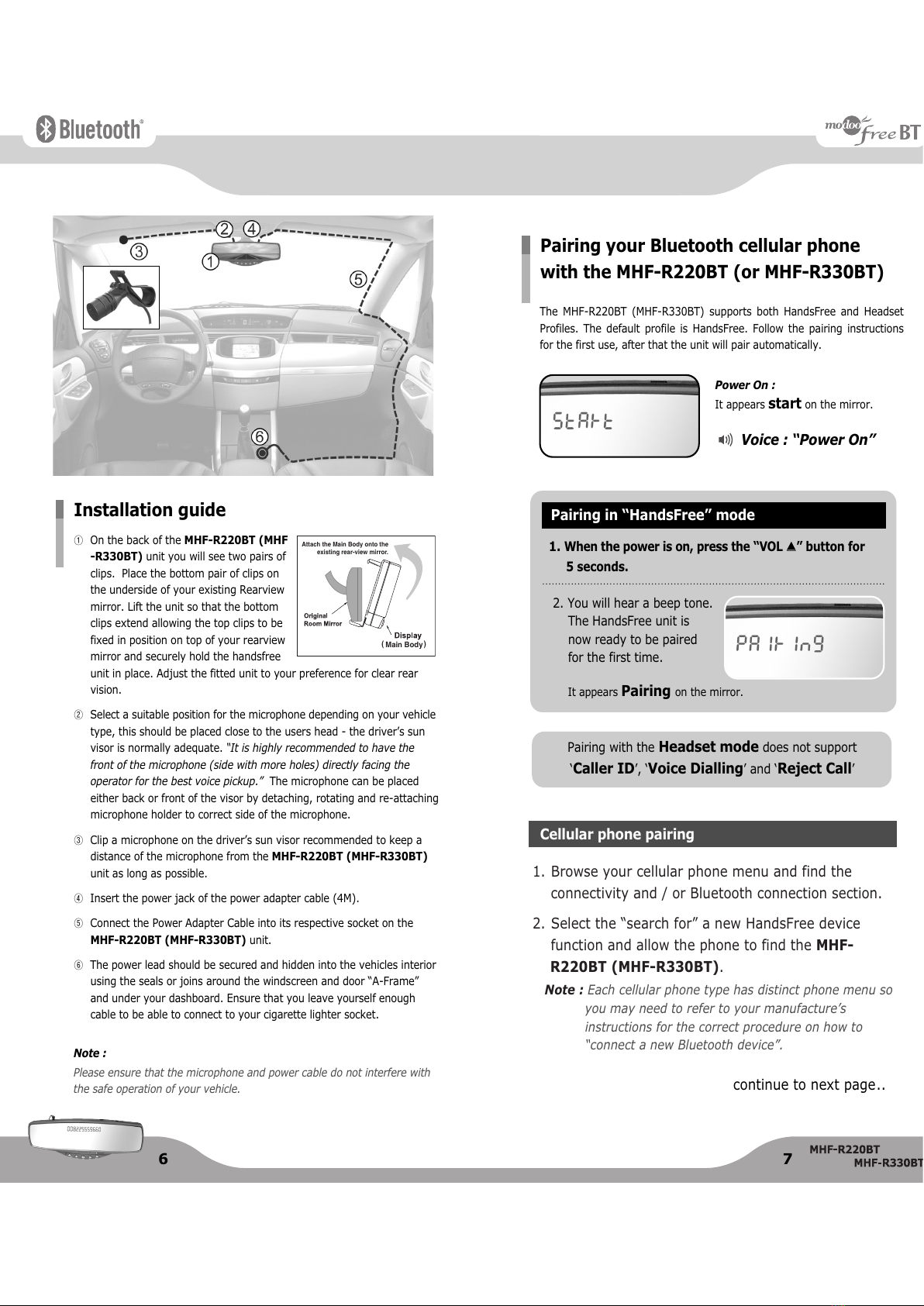

①On the back of the MHF-R220BT (MHF
-R330BT) unit you will see two pairs of
clips. Place the bottom pair of clips on
the underside of your existin Rearview
mirror. Lift the unit so that the bottom
clips extend allowin the top clips to be
fixed in position on top of your rearview
mirror and securely hold the handsfree
unit in place. Adjust the fitted unit to your preference for clear rear
vision.
②Select a suitable position for the microphone dependin on your vehicle
type, this should be placed close to the users head - the driver’s sun
visor is normally adequate. “It is highly recommended to have the
front of the microphone (side with more holes) directly facing the
operator for the best voice pickup.” The microphone can be placed
either back or front of the visor by detachin , rotatin and re-attachin
microphone holder to correct side of the microphone.
③Clip a microphone on the driver’s sun visor recommended to keep a
distance of the microphone from the MHF-R220BT (MHF-R330BT)
unit as lon as possible.
④Insert the power jack of the power adapter cable (4M).
⑤Connect the Power Adapter Cable into its respective socket on the
MHF-R220BT (MHF-R330BT) unit.
⑥The power lead should be secured and hidden into the vehicles interior
usin the seals or joins around the windscreen and door “A-Frame”
and under your dashboard. Ensure that you leave yourself enou h
cable to be able to connect to your ci arette li hter socket.
Note :
Please ensure that the microphone and power cable do not interfere with
the safe operation of your vehicle.
Installation guide
6 7
Power On :
It appears start on the mirror.
oice : “Power On”
2. You will hear a beep tone.
The HandsFree unit is
now ready to be paired
for the first time.
It appears Pairing on the mirror.
The MHF-R220BT (MHF-R330BT) supports both HandsFree and Headset
Profiles. The default profile is HandsFree. Follow the pairin instructions
for the first use, after that the unit will pair automatically.
1. When the power is on, press the “VOL ▲▲” button for
5 seconds.
Pairing your Bluetooth cellular phone
with the MHF-R220BT (or MHF-R330BT)
Pairing in “HandsFree” mode
Pairin with the Headset mode does not support
‘Caller ID’, ‘Voice Dialling’ and ‘Reject Call’
( )
Main Body
Attach the Main Body onto the
existing rear-view mirror.
1. Browse your cellular phone menu and find the
connectivity and / or Bluetooth connection section.
2. Select the “search for” a new HandsFree device
function and allow the phone to find the MHF-
R220BT (MHF-R330BT).
Note : Each cellular phone type has distinct phone menu so
you may need to refer to your manufacture’s
instructions for the correct procedure on how to
“connect a new Bluetooth device”.
Cellular phone pairing
continue to next pa e..
All manuals and user guides at all-guides.com

3. The Bluetooth code for the MHF-R220BT (MHF-
R330BT) should appear on your cellular phone screen.
4. Press the “connect” with the HandsFree option on
your cellular phone.
Note : Please return to the pairing instructions if the
Bluetooth code does not appear on the cellular phone
screen. The green LED light should flash during pairing.
5. The cellular phone should prompt for a pin code.
Insert the pin code
6. The cellular phone should confirm that it has
established a new paired connection.
7. Close the menu. The pairin is now completed.
Note : The red LED light illuminates after successful pairing.
Please adjust the volume to your preference by using
the volume keys.
Cellular phone pairing
●MHF-R220BT (MHF-R330BT) can be stored up to
8 different phones.
●The earliest phone number will be removed when the
memory is full.
●The Pairin Priority will be iven to the last paired cellular
phone.
●If you want to chan e the pairin priority, try to connect
ModooFree BT from the cellular phone.
Pairing can be stored up to 8 cellular phones.
It appears Paired & Connected on the Mirror.
1 2 3 4
oice : “Connected”
Send call :
Calling on the mirror.
MUTE :
Secret on the mirror.
NOTE Once the Bluetooth pairin is completed between
your cellular phone and MHF-R220BT (MHF-R330BT),
the both units will be automatically reco nized on its
pairin whenever turn on the key in your car.
Useful Tips for Bluetooth Connection
1. Should your cellphone battery be at low charge,
the Bluetooth connection may occasionally be
lost. To maintain good connectivity ensure that
your phone battery is adequately charged.
2. In case of failure of Bluetooth pairing
1) Delete item in paired list on your Bluetooth phone
2) Reset both phone and handsfree by switchin off /on
3) Reset pairin as per procedure
3. Connection not established after pairing
󳥨Manually connect from the paired phone
i.e. My paired devices 󳦌MHF-R220BT (or MHF-R330BT)
󳦌Connect
4. How to establish re-connection after pairing
󳥨Press "TALK" button briefly
5. Bluetooth link disconnection
󳥨Press and hold "END" button for 3 seconds.
The handsfree unit will re-connect automatically thereafter.
8 9
All manuals and user guides at all-guides.com

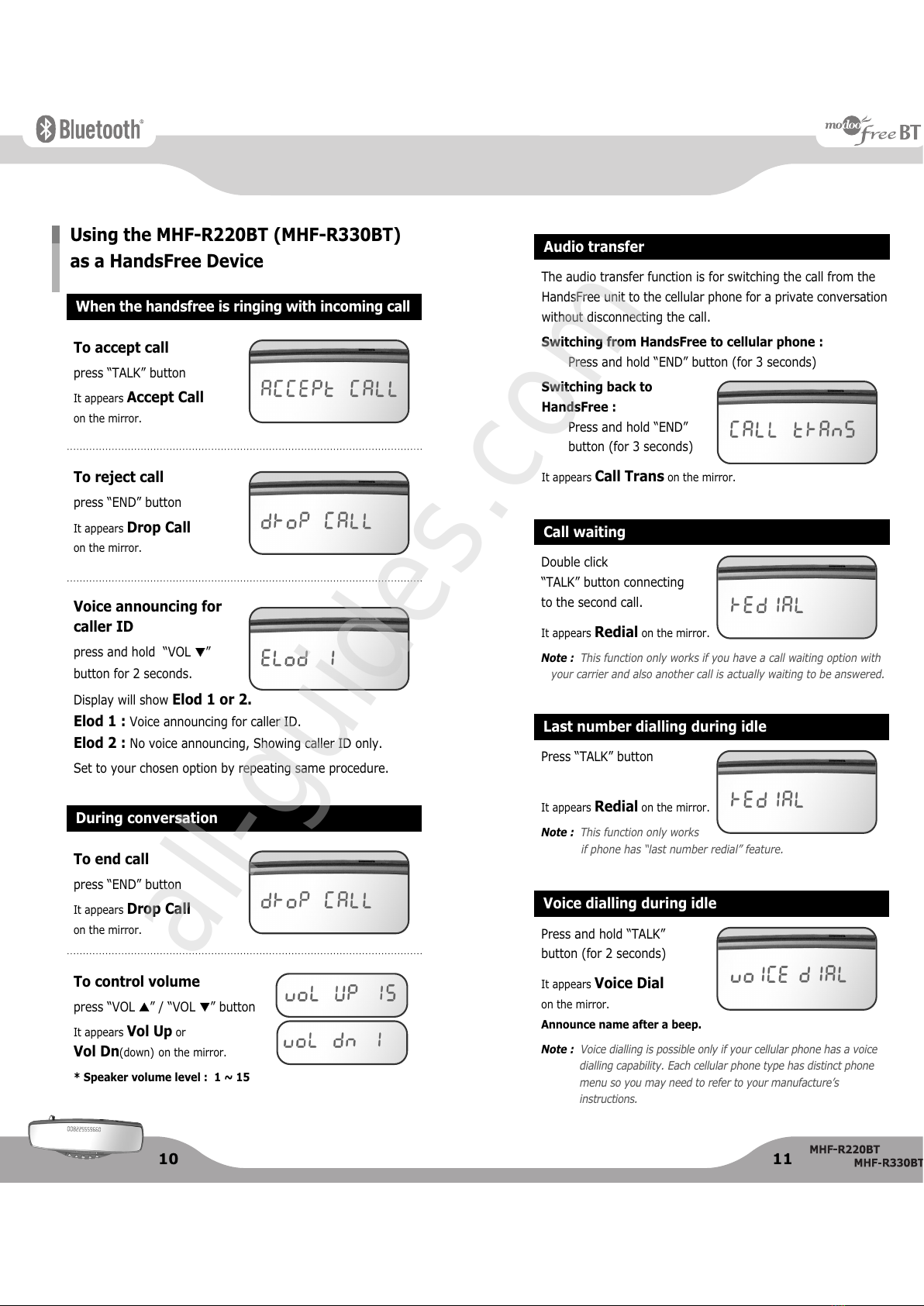

Press “TALK” button
It appears Redial on the mirror.
Note : This function only works
if phone has “last number redial” feature.
Last number dialling during idle
Press and hold “TALK”
button (for 2 seconds)
It appears Voice Dial
on the mirror.
Announce name after a beep.
Note : Voice dialling is possible only if your cellular phone has a voice
dialling capability. Each cellular phone type has distinct phone
menu so you may need to refer to your manufacture’s
instructions.
Voice dialling during idle
The audio transfer function is for switchin the call from the
HandsFree unit to the cellular phone for a private conversation
without disconnectin the call.
Switching from HandsFree to cellular phone
Press and hold “END” button (for 3 seconds)
Switching back to
HandsFree
Press and hold “END”
button (for 3 seconds)
It appears Call Trans on the mirror.
Audio transfer
10 11
To accept call
press “TALK” button
It appears Accept Call
on the mirror.
When the handsfree is ringing with incoming call
To reject call
press “END” button
It appears Drop Call
on the mirror.
Voice announcing for
caller ID
press and hold “VOL ▼▼”
button for 2 seconds.
Display will show Elod 1 or 2.
Elod 1 Voice announcin for caller ID.
Elod 2 No voice announcin , Showin caller ID only.
Set to your chosen option by repeatin same procedure.
To end call
press “END” button
It appears Drop Call
on the mirror.
During conversation
To control volume
press “VOL ▲▲” / “VOL ▼▼” button
It appears Vol Up or
Vol Dn(down) on the mirror.
* Speaker volume level 1 ~ 15
Using the MHF-R220BT (MHF-R330BT)
as a HandsFree Device
Double click
“TALK” button connectin
to the second call.
It appears Redial on the mirror.
Note : This function only works if you have a call waiting option with
your carrier and also another call is actually waiting to be answered.
Call waiting
All manuals and user guides at all-guides.com
all-guides.com

12 13
HandsFree Call (Send Call) in the Car
Press phone number on the cellular phone, and press “TALK” button
of HandsFree.
Note : If there is no sound on the loudspeaker of Hands ree unit, press and
hold “END” button for 3 seconds. Then, it will switch from Cellular
Phone to Hands ree.
Re-activation of Bluetooth Link after Pairing
󳥨Press “TALK” button.
( If Bluetooth Link LED is turned off, press “TALK” button
in order to reactivate the Bluetooth pairing link )
Please note ;
It is possible that the MHF-R220BT(MHF-R330BT) buttons
might not operated as per this operation guide if your Bluetooth
phone has an unusual Bluetooth program. In this case, please
reset both MHF-R220BT(MHF-R330BT) and cellular phone.
Specification
Input power
Normal Current
Maximum Current
Fuse
Speaker
Microphone
Noise Suppression
Echo Suppression
Operating temperature range
Supported Profiles
Power Class
Carrier Frequency
Built in Flash memory
Compatibility
Full duplex operation with noise & echo suppression
Bluetooth specification v1.2 compliant
10 ~ 28V DC
> 50mA
> 500mA
250V / 2A
Max. 2W
Directional microphone -52dB
Up to 18dB
Up to 42dB
- 30°C ~ + 65°C
Handsfree Profile, Headset Profile
2dBm Max (Class 2)
2400MHz ~ 2483.5MHz
8M bit
This unit is compatible with most
Bluetooth equipped cellular phones
includin Motorola, Sony Ericsson
and Nokia, Samsun , LG, Etc.
(Most Bluetooth enabled phones)
Pairing instruction for the SMART PHONES
Note :
A) Some of the advanced features such as the voice caller ID would not properly work with
the smart phones featuring the HEADSET Profile only.
B) It is common for most of the smart phones have the extra security feature (similar to the
firewall in the computer network system) requiring users to PAIR the smart phones with
the Bluetooth devices first and then go back to the connection feature in the phone menu
to Authorize the Bluetooth device to be permanently CONNECTED with the handsfree
system.
Let's try to pair the smart phones to the BT handsfree unit as the HANDSFREE profile first!
Please follow the below Initial pairing instruction.
1. Make sure that the smart phone battery is fully char ed.
2. Clear/delete all Bluetooth devices re istered in your smart phone. Also, turn off the unit
and take out the battery (reset) and reinsert the battery and turn on the unit.
3. Turn on the power of the BT handsfree unit.
4. Turn on the Bluetooth on the smart phone by followin the smart phone manual.
5. Press Vol(+) button of the BT handsfree unit for 5 seconds and wait for the the confirmation
melody.
6. Discover the BT handsfree units on your smart phone.
7. Once your smart phone discovers the BT handsfree unit, enter the Authentication Passkey
complete pairin .
8. If there is no connection, go back to the Bluetooth Settings in your smart phone.
Services tab and make sure that the BT handsfree unit is AUTHORIZED to be
paired with your smart phone. You will hear the paired confirmation melody
once the BT handsfree unit is paired with the smart phone.
* Pairin with the headset mode, the BT handsfree unit does not support the caller ID
features.
Please repeat the step 1 to 4.
COMPATIBILITY:
The BT Handsfree products are compatible with most Bluetooth equipped mobile phones.
The BT Handsfree products support most of the Bluetooth mobile phones features such as
the last number dialin , Audio transfer, Caller ID, etc if the Bluetooth mobiles contains such
features.
Must Power off for vehicles with the DC auxiliary power jack feature:
Some vehicles continuously supply 12 Volt DC power to the auxiliary power jack (ci ar jack)
even the en ine is off and the i nition key is out of the vehicle.
The user must pull out the power jack cord before exitin the vehicle makin sure the
Bluetooth unit power is off. Otherwise, either the phone or handsfree would not function
properly requirin the user to turn both phone and handsfree off and reconnect by followin
the manual.
All manuals and user guides at all-guides.com

15
ModooTronix Inc. warrants to purchaser that for a period of two (2) years
after the date of purchase (the “Warranty Period”) of any ModooTronix
Inc. Product by Purchaser, the product will substantially conform to
ModooTronix Inc. published specifications for the product on the date of
purchaser’s purchase of the product, subject to the terms herein.
Purchaser shall notify ModooTronix Inc. of any non-conformance durin
the warranty period and obtain a written return material authorization
(“RMA”) from ModooTronix Inc. for the nonconformin product and return
the nonconformin product to ModooTronix Inc., frei ht prepaid with a
statement describin the nonconformity. ModooTronix Inc. exclusive
obli ation with respect to nonconformin product shall be, at ModooTronix
Inc.’s option and expense, to repair or replace such returned item. The
fore oin is purchaser’s sole and exclusive remedy for breach of warranty
by ModooTronix Inc.’s with respect to the product. The warranty set forth
above shall not apply to any product, which has not been properly used
or handled in accordance with the instructions supplied by ModooTronix
Inc. In addition, ModooTronix Inc.’s warranty is void if the product has
been repaired, altered, dama ed by the faulty installation, misuse, abuse,
or which the product defect is attributable to any failure or dama e which
is beyond the reasonable control of ModooTronix Inc. This warranty
applies only to new ModooTronix Inc. products purchased from authorized
retail sellers only. The fore oin warranties are the sole warranties,
express or implied, iven by ModooTronix Inc. in connection with the
product, and ModooTronix Inc. disclaims all other warranties, includin
warranties of merchantability, fitness for a particular purpose and no
infrin ement of third party ri hts.
ModooTronix Inc. shall not be liable for any special, incidental or
consequential dama es in connection with the product, even if
ModooTronix Inc. has been advised of the possibility of such dama es.
The liability of ModooTronix Inc. hereunder for all claims shall not exceed
the amount paid by purchaser to ModooTronix Inc. for the product sold
rise to ModooTronix Inc.’s liability.
Warranty
14
No indication from unit?
There is a chance the power cable plu is not correctly seated in the
ci ar/utility jack socket for proper connection. Remove and reinsert to
ensure ood fittin and connection.
Problem during pairing?
Repeat pairin process accordin to the pairin section
Still experiencing problem?
Turn off the cellular phone and separate the battery from the cellular
phone for approximately five seconds (In some instances, this action
clears up any potential bu s built up in the cellular phone software that
can hinder proper pairin .) Repeat pairin process as per previous
pairin instructions.
Too loud?
Adjust the volume to your preferred sound level by pressin the
relevant volume switch.
Callers are complaining about hearing noise?
Check that the microphone is secured firmly in place and is not creatin
vibration and noise. Also check and adjust microphone accordin ly to
ensure that it is facin towards to the user’s face.
* The instruction of this manual may be different
from some Bluetooth phones according to the
phone’s manufacturer or its unique function.
Troubleshooting
- Do not expose this unit under humid environment.
- Do not drop this unit.
- Do not disassemble this unit.
- Do not press two buttons at once. This action may cause a sudden
Bluetooth disconnection.
- Do not clean the unit with any chemical or water.
- Keep this unit away from fire and dust.
- For safety reasons, please keep your phone conversation short,
do not make any notes or read documents. It is hi hly recommended
to park the vehicle in the safe place before continuin the conversation.
Usin a cellular phone while drivin can potentially create a distraction
for the driver which may increase the likelihood of an accident.
- Please adjust direction of the mirror to ensure ood rearview vision for
safe drivin
Safety precautions
All manuals and user guides at all-guides.com
