Maetel ZEREMA ZP-100 User manual
Operation Instructions
Model: ZP-100
MAETEL Co. Ltd.
ZEREMA
Smart Pillow
CAUTION!
1. This appliance is only to be used with the power supply unit provided with the appliance.
2. This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children without supervision.
ZEREMA Detail of Function
1. Height Adjustment
ZEREMA adjusts the height of the pillow by distributing pressure on your neck and head.
If the pillow height you set for the first time in the mobile app is not comfortable, you
can adjust the height manually according to your preference. If you adjust your pillow
height properly, you can prevent sleep and neck discs.
2. Alleviating Snoring
ZEREMA APP constantly detects snoring sounds. If your snoring sound is detected by
ZEREMA APP, it will automatically lift your neck. As your neck rises, the gap between your
tongue and neck increases, opening your airways to alleviating snoring. If it does not
immediately reduce snoring, Zerema repeats the height adjustment process until the
snoring is reduced. When your snoring is reduced, it will keep your neck and head
position for 1 minute and then return to a comfortable height.
3. Sleep monitoring
ZEREMA provides various sleep information to users through mobile app linked with
pillows. You can see when you slept, when you woke up, how deep sleep, shallow sleep,
and sleep quality are. You can also check your sleeping environment by recording
snoring, sleeptalking, and sleeping noise.
* Please refer to the website (www.maetel.kr) for details.
PACKAGE CONTENT
1. ZEREMA: Pillow with waterproof inner cover and washable outer cover
2. User Manual, Warranty Card
3. AC/DC Adapter (9V)
※After unpacking ZEREMA, a temporary characteristic mild odor may be present. This odor is
completely harmless and will disappear after a while. In order to avoid any unpleasant odor,
air the product before use and keep the room ventilated for a while.
User Manual

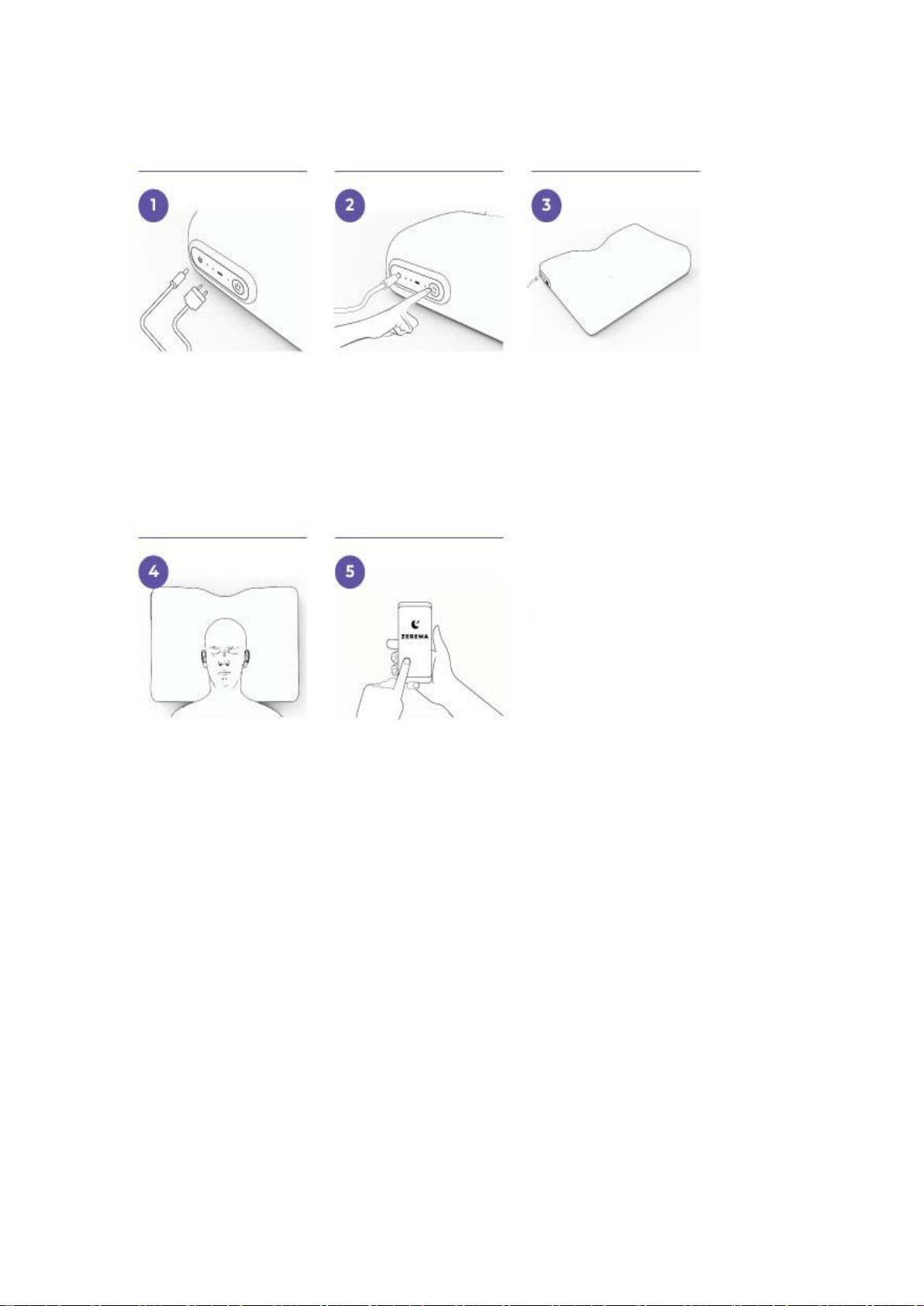

QUICK START
Connect the power supply to
Electronic Control Unit.
Place ZEREMAon the bed.
Press the power button
for 6 seconds.
Do not lie down while the
pillow is initializing.
After initialization, operate
the APP and set the pillow
height for you.
Connect Bluetooth and keep
it within 1m of the user. You
can use the alleviating
snoring function button.
Tutorial
Next(1/4)
Connect AC Adapter
to the device
Nice to meet you
Prepare to connect
the device
Getting Started
Next(2/4)
Press the power
button for 6
seconds
When the LED is blinking,
it enters paring mode.
Bluetooth connection
Release
Connect
Connect
Connected
Not Connected
Not Connected
Next(3/4)
When the LED is blinking,
it enters paring mode.
Next(4/4)
Put your device
where you sleep
After you lie down,
press the start button
Getting Started
All settings are
complete.
Do you agree with
automatic recording
during sleep?
During sleep, snoring, drool,
and various sleep noises are
automatically recorded.
Yes, I agree
No, I do not agree
Do you agree to
upload your snoring
sound to the server?
Uploads snoring sound data to
the server when a Wi-Fi
connection is established.
Yes, I agree
No, I do not agree
Start with Google account
Start with Facebook
Start with Email
Using without Login
f
Manual Height Adjustment
Automatic Height re-Adjustment
H i ht Adj t t
Complete
Adjust the pillow height
ll
Wednesday, May 20
Snoring detection
Press and hold
Next Alarm
AM
ABOUT ZEREMA
ZEREMA is a computer-controlled pillow that helps to reduce snoring and adjust height. ZEREMA
reduces obstructions of the upper airway by changing the height of neck and so helps to
improve your sleep quality.
1. ADVANTAGES
ZEREMA supports healthy and restful sleep by help keeping the upper airway open during the
sleep.
The effects of ZEREMA has been verified in a clinical study at the sleep center in the Yonsei
University hospital. For further information, please visit: www.maetel.kr
2. TARGET GROUP OF USER
• Adults over 18 years
3. ZEREMA IS NOT SUITABLE FOR
• Persons with intracranial electrode shall not use ZEREMA
• Persons with pacemakers or with severe Obstructive Sleep Apnea Syndrome (OSAS) should
consult an ENT doctor prior to use of ZEREMA
4. SIDE EFFECTS
• No side effects are known if ZEREMA is used according to the User Manual. If you feel
uncomfortable using ZEREMA, stop using ZEREMA immediately and contact Maetel CS.
5. GETTING USED TO THE ZEREMA/ ADJUSTMENT PERIOD
Users might require some time to get used to the special shape of ZEREMA and might also
recognize very little sound from ZEREMA which are caused by inflation or deflation of the
integrated air-bag. To adjust the height of ZEREMA for a comfortable sleep, the user may adjust
the pillow height manually with dedicated mobile APP “ZEREMA APP”
ABOUT SNORING
Snoring is the sound you make when your breathing is blocked while you are asleep. The sound is
caused by tissues at the top of your airway that strike each other and vibrate. Snoring is
common, especially among older people and people who are overweight.
To reduce snoring
・Lose weight if you are overweight.
・Cut down or avoid alcohol and other sedatives at bedtime.
When severe, snoring can cause frequent awakenings at night and daytime sleepiness. It can
disrupt your bed partner's sleep. Snoring can also be a sign of a serious sleep disorder called
sleep apnea. You should see your health care provider if you are often tired during the day, don't
feel that you sleep well, or wake up gasping.
In this case, please consult your doctor.
FUNCTIONAL DESCRIPTIONS OF ZEREMA
ZEREMA continuously monitors the user’s breathing sounds. It lifts the head automatically, quietly
and gently as soon as snoring is detected. Lifting of the neck increases the gap between the
tongue and throat and thus expands the airway and reduces snoring. If no positive effect is
achieved with the first movement, ZEREMA will change the head to the other side until the
snoring stops or is reduced at most. ZEREMA holds that position to stabilize the head in the
optimal position. ZEREMA APP measures snoring sound Different sensitivity and detection modes
of snoring can be set with the ‘ZEREMA APP’ Application (APP) on an Android or iOS
tablet/phone. The effectiveness of ZEREMA and the ‘Quality of Sleep’ can be determined by
using the ZEREMA APP’ Application (APP) on an Android or iOS tablet/phone. For further
information, please visit website: www.maetel.kr
SAFETY REGULATIONS
1. SAFETY NOTES
• ZEREMA was developed for using by a single person.
• Do not expose ZEREMA to excessive pressure by forcibly squeezing, pushing or bending it.
• ZEREMA must only be used with the supplied AC adapter.
• ZEREMA should be connected to an easily accessible socket so that in case of failure the
power cord can be unplugged easily.
• Do not use ZEREMA near electric blankets, hot water bottles or other electrical or hot objects,
as their high temperatures can damage ZEREMA.
• Do not cover the AC adapter with blankets or store it near a heater, heat sources or in direct
sunlight. The device could overheat. This can damage the power supply and ZEREMA. Keep the
AC adapter in a well-ventilated place.
• Protect ZEREMA from moisture, dust, corrosive liquids and vapors.
• Do not use ZEREMA if it does not work properly or if parts are damaged.
• Observe the chapter "Cleaning and Maintenance" to avoid dirt and bacterial contamination.
• Do not smoke in bed!
INNER STRUCTURE OF ZEREMA
1. Air-Pocket in Head
2. Polyurethane foam
3. Air-Pocket in Neck
High-quality polyurethane foam (2) for optimal comfort. Remark: The comfort increases during
the first days of usage. Integrated snoring sensors (1) detect snoring of the user on the ZEREMA
APP. ZEREMA has a washable pillow cover that provides additional comfort. ZEREMA is covered
with the waterproof inner cover.
DO NOT OPEN THE INNER COVER.
THE USE OF ZEREMA
1. BEFORE USING ZEREMA
Make sure that ZEREMA is used in a clean and dust-free environment with low humidity. Dust
and moisture can limit the lifetime and functionality of the technology. The use of an additional
personal pillow cover is not recommend.
2. USE OF ZEREMA – INITIAL OPERATION
Place ZEREMA on your bed like a normal pillow (see figure).
(A) Correct position of pillow
Plug the AC Power Supply into the Power Plug (E) of the Control Unit (B). Turn the Power Switch
1
2
3
(C) Power button
(E) Power
Pug(9V)
Power Indication LED
Status Indication LED
Reset button
(B) Electronic Control Unit
AC Power supply
(D) to ON. The light on the Control Unit lights up blue.
Place the Control Unit (B) under the bed. If you want to connect with “ZEREMA APP” Application
(APP), please turn on the bluetooth function and launch the APP in your mobile phone. The APP
will connect with ZEREMA automatically.
MAKE SURE YOUR HEAD IS CORRECTLY ON THE PILLOW DURING SLEEP.
To start the Bluetooth connection, download the “ZEREMA APP” Application (APP) and follow the
instruction on your device.
“ZEREMA APP“ APPLICATION (APP) FOR SMARTPHONES
The “ZEREMA APP” Application (APP) is available for ANDROID (version 4.4 and above) and iOS
Smartphones. “ZEREMA APP” allows the user to configure ZEREMA and analyze the effectiveness
of ZEREMA. The function of ZEREMA is constantly improved and the firmware of ZEREMA can be
updated with “ZEREMA APP”.
Download the “ZEREMA APP” Application (APP) from iTunes, Google Play and Baidu (China).
Connect ZEREMA to your Smartphone with Bluetooth and follow the instructions. The snoring and
the head and neck movement of the user on the pillow are constantly monitored. The data is
automatically synchronized to the Smartphone and can be analyzed with “ZEREMA APP”.
Snoring relief function works only through APP.
TRANSPORTATION AND STORAGE
Store ZEREMA in its original shape in a dry environment (maximum 75% relative humidity) and at
a suitable room temperature (+5 to +45°C). Store ZEREMA carefully (do not fold or bend, do not
expose to pressure) to prevent shape or technical damage of ZEREMA and the inner structures
inside the pillow. Use the original packaging for transportation.
Main Feature
Pillow
Rated Voltage DC 9.0V
Rated Current 1.0 A
Size 60 X 42 X 12 (LXWXH) cm
Weight 2.6kg
Wireless communication BLE 5.0
Operating Temperature 5°C ~ 45°C
Operating Humid ~ 75%
AC Adapter
Rated input voltage 100-240V ~, 50/60 Hz
Rated input current 0.3A
Rated output voltage 9V
Rated output current 1A
Size L84.5 X W40 X H22.7 (mm) / Code Length: 2 m
Operating Temperature 5°C ~ 45°C
Disclaimer
ZEREMA is a non-medical lifestyle improvement device that helps alleviate the frequency and
amount of snoring. ZEREMA is useful for people with mild snoring. The result of snoring
alleviation varies from user to user. People with sleep apnea, breathing problems, discs on the
back and neck, and spinal cord injuries should not use ZEREMA. For concerned users, consult your
doctor before using ZEREMA.
WARRANTY
ZEREMA offers a one-year manufacturer’s warranty. Warranty does not apply to damage caused
by accident, abuse, misuse, flood, fire, earthquake, other external causes or use with improper
power supply.
GENERAL CONDITIONS OF WARRANTY
•The warranty is only valid if ZEREMA was used according to the guidelines stated in the
instructions for use.
•The warranty is only valid if ZEREMA was used by end-user.
•The warranty covers electrical and mechanical defects and permanent deformation of the
foam of more than 1cm of the original shape.
•In case of problems or complaints, please contact the authorized dealer from whom you
purchased ZEREMA. For warranty questions, please submit the original invoice or the original
proof of purchase.
•The warranty is not extended if ZEREMA was replaced or repaired during the initial warranty
period.
THE WARRANTY DOES NOT APPLY
•If the instructions for use, cleaning and maintenance of ZEREMA stated in this manual were
not followed or if it was damaged in any other way by poor maintenance or careless use.
•If ZEREMA or other components were forcibly compressed, bent or squeezed or exposed to
any other excessive force resulting in a material failure, loss of functionality or permanent
deformation of the pillow.
•If ZEREMA or its components get wet or are soaked.
•If ZEREMA or cover is soiled or unhygienic.
•If ZEREMA or other components have been modified or repaired without written permission.
•If the protective inner cover of ZEREMA has been deliberately damaged or removed.
•If ZEREMA and its components have been damaged by high humidity or dusty environment.
•If the washable pillow cover has not been washed according to the instructions on the label,
which is located on the inside. The washable pillow cover may have limited warranty.
•If ZEREMA was used for professional demonstration or professional testing or any other use
expect for use by end-user in home environment.
THE RETURN MAY BE REJECTED:
•If the contents of the product packaging are incomplete.
•If ZEREMA or its components were damaged or improperly used – i.e. not in accordance with
the instructions for use.
RETURN PROCEDURE:
•Please see the enclosed Warranty Card
Note: ZEREMA is continuously refined and improved. There might be slight variations in
specification, features, color, materials or appearance, which do not influence the basic function.
CLEANING AND MAINTENANCE
ZEREMA cannot be washed or dry-cleaned. To clean the pillow, remove the outer pillow cover,
ventilate the pillow or gently clean the inner cover with a slightly damp cloth to remove dust or stains
from the surface. The protective inner cover protects the sensitive technical parts of the pillow.
DO NOT REMOVE THE INNER PILLOW COVER!
The outer pillow cover can be removed and cleaned according to the instructions on the washing label
(inside the cover). For washing, the pillow cover needs to be turned inside-out and the zipper closed.
FCC Part 15.19
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Part 15.21
Any changes or modifications (including the antennas) to this device that are not expressly
approved by the manufacturer may void the user's authority to operate the equipment.
Innovation, Science and Economic Development Canada
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) L’appareil ne doit pas produire de brouillage;
(2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement
RF Radiation Exposure Statement
This equipment complies with FCC/ISED RF Radiation exposure limits set forth for an uncontrolled
environment.
This device and its antenna must not be co-located or operating in conjunction with any other
antenna or transmitter.
RF du IC d'exposition aux radiations: Cet équipement est conforme à l'exposition de la IC
rayonnements RF limites établies pour un environnement non contrôlé.
L’antenne pour ce transmetteur ne doit pas être même endroit avec d’autres émetteur sauf
conformément à la IC procédures de produits Multi-émetteur.
For private households: Information on Disposal for Users of WEEE
This symbol on the product(s) and / or accompanying documents means that used electrical and
electronic equipment (WEEE) should not be mixed with general household waste. For proper
treatment, recovery and recycling, please take this product(s) to designated collection points
where it will be accepted free of charge.
Alternatively, in some countries, you may be able to return your products to your local retailer
upon purchase of an equivalent new product.
Disposing of this product correctly will help save valuable resources and prevent any potential
negative effects on human health and the environment, which could otherwise arise from
inappropriate waste handling.
Please contact your local authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with your national
legislation.
For professional users in the European Union
If you wish to discard electrical and electronic equipment (EEE), please contact your dealer or
supplier for further information.
For disposal in countries outside of the European Union
This symbol is only valid in the European Union (EU). If you wish to discard this product please
contact your local authorities or dealer and ask for the correct method of disposal.
WARRANTY CARD
Please mail or email
warranty card and PROOF OF PURCHASE within 15 days of purchase
to:
Customer Name:
Product Name: ZEREMA Pillow Model No.: ZP-100
Address:
Email Address: Date of Purchase:
Dealer Name: Phone No.:
MAETEL CO. LTD.
Table of contents
