MAG Z 100 User manual

1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z Series User Manual rev 0.1
User Manual
Systems:
Z 100 Z 100A
Z 120 Z 120A
Z 150 Z 150A
Z 220 Z 220A
Z 250 Z 250A
Z 155 Z 155A
Z S12 Z S12A
Z S15 Z S15A
Z S18 Z S18A
Z SERIES

2
Z Series User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
This page has been intentionally left blank

3
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z Series User Manual rev 0.1
Contents ....................................................................................................... 3
1. Safety instructions ...................................................................................... 4
2. System description ...................................................................................... 5
3.1. Specifications - Technical data ..................................................... 6

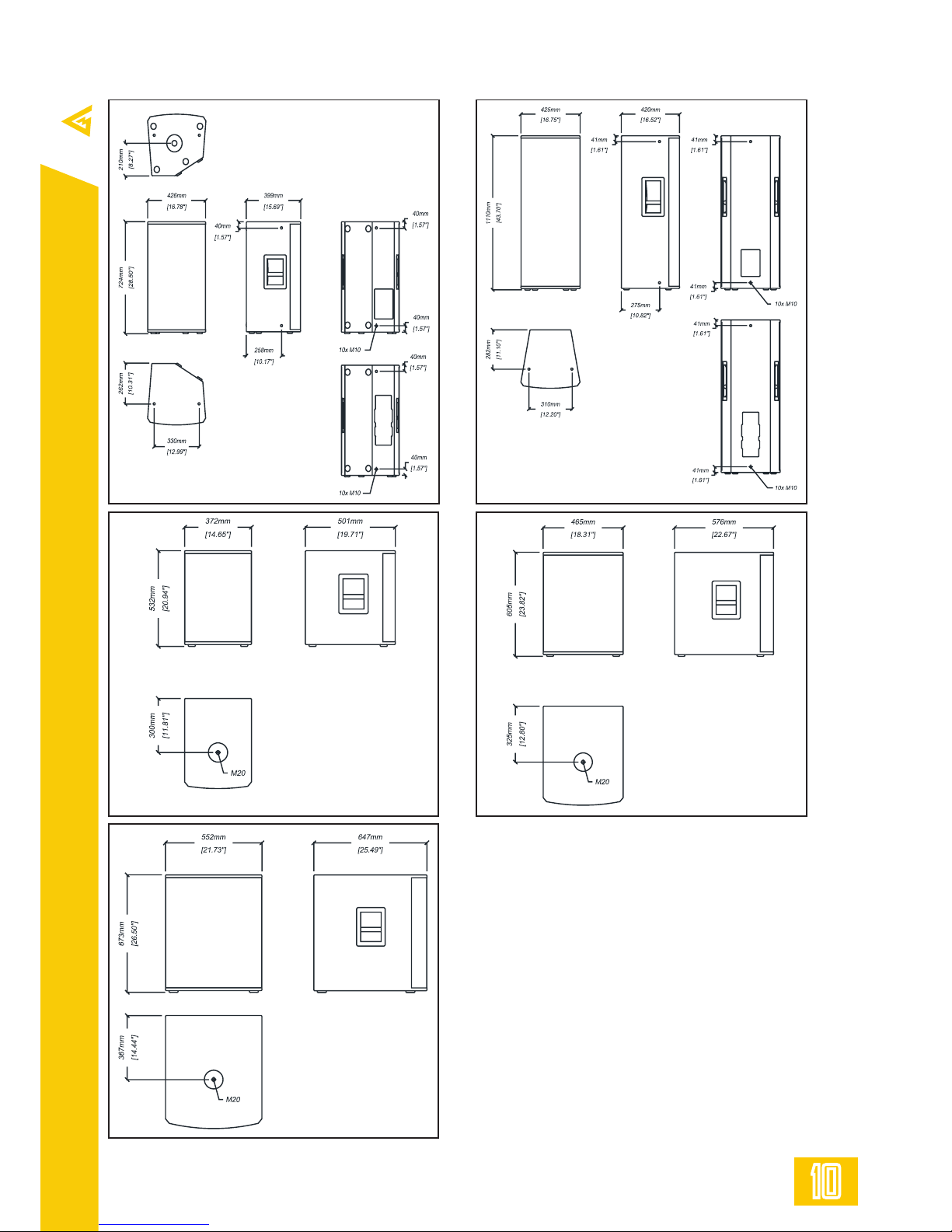

3.2. Specifications - Dimensions ................................................................... 9

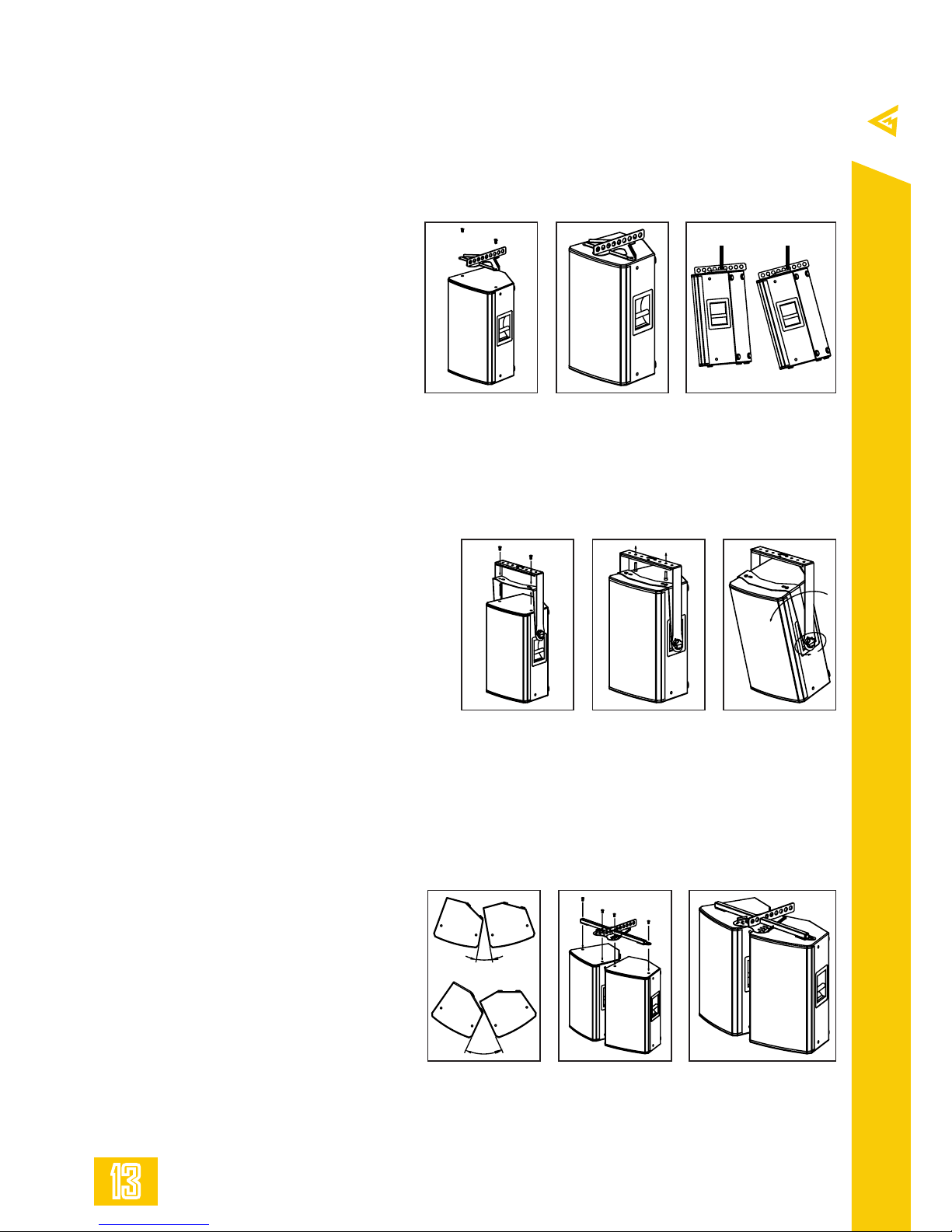

4.1. System operation - Rigging ..................................................... 12
4.2 System operation - Passive speakers .................................... 14
4.3. System operation - Powered speakers .................................... 15
5. Standard contents ...................................................................................... 17

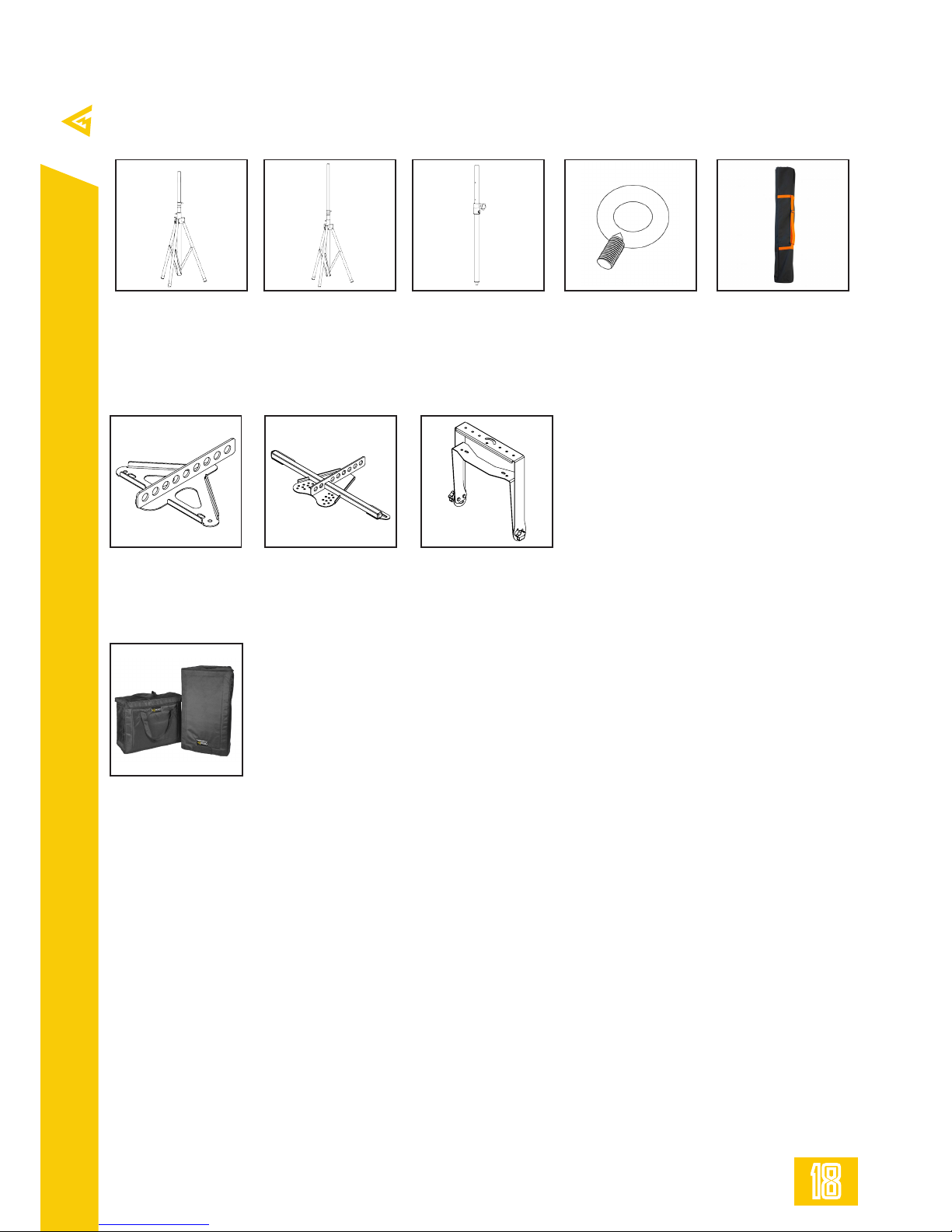

6. Accessories ....................................................................................................... 18
Contents

4
Z Series User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
1. Safety instructions
1. Read these instructions carefully.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this system near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Failure to do so may cause fast overheating and force
system to switch itself o.
8. Do not use the system near heat sources such as stoves, radiators or other equipment that
produces massive heat.
9. Do not use the system near open fire sources.
10. Connect the system only to the electric network with grounding.
11. Protect the power cord from being walked on, pinched, or otherwise damaged.
12. Use only accessories specified by the manufacturer.
13. Use only the cart, stand, tripod or bracket specified by the manufacturer, or sold with the unit.
When a cart is used, use caution when moving the cart with unit to avoid injury from tip-over.
14. Unplug this system during lightning storms or when unused for long periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required when the system has
been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the unit, the unit has been exposed to rain or moisture, does not operate
normally, or has been dropped.
16. To completely disconnect this system from AC mains, disconnect the power supply cord from the
AC receptacle.
17. WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
SYSTEM UNIT TO RAIN OR MOISTURE.
18. The main plug of the power supply cord shall remain readily operable.
19. This system is capable of delivering a significant soundpressure levels. To avoid permanent or
temporary hearing damage, prolonged exposure to sound pressure levels exceeding 90 dB should
be limited
THIS SYSTEM CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR
HAZARD, DO NOT REMOVE APLIFIER MODULE OR ITS PARTS. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
MOUNTING AND SUSPENSION OF THIS SYSTEM MUST BE PERFORMED ONLY BY QUALIFIED
TRAINED PERSONNEL FOLLOWING APPLICABLE SAFETY RULES. DO NOT ALLOW MOUNTING
OR SUSPENSION OF THIS UNIT IF MOUNTING OR SUSPENSION HARDWARE IS BROKEN, BENT,
PARTS ARE MISSING OR IS OTHERWISE DAMAGED.

5
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z Series User Manual rev 0.1
2. System description
Z series is designed for budget small and medium sized indoor spaces. Versatile and reliable loud-
speakers with professional sound quality and modern looks, passive and powered Z series speakers
are suitable for wide variety of applications. Full-range cabinet’s specialized design allows to use
them for stage monitoring, thusly greatly improving versatility and possible application ranges of Z
series.
Featuring low-wear cabinet coating, high-quality components and thoroughly worked out sonic
performance, Z series speakers complete with speaker way beyond their price range.
To achieve such combination of high performance, optimal sound quality and strict budget con-
straints, Z series systems were carefully optimized, with only highquality and reliability sensitive
components left: chipboard cabinets with obligatory birch plywood front panels, reliable Neutrik
speakON connectors, MAG Audio transducers and high-frequency drivers known for long-tern reli-
ability.
Both passive and powered version are available for all models. Powered cabinets feature bi-amp
amplifiers, built-in DSP providing crossover, limiting, equalization, and wireless controls capability
for ease of installation and setup.
Z 100 Part No. 0023400110
Z 100-4 Part No. 0023400111
Z 100A Part No. 0023400116
Z 120 Part No. 0023400210
Z 120-4 Part No. 0023400211
Z 120A Part No. 0023400216
Z 150 Part No. 0023400310
Z 150-4 Part No. 0023400311
Z 150A Part No. 0023400316
Z 220 Part No. 0023400710
Z 220-4 Part No. 0023400711
Z 220A Part No. 0023400716
Z 250 Part No. 0023400810
Z 250-4 Part No. 0023400811
Z 250A Part No. 0023400816
Z 155-4 Part No. 0023400911
Z 155A Part No. 0023400916
Z S12 Part No. 0023400110
Z S12-4 Part No. 0023400111
Z S12A Part No. 0023400116
Z S15 Part No. 0023400210
Z S15-4 Part No. 0023400211
Z S15A Part No. 0023400216
Z S18 Part No. 0023400310
Z S18-4 Part No. 0023400311
Z S18A Part No. 0023400316

6
Z Series User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
3.1. Specifications - Technical data
System Z 100 Z 120 Z 150
Type Full-range passive speaker Full-range passive speaker Full-range passive speaker
Frequency response (-10dB) 65 – 18000 Hz 60 – 18000 Hz 50 – 18000 Hz
Max SPL (peak) 125 dB (calculated) 126 dB (calculated) 128 dB (calculated)
Sensitivity (1W/1m) 95 dB 96 dB 98 dB
LF Transducer 10” 12” 15”
HF Transducer 1” 1” 1”
Nominal coverage HxV 60° x 40° 60° x 40° 60° x 40°
Impedance 8 Ohm / 4 Ohm 8 Ohm / 4 Ohm 8 Ohm / 4 Ohm
Nominal power (1) 250 W 250 W 250 W
Program power 500 W 500 W 500 W
Peak power 1000 W 1000 W 1000 W
Connectors 2x Neutrik Speakon 2x Neutrik Speakon 2x Neutrik Speakon
Dimensions (WxHxD) 329x532x309 mm 380x602x380 mm 426x692x392 mm
Net weight 16,5 kg 21 kg 25,5 kg
Shipping weight 19,5 kg 24 kg 28,5 kg
Mounting 10x M10 flying points, pole
mount adapter
10x M10 flying points, pole
mount adapter
10x M10 flying points, pole
mount adapter
Enclosure materials Plywood; MDF; wear-
resistant paint
Plywood; MDF; wear-
resistant paint
Plywood; MDF; wear-
resistant paint
Grill Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net
System Z 220 Z 250 Z 155
Type Full-range passive speaker Full-range passive speaker Full-range passive speaker
Frequency response (-10dB) 55 – 18000 Hz 50 – 18000 Hz 50 – 18000 Hz
Max SPL (peak) 128 dB (calculated) 130 dB (calculated) 135,5 dB (calculated)
Sensitivity (1W/1m) 96 dB 98 dB 100,5 dB
LF Transducer 12” 15” 2x15”
HF Transducer 1” 1” 1”
Nominal coverage HxV 100° x 50° 100° x 50° 100° x 50°
Impedance 8 Ohm / 4 Ohm 8 Ohm / 4 Ohm 4 Ohm
Nominal power (1) 400 W 400 W 750 W
Program power 800 W 800 W 1500 W
Peak power 1600 W 1600 W 3000 W
Connectors 2x Neutrik Speakon 2x Neutrik Speakon 2x Neutrik Speakon
Dimensions (WxHxD) 348x587x355 mm 426x724x399 mm 425x1110x420 mm
Net weight 17 kg 23 kg 39 kg
Shipping weight 20 kg 26 kg 42 kg
Mounting 10x M10 flying points, pole
mount adapter
10x M10 flying points, pole
mount adapter 10x M10 flying points
Enclosure materials Plywood; wear-resistant
paint
Plywood; wear-resistant
paint
Plywood; MDF; wear-
resistant paint
Grill Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net

7
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z Series User Manual rev 0.1
3.1. Specifications - Technical data
System Z 100A Z 120A Z 150A
Type Full-range powered
speaker
Full-range powered
speaker
Full-range powered
speaker
Frequency response (-10dB) 65 – 18000 Hz 60 – 18000 Hz 50 – 18000 Hz
Max SPL (peak) 125 dB (calculated) 126 dB (calculated) 128 dB (calculated)
LF Transducer 10” 12” 15”
HF Transducer 1” 1” 1”
Nominal coverage HxV 60° x 40° 60° x 40° 60° x 40°
Power 350 W 350 W 350 W
Amplifier Class D, convection cooling Class D, convection cooling Class D, convection cooling
Input sensitivity 0 dBV 0 dBV 0 dBV
input impedance 18 kOhm (unbal),
36 kOhm (bal)
18 kOhm (unbal),
36 kOhm (bal)
18 kOhm (unbal),
36 kOhm (bal)
Connectors 2x XLR 2x XLR 2x XLR
Dimensions (WxHxD) 329x532x309 mm 380x602x380 mm 426x692x392 mm
Net weight 19 kg 23,5 kg 28 kg
Shipping weight 22 kg 26,5 kg 31 kg
Mounting 10x M10 flying points, pole
mount adapter
10x M10 flying points, pole
mount adapter
10x M10 flying points, pole
mount adapter
Enclosure materials Plywood; MDF; wear-
resistant paint
Plywood; MDF; wear-
resistant paint
Plywood; MDF; wear-
resistant paint
Grill Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net
System Z S12 Z S15 Z S18
Type Passive subwoofer Passive subwoofer Passive subwoofer
Frequency response (-10dB) 50 – 300 Hz 45 – 300 Hz 40 – 300 Hz
Max SPL (peak) 129 dB (calculated) 129,5 dB (calculated) 129,5 dB (calculated)
Sensitivity (1W/1m) 97 dB 97,5 dB 97 dB
LF Transducer 12” 15” 18”
Impedance 8 Ohm / 4 Ohm 8 Ohm / 4 Ohm 8 Ohm / 4 Ohm
Nominal power (1) 400 W 400 W 450 W
Program power 800 W 800 W 900 W
Peak power 1600 W 1600 W 1800 W
Connectors 2x Neutrik Speakon 2x Neutrik Speakon 2x Neutrik Speakon
Dimensions (WxHxD) 372x532x501 mm 465x605x576 mm 552x673x647 mm
Net weight 29 kg 37 kg 42 kg
Shipping weight 32 kg 40 kg 45 kg
Enclosure materials Plywood; MDF; wear-
resistant paint
Plywood; MDF; wear-
resistant paint
Plywood; MDF; wear-
resistant paint
Grill Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net

8
Z Series User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
3.1. Specifications - Technical data
System Z S12A Z S15A Z S18A
Type Powered subwoofer Powered subwoofer Powered subwoofer
Frequency response (-10dB) 50 – 300 Hz 45 – 300 Hz 40 – 300 Hz
Max SPL (peak) 129 dB (calculated) 129,5 dB (calculated) 129,5 dB (calculated)
LF Transducer 12” 15” 18”
Power 500 W 500 W 500 W
Amplifier Class D, convection cooling Class D, convection cooling Class D, fan cooling
Input sensitivity 0 dBV 0 dBV 0 dBV
input impedance 18 kOhm (unbal),
36 kOhm (bal)
18 kOhm (unbal),
36 kOhm (bal)
18 kOhm (unbal),
36 kOhm (bal)
Connectors 2x XLR 2x XLR 2x XLR
Dimensions (WxHxD) 372x532x501 mm 465x605x576 mm 552x673x647 mm
Net weight 31,5 kg 39,5 kg 44,5 kg
Shipping weight 34,5 kg 42,5 kg 47,5 kg
Enclosure materials Plywood; MDF; wear-
resistant paint
Plywood; MDF; wear-
resistant paint
Plywood; MDF; wear-
resistant paint
Grill Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net
System Z 220A Z 250A Z 155A
Type Full-range powered
speaker
Full-range powered
speaker
Full-range powered
speaker
Frequency response (-10dB) 55 – 18000 Hz 50 – 18000 Hz 50 – 18000 Hz
Max SPL (peak) 128 dB (calculated) 130 dB (calculated) 135,5 dB (calculated)
LF Transducer 12” 15” 2x15”
HF Transducer 1” 1” 1”
Nominal coverage HxV 100° x 50° 100° x 50° 100° x 50°
Power 600 W 600 W 1000 W
Amplifier Class D, fan cooling Class D, convection cooling Class D, fan cooling
Input sensitivity 0 dBV 0 dBV 0 dBV
input impedance 18 kOhm (unbal),
36 kOhm (bal)
18 kOhm (unbal),
36 kOhm (bal)
18 kOhm (unbal),
36 kOhm (bal)
Connectors 2x XLR 2x XLR 2x XLR
Dimensions (WxHxD) 348x587x355 mm 426x724x399 mm 425x1110x420 mm
Net weight 19,5 kg 25,5 kg 43 kg
Shipping weight 22,5 kg 28,5 kg 46 kg
Mounting 10x M10 flying points, pole
mount adapter
10x M10 flying points, pole
mount adapter 10x M10 flying points
Enclosure materials Plywood; wear-resistant
paint
Plywood; wear-resistant
paint
Plywood; MDF; wear-
resistant paint
Grill Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net
Steel grill, polymer protec-
tive net

9
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z Series User Manual rev 0.1
3.2. Specifications - Dimensions
Z 100
Z 100A
Z 120
Z 120A
Z 150
Z 150A
Z 220
Z 220A

10
Z Series User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
3.2. Specifications - Dimensions
Z 155
Z 155A
Z 250
Z 250A
Z S12
Z S12A
Z S15
Z S15A
Z S18
Z S18A

11
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z Series User Manual rev 0.1
This page has been intentionally left blank

12
Z Series User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
4.1. System operation - Rigging
Z series systems are equipped with M10 mounting point adapters and pole mount adapters
systems for versatile applications.
Rigging must be performed only by trained personnel following the established safety rules.
MAXIMUM WEIGHT RESTRICTIONS MUST BE FOLLOWED AT ALL TIMES!
MAKE SURE THE SUPPORT STRUCTURE IS CAPABLE OF HOLDING THE APPLIED WEIGHT
WHILE SUSPENDING THE SYSTEM!
Z series systems flying via M10 mounting points
Required accessories:
VA-0015 (part No. 0209000006)
Dierent options are available while flying Z series full-range speakers using integrated M10 flying points.
Eye bolt orientation
While flying, applied force must be in the plane of the VA-
0015 eyebolt’s ring. It is prohibited to arrange the rig in the
way that force is at the angle from the eyebolt’s ring plane.
Right Wrong
Z series pole mounting
Accessories:
N-BOX-5 (part No. 0209000015)
N-BOX-4 (part No. 0209000016)
SAT-3T (part No. 0209000020)
Z series full range speakers are
equipped with pole mount adapter,
which allows them to be installed onto
standard speaker stands.
Z series subwoofers are equipped
with distance pole adapters, which
allows to install full-range systems
onto subwoofers using standard pole
stands.

13
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z Series User Manual rev 0.1
4.1. System operation - Rigging
Z series systems flying via flying adapter
Required accessories:
Z-FB (part No. 0200150000)
Fast and neat flying of the single Z series’ full-range cabinet using flying adapter.
Z series systems mounting via rotating bracket
Required accessories:
Z-RB (part No. 0200150002)
Convenient omnidirectional flying of Z series’ full range cabinet with rotating bracket.
Z series systems dual flying via double flying adapter
Required accessories:
Z-2FB (part No. 0200150001)
Compact flying of two Z series’ cabinets cluster.
- Secure a Z series’ cabinet onto the inner
half-bracket using M10 bolts.
- Use M10 bolts or threaded rods with nut to
secure the outer half-bracket to the support
structure.
- Release the wing-nuts and adjust the tilt
angle of the speaker.
- Tighten up the wing-nuts firmly.
- Choose the appropriate splay angle for your
Z series’ cabinets.
- Secure Z series’ cabinets onto the double
flying adapter using M10 bolts.
- Mount the assembly using the standard 5/8
inch shackle.
- Use dierent mounting points of flying
adapter to choose dierent tilt angles.
- Secure Z series’ cabinet onto the flying
adapter using M10 bolts.
- Mount the assembly using the standard 5/8
inch shackle.
- Use dierent mounting points of flying
adapter to choose dierent tilt angles.

14
Z Series User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com

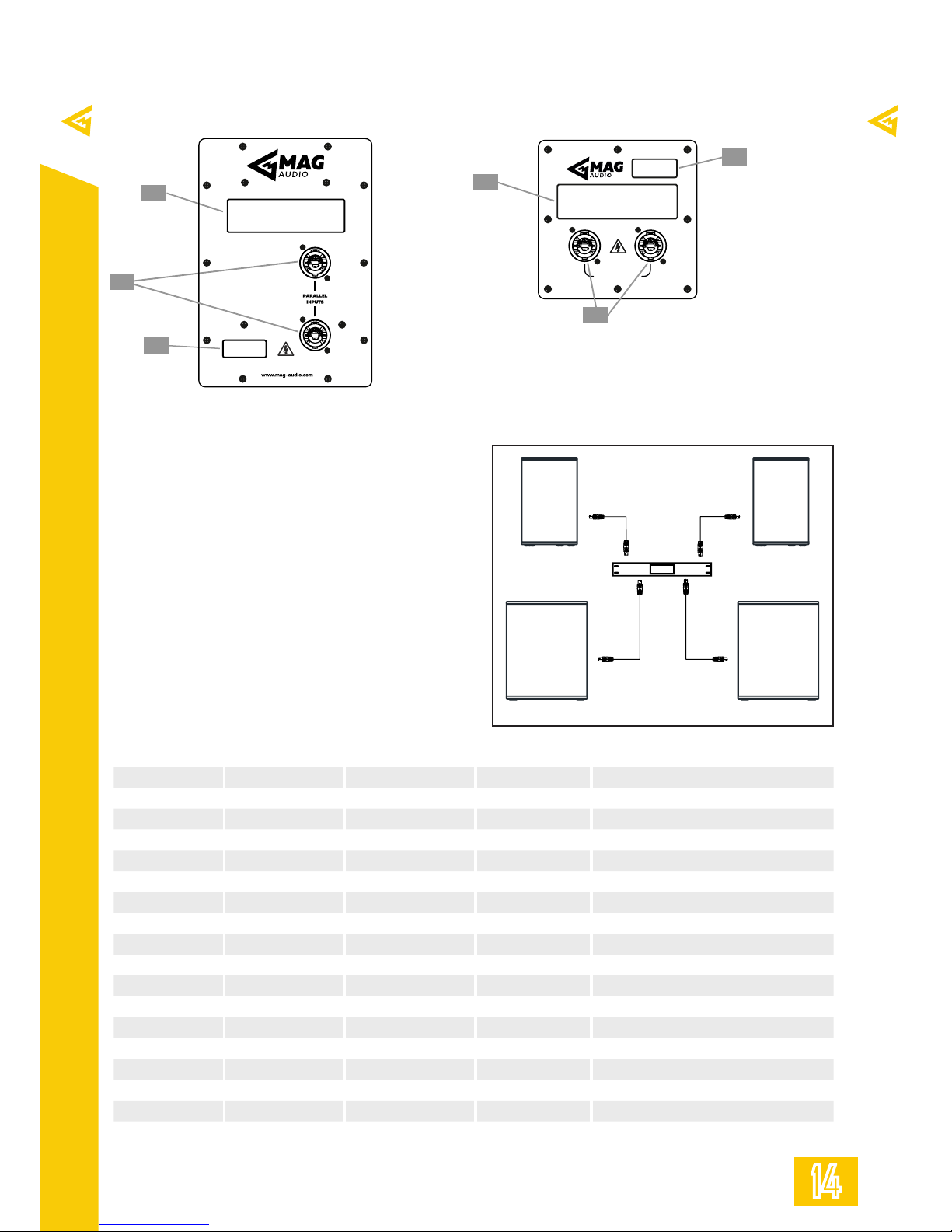

4.2. System operation - passive speakers
Z series passive full-range
speaker’s connection plate
Z series passive subwoofer’s
connection plate
1
2
3
1. LABEL FIELD. Name of the system,
along with it’s basic parameters is
noted here.
2. SERIAL NUMBER FIELD. Sticker
with the systems serial number is
located here. NEVER REMOVE THE
SERIAL FROM THE SYSTEM, AS IT IS
IMMEDIATE WARRANTY VOID.
3. PARALLEL INPUTS. The pair
of parallel Neutrik® Speakon
connectors. Use this connectors to
connect power amplifier and to feed
the signal to the parallel system
(optional).
Made in Ukraine
PARALLEL INPUTS
Made in Ukraine by Magnet Ltd. www.mag-audio.com
1
2
3
DSP AMPLIFIER
Speakon-Speakon
cable
Speakon-Speakon
cable
Speakon-Speakon
cable
Speakon-Speakon
cable
Z series passive
full-range system
Z series passive
full-range system
Z series passive
subwoofer
Z series passive
subwoofer
Z series passive connection diagram
Z series passive connections
Suggested accessories:
CN-0031 (part No. 0204000010)
CN-0032 (part No. 0204000011)
Use power amplifier with DSP or power amplifiers
with external speaker processor with Z series passive
systems.
MAKE SURE TO USE HIGH PASS FILTER FOR ALL Z
SERIES SYSTEMS TO PREVENT EXCESSIVE CONE
MOVEMENT, RESULTING IN TRANSDUCER DAMAGE
OR FAST DETERIORATION.
Recommended HPF settings, suggested power
amplifier ratings, and connection pins are found in
table below:
System Amplifier power Amplifier impedance Connection pins Recommended HPF
Z 100 250 - 500 W 8 Ohm +1 -1 60 Hz or higher, 18 dB/oct min
Z 100-4 250 - 500 W 4 Ohm +1 -1 60 Hz or higher, 18 dB/oct min
Z 120 250 - 500 W 8 Ohm +1 -1 55 Hz or higher, 18 dB/oct min
Z 120-4 250 - 500 W 4 Ohm +1 -1 55 Hz or higher, 18 dB/oct min
Z 150 250 - 500 W 8 Ohm +1 -1 45 Hz or higher, 18 dB/oct min
Z 150-4 250 - 500 W 4 Ohm +1 -1 45 Hz or higher, 18 dB/oct min
Z 220 400 - 800 W 8 Ohm +1 -1 50 Hz or higher, 18 dB/oct min
Z 220-4 400 - 800 W 4 Ohm +1 -1 50 Hz or higher, 18 dB/oct min
Z 250 400 - 800 W 8 Ohm +1 -1 45 Hz or higher, 18 dB/oct min
Z 250-4 400 - 800 W 4 Ohm +1 -1 45 Hz or higher, 18 dB/oct min
Z 155-4 750 - 1500 W 4 Ohm +1 -1 45 Hz or higher, 18 dB/oct min
Z S12 400 - 800 W 8 Ohm +1 -1 40 Hz or higher, 18 dB/oct min
Z S12-4 400 - 800 W 4 Ohm +1 -1 40 Hz or higher, 18 dB/oct min
Z S15 400 - 800 W 8 Ohm +1 -1 40 Hz or higher, 18 dB/oct min
Z S15-4 400 - 800 W 4 Ohm +1 -1 40 Hz or higher, 18 dB/oct min
Z S18 450 - 900 W 8 Ohm +1 -1 35 Hz or higher, 18 dB/oct min
Z S18-4 450 - 900 W 4 Ohm +1 -1 35 Hz or higher, 18 dB/oct min

15
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z Series User Manual rev 0.1
4.3. System operation - powered speakers
Z series powered full-range
speaker’s amplifier
Z series powered subwoofer’s
amplifier
1
3
2
4 5 6
11
10
12
13 14
1
3
2
7 8 9
11
10
12
13 14
1. VOLUME KNOB. Used for adjusting the
volume of the system. Remember to turn
the volume dowm before connecting/
disconnecting INPUT or LINK connectors.
2. LIMIT LED. Is lit when limiter is
operational, indicating excessive signal
through the system.
3. READY LED. Is lit when system is fully
operational.
4. BT/USER EQ BUTTON (Full-range
systems). Engages BlueTooth controls on
BlueTooth enabled versions. Engages HF
boost filter for farfiled applications for
versions without BlueTooth support.
5. MODE BUTTON. Engages the feedback
suppression contours for stage monitoring
appication.
6. HPF. Engages the high-pass filter.
7. BT/USER EQ BUTTON (Subwoofer
systems). Engages BlueTooth controls
on BlueTooth enabled versions. Engages
custom LF boost for dierent bass
experience for versions without BlueTooth
support.
8. PHASE BUTTON. Switches the polarity
of the subwoofer.
9. LPF BUTTON. Engages the low-pass
filter.
10. INPUT CONNECTOR. Used for
connecting the system to the signal source
(mixing console etc.)
11. LINK CONNECTOR. Used for linking
additional compactible system to same
signal source.
12. HEAT SINK. Do not close the ventilation
openings on the heat sink, as it may cause
the system to overheat and switch o by
itself.
13. MAINS IN. Used for connecting mains
supply to the system.
14. MAINS OUT. Used for feeding the mains
supply to the additional system.
180°
0°

16
Z Series User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
4.3. System operation - powered speakers
Mains connection. Z series powered systems are supplied with CN-0010 PowerCon-E/F CEE 7/7
mains cable (part number 0204000003). Use only original or supplied by manufacturer mains
cables!.
Z series powered systems are equipped with PowerCon B mains power outlets for mains link to
additional Z series powered system.
Z series systems nominal mains power specifications: AC 220V, 50/60 Hz.
Nominal voltage tolerance: 100 - 250 V.
To power the system up, connect the mains cable to the system, then to the power outlet.
To completely power down the system, disconnect the mains cable from the power outlet.
Signal connections. Z series systems are equipped with XLR INPUT an XLR LINK connectors for
signal connection.
Use of balanced XLR connector cables is recommended. In case when balanced XLR connections in
not available, unbalanced XLR connection is acceptable.
For linking the additional system to the same signal bus LINK connector may be used.
1
2
3
Shield (Ground)
Plus (+)
Minus (-)
Balanced XLR Plug connections
1
2
3
Shield (Ground)
Plus (+)
Shield (Ground)
Unbalanced XLR Plug connections
XLR-XLR cable XLR-XLR cable
Z series powered
full-range system
Z series powered
full-range system
Z series powered
subwoofer
Z series powered
subwoofer
XLR-XLR cable XLR-XLR cable
To signal source
Z series powered connection diagram
Amplifier controls. Use several available N
series speaker system’s amplifier controls
to set up the entire system:
BT/User EQ (full-range system): Enables
BlueTooth controls for BlueTooth enabled
versions. Engages HF boost filter for
farfiled applications for versions without
BlueTooth support.
NORMAL/MONITOR MODE. (full-range
system): Provides additional microphone
feedback suppression for more
performance comfort while using as stage
monitor.
HPF (full-range system): Provides high-
pass filter to seamlessly couple the full-
range system with powered subwoofer.
BT/User EQ (subwoofers): Engages
BlueTooth controls on BlueTooth enabled
versions. Engages custom LF boost to add
more “kick“ to the system performance.
PHASE (subwoofers): Switches the polarity
of the subwoofer for better coupling
with the full-range systems for dierent
applications.
LPF (subwoofers): Provides low-pass filter
to seamlessly couple the subwoofer with
powered full-range system.

17
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z Series User Manual rev 0.1
5. Standard contents
Please check complete complement of your Z series system upon receiving the package.
Standard contents of Z series systems:
System Supplied Z series system Z series
User Manual
CN-0010
PowerCon mains
cable
Polyethylene
bag Carton Box
Z 100 Z 100 8 Ohm passive speaker system + + +
Z 100-4 Z 100 4 Ohm passive speaker system + + +
Z 100A Z 100A powered speaker system + + + +
Z 120 Z 120 8 Ohm passive speaker system + + +
Z 120-4 Z 120 4 Ohm passive speaker system + + +
Z 150A Z 150A powered speaker system + + + +
Z 150 Z 150 8 Ohm passive speaker system + + +
Z 150-4 Z 150 4 Ohm passive speaker system + + +
Z 150A Z 150A powered speaker system + + + +
Z 220 Z 220 8 Ohm passive speaker system + + +
Z 220-4 Z 220 4 Ohm passive speaker system + + +
Z 220A Z 220A powered speaker system + + + +
Z 250 Z 250 8 Ohm passive speaker system + + +
Z 250-4 Z 250 4 Ohm passive speaker system + + +
Z 250A Z 250A powered speaker system + + + +
Z 155-4 Z 155 4 Ohm passive speaker system + + +
Z 155A Z 155A powered speaker system + + + +
Z S12 Z S12 8 Ohm passive speaker system + + +
Z S12-4 Z S12 4 Ohm passive speaker system + + +
Z S12A Z S12A powered speaker system + + + +
Z S15 Z S15 8 Ohm passive speaker system + + +
Z S15-4 Z S15 4 Ohm passive speaker system + + +
Z S15A Z S15A powered speaker system + + + +
Z S18 Z S18 8 Ohm passive speaker system + + +
Z S18-4 Z S18 4 Ohm passive speaker system + + +
Z S18A Z S18A powered speaker system + + + +

18
Z Series User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z100-TB - Z 100, Z 100-4, Z 100A transportation bag Part No. 0203500055
Z120-TB - Z 120, Z 120-4, Z 120A transportation bag Part No. 0203500057
Z150-TB - Z 150, Z 150-4, Z 150A transportation bag Part No. 0203500059
Z220-TB - Z 220, Z 220-4, Z 220A transportation bag Part No. 0203500061
Z250-TB - Z 250, Z 250-4, Z 250A transportation bag Part No. 0203500063
Z155-TB - Z 155-4, Z 155A transportation bag Part No. 0203500065
ZS12-TB - Z S12, Z S12-4, Z S12A transportation bag Part No. 0203500067
ZS15-TB - Z S15, Z S15-4, Z S15A transportation bag Part No. 0203500069
ZS18-TB - Z S18, Z S18-4, Z S18A transportation bag Part No. 0203500071
6. Accessories
Z-FB flying bracket
Part No. 0200150000
Z-2FB double flying
bracket
Part No. 0200150001
Z-RB rotation bracket
Part No. 0200150002
Various accessories are available for Z series systems:
N-BOX-5 speaker
stand
Part No. 0209000015
N-BOX-4 speaker
stand
Part No. 0209000016
SAT-3T M20
Distance pole
Part No. 0209000020
VA-0016 M10
Rigging eyebolt
Part No. 0209000018
BOX-CB2 Bag for
for two speaker
stands
Part No. 0209000017

19
[e-mail] Tel./Fax: [phone] www.mag-audio.com
Z Series User Manual rev 0.1
This page has been intentionally left blank

20
Z Series User Manual rev 0.1
[e-mail] Tel./Fax: [phone] www.mag-audio.com
[e-mail] Tel./Fax: [phone] www.mag-audio.com
MANUFACTURER’S WARRANTY
1. By this warranty MAG Audio grants that all equipment manufactured under the MAG Audio
trademark is free from defects in material, components and factory workmanship under the
normal use and maintenance for the time as specified below.
2. All warranty repairs and maintenance of MAG Audio products shall be carried out at MAG
Audio production sites or by MAG Audio authorized personnel at no cost for the product pur-
chaser.
3. Warranty period for all the MAG Audio products is 36 months from the date of purchase.
4. Warranty repairs or maintenance will be performed only if a) MAG Audio product was pur-
chased from an ocial MAG Audio distributor / dealer and b) warranty card with specified serial
number, production date, realization date, vendor’s signature and stamp is presented.
5. Warranty shall not cover following: damage caused by accident, misuse or failure to follow
exploitation rules stated in technical manual; intentional damage; repairs performed by non-
authorized personnel; mechanical damage caused by shipping accidents and normal tear and
wear.
6. Warranty shall not be applicable to any product with defaced, removed, or modified serial
number.
7. If your MAG Audio product needs repairs or maintenance, contact your ocial MAG Audio
distributor / dealer. Please do not ship your MAG Audio product without prior authorization.
MANUFACTURER’S CONTACTS
2 Merezhna street, Bila Tserkva, Kiev region, 09112, Ukraine
Tel.\Fax: [phone]
e-mail: [e-mail]
www.mag-audio.com
YOUR MAG AUDIO DISTRIBUTOR / DEALER
Company
Contact
person
Coordinates
