MAG WASP-8 User manual

User Manual
EN
Systems:
WASP-8
WASP-S12 (discontinued)
WASP-S15
WASP-S18
WASP SERIES

WASP Series User Manual rev 2.1
2
MAG AUDIO
Contents
Contents............................................................................................................................................................................................2
Panel A. Dimensions ....................................................................................................................................................................4
1. Safety instructions ...................................................................................................................................................................7
2. Regulatory information........................................................................................................................................................ 8
3. WASP series................................................................................................................................................................................9
3.1. Introduction.........................................................................................................................................................................9
3.2. WASP series speaker models......................................................................................................................................9
4. Specifications.......................................................................................................................................................................... 10
5. System operation....................................................................................................................................................................11
5.1. Rigging..................................................................................................................................................................................11
5.1.1. Connecting WASP modules to WASP-S12/S15/S18 subwoofers .....................................................11
5.1.2. Connecting two WASP modules ......................................................................................................................12
5.1.3. Connecting a flying frame on the top of a WASP module ..................................................................13
5.1.4. Connecting a WSF-02 or Bump-WASP-H frame on the bottom of a WASP-8 module 14
5.1.5. Connecting a WSF-02 or Bump-WASP-H frame on the top of a WASP-S12/S15/S18........15
5.1.6. Connecting a Bump-WASP-H frame on the bottom of a WASP-S12/S15/S18........................15
5.1.7. Connecting castor wheels to the WSF-02 or Bump-WASP-H frame............................................16
5.1.8. Extending the tilt angle on the Bump-WASP-L ......................................................................................17
5.1.9. Connecting a Bump-WASP-L frame on the top of a WASP-8 ........................................................ 18
5.1.10. Building the ground stack using the Bump-WASP-L frame ...........................................................19
5.1.11. Using the Bump-WASP-Ext15 angle extension.....................................................................................20
5.1.12. Installing the MN Mounting PLI 01 inclinometer...................................................................................21
5.1.13. Using WSC-34 (WSC-34A) transportation cart..................................................................................... 22
5.2. Connection........................................................................................................................................................................24
5.2.1. Connection plate and sticker plate ................................................................................................................24
5.2.2. Passive connections .............................................................................................................................................24
5.2.3. Connection details.................................................................................................................................................24
6. Standard contents................................................................................................................................................................ 25
7. Accessories ...............................................................................................................................................................................26
8. Warranty and assistance................................................................................................................................................... 27
8.1. Product warranty........................................................................................................................................................... 27
8.2. Assistance......................................................................................................................................................................... 27
CONTENTS

WASP Series User Manual rev 2.1
3
MAG AUDIO CONTENTS

WASP Series User Manual rev 2.1
4
MAG AUDIO

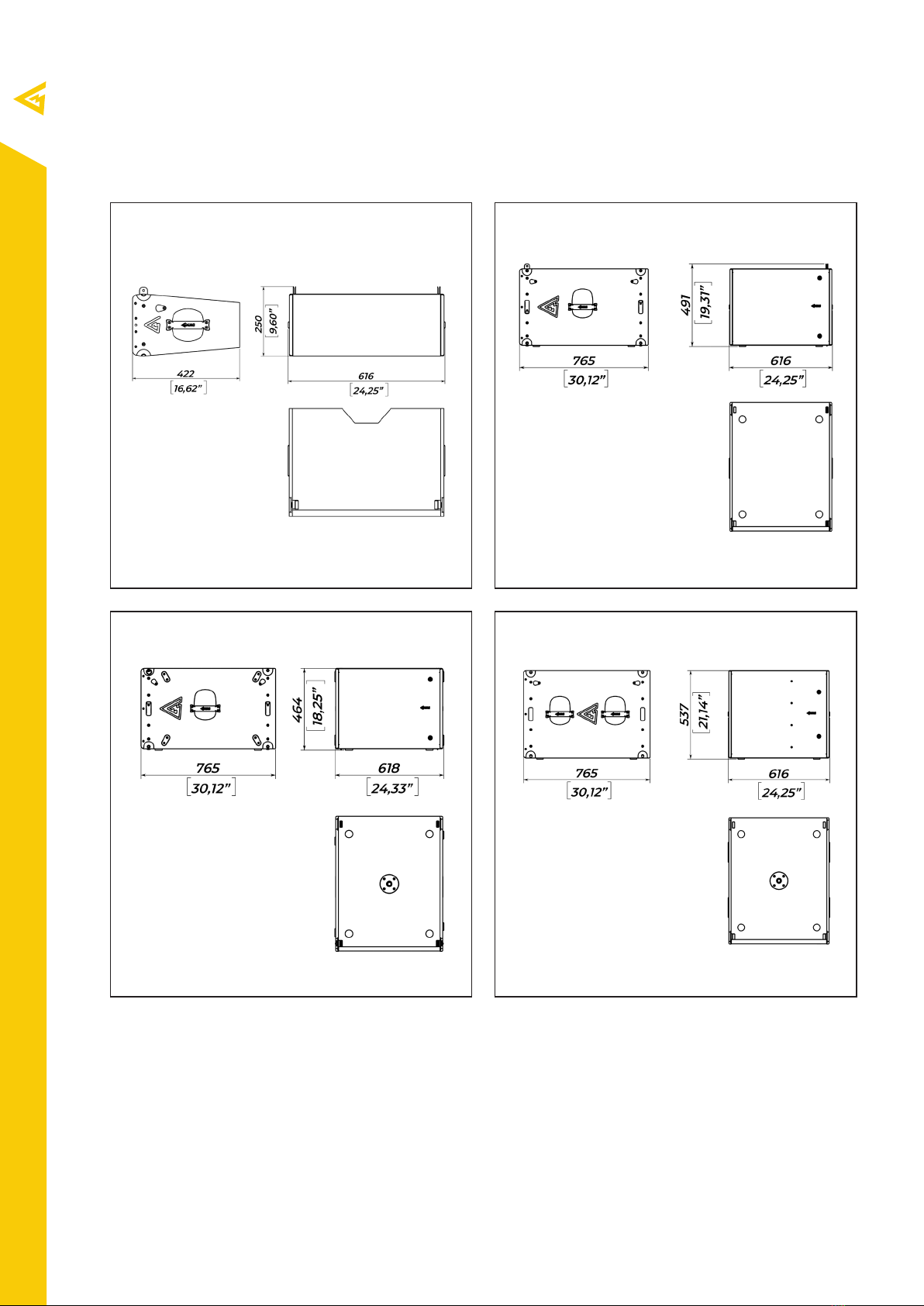

Panel A. Dimensions
WASP-8
WASP-S15
WASP-S12 (discontinued)
WASP-S18
DIMENSIONS

WASP Series User Manual rev 2.1
5
MAG AUDIO
WSF-02, Bump-WASP-H
DIMENSIONS

WASP Series User Manual rev 2.1
6
MAG AUDIO
Bump-WASP-L
DIMENSIONS

WASP Series User Manual rev 2.1
7
MAG AUDIO
1. Safety instructions
1. Read these instructions carefully.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install following
the manufacturer’s instructions.
8. Do not use near heat sources such as stoves, heat
registers, radiators, or other equipment (including
amplifiers) that produces heat.
9. Do not use the unit near open fire sources.
10. Connect the unit only to the electric network
with grounding. Use only electric plugs that provide
grounding.
11. Protect the power cord from being walked on,
pinched, or otherwise damaged.
12. Use only accessories specified by the manufacturer.
13. Unplug this unit during lightning storms or when
unused for long periods.
14. Refer all servicing to qualified service personnel.
Servicing is required when the system has been
damaged in any way, such as a power supply cord or
plug is damaged, liquid has been spilled or objects have
fallen into the unit, the unit has been exposed to rain
or moisture, does not operate normally, or has been
dropped.
15. WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS SYSTEM
UNIT TO RAIN OR MOISTURE.
INSTALLING THIS UNIT MUST BE PERFORMED ONLY
BY QUALIFIED TRAINED PERSONNEL FOLLOWING
APPLICABLE SAFETY RULES. DO NOT ALLOW
INSTALLATION OF THIS UNIT IF INSTALLATION
HARDWARE IS BROKEN, BENT, PARTS ARE MISSING
OR IS OTHERWISE DAMAGED.
The triangle with the lightning bolt is used to alert the
user to the risk of electric shock.
The triangle with the exclamation point is used to
alert the user to important operating or maintenance
instructions.
The CE mark indicates compliance with the low voltage
and electromagnetic compatibility.
The symbol for earth/ground connection.
A symbol indicating that the equipment is for indoor use
only.
Symbol for conformity with Directive 2002/96/EC and
Directive 2003/108/EC of the European Parliament on
waste electrical and electronic equipment (WEEE).
WARNING:TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT ATTEMPT TO OPEN ANY PART OF THE
UNIT. NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
TO COMPLETELY DISCONNECT THIS APPARATUS
FROM THE AC MAINS, DISCONNECT THE POWER
SUPPLY CORD PLUG FROM THE AC RECEPTACLE.
THE MAINS PLUG OF THE POWER SUPPLY CORD
MUST REMAIN READILY ACCESSIBLE.
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE, DRIPPING OR SPLASHING LIQUIDS.
OBJECTS FILLED WITH LIQUIDES, SUCH AS VASES,
SHOULD NOT BE PLACED ON THIS APPARATUS.
CONNECTIONS TO THE MAINS SHALL BE DONE ONLY
BY AN ELECTRO-TECHNICALLY SKILLED PERSON
ACCORDING TO THE NATIONAL REQUIREMENTS OF
THE COUNTRIES WHERE THE UNIT IS SOLD.
EXPLANATIONS OF GRAPHICAL SYMBOLS IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SAFETY INSTRUCTIONS

WASP Series User Manual rev 2.1
8
MAG AUDIO
2. Regulatory information
FCC COMPLIANCE NOTICE
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
under part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used following the instruction manual, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment o and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment to an outlet on a
circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
EC DECLARATION OF CONFORMITY
Manufacturer:
MAG Audio LLC
Merezhna 2
Bila Tserkva, Kyiv region
09112 Ukraine
We declare under our sole responsibility that
products:
WASP-8, WASP-S12, WASP-S15,
WASP-S18
Intended use: Professional Speaker System
Conform with the provisions of the following EC
Directives, including all amendments, and with
national legislation implementing these directives:
- 2006/95/EC Low Voltage Directive
- 2004/108/EC Electromagnetic Compatibility Directive
- 2002/95/CE RoHS Directive
The following harmonized standards are applied:
EN 55103-1:2009 /A1:2012
EN 55014-1:2006 /A1:2009 /A2:2011
EN 55022:2010 /AC:2011
EN 61000-3-2:2006 /A1:2009 /A2: 2009
EN 61000-3-3:2013
EN 61000-3-11:2000
EN 61000-3-12:2011
EN 55103-2:2009 /IS:2012
EN 61000-4-2:2009
EN 61000-4-3:2006 /A1:2008 /IS1:2009 /A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2006
EN 61000-4-6:2014
EN 61000-4-11:2004
EN 60065:2002 /A1:2006 /A11:2008 /A2:2010 /A12:2011
Bila Tserkva,
22 January 2019
Alexey Asanov
CEO
For compliance questions: [e-mail]
Models:
REGULATORY INFORMATION

WASP Series User Manual rev 2.1
9
MAG AUDIO
3. WASP series
3.1. Introduction
WASPline arrayis aversatile arrayforanyinstallation
size, as small as a restaurant or a bar, and as big as
a concert hall or a stadium.
A dual 8-inch system with a 1.5-inch throat HF
driver, WASP has received the most advanced
components to assist with the task of creating the
ultimate compact line-array solution. Thoroughly
designed cabinets, the most advanced proprietary
mounting system, and a wide selection of mounting
and connectivity accessories were called in to
provide fast mounting\dismounting times, as well
as ease of transportation and storage.
A complete amplification solution is available for
WASP as well. Ready-to-go touring racks are
fitted with signal and power distribution and are
based on state-of-the-art touring amplifiers from
Powersoft®. WASP system usability is further
extended with available presets as well as GLL files
for fast system performance prediction.
WASP modules and backed with WASP-S12,
WASP-S15 and WASP-S18 flown or stacked
subwoofers, and are additionally compatible with
several models from the Subwoofer series.
3.2. WASP series speaker models
WASP user manual covers usage of following
models:
WASP-8 part number 00-0003869
WASP-S12 part number 00-0008340
(discontinued)
WASP-S15 part number 00-0033757
WASP-S18 part number 00-0007201
WASP SERIES

WASP Series User Manual rev 2.1
10
MAG AUDIO
4. Specifications
System
WASP
Passive line array
module
WASP-S12
Arrayable passive
subwoofer
(discontinued)
WASP-S15
Arrayable passive
subwoofer
WASP-S18
Arrayable passive
subwoofer
Frequency Response (−10dB) 70 - 20000 Hz 42 - 140 Hz 35 - 300 Hz 32 - 200 Hz
Max SPL 1141 dB (single cabinet) 140 dB 137 dB 141 dB
Sensitivity (1W/1m) 98 dB Low / 110 dB
High 101 dB 95 dB 98 dB
LF Driver 2x 8”, 2,5" VC 12”, 4” VC 15”, 4” VC 18”, 4” VC
HF Driver 1,5”, 2,8” VC - - -
Impedance 16 Ohm Low / 16 Ohm
High 8 Ohm 8 Ohm 8 Ohm
Horizontal coverage 100° - - -
Vertical coverage Depends on the
number of cabinets - - -
Nominal power 2600 W Low / 100 W
High 950 W 1000 W 1300 W
Connectors 2x Neutrik Speakon 4x Neutrik Speakon 4x Neutrik Speakon 4x Neutrik Speakon
Dimensions (W×H×D), mm 622x279x422 mm 622x493x765 mm 620x464x765 mm 622x567x765 mm
Net weight, kg 22 kg 44,6 kg 48,4 kg 47,8 kg
Shipping weight, kg 25 kg 47,6 kg 51,5 kg 50,8 kg
Mounting
Integrated flying
hardware; 0° - 10°
splay angle
Integrated flying
hardware
Integrated flying
hardware, M20
distance adapter
Integrated flying
hardware, M20
distance pole adapter
Enclosure material Plywood; wear-
resistant paint
Plywood; wear-
resistant paint
Plywood; wear-
resistant paint
Plywood; wear-
resistant paint
Grill
Steel grill, synthetic
acoustically
transparent cloth
Steel grill, synthetic
acoustically
transparent cloth
Steel grill, synthetic
acoustically
transparent cloth
Steel grill, synthetic
acoustically
transparent cloth
1 - peak value, calculated according to AES 2 - 2012
2 - based on transducer power measured according to AES 2 - 2012
SPECIFICATIONS

WASP Series User Manual rev 2.1
11
MAG AUDIO
5. System operation
5.1. Rigging
WASP line array comes with built-in mounting
hardware for ground stack and flying cluster
installation options.
Rigging must be performed only by trained
personnel following the established safety rules.
MAXIMUM WEIGHT RESTRICTIONS MUST BE
FOLLOWED AT ALL TIMES!
MAKE SURE THE SUPPORT STRUCTURE IS
CAPABLE OF HOLDING THE APPLIED WEIGHT
WHILE SUSPENDING THE SYSTEM!
5.1.1. Connecting WASP modules to WASP-S12/
S15/S18 subwoofers
WASP line array is a versatile product allowing the
creation of ground stack as well as flying cluster
configurations.
In both cases, the connection ofWASP modules and
WASP-S12/S15/S18 is done using an intermediate
Bump-WASP-H frame.
1
2
SYSTEMS OPERATION

WASP Series User Manual rev 2.1
12
MAG AUDIO
5.1.2. Connecting two WASP modules
- Release two VA-0018 10 mm pins on the rear link
and two VA-0010 8 mm pins on the front link.
(Pic. 1)
- Bring together two cabinets, then insert two VA
0010 8 mm pins into the front link from the sides
of the cabinets. (Pic. 2, 3)
- For each cabinet, insert one VA-0018 10 mm pin
into a slot for the required splay angle. (Pic. 4, 5)
- Bring together, and then extend the rears of all
cabinets to allow the rear link to hook. Secure rear
connection with one VA-0018 10 mm pin. (Pic. 6, 7) 1
3
67
2
54
SYSTEMS OPERATION

WASP Series User Manual rev 2.1
13
MAG AUDIO
1

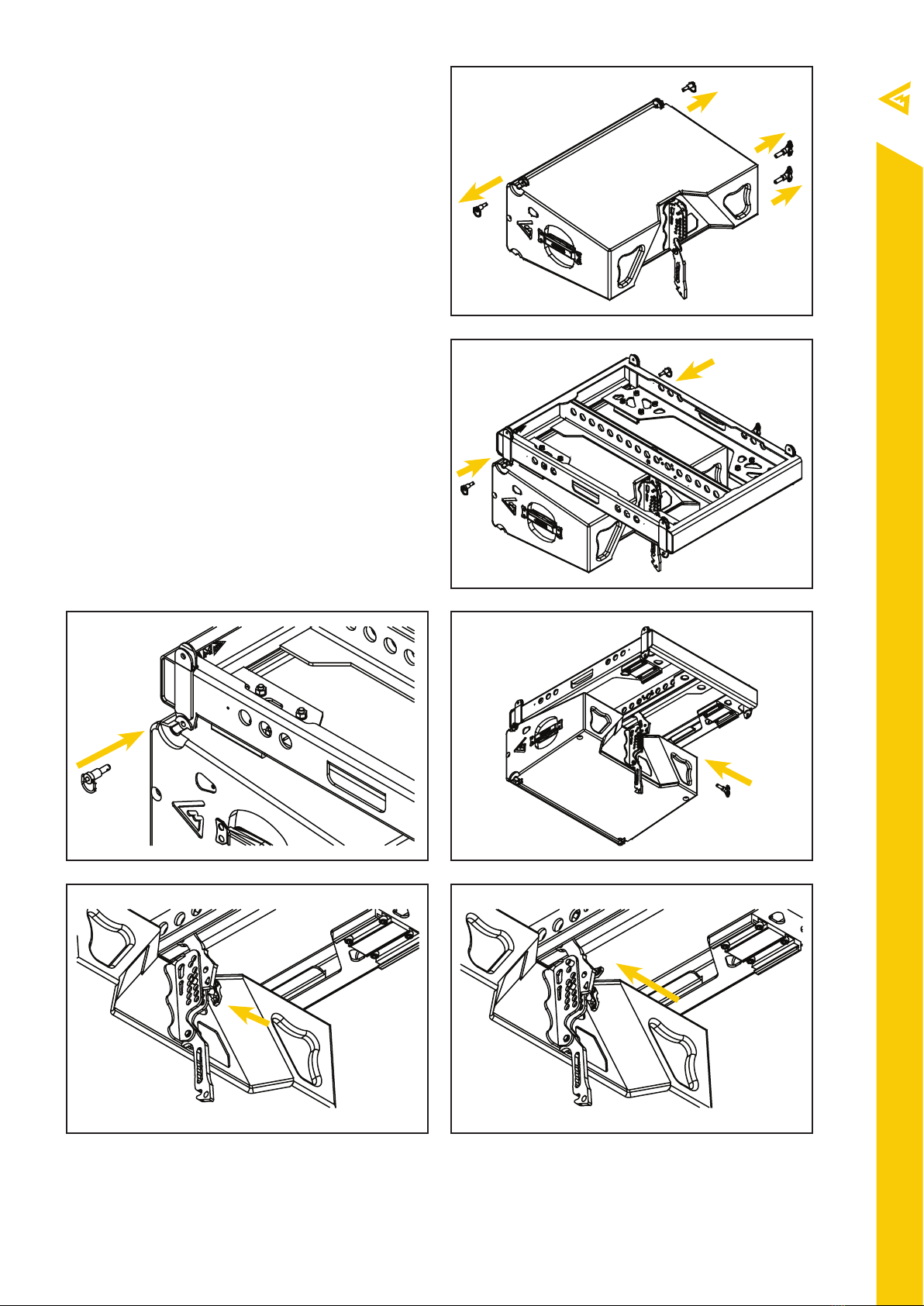

5.1.3. Connecting a flying frame on the top of a
WASP module
- Release two VA-0018 10 mm pins on the rear link
and two VA-0010 8 mm pins on the front link.
(Pic. 1)
- Attach the WSF-02 or Bump-WASP-H flying
frame on the top of the cabinet and insert two VA-
0010 pins in the front. (Pic. 2, 3)
- Insert a VA-0018 10 mm pin into the cabinet’s
rear link. Choose the angle of the tilt. (Pic. 4, 5)
- Hook the link of the frame onto the cabinet’s rear
hardware, and secure it with a second VA-0018 10
mm pin. (Pic. 6, 7)
43
5 6
2
SYSTEMS OPERATION

WASP Series User Manual rev 2.1
14
MAG AUDIO

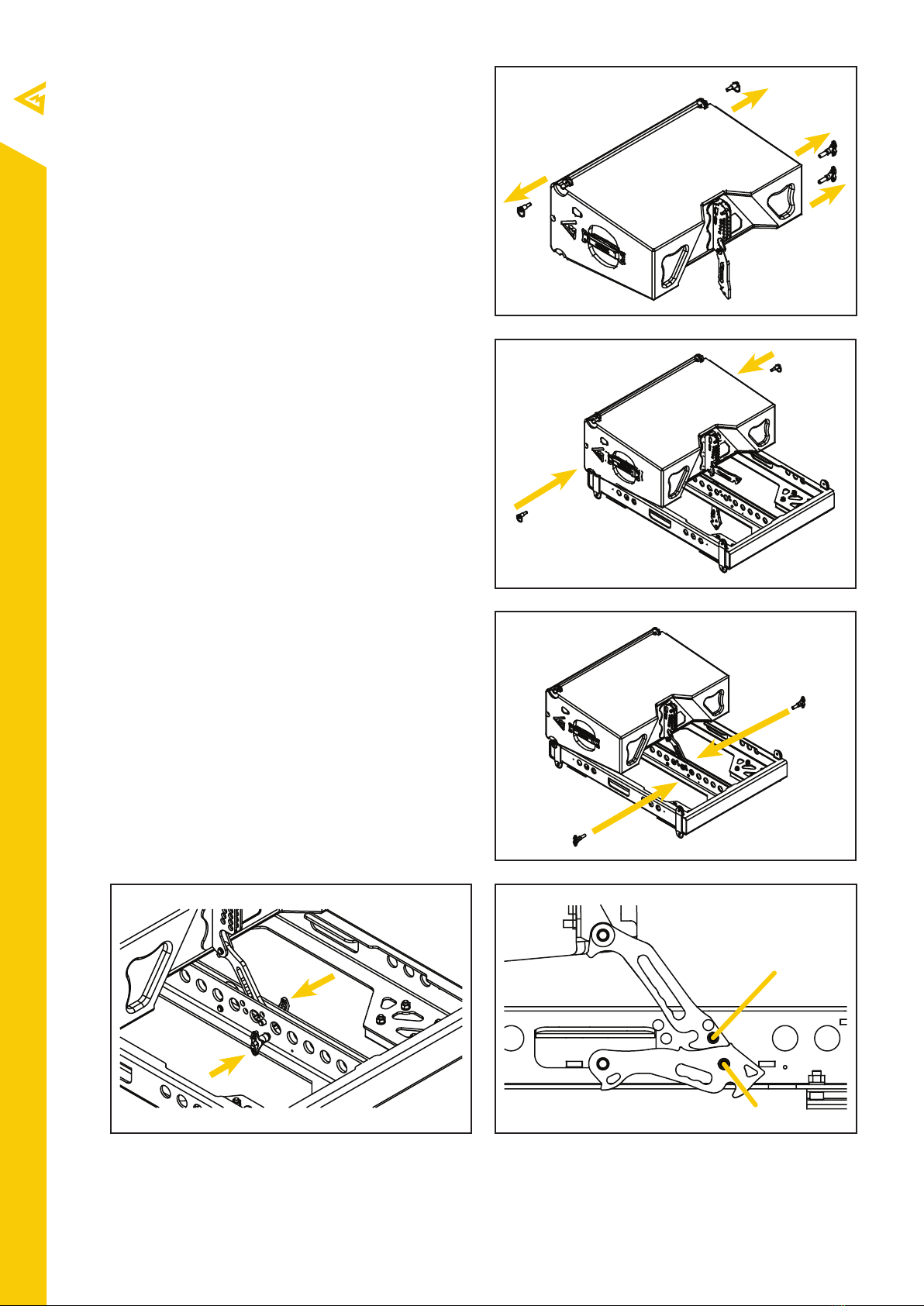

5.1.4. Connecting a WSF-02 or Bump-WASP-H
frame on the bottom of a WASP-8 module
- Release two VA-0018 10 mm pins on the rear
link and two VA-0010 8 mm pins on the front link.
(Pic. 1)
- Place the cabinet on the top of the WSF-02 or
Bump-WASP-H frame, and insert two VA-0010 8
mm pins into the front links. (Pic. 2).
- Use a VA-0018 10 mm pin to secure the frame’s
link into the hidden position. Use another VA-0018
10 mm pin to attach the cabinet’s link to the frame.
(Pic. 3, 4, 5).
You can choose between 0°, 2,5°, 5° and 7,5° for
front tilt of the WASP-8 cabinet. For additional
tilt angle, use the WSF-02 or Bump-WASP-Ext15
accessory (refer to 5.1.11 and 5.1.12).
3
4 5
2
1
VA-0018 pin
VA-0018 pin
SYSTEMS OPERATION

WASP Series User Manual rev 2.1
15
MAG AUDIO

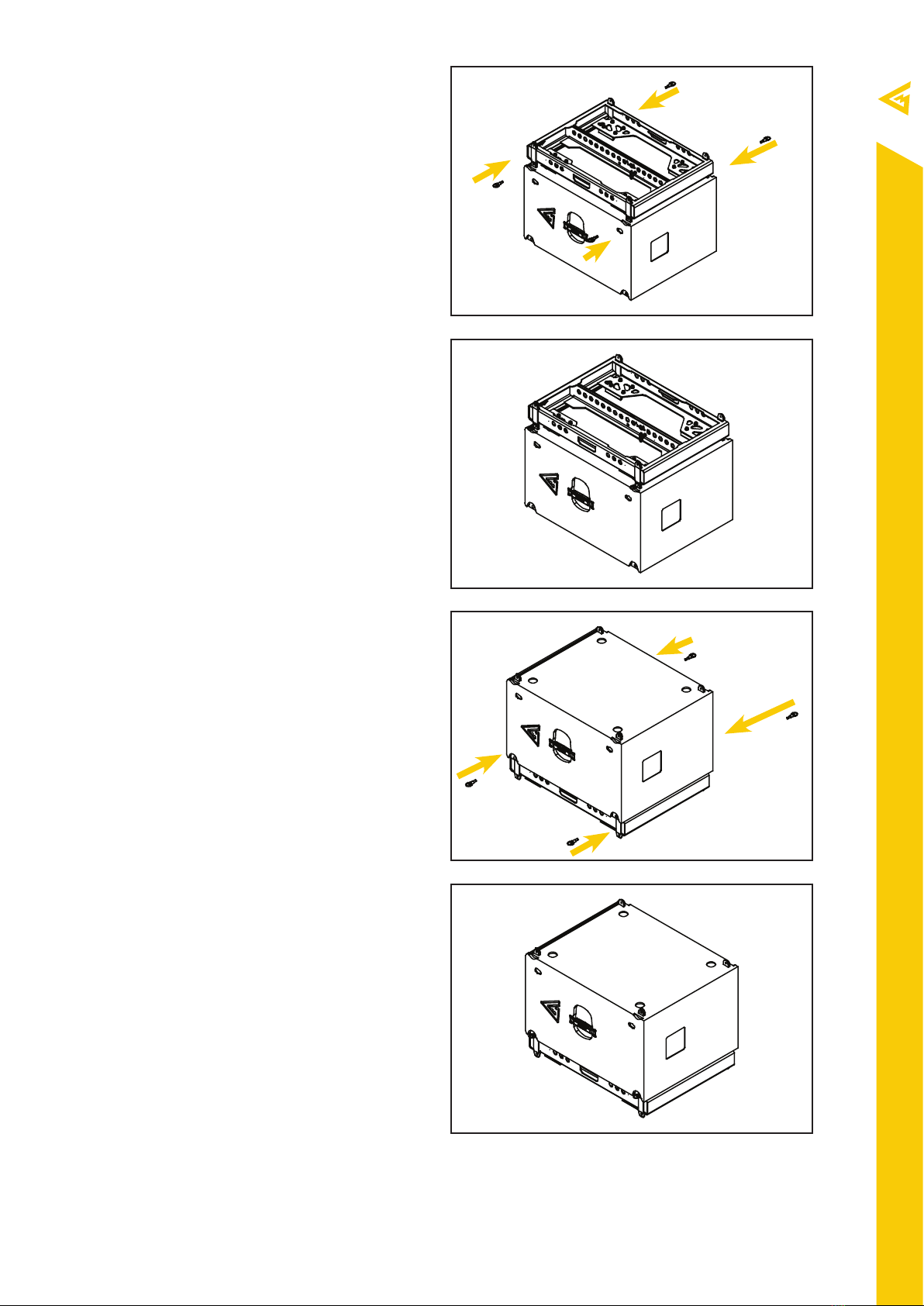

5.1.5. Connecting a WSF-02 or Bump-WASP-H
frame on the top of a WASP-S12/S15/S18
- Place the WFS-02 or Bump-WASP-H flying
frame on the top of a WASP-S12/S15/S18, align so
the front and rear links of a WASP-S12/S15/S18 fit
into the receptacles of the frame (Pic. 1).
- Insert four VA-0010 8 mm pins into the front and
rear links of the WASP-S12/S15/S18.
5.1.6. Connecting a Bump-WASP-H frame on the
bottom of a WASP-S12/S15/S18
- Place the WSF-02 or Bump-WASP-H flying frame
on the bottom of a WASP-S12/S15/S18, align so the
front and rear links of a WASP-S12/S15/S18 fit into
the receptacles of the frame (Pic. 1).
- Insert four VA-0010 8 mm pins into the front and
rear links of the WASP-S12/S15/S18.
1
3
4
2
SYSTEMS OPERATION

WASP Series User Manual rev 2.1
16
MAG AUDIO

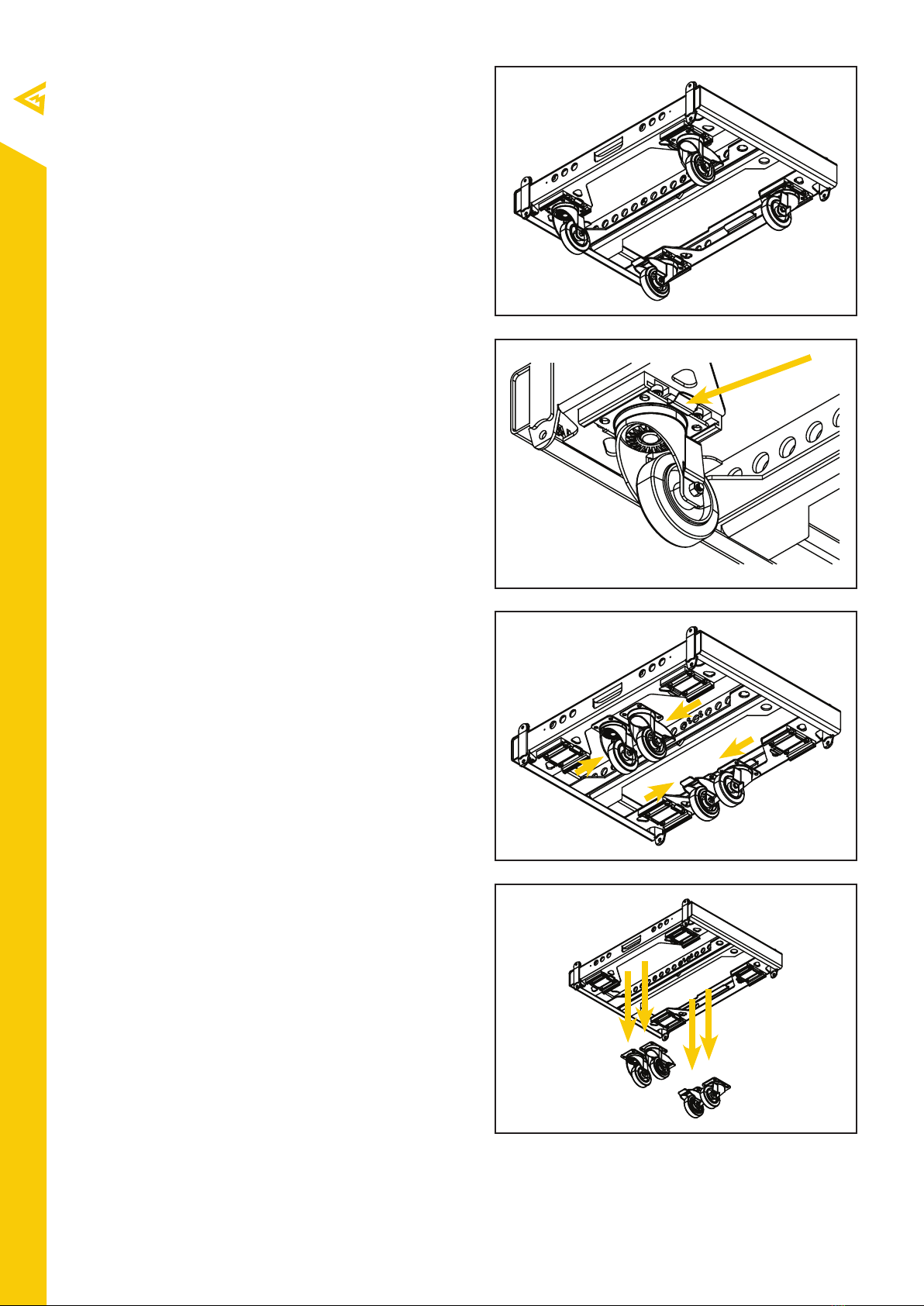

5.1.7. Connecting castor wheels to the WSF-02 or
Bump-WASP-H frame.
The WSF-02 or Bump-WASP-H flying frame can
fitted with four 100 mm castor wheels to easily
transportation of WASP-8 or WASP-S12/S15/S18
subwoofer stacks.
1
3
2
4
- To remove the castor wheel from the frame, press
the lock on the frame, and pull the wheel to the
center of the frame.
SYSTEMS OPERATION

WASP Series User Manual rev 2.1
17
MAG AUDIO
1

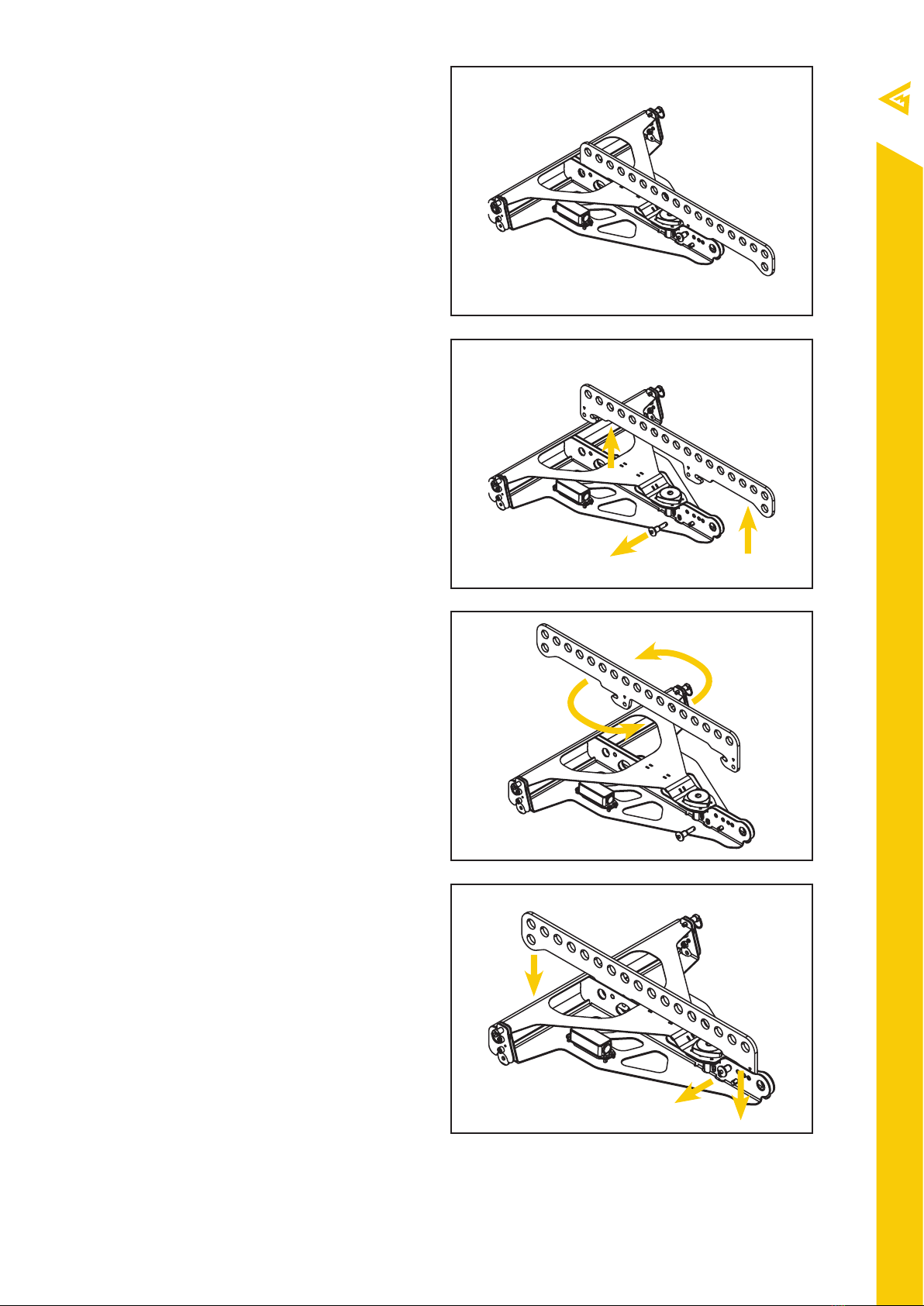

5.1.8. Extending the tilt angle on the
Bump-WASP-L
Bump-WASP-L supports a wide range of vertical
tilt angles including negative (first array module
looking down) and positive (first array module
looking up).
- Remove the safety pin and detach the upper
mounting hole plank.
- Rotate the mounting hole plank 180° and place it
back onto the supports.
- Fix the mounting hole plank with the safety pin.
2
3
4
SYSTEMS OPERATION

WASP Series User Manual rev 2.1
18
MAG AUDIO

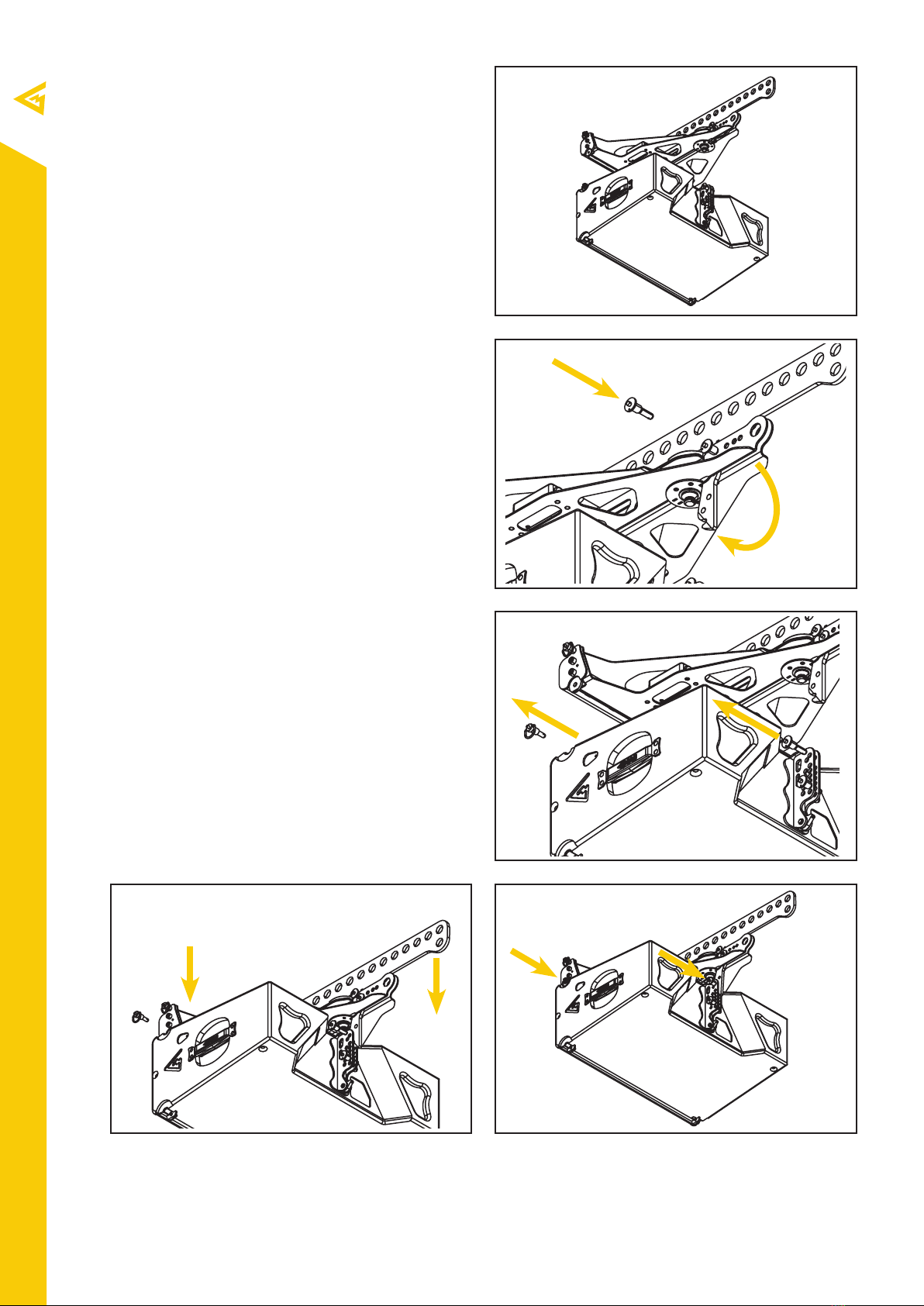

5.1.9. Connecting a Bump-WASP-L frame on the
top of a WASP-8
- Place the Bump-WASP-L flying frame on the top
of a WASP-8, and align so the front and rear links of
a WASP-8 fit into receptacles of the frame (1).
- Release a pin holding the rear mounting hook of
the Bump-WASP-L frame (2).
- Remove both frontal pins and a rear pin of the
WASP-8 module (3).
- Place the Bump-WASP-L frame into the
receptacles of the WASP-8 module (4).
- Secure by returning both frontal pins and rear
pins of the WASP-8 module into their slots (5).
1
3
2
54
SYSTEMS OPERATION

WASP Series User Manual rev 2.1
19
MAG AUDIO
5.1.10. Building the ground stack using
the Bump-WASP-L frame
- Remove holding pin and remove the mounting
plank of the Bump-WASP-L frame (1).
- Remove two lower side pins of the Bump-WASP-L
frame (2).
- Install the Bump-WASP-L frame onto the
WASP-S12/S15/S18 subwoofer. Insert the two side
pins of the Bump-WASP-L frame. Use the winch
to secure the Bump-WASP-L to the M20 socket of
the subwoofer (3).
- Position the WASP-8 module on top of the Bump-
WASP-L frame. Remove two upper side pins of the
Bump-WASP-L frame. Remove the rear holding pin
of the WASP-8 module and release the rear link (4).
- Install the WASP-8 module onto the Bump-
WASP-L frame. Insert the two side pins of the
Bump-WASP-L frame. Secure the WASP-8’s rear
link with the pin. (5).
You can choose between 0°, 2,5°, 5° and 7,5° for
front tilt of the WASP-8 cabinet. For additional tilt
angle, use the Bump-WASP-Ext15 accessory (refer
to 5.1.11).
1
2
5
3
4
SYSTEMS OPERATION

WASP Series User Manual rev 2.1
20
MAG AUDIO
5.1.11. Using the Bump-WASP-Ext15 angle
extension
Bump-WASP-Ext15 can provide up the 15° of the
frontal tilt of the WASP-8 module when building
the ground stack using Bump-WASP-L, WSF-02 or
Bump-WASP-H mounting frame.
- Bump-WASP-Ext15 is attached to the rear link of
the WASP-8 cabinet (1).
- Release a pin holding the rear link of
the WASP-8 cabinet. Release a pin of the
Bump-WASP-Ext15 (2).
- Install the Bump-WASP-Ext15 onto the rear link
of the WASP-8 module. Secure using the pin (3).
- Tilt the WASP-8 module and install it’s rear link
with connected Bump-WASP-Ext15 into the
ground stack mounting hole of the mounting
frame (4).
When using the Bump-WASP-Ext15, the ground
stack mounting holes of the Bump-WASP-L or
Bump-WASP-H provide following frontal tilt
angles:
- 0° hole: 7,5° tilt
- 2,5° hole: 10° tilt
- 5° hole: 12,5° tilt
- 7,5° hole: 15° tilt
1
3
2
54
SYSTEMS OPERATION
