Maggi BORING SYSTEM 35 User guide

BORING SYSTEM 35
MACHINE CODE :
16354101 / 201
WOODWORKING MACHINERY
ORIGINAL USE AND MAINTENANCE MANUAL
Always keep this manual together with the machine
UK
MANUAL CODE NUM.00008081 EDITION 03/2014

Page intentionally left blank

EC Declaration of Conformity
The manufacturer
Maggi Technology S.r.l.
Via delle Regioni, 299 - 50052 Certaldo FI) ITALY
Declares that the machinery
complies with all relevant provisions of the directive:
2006/42/EC Machine)
2004/108/EC EMC)
and compile the technical file of the above machinery.
Certaldo - Issue date:
Adesivo targa matricola
The General Manager
Giacomo Landi
The machinery B RING MACHINE
Model
BORING SYSTEM 35

Page intentionally left blank

WE WISH TO THANK YOU FOR CHOOSING ONE OF OUR PRODUCTS
All the information, advices and important warnings for a correct use of the ma-
chine, have been inserted into this manual. This manual also contains the rules
for a correct periodical maintenance to keep this machine in perfect efficiency.
We suggest that all the chapters of this manual are thoroughly read before you
use the machine for the very first time.
INTRODUCTION
Some information and illustrations in this manual may differ from the machine in your
possession, since all the configurations inherent in the machine complete with all the
OPTIONALS are described and illustrated. Therefore, refer only to that information
strictly connected with the machine configuration you have purchased. The
manufacturer in his pursuit of a policy of costant development and updating of the
product may make any modifications without any prior notice.
This manual has been drawn up exclusively for our customers’ use, guaranteeing that at the
date of issue it constitutes the latest update of the documentation related to use of the
product. Use of this manual is on full responsibility of the user. The manufacturer does not
grant any further guarantee for any imperfections, incompleteness and/or operating
difficulties, expressly excluding any responsibility for direct or indirect damage deriving from
use of this documentation. MAGGI TECHNOLOGY reserves the right to make any
modifications to the product described in this manual at any time without prior notice.
All reproduction rights are reserved by MAGGI TECHNOLOGY.

1) SAFETY RULES AND GENERAL INFORMATION
1.1 ) RECOMMANDATION FOR USE AND MAINTENANCE
1.2 ) MACHINE IDENTIFICATION
2 ) OPERATIVE NOTES
3 ) MACHINE DESCRIPTION
3.1 ) USABLE TOOLS
4 ) EQUIPMENT
5) SAFETY PROTECTION DEVICES AND ADHESIVE WARNING
6 ) INDIVIDUAL PROTECTION DEVICES AND RESIDUAL RISKS
7 ) TECHNICAL DATA
8) INTENDED USE
8.1 ) MATERIALS
8.2 ) IMPROPER USE
9 ) TRANSPORT
10 ) INSTALLATION
10.1) PLACING THE MACHINE
10.2) LEVELLING
11 ) WORKING AREA
12 ) ASSEMBLING AND CHECKING PROCEDURE
13 ) ASSEMBLING AND PRELIMINARY PREPARATION FOR WORKING
14 ) MACHINE CONNECTIONS TO EXTERNAL POWER SUPPLY
14.1) CONNECTION TO ELECTRICAL POWER SUPPLY
14.2) PNEUMATIC CONNECTION
14.3) STARTING THE MACHINE
14.4) WORKING CYCLE
14.5) CONTROL PANEL
15 ) CHECK UP AND ADJUSTEMENT
15.1) ELECTRICAL INSULATION PROCEDURE
15.2) PRELIMINARY CHECK UP
15.3) DRILLING DEPTH AND SPINDLE HEAD ADJUSTMENT
15.4) HORIZONTAL/VERTICAL SPINDLE HEAD POSITIONING
15.5) USE OF THE REFERENCE STOP FOR STANDARD 0-90° MACHINING
15.6) USE OF THE EXTENSION FENCE 1,5 + 1,5 MT ( OPTIONAL )
15.7) USE OF REFERENCE PIN ( OPTIONAL )
15.8) HOW TO USE TRIANGULAR FENCE 45° ( OPTIONAL )
15.9) USE OF CENTRAL SPLINE ( OPTIONAL )
16 ) WOODWORKING EXAMPLES
17 ) MAINTENANCE
17.1) ORDINARY MAINTENANCE
17.2) CLEANING THE MACHINE (DAILY)
17.3) CLEANING THE RAILS (WEEKLY)
17.4) EXTRAORDINARY MAINTENANCE
18 ) COMMON FAILURES - REASONS AND REMEDIES
18.1) DRILLS DO NOT WORKS
18.2) THE MOTOR WORKS BUT NOT THE DRILLS
18.3) THE HOLE IS NOT ACCURATE
19 ) ANOMALIES DURING NORMAL WORKING PHASES
19.1) BURN TRACES DUE TO DRILLS
19.2) THE DRILLED PIECES ARE NOT PARALLEL TO THE REFERENCE BAR
19.3) THE HEAD CANNOT ROTATE PROPERLY
19.4) THE WORKING PIECE IS NOT BLOCKED BY THE SAFETY CLAMP
20 ) NOISE EMISSION
21 ) DUST EMISSION
22 ) PUTTING THE MACHINE OUT OF SERVICE
23 ) TERMS OF GUARANTEE
24 ) GUARANTEE CERTIFICATE
25 ) SPARE PARTS CATALOGUE
26 ) SPARE PARTS REQUEST
INDEX

NOTES

1. SAFETY RULES AND GENERAL INFORMATION
1.1 RECOMMENDATION FOR USE AND MAINTENANCE
In this manual we put into evidence all the operations for a correct use and ordinary maintenance of the
machine.
We strongly recommend not to make any other type of work repair or operation not suggested in this manual.
We suggest also to keep this manual in a place where the user can easily find and read it.
1.2 MACHINE IDENTIFICATION
The data impressed in the plate placed on the left side of the machine (from the point of view of the operator)
identify the machine itself.
When you eventually order spare parts or ask for any suggestions for use or maintenance, you have always to
transmit the model type and identification number contained in the plate.
It is absolutely forbidden to remove the plate or modify the data it contains.
The following identification plate is placed on the boring system machine described into this manual:
GENERAL INFORMATION ABOUT THE MANUFACTURER
Manufacturer: MAGGI TECHNOLOGY S.r.l.
Address: Via delle Regioni, 299—50052
City: CERTALDO (FI)
Nation: ITALY
Tel. [phone]
Fax. [phone]
E-mail: [email protected]
ANY ADULTERATION OR REMOVAL OF SAFETY PROTECTION DEVICES CAN CAUSE
SEVERE DAMAGE. ANY REMOVAL, EXCLUSION OR MODIFICATION OF THESE
DEVICES IS STRICTLY FORBIDDEN.
YOU MUST VERIFY AND GUARANTEE THE PERFECT RUNNING OF SAFETY DEVICES
BY MEANS OF PERIODIC CHECKS. ANY DEFECT OR PROBABLE DRAWBACK MUST
BE IMMEDIATELY RESOLVED.

Fig. A Fig. B
3
1
2
5
6
4
3.1 USABLE TOOLS
Drills for quick change spindles, 10 mm O. D. and 20 mm length shank (Fig. A )
Drills up to 40 mm O. D. can be used ( Fig. B )
3. MACHINE DESCRIPTION
Our boring machines have been manufactured to make holes on wood at a fixed distance of 32 mm (with
maximum accuracy) between each centre.
The head has its fulcrum on the machine table and it can be tilted up to a 90-degree angle. The operator place
the work piece on the working table, does some adjustments by using the pedal control, block the piece using
the clamp units and then start drilling.
The machine consists of:
1. a steel frame structure
2. one head group equipped with its trasmission system
3. clamp group for vertical blocking of the work piece
4. pneumatic system for head positioning and head feed
5. reference stops to obtain the same drilling distance from vertical to horizontal position
6. leaflet for positioning the spindle height, a mechanical counter and the “Spiral System” device ti regula-
regulate the hole depth from 0 mm to 85 mm
2. OPERATIVE NOTES
WOODWORKING MACHINES CAN BE DANGEROUS
1) A safe and correct use can be obtained by carefully and scrupulously following all the instructions con-
tained into this manual.
2) The machine must be used only by qualified users and personnel of age. The responsible for safety must
be sure that users of the machine have read and understood all the information contained into this man-
ual.
3) The personnel for both ordinary and extraordinary maintenance must be well prepared in mechanics and
electricity.
4) Keep off any parts in movement of the machine. Never touch the spindles and/or their respective parts in
movement of the machine.
5) Never put one working piece on top of another one. Correctly adjust the machine and then drill only one
working piece at time.
ANY ADULTERATION OR REMOVAL OF SAFETY PROTECTION DEVICES CAN CAUSE SE-
VERE DAMAGE. ANY REMOVAL, EXCLUSION OR MODIFICATION OF THESE DEVICES IS
STRICTLY FORBIDDEN. YOU MUST VERIFY AND GUARANTEE THE PERFECT RUNNING OF
SAFETY DEVICES BY MEANS OF PERIODIC CHECKS. ANY DEFECT OR PROBABLE DRAW-
BACK MUST BE IMMEDIATELY RESOLVED.

Fig. A
Fig. B
Fig. C Fig. D
Fig. E
Fig. G Fig. H Fig. I
Fig. L
Fig. F
5. SAFETY PROTECTIONS DEVICES AND ADHESIVE WARNING
− The operator assigned to the machine must be well trained on its correct use, its safety protection devices
and its accessories.
− The machine drilling devices must be correctly blocked and adjusted.
− The whole machine must undergo ordinary and extraordinary maintenance procedures, following the
scheduled timing.
− Before you switch on the machine or start any work session, verify that the working table is free of the
shaving left from the wood previously drilled.
− Before making any operation with the machine, verify that the entire working area is free of persons and of
any obstacles which could be potentially source of danger.
− Verify that the connecting cable to the electrical power supply is safe, well stretched out and not rolled up.
− Do not enter the drilling zone before turning off the machine.
− Do not put any inflammable substances nearby the machine because of risk of explosion and/or fire due to
possible sparks production.
− The operator must pay maximum attention using the pneumatic pedal to work with the machine.
− The operator must think carefully about possible consequences before approaching with his hands the
most dangerous areas of the machine: the drilling zone and the working area of the clamp units.
− The machine must be turned off when not in use.
4. ACCESSORIES
CODE DESCRIPTION
36000061 BUSHES FOR QUICK CHANGE DRILL See Fig. A
26054810 ALUMINIUM FENCE WITH 4 STOPS ( 1500 + 1500 mm ) See Fig. B
26054812 ALUMINIUM FENCE RH WITH 2 STOPS ( 1500 mm ) Without Fig.
29970202 FENCE EXTENSION ( 1000 mm ) See Fig. C
26050801 EXTRA STOP FOR ALUMINIUM FENCE See Fig. D
26001058 REFERENCE FENCE FOR QUICK AND EXACT SETUP OF STOPS ON THE LONG FENCE FOR LNE BORING (1088 mm) See Fig. E
29900100 STOP REFERENCE PIN FOR LINE BORING See Fig. F
26000069 SET OF REFERENCE FENCES FOR MOULDINGS AT 45° AND 90° See Fig. G
26000071 REFERENCE STOP TO MATCH THE LONG PANEL DURING TRANSVERSE BORING See Fig. H
26000061 REFERENCE FENCE FOR REAR FENCE PARALLELISM ( 500 mm ) See Fig. I
29971019 EXTRA CLAMPING PRESSER See Fig. L
26054813 ALUMINIUM FENCE LH WITH 2 STOPS ( 1500 mm ) Without fig.

WARNING SYMBOL: ALL THE OPERATIONS HIGHLIGHTED WITH THIS SYMBOL ARE DANGEROUS
TO THE OPERATOR; PLEASE BE VERY CAREFUL IN DOING THESE OPERATIONS.
The main risk is due to moving drills. Our machine is equipped with following protection devices to reduce risks
to the minimum:
A) Emergency push button
It is inserted in the control panel, in the front side of the machine. All the movements of the machine stop im-
mediately when the emergency push button is pushed.
B) Series of stickers and plates
They describe in details all the safety instructions, the correct working procedures and identify the main parts
of the machine. One plate shows the identification and serial number of the machine.
C) Safety clamp (patented)
They are on the surface of the working table or of the already positioned working piece, so that the operator
can not put unintentionally his hands below.
D) Safety protection device
No-way-back coil preserve against accidental start. No-way-back coil preserve against accidental start
Code 36054018 Code 36054019
CEE, ISO, UNI WARNING SYMBOLS
Code 36054016 Code 36054032

WARNING SYMBOL: ALL THE OPERATIONS HIGHLIGHTED WITH THIS SYMBOL ARE DANGEROUS
TO THE OPERATOR; PLEASE BE VERY CAREFUL IN DOING THESE OPERATIONS.
U.S.A. WARNING SYMBOLS
Code 36050005
Code 36050505
Code 36050506
Code 36050507
Code 36050508
Code 36050509

7. TECHNICAL DATA
6. INDIVIDUAL PROTECTION DEVICES AND RESIDUAL RISKS
Despite all adopted safety protection devices, following situations may be dangerous:
- fall or throw of wood sliver during working operation
- entangling parts of clothes in moving parts of the machine
- danger of fire
- danger of electrocution
- danger of damage due to noise emission
- danger of damage due to dust emission
To prevent risks during placing, installation, adjustment, use, ordinary and extraordinary maintenance, we
strictly recommend to use the following individual protection devices:
- gloves (for example during machine parts handling)
- anti-crushing and anti-sliding shoes
- glasses or face-shields against chip or wood sliver during working or cleaning operation of the machine
- anti-dust masks
Moreover, the clothes must be suited to avoid danger of:
- catching
- dragging
- crushing
- sliding
- abrasion
- contact lenses are prohibited
For further information and recommendation please refer to chapter. OP-
Technical feature BS 35
N°. OF SPINDLES 35
INTERAXIS BETWEEN SPINDLES 32 mm
INTERAXIS BETWEEN FIRST AND LAST SPINDLES 1088 mm
MAX. BORING DEPTH 85 mm
MAX DIMENSION OF THE WORKING PIECE 1340 x 3000 mm
HEIGHT OF THE WORKING TABLE 875 mm
N° OF CLAMPS 2
STANDARD PNEUMATIC PRESSURE 6 - 8 Bar
STANDARD AIR CONSUMPTION FOR WORKING CYCLE 15 L / Cycle
N° OF MOTORS 2
MOTOR POWER 2 (1,5) HP( KW )
MOTOR r.p.m. 2800 RPM
MACHINE DIMENSIONS ( B x L x H ) 990x1670x1280
mm
NET WEIGHT 375 Kg
DIMENSION OF THE WORKING TABLE 1330 x 410 mm
Never leave the machine unattended when con-
nected to the electrical power supply

8. INTENDED USE
8.1 MATERIALS
The boring system machine has been designed and built to drill the following materials:
- solid wood
- m.d.f.
- panels of shaving wood, laminated wood, ennobled wood, etc.
The maximum panel thickness is 65 mm and its maximum dimensions are those described at chapter 7.
- Other materials, different from the ones described above, can be machined only after the written approval of
the manufacturer. In particular it is not allowed to machine materials having toxic or dangerous substances
for operator’s health and safety, metals or other materials that can modify the correct working of the machine
or cause fire or explosion..
- Any modification is forbidden without the written authorization of the manufacturer.
- It is not allowed to tamper with the safety protection devices.
8.2 IMPROPER USE
Any operation that does not comply with the instructions given herein is to be regarded as improper use.
Moreover:
WE ADVISE YOU NOT TO lay tools against or on the machine for any reason whatsoever during machine
installation, use or maintenance.
WE ADVISE YOU NOT TO get on the machine or on any of its parts.
The manufacturer cannot be considered liable for
any damage caused to people, animals or property
resulting from improper use of the machine.
9. TRANSPORT
The boring machine 35 is packed in a wooden box and/or in cardboard and nylon. It is possible to move it by
means of:
• Forklift
• crane
• transpallet
Weight data are written in chapter 8. Before moving the machine verify that the entire surrounding area is free
of obstacles. In case of stocking, the machine must be kept in dry places, away from rain, snow or humidity.
During all moving operations we recommend to be extremely careful to avoid danger of damage for persons,
things and the machine itself.

Ø 4 mt
11. WORKING AREA
For a correct use of the machine, the following zones must be kept clear.
10. INSTALLATION
10.1 PLACING THE MACHINE
The machine must be placed on a stable plain surface, capable to support the weight of the machine itself;
any possible difference in height must be in conformity with building rules. When the machine has to be
placed on raised plain surface (higher floor) the load-bearing slab must be adequate to the weight of the ma-
chine.
Put the machine in the right place, as requested operative requirements, where it is easy to connect it to
electrical and pneumatic power supply.
Put the machine in a place where there is enough lighting to see every part of the machine itself.
We suggest also to arrange an exhaust fan nearby the machine to clean it periodically.
10.2 LEVELLING
Adjust the levelling feet so that the machine is perfectly leaned on the floor, then align the working table of
the machine by using a spirit level.
Before going on with levelling, tighten the alignment pins into the threaded holes of the bed frame, remove
the protective oil film from planes and every not painted surface, by using petroleum or kerosene only.
Do not use any solvent as gasoline and diesel oil, because they can damage the paint, making it dull, or oxi-
dize other parts.

12. ASSEMBLING AND CHECKING PROCEDURE
The Boring System boring machine is packed in a large wooden box or kit superimpo-
sition.We strongly suggest to apply a careful and correct procedure to transport the
box to the area where the boring machine will be installed.
A
B
C D

The packaging contains also the shoulders, clamping unit, back stop unit and a cardboard box with some other
accessories inside, as shownin the figure below.
The box contains the following accessories:
• Boring System user and maintenance manual
• Wrenches Kit
• n°2 clamps
• Lh square unit
• Rh square unit
Remove the two fixing devices, which lock the machine to
the pallet, placed on the lower part of the machine frame by
unscrewing the screws (see figure on the left)
Now it is possible to separate completely the machine from
Level the machine
loosening / tightening
the T.E. screws placed
on the lower part of the
machine frame (see
figure on the right ).
Transport and put the machine in the place selected
for working. Please be careful in doing this procedure
and follow the instructions described in chapter 11-12

Assemble the back reference
stop as depicted in the figure
Then assemble the clamp goup
Insert the clamp unit; assemble
the clamp group as depicted in
the figure on the left
Assemble the squares of the bench on
the plane. After the assembling,
mount the washer as depicted in the
figure above

Long fence assembling steps
Insert the movable stop group in the
fence as depicted in the figure on the left
All the assembling operations described above can be performed
using the tools purchased together with the machine

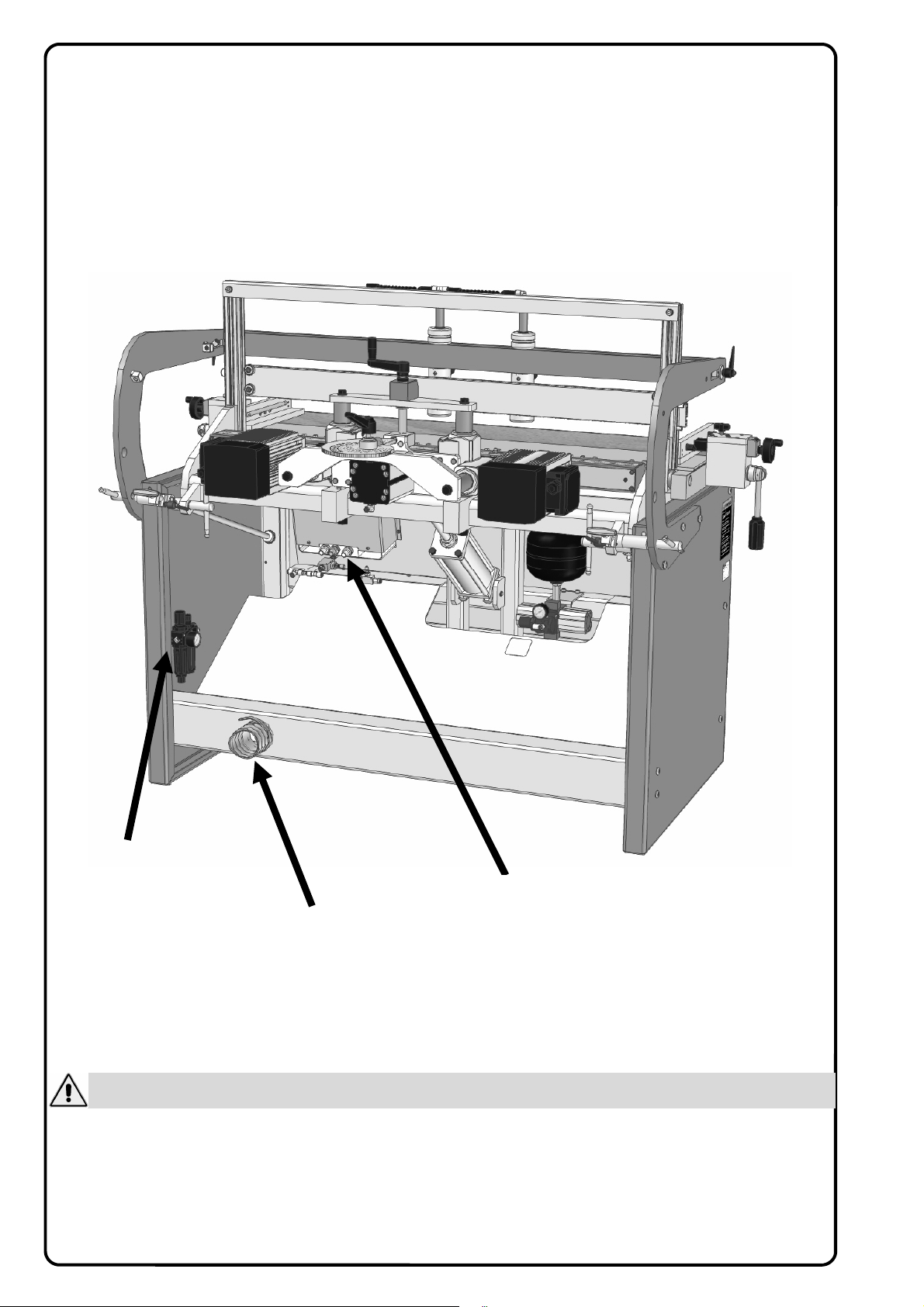

Pneumatic power supply
connection point
(1/4” 6 Bar)
The next step consists of machine connection to:
• Electric power supply (see chapter 14.1 )
• Pneumatic power supply ( see chapter 14.2 )
• Dust suction system
( attention, we strongly suggest to carefully follow the procedures described on chapter 14 )
Drilling set-up procedure please carefully follow the instructions described in chapter 15
Dust suction system
connection point
(Ø80 mm)
Electric power supply
connection point
