Magneti Marelli ALASKA PREMIUM Instructions for use

INSTRUCTION AND MAINTENANCE MANUAL
ALASKA PREMIUM / PREMIUM HFO
AUTOMATIC SERVICING EQUIPMENT FOR AIR
CONDITIONING SYSTEMS

Man-uso alaska-Premium/PremiumHFO-01 English Pag. 2 di 53
ISTRUCTION AND MAINTENANCE MANUAL
ALASKA PREMIUM / PREMIUM HFO
1 CONTENTS
1CONTENTS ................................................................................................................................................................... 2
2INTRODUCTION .......................................................................................................................................................... 4
3GUARANTEE ................................................................................................................................................................ 5
4DESCRIPTION OF THE UNIT....................................................................................................................................... 6
4.1 Intended use..................................................................................................................................................................7
4.2 IdentIfIcatIon of the unIt and Its components.............................................................................................................8
4.3 technIcal characterIstIcs.............................................................................................................................9
4.3.1 Main characteristics ........................................................................................................................................... 9
4.3.2 Power and consuMPtion ..................................................................................................................................... 9
4.3.3 noise levels .......................................................................................................................................................... 9
4.3.4 technical data concerning the instruMents used ................................................................................................ 9
5SAFETY........................................................................................................................................................................ 10
5.1 General safety rules...................................................................................................................................................10
5.1.1 sPecial instructions for units to be used with r-1234yf.................................................................................... 11
5.2 GuIdelInes for handlInG refrIGerants.........................................................................................................................11
5.2.1 glossary of terMs ............................................................................................................................................. 11
5.2.2 Precautions for refrigerant storage ................................................................................................................ 12
5.2.3 condition of the refrigerant and the systeM ..................................................................................................... 12
5.2.4 recycling caPacity............................................................................................................................................ 12
5.2.5 general considerations..................................................................................................................................... 12
5.3 safety devIces ............................................................................................................................................................... 13
5.4 WorkInG envIronment .................................................................................................................................................. 13
6PUTTING INTO SERVICE........................................................................................................................................... 14
6.1 unpackInG and checkInG the components................................................................................................................... 14
6.2 unIt handlInG and storaGe .......................................................................................................................................... 14
6.3 preparatIon for use...................................................................................................................................................... 15
6.4 start-up ........................................................................................................................................................................ 15
6.5 sWItch off .................................................................................................................................................................... 16
6.6 Internal tank fIllInG phase............................................................................................................................................ 17
7MESSAGES................................................................................................................................................................. 19
7.1 malfunctIon/error messaGes....................................................................................................................................... 19
7.2 functIon messaGes ....................................................................................................................................................... 23
8OPERATING DESCRIPTION ..................................................................................................................................... 24
8.1 operatInG modes......................................................................................................................................................... 24
8.2 proGrammInG mode ..................................................................................................................................................... 24
9PROGRAMS............................................................................................................................................................... 25
9.1 automatIc proGram .................................................................................................................................................27
9.1.1 Model search (data base)................................................................................................................................ 27
9.1.2 user Models ...................................................................................................................................................... 27
9.2 user proGram............................................................................................................................................................... 32
9.3 flushInG........................................................................................................................................................................ 34

Man-uso alaska-Premium/PremiumHFO-01 English Pag. 3 di 53
ISTRUCTION AND MAINTENANCE MANUAL
ALASKA PREMIUM / PREMIUM HFO
10 OTHER MENUS........................................................................................................................................................... 35
10.1 fIllInG Internal tank.................................................................................................................................35
10.2 prInter....................................................................................................................................................36
10.2.1 rePeat service rePort ......................................................................................................................................... 36
10.2.2 refrigerant in/out.............................................................................................................................................. 36
10.2.3 Personalization of service rePort heading........................................................................................................ 36
10.3 a4 prIntout.............................................................................................................................................................36
10.4 Back up/restore.......................................................................................................................................................37
10.5 exportInG servIce hIstory.........................................................................................................................................37
10.6 exportInG refrIGerant In/out................................................................................................................................37
10.7 dIaGnosIs.................................................................................................................................................................38
10.7.1 hoses eMPtying................................................................................................................................................... 38
10.7.2 suction of refrigerant through the a/c systeM .............................................................................................. 38
10.8 leakaGe test WIth n2 nItroGen ................................................................................................................................ 39
10.9 uv on/off .......................................................................................................................................................... 41
10.10 enaBlInG operators................................................................................................................................................42
10.11 enaBle contaIner poe ( hyBrId )..........................................................................................................................43
10.12 dIsaBle poe contaIner (hyBrId)..........................................................................................................................43
10.13 servIce menu...........................................................................................................................................................44
10.13.1 date and tiMe ..................................................................................................................................................... 44
10.13.2 setting language ............................................................................................................................................... 44
10.13.3 counters reset ................................................................................................................................................... 45
10.13.4 enabling oil-tight containers ............................................................................................................................ 45
10.13.5 restoring standard oil containers.................................................................................................................... 45
11 STOPPAGE FOR PROLONGED PERIODS.............................................................................................................. 46
12 MAINTENANCE ROUTINE MAINTENANCE KIT CODE (7000100300) ............................................................ 46
12.1 replacement of vacuum pump oIl ............................................................................................................................ 46
12.2 fIlter replacement .................................................................................................................................................... 47
12.3 replacInG hose Gaskets ........................................................................................................................................... 48
12.4 refrIGerant scales calIBratIon (zero poInt)............................................................................................................ 48
12.5 pressure sensors calIBratIon ................................................................................................................................... 50
13 DISPOSAL................................................................................................................................................................... 52
13.1 envIronmentally-frIendly dIsposal.......................................................................................................................... 52
13.2 dIsposal of recycled materIal................................................................................................................................. 52
14 FLOW DIAGRAM ...................................................................................................................................................... 53

Man-uso alaska-Premium/PremiumHFO-01 English Pag. 4 di 53
ISTRUCTION AND MAINTENANCE MANUAL
ALASKA PREMIUM / PREMIUM HFO
2 INTRODUCTION
Congratulations on your choice! The unit you have purchased is a direct result of our experience in this
sector and it will guarantee you long-term, efcient operation.
This unit has been designed and built to ensure long lasting, high-level operating reliability with
maximum safety for operators. Magneti Marelli After Market Parts and Service has carefully selected
all materials and components (combined with the adoption of generous safety margins) together with
a management procedure based on continuous controls which, from the introduction of the product
into the company, through storage and use in the workshop, will ensure the absence of damage,
deterioration or malfunctions.
A further guarantee is provided by the strict factory tests and inspections to which the unit is subjected.
The user is therefore only responsible for ensuring proper use of the unit in accordance with the
instructions found in this manual.
It is essential that this unit is used according to the intended use specied in this manual. Magneti
Marelli After Market Parts and Service cannot be held responsible for any damage to persons, animals
and/or objects due to improper use, different to that illustrated in this instruction manual.
Magneti Marelli After Market Parts and Service reserves the right to modify the technical characteristics
and appearance of the product without prior notication.
This unit is designed for use in commercial environments and light industry.
The purpose of this manual is to supply the user with all the information needed to use the unit, from the
time of purchase through to its disposal.
This manual may contain printing errors.
The manual has been devised to ensure maximum support for the personnel assigned for use and
maintenance of the unit. However, for any special needs or requests for technical assistance or spare
parts, please contact our Customer Service department.
Magneti Marelli After Market Parts and Services S.p.a
Service Network
Viale Aldo Borletti, 61/63
20011 Corbetta (MI)

Man-uso alaska-Premium/PremiumHFO-01 English Pag. 5 di 53
ISTRUCTION AND MAINTENANCE MANUAL
ALASKA PREMIUM / PREMIUM HFO
3 GUARANTEE
Commencement date and duration
Magneti Marelli After Market Parts and Service warrants its A/C recharging and diagnosing “ALASKA
PREMIUM/HFO” units for 12 (twelve) months as from date of purchase stated on Magneti Marelli sales
document.
Any intervention carried out during warranty period does not modify expiry date of the warranty itself.
Repairs
Warranty includes repair or replacement free of charge of components which, at Magneti Marelli’s
sole decretion, are shown to be defective in origin owing to faulty manufacturing or proven material
aws. It does not cover replacement the whole unit.
Warranty repairs must be carried out at the Service Centre indicated by Magneti Marelli. Under no
circumstances will repair be carried out on the customer’s premises.
The Service Centre cannot ensure minimum times for its repair operations, but undertakes to complete
them as quickly as possible.
Warranty instructions
To take advantage of the warranty, the purchaser must ship the A/C recharging and diagnosing
“ALASKA PREMIUM/HFO” unit carriage free to the Service Centre indicated by Magneti Marelli when
notied of the complaint.
The A/C recharging and diagnosing “ALASKA PREMIUM/HFO” unit must be shipped adequately
packaged to protect it from any damage which may occur during transport.
Magneti Marelli shall not be liable for damage which may occur during transport.
A copy of sales receipt must be sent with products under warranty.
The repaired part will be returned carriage forward.
Exclusion
Warranty does not cover deterioration or damage caused to A/C recharging and diagnosing “ALASKA
PREMIUM/HFO” units used under working conditions other than those specied by the manufacturer.
Other cases not covered by this warranty are:
• Damage caused by transport due to insufcient packaging
• Improper use of the product
• Lightening, oods, re
• Faulty installation or maintenance
• Mechanical damage
• Setting carried out by unauthorized Centers
• Repair and/or modication carried out by unauthorized Centers
• Damage caused by violence or humidity, dust, voltage surge or other abnormal conditions
• Use in unsuitable environments
• Damage to the display
• Any other condition for which Magneti Marelli could not be held directly liable
If the product sent for repair is not covered by warranty this will be notied to the customer who will
then be free to call for the work to be done outside the warranty and will be charged with the cost of
the repair. If a request for a repair under the warranty proves unjustied, a charge will be made
for Magneti Marelli’s investigation costs.

43
01
02
44
20
25
24
21
45
47
11
10
07
08
06
05
40
41
32
46
Man-uso alaska-Premium/PremiumHFO-01 English Pag. 6 di 53
ISTRUCTION AND MAINTENANCE MANUAL
ALASKA PREMIUM / PREMIUM HFO
4 DESCRIPTION OF THE UNIT
4.1 Intended use
ALASKA PREMIUM/HFO is an automatic unit designed solely for use in automobile air-conditioning
system maintenance.
Recovery, recycling, vacuum, oil injection, UV additive injection, system lling and ushing are the
functions that ALASKA PREMIUM/HFO is able of carrying out in complete safety and providing top-level
performance in its category.
The unit is not designed to handle disposal operations! (see Section Glossary of terms)
4.2 Identication of the unit and its components

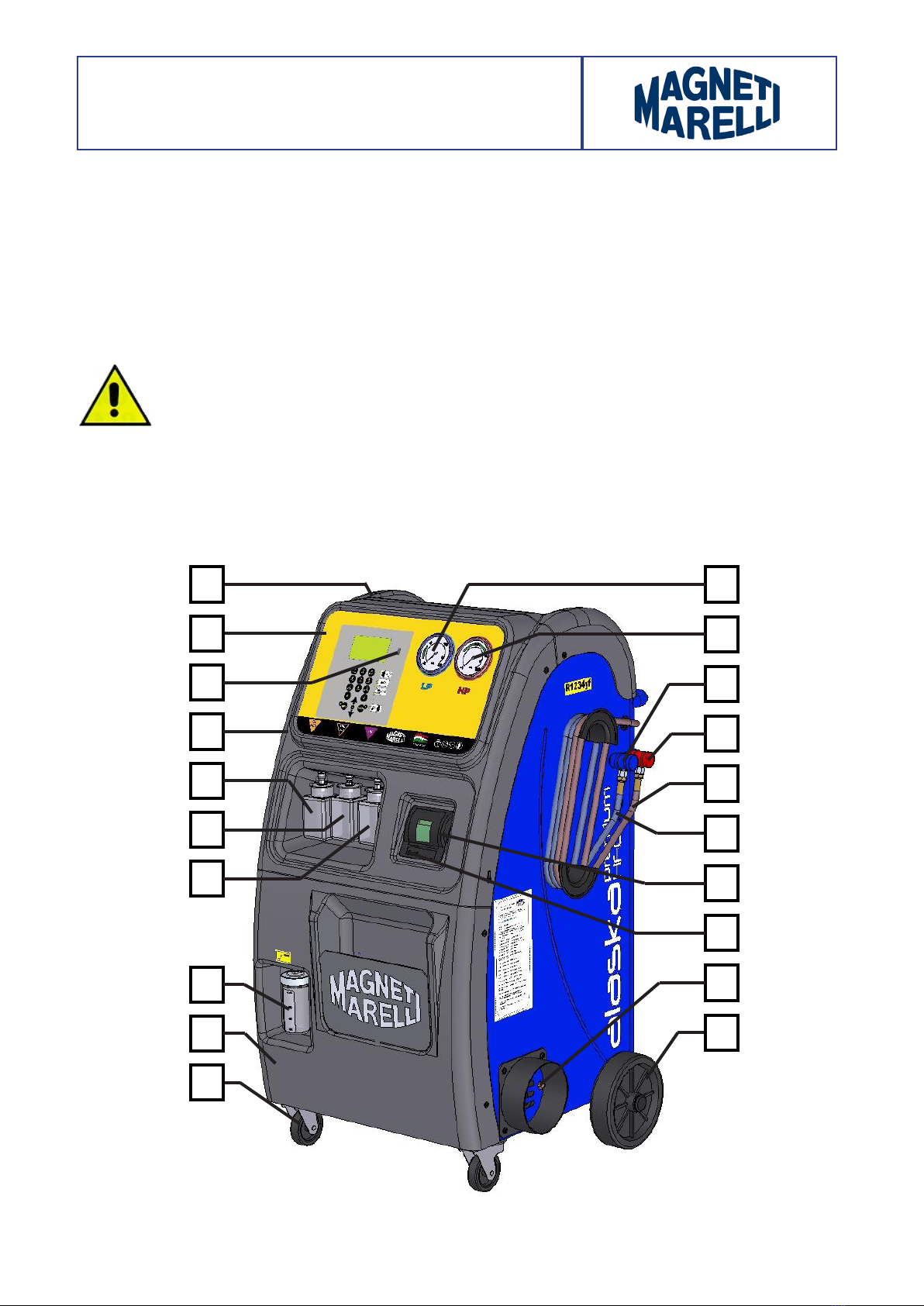

The ALASKA PREMIUM/HFO is composed of a series of components as shown in the following pictures.

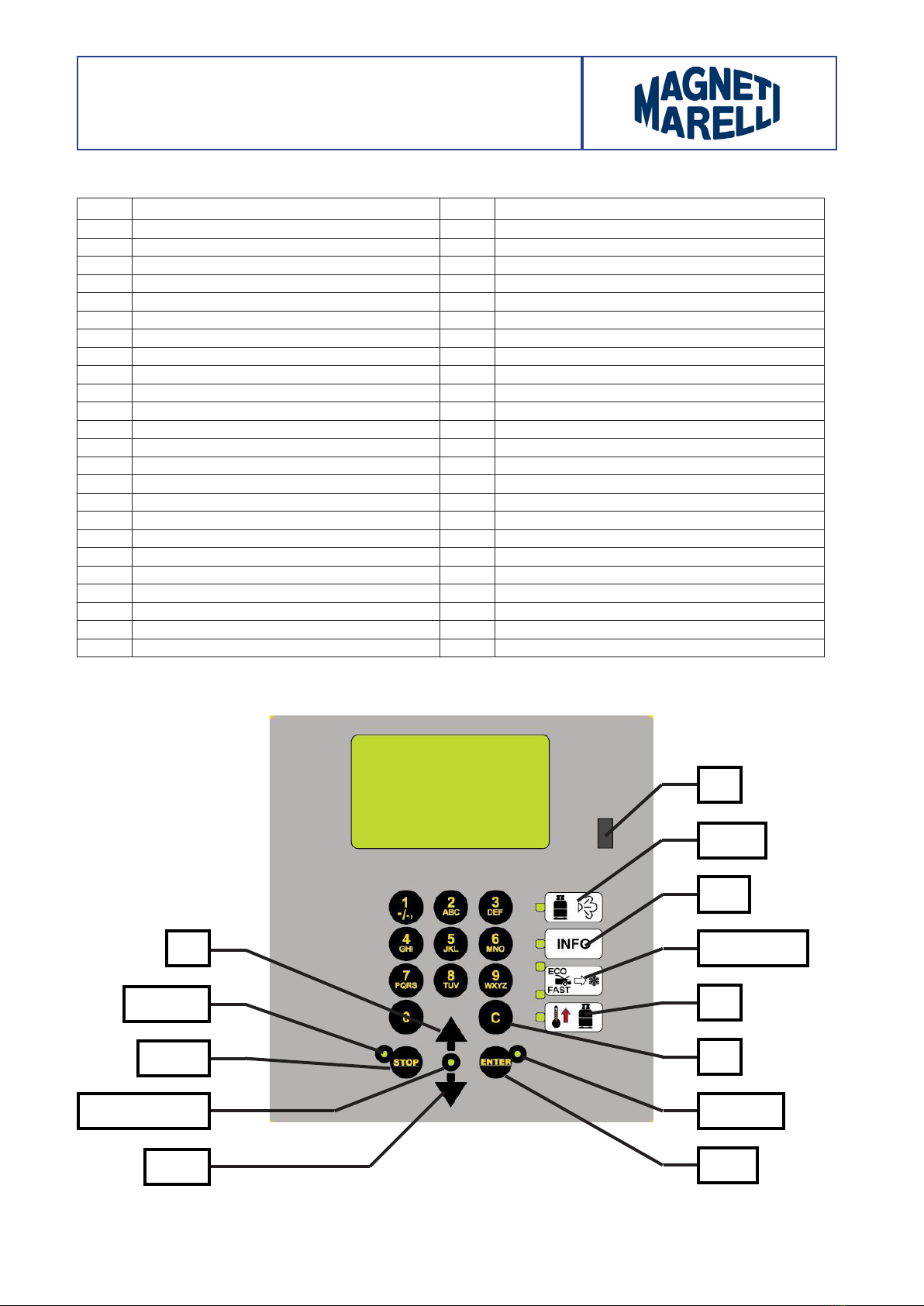

USB
PURGE
INFO
ECO/SPEED
HB
C
Led Enter
ENTER
STOP
STOP
Led UP/DOWN
Led Stop
UP
Man-uso alaska-Premium/PremiumHFO-01 English Pag. 7 di 53
ISTRUCTION AND MAINTENANCE MANUAL
ALASKA PREMIUM / PREMIUM HFO
ITEM DESCRIPTION ITEM DESCRIPTION
1LOGIC BOARD 27 FAN CONDENSER
2USB PORT 28 HP SAFETY PRESSURE SWITCH
415 kg LOAD CELL 29 MECHANICAL FILTER
5FILLING HOSE LP 3000 mm 30 CHECK VALVE
6FILLING HOSE HP 3000 mm 31 CHECK VALVE
7LP QUICK CONNECTOR 32 NON-CONDENSABLE DISCHARGE VALVE
8HP QUICK CONNECTOR 34 INTERNAL CONTAINER
915 kg LOAD CELL 35 VAPOUR SIDE GAS BOTTLE VALVE
10 HP D80 GAUGE 36 LIQUID SIDE GAS BOTTLE VALVE
11 LP D80 GAUGE 37 NON-CONDENSABLE GAS DISCHARGE VALVE
12 PRESSURE SENSOR –1/10 BAR 38 RUBBER HOSE
13 DISTILLER 39 RUBBER HOSE
14 OIL SEPARATOR 40 PRINTER
15 FILTER 41 PAPER ADVANCE BUTTON
16 COMPRESSOR 42 MAIN SWITCH
17 VACUUM PUMP 43 UPPER PANEL
18 60 kg LOAD CELL 44 CONTROL PANEL
19 15 kg LOAD CELL 45 LOWER PANEL
20 PAG OIL CONTAINER 46 REAR WHEEL
21 OIL DRAIN CONTAINER 47 REVOLVING WHEEL WITH BRAKE
22 EXPANSION VALVE 49 PRESSURE SENSOR –1/10 BAR
23 CHECK VALVE 50 VALVE UNIT
24 PAG UV ADDITIVE CONTAINER 53 SAFETY VALVE
25 POE OIL CONTAINER

Man-uso alaska-Premium/PremiumHFO-01 English Pag. 8 di 53
ISTRUCTION AND MAINTENANCE MANUAL
ALASKA PREMIUM / PREMIUM HFO
Key Main function
Enter Conrm
Stop Exit/Back
UP Selection – screen change
DOWN Selection – screen change
C Delete
0-9 Alphanumeric keypad
LED ENTER Operation pilot light
LED STOP Operation pilot light
LED UP_DOWN Operation pilot light
LED A Recovery/recycling phase indicator
LED B Vacuum phase indicator
LED C1 Oil injection phase indicator
LED C2 UV injection phase indicator
LED D Filling phase indicator
PURGE Non-condensable gas discharge manual opening

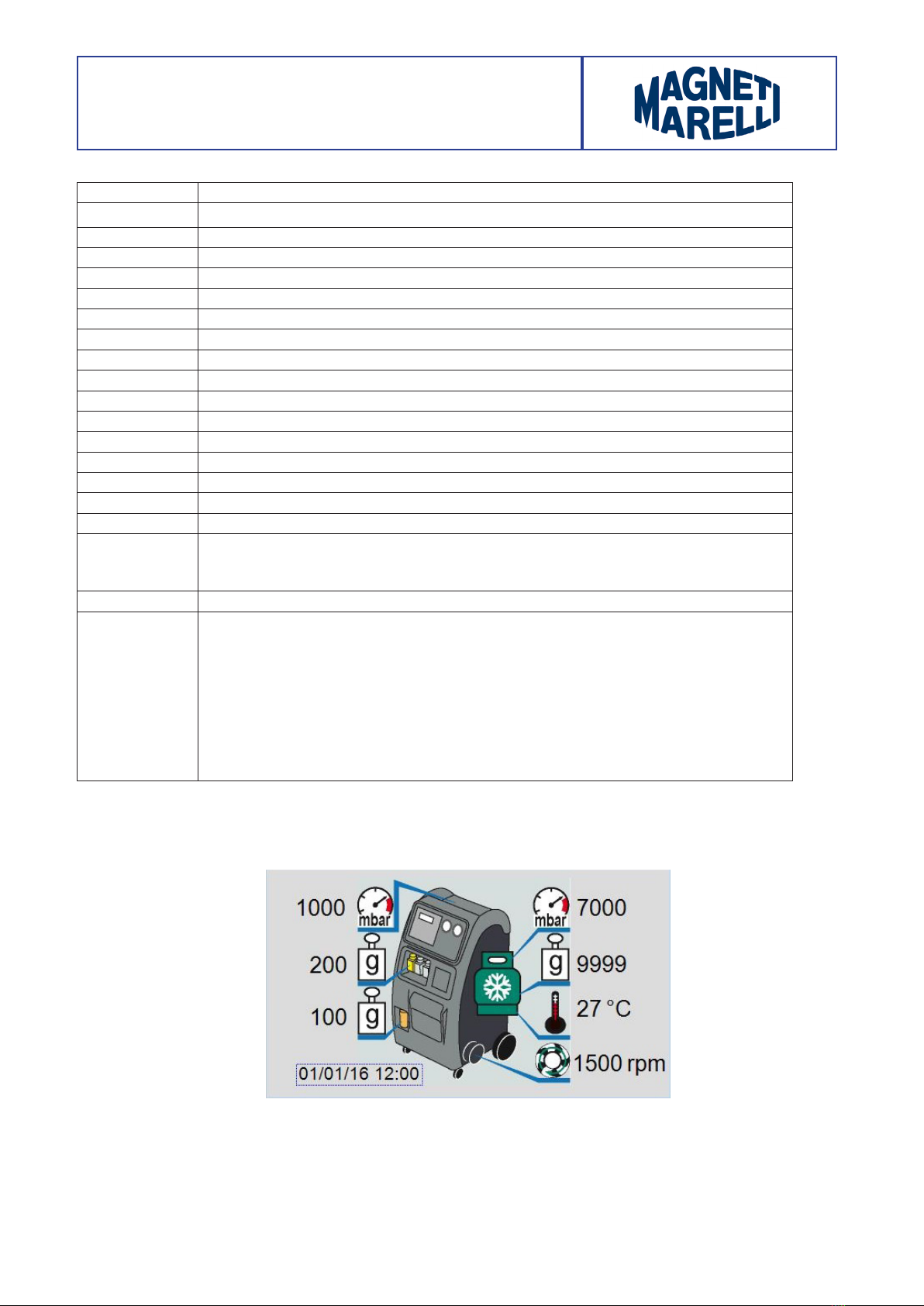

INFO Real time reading of values measured by sensors.
ECO/SPEED
Recovery mode selection.
• ECO allows recovery with the greatest accuracy
• SPEED allows faster recovery
HB Heating belt
USB
• Allows transfer to the unit of the les for updating rmware, number of
vehicles database, language of display messages.
• Allows the following les to be imported to/exported from the unit:
1. Back up sensor calibrations, operational parameters, user models.
2. History of services performed
3. A4 printout of last service
4. Monthly report of refrigerant recovered or lled
INFO key

Man-uso alaska-Premium/PremiumHFO-01 English Pag. 9 di 53
ISTRUCTION AND MAINTENANCE MANUAL
ALASKA PREMIUM / PREMIUM HFO
4.3 Technical characteristics
4.3.1 Main characteristics
Refrigerant: R134a or R1234yf check on unit nameplate
Electronic refrigerant scales: Precision +/- 1 g
Electronic oil scales Precision +/- 1 g
Electronic vacuum gauge LP branch: Kl. 1.0
Electronic vacuum gauge cont. ref: Kl. 1.0
LP HP gauges: Kl. 1.6
Internal container capacity:
R134a version 27,2lt
R1234yf version 12,5lt
Maximum storable quantity:
R134a version 25 kg
R1234yf version 10 kg
Vacuum pump ow rate: 6 m3/h 3.5 CFM – 100 l/min
Vacuum pump nal vacuum: 5 Pa – 0.05 mbar
Compressor cubic capacity: 9 cc
Filtering station: 2 lters combined
Dimensions: 1170x698x703 mm
Weight: 99 kg
4.3.2 Power and consumption
Supply voltage: 230 V 50/60 Hz
Power: 770 W
4.3.3 Noise levels
The unit’s noise levels have been measured from the operator’s position (front).
Measurements recorded: 53.5 dB (A)
Distance of microphone from the ground: 1.40 m
Distance of microphone from the unit: 1.00 m
4.3.4 Technical data concerning the instruments used
(conforming to IEC 651 group 1 requirements).
B & K precision integrating noise meter.
Pre-polarised condenser microphone.
Acoustic level gauge.

Man-uso alaska-Premium/PremiumHFO-01 English Pag. 10 di 53
ISTRUCTION AND MAINTENANCE MANUAL
ALASKA PREMIUM / PREMIUM HFO
5 SAFETY
The advanced technology adopted in the design and production of ALASKA PREMIUM/HFO makes this
unit extremely simple and reliable for the performance of all operations.
The user is therefore not exposed to any risk provided that the general safety rules indicated below are
followed and that the unit is properly used and maintained.
5.1 General safety rules
• This unit is intended for use by professionally trained operators only. Such operators must have
knowledge of refrigeration, refrigeration systems, refrigerants and the potential hazards that units
under high pressure can cause.
• To ensure safe and proper use of the unit, the user must read this manual carefully.
• Check that the type of refrigerant of the A/C system corresponds with the type of refrigerant
planned for the unit.
• Only use refrigerant of the type planned for the unit, ref. unit nameplate tted near main switch.
Mixing with other types of refrigerant will seriously damage the cooling and refrigeration systems, as
well as the service unit.
• Suitable protective equipment such as goggles and gloves MUST be worn. Contact with the
refrigerant can cause blindness and other physical injuries to the operator. Avoid contact with the
skin – the low boiling point of the refrigerant (approx. –30°C) can cause frost burns.
• Avoid inhalation of vapours from refrigerants.
• Ensure that all the valves are closed before making connections between the unit and an A/C
system or an external tank.
• Ensure that the phase has been completed and that all valves are closed before disconnecting the
unit. This will prevent release of the refrigerant into the atmosphere.
• Do not modify the safety valve or control system settings.
• Do not use external tanks or storage containers that have not been type-approved or that are not
tted with safety valves.
• Do not leave the unit connected to a power supply unless it is going to be used immediately. Switch
off the electrical power supply if the unit is to be out of use for prolonged periods.
• All the exible hoses may contain refrigerant at high pressure.
• Disconnect exible hoses with extreme caution.
• The service unit and A/C systems in vehicles containing refrigerants should not be tested with
compressed air. Some mixtures of air and refrigerant have proven to be combustible at high pressure
levels. These mixtures are potentially hazardous and there is a risk of re and explosion that can
cause damage to property and personal injury. Additional medical and safety information can be
obtained from the manufacturers of the lubricants and refrigerants used. Remember that the unit
must be supervised at all times.
• The unit must not be used in potentially explosive environments.
• Do not smoke near the unit.
