Magniflex MagniSmartech Operating instructions

OPERATING AND MAINTENANCE MANUAL

magniSmartech ©SyStemS
“MagniSmartech” version (complete system) with a motorized slatted bed frame,
motor control & anti-snoring functions, a vital signs acquisition system and chromotherapy
“MagniSmartech ©Mattress” version with vital signs acquisition system and chromotherapy
“MagniSmartech ©Motor” version with a motorized slatted bed frame, motor control & anti-snoring
functions

Manufacturer:
Address:
Version:
Input voltage:
Output voltage:
Alessanderx S.p.A.
Via San Leonardo da Porto Maurizio, 24/26/28
59100 Prato (PO) - ITALIA
•“MagniSmartech” (complete system) with a motorized slatted bed frame,
motor control & anti-snoring functions, a vital signs acquisition system and
chromotherapy
•“MagniSmartech ©Mattress” with vital signs acquisition system and
chromotherapy
•“MagniSmartech ©Motor” with a motorized slatted bed frame,
motor control & anti-snoring functions
AC 240 V / 100 V, ± 10 % (per tutte le versioni)
DC 12 V for “MagniSmartech ©Mattress” version
DC 29 V for motor and anti-snoring control system in versions
“MagniSmartech ©Motor” and “MagniSmartech”
PrODUct anD manUFactUrer iDentiFicatiOn DetaiLS

INTRODUCTION
The following groups of people are referred to in this manual:
User
Buyer(s) or person(s) authorized by the buyer(s) who is/are able to use the product in all its versions.
Specialized personnel
Qualified personnel made available by the manufacturer to carry out complex tasks in particular situations, or any
operation that requires a specific qualification (installation, testing/commissioning, repairs, etc.).
Seller
Individual or legal entity responsible for the design and development of the product in all its versions. The seller is
responsible for ensuring its conformity and placement on the market under his/its name or under his/its own brand.
ATTENTION
Before activating or operating the MagniSmartech ©systems in the version you’ve purchased, carefully read the
technical instructions contained in this manual and carefully follow them. Keep this manual and all its attachments
in a place that is accessible and known to the user.
This operating and maintenance manual was drafted in compliance with the applicable ce directive for MagniSmartech
©systems and afferent to the version you have purchased, which is available at the following website:
www.magnismartech.com
The product declarations of conformity for MagniSmartech ©systems and afferent to the version you have purchased
is available at the following website: www.magnismartech.com
The declarations of conformity for the parts supplied by third-party manufacturers that form the MagniSmartech
©systems and afferent to the version you have purchased are available at the following website: www.smartech.com
Reproduction of the above documents, even partial reproduction, is prohibited without the written permission
of Alessanderx S.p.A.

Overview motorized slatted bed frame with
“MagniSmartech ©Motor” system Overview of the “MagniSmartech ©Mattress” system
For further details, please refer to the operating and maintenance manual supplied with the product
Alessanderx S.p.A.
Address: Via San Leonardo da Porto Maurizio, 24/26/28 - 59100 Prato (PO) - ITALY
Phone: [phone] Fax: [phone]
Version:
Serial number:
Date of manufacture
Input voltage: AC 240 V /100 V, ± 10 %
Output voltage: DC 12 V for “MagniSmartech ©Mattress” version
DC 29 V for the motors and anti-snoring control system provided in
versions “MagniSmartech ©Motor” and “MagniSmartech”
Company:

FCC Declaration of Conformance
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Class B Information
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own
expense.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference
REGULATORY COMPLIANCE

FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment.
Important Note: FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body. This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
This device complies with the following requirements.
- FCC (Federal Communications Commission) - Part 15
- ISED (Industry Canada) RSS-102 and RSS-247 and RSS-Gen
Operation is subject to the following two conditions
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation of the device.
Changes or modification not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
The sensor is designed for use at least 200 mm (7.87 in.) away from the operator in normal operating
conditions.
FCC ID: 2AP5WMASMARTMOT1 CAN ICES 3(B) / NMB 3(B)
IC: 23971-MASMARTMOT1
REGULATORY COMPLIANCE

1. SaFety
1.1 FOREWORD
The technicians of Alessanderx S.p.A. will make sure that, during installation of the product, the user is duly
informed about the risks of injury, the devices designed to ensure his safety and about the risks of noise emission, in
accordance with the provisions of the international directives and of the legislation applicable in the country where
the product is installed (see Chap. 3 Par. 3.10 “REFERENCE LAWS AND STANDARDS” and Par. 3.11 “SAFETY SIGNS”).
The behaviour of the user when performing maintenance, cleaning, inspections, etc. must, at any rate, comply with
the above laws, regulations and standards in force in the country where the product is installed. Before activating and
operating the product, the user must be fully aware of all the controls and their features, and must also have read this
manual in its entirety. The product must only be used by users who have participated in the training course organized
by Alessanderx S.p.A. when installing the product and who have fully read and understand the instructions contained
in this manual. Users are required to fully follow the instructions, warnings and general rules given in this manual.
The tampering/unauthorized substitution of one or more parts or units of the product, and the use of accessories
other than those recommended by the manufacturer, may involve the risk of injury and relieves the manufacturer
from all civil and criminal liability.
1.2 INTENDED USE OF THE PRODUCT
ATTENTION
• The MagniSmartech ©system in its purchased version has been designed for “self care” use.
• The MagniSmartech ©system in its purchased version features electrical components that can cause damage or
injury if not used properly.
• The MagniSmartech ©system in its purchased version is not a medical device and is not capable of performing
diagnoses and treatments, or of preventing disease.
• Consult your doctor if you suffer from diseases that may be affected by the use of the MagniSmartech ©system
in its purchased version.

The MagniSmartech ©system is meant to be used in the following configuration and operating conditions:
“MagniSmartech” version (complete system) with a motorized slatted bed frame, motor control & anti-snoring
functions, and a vital signs acquisition system and chromotherapy.
Other types of use are not compatible with the specific characteristics of the product.
1.3 GENERAL SAFETY RECOMMENDATIONS
It is absolutely forbidden for unauthorized personnel to perform any operation whatsoever.
Never bypass the protective devices, which are designed to protect the safety of the user.
Routine and special maintenance tasks must be performed while the product is not operating and without power
supplied to the system. Any repairs of the electrical systems must be carried out with the power off.
Do not put hands or other foreign objects on moving parts, let alone liquid containers near the electrical parts.
The user must avoid unsafe operations on the product that could compromise its balance. It is strictly prohibited to
remove or disengage the safety devices.
1.4 CONNECTIONS
The main electrical supply should be adequate to withstand the maximum power consumption of the machine, as
indicated.
The electrical connection includes the introduction of the plug of the connection cable/s of the supplied transformer/s
into two 10 A power supply outlets (depending upon the electrical system in use ) located as close as possible to the
area of installation of the product.
1.5 EARTHING SYSTEM
The earthing and short circuit of the metal structures the product consists of is ensured through the power supply
through the low voltage transformer (the current flows toward the earthing lead-in wire of the user’s electrical
system). The earthing connection must be also be performed for the low-voltage systems which are located in areas
that are usually wet and very humid (if the voltage exceeds 25 V to earth for alternate current and 50 V towards earth
for direct current).

1.6 DIAGRAM OF THE RISKY AREAS
Area “L”:RIGHT/LEFT side of the motorized slatted bed frame
(versions “MagniSmartech ©Motor” and “MagniSmartech”)
At adjustment stage (raising/lowering of the front/rear part), the user
may contact the moving parts of the motorized slatted bed frame.
The “L” areas show risks of:
abrasion
dragging
crushing
External/lower parts provided with power/control connections and
diagram of the MagniSmartech ©system drive motors.
All the electrical connections in the distribution system of the
“MagniSmartech ©Motor” and “MagniSmartech” are provided
in compliance with the harmonized and technical standards of
Directives 2006/42/CE, 2014/35/UE and subsequent amendments
and integrations and 2014/30/UE and subsequent amendments and
integrations. Furthermore, the user must pay attention to make sure
that they do NOT plug the holes of the motor control units located in
the lower part of the bed, in order to ensure the greatest dissipation.

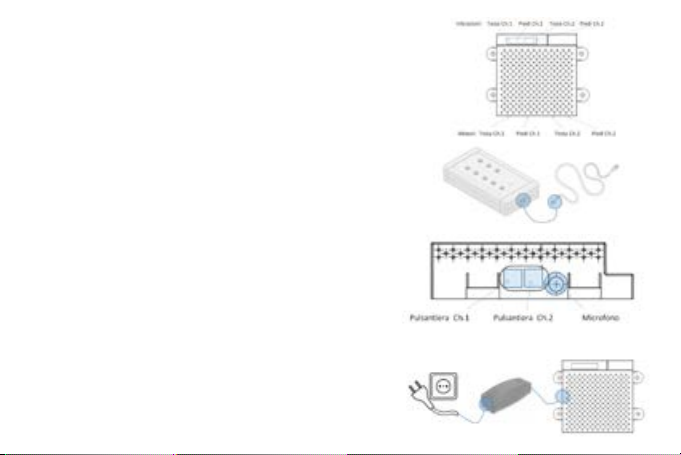

Motor control and drive unit box ( “MagniSmartech ©Motor” and
“MagniSmartech” versions)
