Magstripe MSR400K-00 User manual

TM951166

Information
Technical And Operational Description
Card Data Format
Connections
Demo Software
......................................................................................... 1
3
4
7
8
..........................................
............................................................................
.........................................................................................
.................................................................................
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communication.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
14
.....................................................................................
Specifications
NOTE : The specification is subject to change without notice.

MSR400 Series Magnetic Swipe Reader
MSR400R-00
MACHINE TYPE FUNCTION
RS-232
1 2 3
MC
BEEP
MSR400K-00
MSR400U-00
USB
1 2 3
MC
BEEP
1 2 3
MC
BEEP
KEYBOARD
Option Function
iBUTTON
1 2 3
AAMVA
1 2 3
IBM
1 2 3
JIS
HID
1 2 3
JIS
1 2 3
JIS
1

Information
Standard Package
Main unit
( MSR400R/MSR400K/MSR400U )
Power Adaptor
DC5V/120VAC ( APR-1024 )
or DC5V/230VAC ( APR-1010 )
Optional
Software Disk
( DISK5296 )
Velcro Pack
( M09-P601-036 )
( M09-P602-036 )
WAS-1536
( only for MSR400R )
CABLE P/N :
WAS-XXXX
2

CARD
READER
STATUS
INDICATOR
READY INDICATOR ( Green color )
Indicating the reader is ready to accept new inputs.
ERROR INDICATOR ( Red color )
When encountering erroneous input, defective card, misread, or
incorrectly encoded data, the device will turn on the ERROR indicator .
CARD READER
Swipe the card through the entire length of the slot to read.
Display Information
STATUS
POWER ON
READY
READ OK
READ ERROR
GREEN
LED
BLINK
2 TIMES
ON
BLINK
1 TIME
OFF
RED
LED
BLINK
2 TIMES
OFF
OFF
ON
BUZZER
Be-Bu-Be-Bu
X
Be
Be-Bu-Bu
READ CARD
X
O
X
X
USB PORT
3

DSB 9P FEMALE PIN *
8
7
3
2
MSR400R
YELLOW
PURPLE
BLUE
COLOR
RX
CTS
RTS
FUNCTION
WHITETX BLACKGND REDVCC
5
DC JACK
4

connections
USB PIN
4
3
2
1
MSR400U
WHITE
GREEN
BLACK
COLOR
D-
D+
GND
FUNCTION
REDVCC
USB Human Interface Device (HID)
Universal Serial Bus (USB)
5

connections

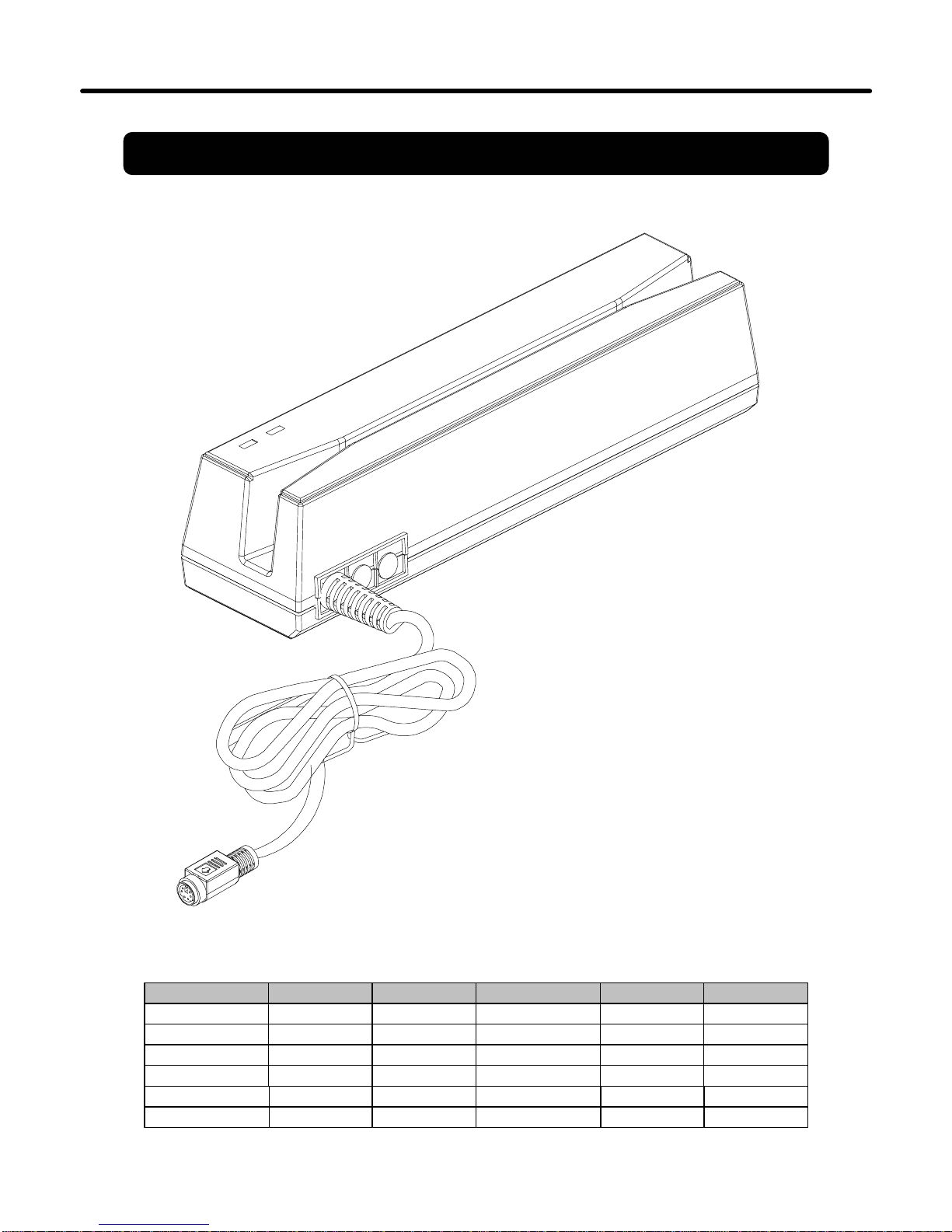

PS/2 MALE PIN
1
2
3
4
MSR400K
RED
X
BLUE
COLOR
GND
---
KB_DATA
FUNCTION
YELLOWVCC PURPLEKB_CLK YELLOW----
5
6
PS/2 FEMALE PIN
1
2
3
4
5
6
GND
---
PC_DATA
FUNCTION
VCC
PC_CLK
---
RED
---
WHITE
COLOR
YELLOW
BLACK
---
6

TRACK1 DATA
CARD DATA STRING
TRACK 1
SS ES
1. SS is the start sentinel ( % ).
2. ES is the end sentinel ( ? ).
3. Card Id up to 76 alphanumeric data characters.
CARD ID% ?
SS ESTRACK2 DATA SS ESTRACK3 DATA
TRACK1 DATA% ? ; ?TRACK2 DATA + ?TRACK3 DATA
TRACK 1 TRACK 2 TRACK 3
Bits Per Inch 210
Bits Per Character 7
Track 1 IATA
Alphanumeric Characters 79
TRACK 2
1. SS is the start sentinel ( ; ).
2. ES is the end sentinel ( ? ).
3. Card Id up to 37 numeric data characters.
CARD ID; ? Bits Per Inch 75
Bits Per Character 5
Track 2 ABA
Numeric Characters 40
TRACK 3
1. SS is the start sentinel ( + ).
2. ES is the end sentinel ( ? ).
3. Card Id up to 104 numeric data characters.
CARD ID+ ? Bits Per Inch 210
Bits Per Character 5
Track 3 Thrift
Numeric Characters 107
Note: Track 3 can read both ISO TK3 format and ISO TK1 format.
iBUTTON DATA STRING:
DS1990A 48-Bit Serial NumberSTATUS
STATUS
Option
aDS1990A 48-Bit Serial Number ?@
uDS1990A 48-Bit Serial Number ?@
7

STEP 1 : Run MSR Configure
STEP 2 : Choose PS/2 or COM port and press “Scan” ,connect the MSR400
reader.
START
MSR
CONFIGURE
SOFTWARE
Apply the bundled disk no. 5296 to begin with the demo software.
Cache Mode for speed up
8

Demo Software
STEP3 : Click “Read” ,scan the MSR400 reader parameter.
Read the MSR
parameter
General :
Interface : MSR Interface is being detected.
Buzzer : Choose buzzer enable or disable.
Feed Back : Set MSR output data ,waiting for feedback from the terminal.
Show ｀Error＇message if no reaction from MSR
RS232(UART) : Setting MSR communication parameter ,when RS232 and serial USB enable .
9

Package : Setting MSR & iButton data output package .
Prefix Suffix
MSR Data Package :
iButton Data Package :
Prefix
++
FE0FS Checksum FE1++++MSR TK1+TK2+TK3 Data or iButton Data
Data Format :
MSR Data Package
Suffix++iButton Data Package

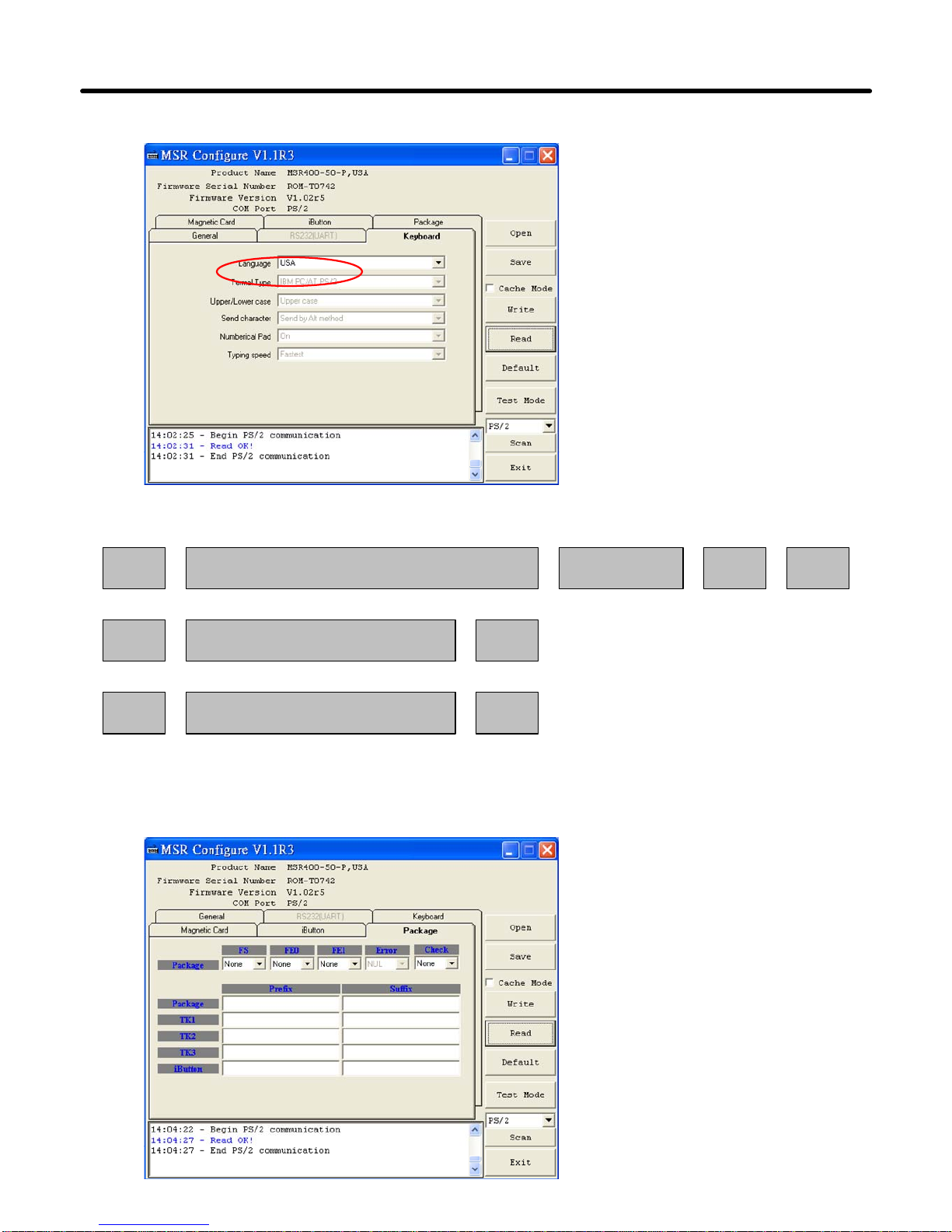

Keyboard : Setting MSR language ,when keyboard enable .
Demo Software
FE1 : Package ending character.
FS : Package leading character.
FE0 : Package ending character.
check : Bit check up.
10

iButton : Set iButton data format .
SS CRC++ID
Data format :
PS or RS + Family code + ES+
Present ID format : Set present iButton output ID format .
Release ID format : Set release iButton output ID format .
Family Code : Terms for iButton series.
PS : iButton present prompt character.
RS : iButton Release prompt character.
SS : Start Sentinel
ES : End Sentinel
Demo Software
11

FF : To set up direct side cardswipe prompt character.
RR : To set up reverse side cardswipe prompt character.
Swipe Card Direction : To set up prompt character for direct/reverse side card swipe
prompt character.
Decode Standard : To decode magstripe format.
Mark Code : Leading character to set up output data.
Decode Mode : To decode magstripe data.

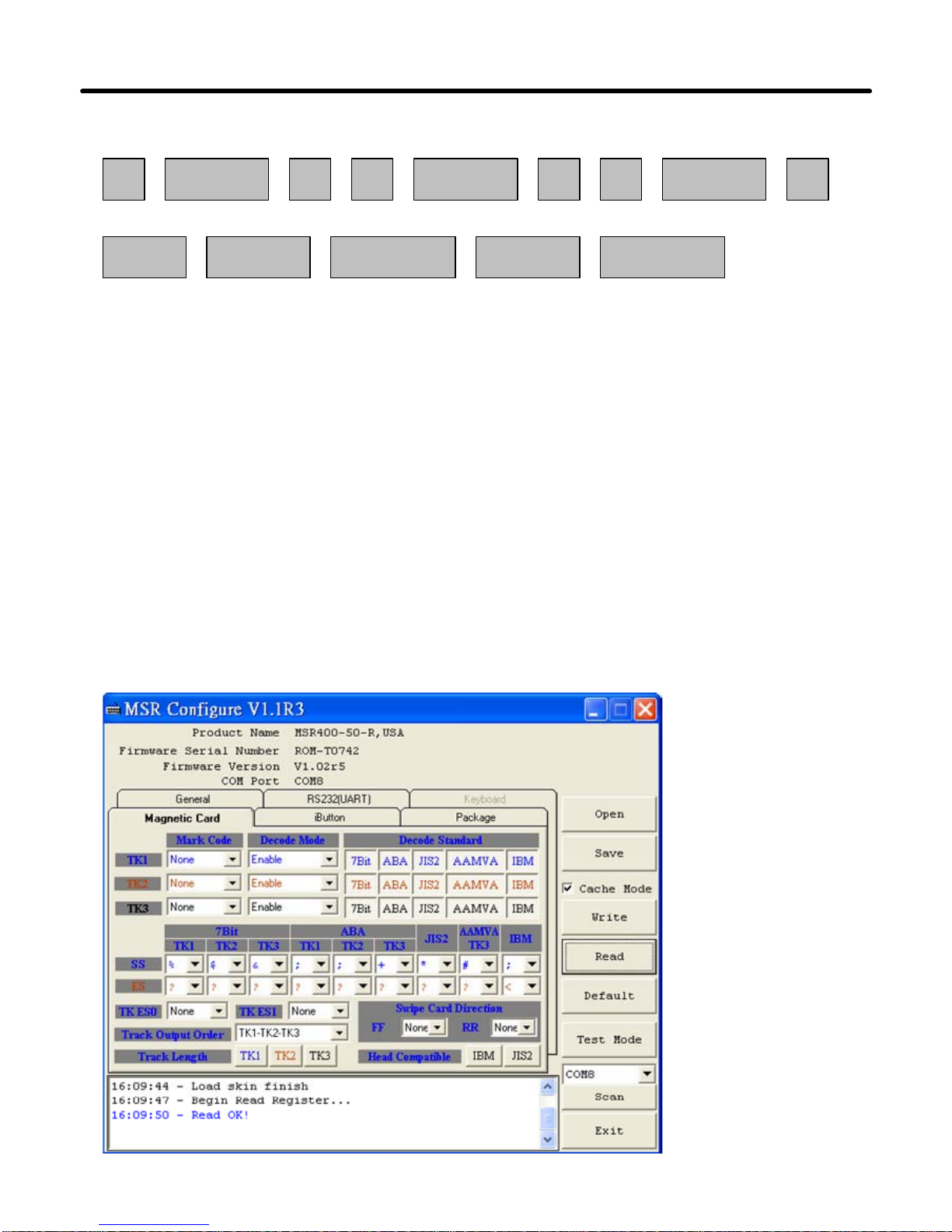

Magnetic Card : Set MSR data format and data output parameter .
TK1 DATA+
Data format :
SS + ES
Mark Code TK ES1++TK ES0FF/FR + Data Format +
SS : Start Sentinel
ES : End Sentinel
TK ES0 : Ending prompt character .
TK ES1 : Ending prompt character .
Track Output Order : To set up track data in turn.
Track Length : To set up track data length.
Head Compatible : To set up the decoding work for IBM or JIS2 data output at one time only.
MSR package :
TK2 DATA+SS + ES TK3 DATA+SS + ES++
Demo Software
JIS2 : JIS2 data format.
AAMVA : AAMVA data format .
IBM : IBM data format .
7Bit : 7 Bits Per Character data.
ABA : 5 Bits Per Character data .
12

STEP4 : Click “Write” ,write the parameter to MSR400 reader .
Click “Open or Save” open or save your choose parameter to file.
PS. Same as to when MSR400 reader is in RS232 interface mode,
Keyboard function will be in disable mode.When MSR400 reader
is in Keyboard function, RS232 interface will be in disable mode.
Open or Save
the
parameter
Write the
parameter
Demo Software
STEP5 : Click “Test Mode” can test the MSR400.
STEP6 : Click “Default” can reset MSR400 parameter.
Reset
MSR400
parameter
Enter test
mode
13

Magnetic Stripe Card :
RS232 Interface :
Power Supply :
Dimensions :
Mounting :
Environment :
TRACK 1 / IATA / 210 bpi / 79 Alphanumeric Characters
TRACK 2 / ABA / 75 bpi / 40 Numeric Characters
TRACK 3 / Thrift / 210 bpi / 107 Numeric Characters
RS232 , Half-Duplex , 8N1 , 1200~19200 bps
AC DC DC 5V, 300mA
D 171 x W 44.5 x H 42 mm
%
C/F Operating Temp : 0 ~ 55 Deg.C
Storage Temp : -10 ~ 55 Deg.C
Humidity : 10 ~ 90 % relative
Portable or Any surface
RS-232
1 2 3
MC
USB Interface :
RS232 , Half-Duplex , 8N1 , 1200~19200 bps
PS/2 Interface :
KEYB
USB
Human interface for PS2
HID USB to PS/2 Interface :
