1. INTRODUCTION
The S2-MF is a compact, waterproof stand-alone programmable access control system that provides
proximity entry for up to 1000 users. It uses Atmel microcontroller assures maximum performance in
any environment, and the low-power circuit makes its service life prolonged.
The product unique feature is simple in design, easy operation, and high reliability.
1.1 Features
Waterproof, conform to IP66
Read 13.56MHz MIFARE card (ISO14443 Type A)
One programmable relay operation
Pulse mode, Latch mode
Remote infrared programmer
1000 users
Two-color LED status display
Built in light dependent resistor (LDR) for anti-tamper
Buzzer for audible or silent mode
Low temperature resistance (-30℃)
2. Specifications
User Capacity
Card
1000
13.56MHz MIFARE card
Operating Voltage
Idle Current
Working Current
9~24V DC
≦20mA
≦80mA
Proximity Card Reader
Radio Technology
Read Range
MIFARE (ISO14443A)
13.56MHz Proximity Card
≧3cm
Wiring Connections
Relay Output, Exit Button
Relay
Adjustable Relay Output Time
Lock Output Load
One (NO, NC, Common)
1-99 Seconds (5 seconds default)
2 Amp Maximum
Environment
Operating Temperature
Operating Humidity
Meets IP66
-30℃~60℃
10%RH-98%RH

2
2.1 Carton Inventory
3. INSTALLATION
Remove the back cover from the unit
Drill 2 holes (A,C) on the wall for the screws and one hole for the cable
Knock the supplied rubber bungs to the screw holes(A,C)
Fix the back cover firmly on the wall with 4 flat head screws
Thread the cable through the cable hole (B)
Attach the unit to the back cover
Physical
Colour
Dimensions
Unit Weight
Shipping Weight
ABS Shell
Black (White, optional)
L103* W48 * H20 (mm)
100g
150g

3
3.1 Wiring
Colour
Function
Notes
Red
Power +
9~18 Votes DC Regulated Power Input
Black
GND
Ground
White
NO
Normally Open Relay Output
Brown
COM
Common Connection for Relay Output
Green
NC
Normally closed Relay Output
Yellow
OPEN
Request to Exit input(REX)
3.2 Sound and LED Status Indicators
Operation Status
LED
Buzzer
Stand by
Solid Red
-
Enter into programming mode
Pulsing Red
One beep
Operation error
-
Three beeps
Exit from the programming mode
Solid Red
One beep
Open lock
Solid Green
One beep
Alarm
Pulsing Red quickly
Beeps
Invalid Card
Pulsing Red
Three beeps

4

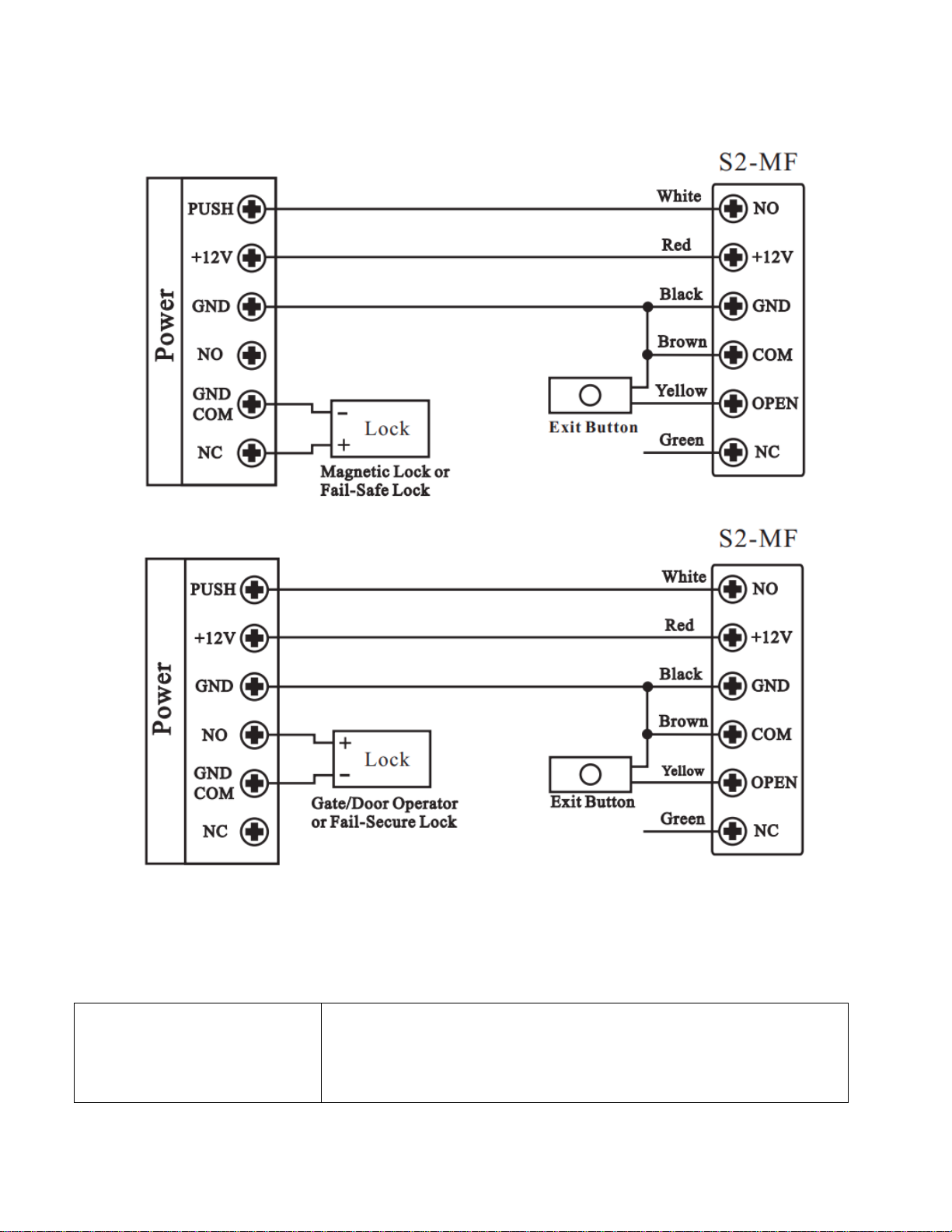

4. Connection Diagram
Common power supply:
Attention: Install a 1N4004 or equivalent diode is needed when use a common power supply, or the
reader might be damaged. (1N4004 is included in the packing)

5
Access Control Power Supply:
5. Master Cards Usage
Using Master Cards is the easiest way to add or delete cards.
Add Card User
1. (Read Master Add Card)
2. (Read User Card)
Repeat Step 2 for additional user cards
3. (Read Master Add Card) to stop adding.
Note: Same User Card cannot add more than once.

6
Delete Card User
1. (Read Master Delete Card)
2. (Read User Card)
Repeat Step 2 for additional user cards
3. (Read Master Delete Card) to stop deleting.
6. Programming
Programming will vary depending on access configuration. Follow the instructions according to your access
configuration.
General Programming Information
Remote Control: Please use the Infrared Remote Control to program the Reader.
User ID number:Assign a user ID to the access card in order to track it. The user ID number can
be any number from 1~1000.
IMPORTANT: User IDs do not have to be proceeded with any leading zeros. Recording of User
ID is crical. Modifications to the user require the User ID be available.
6.1 Basic Configuration
6.1.1 Enter and Exit Program mode
Programming Step
Keystroke Combination
Enter Program Mode
* (Master Code) #
(Factory default is 123456)
Exit Program Mode
*
6.1.2 Set Master Code
Programming Step
Keystroke Combination
1. Enter Program Mode
*(Master Code) #
2. Update Master Code
0 (New Master Code) # (Repeat New Master Code)
#
(Master code is any 6 digits)
3. Exit Program Mode
*
6.2 Add User Cards
Programming Steps
Keystroke Combination

7
1. Enter Program Mode
*(Master Code) #
Add Card User
2. Add Card: Using Auto ID
(S2-MF reader will automatically assign the
next available User ID number to Card)
1 (Read Card) #
The cards can be added continuously.
For example: 1 (Read Card1)(Read Card2)...#
Note:
After read card, Card link to an available User ID number.
OR
2. Add Card: Using User ID
(Manager set a specific User ID to Card,
same User ID can be assigned to different
cards, but this is a bad practice)
1 (User ID) # (Read Card) #
(User ID is any number from 1-1000)
The cards can be added continuously.
For example: 1 (User ID)#(Read Card1)#1(User ID)#(Read
Card2)...#
(Note: each User ID should begin with 1)
3. Exit
*
6.3 Delete Users
Programming Steps
Keystroke Combination
1. Enter Program Mode
*(Master Code) #
Delete Card
2. Delete Card - By Card
OR
2. Delete Card - By User ID
(if two cards have the same User ID, the first
one added will be deleted, but others cards
with same User ID still valid, and can only be
deleted using Delete by Card method)
2 (Read Card) #
The cards can be deleted continuously.
For example: 2(Read Card)(Read Card)….#
2 (User ID ) #
The cards can be deleted continuously.
For example: 2(User ID)#(User ID)#….#
After deleting User ID, the associated card will be deleted,
too.
Delete All Users
2. Delete All User
2 (Master Code) #
Note: All configuration data is retained.
3. Exit
*
6.4 Set Relay Configuration
The relay configuration sets the behavior of the output relay on activation.
Programming Steps
Keystroke Combination
1. Enter Program Mode
*(Master Code) #

8
2. Pulse Mode (factory default)
OR
2. Latch Mode
3 (1-99) #
The relay time is 1-99 seconds.
(1 is one second)
(Default is 5 seconds)
3 0 #
Sets the relay to ON/OFF Latch mode.
(If door closed, after read valid card, door will open and
remain in open state; only read valid card again –not
necessary the same card, the door will close)
3. Exit
*
6.5 Set Strike-out Alarm
The strike-our alarm will engage after 10 failed cards attempts (factory setting is OFF). It can be set to deny access
for 10 minutes after engaging or disengage only after entering a valid card or Master code.
Programming Step
Keystroke Combination
1. Enter Program Mode
*(Master Code) #
2. Strike-Out OFF
OR
2. Strike-Out ON (silence)
OR
2. Strike-Out ON (with Alarm)
Set alarm time
4 0 # (factory default)
4 1 # (Access will be denied for 10 minutes)
(No way to back to normal, must wait)
4 2 # 5
(0 ~ 3) #,
(0 ~ 3 minutes, 0 means no alarm)
Read valid User card or Master card to silence.
3. Exit
*
6.6 Set Audible and Visual Response
Programming Step
Keystroke Combination
1. Enter Program Mode
*(Master Code) #
2. Control LED
OR
2. Control Sounds
OFF = 6 1 #
OFF = 6 3 #
(read card
silence)
ON = 6 2 #
ON = 6 4 #
(Factory defaults are
ON)
3. Exit
*
