Maidesite US-01 User manual

Assembly Instructions for Electric Standing Desk
SKU：US-01/02
Email(USA): [e-mail]
Website: maidesite-desk.com
YouTube: Maidesite Office
Facebook: MaidesiteUS
Instagram: @maidesiteus

Please make sure that the desk is unobstructed during
raising and lowering. The desktop should not be close to
the wall. The power cord is long enough to move the
desk up and down.
Warning
Please make sure
that your fingers
are visible at the
pinch point.
Please make sure that children do not touch this electric standing desk to avoid
the risk of injury and motor.
Make sure that all electronic components are not exposed to liquids.
Do not sit or stand on the desktop. Do not crawl or lie under the desk frame.
Do not place anything over 7.8 inches in height under the desk.
Instructions
Do not disassemble any parts without authorization to avoid the risk of electric
shock.
Please ensure that the continuous operation of the lifting process does not
exceed two minutes to avoid damage to the motor.
If there is a power failure or the power cord is not plugged in, you need to refer
to the instructions for use to reset it.
◆ This electric standing desk is only suitable for dry environments.
◆ The height of this electric standing desk can be adjusted within a certain range,
so it is suitable for most ergonomic scenario.
◆ The risks caused by use in scenarios other than the above shall be borne by the user.
◆ The manufacturer is not responsible for damages and losses caused by improper
operation and improper handling.
Product manual
Tips

2 Page
Parts List
Desktop (1200*600*18/1400*700*18mm, 4 Pieces)
Power Cable
C-Bracket
Fixing Sheet
Hook
Wooden Dowel
M6 Open End Wrench
M14 Open End Wrench
Frame Beam Fastener (right and left)
Cloth Drawer Bracket
Cloth Drawer
Cable Management
Felt Side Pocket
Casters
M6 Nut
Wire Buckle
M4 Allen Wrench
M6*1*14 Hexagon Socket Round Head Screw
Side Board
M6*1*16 Hexagon Socket Countersunk Head Screw
Right Lifting Column (with Motor)
Desk Feet
M6*1*30 Hexagon Socket Round Head Screw
Drive Rod Assembly
Adapter
Adapter Clip
ST4.8*0.8*15 Flat Head Self-Tapping Screw
Hand Controller
Left Lifting Column
200mm Hexagonal Drive Rod
Left Frame Beam
Right Frame Beam
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
1
1
1
1
1
1
2
1
1
1
2
1
1
1
1
1
19
20
21
22
23
24
25
26
27
28
29
30
31
4
25
6
12
38
7
1
4
6
7
1
1
1
2
Installation Time Installers
30
min
7
16
20 21
3
8
12
6
13 14
15
17
18
10
11
22 23 24 25 26
27 28 3029 31
2
5
1
9
4
NO. Part Name Quantity
32
19
NO. Part Name Quantity
32

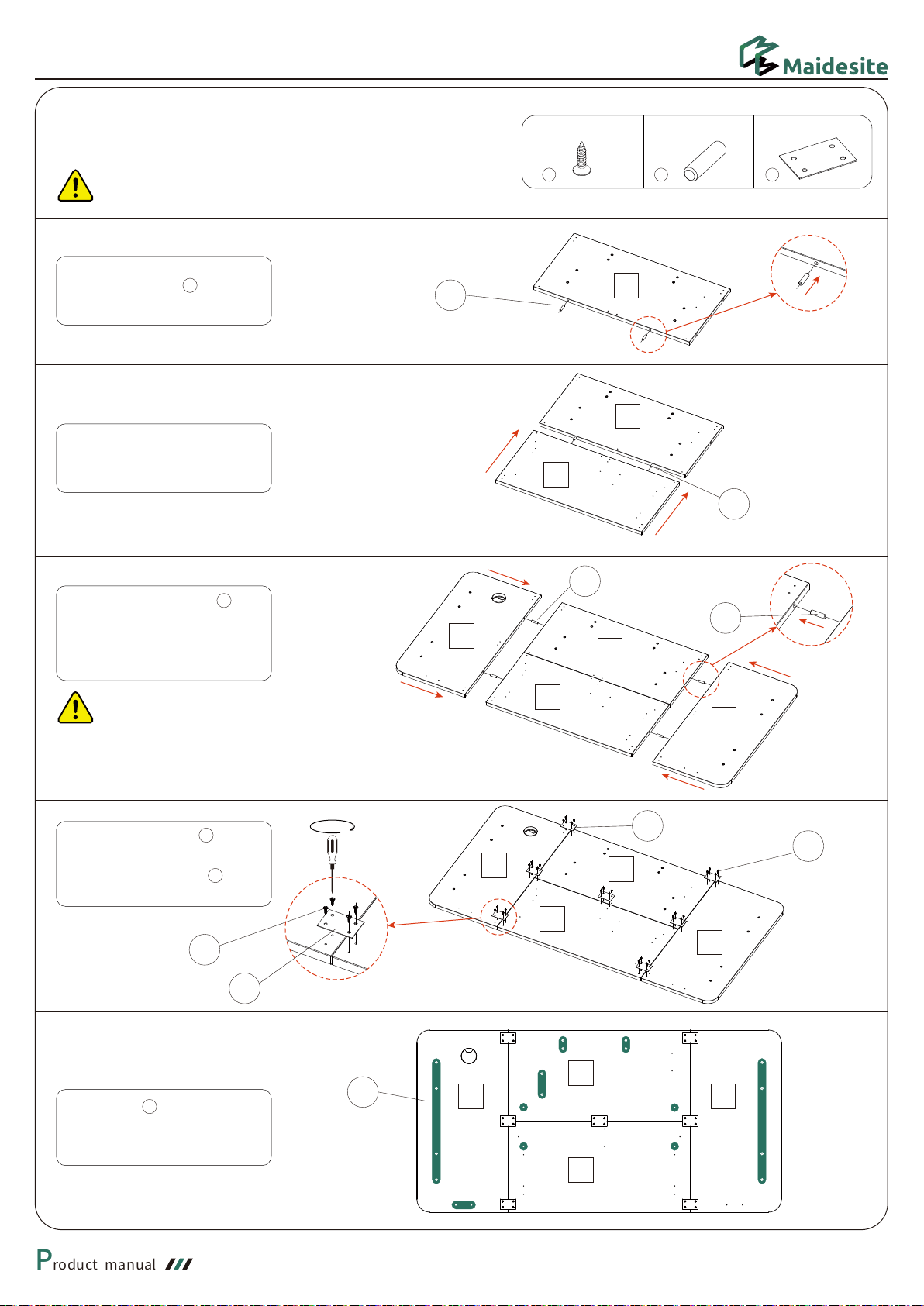

4. First, take 7 fixing sheets and place
them in the 7 positions as shown in the
figure. Then use a screwdriver and 28
flat head self-tapping screws to
fix the 7 fixing sheets to the desktop.
3. First, take 4 wooden dowels and
insert them into the 4 holes on the
left and right sides of desktops C and
D respectively. Next, place desktops
A and B as shown in the figure.
Finally, connect desktops A and B.
1. With the desktop C facing upwards,
take 2 wooden dowels and insert
them into the 2 holes on the side of
the desktop C.
Product manual
Assembly Instructions
27
27
28
23
27
STEP 1: Schematic diagram of desktop assembly.
2. Align the two holes on the side of the
desktop D to the desktop C that has
inserted 2 wooden dowels, and then
connect desktops C and D.
5. The desktop is assembled.
As shown in the figure, the green part is
the hole positions that need to be used
in the next assembly steps.
28
Fixing Sheet
×7
27
Wooden Dowel
×6
23
Self-Tapping Screw
×28
A
A
B
B
C
C
D
C
D
C
D
A B
C
D
Note: Before assembling the desktop, place a cushion
under the desktop and make sure the desktop is level.
Do not lift the assembled desktop, so as not to break the wooden dowel.
Note: Please assemble the desktop
strictly in alphabetical order.
27
27
27
23
23
28
28
1
1

4 Page
22
M6*1*30 Hexagon Socket
Round Head Screw
×829
M4 Allen Wrench
×1
4
3
9
29
22

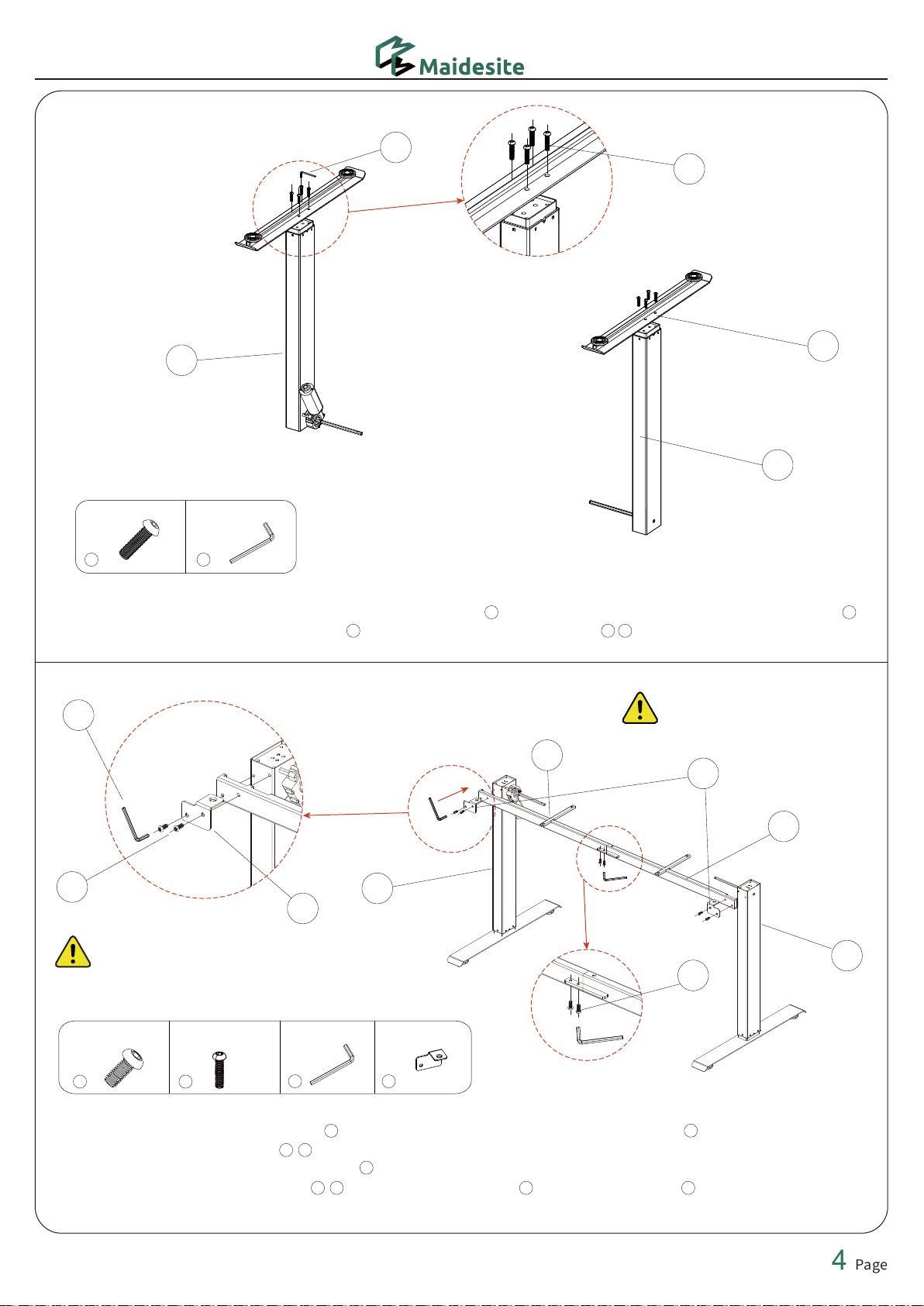

STEP 2: As shown in the figure, Use the M4 allen wrench and 8 M6*30 hexagon socket round head screws
to connect the two desk feet to the left and right lifting columns from the bottom.
22
29
9 3 4
STEP 3: First use the M4 allen wrench and 2 M6*14 hexagon socket round head screws to connect the left
and right frame beams (Pay attention to the directions).
Next, fix the frame beam fasteners (pay attention to the direction) to the corresponding screw holes of the
left and right lifting columns with an M4 Allen Wrench and 4 M6*30 screws as shown in the figure.
20
2229
29
32
65
43
Note: This step requires two people to assemble
together to prevent the lifting column from
tipping and causing a fall.
4
5
6
3
29
22
22
32
32
M6*14 Hexagon Socket
Round Head Screw
×2
M6*30 Hexagon Socket
Round Head Screw
×4
M4 Allen Wrench Frame Beam Fastener
×1×2
20 22 29 32
Note: Fasten frame beams and lifting
columns with M6*30 screws and
frame beam fasteners.

Product manual
30
M6 Open End Wrench
×1

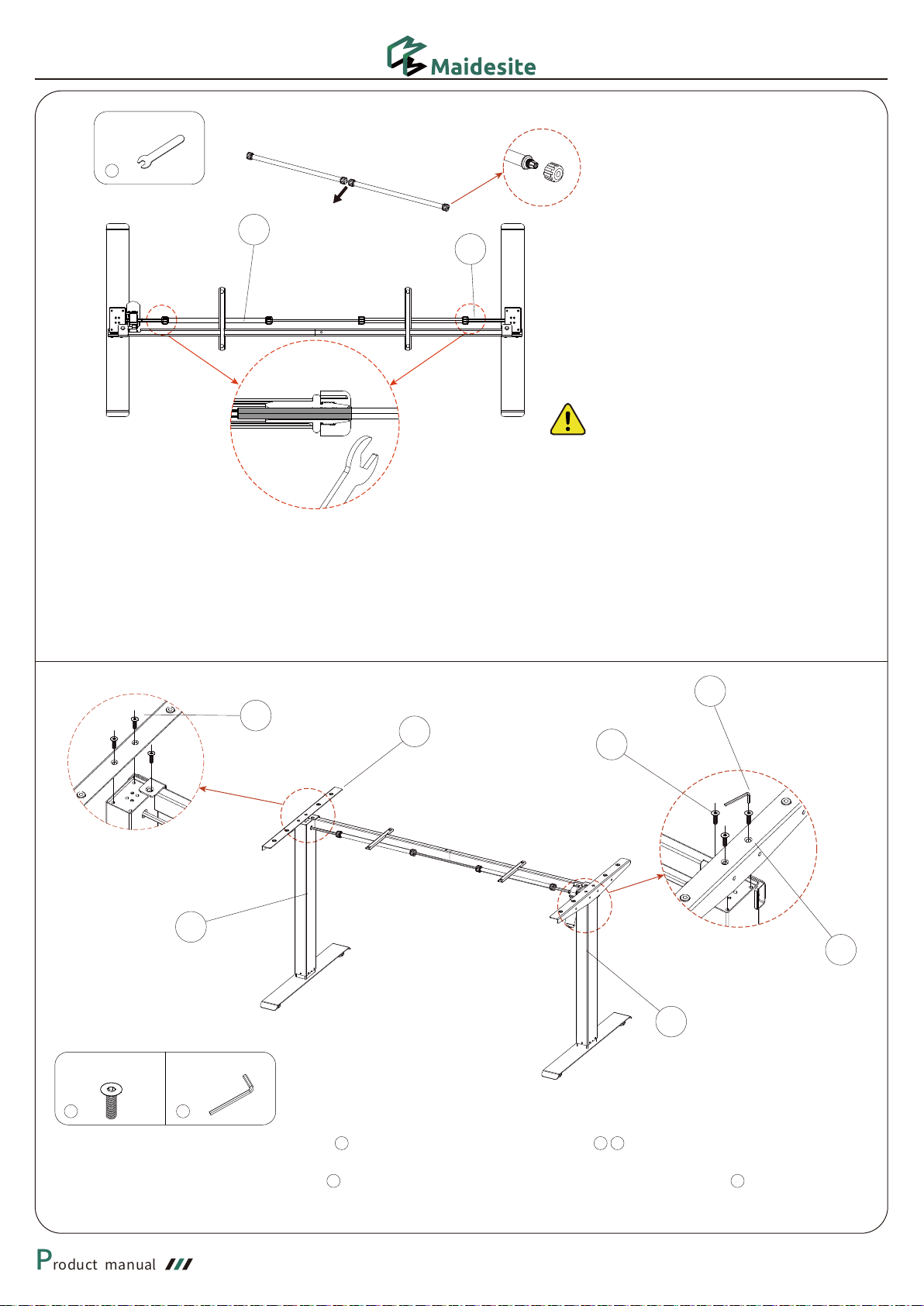

STEP 5: First, place the two side boards on the left and right lifting columns in the direction shown in the figure.
Then use the M4 allen wrench and 6 M6*16 hexagon socket countersunk head screws to connect the
side boards to the left and right lifting columns.
21
21
M6*1*16 Hexagon Socket
Countersunk Head Screw
×629
29
M4 Allen Wrench
×1
7
8
STEP 4: Begin by loosening the four black knobs on the drive rod assembly.
Next, insert the left and right ends of the drive rod assembly into the 60mm scale of the hexagonal drive rods
on the lifting columns on both sides respectively.
Finally, tighten the four black knobs on the drive rod assembly.
60MM
2 3 4
Note: If the drive rod assembly cannot
be inserted smoothly into the
hexagonal drive rods, you can use
the M6 open-end wrench to adjust
the angle of the hexagonal drive rods.
4
2
2
21
21
29
3

6 Page
20
M6*1*14Hexagon Socket
Round Head Screw
×12 29 ×1
M4 Allen Wrench
20
1
20
29
12
10
23
23

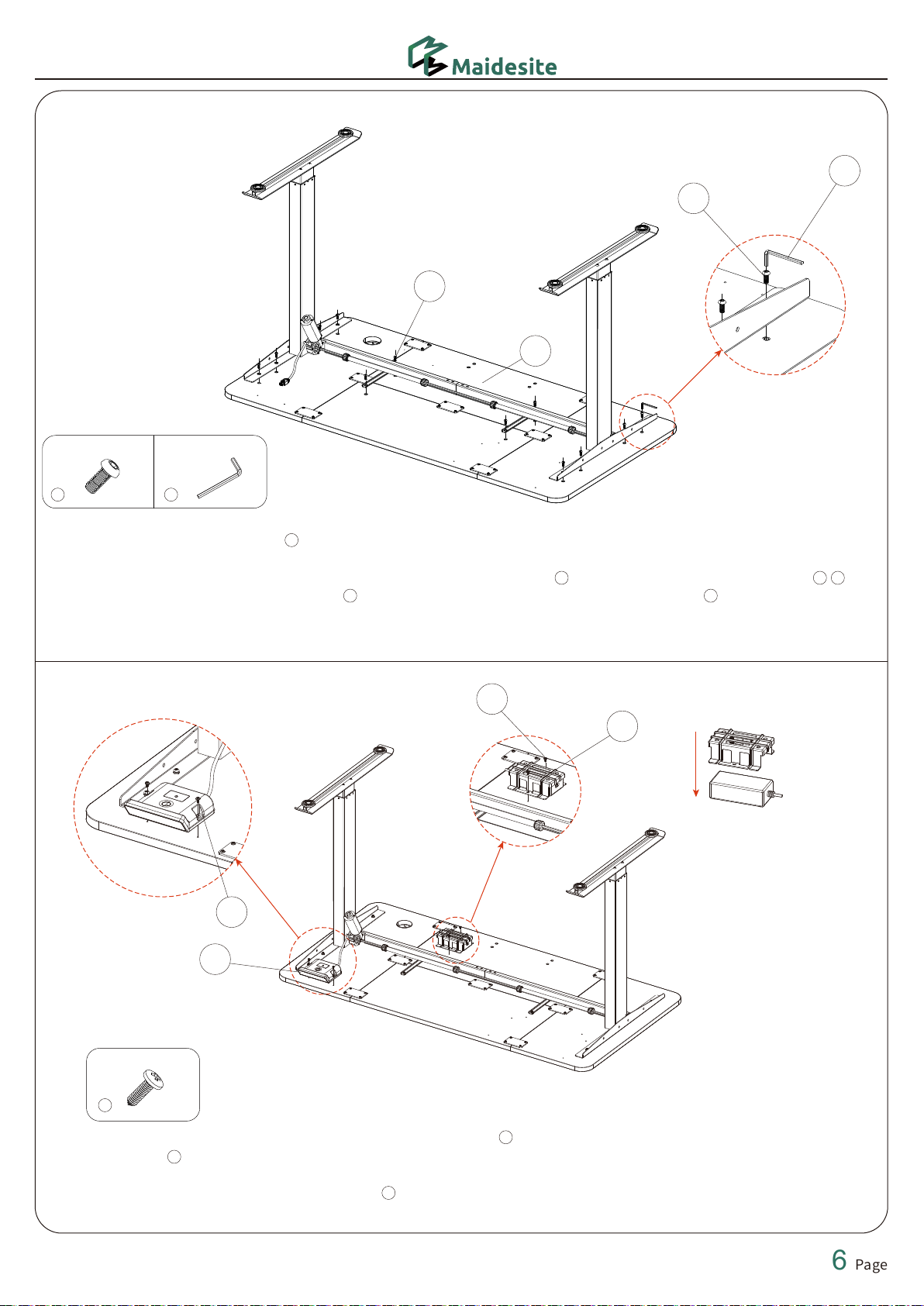

STEP 7: Put the adapter into the adapter clip. Use a screwdriver and 2 ST4.8*0.8*13 flat head self-tapping
screws to fix the adapter to the desktop. (Pay attention to the direction of the adapter)
Use a screwdriver and 2 ST4.8*0.8*15 flat head self-tapping screws to fix the hand controller to the
desktop.
23
ST4.8*0.8*15
×4
32
23
23
STEP 6: First, place the desktop horizontally on the ground (with the pre-embedded screw holes facing up).
Next, place the desk frame upside down on the desktop. The pre-embedded screw holes on the desktop
correspond one-to-one with the screw holes on the side boards and the left and right frame beams .
Finally, use the M4 allen wrench and 12 M6*14 hexagon socket round head screw to connect the
desktop to the desk frame.
1
2
29 20
5 6

Product manual
Congratulations, you have completed the basic assembly of the desk.
Please test the use of the desk after powering on.
If it can be used normally, please start installing the accessories.
Accessories installation steps begin on page 9.
If it is not available, please contact customer service directly.
2526

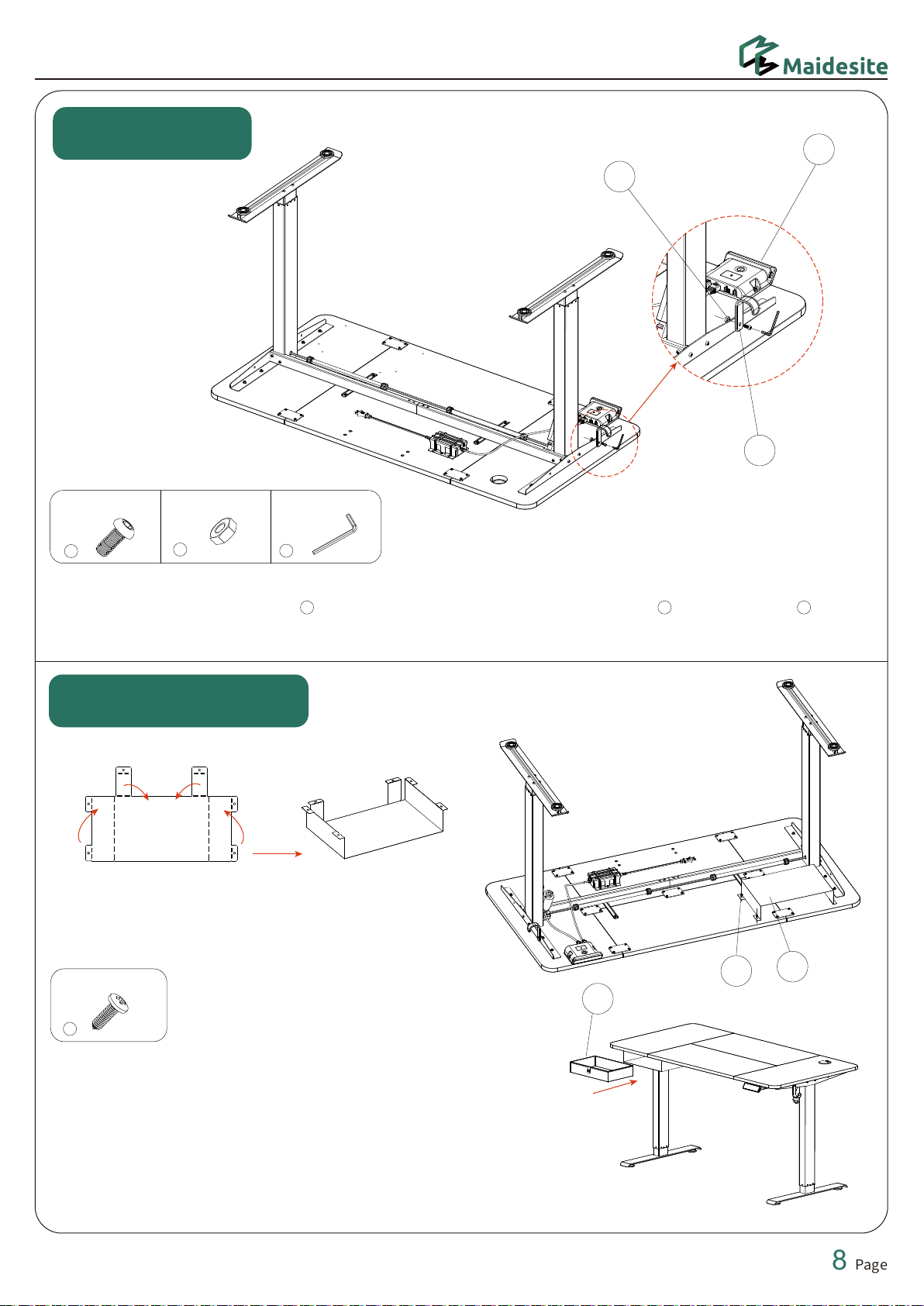

STEP 8: First, insert the power cable into the corresponding interface of the adapter .
Next, insert the adapter and motor cable into the hand controller first. All cables can be
fastened to the desktop by using wire buckles .
10
12
25 10
10
26
12

8 Page
Accessories Installation Instructions
12
24
15
18
23
17
As shown in the picture, first match the hook with the mounting holes on the side board.
Then use the M4 allen wrench , one M6*1*14 hexagon socket round head screw , and one M6 nut to
fix the hook on the side
board.
Hook Installation
1. Fold the cloth drawer bracket along the dotted line.
2. Use a screwdriver and 6 ST4.8*0.8*13 flat head self-tapping screws
to fix the cloth drawer bracket to the desktop along the guide holes on the desktop.
3. Install the cloth drawer into the cloth drawer bracket as shown.
Cloth Drawer Installation
20
M6*1*14 Hexagon Socket
Round Head Screw
×129
M4 Allen Wrench
×1
24
M6 Nut
×1
23
ST4.8*0.8*15
×6
20 2429

Product manual
As shown in the figure, match the mounting holes of the cable management (Pay attention to the direction)
to the holes of the C-brackets .
Use the M4 allen wrench, 4 M6*14 hexagon socket round head screws and 4 M6 nuts to fix the cable
management to the C-brackets
20 ×424
M6 Nut
×429 ×1
24
13
20
29
14
14
20
M6*1*14 Hexagon Socket
Round Head Screw
M6*1*14 Hexagon Socket
Round Head Screw
×429
M4 Allen Wrench
M4 Allen Wrench
×1
29
13
20
1
As shown in the picture, firstly match the mounting holes of the 2 C-brackets (Pay attention to the direction) to the
pre-embedded screw holes on the desktop.
Then use the M4 allen wrench and 4 M6*14 hexagon socket round head screws to fix the C-brackets to the
desktop
Cable Management
Installation
13
13
14
2420
29 20

10 Page
To use casters , first, turn the rubber pads on the desk feet counterclockwise to remove them, and then
use the M14 open end wrench to fix the casters on the desk feet.
As shown in the figure, match the two holes of the felt side pocket (Pay attention to the direction) to the
two mounting holes on the side board .
Use the M4 allen wrench , 2 M6*14 hexagon socket round head screws , and 2 M6 nuts to fix the
felt side pocket on the side board.
31
19
19
9
20
16
24
2
29
9
31
M14 Open End Wrench
×1
Casters Installation
Felt Side Pocket
Installation
20 ×224 ×229 ×1
M6 Nut
M6*1*14 Hexagon Socket
Round Head Screw M4 Allen Wrench
16
2
29 20 24
The locking and unlocking of the
casters can be controlled by moving
the buttons on the casters up and
down.
31
19

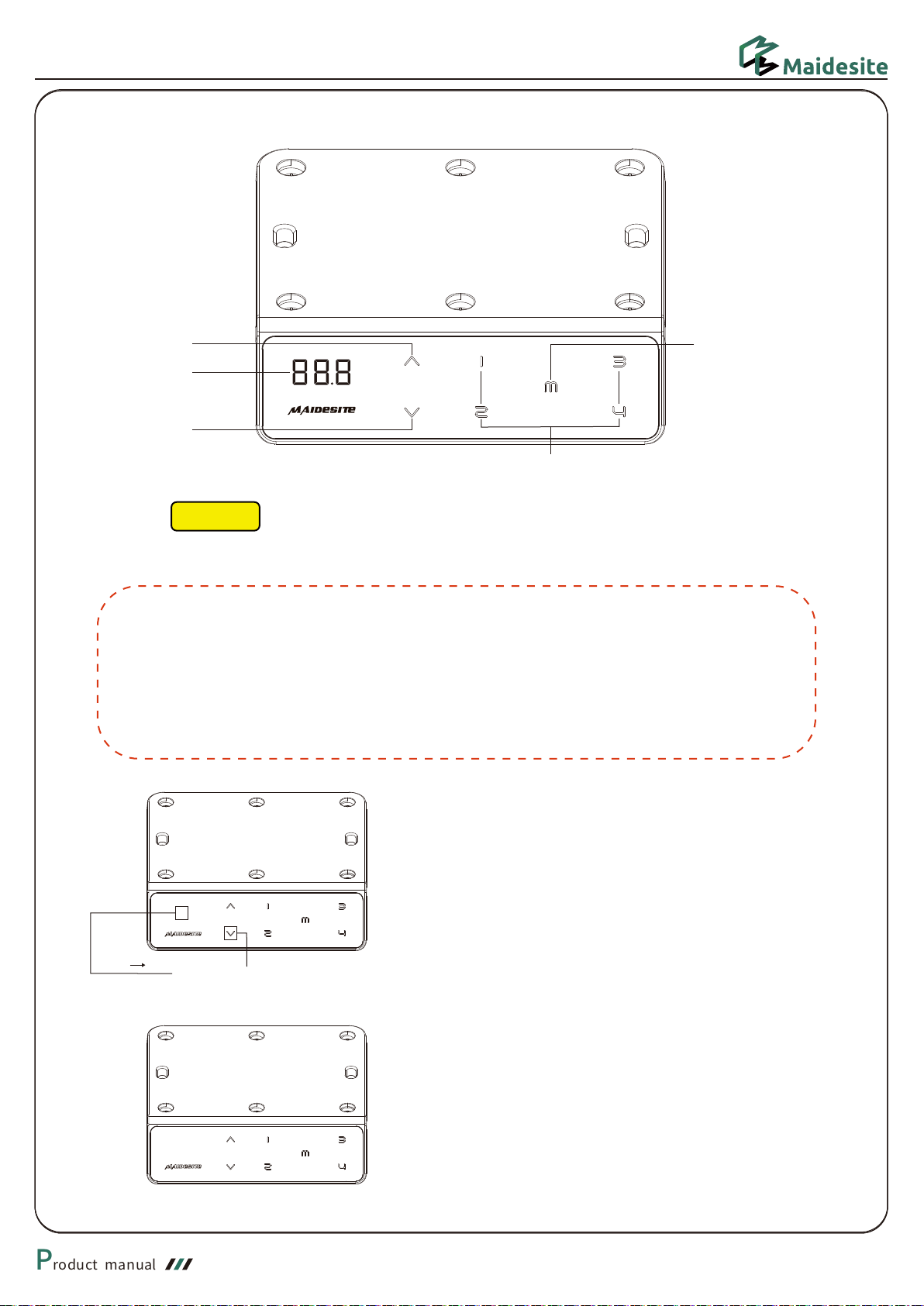

Instructions for Hand Controller
NOTE 1. Make sure that there are no obstacles and that the desktop is not close to the wall during the lifting process.
2. Before use, please reset and ensure that all power cords are long enough to move the desk up and down.
1. Enter the reset state:
When the desktop is at the lowest position, press and hold the down button until the hand
controller displays RST, which will enter the reset state.
2. Exit the reset state:
Press and hold the down button until the desktop descends a short distance, then rises a
short distance and the hand controller returns to the display height to exit the reset state.
Phenomenon
The hand controller displays E07~E09.
Even after restarting after a power failure, the error display remains, and there is no
response to pressing any buttons.
Operation
Long press the down button until the hand controller displays RST, release the down
button, and long press the down button again until the hand controller displays the height
number.
Memory Height Setting
Up/down the desk to your ideal height, press the M button, and the hand controller will
display "S-", select and press any memory height button (1~4), the current desk height can
be memorized.
The next time you use it, you can directly press the memory height button to quickly reach
the previously memorized height.
Reset Steps
UP
Height
DOWN
Memory Heights
Set Up Button
“E07”
“E08”
“E09” “RST”
Long Press 5s
Product manual

The following settings are set
according to personal preferences.
Set Upper Height Limit
Start by raising the desk to the desired height.
Next, press the M button, and the hand controller will display "S-", release the M
button, long-press the up button, and the hand controller will flash once, release
the up button, and long-press the M button until the hand controller displays "999",
then the upper height limit setting is completed.
Set the Lowest Height Limit
Start by lowering the desk to the desired height.
Next, press the M button, and the hand controller will display "S-", release the M
button, long-press the down button, and the hand controller will flash once,
release the down button, and long-press the M button until the hand controller
displays "000", then the lowest height limit setting is completed.
Cancel the Height Limits
Press the M button, the hand controller will display "S-", and release the M button.
Long press the M button until the hand controller displays "555" to delete the upper
and lowest height limits.
Minimum Height Modification
In the reset state, that is, the hand controller shows the "RST".
Long press the M button until the reset height is displayed on the hand controller
and flashes on and off, press the up or down key to adjust to the desired height,
release the up or down key for 5 seconds, and the hand controller displays "RST"
again, the modification is completed.
“S-” “999”
long-press 2s
“S-” “000”
long-press 2s
long-press 2s
long-press 5s
“S-” “RST”
Height setting
“S-” “555”
12 Page

Memory Height Inching and Continuation Switching
In the reset state, that is, the hand controller shows the "RST".
Long press button 1 to switch between memory height inching and memory
height continuation.
The hand controller displays "10.1", which is the memory height continuation.
The hand controller displays "10.2", which is the memory height inching.
CM-INCH Conversion
In the reset state, that is, the hand controller shows the "RST".
Long press button 2 to switch between centimeters and inches.
The hand controller displays "10.3", and the height will display in
cm after reset.
The hand controller displays "10.4", and the height will display in
inch after reset.
Obstructed Blocked Back Sensitivity Selection
In the reset state, the hand controller shows the "RST".
Long press the up button to change the fallback sensitivity in case of resistance.
The hand controller shows:
"10.5" -- 22 lbs
"10.6" -- 33 lbs
"10.7" -- 44 lbs
USB Interface
Output Voltage: 5V
Output Current: 0.8A
USB
“RST” “10.1/10.2”
“RST” “10.3/10.4”
long-press 5s
long-press 5s
long-press 5s
“RST” “10.5/10.6/10.7”
Product manual

Q&A
Common Problems and Solutions
1. If the desk has the following problems, try the Reset Steps on Page 12.
· Abnormal work.
· The hand controller displays RST.
· The hand controller displays an error message (E07, E08), but the motor cable is connected fine.
2. If HOT is displayed on the hand controller, please disconnect the power and re-energize after 20
minutes.
3. If the desk can only be raised or lowered a short distance, first make sure that the desk is level.
If it still can't be solved, please refer to the steps to Obstructed Blocked Back Sensitivity Selection
on Page 14 to adjust the sensitivity to "10.7".
4. When the height of the left and right desk legs is inconsistent when the desk is raised and lowered,
please disconnect the power supply first, then remove the Drive Rod Assembly, and use the M6
Open End Wrench to adjust the Hexagonal Drive Rod of the left and right lifting columns to lower
the columns to the lowest height (refer to Page 5 STEP 5), then re-install the Drive Rod Assembly
and then power on and reset (refer to the Reset Steps on Page 12).
14 Page
