Majestic 360DVS2 User manual

Installation Instructions &
Homeowner's
Manual
10002547 09/03 Rev.8
INSTALLER: DO NOT DISCARD THIS MANUAL—LEAVE FOR HOMEOWNER
Multisided Top/Rear Vent
Convertible Direct Vent
Fireplaces: 360DVS2
360DVS3
360DVSL
360DVSR
PLEASE READ THIS MANUAL
BEFORE INSTALLING
AND USING APPLIANCE.
IMPORTANT: Read all
instructions and warnings
carefully before starting
installation. Failure to follow
these instructions may result
in a possible fire hazard, and
will void the warranty.
WARNING: If the information in
this manual is not followed
exactly, a fire or explosion may
result, causing property damage,
personal injury, or loss of life.
FOR YOUR SAFETY:
• Installation and service must
be performed by a qualified
installer, service agency, or
the gas supplier.
• Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity
of this or any other appliance.
If you smell gas:
1. Open windows
2. Do not touch electrical
switches.
3. Do not try to light any
appliance.
4. Extinguish any open flame.
5. Do not use any telephone in
your building.
6. Immediately call your gas
supplier from a neighbor's
phone.
7. Follow your gas supplier's
instructions.
8. If you cannot reach your gas
supplier, call the fire
department.
INSTALLER/CONSUMER
SAFETY INFORMATION
Vermont Castings, Majestic Products
410 Admiral Boulevard • Mississauga • Ontario, Canada L5T2N6 • Ph: 905-670-7777
www.majesticproducts.com • www.vermontcastings.com

2
Vermont Castings, Majestic Products, 360DVS Series
10002547
Appliance Installation Instructions
Notes for Safe Installation and Operation............................................................................. 3
Proposition 65 Warning......................................................................................................... 3
Aftermarket Mobile Home Installation................................................................................... 3
Important Curing/Burning Instructions .................................................................................. 3
Locating Your Fireplace ........................................................................................................ 3
Fireplace Dimensions ....................................................................................................... 4, 5
Framing Dimensions ......................................................................................................... 6, 7
Clearance to Combustibles................................................................................................... 8
Mantels.................................................................................................................................. 8
Mantel Leg Chart................................................................................................................... 8
Hearth.................................................................................................................................... 8
Framing & Finishing .............................................................................................................. 9
Final Finishing ....................................................................................................................... 9
Gas Specifications ................................................................................................................ 9
Gas Inlet and Manifold Pressures......................................................................................... 9
Gas Line Installation ............................................................................................................. 9
EB-1 Electrical Junction Box Connection ........................................................................... 10
Remote ON/OFF Switch Installation ................................................................................... 10
Optional Top Vent Application ............................................................................................ 11
General Venting .................................................................................................................. 12
Venting Installation Instructions
General Venting Information–Termination Location ........................................................... 13
Termination Clearances ...................................................................................................... 14
General Information for Connecting Vent Pipes ................................................................. 15
How To Use the Vent Graph............................................................................................... 15
Rear Wall Vent Application ................................................................................................. 16
Rear Wall Vent Installation ................................................................................................. 16
Vertical Side Wall Application ............................................................................................. 17
Vertical Side Wall Installation ............................................................................................. 18
Below Grade Installations ................................................................................................... 19
Vertical Through-the-Roof Applications .............................................................................. 20
Vertical Through-the-Roof Installation ................................................................................ 21
Twist Lock Vent Components ............................................................................................. 22
Crimp End Vent Components ............................................................................................. 23
Operating Instructions
Glass Information ................................................................................................................ 24
Louvre Removal ..................................................................................................................24
Window Frame Removal..................................................................................................... 24
Glass Cleaning.................................................................................................................... 25
Ceramic Refractory Installation........................................................................................... 25
Installation of Logs .............................................................................................................. 25
Lava Rocks & Ember Material ............................................................................................ 26
Flame & Temperature Adjustment ...................................................................................... 26
Flame Characteristics ......................................................................................................... 26
Lighting & Operating Instructions........................................................................................ 27
Lighting & Operating Instructions (EN/EP) ......................................................................... 28
Troubleshooting the Gas Control System........................................................................... 29
Troubleshooting the Gas Control System (EN/EP) ............................................................ 30
Troubleshooting: Honeywell VS8421.................................................................................. 31
General Maintenance.......................................................................................................... 32
Converting the Appliance from LP to Natural Gas, or from Natural Gas to LP .................. 32
Cleaning the Standing Pilot Control System....................................................................... 33
Cleaning the Electronic Ignition System ............................................................................. 33
Replacement Parts
Replacement Parts Pictorial ............................................................................................... 34
Replacement Part Numbers.......................................................................................... 35, 36
Optional Accessories
Fan Kits ............................................................................................................................... 37
Remote Controls .................................................................................................................38
Decorative Trim Frame Kit .................................................................................................. 38
Warranty ......................................................................................................................................... 39
Thank you, and Congratulations on your purchase of a Vermont Castings, Majestic Products Fireplace.
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow
these instructions fully may result in a possible fire hazard and will void the warranty.
Table of Contents

3
Vermont Castings, Majestic Products, 360DVS Series
10002547
This gas appliance should be installed by a qualified
installer in accordance with local building codes and current
CSA-B149.1 Installation Codes for Gas BurningAppliances
and Equipment. If the unit is being installed in a mobile home,
the installation should comply with the current CAN/CSA Z
240.4 code. For U.S.A. Installations, follow local codes and/
or the current National Fuel Gas Code, ANSI Z223.1.
FOR SAFE INSTALLATION AND OPERATION PLEASE
NOTE THE FOLLOWING:
1. This fireplace gives off high temperatures and should
be located out of high traffic areas and away from
furniture and draperies.
2. Children and adults should be alerted to the hazards of
high surface temperatures of this fireplace and should
stay away to avoid burns or ignition of clothing.
3. CAUTION: Due to high glass surface temperature,
children should be carefully supervised when in
the same room as fireplace.
4. Under no circumstances should this fireplace be
modified. Parts removed for servicing should be
replaced prior to operating this fireplace again.
5. Installation and any repairs to this fireplace must be
performed by a qualified installer, service agency or
gas supplier.A professional service person should be
contacted to inspect this fireplace annually. Make it a
practice to have all of your gas fireplaces checked
annually. More frequent cleaning may be required due
to excess lint and dust from carpeting, bedding
material, etc.
6. Control compartments, burners and air passages in
this fireplace should be kept clean and free of dust and
lint. Make sure the gas valve and pilot light are turned
off before you attempt to clean this fireplace.
7. The venting system (chimney) of this fireplace should
be checked at least once a year, and if needed, your
venting system should be cleaned.
8. Keep the area around your fireplace clear of
combustible materials, gasoline and other flammable
vapor and liquids. This fireplace should not be used as
a drying rack for clothing, nor should Christmas
stockings or decorations be hung on or around the
fireplace.
9. Under no circumstances should any solid fuels (wood,
coal, paper or cardboard, etc.) be used in this fireplace.
10. The flow of combustion and ventilation air must not be
obstructed in any way.
11. When the fireplace is installed directly on carpeting,
vinyl tile, or any combustible material other than
wood, it must be installed on a metal or wood panel
extending the full width and depth of the fireplace.
12. This fireplace requires adequate ventilation and
combustion air to operate properly.
13. This fireplace must not be connected to a chimney flue
serving a separate solid fuel-burning fireplace.
14. When the fireplace is not in use, it is recommended the
gas valve be left in the “OFF” position.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
Remove any plastic from trim parts before turning the
fireplace ON.
It is normal for fireplaces fabricated of steel to give off some
expansion and/or contraction noises during start up and/or
cool down cycles. Similar noises are found with a furnace
heat exchanger or car engine.
It is not unusual for your Vermont Castings, Majestic
Products gas fireplace to give off some odor the first time it
is burned. This is due to paint curing and undetected oil
from the manufacturing process.
Please open all windows to ensure your room is well ventilated.
It is recommended that you burn your fireplace for at least
ten (10) hours the first time you use it. If the optional fan kit
has been installed, place the fan switch in the “OFF”
position during this time.
Installation & Operating Instructions
Locating Your Fireplace
This appliance may be installed in an aftermarket,
permanently located, manufactured home, or
mobile home where not prohibited by local codes.
This appliance is only for use with type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases,
unless a certified kit is used.
A Wall Location (Fig. 1)
Y(Minimum distance between a glass panel and a
parallel wall) = 3’ (914 mm)
Z(Minimum distance between edge of a glass panel
and an adjacent wall) = 3” (76 mm)
B Island Location (Fig. 1)
X(Maximum length of horizontal venting) = 20’ (6.1 m)
Refer to Manual Venting section for specific dimensions.
X
XX
Y
Y
Y
Z
AA
B
Fig. 1 Locating your gas fireplace
Fireplace_location
PROPOSITION 65 WARNING
Fuels used in gas, wood-burning, or oil-fired appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm
.
California Health & Safety Code Sec. 25249.6

4
Vermont Castings, Majestic Products, 360DVS Series
10002547

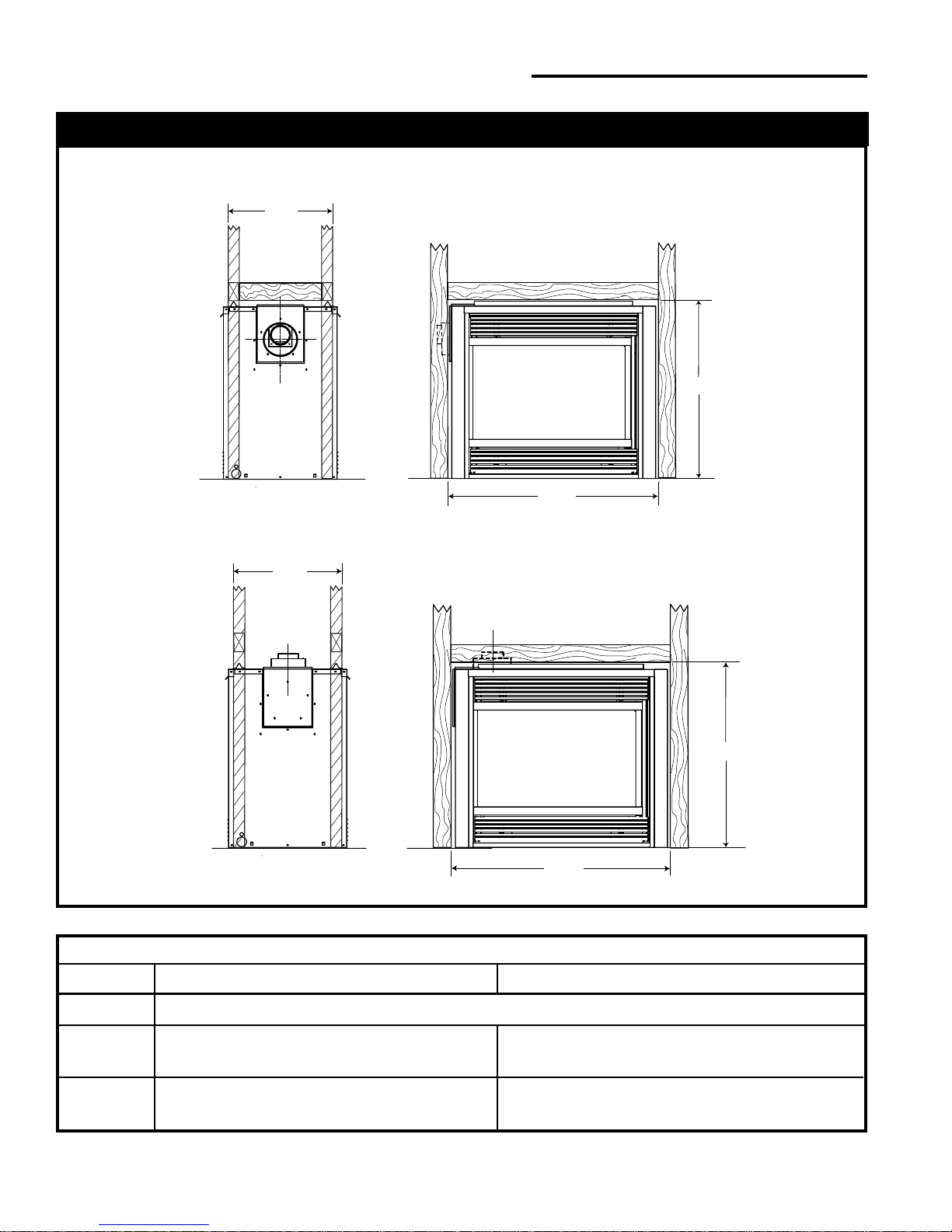

Ref. Rear Vent Configuration Top Vent Configuration
A38
1/8” (968 mm) 38 1/8” (968 mm)
B43
1/4” (1099 mm) 43 1/4” (1099 mm)
C 24” (610 mm) 24” (610 mm)
D 24” (610 mm) 24” (610 mm)
E37
3/8” (949 mm) 37 3/8” (949 mm)
F35
7/8” (911 mm) 35 7/8” (911 mm)
G30
1/2” (775 mm) 7” (178 mm)
H 12” (305 mm) 12” (305 mm)
I3
1/8” (80 mm) 3 1/8” (80 mm)
J2
3/4” (70 mm) 2 3/4” (70 mm)
K1
1/4” (33 mm) 1 1/4” (33 mm)
Fireplace Dimensions - 360DVS2
Top Vent Configuration
Rear Vent Configuration
Appliance Dimensions
JJ
K
K
H
DA
E
B
I
EA
F
C
H
Electrical
Access
Gas Line
Access
Electrical
Access
Gas Line
Access
K
J
JK
J
J
G
JJ
K
K
H
DA
E
B
EA
F
CK
H
G
I
Electrical
Access
Gas Line
Access
Electrical
Access
Gas Line
Access
J
JK
J
J
Fig. 2a Fireplace specifications—360DVS2
DVS2_dims_TV
DVS2_dims_RV

5
Vermont Castings, Majestic Products, 360DVS Series
10002547
Top Vent Configuration
Rear Vent Configuration
Ref. Rear Vent Configuration Top Vent Configuration
A38
1/8” (968 mm) 38 1/8” (968 mm)
B40
5/8” (1032 mm) 40 5/8” (1032 mm)
C 24” (610 mm) 24” (610 mm)
D 24” (610 mm) 24” (610 mm)
E37
3/8” (949 mm) 37 3/8” (949 mm)
F35
7/8” (911 mm) 35 7/8” (911 mm)
G30
1/2” (775 mm) 7” (178 mm)
H 12” (305 mm) 12” (305 mm)
I3
1/8” (80 mm) 3 1/8” (80 mm)
J2
3/4” (70 mm) 2 3/4” (70 mm)
K1
1/4” (33 mm) 1 1/4” (33 mm)
Appliance Dimensions
IJ
K
K
ROD
B
E
C
G
F
D
A
H
H
B
Electrical
Access
Gas Line
Access
C
K
J
J
IJ
K
KB
E
C
F
D
A
H
H
B
Electrical
Access
Gas Line
Access
K
J
J
G
Fireplace Dimensions - 360DVS3/ 360DVSL/ 360DVSR
Fig. 2b Fireplace specifications—360DVS3/ 360DDVSL/ 360DVSR
DVS3_dims_TV
DVS3_dims_RV

6
Vermont Castings, Majestic Products, 360DVS Series
10002547
ROH
ROD
ROW
Rear Vent Configuration
ROD
ROH
ROW
Top Vent Configuration
Framing Dimensions - 360DVS2
Framing Dimensions
Ref. Rear Vent Configuration Top Vent Configuration
ROD 24” minus two times finishing material thickness to be even with face of unit.
ROH 38 5/8” (981 mm) Not to be framed until unit is set in place,
due to 3 1/8” allowance for flue collar
ROW Not to be framed until unit is set in place 43 3/4” (1111 mm)
due to 3 1/8” allowance for flue collar
Fig. 3a Fireplace framing dimensions—360DVS2
CFM122
CFM121

7
Vermont Castings, Majestic Products, 360DVS Series
10002547
Framing Dimensions - 360DVS3/ 360DVSL/ 360DVSR
Rear Vent Configuration
Top Vent Configuration
Framing Dimensions
Ref. Rear Vent Configuration Top Vent Configuration
Model 360DVS3 360DVSL/R 360DVS3 360DVSL/R
ROD (See Note 1) (See Note 2) (See Note 1) (See Note 2)
ROH 38 5/8” (981 mm) Not to be framed until unit is set in place, due
to 3 1/8” allowance for flue collar
ROW 40 5/8” minus one time (1 x) finishing material thickness to be even with face of unit.
Fig. 3b Fireplace framing dimensions—360DVS3/ 360DVSL/ 360DVSR
CFM124
CFM123
NOTE 1: 24” (610 mm) minus two times (2 x) finishing material thickness to be even with face of unit.
NOTE 2: 24 3/4” (629 mm) minus one time (1 x) finishing material thickness to be even with face of unit.
ROD
ROW
ROD
ROH
ROH
ROH
ROD
360DVSL 360DVS/3/L/R 360DVS3 360DVSR
ROD
ROD
ROH
ROW
ROH
ROH
ROD
360DVSL 360DVS/3/L/R 360DVS3 360DVSR

8

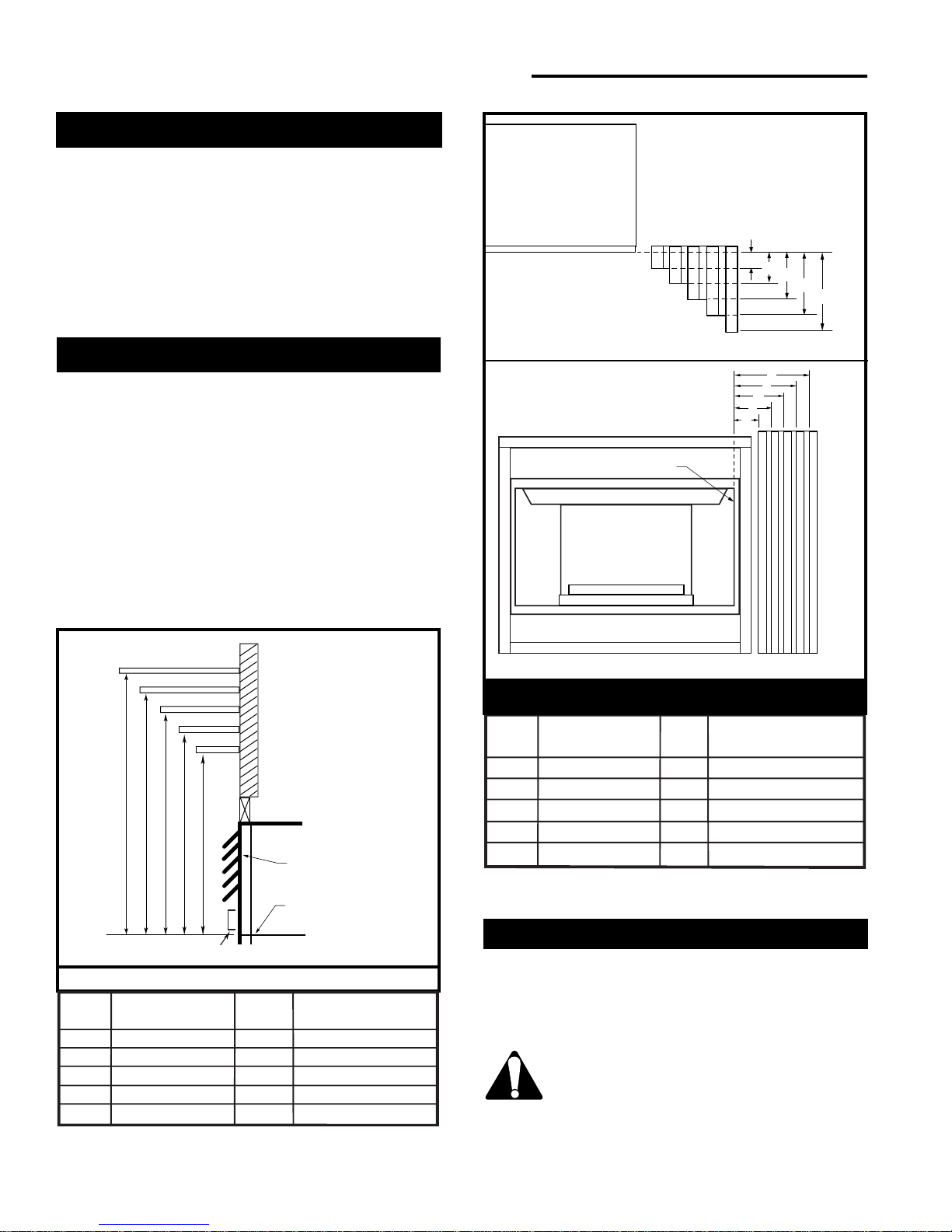

Vermont Castings, Majestic Products, 360DVS Series
10002547
Appliance
Top 0” (0 mm) to standoff
Bottom 0” (0 mm)
Vent End 1/2” (13 mm) to rear panel
Nonvent End (DVS2) 0” (0 mm)
Venting
Concentric sections of DV Vent:
Top, bottom & sides 1” (25 mm)
Nonconcentric sections of DV Vent:
Side and bottom 1” (25 mm)
Top 2” (51 mm)
A hearth is not mandatory; however, for aesthetic
purposes, we recommend installing a
noncombustible hearth that projects out 12” (305
mm) or more from the front of the fireplace.
Cold climate installation recommendation:
When installing this unit against a
noninsulated exterior wall or chase, it is
mandatory the outer walls be insulated
to conform to applicable insulation
codes.
Hearth
Mantels
The height at which a combustible mantel is fitted
above the fireplace is dependent on the depth of the
mantel. This also applies to the distance between the
mantel leg (if so fitted) and the fireplace. For correct
mounting height and width, refer to Fig. 2a and 2b and
the Mantel Chart below.
The fitting of a bay window trim kit does not affect the
distances and reference points referred to in the
diagram and chart.
Noncombustible mantels and legs may be installed at
any height and width around the appliance.
When using paint or lacquer to finish the mantel, such
paint or lacquer must be heat resistant to prevent
discoloration.
Clearance to Combustibles
CFM146
Mantel Shelf Mantel fromTop
Ref. or Breast Plate Ref. of Comb. Chamber
V 10" (254 mm) A 19" (483 mm)
W 8" (203 mm) B 17" (432 mm)
X
6" (152 mm) C 15" (381 mm)
Y
4" (102 mm) D 13" (330 mm)
Z
2" (51 mm) E 11" (297 mm)
Mantel Mantel Leg From Side
Ref. Leg Depth Ref.
of Combustion Opening
F 10" (254 mm) K 11
1
/ 2 " (292 mm)
G 8" (203 mm) L 9
1
/ 2 " (241 mm)
H 6" (152 mm) M 7
1
/ 2 " (191 mm)
I 4" (102 mm) N 5
1
/ 2 " (140 mm)
J 2" ( 51 mm) O 3
1
/ 2 " ( 89 mm)
J
F
G
H
I
Mantel
Leg
Top View
O
NM
L
K
Mantel
Leg
Side of Combustion Chamber
Front View
CFM176
Fig. 4a Combustible mantel minimum installation
Mantel Leg Chart
Fig. 4b Combustible mantel leg minimum installation
CFM166a
CFM170
CFM197
Mantel Chart
ABCDE
V
W
X
Y
Z
Fireplace
Louvre Assembly
Top
Top of Combustion
Chamber
Bottom of Door Trim

9

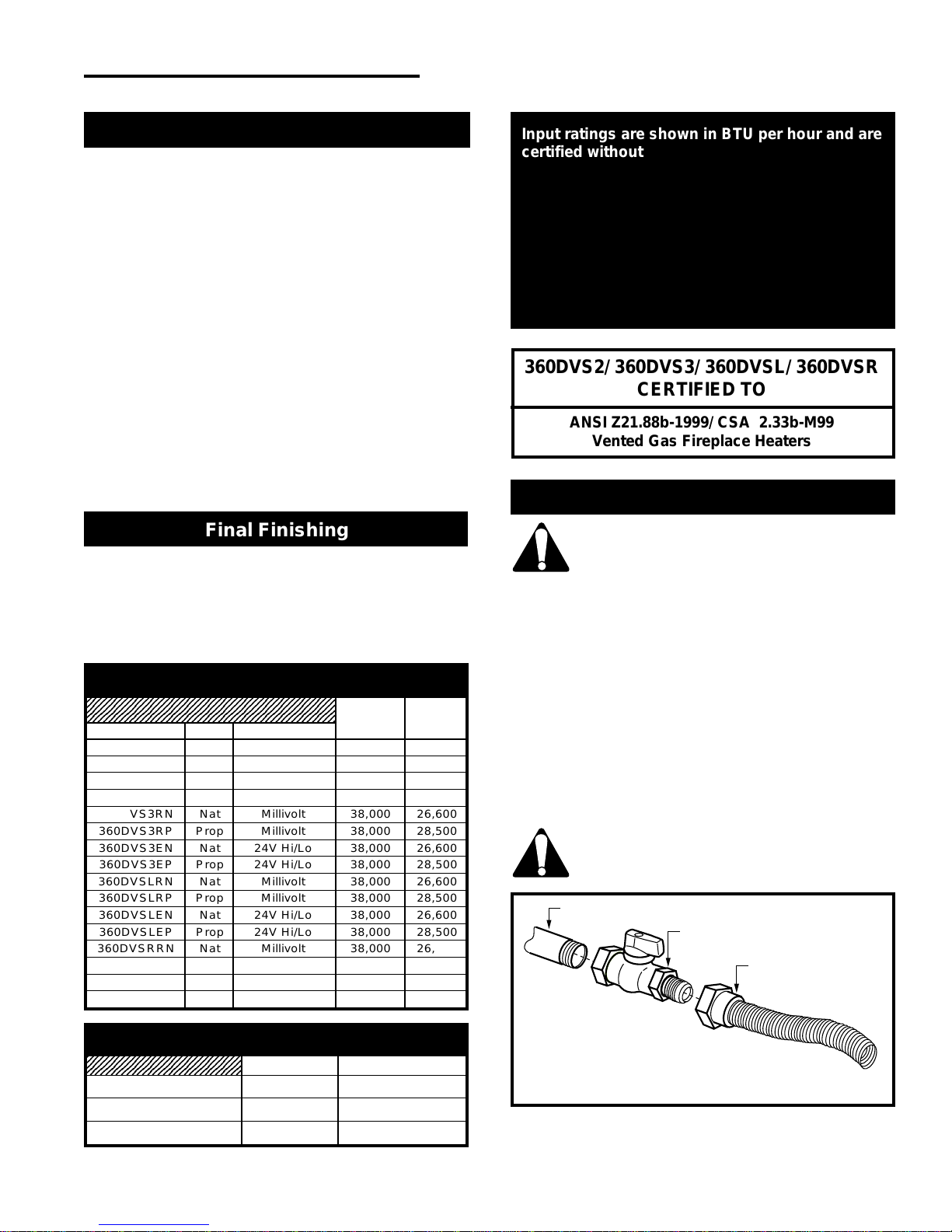

Vermont Castings, Majestic Products, 360DVS Series
10002547
1234567890123456789012345678901
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1
23456789012345678901234567890
1
1234567890123456789012345678901
360DVS2/ 360DVS3/ 360DVSL/ 360DVSR
CERTIFIED TO
ANSI Z21.88b-1999/ CSA 2.33b-M99
Vented Gas Fireplace Heaters
Final Finishing
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the
current ANSI Z223.1 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations
above 4,500 feet (1,370 m).
When purging the gas lines, the window
frame assembly must be removed.
The gas pipeline can be brought in through the vent
end of the fireplace as well as the bottom. Knockouts
(to allow gas pipe installation and testing any gas
connection) are provided on the bottom behind the
valve. It is most convenient to bring the gas line in from
the vent end of the valve, as this allows fan installation
or removal without disconnecting the gas line.
The gas line connection can be made with properly
tinned 3/8” copper tubing, 3/8” rigid pipe, or an approved
flex connector. Since some municipalities have
additional local codes, it is always best to consult your
local authority and the CSA-B149.1 installation codes.
For USA installations, consult the current National Fuel
Gas Code, ANSI Z223.1.
Always check for gas leaks with a mild
soap and water solution. Do not use an
open flame for leak testing.
Gas Line Installation
Noncombustible materials such as brick or tile may be
extended over the edges of the face of the appliance.
DO NOT cover any vent or grille panels.
If a Trim Kit is going to be installed on the fireplace, the
brick or tile will have to be installed flush with the
edges of the appliance.
1. Choose the unit location.
2. Place the unit into position and secure it to the floor
with 1.5” (38 mm) screws or nails. Holes to secure
the unit to the floor are located behind the access
door grille on the left and right sides of the unit.
3. Frame in the fireplace with a header across the top.
It is important to allow for the finished wall face
when setting the depth of the frame.
4. Drywall (sheetrock) or wood material may be placed
with a zero clearance to the top edges of the
appliance when finishing walls above sides of the
appliance with glass windows. NOTE:
Attach wall
finishing to constructed frame, not the appliance.
5. On 360DVSL and 360DVSR, drywall, wood, or
wood molding may be placed with zero clearance
to the rear wall of the unit, along the vertical edge
formed by the standoffs, to intersection of the rear
wall, to the side wall having the small glass window.
NOTE:
Attach wall finishing to constructed
frame, not the appliance.
Framing & Finishing
FP297a
1/2” GAS SUPPLY
1/2” NPT x 1/2” FLARE
SHUT-OFF VALVE
3/8” FLEX LINE
(FROM VALVE)
Fig. 5 Gas shutoff valve and flex connector
Gas Inlet & Manifold Pressures
Natural LP (Propane)
Inlet Minimum 4.5” wc 11” wc
Inlet Maximum 14” wc 14” wc
Manifold Pressure 3.5” wc 10” wc
1234567890123456789012345678901212345678901234567
1
23456789012345678901234567890121234567890123456
7
1
23456789012345678901234567890121234567890123456
7
1
23456789012345678901234567890121234567890123456
7
1
23456789012345678901234567890121234567890123456
7
1234567890123456789012345678901212345678901234567
Max. Max.
Input Input
Model Fuel Gas Control BTU/h BTU/h
360DVS2RN Nat Millivolt 38,000 26,600
360DVS2RP Prop Millivolt 38,000 28,500
360DVS2EN Nat 24V Hi/Lo 38,000 26,600
360DVS2EP Prop 24V Hi/Lo 38,000 28,500
360DVS3RN Nat Millivolt 38,000 26,600
360DVS3RP Prop Millivolt 38,000 28,500
360DVS3EN Nat 24V Hi/Lo 38,000 26,600
360DVS3EP Prop 24V Hi/Lo 38,000 28,500
360DVSLRN Nat Millivolt 38,000 26,600
360DVSLRP Prop Millivolt 38,000 28,500
360DVSLEN Nat 24V Hi/Lo 38,000 26,600
360DVSLEP Prop 24V Hi/Lo 38,000 28,500
360DVSRRN Nat Millivolt 38,000 26,600
360DVSRRP Prop Millivolt 38,000 28,500
360DVSREN Nat 24V Hi/Lo 38,000 26,600
360DVSREP Prop 24V Hi/Lo 38,000 28,500
Gas Specifications

10
Vermont Castings, Majestic Products, 360DVS Series
10002547
Alternative Switch Location
The remote switch can be installed on the front or the
side of the access door. Simply mount the switch to the
bracket provided and screw the bracket to either side
of the frame, lining up the screws with the prepunched
holes (Fig. 8).
Remote_Switch
TP
TH
TP
TH
Gas
Control
Valve
Remote ON/OFF switch
Fig. 7 Remote switch wiring diagram for R models
The fireplace, when installed, must be
electrically connected and grounded in
accordance with local codes; in the
absence of local codes, use the current
CSA C22.1 Canadian Electrical Code.
For USA installations, follow the local
codes and National Electrical Code
ANSI/NFPA No. 70.
It is strongly suggested the wiring of the
EB-1 Electrical Junction Box be carried
out by a licensed electrician.
Ensure power to the supply line has
been disconnected before commencing
with this procedure.
The EB-1 electrical junction box has been supplied
standard on this model to allow for easy connection of
the optional fan kits (Fig. 6).
To connect the EB-1 box to the house electrical supply
follow the steps below.
1. Remove the front cover of the EB-1 box.
2. Remove the plug socket assembly from the EB-1
box.
3. Feed the supply line in from the out through the
electrical knockout.
4. Connect the ground wire of the supply line to the
green screw of the socket assembly.
5. Connect the white wire of the power line to the
chrome screw of the socket assembly.
6. Connect the black wire of the power supply line to
the brass screw (polarized) of the socket assembly.
7. Refit the socket assembly back into the electrical
box and replace the cover plate.
8. The EB-1 electrical junction box is now ready to
supply power to the FK12 or FK24 fan kit, if used.
EB-1 Electrical Junction Box
Connection
Remote ON/OFF Switch Installation
EB-1_loc
Do not wire the remote ON/OFF wall
switch for this gas appliance into a 120V
power supply.
1. Thread the wiring through the holes on the end
panels of the appliance. Take care not to cut the
wire or insulation on metal edges. Route the wire to
a conveniently located receptacle box.
2. Attach the wire to the ON/OFF switch and install
the switch into the receptacle box.
3. Connect the other ends of the wire to the gas
control valve, as shown in Fig. 7.
Fig. 6 EB-1 attachment
Electrical
Inlet Hole
Gas
Inlet Hole
EB-1 Electrical Box
Depending on the specific model,
this box may be installed on either
side of the appliance.
The gas control is equipped with a captured-screw type
pressure test point, therefore it is not necessary to
provide a 1/8" test point upstream of the control.
When using copper or flex connector, use only
approved fittings. Always provide a union when using
black iron pipe so that the gas line can be easily
disconnected for burner or fan servicing. See the gas
specification for pressure details and ratings.
Isolate or disconnect this or any other
gas appliance control from the gas line
when pressure testing.
DO NOT subject the fireplace valve to
test pressures exceeding
1
/ 2 psi.

11
Vermont Castings, Majestic Products, 360DVS Series
10002547
Optional Top Vent Application
Fig. 7
Remove these screw
Outer collar
adapter
Remove
these
screws
Fig. 8 Alternate switch location
On/Off_switch_loc
Fig. 9 Remove screws from outer collar adapter

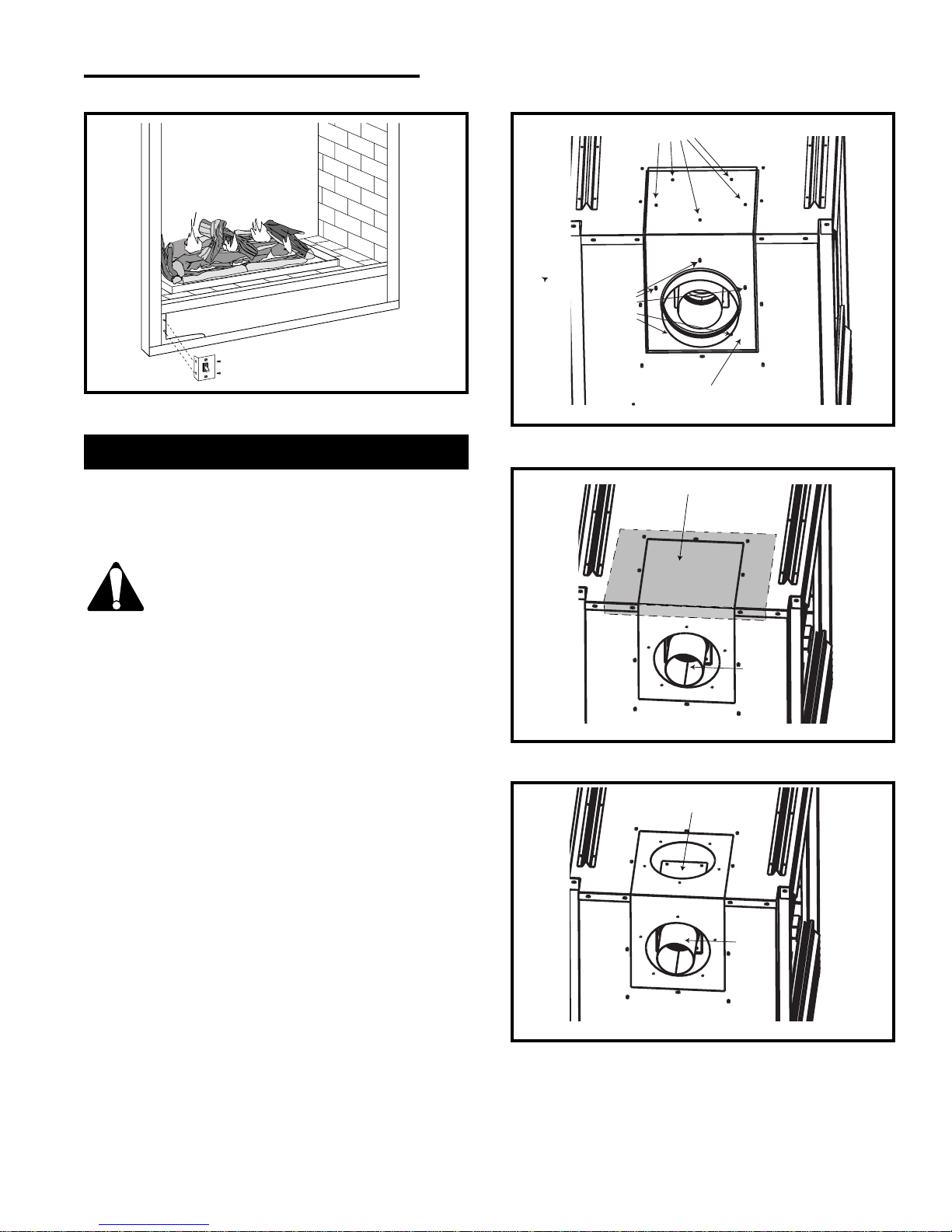

This appliance is shipped as a rear vent unit. If the
installation layout requires the unit to be a top vent
configuration, the appliance can be converted by
following the steps below.
When removing and refitting the plates
and adapter, be sure the associated
gasket is undamaged and refitted as
required.
1. Remove the 10 screws securing the outer collar
adapter to the fireplace body (Fig. 9).
2. Set the collar aside, complete with the gasket.
NOTE: Do not damage the gasket, as the
adapter and gasket must be refitted.
3. Remove the insulation material (exposed in step 2)
from the top of the unit (Fig. 10). This material can
be discarded; however, if the unit is converted
back to rear-vent, a new piece of insulation material
approved by Vermont Castings, Majestic Products
must be used for this purpose.
NOTE: When converting appliance to top vent,
ensure the insulation material referred to
in step 3 is completely removed.
4. Remove the 4 screws securing the flue cover plate
to the top of the intake box and remove the cover
and gasket (Fig. 11).
5. Remove 4 screws securing the flue pipe to back of
the intake box and remove pipe and gasket (Fig. 11).
6. Secure the plate and gasket removed in step 4
over the flue opening in the back of the intake box.
Ensure the gasket is in place and undamaged.
7. Install the flue pipe and gasket removed in step 5
over the flue opening in the top of the intake box.
8. Refit the outer collar adapter and gasket to the unit
with the round collar on the top. Secure the adapter
with the 10 screws removed in step 1.
Fig. 9
Flue cover
plate
Flue
pipe
Fig. 8
Insulation pad
(must be removed)
Flue
pipe
Fig. 10 Remove flue cover and pipe
Fig. 11 Flue pipe removal

12
Vermont Castings, Majestic Products, 360DVS Series
10002547
Your fireplace is approved to be vented either through
the side wall, or vertically through the roof.
• Only Vermont Castings, Majestic Products venting
components, specifically approved and labeled for
this fireplace, may be used.
• Venting terminals shall not be recessed into a wall
or siding.
• Horizontal venting must be installed on a level
plane without an inclining or declining slope.
There must not be any obstruction such
as bushes, garden shed, fencing, deck
or utility building within 24” (610 mm)
from the front of the termination hood.
Do not locate the termination hood
where excessive snow or ice buildup
may occur. Be sure to check the vent
termination area after snow falls; clear it
to prevent accidental blockage of the
venting system. When using a snow
blower, make sure snow is not directed
toward the vent termination area.
Location of Vent Termination
NOTE: It is imperative the vent termination be
located observing minimum clearances
as shown on the following page.
General Venting
Fig. 12 Honeywell Ignition Module.

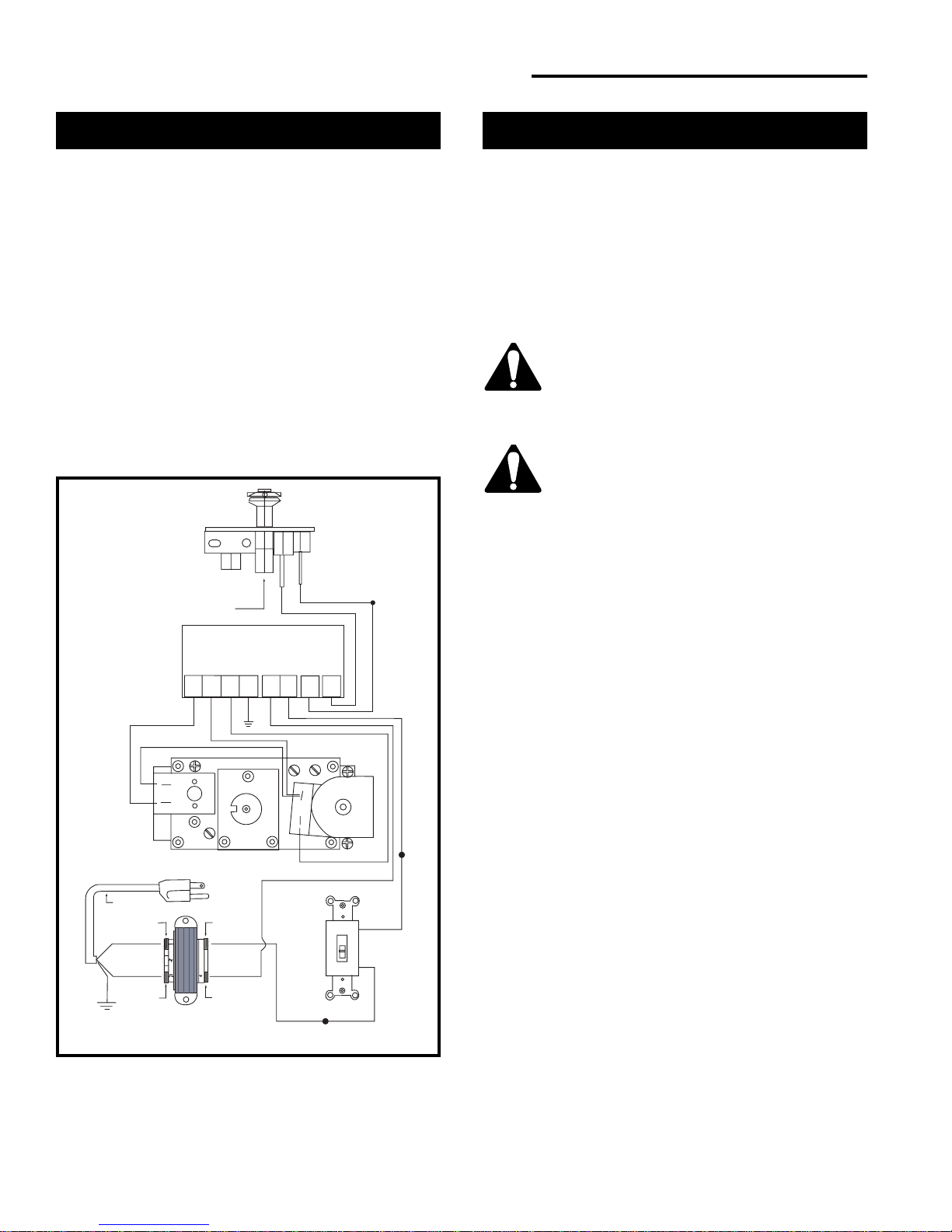

This appliance may be fitted with a Honeywell ignition
module.
Installation of the remote ON/OFF starter switch on
electronic ignition units (Fig. 12):
1. Thread the wiring through the holes on the side
panels of the appliance. Take care not to cut the
wire or insulation on metal edges. Route the wire to
a conveniently located receptacle box.
2. Attach the wire to the ON/OFF switch and install
the switch into the receptacle box.
3. Connect the white wire from the wall switch to the
black wire from the transformer, using an approved
wire nut. Connect the black wire from the wall
switch to the black wire running from the #6
position of the ignition module, also using an
approved wire nut.
Electronic Gas Control Valve
PILOT
HONEYWELL IGNITION MODULE
BLUE
BLACK
WHITE
NOVA SIT 822 VALVE
HI
LO
POWER CORD
W/FEMALE SPADE
120VAC RTN
WHITE
GREEN
BLACK
120VAC HOT
BLACK
YELLOW
24VAC RET
40VATRANSFORMER
24VAC HOT
BLACK WHITE
WALL SWITCH
WHITE
OFF
1 2 3 4 5 6 8 9
MV MV/VP PV GRD 24V SENSE SPARK
24V
ORANGE
RED
GREEN
ORANGE
Honeywell_wiring

13
Vermont Castings, Majestic Products, 360DVS Series
10002547
Canadian Installations
1
US Installations
2
A = Clearance above grade, veranda, porch, 12 in. (30 cm) 12 in. (30 cm)
deck or balcony
B = Clearance to window/door that may be opened 6 in. (15 cm) for appliances <10,000 Btuh 6 in. (15 cm) for appliances <10,000 Btuh
(3 kW), 12 in (30 cm) for appliances (3 kW), 9 in. (23 cm) for appliances
>10,000 Btuh (3 kW), and <100,000 Btuh >10,000 Btuh (3 kW), and <50,000Btuh
(30 kW), 36 in. (91 cm) for appliances (15 kW), 12 in. (30 cm) for appliances
>100,000 Btuh (30 kW) >50,000 Btuh (15 kW)
C = Clearance to permanently closed window 12 in. (305 mm) recommended to 12 in. (305 mm) recommended to
prevent window condensation prevent window condensation
D = Vertical clearance to ventilated soffit located
above the terminal within a horizontal distance 18 in. (458 mm) 18 in. (458 mm)
of 2 ft. (610 mm) from the center line of the
terminal
E = Clearance to unventilated soffit 12 in. (305 mm) 12 in. (305 mm)
F = Clearance to outside corner
(See next page.) (See next page.)
G =Clearance to inside corner (See next page.) (See next page.)
H = Clearance to each inside of center line 3 ft. (91 cm) within a height of 15 ft. 3 ft. (91 cm) within a height of 15 ft.
extended above meter/regulator assembly (4.57 m) above meter/ regulator assembly (4.57 m) above meter/ regulator assembly
I = Clearance to service regulator vent outlet 3 ft. (91 cm) 3 ft. (91 cm)
J = Clearance to nonmechanical air supply 6 in. (15 cm) for appliances <10,000 6 in. (15 cm) for appliances <10,000
inlet to building or the combustion air inlet Btuh (3 kW), 12 in. (30 cm) for appliances Btuh (3 kW), 9 in. (23 cm) for appliances
to any other appliance >10,000 Btuh (3 kW), and <100,000 Btuh >10,000 Btuh (3 kW), and <50,000 Btuh
(30 kW), 36 in (91 cm) for appliances (15 kW), 12 in. (30 cm) for appliances
>100,000 Btuh (30 kW) >50,000 Btuh (15 kW)
K = Clearance to a mechanical air supply inlet 6 ft. (1.83 m) 3 ft. (91 cm) above if within
10 ft. (3 m) horizontally
L = Clearance above paved sidewalk or a 7 ft. (2.13 m) † 7 ft. (2.13 m) †
paved driveway located on public property
M = Clearance under veranda, porch, deck, or 12 in. (30 cm) ‡ 12 in. (30 cm) ‡
balcony
N = Clearance above a roof shall extend a minimum of 24 in. (610 mm) above the highest point when it passes through the roof
surface,
and any other obstruction within a horizontal distance of 18” (450 mm)
General Venting Information–Termination Location
1 In accordance with current CSA-B149 Installation Codes.
2 In accordance with currentANSI Z223.1/ NFPA 54 National Fuel Gas Codes.
† A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single-family dwellings,
and serves both dwellings.
‡ Only permitted if veranda/ porch/ deck is fully open on a minimum two sides beneath the floor.
NOTES: 1 Local codes or regulations may require different clearances.
2 The special venting system used on Vermont Castings, Majestic Products Direct Vent Fireplaces are certified
as part of the appliance, with clearances tested and approved by the listing agency.
V
V
V
V
V
V
V
X
X
X
DE
B
B
B
C
B
M
B
AJK
F
L
VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
H
I
Fixed
Closed
Fixed
Closed
Operable
Operable Fixed
Closed
V
B
INSIDE
CORNER DETAIL
V
A
G
V
NN
V
V
G
G
A
Fig. 13 Vent termination clearances
CFM145a

14
Vermont Castings, Majestic Products, 360DVS Series
10002547
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
A =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
B =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
A
Balcony
with no side wall
G =
Combustible&
Noncombustible
12" (305 mm)
G
Balcony
with perpendicular side wall
H = 24" (610 mm)
J = 20" (508 mm)
H
J
B
Recessed Location
C = Maximum depth of 48"
(1219 mm) for recessed
location.
D = Minimum width for back wall
of a recessed location.
Combustible 38" (965 mm)
Noncombustible 24" (610 mm)
E = Clearance from corner in
recessed location.
Combustible 6" (152 mm)
Noncombustible 2" (51 mm)
CDC
E
V
V
Combustible &
Noncombustible
VV
V
584-15
Fig. 14 Termination clearances

15
Vermont Castings, Majestic Products, 360DVS Series
10002547
Crimped End Pipes
Before joining elbows and pipes apply a bead of high-
temperature sealant to the crimped end of the elbow or
pipe. Join the pipes using a 2” (51 mm) overlap and
secure the joints with three sheet metal screws
(Fig. 15). Wipe off excess sealant.
Canadian Installations:
Venting system must be installed in accordance with
the current CSA-B149.1 installation code.
USA Installations:
The venting system must conform with local codes
and/or current National Fuel Gas Code ANSI Z223.1.
Only venting components manufactured by Vermont
Castings, Majestic Products can be used in Direct Vent
systems.
General Information for
Connecting Vent Pipes
Crimped end
BEAD LOCATION
From crimped
end of pipe:
1'' (25 mm)
Screw Holes
Sealant
Male End Female End
Screw Holes
TWL 100
The vent chart should be read in conjunction with the
following vent installation instructions to determine the
relationship of the vertical and horizontal dimensions of
the vent system.
1. Determine the height of the center of the horizontal
vent pipe exiting through the outer wall. Using this
dimension on the Sidewall Vent Graph bellow,
locate the point intersecting with slanted graph line.
2. From the point of this intersection, draw a vertical
line to the bottom of the graph.
3. Select the indicated dimension, and position the
fireplace in accordance with same.
Example A:
If vertical dimension from floor of the fireplace is
11 ft. (3.4 m), horizontal run to the face of outer wall
must not exceed 14 ft. (4.3 m).
Example B:
If vertical dimension from floor of the unit is
7 ft. (2.14 m), horizontal run to the face of outer
wall must not exceed 8 1/2ft. (2.6 m).
Horizontal dimension from the outside face of the wall
to the center of the fireplace vent flange
Sidewall vent graph showing the relationship between vertical and
horizontal dimensions for a Direct Vent flue system.
How to Use the Vent Graph
Vertical dimension from the floor of the unit
to the center of the horizontal vent pipe
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
eg: A
eg: B
CFM 102
Fig. 16 Twist lock pipe joints Fig. 17 Sidewall vent graph
Twist Lock Pipes
When using Vermont Castings, Majestic Products
twist-lock pipe, it is not necessary to use sealant on the
joints. The only areas of the venting system that need
to be sealed with high-temperature silicone sealant are
the collars on the fireplace and termination, and sliding
joints of telescopic vent sections used in the system.
To join the twist lock pipes together, align the beads of
the male end with the grooves of the female end. While
bringing the pipes together, twist the pipe until the
flange on the female end contacts the external flange
on the male end. It is recommended that you secure
the joints with three (3) sheet metal screws; however,
this is not mandatory with twist lock pipe.
NOTE: For ease of assembly, use a lubricant
(Vaseline or similar substance) on male
end of twist lock pipe prior to assembly.
Fig. 15 Apply a bead of high-temperature sealant

16
Vermont Castings, Majestic Products, 360DVS Series
10002547
#8 Screws (2)
#8 Screws (2)
Maximum Length
12 in. (304.8 mm)
Firestop
(Side View)
CFM135a
For combustible walls: Cut a rectangular hole
measuring 10 3/8in.H x 9 3/8in.W (265 mm x 240 mm)
through the exterior wall and frame. Frame in the
opening per Fig. 19.
For noncombustible walls: Cut a round hole
measuring 7 1/2in. (190 mm) diameter through the
exterior wall and frame (Fig. 19).
STEP 2
For combustible walls: Measure wall thickness and
cut zero clearance sleeve parts to proper length.
Max. length is 12 in. (305 mm). Assemble sleeve
to its maximum opening of 10 3/8” x 9 3/8” (265 mm x
240 mm), and attach to firestop with #8 sheetmetal
screws (supplied). Install firestop assembly (Fig. 20).
NOTE: Zero clearance sleeve is required only for
combustible walls.
Rear Wall Vent Application
Rear wall vent location
DV_vent_loc_rear
9
3
/ 8 in.
(240 mm)
10
3
/ 8 in.
(265 mm)
7
1
/ 2 in.
(190 mm)
Vent Opening for
Combustible Wall
Vent Opening for
Noncombustible Wall
(Framing Detail)
Max. 20"
(508 mm)
Fig. 18 Rear vent application Fig. 20 Adjustable zero clearance sleeve
Fig. 19 Locate vent opening on rear wall
STEP 1
Locate and cut vent opening in the rear wall.
When installed as a rear vent unit this appliance may
be vented directly to a termination located on the rear
wall behind the appliance.
• Specific rear vent starter kits must be used in these
applications (see ‘venting components’). The
appliance has been approved for installation flat
against a rear wall (Fig. 18).
• Maximum horizontal distance between the rear of
the appliance and the outside face of the rear wall
is 20 in. (508 mm) (Fig. 18).
• Minimum clearances between any combustible
material and the vent pipe sections are:
Top .................................................... 2” (51 mm)
Sides................................................. 1” (25 mm)
Bottom .............................................. 1” (25 mm)
STEP 3
Measure the horizontal length requirement for the
venting including a 2” (51 mm) overlap, i.e. from the
elbow to the outside wall face plus 2” (51 mm), or the
distance required if installing a second 90˚ elbow
(Fig. 22).
STEP 4
Install the 4” (102 mm) vent to the appliance collar
and secure with 3 sheetmetal screws. Install the 7”
(178 mm) vent pipe to the appliance collar and secure
with three (3) sheetmetal screws. It is not necessary to
seal this connection.
It is critical there be no downward
slope away from the appliance when
connecting the vent or elbow.
STEP 5
Guide vent through the vent hole as you place the
appliance in its installed position. Guide the 4”
(102 mm) and 7” (178 mm) collars of the vent
termination into the outer ends of the venting.
Do not force the termination. If the vent pipes do not
align with the termination, remove and realign the
venting at the appliance flue collars.
Attach the termination to the wall as outlined in the
instruction sheet supplied with the termination.
Rear Wall Vent Installation

17
Vermont Castings, Majestic Products, 360DVS Series
10002547
• If a 90°elbow is used in the horizontal vent run
(level height maintained), the maximum horizontal
vent length is reduced by 36 in. (914 mm) (Fig. 23).
This does not apply if the 90°elbows are used to
increase or redirect a vertical rise.
Example: According to the vent graph (Fig. 17),
themaximum horizontal vent length in a system
with a 7 1/2in. vertical rise is 20 ft. (6.1 m), but if a
90°is required in the horizontal vent, it must be
reduced to 17 ft. (5.2 m).
NOTE: The sum of Dim. A and Dim. B must not
be greater than 17 ft. (5.2 m). See Fig. 23.
Vertical Sidewall Applications
Because it is very important the venting system
maintain its balance between the combustion air intake
and the flue gas exhaust, certain limitations concerning
vent configurations must be strictly adhered to.
•The vent graph (Fig. 17), showing relationship
between vertical and horizontal side wall venting,
will help determine allowable dimensions.
•Minimum clearance between vent pipes and
combustible materials is 1 in. (25 mm) on top,
bottom, and sides, unless otherwise noted.
•When the vent termination exits through
foundations less than 20 in. (508 mm) below siding
outcrop, the vent pipe must flush up with the siding.
•It is best to locate the fireplace in such a way that
minimizes the number of offsets and horizontal
vent length. The horizontal vent run refers to the
total length of vent pipe from the flue collar of the
fireplace to the face of the outer wall.
NOTE: When installing the appliance as a rear
vent unit, the 90˚ transition elbow
attached directly to the rear of the unit is
not included in the following criteria and
calculations. Unless it is specifically
mentioned, this elbow should be ignored
when calculating venting layouts.
Max 90 bends
1 x 90
7’6" (2.3 m)
AB
90
o
A + B = 17’ (5.2 m)
Max.
Fig. 21 Maximum three (3) 90˚ elbows per installation
Fig. 23 Horizontal run reduction
Horizontal plane means no vertical rise exists on this
portion of the vent assembly.
•The maximum number of 90˚ elbows per side wall
installation is three (3).
•If a 90˚ elbow is fitted directly on top of the fireplace
flange, the maximum horizontal vent run before the
termination or a vertical rise is 36 in. (914 mm).
•The maximum number of 45°elbows permitted per
side wall installation is two (2). These elbows can
be installed in either the vertical or horizontal run.
•For each 45°elbow installed in the horizontal run,
the length of the horizontal run MUST be reduced
by 18 in. (45 cm). This does not apply if 45°elbows
areinstalled on the vertical part of the vent system.
•The maximum number of elbow degrees in a
system is 270°. Example shown in Fig. 24:
Elbow 1 = 90˚
Elbow 2 = 45˚
Elbow 3 = 45˚
Elbow 4 = 90˚
Total Angular Variation = 270˚
Max dist
Max. 20"
(508 mm) Max. 36"
(914 mm)
Fig. 21 Maximum horizontal run w/ no rise
Max bends
1
2
3
4
1 + 2 + 3 + 4 = 270o
1
2
3
4
Fig. 24 Maximum elbow usage

18
Vermont Castings, Majestic Products, 360DVS Series
10002547

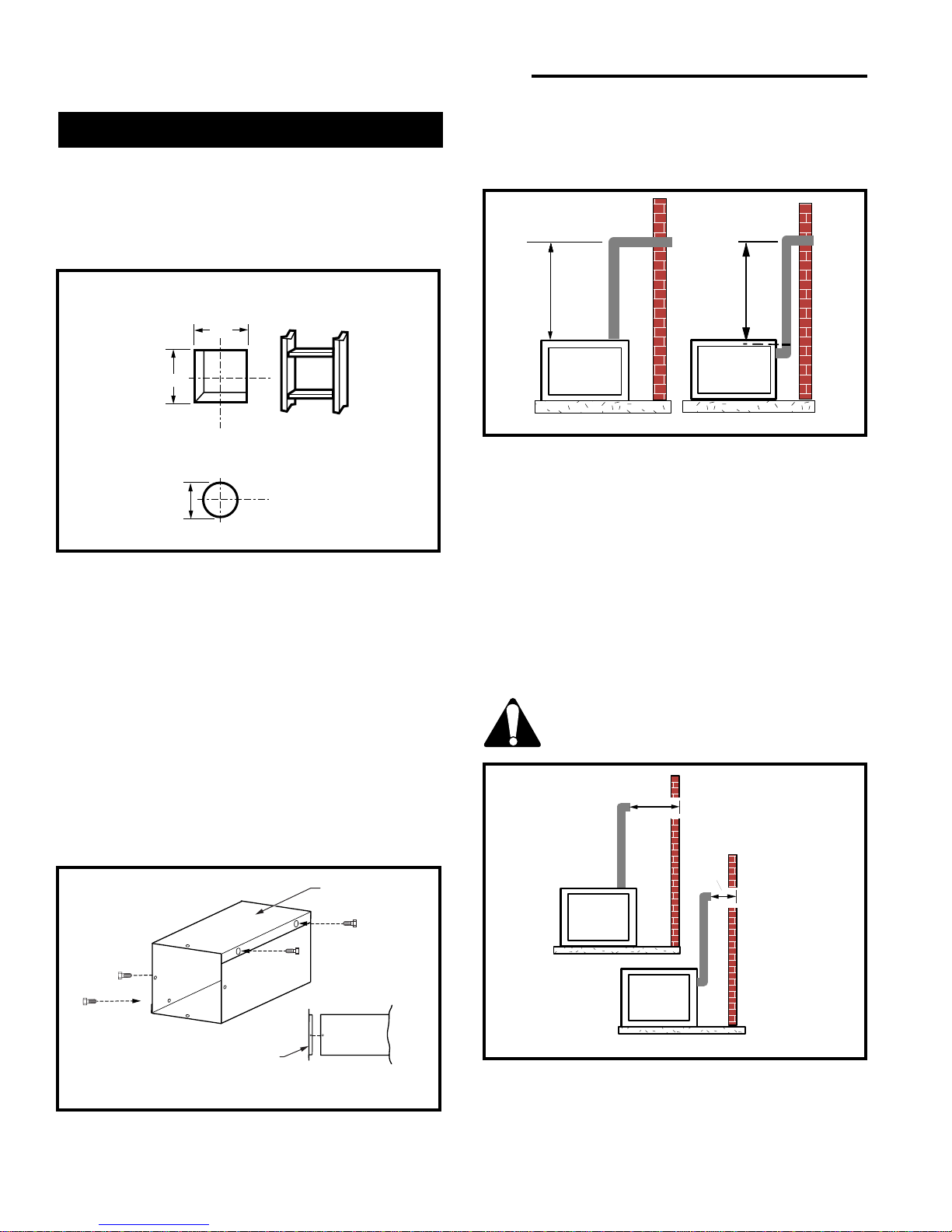

Horizontal distance X
X
X
Fig. 28 Horizontal length requirements
STEP 1
Locate and cut vent opening in the side wall. It may be
necessary to first position the fireplace and measure to
obtain the hole location. Depending on whether the
wall is combustible or noncombustible, cut the opening
to size per Fig. 25.
Vertical Side Wall Installations
STEP 4
Apply a bead of silicone to the inner and outer flue
collars of the fireplace and using appropriate length of
pipe section(s) attach to fireplace with three (3)
screws. Follow with the installation of the inner and
outer elbow, again secure joints as described in
“Connecting Vent Pipes” section.
STEP 5
Measure the horizontal length requirement including a
2” (51 mm) overlap, i.e. from the elbow to the outside
wall face plus 2” (51 mm) (or the distance required if
installing a second 90°elbow. (Fig. 28).
Always install horizontal venting on a
level plane.
Vertical height X
XX
#8 Screws (2)
#8 Screws (2)
Maximum Length
12 in. (304.8 mm)
Firestop
(Side View)
CFM135a
Fig. 26 Adjustable zero clearance sleeve
Fig. 27 Vertical height requirement
STEP 3
Place fireplace into position (Fig. 27). Measure the
vertical height (X) required from the base of the flue
collars to the center of the wall opening.
For combustible walls: Cut a rectangular hole
measuring 9 3/8in.H x 9 3/8in.W (240 mm x 240 mm)
through the exterior wall and frame. Frame in the
opening per Fig. 25.
For noncombustible walls: Cut a round hole
measuring 7 1/2in. (190 mm) diameter through the
exterior wall and frame (Fig. 25).
STEP 2
For combustible walls: Measure wall thickness and
cut zero clearance sleeve parts to proper length. Max.
length is 12 in. (305 mm). Assemble the sleeve and
attach it to the firestop with #8 sheet metal screws
(supplied). Install the firestop assembly (Fig. 26).
NOTE: Zero clearance sleeve is required only for
combustible walls.
DV_vent_loc_side
9
3
/ 8 in.
(240 mm)
9
3
/ 8 in.
(265 mm)
7
1
/ 2 in.
(190 mm)
Vent Opening—
Combustible Wall
Vent Opening—
Noncombustible Wall
(Framing Detail)
Fig. 25 Locate vent opening on side wall

19
Vermont Castings, Majestic Products, 360DVS Series
10002547

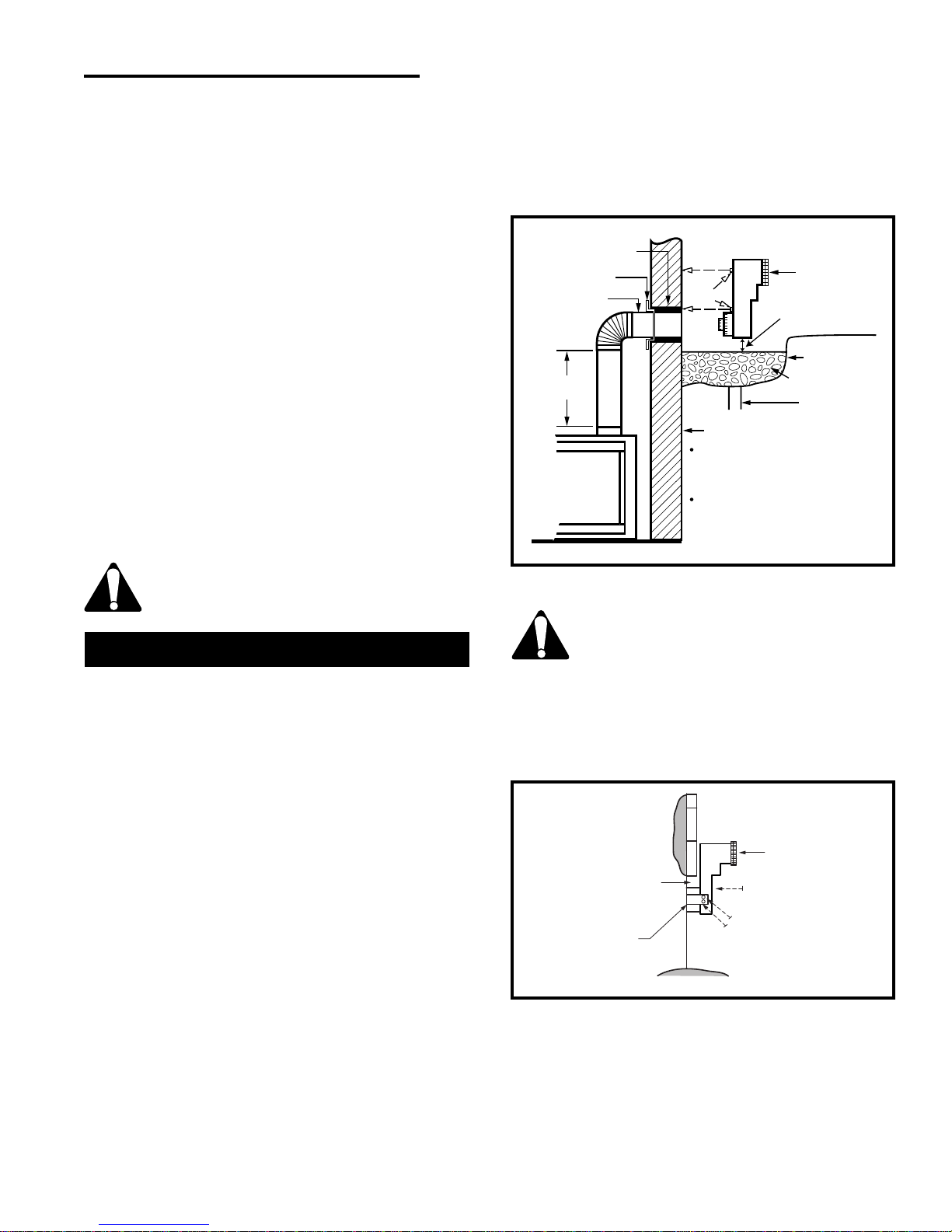

When it is not possible to meet required vent terminal
clearances of 12 in. (305 mm) above grade level, we
recommend using a starter kit. It allows installation
depth down to 7 in. (178 mm) below grade level.
Measure 7 in. (178 mm) from the center of the
horizontal vent pipe as it penetrates through the wall.
NOTE: Ensure sidewall venting clearances are
observed. If venting system is installed
below ground, we recommend a window
well with adequate and proper drainage.
If installing a snorkel, a minimum 24 in. (610 mm)
vertical rise is necessary. The maximum horizontal run
with 24 in. (610 mm) vertical pipe is 36 in. (915 mm).
The measurement is taken from the collar of the
fireplace (or transition elbow) to the face of exterior
wall. See sidewall vent graph, page 15, for extended
horizontal runs if the vertical exceeds 24 in. (610 mm).
1. Establish vent hole through the wall (Fig. 24).
2. Remove soil to depth of about 16 in. (406 mm)
below base of snorkel. Install window well (not
supplied). Refill hole with 12 in. (305 mm) of coarse
gravel, leaving a clearance of about 4 in. (102 mm)
below snorkel (Fig. 28).
3. Install vent system.
4. Ensure a watertight seal is made around the vent
pipe coming through the wall.
Below Grade Installations
Universal snorkel
Do not backfill around the snorkel. A
clearance of at least 4” (102 mm) must
be maintained between the snorkel and
the soil.
If the foundation is recessed, use recess brackets (not
supplied) for securing lower portion of the snorkel.
Fasten brackets to wall first, then secure to snorkel
with self drilling #8 x 1/2 sheetmetal screws. It will be
necessary to extend vent pipes out as far as protruding
wall face (Fig. 30).
GRAVEL
DRAIN
FIRESTOP
FOUNDATION WALL
WINDOW WELL
7DVSKS
(SNORKEL)
(GROUND)
24" (608 mm)
MINIMUM*
7" PIPE SCREWS MINIMUM
4" (102 mm)
CLEARANCE
ZERO CLEARANCE
SLEEVE IF REQUIRED
A minimum of 24" (608 mm)
vertical pipe must be installed when
using the 7DVSKS/7TDVSKS kit.
The 22"
(559 mm) vertical rise
(center to center) of the snorkel may
be included for calculation of
maximum horizontal run.
STEP 6
Use appropriate length of pipe section—telescopic or
fixed—and install. The 20” (508 mm) section of pipe
which goes through the wall is packaged with the
7DVSK starter kit, and can be cut to suit if necessary.
Seal vent pipe and firestop gaps with high temperature
sealant to restrict cold air being drawn in around the
fireplace.
STEP 7
Apply high temperature sealant to 4” (102 mm) and
7” (178 mm) collars, or to the termination 1” (25 mm)
away from the crimped end. Guide 4” and 7” collars of
vent terminations into respective vent pipes. Double
check vent pipes to see that they overlap the collars by
2” (51 mm). Secure termination to the wall with screws
provided, and caulk around the wall plate to
weatherproof.
One alternative to screwing the termination directly to
the wallis the use of expanding plugs or an approved
exterior construction adhesive.
Or, you may attach the termination with screws through
the inner body into the 4” (102 mm) vent pipe; however,
for this method, you must extend the 4” (102 mm) pipe
approximately 6” (153 mm) beyond the outer face of
the wall.
Support the horizontal pipes with metal
pipe straps every 3’ (91 cm).
5. Apply high-temperature sealant caulking (supplied)
around 4 in. and 7 in. snorkel collars.
6. Slide snorkel into vent pipes and secure to wall.
7. Level the soil so as to maintain a 4 in. (102 mm)
clearance below snorkel (Fig. 29).
Fig. 29 Below grade installation
CFM139
Watertight seal
around pipe
Foundation recess
Sheet metal screws
Wall screws
Snorkel
Fig. 30 Snorkel installation/ recessed foundation

20
Vermont Castings, Majestic Products, 360DVS Series
10002547
This Gas Fireplace has been approved for:
•Vertical installations up to 40 ft. (12 m) in height.
Up to a 10 ft. (3 m) horizontal vent run can be
installed within the vent system using a maximum
of two 90°elbows (Fig. 31).
•The minimum height of the vent above the highest
point of penetration through the roof is 2’ (610 mm)
(Fig. 33).
Vertical Through-the-Roof
Applications
Max bends R&T
1
2
3
4
1
2
3
4
1 + 2 + 3 + 4 = 270o
Max height & length
Max. 10’ (3 m)
Max. Height 40’ (12.2 m)
Min. Height 8’ (2.4 m)
Max.
Height 40’ (12.2 m)
Min.
Height 8’ (2.4 m)
Max. 10’ (3 m)
Support straps
every 36" (914 mm)
Min.
2' (610 mm)
Fig. 31 Support straps for horizontal runs
Fig. 32 Maximum elbow usage
• Up to two 45°elbows may be used within the
horizontal run. For each 45°elbow used on the
horizontal level the maximum horizontal length
must be reduced by 18 in. (457 mm).
Example: Maximum horizontal length—
Zero elbows = 10 ft. (3 m)
1 x 45°elbows = 8 1/2ft. (2.6 m)
2 x 45°elbows = 7 ft. (2.1 m)
•A minimum of an 8 ft. (2.43 m) vertical rise.
•Two (2) sets of 45°elbow offsets may be used
within the vertical sections. From zero to max 8 ft.
(2.43 m) vent pipe can be used between elbows
(Fig. 31).
•7DVCS supports offsets (Fig. 34). This application
will require you first determine the roof pitch and
use the appropriate starter kit. See Venting
Components List, pages 22 and 23.
•The maximum angular variation allowed in the
system is 270˚ (Fig. 32).
Fig. 33 Maximum termination to roof clearance
TTR termination
