Majestic RHEDV25 User manual

10000801 5/03 Rev. 4
•Installation and service must be performed
by a qualified installer, service agency or
your gas supplier.
FOR YOUR SAFETY
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE.
FOR YOUR SAFETY
What to Do if You Smell Gas:
•Do not try to light any appliance.
•Do not touch any electric switch.
•Do not use any phone in your building.
•Immediatelycallyourgassupplierfromyour
neighboursphone.Followthegassuppliers
instructions.
•Ifyoucannotreachyourgassuppliercallthe
fire department.
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE,PERSONAL INJURY OR LOSS OF LIFE.
Installation Instructions & Homeowner's Manual
Direct Vent Insert
Models: RHEDV25
RHEDV32
RHEDV42
INSTALLER: DO NOT DISCARD THIS MANUAL - Leave For Homeowner
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
CERTIFIED
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
Vermont Castings, Majestic Products

2
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
Table of Contents
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THIS APPLICANCE.
Thank you and congratulations on your purchase of a Majestic fireplace.
IMPORTANT - Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible fire hazard and will void the manufacturers' warranty.
Installation Instruction
Important Curing/Burning Instructions............................................................................................... 3
Locating Your Fireplace Insert .......................................................................................................... 3
Insert Applications ............................................................................................................................. 3
Fireplace & Trim Dimensions ............................................................................................................ 4
Mantels.............................................................................................................................................. 5
Gas Specifications ............................................................................................................................ 5
Gas Inlet & Manifold Pressures......................................................................................................... 5
High Elevations ................................................................................................................................. 5
Preparation........................................................................................................................................ 5
Gas Line Installation.......................................................................................................................... 5
Fan Kit ............................................................................................................................................... 6
Fan Removal Instructions ................................................................................................................. 6
Installation of Trim Switch for RN/RP Gas Valves............................................................................. 7
Adjustment of Levelling Bar .............................................................................................................. 7
Venting and Installation ..................................................................................................................... 7
Liner Installation ................................................................................................................................ 8
Ceramic Refractory Installation ......................................................................................................... 9
Venting Components....................................................................................................................... 10
Operating Instructions
General Glass Information ............................................................................................................. 11
Louvre Removal .............................................................................................................................. 11
Glass Cleaning ................................................................................................................................ 11
Glass Frame Removal..................................................................................................................... 11
Installation of Logs & Burner Lava Rock .........................................................................................11
Large Lava Rock Placement ........................................................................................................... 12
Flame Adjustment ........................................................................................................................... 12
Temperature Adjustment................................................................................................................. 12
Flame Characteristics...................................................................................................................... 12
First Firing ....................................................................................................................................... 13
Lighting & Operating Instructions .................................................................................................... 14
Troubleshooting Gas Control (820 Millivolt Gas Vale) .................................................................... 15
Troubleshooting Gas Control (SIT 630 Gas Valve)......................................................................... 16
Troubleshooting Gas Control (Honeywell) ..................................................................................... 17
Maintenance
Cleaning the Standing Pilot Control System ................................................................................... 18
Brass Cleaning ................................................................................................................................ 18
Replacement Parts.............................................................................................................................................. 19
Optional Accessories
Remote Controls ............................................................................................................................. 22
Zero Clearance Kit .......................................................................................................................... 22
A Trim Options for RHEDV25 ......................................................................................................... 22
B Trim Options for RHEDV32 ......................................................................................................... 26
C Trim Options for RHEDV42 ......................................................................................................... 34
Warranty .............................................................................................................................................................. 38

3
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
This gas appliance should be installed by a qualified installer
in accordance with local building codes and with current CSA-
B149.1 Installation codes for Gas Burning Appliances and
Equipment.
FOR U.S. Installations follow local codes and/or the current
National Fuel Gas Code ANSI Z223.1.
FOR SAFE INSTALLATION AND OPERATION OF
YOUR VERMONT CASTINGS, MAJESTIC PRODUCTS
GAS FIREPLACE PLEASE NOTE THE FOLLOWING:
1. This appliance gives off high temperatures and
should be located out of high traffic areas and away
from furniture and draperies.
2. Children and adults should be alerted to the hazards
of the high surface temperatures of this appliance and
should stay away to avoid burns or ignition of cloth-
ing.
3. Children should be carefully supervised when they
are in the same room as your appliance.
4. Under no circumstances should this appliance be
modified. Parts removed for servicing should be
replaced prior to operating this appliance again.
5. Installation and any repairs to this appliance should
be carried out by a qualified service person. A profes-
sional service person should be contacted to inspect
this appliance annually. Make it a practice to have all
of your gas appliances checked annually. More
frequent cleaning may be required due to excess lint
and dust from carpeting, bedding material, etc.
6. Control compartments, burners and air passages in
this appliance should be kept clean and free of dust
and lint. Make sure that the gas valve and pilot light
are turned off before you attempt to clean this unit.
7. The venting system (chimney) of this appliance
should be checked at least once a year and if needed
your venting system should be cleaned.
8. Keep the area around your appliance clear of com-
bustible materials, gasoline and other flammable
vapor and liquids. This appliance should not be used
as a drying rack for clothing, nor should Christmas
stockings or decorations be hung in the area of it.
9. Under no circumstances should any solid fuels
(wood, coal, paper or cardboard etc.) be used in this
appliance.
10.The flow of combustion and ventilation air fan must
not be obstructed in any way.
Before installing the gas fireplace insert, consideration
must be given to the functioning needs of the fireplace.
The size of the fireplace cavity (min. 28³⁄₄"W x 21¹⁄₄"H x
16" D), the design of the chimney (a minimum size of 8" x
12" is necessary to accommodate the two (2) 3" liners).
The availability of the gas supply as well as electricity for
the insert fan must be confirmed.
Your Direct Vented Insert unit was de-
signed to be installed in an existing
woodburning fireplace. The location and
clearances are therefore subject to your
local building codes.
Your Direct Vented Insert unit is designed
to be vented vertically only with a minimum
height of 12 feet.
Insert Applications
Installation & Operating Instructions
Proposition 65 Warning: Fuels used in gas,
woodburning or oil fired appliances, and the products
of combustion of such fuels, contain chemicals known
to the State of California to cause cancer, birth defects
and other reproductive harm.
California Health & Safety Code Sec. 25249.6
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is normal for fireplaces fabricated of steel to give off
someexpansionand/or contractionnoises during the
start up or cool down cycle. Similar noises are found
with your furnace heat exchanger or car engine.
It is not unusual for your Vermont Castings, Majestic
Products gas fireplace to give off some odor the first
time it is burned. This is due to the curing of the paint
andanyundetectedoilfromthemanufacturingprocess.
Please ensure that your room is well ventilated -
open all windows.
It is recommended that you burn your Vermont
Castings,MajesticProductsfireplaceforaleastsix(6)
hours the first time you use it. If optional fan kit has
been installed, place fan in the "OFF" position during
this time.
Locating Your Gas Fireplace Insert
This appliance may be installed in an aftermaket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless an avail-
able certified kit is used.
All Vermont Castings, Majestic Products gas inserts
are approved for installation in solid fuel burning
masonry or zero clearance fireplaces.

4
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
R - Fireplace opening width
Q - Fireplace opening height
S - Depth of insert
T - Firebox width at insert depth(S)
U - Firebox depth at insert back height (V)
V - Insert back height
Minimum Fireplace
Insert Opening
RHEDV25 RHEDV32 RHEDV42
A1 26³⁄₄"680 mm 26⁵⁄₈"676 mm 30³⁄₄"781 mm
B1 38¹⁄₂"978 mm 38³⁄₈"975 mm 43¹⁄₈"1095 mm
A2 29¹⁄₄"743 mm 29" 737 mm 33³⁄₈"848 mm
B2 43¹⁄₂"1105 mm 41¹⁵⁄₁₆"1065 mm 48¹⁄₄"1225 mm
A3 -- 33" 838 mm - -
B3 -- 44" 1118 mm - -
A4 -- 28" 712 mm - -
B4 -- 40⁷⁄₈"1041 mm - -
A5 -- 30¹⁄₂"775 mm - -
B5 -- 46" 1171 mm - -
C25¹⁄₄"641 mm 28⁷⁄₈"733 mm 31" 787 mm
D17¹⁄₄"438 mm 16⁷⁄₈"428 mm 19³⁄₄"501 mm
E12" 305 mm 12" 305 mm 12" 305 mm
F25¹⁄₈"638 mm 28⁵⁄₈"727 mm 30" 762 mm
G13⁷⁄₈"353 mm 16" 406 mm 18³⁄₄"476 mm
H17⁵⁄₈"447 mm 20¹⁄₁₆"510 mm 22⁵⁄₈"574 mm
I18⁷⁄₈"480 mm 21¹⁄₁₆"535 mm 23³⁄₄"603 mm
J19³⁄₄"502 mm 22¹⁄₁₆"561 mm 24³⁄₄"628 mm
K14⁵⁄₈"371 mm 18⁵⁄₁₆"465 mm 19³⁄₄"501 mm
Q18⁷⁄₈"479 mm 21¹⁄₄"539 mm 23³⁄₄"603 mm
R25¹⁄₄"641 mm 28³⁄₄"711 mm 29³⁄₄"755 mm
S13³⁄₄"349 mm 16" 407 mm 18³⁄₄"476 mm
T17¹⁄₄"438 mm 17³⁄₈"441 mm 19³⁄₄"501 mm
U13⁷⁄₈"352 mm 16¹⁄₄"413 mm 18³⁄₄"476 mm
V18⁷⁄₈"479 mm 21⁵⁄₁₆"541 mm 23³⁄₄"603 mm
1=SS or SSD Trim
2=SL or SLD Trim
3=SXL Trim
4=BSL Trim
5=BXL Trim
T
R
I
M
F
I
R
E
P
L
A
C
E
M
I
N
I
M
U
M
O
P
E
N
I
N
G
Fireplace & Trim Dimensions
B
A
C
ED
G
FB
3" (75mm)
Dia.
HIJ
A
K
U
S
R
QVT

5
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
When the unit is installed into a woodburning fireplace,
the minimum distance the mantel can be placed above
the fireplace is governed by local building codes appli-
cable to woodburning fireplaces. Consult local authori-
ties having jurisdiction for these clearances. The under-
side of the mantel will become warm. Use only finishes
which are heat resistant and do not discolor.
Mantels
Natural LP
Minimum Inlet Pressure 4.5" W.C.11.0" W.C.
Maximum Inlet Pressure 7.0" W.C. 13.0" W.C.
Manifold Pressure 3.5" W.C. 10.0" W.C.
Gas Inlet & Manifold Pressures
Do not use this appliance if any part of it
has been under water. Immediately call a
qualified service technician to inspect the
unit and replace any part of the control
which has been under water.
RHEDV25 / RHEDV32 / RHEDV42
Certified To
ANSI Z 21.88-2002 / CSA 2.33-2002
Vented Gas Fireplace Heaters
The installation of your Vermont Castings,
Majestic Products Fireplace must conform with
local codes, or in the absence of local codes,
with National Fuel Gas Code, ANSI Z223.1
latest edition, or CSA B149.1 Installation Code.
(EXCEPTION: Do not derate this appliance for
elevations up to 4,500 ft. (1370mm). Maintain
the manifold pressure at 3.5" w.c. for Natural
Gas and 10" w.c. for LP gas.)
Gas Specifications
Max. Min.
Input Input
Model Fuel Gas Control Btu/h Btu/h
RHEDV25RN Natural Gas Millivolt Hi/Lo 22,000 15,400
RHEDV25RP Propane Gas Millivolt Hi/Lo 22,000 16,500
RHEDV32RN Natural Gas Millivolt Hi/Lo 27,000 18,900
RHEDV32RP Propane Gas Millivolt Hi/Lo 27,000 20,250
RHEDV32TN Natural Gas Thermostat Hi/Lo 27,000 18,900
RHEDV32TP Propane Gas Thermostat Hi/Lo 27,000 20,250
RHEDV42RN Natural Gas Millivolt Hi/Lo 35,000 24,500
RHEDV42RP Propane Gas Millivolt Hi/Lo 35,000 26,250
RHEDV42TN Natural Gas Thermostat Hi/Lo 35,000 24,500
RHEDV42TP Propane Gas Thermostat Hi/Lo 35,000 26,250
High Elevations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370m) above sea level.
For elevations above 4,500 feet (1,370m) in USA,
installations must be in accordance with the
current ANSI Z223.1 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370m).
Preparation
Before beginning, remove glass door and logs from
unit. Also check to make sure there is no hidden
damage to the unit. Take a minute and plan out the
gas,venting and electrical route. It is best to start with
the gas line first followed by the chimney liner. (Refer to
Page 8)
Gas Line Installation
When purging the gas line, the front
glass must be removed.
The gas pipeline can be brought into the fireplace base
from the right side. It is most convenient to install it
from the right side into the valve.
When using copper or flex connector use
only approved fittings. Always provide a
union when using black iron pipe so the gas
line can be easily disconnected for burner or
fan servicing. See gas specification for
pressure details and ratings.
The gas line connection can be made of
either properly tinned 3/8" copper pipe, 3/8" rigid pipe
or an approved flex connector. Since some
municipalities have some additional local codes, it is
always best to consult your local authority and the
CSA- B149.1 installation code.
U.S. Installations consult the current National Fuel
Gas Code, ANSI Z223.1
The gas control inlet is 3/8" N.P.T. therefore the 1/2"
rigid gas line must be reduced to 3/8" N.P.T. Typical
installation layout for rigid pipe is shown following. (Fig.
1)
During any pressure testing of the gas line system,
when the test pressures are to exceed 1/2 psi (3.5 kpa)
the fireplace and its gas valve must not be connected
to that system.
At test pressures equal to or less than 1/2 psi, the gas
valve of the fireplace may be connected to the gas line,
but must be in the closed position.

6
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
Always check for gas leaks with a mild
soap and water solution. Do not use an
open flame for leak testing.
it
HI
LO
OFF
PILOT
Thermostat
Bulb Brass
Plug
Gas Inlet
Manifold Gas
Outlet
Brass Plug
Pressure
Regulator
Control
Knob
Thermocouple Inlet
Pilot Tube Entry
Pilot Adjustment
Screw Control Knob
Minimum Rate Screw
(Nonadjustable) HV118
Fig. 2 On fireplaces equipped with the Eurosit 630 gas valve,
there are brass plugs in two of the holes. These plugs are not
to be removed. The gas inlet hole has a plastic cap in it.
Remove the plastic cap and connect your gas supply line at
this point.
115 volt, 60 Hz. 56W
The fan kit includes the following: fan, temperature
sensor, speed control and a 6 ft. cord. The following
explains how to start and set the fan for automatic
operation.
1. Plug in the electrical cord.
2. Start gas fire - see lighting procedures.
3. Turn on fan speed control.
4. Wait until the unit has warmed up sufficiently to
activate the termperature sensor, approx. 5-10
minutes.
Fan Kit
5. Once fan starts, adjust speed control to desired fan
speed. The fan will now automatically come on every
time the fireplace is in operation. Should the fan not
be needed simply turn off the speed control.
The appliance, when installed must be
electrically connected and grounded in
accordance with local codes or, in the
absence of local codes, with the current
CSA C22.1 Canadian Electrical Code.
U.S. Installations, follow local codes and
the National Electrical Code, ANSI/NFPA
No. 70.
Should this fan require servicing, the
power supply must be disconnected. For
rewiring of any replacement components
refer to Figure 4.
Fan Removal Instructions
1. Turn off gas and electricity.
2. Remove the front glass.
3. Remove the logs.
CAUTION: Logs may be hot!
4. Remove burner assembly and rear log support plate.
5. Remove the fan mounting nuts (2 nuts). (Fig. 3)
6. Slip off the electrical connector at the motor.
7. Lift out the fan.
8. To reinstall reverse procedure.
Thermal Sensor is
Attached to Burner
Base Fan is Installed at
the Back of the
Air Intake Box
Fan Speed Control/Junction Box
Screw
Stud
Screw Stud
FP1252
Fig. 3 Fan location.
Fan
Temperature Sensor
Speed
Control
Black
White
Ground FP394
Fig. 4 Wiring diagram.
1/2" Gas Supply
1/2" x 3/8" Reducer
3/8" x 3/8" Shut Off Valve
3/8" Union
3/8" Nipple
FP1278
Fig. 1 Typical gas supply installation.

7
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
Installation of Trim Switch
for RN/RP Gas Valves
1. Thread wire through openings on the right side of
fireplace. Donotcutwireorinsulationonmetaledges.
2. Slideswitchassemblyfromtheback,betweensubframe
and trim, then fasten the screw. (Fig. 5)
3. For left side installation reverse switch position in
bracket and repeat Step 2. (Fig. 6)
4. Connect wiring to gas valve (Fig. 7a & b) and switch.
CAUTION: Do not wire millivolt remote
wall switch for gas fireplace to a 120v
power supply.
Adjustment of Levelling Bar
(If Required)
1. Determine height of adjustment.
2. Loosen the four (4) screws. (Fig. 8)
3. Set bar at proper height and tighten the screws.
4. Addthetwo(2)extrascrewstopreventanymovement.
Venting and Installation
1. The Majestic fireplace may be installed in and
vented through any solid fuel fireplace that has a
minimum fireplace opening 28³⁄₄" wide x 21¹⁄₄" high x
16" deep and has been installed in accordance with
the National, Provincial/State and local building
codes and is constructed of noncombustible
materials.
2. Only HEDVT (8 x 12) or HEDVT (12 x 12)
termination kit and flex vent kit HEDVK25 or
HEDVK35 is able to be used in this installation.
Under no circumstances should B vent or C vent
be used on this application.
3. Any flue damper must be removed or blocked open.
Trim Top
Left Side Installation
Right Side Installation
Trim Right
Side
Trim
Screw
On/Off Switch
Assembly
Wiring from
Millivolt Gas
Valve Trim
Screw
Trim Left
Side
On/Off Switch Assembly FP1253
Fig. 5 Slide switch assembly between subframe and trim.
Bracket Switch
On/Off
Switch
FP1254
Fig. 6 For left side installation, reverse switch position in
bracket.
P
I
L
O
T
THTP TP TH
SIT Valve
Thermopile
FP382a
Fig. 7a On/Off switch or millivolt thermostat.
TPTH TH
TP
FP1218
Fig. 7b On/Off switch wiring.
Back of Unit
Levelling Bar
Set Screws
FP1279
Fig. 8 Set levelling bar at proper height and tighten screws.

8
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
4. The chimney must be clean and in good working
order and constructed of noncombustible materials.
5. Make sure that all chimney cleanouts fit properly so
air cannot leak into the chimney.
6. Install the appliance without trim frame and make all
gas fittings and electrical connections.
7. Install the decorative trim frame. Please refer to the
Frame Assembly instructions.
Liner Installation - Fig. 9
Installer must attach red warning plate
with screws supplied with the gas fire-
place insert to the inside of the firebox of
the fireplace into which the gas fireplace
insert is installed.
Cutting any sheet metal parts of the
fireplace, in which the gas fireplace insert
is to be installed, is prohibited.
If the factory-built fireplace has no gas
access hole(s) provided, an access hole
of 1.5 inch (37.5mm) or less may be
drilled through the lower sides or bottom
of the firebox in a proper workmanship
like manner. This access hole must be p
lugged with a noncombustible insulation
after the gas supply line has been in-
stalled.
WARNING
Some factory-built fireplaces have air passages
on face of fireplace for zero clearance capabilities.
All trim kits are designed so as to allow airflow to
these passages. Under no circumstances should
these passages be blocked.
The collar extending down from the termina-
tion base is the air intake connector. Be sure
the flex vent, which is connected to this
collar, is also connected to the labelled air
intake flue collar on the fireplace. Make sure
the Flex vent is attached on the correct collar
and cap for exhaust as well.
Slide the insulation provided in the termination kit over
the two (2) 3" flex liners, (to be attached to the 3" Flue
collar and cap of the termination). Feed one 3" flex vent
from the bottom of the termination up through the 4"
sleeve. Apply hi-temp sealant on the rain cap collar
and slide the flex vent over the end of the rain cap
collar fastening with the clamp provided. Slide the flex
liner back down the 4" sleeve until 4" cap slides over
the sleeve. Attach cap to the sleeve with four (4) screws
supplied. Apply hi-temp sealant over the air intake
collar and attach intake flex vent in the same method.
Feed the two flex liners down the chimney through the
damper opening. Tighten termination to the chimney
using the screws provided.
In case the fireplace opening is only minimum height
21" (533mm) and access from the front is not possible,
then follow the instructions below.
1. Remove flue collar plate assembly. Unbolt the top
fastener plate and move it to the back first before
sliding the flue collar plate out from the top of the
unit. (Fig. 10)
2. Apply a bead of hi-temp sealant on the end of the
collar before attaching the liner to the flue collar.
Fasten it with two clamps then adjust fastener plate
all the way to the back before sliding flue gas plate
back onto the unit. (Fig. 11 and Fig. 12)
Flue gas exits
through the vent
termination rain
cap 1) Attach flexible pipe
to rain cap
2) Secure with clamp
3) Attach raincap to
vent termination using
three screws
Pull flexible pipe
through vent
termination
Outside combustion
air enters through the
lower level of the vent
termination
Secure with
clamp and
three screws
Air Intake
Exhaust
Air intake collar
with label
secured with
clamp and three
screws Exhaust collar secured
with clamp and three
screws
FP1280
NOTE
Minimum Vent Height -
12 feet
Maximum Vent Height -
35 feet
Fig. 9 Liner installation.

9
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
Under no circumstances should
insulation be put between the damper
and the top of the unit. This may cause
condensation and overheating of the unit.
Flue Collar
Plate
10/24" x 1¹⁄₂"
Machine Screw
Cabinet
Top
Fastener
Plate
FP1281

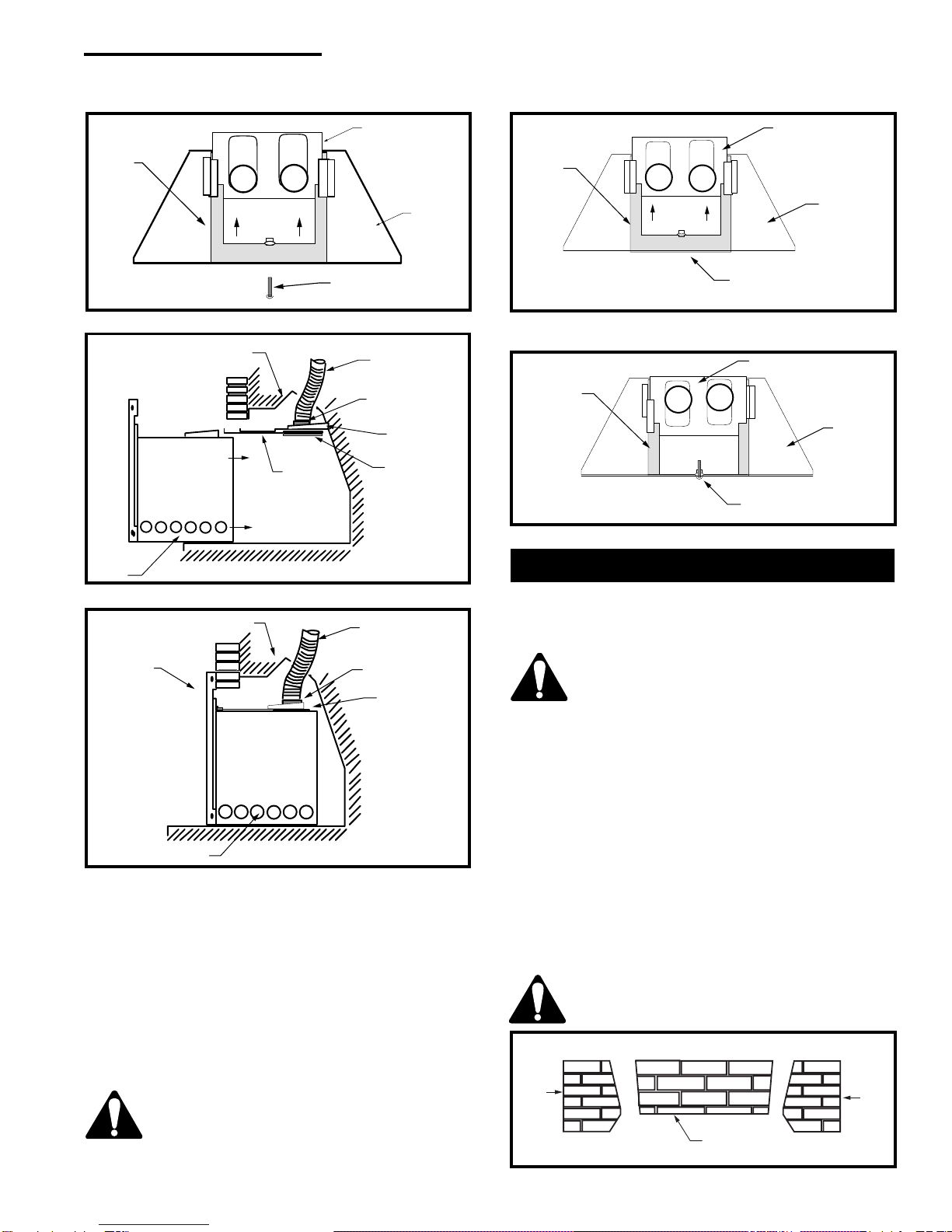

Fig. 10 Remove flue collar plate assembly.
Move
Back
3. After the flue collar plate is set on the cabinet top,
make sure the front edge of the flue collar plate is
completely in contact with the back edge of the
cabinet top. (Fig. 13)
4. Put the machine screw back into the fastener plate.
Bolt the plate until it is locked. (Fig. 14)
NOTE: Insulation can be installed above the damper
area only, provided the insulation material is of
noncombustible type.
Flue Collar
Plate
Fastener
Plate
Cabinet
Top
Make sure the flue collar
plate is in contact with the
back edge of the cabinet top
FP1284
Fig. 13 The flue collar plate must be completely in contact
with back edge of cabinet top.
Ceramic Refractory Installation
1. Remove front glass.
2. Remove logs from unit.
3. Remove refractory from package
Refractory are fragile and must be han-
dled with care. Where at all possible, two
hands should be used when handling.
4. Take center refractory and tilt so bottom edge slides
into support angle in back of fireplace. (Fig. 20)
5. Now press center refractory to back side of fireplace
and hold in place.
6. Take left or right refractory and align it so leading
edge faces outward. (Place refractory in fireplace
side and slide it forward into side support angle on
fireplace front. Leading edge of refractory must be
completely behind side support angle of RHEDV32
for proper placement).
7. Now carefully slide in back side of refractory against
fireplace side.
8. Repeat steps 6 and 7 for remaining side refractory.
When side refractory is installed cor-
rectly, the center refractory will be sup-
ported by the side refractory.
Leading
Edge
Left Side Center Right Side
Bottom
Edge
Leading
Edge
FP1287
Fig. 15 Ceramic refractory.
Fastener Plate
Cabinet
Top
Machine Screw
After Fastened
Plate Flue
Collar
FP1285
Fig. 14 Use machine screw to bolt fastener plate in place.
Damper 3" Flex Vent
Two Pieces
Clamps &
Screw
Fastener
Plate
Gasket
Unit FP1282
Fig. 11 Apply high temperature sealant to end of collar.
Damper 3" Chimney
Liner Two
Pieces
Clamps &
Screw
Flue Collar
Plate
Unit
Front
Frame
FP1283
Fig. 12 Fasten with two clamps, adjust fastener plate all the
way back.

10
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
Venting Components
A
B
C
High Temperature Sealant
D
8" x 12" Vent Termination Kit
Model: HEDVT (8" x 12")
(Fit typical 8" x 12" and 9" x 13" flue tile)
Kit Includes:
A - 8" x 12" Vent Termination (x1)
B - Stainless Steel Clamps (x4)
C - Hardware Package (x1)
D - High Temperature Sealant (x1)
A
B
C
High Temperature Sealant
D
12" x 12" Vent Termination Kit
Model: HEDVT (12" x 12")
(Fit typical 12"-13" x 12"-13" flue tile)
Kit Includes:
A - Vent Termination SL (x1)
B - Stainless Steel Clamps 3"-3.5" (x4)
C - Hardware Package (x1)
D - High Temperature Sealant
Flex Vent Kit
Model: HEDVK25
Kit Includes:
Two (2) 3" Dia. x 25ft. long, compressed flex
vent
NOTE: Air intake has a blue line on the vent.
Flex Vent Kit
Model: HEDVK35
Kit Includes:
Two (2) 3" Dia. x 35 ft. long, compressed flex
vent
NOTE: Air intake has a blue line on the vent.

11
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
Operating Instructions
General Glass Information
Only ceramic glass approved by Vermont
Castings, Majestic Products may be used
for replacement on this unit.
1. The use of substitute glass will void all product
warranties.
2. Care must be taken to avoid breakage of the glass.
3. Under no circumstances should this appliance be
operated without glass properly installed, or with any
cracked or broken glass. Replacement of any glass
assembly as supplied by the manufacturer should be
done by a licensed qualified service person.
Louvre Removal
To remove
louvre pull
louvre up and
then lift out.
(Fig. 16)
1.
2.
Louvre
Glass Panel
FP444
Fig. 16 Louvre removal.
Glass Cleaning
It will be necessary to clean the glass periodically.
During start-up condensation, which is normal, forms
on the inside of the glass and causes lint, dust and
other airborne particles cling to the glass surface. Also
initial paint curing may deposit a slight film on the
glass. It is therefore recommended that the glass be
cleaned two or three times with a non-ammonia
household cleaner and warm water (we recommend
gas fireplace glass cleaner). After that the glass should
be cleaned two or three times during each heating
season depending on the circumstances present.
Clean glass after first two weeks of
operation.
Glass Frame Removal
1. Remove four (4) bottom fastening screws with a
3/8" nut driver. (Fig. 17)
2. Lift up and unhook glass frame at the top.
Log Installation and Burner Lava Rock
1 . Remove front glass. (See "Glass Removal" section)
2. Remove logs from packaging.
3. Place rear log (JR4, KR4 or SR4) on rear bracket
(ensure log is seated properly, leveled and centered
to the unit), so it will not move from side to side and
is firmly positioned on the bracket.
4. Slip front ember log (JR1, KR1 or SR1) down in the
front deflector.
5. Place front left log (JR2 ,KR2 or SR2) on top
burner, left side. Use log's bottom holes to locate it
into the left bracket log locator studs.
6. Place front right log (JR3, KR3 or SR3 ) on top of
burner, right side. Use log's bottom holes to locate it
into the right bracket log locator studs.
7. Place burner lava rock material on top of burner.
(Fig. 18, 19 & 20 for proper location).
8. Place top right log (JR6, KR6 or SR6) onto locator
notches. Ensure log is secure.
9. Place top left log (JR5, KR5 or SR5) onto locator
notches. Ensure log is secure.
Top logs must be placed properly into
notches
Glass
Frame
10/24 Nut FP1286
Fig. 17 Remove four screws to remove glass frame.

12
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
SR2
SR5 SR6
SR4
SR3
SR1
Front Lava Rock Placement
LG281
Fig. 20 RHEDV42 log and lava rock placement.
Large Lava Rock Placement
The large lava rock provided with this fireplace must be
placed on the firebox base on either side of the burner
assembly. Under no circumstances should these
lava rock be placed on top of the burner
assembly.
Flame Adjustment (RN/RP Models)
For fireplaces equipped with HI/LO valves, flame
adjustment is accomplished by rotating the HI/LO
adjustment knob located near the center of the gas
control. (Figs. 21 or 22)
LO
HI
Turn
counterclockwise
to decrease
flame height
Turn clockwise
to increase
flame height
Fig. 21 Flame adjustment knob for Honeywell Valve.
Honeywell Valve
L
O
H
I
Turn
counterclockwise
to increase
flame height
Turn clockwise
to decrease
flame height
SIT Valve
Fig. 22 Flame adjustment knob for SIT Valve.
Temperature Adjustment (TN/TP Models)
The HI/LO reference on the control knob (Fig. 23) is to
indicate a higher or lower temperature setting. This
setting controls the heat by reducing then shutting off
the flame as the desired temperature is reached.
Position the control knob where it effectively maintains
a comfortable room temperature.
Fig. 23 Temperature adjustment knob for TN/TP models.
It is important to periodically perform a visual check of
the pilot and the burner flames. Compare them to the
Figure 24 and Figure 25 or 26. If any of the flames
appear abnormal call a service person.
Flame Characteristics
JR5 JR6
JR2
JR4
JR3
JR1
Burner Lava Rock
Placement
LG279
Fig. 18 RHEDV25 log and lava rock placement.
KR5
KR2
KR6 KR4
KR3
KR1
Burner Lava Rock
Placement
LG280
Fig. 19 RHEDV32 log and lava rock placement.

13
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert

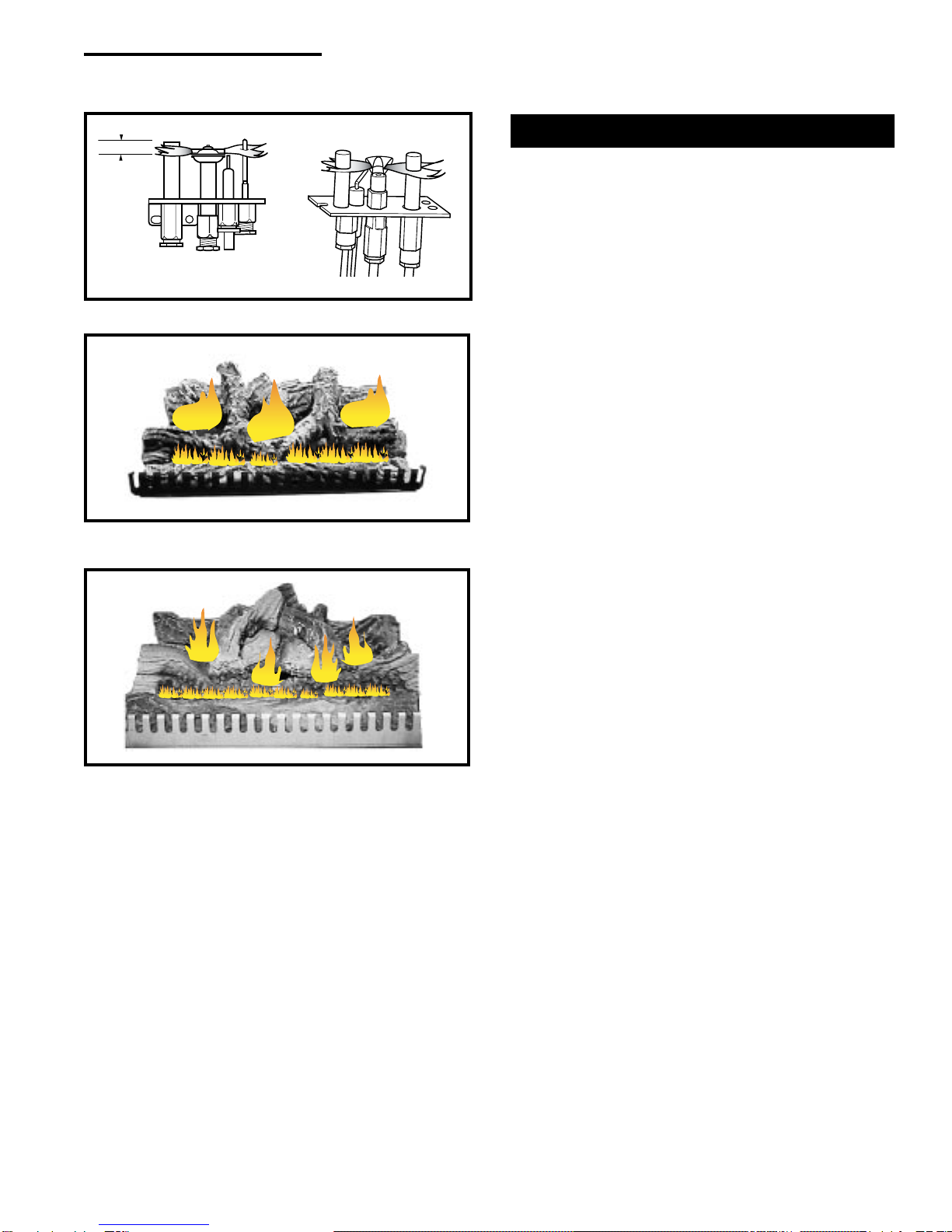

3/8" - 1/2"
SIT Pilot
PSE Pilot
F584-703
Fig. 24 Correct pilot flame appearance.
RHEDV25/32
Fig. 25 Correct burner flame appearance for RHEDV25 and
RHEDV32 models.
LG283
RHEDV42
LG283
Fig. 26 Correct burner flame appearance for RHEDV42.
First Firing
Upon completing the gas line connection, a small
amount of air will be in the lines. When first lighting unit
with pilot light, it will take a few minutes to purge them-
selves of this air. Once the purging is complete, the
pilot and burner will light and operate as indicated in the
instruction manual. Subsequent lightings of the heater
will not require such purging.
When lit for the first time, the appliance will emit a slight
odor for awhile. This is due to paint and lubricants used
in the manufacturing process. After each lighting, vapor
may condense and fog the glass; this moisture disap-
pears within a few minutes of burning.

14
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
3. Open control access panel.
4. Push in gas control knob slightly and turn
clockwise to "OFF". Do not force.
5. Close control access panel.
1. STOP! Read the safety information above.
2. Turn off all electrical power to the fireplace.
3. For MN/MP/TN/TP appliances ONLY, go on to
Step 4. For RN/RP appliances turn the On/Off
switch to “OFF” position or set thermostat to
lowest level.
4. Open control access panel.
5. Push in gas control knob slightly and turn
clockwise to "OFF".
10. Push the control knob all the way in and hold.
Immediately light the pilot by repeatedly depress-
ing the piezo spark ignitor until a flame appears.
Continue to hold the control knob in for about one
(1) minute after the pilot is lit. Release knob and it
will pop back up. Pilot should remain lit. If it goes
out, repeat steps 5 through 8.
FOR YOUR SAFETY READ BEFORE LIGHTING
instructions.
•If you cannot reach your gas supplier, call
the Fire Department
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand, do not try to repair it, call a
qualified service technician. Applying force or any
attempted repair may result in a fire or explosion.
D. Do not use this fireplace if any part has been under
water. Immediately call a qualified service techni-
cian to inspect the heater and to replace any part of
the control system and any gas control which has
been under water.
A. This heater has a pilot which must be lit manu-
ally. When lighting the pilot follow these instruc-
tions exactly.
B. BEFORE LIGHTING smell all around the heater
area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any fireplace
•Do not touch any electric switch
•Do not use any phone in your building
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
To Turn Off Gas To Heater
Lighting And Operating Instructions
1. Turn the On/Off switch to "OFF" position or set
the thermostat to lowest setting.
2. Turn off all electric power to the fireplace if
service is to be performed.
Lighting Instructions
6. Wait five (5) minutes to clear out any gas. Then
smell for gas, including near the floor. If you
smell gas, STOP! Follow "B" in the safety
information above. If you do not smell gas, go
to the next step.
7. Remove glass door before lighting pilot. (See
Glass Frame Removal section).
8. Visibly locate pilot by the main burner.
9. Turn knob on gas control counterclockwise
to "PILOT".
•If knob does not pop up when released, stop
and immediately call your service technician or
gas supplier.
• If after several tries, the pilot will not stay lit,
turn the gas control knob to " " and call your
service technician or gas supplier.
11. Replace glass door.
12. Turn gas control knob to “ON” position.
13. For RN/RP appliances turn the On/Off switch to
“ON” position or set thermostat to desired setting.
14. Turn on all electrical power to the fireplace.
WARNING:If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
Euro SIT SIT NOVA Honeywell
PILOT
ON
OFF
ON
P
I
L
O
T
O
F
F
O
F
F
5
4
3
2
1
O
F
F
P
i
l
o
t
3/8" - 1/2"

15
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
WARNING: Before doing any gas control service work, remove glass front.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1.Spark ignitor will not light A. Defective or misaligned Using a match, light pilot. If pilot lights, turn off
electrode at pilot. pilot and push the red button again. If pilot will not
light - check gap at electrode and pilot-should be
1/8" to have a strong spark.
B. Defective ignitor (Push Button) Push Piezo Ignitor Button. Check for spark at
electrode and pilot. If no spark to pilot, and elec
trode wire is properly connected, replace ignitor.
2.Pilot will not stay lit after A. Defective pilot generator Check pilot flame. Must impinge on thermo
carefully following lighting (thermocouple), remote wall couple/thermopile. Note: this pilot burner assem
instructions. switch. bly utilizes both-a thermocouple and a thermopile.
The thermocouple operates the main valve
operation (On and Off). Clean and or adjust pilot for
maximum flame impingement on thermopile and
thermocouple.
B. Defective automatic valve Turn valve knob to “Pilot”. Maintain flow to pilot;
milivolt meter should read greater than 10 mV. If
the reading is okay and the pilot does not stay on,
replace the gas valve. Note: An interrupter block
(not supplied) must be used to conduct this test.
3.Pilot burning, no gas to A. Wall switch or wires defective Check wall switch and wires for proper connec
main burner tions. Jumper wire accross terminals at wall
switch, if burner comes on, replace defective wall
switch. If okay, jumper wires across wall switch
wires at valve, if burner comes on, wires are faulty
or connections are bad.
B. Thermopile may not be 1. Be sure wire connections from thermopile at
generating sufficient gas valve terminals are tight and thermopile is
millivoltage. fully inserted into pilot bracket.
2. One of the wall switch wires may be grounded.
Remove wall switch wires from valve terminals if
pilot now stays lit, trace wall switch wiring for
ground. May be grounded to fireplace or gas
supply.
3. Check thermopile with millivolt meter. Take
reading at thermopile terminals of gas valve.
Should read 250-300 millivolts (minimum 150)
while holding valve knob depressed in pilot
position and wall switch “Off”. Replace faulty
thermopile if reading is below specified minimum.
C. Plugged burner orifice. Check burner orifices for debris and remove.
D. Defective automatic valve Turn valve knob to “On”, place wall switch to “On”
operator. millivolt meter should read greater than 100 mV. If
the reading is okay and the burner does not come
on, replace the gas valve.
4.Frequent pilot outage A. Pilot flame may be too low Clean and/or adjust pilot flame for maximum flame
problem. or blowing (high) causing the impingement on thermopile and thermocouple.
pilot safety to drop out.
B. Possible blockage of the vent Check the vent terminal for blockage (recycling the
terminal. flue gases)
Troubleshooting the Gas Control System
NOTE: Before trouble shooting the gas control system, be sure external gas shut off is in the “On” position.
SIT NOVA 820 Millivolt Valve

16
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
Eurosit 630 Gas Valve
NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the "On" position.
WARNING: Before doing any gas control service work, remove glass front.
Symptom Possible Causes Corrective Action
1. Spark ignitor will not light A. Defective or misaligned Using a match, light pilot. If pilot lights, turn off pilot and
electrode at pilot. push the red button again. If pilot will not light - check
gap at electrode and pilot-should be 1/8" to have a
strong spark.
B. Defective ignitor (Push Button) Push Piezo Ignitor Button. Check for spark at electrode
and pilot. If no spark to pilot, and electrode wire is
properly connected, replace ignitor.
2. Pilot will not stay lit after A. Defective pilot generator Check pilot flame. Must impinge on thermocouple.
carefully following lighting thermocouple. Clean and or adjust pilot for maximum flame impinge-
ment instructions. on thermocouple.
B. Defective automatic valve Turn valve knob to "Pilot". Maintain flow to pilot;
operator. millivolt meter should read greater than 10 mV. If the
reading is okay and the pilot does not stay on, replace
the gas valve. Note: An interrupter block (not supplied)
must be used to conduct this test.
3. Pilot burning, no gas to A. Sensing bulb not in proper Make sure sensing bulb is located in bracket on the
burner, Valve knob "ON". location. lower right hand side of unit.
B. Temperature sensing bulb Carefully examine sensing bulb and capillery tube for
damaged or tubing to bulb damage. If tubing is kinked, replace gas valve.
kinked
4. Frequent pilot outage A. Pilot flame may be too low Clean and/or adjust pilot flame for maximum flame
problem. or blowing (high) causing the impingement on thermocouple.
pilot safety to drop out.
B. Possible leak in liner or seals. Check the venting for leaks or blockage.
Troubleshooting the Gas Control System

17
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
Gas Supply On Supply Line Hooked Up
Shutoff Valve Open
NO
NO
NO
NO
Lockout Has Engaged. Wait
60 Seconds And Try Again.
For Spark At Electrode While
Depressing Piezo 1/8" Gap To
Pilot Hood Needed.
All Wiring Connections
Replace Piezo Ignitor
For Air In The Lines
Thermopile Needs A Minimum
325mv. Adjust Pilot Flame Height.
All Wiring Connections.
Replace Thermopile
Thermocouple Needs A Minimum
of 14mv.
Defective Valve. Turn To Pilot,
Meter Should Read Greater Than
100 Mv. If Not, Replace.
Pilot Lights With
Piezo Ignitor
YES
YES
YES
YES
Pilot Stays Lit
Pilot Lights Main
Burner
System OK.
START
CHECK
Valve Is Turned On
On/off Switch Is Not Turned On.
Watch For Grounded Wires!
Thermopile Needs A Minimum
325mv.
Plugged Burner Orifice.
Troubleshooting the Gas Control System
Honeywell Millivolt Valve

18
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
Maintenance
Burner and Burner Compartment
It is important to keep the burner and the burner
compartment clean. At least once per year the logs and
lava rock/ember material should be removed and the
burner compartment vacuumed and wiped out. Remove
and replace the logs as per the instructions in this
manual. Always handle the logs with care as they
are fragile and may also be hot if the
fireplace has been in use.
Fan Assembly
The fan unit requires periodic cleaning. At least once
per month in the operating season, open the lower
louvre panels and wipe or vacuum the area around the
fan to remove any build up of dust or lint.
Cleaning the Standing Pilot
Control System
The burner and control system consists of:
• main burner • pilot burner
• gas orifice • thermopile
• combination millivolt gas valve
Most of these components may require only an occa-
sional checkup and cleaning and some may require
adjustment. If repair is necessary, it should be per-
formed by a qualified technician.
In order to properly clean the burner and pilot assembly,
turn off the gas to the unit, remove the window frame
panel and logs exposing the burner and pilot assembly.
Clean all foreign materials from the top of the burner.
Check to make sure that burner parts are clean.
Visually inspect pilot. Brush or blow away any dust or
lint accumulation. If pilot orifice is plugged, disassembly
may be required to remove any foreign material from
the orifice or tubing.
To obtain proper operation, it is imperative that the pilot
and burner's flame characteristics are steady, not lifting
or floating.
Typically, the top 1/8" of the thermopile should be
engulfed in the pilot flame. (Page 13, Fig. 24)
Brass Cleaning
Clean the brass trim with a soft clean cloth, slightly
dampened with lemon oil and buff with a soft dry cloth.
Do not use brass polish or household cleaners as these
products will damage the trim. Lemon oil can be
obtained at supermarkets or hardware stores.

19
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
35
30
31
32
27
29
36
28 25
26
3
2
33
34
24a/b
15
L
O
H
I
PILOT
ADJ
PILOT
ON
OFF
23 a/b
21
20
19
14
12
16
9 a/b 13 18
17
11 a/b
18
10a/b
1d
1f
1c
1a
1b 1e 1e
1b
1a
1d
1f
1c
1e
1b
1d
1f
1c
1a
22a/b
5
4a/b
6/7a/b
8a/b
0801
Vermont Castings, Majestic Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and
products at any time, without notice.

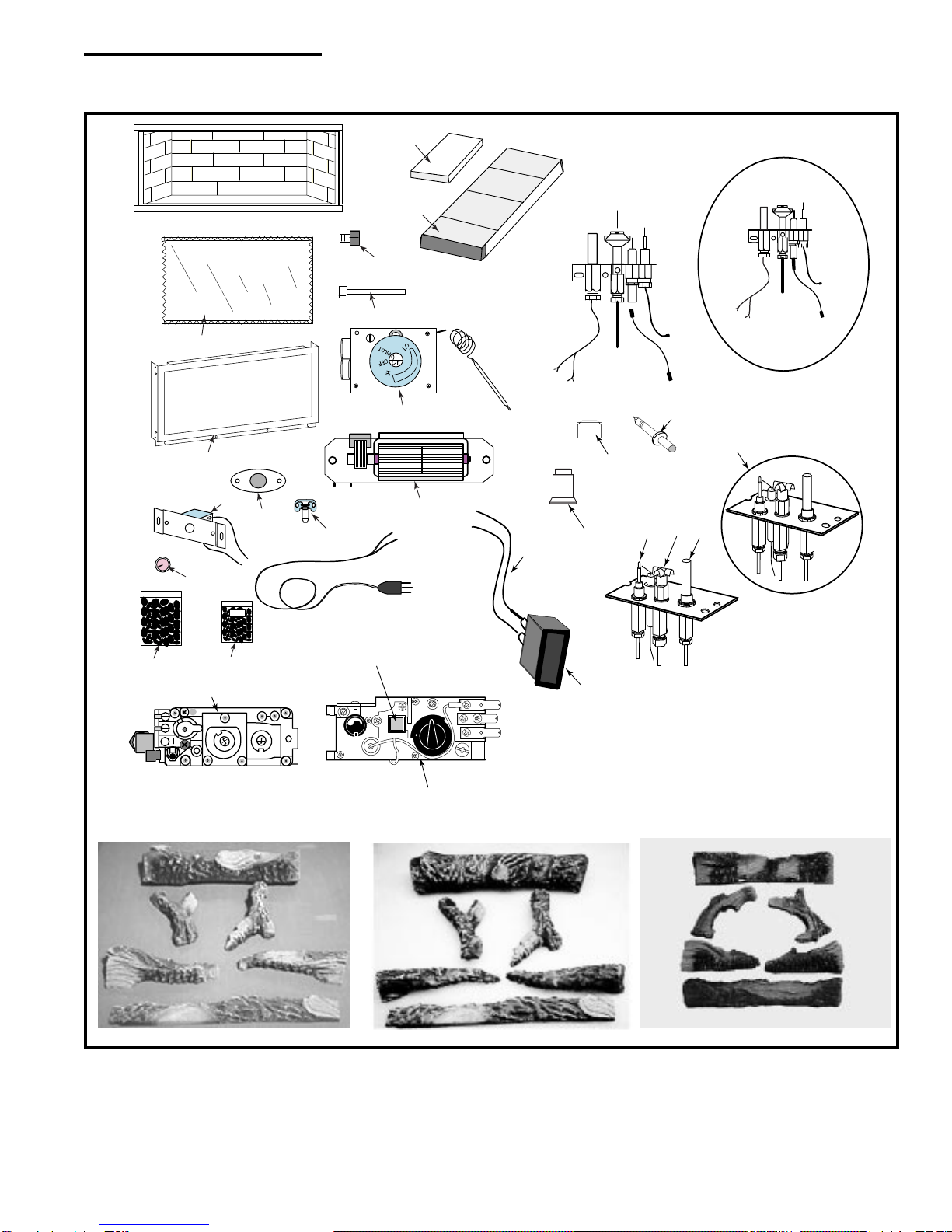

RHEDV25/32/42 Series

20
10000801
Vermont Castings, Majestic Products RHEDV Direct Vent Insert
RHEDV25/32/42 Series (continued)
Ref. Description RHEDV25 RHEDV32 RHEDV42
1. Log Set Complete 10000199 57896 10000206
1a. Log Ember Front JR1 KR1 SR1
1b. Log Front Left JR2 KR2 SR2
1c. Log Front Right JR3 KR3 SR3
1d. Log Rear JR4 KR4 SR4
1e. Log Top Left JR5 KR5 SR5
1f. Log Top Right JR6 KR6 SR6
2. Lava Rock (Package) - 10001454 10001454
3. Burner Lava Rock (Package) 57897 57897 57897
4a. Burner Complete With Tiles (Nat.) 10000193 10000198 10000954
4b. Burner Complete With Tiles (Prop.) 10000193 57904 10000955
5. Ceramic Tile (Single) 57803 57803 57803
6a. Orfice Front Burner (Nat.) See Rating Plate For Orifice Size
6b. Orfice Front Burner (Prop.) See Rating Plate For Orifice Size
7a. Orfice Main Burner (Nat.) See Rating Plate For Orifice Size
7b. Orfice Main Burner (Prop.) See Rating Plate For Orifice Size
8a. Orfice Pilot SIT (Nat.) 54273 54273 54273
8b. Orfice Pilot SIT (Prop.) 54272 54272 54272
9a. Orifice Pilot PSE (Nat.) 10001822 10001822 10001822
9b. Orifice Pilot PSE (Prop.) 10001823 10001823 10001823
10a. Pilot Assembly SIT (Nat.) 10000674 10000674 10000674
10b. Pilot Assemby SIT (Prop.) 10000675 10000675 10000675
11a. Pilot Assembly PSE (Nat.) 10001741 10001741 10001741
11b. Pilot Assembly PSE (Prop.) 10001742 10001742 10001742
12. Pilot SIT 10001295 10001295 10001295
13. Pilot w/ignitor and cable PSE 10001824 10001824 10001824
14. Pilot Tubing w/fittings 10001296 10001296 1000129
15. Manifold Tubing w/fittings 57318 57318 57318
16. Thermocouple SIT 53373 53373 53373
17. Thermocouple PSE 10001825 10001825 10001825
18. Thermopile 51827 51827 51827
19. Electrode Ignitor w/cable SIT 10001297 10001297 10001297
20. Ignitor Piezo SIT 52464 52464 52464
21. Ignitor Piezo Honeywell 2000062 2000062 2000062
22a. Valve Sit 820 RN 52677 52677 52677
22b. Valve Sit 820 RP 52678 52678 52678
23a. Valve Honeywell RN 10001782 10001782 10001782
23b. Valve Honeywell RP 10001759 10001759 10001759
24a. Valve Eurosit 630 TN - 53448 53448
24b. Valve Eurosit 630 TP - 53446 53446
25. Fan with Bracket 54103 54103 54103
26. Electrical Cord (6 ft) 51865 51865 51865
27. Fan Termperature Sensor 51704 51704 51704
