INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER 10003395
07/01 Rev.0
Electric
Fireplace
Model
HE32EF
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY,
AN ELECTRICAL SHOCK OR FIRE MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
Installation Instructions & Homeowner's Manual
410 Admiral Blvd. • Mississauga, Ontario • Canada L5T 2N6
www.vermontcastings.com • www.majesticproducts.com
The Vermont Castings
Majestic Products Company
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER APPLIANCE.
™
C US

- 2 -
TABLE OF CONTENTS
Please read the Installation & Operating Instructions before using this appliance.
Thank you and congratulations on your purchase of a Vermont Castings Majestic Products Company fireplace.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions
may result in a possible electric shock, fire hazard and/or injury and will void the warranty.
Installation Instructions ........................................................................................................... 3
General Information .................................................................................................... 3
Locating your Fireplace............................................................................................... 3
Electrical Specifications .............................................................................................. 3
Fireplace Dimensions.................................................................................................. 4
Mantels ................................................................................................................ 5
Framing & Finishing .................................................................................................... 5
Clearance to Combustibles ......................................................................................... 5
Final Finishing ............................................................................................................. 5
Hearth ................................................................................................................ 5
Electrical Connection .................................................................................................. 6

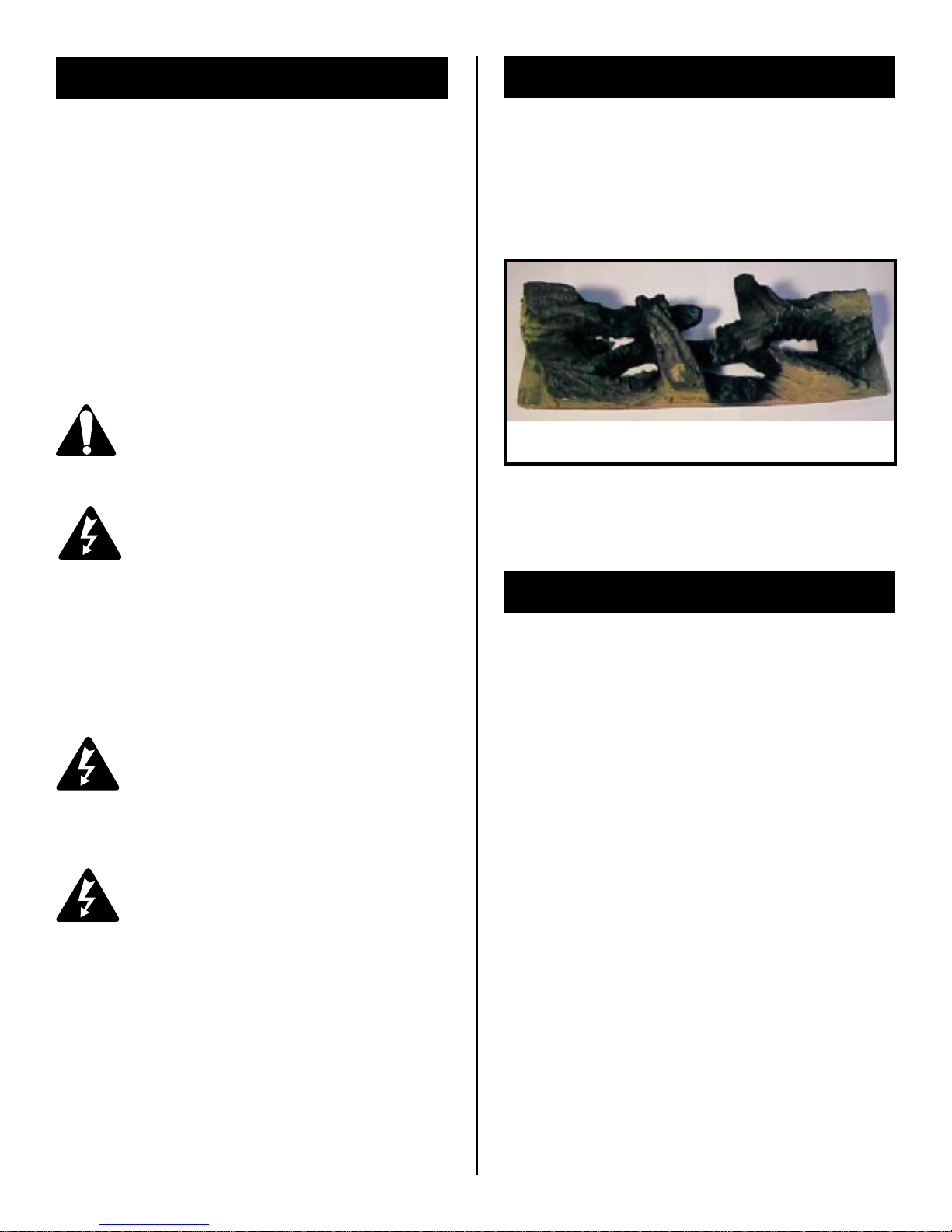

Installation of Logs ...................................................................................................... 6
Ceramic Refractory ..................................................................................................... 6

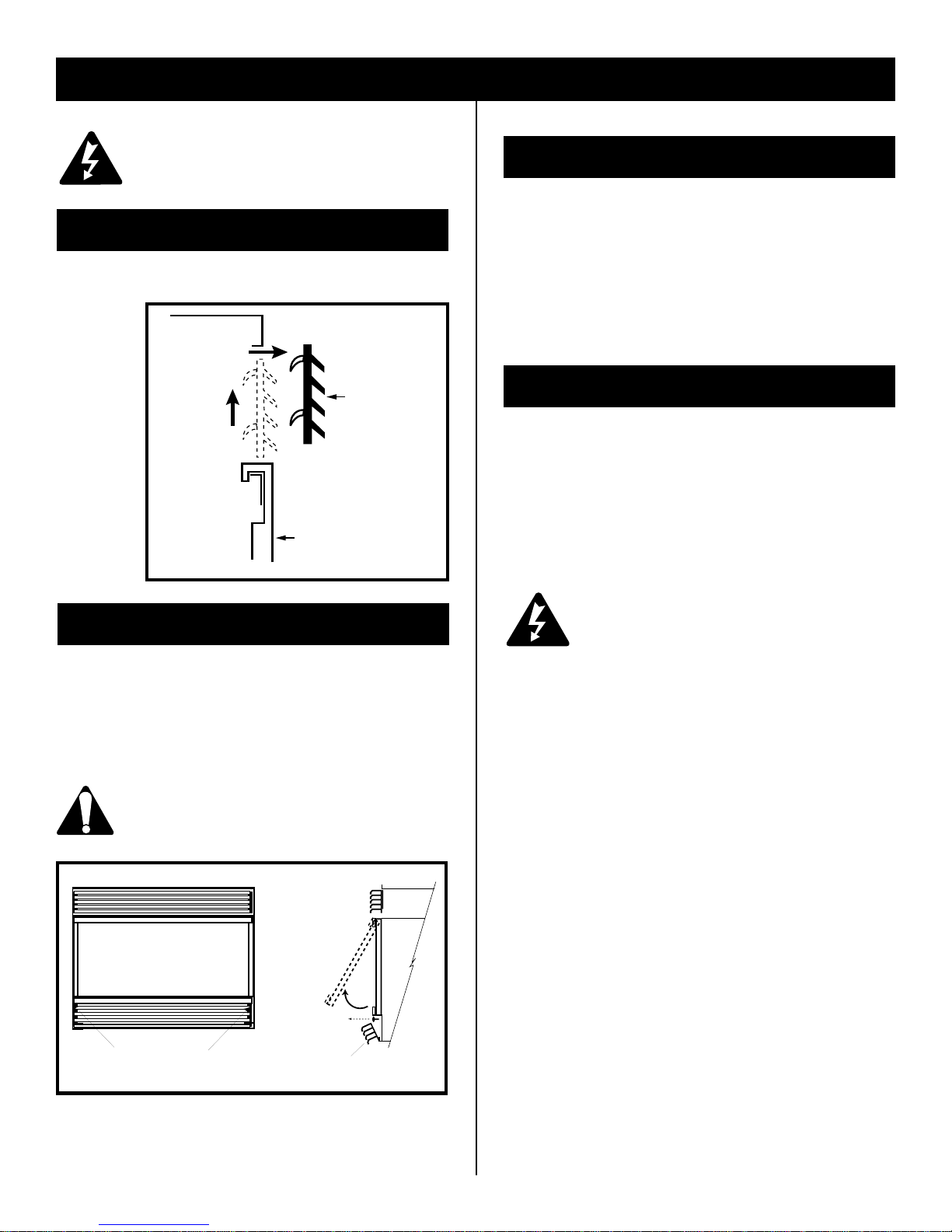

Service Instructions ................................................................................................................. 7
Louvre Removal .......................................................................................................... 7
Glass Frame Removal ................................................................................................ 7
Glass Information ........................................................................................................ 7
Replacing Light Bulbs ................................................................................................. 7
Maintenance of Motors................................................................................................ 8
Cleaning Brass Trim.................................................................................................... 8

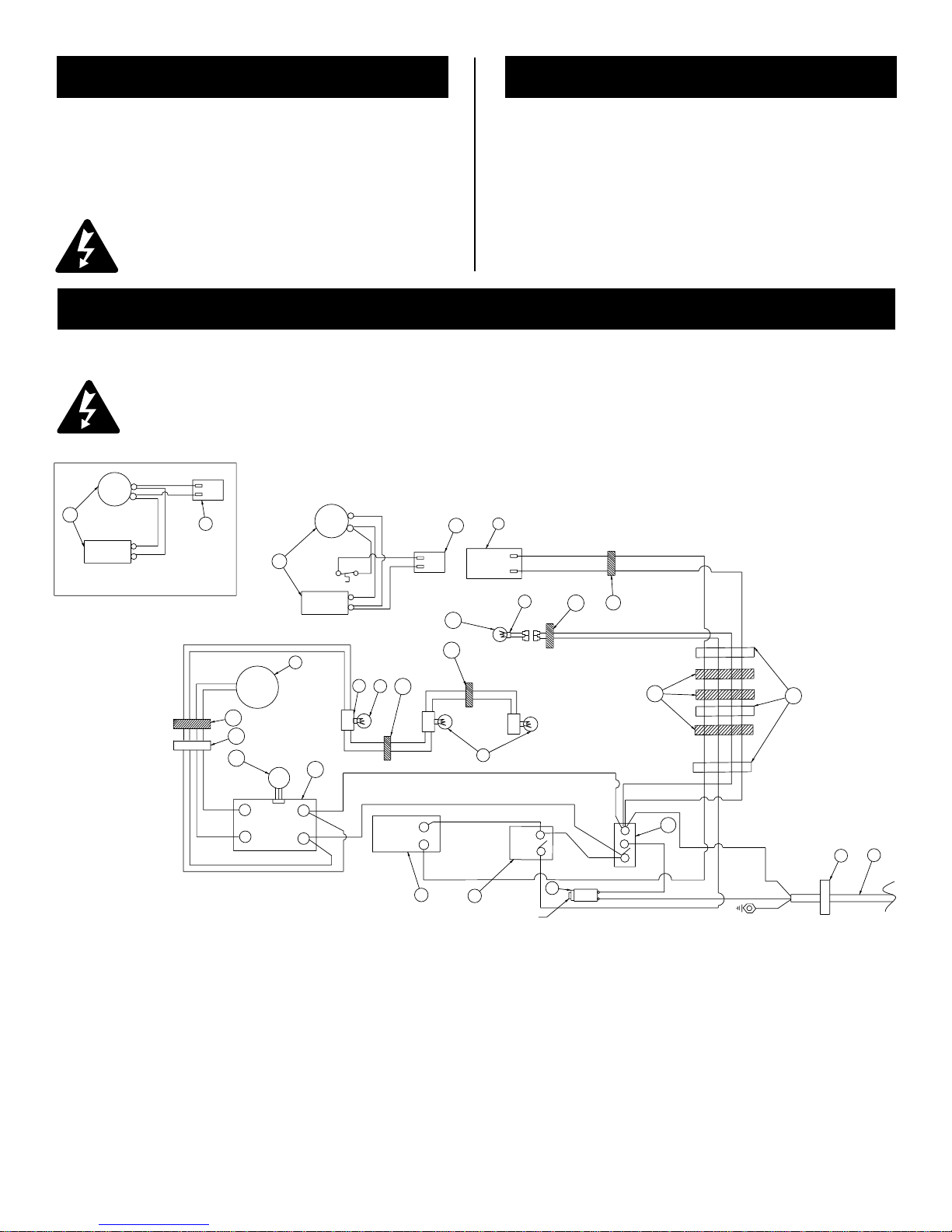

Electrical Diagram ....................................................................................................... 8
Operating Instructions ............................................................................................................. 9
On/Off Switch .............................................................................................................. 9
Heater Control............................................................................................................. 9
Log Illumination Control .............................................................................................. 9
Flame Speed Control .................................................................................................. 9

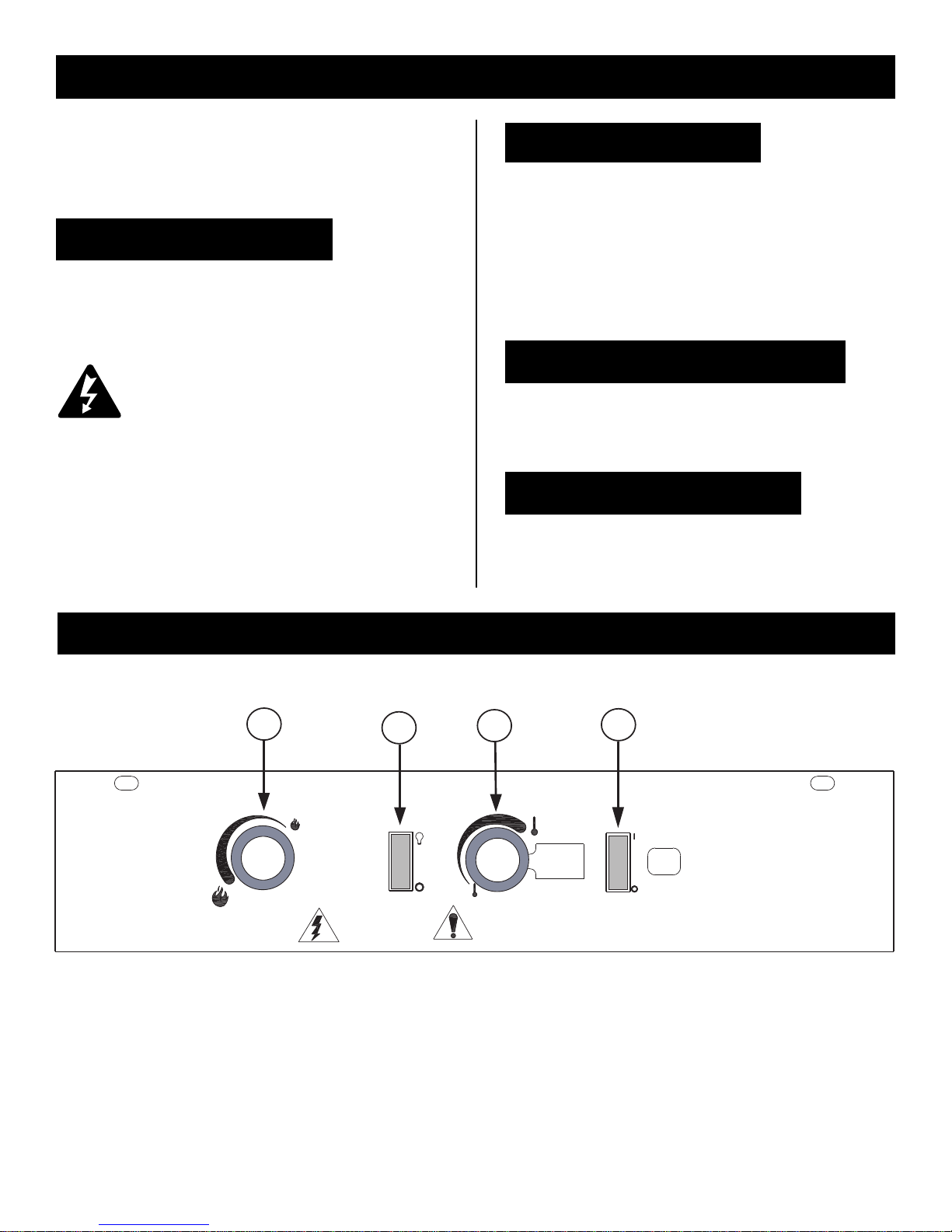

Control Panel .............................................................................................................. 9

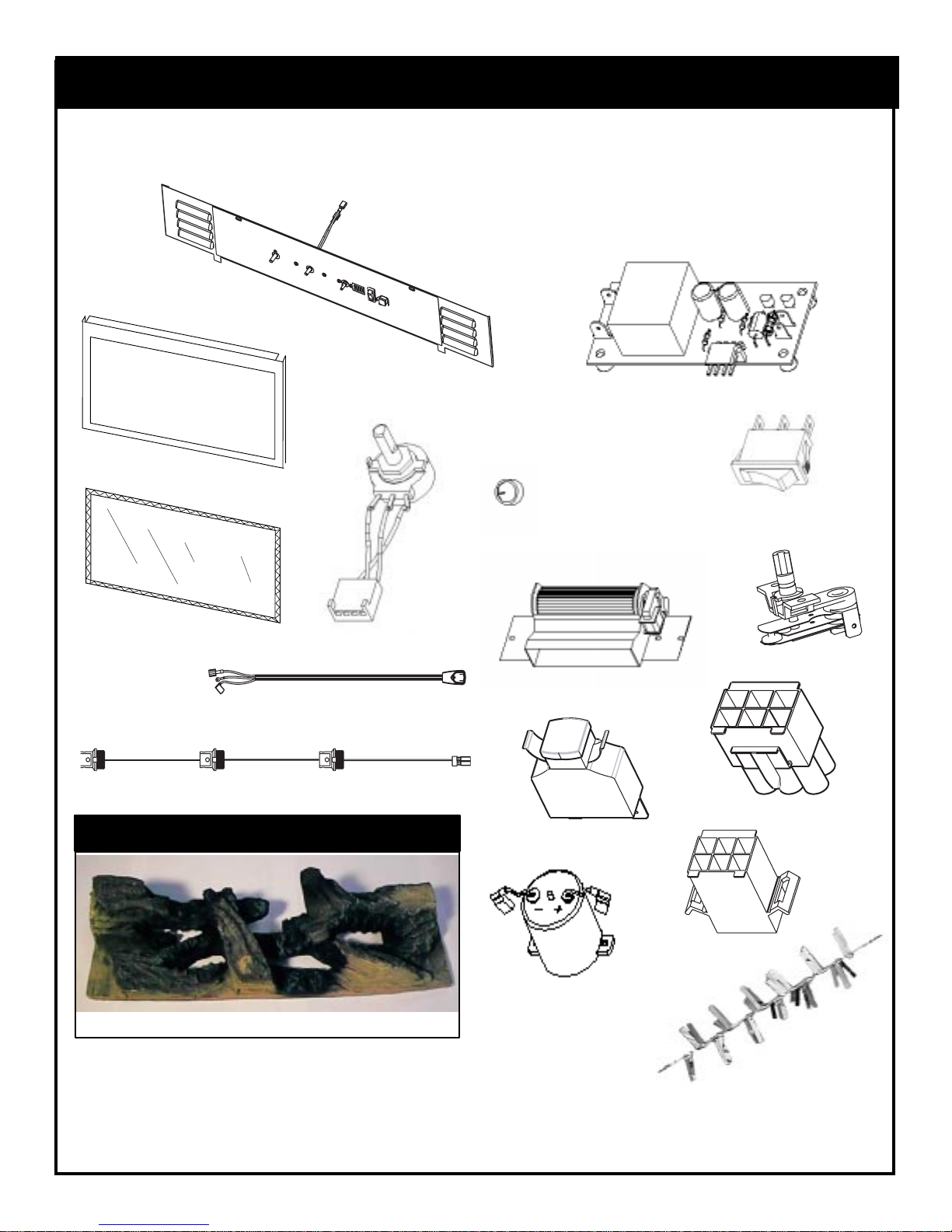

Replacement Parts Pictorial .................................................................................................. 10
Replacement Parts List ............................................................................................. 11
Fan Heater Installation ........ .................................................................................................. 12

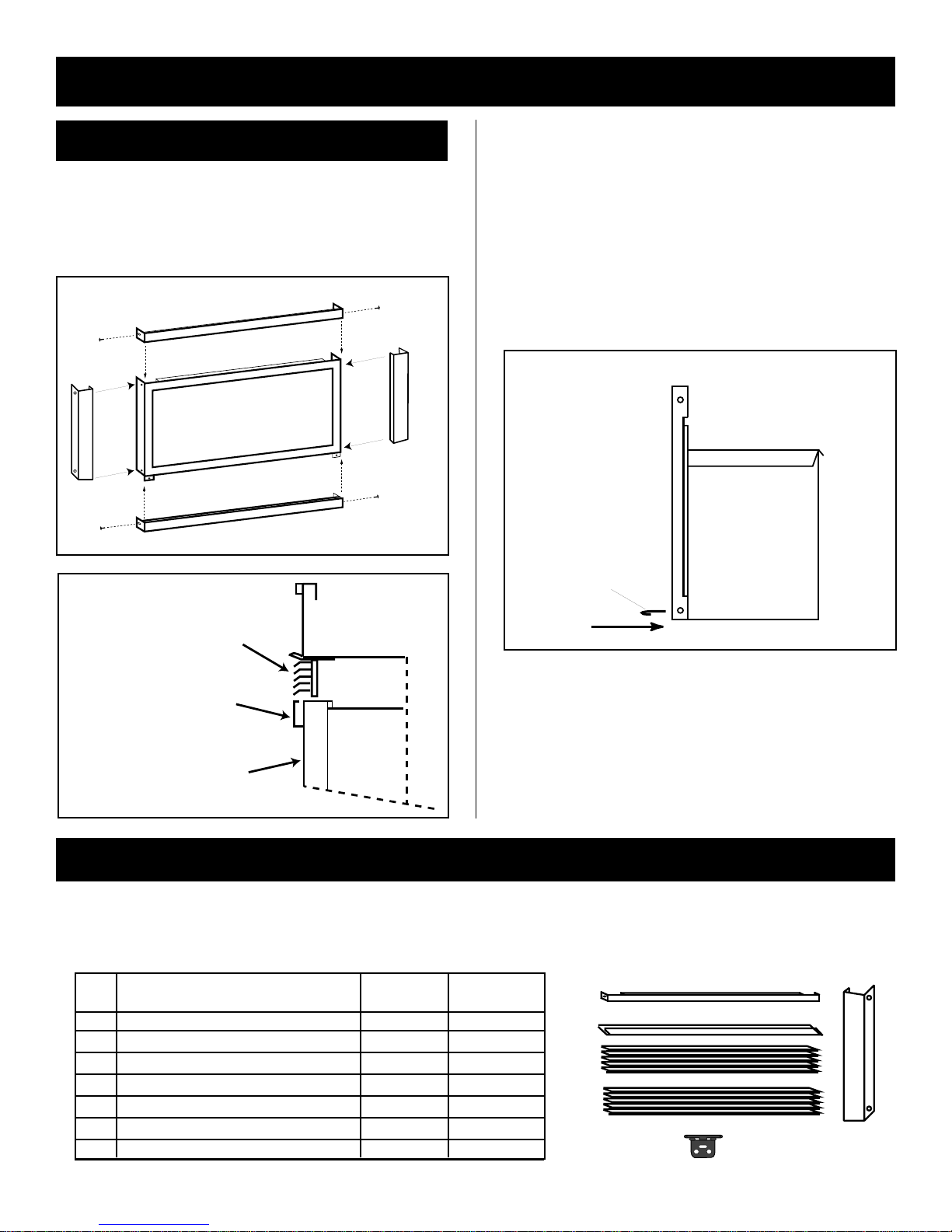

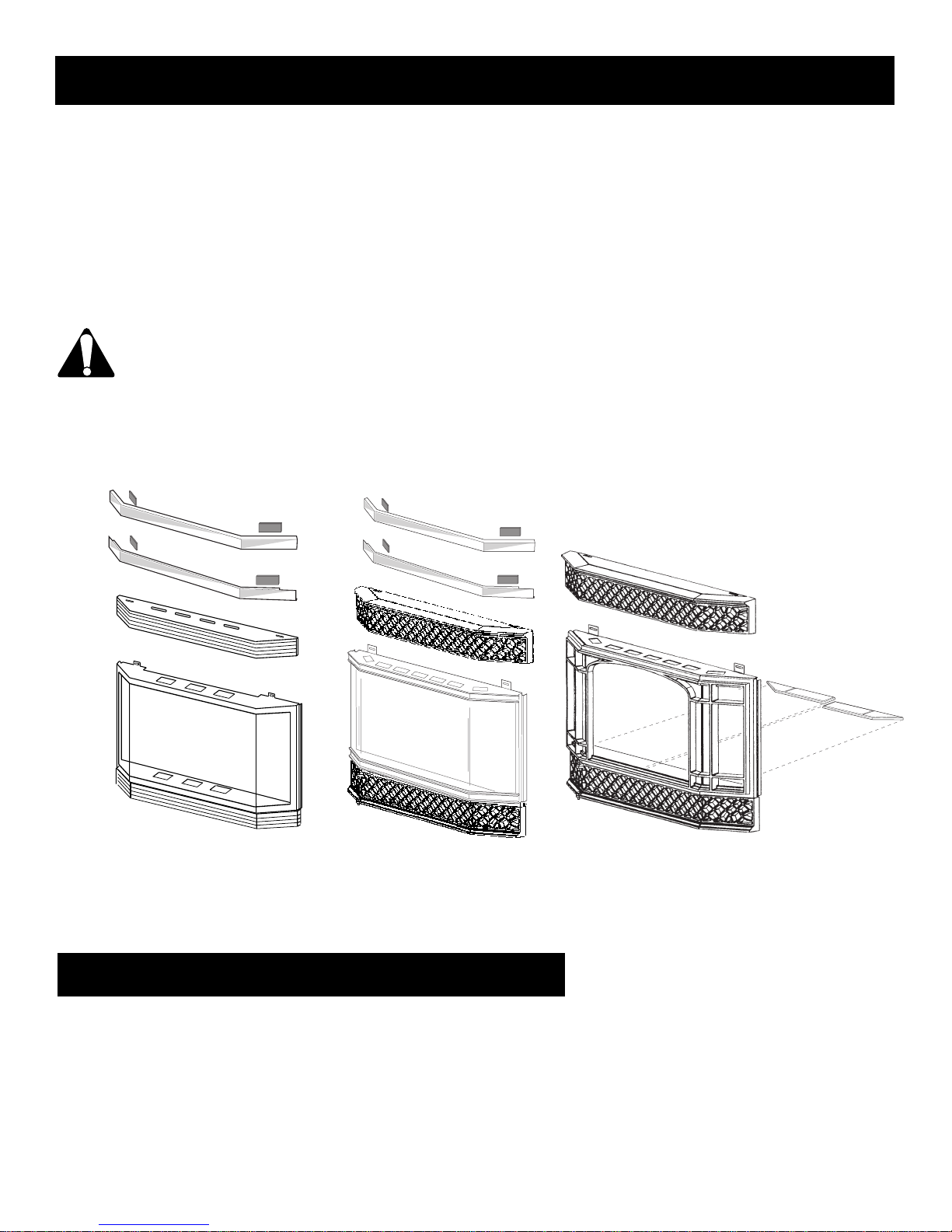

Trim Options ........................................................................................................................... 13
1) Flat Surround ....................................................................................................... 13
2) Beveled Surround ................................................................................................ 15
3) Louvre Kits ........................................................................................................... 16
4) Bay Window Trim................................................................................................. 18

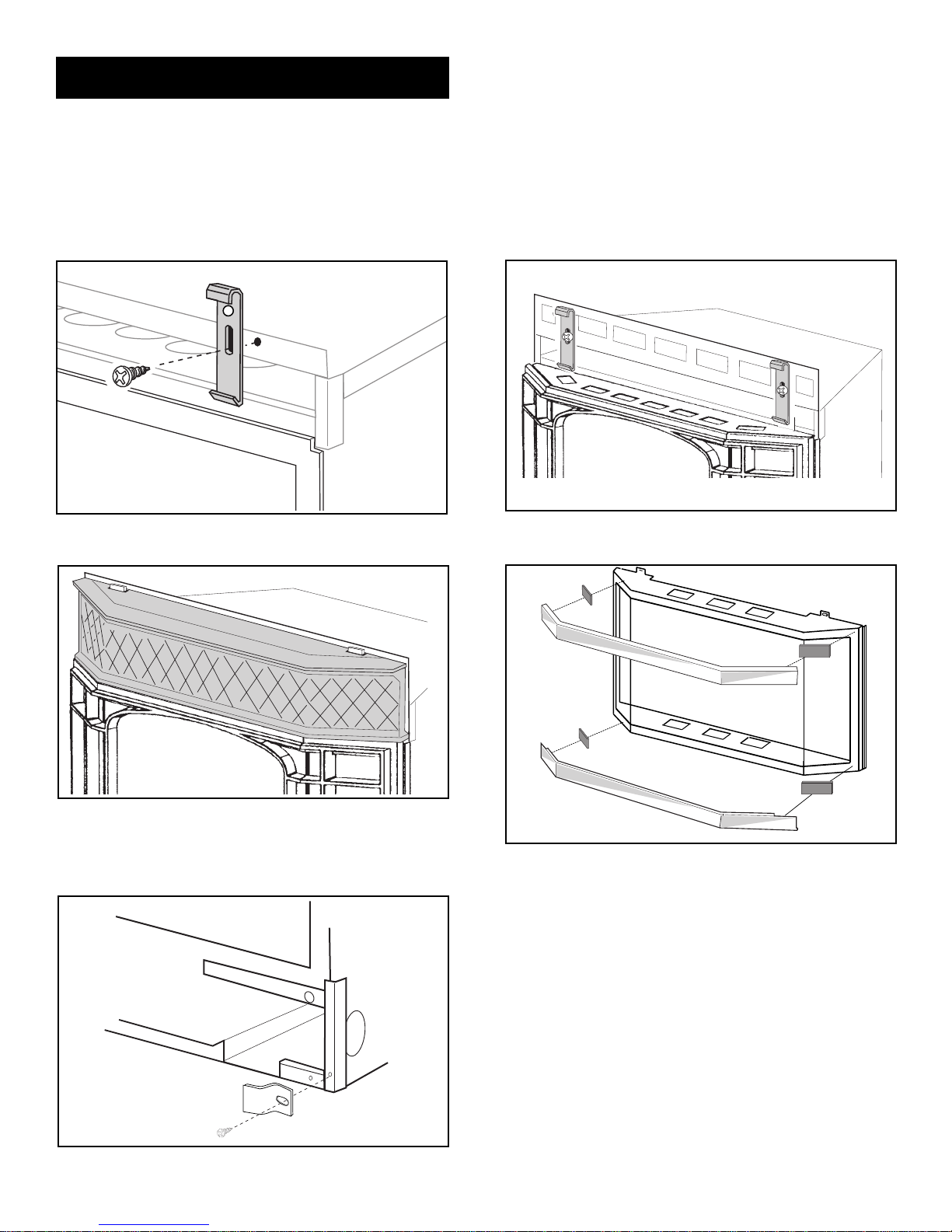

5) Cast Trim ............................................................................................................. 21
5) Accessories Options ............................................................................................ 21

- 3 -
LOCATING YOUR VERMONT CASTINGS
MAJESTIC PRODUCTS COMPANY
ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
15.To prevent a possible fire, do not block air intakes or
exhaust in any manner. Do not use on soft surfaces,
like a bed, where openings may become blocked.
16.This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or
flammable liquids are used or stored. This fireplace
should not be used as a drying rack for clothing, nor
shouldChristmasstockingsordecorationsbehungin
the area of it.
17.Use this appliance only as described in this manual.
Anyother use notrecommendedby the manufacturer
may cause fire, electric shock or injury to persons.
18.Avoid the use of an extension cord because the
extension cord may overheat and cause a risk of fire.
However, if you have to use an extension cord, the
cordshallbeNo.16AWGminimumsizeandratednot
less than 2025 Watts. The extension cord must be a
three wire cord with grounding type plug and cord
connection.
19.SAVE THESE INSTRUCTIONS.
GENERAL
1 . Read all instructions before using this appliance.
2. This appliance is hot when in use. To avoid burns, do
not let bare skin touch hot surfaces. If provided, use
handles when moving this appliance. Keep combus-
tible materials, such as furniture, pillows, bedding,
papers, clothes and curtains at least 3 feet (1m) from
the front of this appliance.
3. CAUTION:Extremecautionisnecessarywhenany
heater is used by or near children or invalids and
whenever the heater is left operating and unat-
tended.
4. If possible, always unplug this appliance when not in
use.
5. Donotoperateanyheaterwithadamagedcordorplug
or after the appliance malfunctions, or if it has been
dropped or damaged in any manner.
6. Any repairs to this fireplace should be carried out by a
qualified service person.
7. Undernocircumstancesshouldthisfireplacebemodi-
fied. Partshavingtoberemovedforservicingmustbe
replaced prior to operating this fireplace again.
8. Do not use outdoors.
9. This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never
locatethisappliancewhereitmayfallinto abathtubor
other water container.
10.Do not run cord under carpeting. Do not cover cord
withthrowrugs,runnersorthelike. Arrangecordaway
from traffic areas and where it will not be tripped over.
11.To disconnect this appliance, turn controls to the off
position, then remove plug from outlet.
12.Connect to properly grounded outlets only.
13.This appliance, when installed must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code or for U.S.A. installations
follow local codes and the National Electrical Code,
ANSI/NFPA NO. 70.
14.Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the appliance.
Your new fireplace may be installed into an existing
masonry fireplace. This unit may also be built into new
or existing construction.
When choosing a location for your new fireplace, ensure
that the general instructions are followed. Also, for best
effect install the fireplace out of direct sunlight.
Voltage _____________ 120VAC, 60Hz
Total Amps ______________12.5 Amps
Total Watts _____________ 1500 Watts
Heater Rating ___________ 1300 Watts
ELECTRICAL SPECIFICATIONS
A zero clearance kit is NOT required
for this unit.

- 4 -
M
I
N
I
M
U
M
O
P
E
N
I
N
G
Fig. 1
1= SS or SSD Trim
2= SL or SLD Trim
3= SXL Trim
4= BSL Trim
5= BXL Trim
HE32EF
T
R
I
M
A1 265/8" 676 mm
B1 383/8" 975 mm
A2 29" 737 mm
B2 4115/16" 1065 mm
A3 33" 838 mm
B3 44" 1118 mm
A4 28" 712 mm
B4 407/8" 1041 mm
A5 301/2" 775 mm
B5 46" 1171 mm
C283/4" 730 mm
D183/4" 476 mm
E111/2" 292 mm
F13" 330 mm
G22" 558 mm
H20" 508 mm
Q21" 533 mm
R28" 711 mm
S19" 433 mm
T113/4" 289 mm
U201/4" 514 mm
F
GH
D
E
C
A
B
R
SQ
T
U
R - Fireplace opening width
Q - Fireplace opening height
S - Firebox width at depth(T)
T - Firebox depth at back height (U)
U - Height at depth
MINIMUM FIREPLACE OPENING
F
I
R
E
P
L
A
C
E

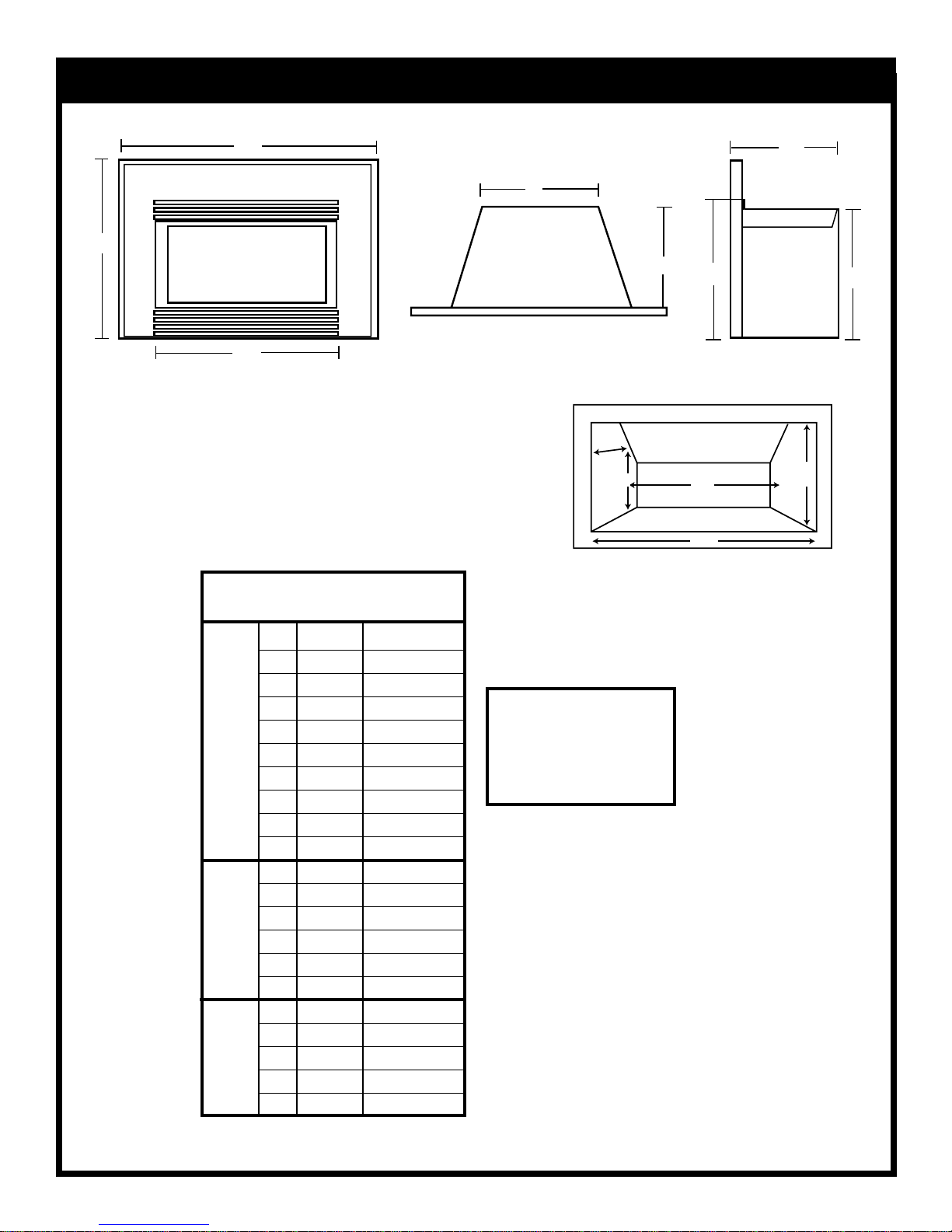

FIREPLACE DIMENSIONS

- 5 -
CLEARANCE TO COMBUSTIBLES
Non-combustible materials such as brick and tile can be
extended over the face of the unit (Do not cover louvres
or glass door). If a Trim Kit is going to be installed, brick
and tile will have to be installed flush with the side of this
appliance.
FINAL FINISHING
Cold climate installation recommendation:
When installing this unit against a non-
insulated exterior wall or chase, it is
mandatorythatthe outerwalls beinsulated
to conform to applicable insulation codes.
HEARTH
A hearth is not mandatory but it is recommended for
aesthetic purposes. We recommend a non-combustible
hearth which does not obstruct louvre opening.
24" MIN.
610mm
RAISED
MANTELS
When the fireplace is being installed into a woodburning
fireplace the minimum the mantel can be above the fire-
place is governed by local building codes applicable to
woodburning fireplaces. Consult local authorities having
jurisdiction for these clearances.
The underside of the mantel will get quite
warm. Use only finishes which are heat
resistant and do not discolour.
The fitting of the bay window kit does not
affect the dimensions or reference points in
the mantel chart.
Fig. 2
FRAMING & FINISHING
Before deciding on the frame dimensions and finishing
materialsitisimportanttoconsiderthefinisheddimensions
of the chosen fireplace trim kit (see options section of this
manual).
This information is required at this stage to ensure a
satisfactory finish when the trim kit is installed.
The use of wall paper adjacent to this fireplace
isnotrecommended,asthehighheatgivenoff
bythisfireplacemayadverselyeffectthebind-
ers in the adhesive used to apply the wallpa-
per.
Sides ....... 0 mm/0 inches
Sides ....... 0mm/0 inches
Floor........ 0 mm/0 inches
Top.......... 0 mm/0 inches
Ref. Mantel & Leg Ref. Mantel From Mantel Leg from
Shelf Depth Top of Comb. From Side of Comb.
Chamber Chamber
V 10" (254 mm) A 19" (305 mm) 10" (254mm)
W 8" (203 mm) B 17" (254 mm) 8" (203mm)
X 6" (152 mm) C 15" (203 mm) 6" (152mm)
Y 4" (101 mm) D 13" (152 mm) 4" (101mm)
Z 2" ( 51 mm) E 11" (101 mm) 2" (51mm)
MANTEL CHART
Fig. 3
X
Y
Z
WALL
TOP
LOUVRE
OPENING
E
D
C
B
A
W
V
SIDE VIEW
OPTIONAL
HEARTH
FRONT
GLASS
FIREBOX TOP
FIREPLACE

- 6 -
Fig. 4
Electrical outlet wiring must comply with
local building codes and other applicable
regulationstoreducetheriskoffire,electrical
shock and injury to persons.
ELECTRICAL CONNECTION
A15AMP,120Volt,60Hzcircuit withaproperlygrounded
outlet is required. Preferably, the fireplace will be on a
dedicated circuit as other appliances on the same circuit
may cause the circuit breaker to trip or the fuse to blow
when the heater is in operation. The unit comes standard
with a 6 ft. (1828mm) long three wire cord, exiting the right
side of the fireplace. Plan the installation to avoid the use
of an extension cord. If an extension cord must be used,
it must be a minimum 16AWG, three wire with grounding
type plug and connector and rated not less than 2025
Watts.
A new electrical outlet can be installed inside the frame
construciton, if permitted by local codes.
Do not use this fireplace if any part of it has
been under water. Immediately call a
qualified service technician to inspect the
fireplaceandreplaceanypartoftheelectrical
system which has been under water.
INSTALLATION OF LOGS
1. Turn off power to the unit.
2. Remove front glass (See "Glass Removal" section).
3. The log bottom is shipped in place. No adjustment is
necessary.
Hard (Direct) Wire Connection
If desired, a qualified electrician may remove the cord
conection and wire this unit directly to the household
wiring.
Any electrical re-wiring of this appliance
must be done by a qualified electrician.
WARNING: This fireplace comes with an
optionalmanualcircuit breakerreset beside
the On/Off switch. In case the fireplace is
notoperating check the circuit breaker and
reset the button at the breaker. If the
fireplace is still not operating immediately
callaqualifiedservicetechniciantoinspect
the fireplace.
HE32EF / DEF33 *
* HE32EF / DEF33 is a unitized log set.
CERAMIC REFRACTORY INSTALLATION
1. Remove the glass assembly.
2. Slide refractory panels on either side of the firebox
between firebox side and the upper lintel baffle.
3. Push panels against firebox side. If desired, secure
the panels to the sides of the firebox with some
adhesive, such as silicone.
4. Replace glass frame and upper louvre panel.

- 7 -
LOUVRE REMOVAL
SERVICE INSTRUCTIONS
To remove top louvre pull louvre up and then lift out.
See Figure 5.
Disconnect power before attempting any
maintenance or cleaning to reduce the risk
of fire, electrical shock or personal injury. GLASS INFORMATION
1. Under no circumstances should this product be
operated with missing or broken glass.
2. Do not strike or slam the glass.
3. Do not use abrasive cleaners to clean the glass.
4. This product uses tempered glass. Replacement of
the glass with gasket as supplied by the manufac-
turer should be done by a qualified service person.
REPLACING LIGHT BULBS
This fireplace uses three (3) clear 120 Volt, 60 Watt, E-
12 and one (1) clear 120 Volt, 5 Watt, E-12 socket base
light bulbs. (Small base, chandelier candle type). Three
(3) of the lights are located under the ember bed of the
unit. The fourth (4) light is found at the top of the firebox
above the log set. For convenience, if one of the bulbs
burns out, it may be a good idea to replace all of the light
bulbs.
Do not exceed 60 Watts per bulb. Use of
higher rated bulbs may result in a fire,
causing property damage, personal injury
or loss of life.
1. Turn off power to the unit.
2. Let fireplace cool if it has been operating.
3. Remove top louvre. (See Louvre Removal).
4. Remove glass door. (See Glass Frame Removal).
5. Remove the two screws securing the ember bed in
position. One screw is located on either side of the
ember bed near the front.
6. Examine the bulbs to determine which bulbs need to
be replaced.
7. While holding the socket, unscrew the defective
bulb(s).
8. Install the new light bulb(s) by screwing in while
holding the socket.
9. Reinstall ember bed, log set, glass door and top
louvre.
GLASS
PANEL
LOUVRE
1.
2.
Fig. 5
GLASS FRAME REMOVAL
1 .Remove the top louvre. (See "Louvre Removal" section)
2. Open the access door.
3. Remove two machine screws from the bottom of glass
frame.
4. Lift up and unhook glass frame at the top.
Before remounting glass frame, brass trim
must be installed. See instructions in
"Frame Mounting" section.
GLASS FRAME
SCREWS
OPEN ACCESS DOOR
MACHINE SCREWS
Fig. 6

- 8 -
MAINTENANCE OF MOTORS
The motors used on the fan and the drum assembly are
prelubricated for extended bearing life and require no
furtherlubrication. However,periodiccleaning/vacuuming
of the fan/heater is recommended.
Make sure that the power is turned off
before proceeding.
CLEANING BRASS TRIM
Clean the brass trim using a soft cloth, slightly dampened
withlemonoiland buff with a cleansoft cloth. Do NOTuse
brass polish or household cleaners as these products will
damage the brass trim. Lemon oil can be obtained at
supermarkets or hardware stores.
ELECTRICAL DIAGRAM
Wiring Colour Code:
WH= White
BL = Black
RE = Red
Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national and
local codes.
If repairing or replacing any electrical component or wiring, the original wire routing, colour coding
and securing locations must be followed.
Component Identification:
1. CFM-Majestic Factory Wire Required
2. Plug 0.093" Pin & Socket
3. Light Socket Assembly
4. Light Socket w/ Wiring Assembly
5. Light Bulb
6. Cord Power
7. Strain Relief
8. Breaker Circuit Manual Reset
9. Motor Variable Speed 12 VDC
10. Grommet 7/8
Component Identification:
11. Nylon Cable Tie 3-7/8"
12. Potentiometer
13. Dimmer SwitchRotary Assy
14. Thermostat
15. Switch
16. Speed Control
17. Receptacle Pin & Socket
18. Fan/Heater
9 BLACK
7 WHITE
6 BLACK
14 13
SWITCH
2 RED
1WHITE
2 RED
1WHITE
WHITE
18
MOTOR
FAN
HEATER ELEMENT
17
WHITE
BLACK
8 WHITE
6 BLACK
2 BLACK
8 WHITE
4
(OPTIONAL)
BREAKER CIRCUIT
8
18
2
AIR WHEEL FAN/HEATER WIRING DIAGRAM
1 BLACK
3 RED
7 WHITE
MOTOR
FAN
HEATER ELEMENT
11
9
16
15
12
11
17
10
11
3
5
10
11
5
19
11
6
7
10
WHITE
LIMIT
SWITCH
T' STAT
5 WHITE
4 BLACK
POTENTIOMETER
BLACK
RED
3 RED
SPEED CONTROL
MOTOR
DRUM

- 9 -
OPERATING INSTRUCTIONS
1. MAIN ON/OFF SWITCH
The On/Off switch supplies power to all of the functions of
the fireplace. This is an illuminated switch which normally
will light up when in the "On/Off" position.
Thecontrolcompartmentislocatedbehindthelowerlouvre
panel. To access the controls, simply flip down the lower
louvre panel. To locate the position of each control de-
scribed below, refer to Fig. 7.
During any service of this appliance, the
power to the unit must be turned off. It is
not acceptable to use the "On/Off" switch
to meet this requirement.
2. HEATER CONTROL
TheHeaterControlactstoturntheheateronandoffaswell
as setting the comfort level in the room. Turning the knob
clockwise from the off position will place the heater into
operation. The further the knob is rotated clockwise, the
higher the set point temperature. Turning the knob
counterclockwise will lower the set point temperature.
Turning it all the way counterclockwise will turn the heater
function off.
3. LOG ILLUMINATION CONTROL
The On/Off switch controls the light located above the log
set.
4. FLAME SPEED CONTROL
Turntheflamespeedcontrolknobtoincreaseordecrease
the flame speed as desired.
Fig. 7
CONTROL PANEL
10003375
10003375
I’avant de I’appareil de chauffage.
soient a au moins 3 pieds (0,9m) de
tentures et autres textiles domestiques
veiller a ce que les cordons electriques,
AVERTISSEMENT: Risque d’incendie,
d’alimentation avant le service.
AVERTISSEMENT: Debrancher la source
des details sur le service.
Voir les instructions d’installation pour
heater.
least 3 feet (0.9m) from the front of the
cords, draping, and other furnishings at
WARNING: Risk of fire, keep electrical
Servicing.
WARNING: Disconnect Power Before
details.
See Installation Instructions for service
1
2
3
4

- 10 -
REPLACEMENT PARTS - ELECTRIC FIREPLACE
#2 COMPLETE LOG SET
2
3
4 / 5
7
6
8
9
17
15
18
19
21
22
20
14
13
305mm [12"]
216mm [8 1/2"] (DISTANCE BETWEEN TWO SOCKETS}
216mm [8 1/2"] (DISTANCE BETWEEN TWO SOCKETS)
23
HE32EF
#1 COMPLETE LOG SET

- 11 -
REPLACEMENT PARTS LIST - ELECTRIC FIREPLACE
DESCRIPTION HE32EF
1. Log Set Complete 10003628
1a. Log Top Left N/A
1b. Log Top Right N/A
1c. Log Bottom N/A
2. Fan/Heater Assembly w/Bracket 10001815
3. Motor 12VDC (Flame generator) 10001978
4. Switch Rocker 53606
5. On/Off Switch (Illuminated) 10001393
6. Thermostat - Heater Control 10001971
7. Potentiometer - Flame Speed Control 10001168
8. Circuit Board - Flame Speed Control 10001589
9. Knob - Flame Speed, Heater Controls 10001639
10. Light Filter - Ember Bed (Not Shown) 10001259
11. Light Diffuser Screen (Not Shown) 10001836
12. Screen Tinted Plastic (Not Shown) 10001837
13. Glass with Gasket 10001518
14. Gasket Glass 10001882
15. Frame Window Assembly 57914
16. Light Diffuser - Ember Bed (Not Shown) 10001536
17. Flame Generator Assembly 10003618
18. Facia Control Assembly 10003377
19. Breaker Circuit Manual Reset 10003093
20. Cord Power 16 / 3 HPN w/Terminals 10003095
21. Receptacle .093" Pin & Socket 10003104
22. Plug .093" Pin & Socket 10003105
23. Socket Light Bulb Lower Assy 10003127

- 12 -
INSTALLATION
WARNING: UNPLUG OR TURN THE POWER TO THE APPLIANCE OFF PRIOR TO BEGIN-
NING THE INSTALLATION. IT IS NOT ACCEPTABLE TO USE THE “ON/OFF” SWITCH TO
MEET THIS REQUIREMENT.
1. Turn the power to the appliance off, or unplug it from the power supply.
2. Let fireplace cool if it has been operating.
3. Remove access panel radiance by lifting up and pulling out or open lower louvre assembly.
4. Remove two door retention screws along lower sides edge of door frame.
5. Swing lower portion of door out from the fireplace and gently lift up to disengage top of door from fire-
place (see FIG. 1).
6. Gently remove log set by removing the two screws securing the ember bed in position. One screw is
located on either side of the ember bed near the front.
7. Gently remove screen tinted plastic. Lift up to the top and swing lower portion of tinted plastic out from
bracket screen support on both sides and gently pull out slowly from fireplace.
8. Hold the fan/heater assembly and slide the assembly inside fireplace from bottom to top, turn assembly
to line up the fan/heater with bracket support in fireplace mounting with the two screw studs on bracket
support and fasten with #10-24 hex nuts provided.
9. Push connector receptacle pin and socket of the fan/heater assembly into the plug pin and socket on
fire box top.
10. Re-install screen tinted plastic, ember bed, log set, and glass door following the above procedure in
reverse.
11. Restore power to the appliance and place unit into operation check function of all of the controls
for proper operation.
Fan/Heater Assembly
FAN HEATER INSTALLATION

- 13 -

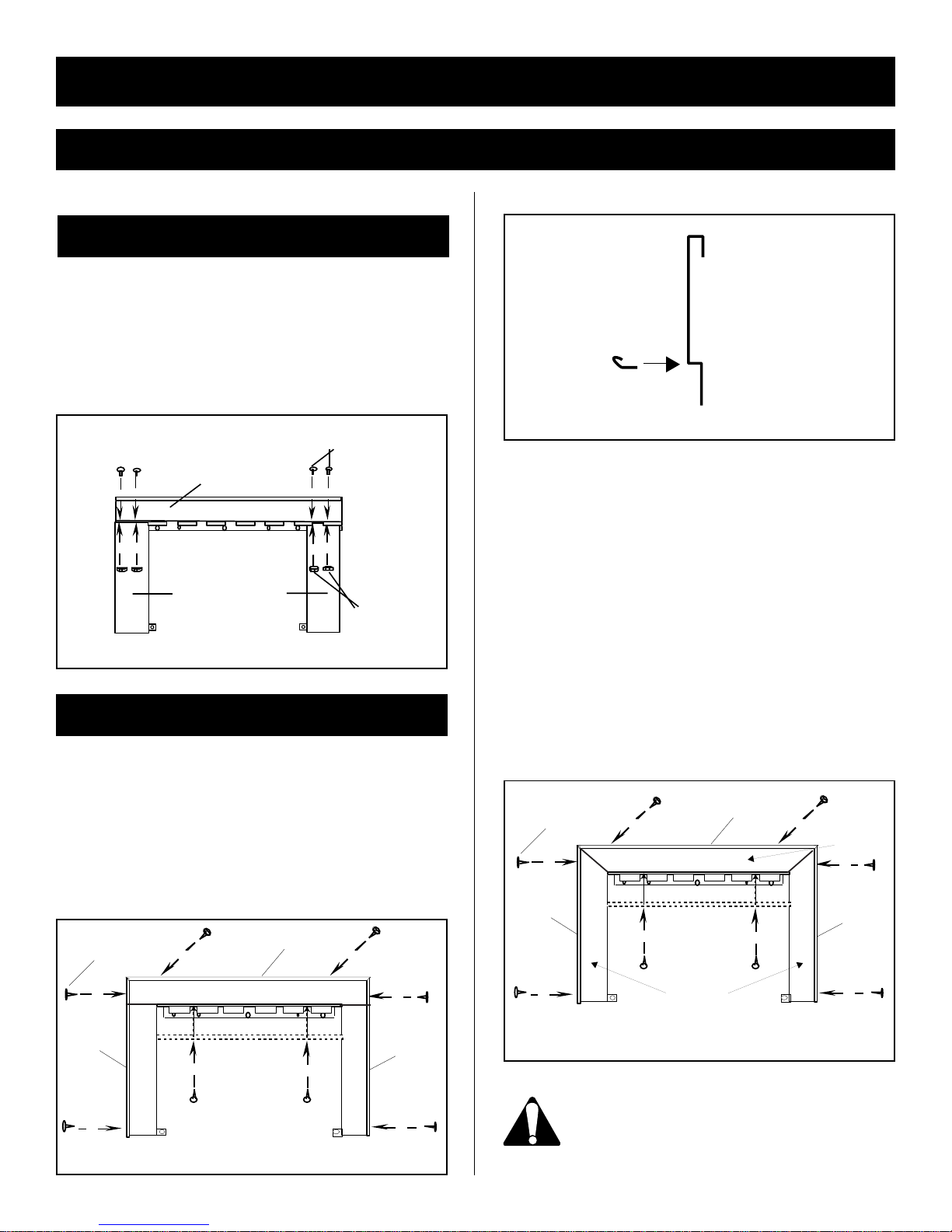

FRAME ASSEMBLY
1. LayTrimTopFacingandTrimSideFacings,facedown
onto an evensurfacesuch as atable or floor. Be sure
not to scratch the painted surfaces.
2. Install the nuts and bolts (Fig. 8).
Fig. 8
1) RHESS, RHESL, RHESSD, RHESLD & RHESXL TRIMS
RHESS, RHESL, RHESSD, RHESLD and RHESXL
TRIM SIDE
CHANNEL
TRIM SIDE
CHANNEL
TRIM TOP CHANNEL
SCREW
DEFLECTOR
TRIM TOP
AS SHOWN FROM FRONT
TRIM ASSEMBLY
1. Install trim channels (left and right sides). Use two
screws to assemble each piece.
2. Slide on the trim top channel and fasten it from the back
side.
3. Installthetrimtopdeflectorandusetwoscrewstofasten
it. (Fig. 9 & 10)
4. RemoveALLplasticprotectivecoveringfrombrasstrim.
Fig. 9
RHESS, RHESL, and RHESXL
1. Install trim channels (left and right sides). Use two
screws to assemble each piece.
2. Peel off plastic protective covering from top edges of
the inner sides where the facing iner top will cover.
3. Place the trim facing inner top in place (do not fasten it
yet). Peel off the plastic protective covering from the
bottom edge.
4. Install the trim top deflector and fasten it (will hold the
inner top piece). Use two screws to assemble them.
5. Install trim channels (left and right sides). Use two
screws to assemble each piece.
6. Slideonthetrimtopchannelandfastenitfromtheback
side.
7. Remove ALL plastic protective covering from brass
trim.
RHESSD and RHESLD (Fig. 11)
TRIM SIDE
CHANNEL
TRIM SIDE
CHANNEL
TRIM TOP CHANNEL
SCREW
DEFLECTOR
TRIM TOP
AS SHOWN FROM FRONT
TRIM FRAMING
INNER TOP
TRIM FRAMING
INNER SIDES
A flat louvre kit OR a bay window kit
needs to be chosen to complete the
installation.
LEFT
FRAME RIGHT FRAME
FRAME TOP
10/24
NUTS
10/24
SCREWS
FIG.1
AS SHOWN FROM BACK
Side View
Trim Frame Top Section
Trim Top Deflector
Fig. 10
TRIM OPTIONS FOR HE32EF
Fig. 11

- 14 -
1. Fit Decorative Frame to the fireplace and fasten
(Fig. 12)
Plastic on the trim must be removed before
mounting onto the fireplace.
Glass must be tightly pressed against the
front of the frame in order to prevent
screws from damaging glass edges.
Fig. 12
AS SHOWN FROM FRONT
SCREWS
FRAME MOUNTING
GENERAL INFORMATION
The Decorative Front Frame should be installed last
after all other work, has been completed and thoroughly
checked and tested for operation and proper installation
requirements.

- 15 -
KEY DESCRIPTION RHESS(2) RHESL(3) RHESSD(3) RHESLD(3) RHESXL(4)
1 Trim Frame Top, Flat Black 57929 57932 57929 57932 57935
2 Trim Frame Left, Flat Black 57927 57930 57927 57930 57933
3 Trim Frame Right, Flat Black 57928 57931 57928 57931 57934
4 Trim Top Deflector(1) 17634 17634 17634 17634 17634
5 Trim Top Channel(1) 50586 50587 17611 17612 52787
6 Trim Side Channel Left(1) 50589 50590 17623 17624 52788
7 Trim Facing Inner Top(1) - - 17609 17610 -
8 Trim Facing Inner Left(1) - - 17620 17619 -
9 Trim Facing Inner Right(1) - - 17622 17621 -
10 Fasteners Package (Not Shown) 55043 55043 55043 55043 55043
TRIM REPLACEMENT PARTS LIST
(1) Specify Finish (Antique or Polished Brass)
(2) SS and SSD trim dimensions are for openings smaller than 261/2"H x 38" W (673mm x 965mm)
(3) SL and SLD trim dimensions are for openings smaller than 29"H x 41" W (736mm x 1040mm)
(4) SXL trim dimensions are for openings smaller than 32"H x 43" W (813mm x 1092mm)
ALL repair parts will be available from your local dealer.
When ordering, always give the following information: Model and serial number, part description with finish and part
number;
5
1
236
6
4
7
89
1

- 16 -
TRIM ASSEMBLY
1. Install trim channels (left and right sides). Use two
screws to assemble each piece.
2. Slideonthetrimtopchannelandfastenitfromtheback
side.
3. Install the trim top deflector and use two screws to
fasten it. (Fig. 13)
4. Remove ALL plastic protective covering from brass
trim.
RHEBSL
Side View
Trim Frame Top Section
Trim Top Deflector
Fig. 13
Toinstallthekityoudo nothavetoremoveanypiece
of brass, you just add the external pieces.
Remove the frame trim from the unit if it is already
installed.
1. Installtrimchannels(leftandrightsides)byremoving
the two screws that hold the side brass trim and put
them back to hold both parts.
2. Slide on the trim top channel and fasten it from the
back side.
3. Remove the two screws that hold the top brass trim.
4. Install the two brackets to the studs in the bottom of
the top channel. Use the nuts supplied with the kit.
5. Reinstallthetwoscrews toholdthetoptrimchannel.
RHEBXL
2) RHEBSL & RHEBXL TRIMS
KEY DESCRIPTION RHEBSLP RHEBSLA RHESXLP(1) RHESXLA(1)
1 Trim Frame Flat Black 57926 57926 - -
2 Trim Top Deflector 17634-PB 17634-AB - -
3 Trim Top Channel 57864 57844 - -
4 Trim Side Channel 57862 57843 - -
5 Trim Outer Top Channel - - 57861 57845
6 Trim Outer Side Channel - - 57863 57846
7 Fasteners Package (Not Shown) 54618 54618 57633 57633
TRIM REPLACEMENT PARTS LIST
(1) RHEBXLP or RHEBXLA to be used with RHEBSSLP or
RHEBSLA trims.
(2) SL trim dimensions are for openings smaller than
271/2"H x 401/2" W (700mm x 1030mm)
(4) XL trim dimensions are for openings smaller than
30"H x 455/8" W (765mm x 1160mm)
ALL repair parts will be available from your local dealer.
When ordering, always give the following information: Model and serial number, part description with finish and part
number;
5
3
646
4
1
2

- 17 -
3) RHEFA and RHEFP TRIMS
Glass
Frame
Louvre
Note:
Position brass trim top as
shown (small end up)
to prevent heat discolouration
Fig. 14
Fig. 15
1. Remove the front glass (see "Glass Frame Re-
moval" section).
2. Install support window trim channel, top and bottom
brass trim by using the shortest black screw. (Fig.
14 & 15).
TRIM ASSEMBLY 3. Install bottom decorative plate by simply sliding it
under the unit floor. No fastening is required for
this installation (See Fig. 16). Be sure to remove
protective cover.
4. Install the bottom louvre assembly by fastening
the hinges with four screws to the pre-punched
holes in the cabinet.
5. Re-install the front glass.
6. Install the top louvre by using the hooks to hang it
in place.
KEY DESCRIPTION RHEFA RHEFP
1 Trim Window Top/Bottom 52624-AB 52624-PB
2 Plate Decorative Bottom 17597-AB 17597-PB
3 Top Louvre Assembly 57905 57905
4 Bottom Louvre Assembly 57906 57906
5 Support Window Trim Channel 57909 57909
6 Hinge 52356 52356
7 Fasteners Package (Not Shown) 57916 57916
ALL repair parts will be available from your local dealer.
When ordering, always give the following information: Model and serial number, part description with finish and part
number;
1
2
3
4
65
TRIM REPLACEMENT PARTS LIST
BOTTOM
DECORATIVE PLATE
Fig. 16
TRIM-TOP
GLASS FRAME
TRIM-BOTTOM
screws

- 18 -
4) HEBTKP, HESBTKP, HECBTK, HECBTKMB & HEBTA TRIMS
HECBTK - Cast bay window and grills in classic black trim kit
HECBKMB - Cast bay window and grills in midnight black porcelain enamel trim kit
HESBTKP - Steel bay window with polished brass and cast grills in classic black trim kit
HEBTKP - Steel bay window and bay louvres with polished brass trim kit
Installthebaywindowafterallotherinstallationworkhasbeencompleted,thoroughlychecked,andtestedforoperation,leaks
and proper installation requirements.
HECBTKP, HECBTKMB and HESBTKP Trim Assembly
1) Install the hanging brackets, as per Fig. 20.
2) Install the two ceramic pieces inside the bay window, as per fig. 19.
3) Install the bay window by hanging it onto the lower tabs of the hanging brackets, as per Fig. 21.
4) Install the upper grill by engaging the obround holes with the upper tabs of the hanging brackets, as per Fig. 22
5) Install brass trim to the steel frame as per Fig. 23 (Only for HESBTKP trim)
HEBTKP HESBTKP HECBTK &
HECBTKMB
Fig. 17 Fig. 18 Fig. 19
DO NOT REMOVE EXISTING GLASS WITH FRAME

- 19 -
HEBTKP Trim Assembly
1) Install the hanging brackets, as per Fig. 20
2) Install bracket on each side of the cabinet as per Fig. 24.
3) Install the two ceramic pieces inside the bay window, as per Fig. 19.
4) Install the bay window by hanging it onto the lower tabs of the hanging brackets, as per Fig. 21.
5) Install top louvre by engaging the obround holes with the upper tabs of the hanging brackets, as per Fig. 22.
6) Install brass trim to the steel frame as per Fig. 23.
Fig. 20. Hanging Bracket alignment.
Fig. 23.Attach magnets and brass trim to the steel
frame.
Fig. 24.Bracket for HEBTKP.
Fig. 21 Hang the Window Grille or the Steel Frame
onto the lower tabs of the Hanging Brackets.
Fig. 22.Engage the slots in the Upper Grille Top
Louvre with the upper tabs of the Hanging
Brackets.

- 20 -
KEY DESCRIPTION HECBTK HECBTKMB HESBTKP HEBTKP HEBTA
1 Trim Window Top/Bottom (1) - - 55188-PB 55188-PB 55188-AB
2 Plate Decorative Bottom - - - 52828-PB 52828-AB
3 Top Louvre (Grill) Assembly 1301199 1341199 1301199 57945 -
4 Bottom Louvre (Grill) Assembly - - - 57947 -
5 Control Door 1301200 1341200 1301200 57946 -
6 Bottom Louvre Left 1301219 1341219 1301219 - -
7 Bottom Louvre Right 1301218 1341218 1301218 - -
8 Bay Window Frame 1301198 1341198 1409127 1409127 -
9 Glass Side 1601971 1601971 1601971 1601971 -
10 Glass Front 1601957 1601957 1601957 1601957 -
11 Ceramic Refractory Bay (Set) 1601939 1601939 1601939 1601939 -
12 Bracket Hanging Bay Window 10002026 10002026 10002026 10002026 -
13 Bracket Mounting Bay Window - - - 57877 -
14 Hardware Pkg. (Not Shown) 10000108 10000108 10000108 10000530 -
TRIM REPLACEMENT PARTS LIST
(1) With magnets.
ALL repair parts will be available from your local dealer.
When ordering, always give the following information: Model and serial number, part description with finish and part
number;
HEBTKP HESBTKP HECBTK & HECBTKMB
1
3
8
4
10
5
2
6
9
10
5
7
8
6
10
3
8
7
5
12
11
13
9
9
