Majestic Al Fresco ODSR36A Mounting instructions

ODSR Series "A"
Outdoor Woodburning Fireplace
For Models:
ODSR36A
ODSR42A
For use in U.S./Canada
Underwriter's Laboratories Report No. MH6018
948
SR cover
11/18/97
20006811 3/06 Rev. 4
DO NOT DISCARD THIS MANUAL - Retain for future use.
Homeowner's Installation
and Operating Manual

2
Majestic Fireplaces® ODSR Series "A"
20006811
ODSR36A / ODSR42A
Listed
UL 127 / ULC-S610
Standard for Factory Built Fireplaces
Safety Information
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Drafts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Gas Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Specifications and Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Chase Installation and Parts Identification . . . . . . . . . . . . . . . . . . . . . . . 4
Chimney Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Planning Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Mounting the Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Planning the Chimney Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
The Ten Foot Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chimney Supports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chase Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Insulating Fireplace Enclosure for Cold Climates . . . . . . . . . . . . . . . . . . . 7
Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Chimney Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Straight-Up Chimney Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Offset Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ceiling Chimney Hole/Possible Obstructions . . . . . . . . . . . . . . . . . . . . . . 8
Cutting the Hole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Framing the Ceiling Hole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Positioning, Safety Strips, Securing the Fireplace . . . . . . . . . . . . . . . . . . 9
Installing Outside Air Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Chimney System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Finishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Side Wall Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Hearth Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing Line for Gas Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table of Contents
Units: GF1SR6, GF1SR2

3
Majestic Fireplaces® ODSR Series "A"
20006811
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING FIREPLACE.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instruc-
tions may result in a possible fire hazard and will void the warranty.
Description
The ODSR Series "A" fireplaces are clean-faced, solid
fuel, woodburning fireplaces.
Precautions
Majestic Fireplaces and component parts have been
highly tested and will operate safely when installed in
accordance with instructions provided in this manual.
Carefully read and understand all instructions before
beginning installation.
If you notice any damage to fireplace or component parts,
immediately report damage to your Majestic Fireplaces
dealer.
Only use CFM Corporation components or the warranty
will be voided and a fire hazard may be created.
CFM Corporation warranty will be voided by and CFM
Corporation disclaims any responsibility for the following
actions:
• Installation of any damaged fireplace or chimney
component;
• Modification of fireplace, chimney assembly or any
component parts thereof; (except for chase flashings
as detailed in CFM Corporation Chimney Top instal-
lation instructions).
• Installation other than as instructed by CFM Corpora-
tion; or
• Installation and/or use of any component part not
manufactured or approved by CFM Corporation in
combination or assembly with a CFM Corporation
fireplace system, notwithstanding any independent
testing laboratory or other third party approval of
such component parts or accessory.
Any such action may possibly cause a fire hazard.
Consult local building codes to ensure that you are in
compliance before installing the fireplace.
Fireplaces must be vented to the out-of-doors.
WARNING: To avoid the risk of damaging fireplace
materials and increasing the risk of spreading a fire,
do not use the fireplace to cook or warm food.
Do not obstruct or modify air inlets/outlets in any
manner.
Do not install combustible materials on any of the
fireplace surround.
Burn only solid wood fuel or gas logs.
Do not install a solid fuel burning insert or other
products not specified for use with this fireplace.
These fireplaces are not approved for installation in
mobile homes.
This fireplace is not designed to be water tight.
Therefore, when installing this unit against an exte-
rior wall, the wall must be finished before setting unit
in place.
NOTE: These units are intended for outdoor use in the United States and Canada using the 'SK' chimney sys-
tem. These units may also be used outdoors in the United States and Canada using the 'S' chimney system
with an adapter. These units may also be used indoors.
Drafts
The fireplace should not be located in areas that create
drafts (ie: frequently opened doors and central heating air
inlets/outlets) that hamper the normal flow of air into the
fire.
Gas Logs
If you plan to install a gas log, the gas line should be
installed before framing the fireplace. The gas line must
be installed by a certified gas line installer.
Cleaning
There are three methods of cleaning the polished stain-
less steel of your outdoor fireplace;
1. Warm, soapy water - to loosen any dirt film
2. Glass cleaner with ammonia
3. Stainless steel cleaner available at hardware stores
Regardless of which method is used, remember that any-
thing with too much abrasive may dull the finish.
Proposition 65 Warning: Fuels used in gas, wood-
burning or oil fired appliances, and the products of
combustion of such fuels, contain chemicals known to
the State of California to cause cancer, birth defects
and other reproductive harm.
California Health & Safety Code Sec. 25249.6
Safety Information

4
Majestic Fireplaces® ODSR Series "A"
20006811

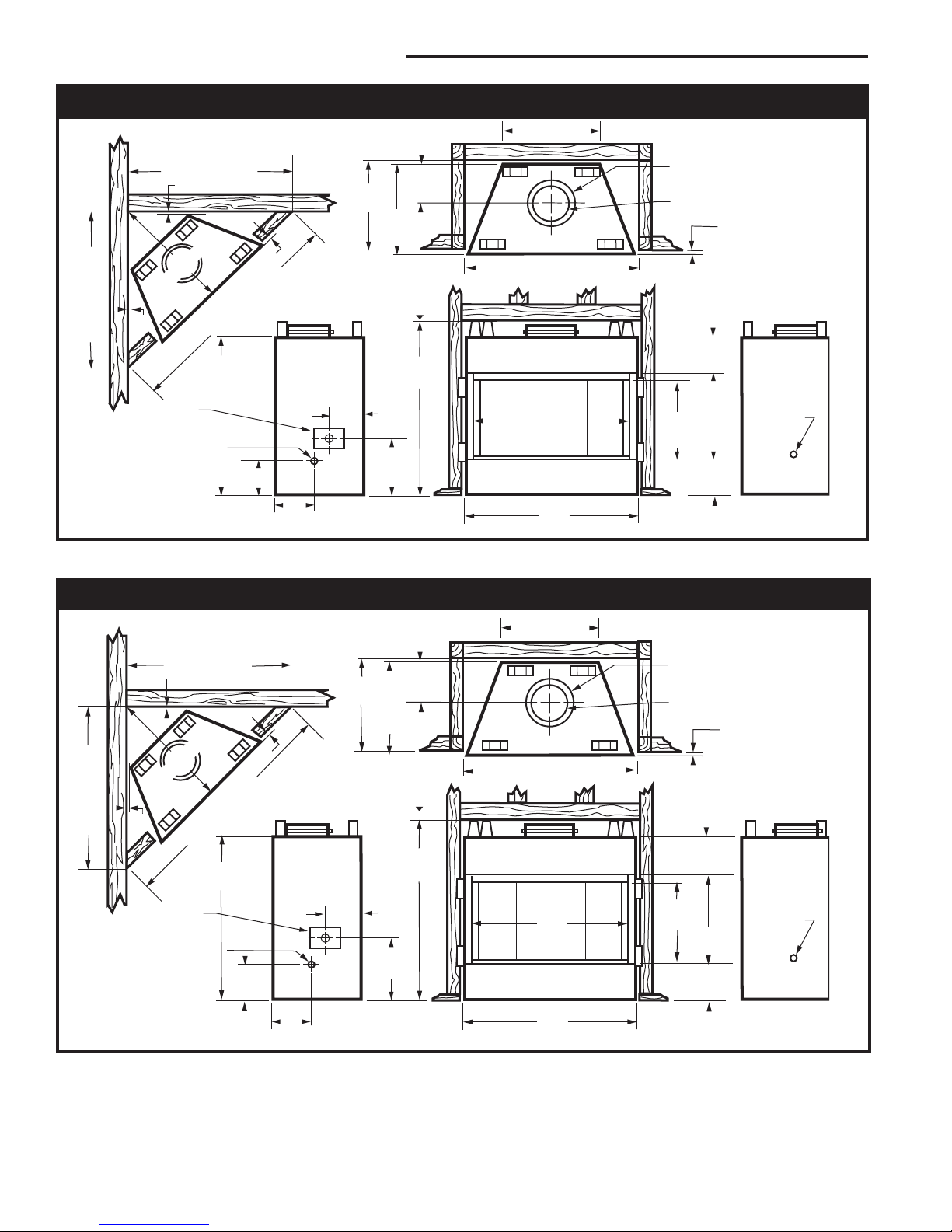

Fig. 2 ODSR42A specifications and framing.
ODSR42A Woodburning Fireplace — Circulating Model
42"
(1067mm)
46"
(1168mm)
39"
(1006mm)
5/8"
(16mm)
5/8" (16mm)
1/2" (13mm)
1/2"
22"
(578mm)
24"
(610mm)
7"
(197mm)
7"
(191mm)
Gas Line
Access
Recessed
Nailing
Flange
FP591
SR42 SPECS
10/28/98
7/6/99 djt
correct dims.
11" Dia.
(279mm)
Rough Opening Width 47"
Rough
Opening
Height
Rough
Opening
Depth
50" (1270mm)
50" (1270mm)
70" (1791mm)
8"
(210mm)
22"
(559mm)
22"
(572mm)
26"
(667mm)
43"
(1111mm)
14"
(372mm)
11"
(279mm)
8"
(203mm)
7"
(191mm)
Outside
Air
Gas Line
Access
(1194mm)
8" Dia.
(203mm)
36" (914mm)
ODSR36A Series Woodburning Fireplace
Fig. 1 ODSR36A specifications and framing.
36"
(914mm)
14"
(372mm)
11"
(279mm)
40"
(1016mm)
39"
(1006mm)
5/8"
(16mm)
5/8" (16mm)
48" (1232mm)
48" (1232mm)
1/2" (13mm)
1/2"
68" (1740mm)
8"
(210mm)
22"
(559mm)
22"
(572mm)
22" (559mm)
22"
(578mm)
24"
(610mm)
43"
(1111mm)
8"
(203mm)
7"
(197mm)
7"
(191mm)
7"
(191mm)
Outside
Air
Gas Line
Access
Gas Line
Access
Recessed
Nailing
Flange
6811
ODSR36
specs
9/03
11" Dia.
(279mm)
Rough Opening Width 41"
Rough
Opening
Height
Rough
Opening
Depth
(1041mm)
8" Dia.
(203mm)
34" (876mm)

5
Majestic Fireplaces® ODSR Series "A"
20006811
FP554
BR/BC
Combo of IWF261 AND IWF265
11/10/97
Chase Installation
Insulation methods shown are optional
for cold climate, not a requirement for
unit operation.
FP554
Fig. 3 Fireplace and chase parts identification.
Termination Cap
Storm Collar
Pan Flashing
Draftstop
Batt Insulation
(cut out around
fiestop)
Firestop
Ceiling Level
Nailing Flange
Gas Line Access
(both sides)
Electrical Access
Outside Air Cover Plate Metal Safety Strips
(1, 2 or 3 pieces)
Firebox
Grate
Screen
Gas Line Knockout
(both sides)
Damper Control
Surround
Standoff
FP1001
fireplace setting
1/4/00 djt
10'
(3m)
Min.
6'4"
(1.9m)
Min.
NOTE: If the fireplace is a
freestanding unit, it must be
located a minimum of 10'
(3m) from the opening of
the firebox to a combustible
structure.
A minimum height of 6'4"
(1.9m) measured from the
base of the firebox to the bot-
tom of the termination cap is
permitted.
FP1001
Fig. 4 Freestanding installation.

6
Majestic Fireplaces® ODSR Series "A"
20006811
0 0 0 0 0 3" 11"
1 0 0 0 0 8¹⁄₄" 20"
0 1 0 0 0 11¹⁄₄" 25¹⁄₄"
2 0 0 0 0 13¹⁄₂" 29¹⁄₄"
1 1 0 0 0 16¹⁄₂" 34¹⁄₄"
0 0 1 0 0 20¹⁄₄" 40³⁄₄"
2 1 0 0 0 21³⁄₄" 43¹⁄₂"
0 0 0 1 0 26¹⁄₄" 51¹⁄₄"
0 1 1 0 0 28¹⁄₂" 55¹⁄₄"
1 0 0 1 0 31¹⁄₂" 60¹⁄₄”
0 1 0 1 0 34¹⁄₂" 65¹⁄₂"
0 0 2 0 0 37¹⁄₂" 70³⁄₄"
1 1 0 1 1 41¹⁄₂" 77³⁄₄"
0 0 1 1 1 45" 83³⁄₄"
0 1 2 0 1 47¹⁄₄" 87¹⁄₂"
0 0 0 2 1 51" 94"
0 1 1 1 1 53¹⁄₄" 98"
0 0 3 0 1 56¹⁄₄" 103¹⁄₄"
0 1 0 2 1 59¹⁄₄" 108¹⁄₂"
0 0 2 1 1 62¹⁄₄" 113¹⁄₂"
0 1 3 0 1 64¹⁄₂" 117¹⁄₂"
0 0 1 2 1 68¹⁄₄" 124"
0 1 2 1 1 70¹⁄₂" 128"
0 0 0 3 1 74¹⁄₄" 134¹⁄₂"
0 1 1 2 2 78" 140³⁄₄"
0 0 3 1 2 81" 146"
0 1 0 3 2 84" 151¹⁄₄"
0 0 2 2 2 87" 156¹⁄₂"
0 1 3 1 2 89¹⁄₄" 160¹⁄₄"
0 0 1 3 2 93" 166³⁄₄"
0 1 2 2 2 95¹⁄₄" 170³⁄₄"
0 0 0 4 2 99¹⁄₄" 177³⁄₄"
0 1 1 3 2 101¹⁄₄" 181³⁄₄"
0 0 3 2 2 104¹⁄₄" 186¹⁄₄"
0 1 0 4 2 107¹⁄₄" 191¹⁄₂"
0 0 2 3 2 110¹⁄₄" 196³⁄₄"
0 1 3 2 3 114" 203¹⁄₄"
0 0 1 4 3 117³⁄₄" 209³⁄₄"
0 1 2 3 3 120" 213¹⁄₂"
0 0 0 5 3 123³⁄₄" 220"

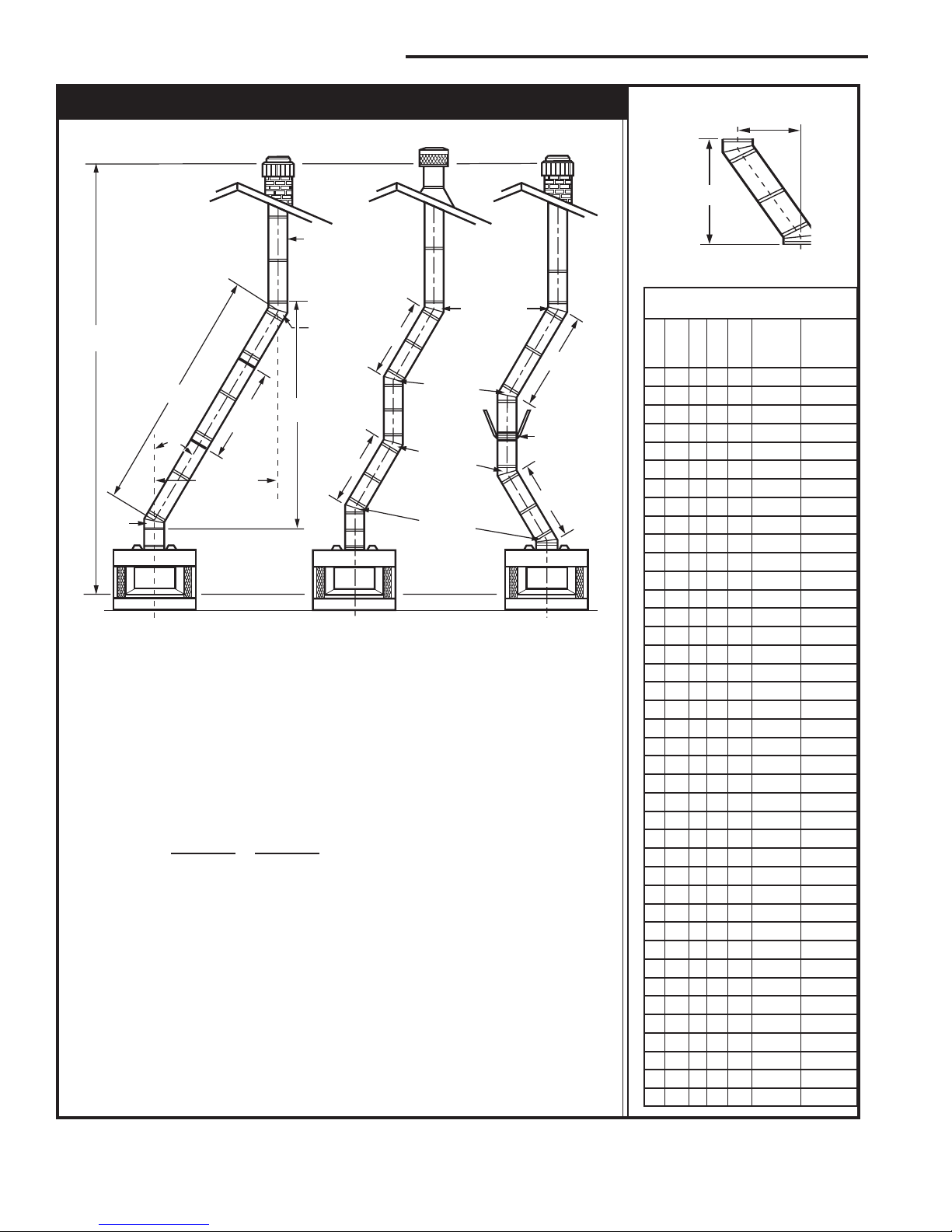

Chimney Requirements - Offset Installations
30˚ Elbow Offsets
1' 1¹⁄₂'3' 4'
Chimney Support
Offset Rise
Notes: G + H cannot exceed 20 feet.
Air Space Clearances: SK8 (2-wall) = 1¹⁄₂" and "S" Series (3-wall) = 2"
Illustration Key
The following safety rules apply to offset
installations (letters correspond with il-
lustration above):
A. Height of the chimney is measured
from the hearth to the chimney exit.
ODSR36A ODSR42A
Maximum: 90'0" 90'0"
Minimum:
Without Elbows 12' 6" 12' 6"
With 2 Elbows* 14' 6" 14' 6"
With 4 Elbows* 21' 0" 21' 0"
B. Do not use more than 4 elbows per
chimney.
Attach the straps of the return (top) elbow
to a structural framing member.
The offset (first) elbow of any pair does
not have straps.
IWF269
C. The chimney cannot be more than 30˚
(45˚ in Canada) from the vertical plane in
any installation*.
D. The maximum length of the angled run
of the total chimney system is 20 feet. (G
plus H cannot exceed 20 feet.)
E. A chimney support (Model SKCS8)
is required every 6 feet of angled run of
chimney. Chimney supports are required
for every 30 feet and 60 feet (SK8 pipe)
or 20 feet and 40 feet (3-wall pipe) of ver-
tical chimney height above the hearth.
Determine the offset distance of your
chimney arrangement from the centerline
of the fireplace to the centerline of the
chimney where it is to pass through the
first ceiling.
NOTE: This offset distance may not be
your full offset distance. See Examples 2
and 3.
FP282
MBUF
5/26/96
OFFSET
RISE
IWF282
* In Canada, two (2) SK845 are allowed.
Fig. 5 Chimney system requirements.
D
RISE
BG
H
B
OFFSET
C
E
6 FT.
G
H
A
HEARTH
FLOOR
CHIMNEY
SECTION
CHIMNEY FLUE EXIT
ELBOW
FP269
MBUF
5/16/96
rev. 5/25
30˚
OFFSET
ELBOW
30˚
OFFSET
ELBOW
30˚
RETURN
ELBOW
30˚
RETURN
ELBOW
SKCS8
SUPPORT
Example 1 Example 2 Example 3

7
Majestic Fireplaces® ODSR Series "A"
20006811
Planning Information
Preplanning an installation is very important to ensure
safety and to save time and money. An installer must
predetermine where a fireplace will be set and how the
chimney system will be run.
Mounting the Fireplace
A fireplace may only be mounted on the following sur-
faces:
1. A flat combustible surface.
2. A raised wooden platform.
3. A concrete block or other solid object placed beneath
each of the four (4) corners of the fireplace.
The fireplace must be spaced 1/2" (13 mm) from a
combustible back wall and 1/2" (13 mm) from a com-
bustible side wall or support. (Page 12, Fig. 19)
Planning the Chimney Run
5. No more than 2 offsets (4 total 30° elbows in U.S./or
2 total 45° elbows in Canada) per fireplace may be
used.
6. A guy wire stabilizer is required for chimneys extend-
ing more than 6' (1.8 m) above a roof line.
The Ten Foot Rule
Major U.S. building codes specify a minimum chimney
height above the roof top. The “Ten Foot Rule” is a fire
safety rule and not a draft rule. To ensure proper draft,
it is recommended that you always meet or exceed the
“Ten Foot Rule,” especially when installing a termination
on a high pitch roof. (Fig. 7)
The key points of the "Ten Foot Rule" are:
1. If the horizontal distance from the chimney to the
peak of the roof is 10' (3 m) or less, the top of the
chimney must be at least 2' (610 mm) above the
peak of the roof, but never less than 3' (914 mm)
in height above the highest point where it passes
through the roof.
2. If a horizontal distance from the chimney to the peak
of the roof is more than 10' (3 m), a chimney height
reference point is established on the surface of the
roof a distance of 10' (3 m) from the chimney in a
horizontal plane. The top of the chimney must be
at least 2' (610 mm) above the reference point, but
never less than 3' (614 mm) in height above the high-
est point where it passes through the roof.
Determine how the chimney will be run, length of run
and chimney components required to complete the
job. (Fig. 5) Never install a chimney below minimum
heights.
In planning a chimney system, it is important to know:
1. The height of a chimney is measured from the
hearth to the exit point on the termination.
2. A chimney cannot be offset more than 30° from a
vertical plane.
3. A chimney may run straight up or it may be neces-
sary to offset it to avoid obstructions.
4. The maximum length of an angled run (total chimney
system) is 20' (6 m).
L1
L1
LTMODEL SK
2 WALL CHIMNEY
TOTAL
LENGTH
(LT)
INSTALLED
LENGTH
(L1)
SK81
SK818
SK83
SK84
11"
17"
35"
47"
10"
16"
34"
46"
FP288
MBUF-INSTALLED LENGTH
6/17/96
Fig. 6 Installed lengths of chimney sections.
WF288
AC246

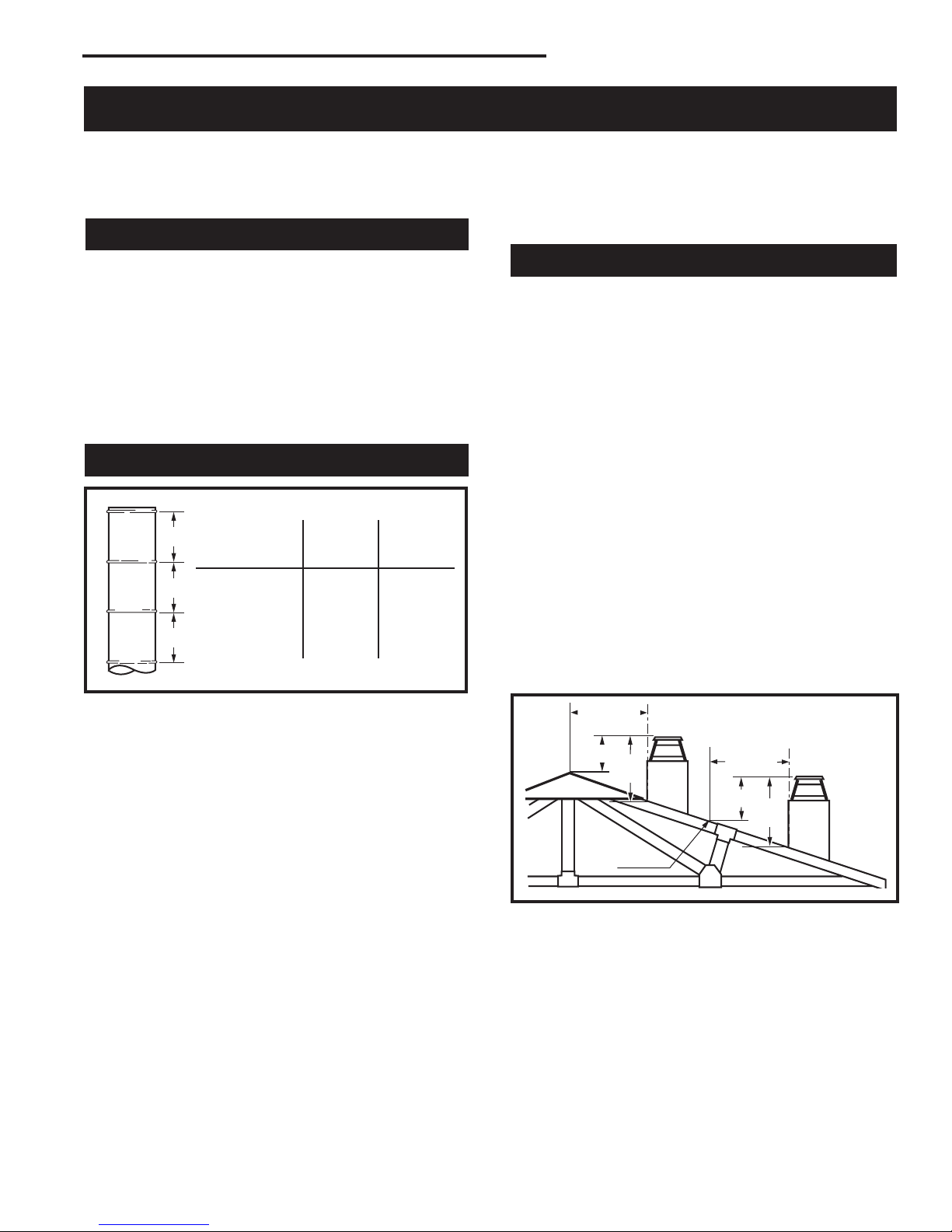

Fig. 7 Ten Foot Rule illustration.
2' Min.
2' Min.
3'
Min.
0 To 10'
3'
Min.
0 To 10'
AC246
4/1/96
Reference
Point

8
Majestic Fireplaces® ODSR Series "A"
20006811
Insulating Fireplace Enclosure
for Cold Climates
If you live in a cold climate, it is not required but
highly recommended that you insulate fireplace
enclosure to eliminate cold air penetration as much
as possible.
Insulate base of fireplace with a noncombustible
insulation rated for a minimum of 300°F. Insulating
is very important for outside wall installations over
a concrete slab. If fireplace is installed on a platform,
insulation should be placed on top of the platform
before fireplace is set. (Fig. 9)
When a fireplace is installed in a chase or on an
outside wall, enclosure should be treated like any
outside wall in a home. Insulation should be installed
on the inside wall as well as the outside wall(s). In
a chase, it is also a good idea to install a firestop at
the first ceiling level above the fireplace and enclose
the chase with sheeting material. Insulation may
then be installed above sheeting material to assure
the space around the fireplace is totally protected.
(Fig. 3)
When installing the chimney, DO NOT caulk be-
tween outer pipe and firestop. It is vital that some air
be allowed to flow through this very thin gap.
CAUTION: WHEN INSTALLING A FIREPLACE IN
AN INSULATED ENCLOSURE, BE SURE ALL RE-
QUIRED AIR SPACES ARE MAINTAINED. (Page
12, Fig. 19)
Installation
Chimney Supports
The chimney system is supported by the fireplace for
vertical chimney heights less than 30' (9 m) above the
hearth. Chimney supports are required if the vertical
height exceeds 30' (9 m) with SK8 chimneys or 20' (6 m)
with 3-wall chimneys. Locate chimney supports at ceil-
ing holes or other structural framing at 30' (9 m) (SK8)
or 20' (6 m) (3-wall) heights. Spacing between chimney
supports must not exceed 30' (9 m) (SK8) or 20' (6 m)
(3-wall). Use Chimney Support Model SKCS8. (NOTE:
The SKCS8 can not be mounted directly to the
fireplace.) Support provided by elbow straps fulfills the
support requirement only if they are spaced as previ-
ously described. (A chimney support is 2¹⁄₂" (64 mm)
long when installed.)
Angled chimney runs require a support every 6' (1.8 m)
in addition to the elbow straps. Chimney supports are
used for this function. (Fig. 8)
Chase Installation
A chase is a vertical boxlike structure which encloses
the fireplace and/or chimney. Chases are typically built
on the outside of the house with fireplace opening cut
into the outer wall of a room. (Page 4, Fig. 3)
If you need help in determining fireplace location or how
the chimney system should be run, contact your Majes-
tic Fireplaces dealer for assistance.
FP284
Fig. 8 Chimney support installation
FP284
MBUF
5/25/96
Chimney Sup-
port Strap
SKCS8
FP555

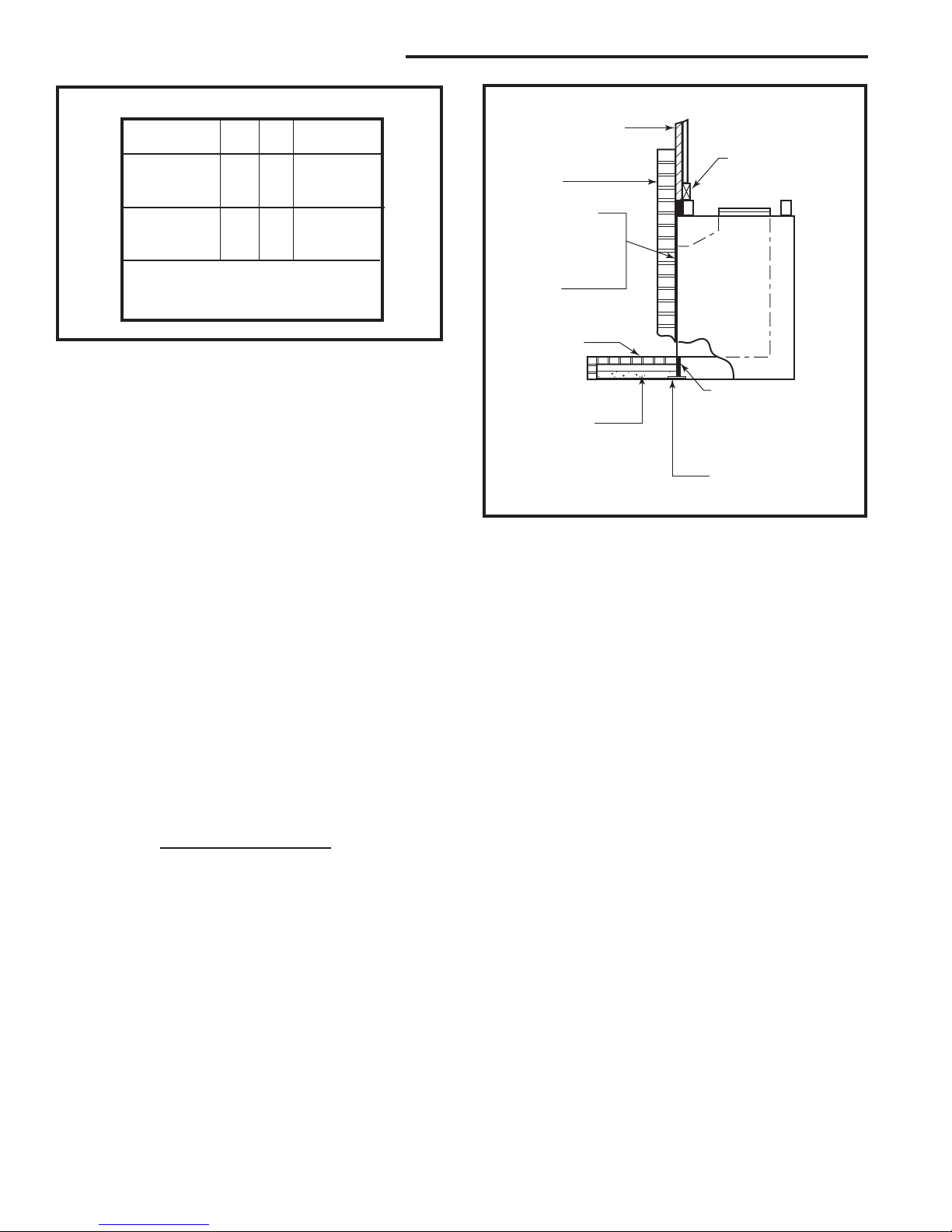

Fig. 9 Insulating between platform and fireplace.
FP555
BR
11/10/97
Hard Flat
Surface
Insulation
Platform

9
Majestic Fireplaces® ODSR Series "A"
20006811
FP556

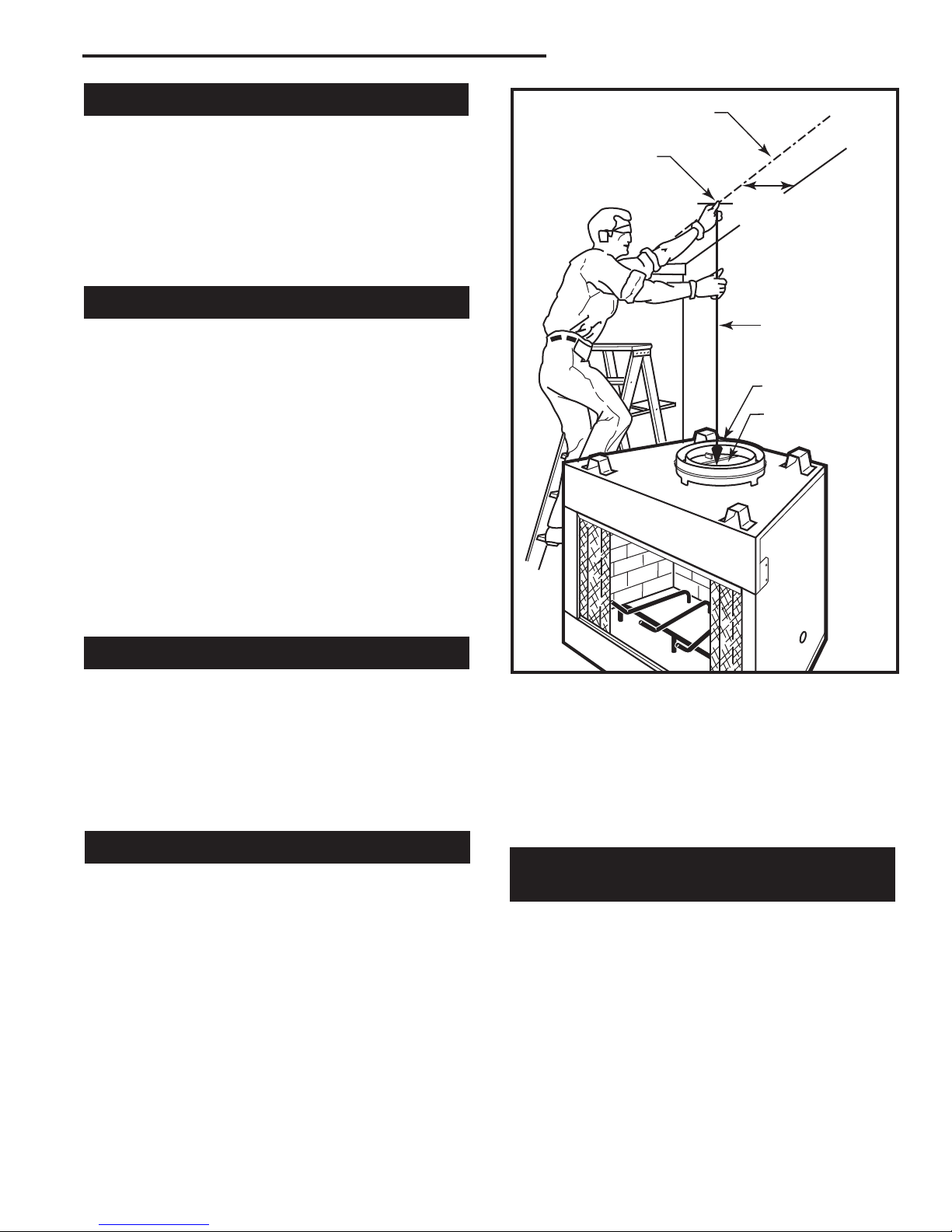

Fig. 10 Locate centerline of chimney with plumb line.
FP556
BR/BC
LOCATE CENTER LINE
11/10/97
9¹⁄₄"
(235mm)
Chimney Centerline
Actual Centerpoint
Plumb Line
Plumb Bob
Imaginary
Centerpoint
Framing
Framing can be constructed before or after the fireplace
is set in place, however, most installers build the frame
before setting the fireplace.
Frame fireplace with 2 x 4 lumber or heavier materials.
Refer to framing dimensions in Figures 1, 2, 3 or 4 for
basic fireplace specifications.
NOTE: Framing should be positioned to accommodate
wall covering and fireplace facing material.
Chimney Setup
Since you have already preplanned the chimney run,
you should know exactly how the installation is to be
accomplished — how much pipe is required, the num-
ber of elbows, if any, and type of termination to be used.
CAUTION: REPORT TO YOUR DEALERS ANY
PARTS DAMAGED IN SHIPMENT, SPECIFICALLY
CHECK THE END CONNECTION OF CHIMNEY SEC-
TIONS AND ELBOWS.
NOTE: Fireplaces may use CFM Corporation model
SK8, or Model S (three wall) chimney systems. The
ODSR Series "A" Fireplace will accept the SK8 chimney
system as is; but a TWABR adapter collar is required
when using the Model S (triple wall) chimney system.
The installation procedure described in this manual ap-
plies only to the SK8 system. Either chimney system
may be used, but may not be mixed.
Straight-Up Chimney Installation
To mark the centerline of the flue, put the fireplace
in final position and measure out from the wall: 9¹⁄₄"
(235mm). Mark a spot on the ceiling directly above the
fireplace. Draw a line parallel to the back wall through
this mark. (Fig. 10)
Using a plumb bob positioned directly over center point
of fireplace flue collar, mark the ceiling to establish the
chimney center point. (Fig. 10)
Offset Installation
In order to clear an obstruction, it may be necessary
to offset chimney from vertical. This is accomplished
by using CFM Corporation elbows. Use the 30° Offset
Elbow table on Page 5 to determine proper offset and
parts required.
Each offset requires two (2) elbows. The second elbow
is equipped with support straps. It is very important to
install the second elbow in each offset as close to the
ceiling or support as possible so that the elbow straps
can be secured to framing members to help support the
weight of the chimney.
Determine offset distance of your chimney arrangement
from centerline of fireplace to centerline of chimney
where it is to pass through ceiling.
Locate center point of the chimney on ceiling as though
a straight up chimney arrangement is to be used. Mea-
sure your offset dimension from straight up chimney
center point on ceiling.
Ceiling Chimney Hole/
Possible Obstructions
The size of the hole in ceiling will vary with the angle at
which the chimney passes through ceiling.
Drive a nail up through ceiling at marked chimney cen-
ter point. Go to floor above and see where hole will be
cut. Check to see where existing ceiling joists and other
possible obstructions are located...i.e. wiring, plumbing
etc... If necessary, reposition chimney and/or fireplace
to avoid obstructions.

10
Majestic Fireplaces® ODSR Series "A"
20006811

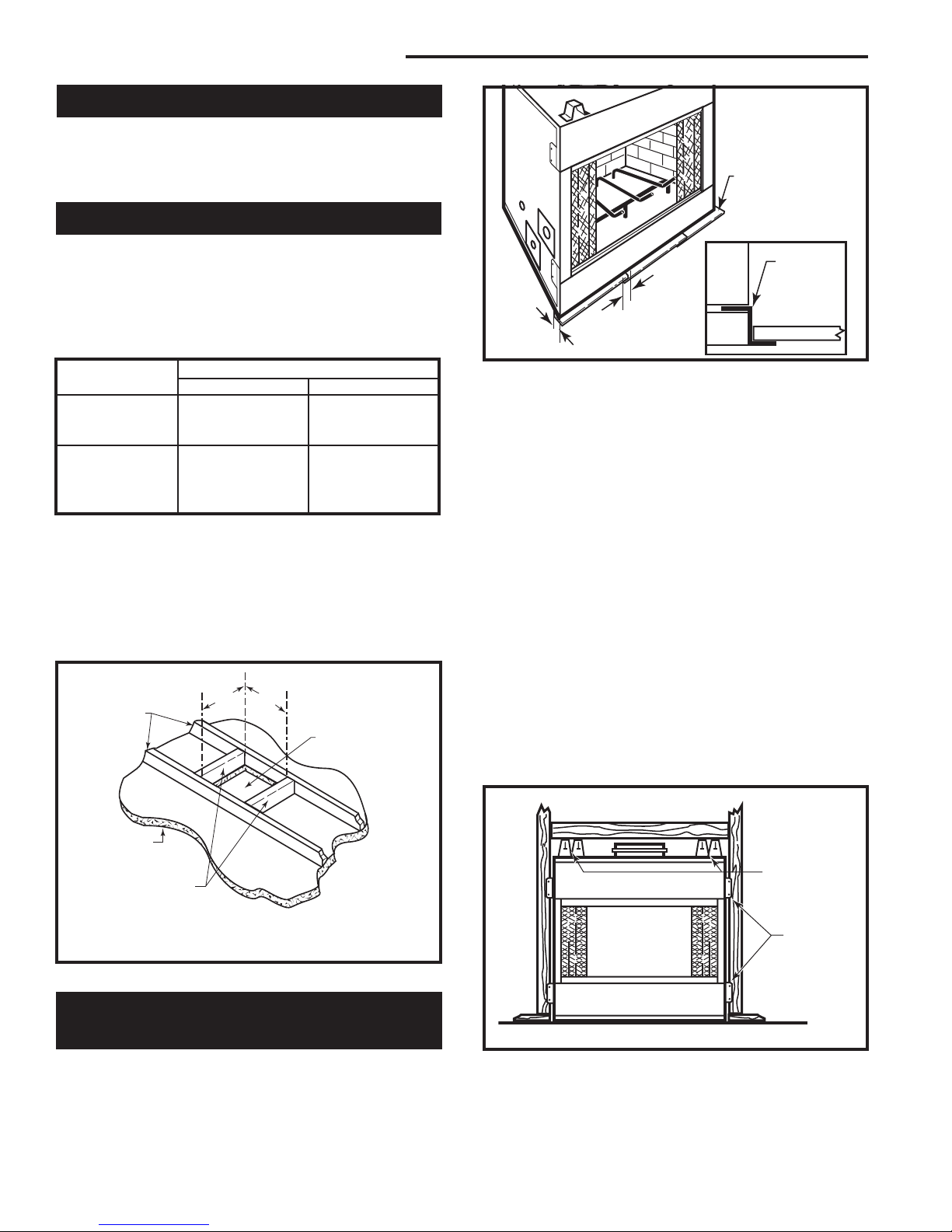

Cutting the Hole
Cover fireplace collar opening and cut proper sized
chimney hole in chimney. The SK8 pipe allows you to
run pipe through a typical 16” on center joist without
cutting joists.
Framing the Ceiling Hole
Frame the ceiling chimney hole as shown in Figure
12. It is good practice to use framing lumber that is the
same size as the ceiling joists; this is a requirement at
attic level.
The following table gives firestop spacer model num-
bers:

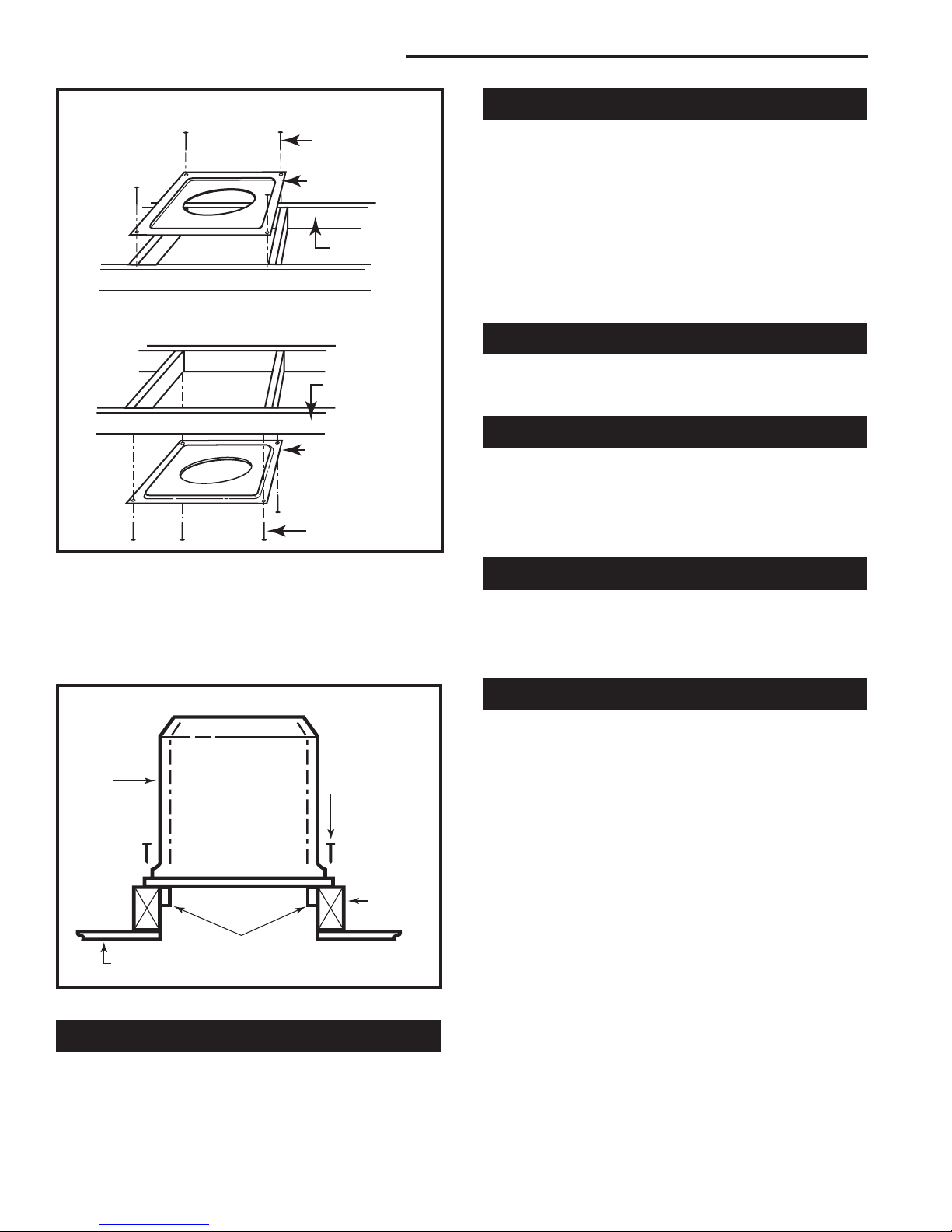

Fig. 12 Typical frame for ceiling chimney hole.
FP551
FP551
BR/BC
9/29/97
AB AB
A "SK" Series framing = 14¹⁄₂" X 14¹⁄₂" (368 x 368mm)
B "S" Series framing = 17¹⁄₂" X 17¹⁄₂" (445 x 445mm)
Existing
Ceiling Joist
Ceiling
New
Framing Members
Chimney Hole

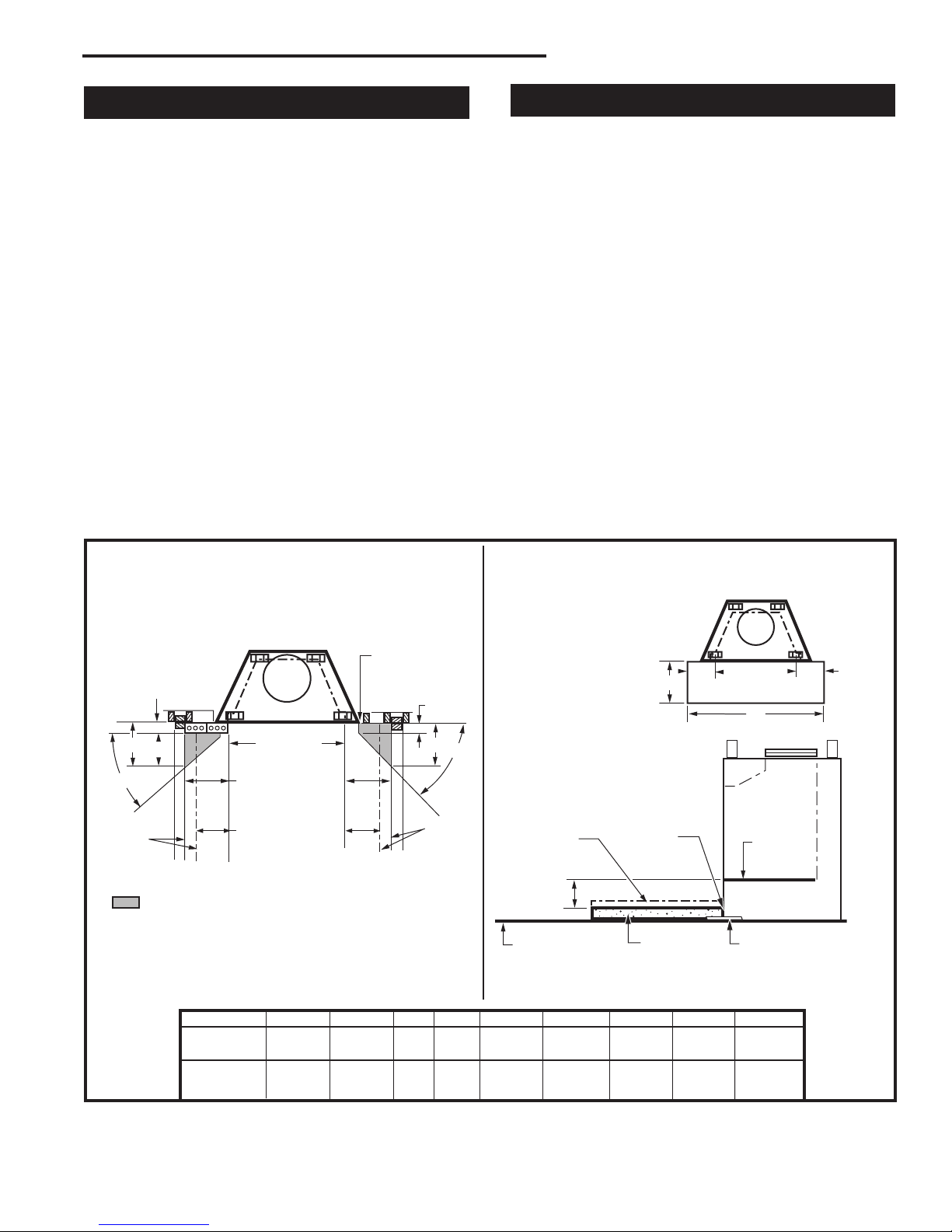

Fig. 11 Ceiling chimney hole sizes necessary for installing
firestop spacer.
Size of Chimney Vertical 30°
8" Flue SKFS2A SKFS6A
"SK" Series 14¹⁄₂" x 14¹⁄₂" 14¹⁄₂" x 25¹⁄₂"
(368mm x 368mm) (368mm x 648mm)
8" Flue FS2A FS6A
"S" Series 3-Wall 17¹⁄₂" x 17¹⁄₂" 17⁷⁄₈" x 29⁵⁄₈"
(445mm x 445mm) (454mm x 753mm)
Angle of Chimney at Ceiling
The inside dimension of the frame must be the same
as the hole size selected from Figure 11 in order to
provide required the 1¹⁄₂" (38mm) of air space between
the outside diameter of the chimney and the edges of
the framed ceiling hole.
Positioning, Safety Strips,
Securing the Fireplace
Slide fireplace into position.
Lift the fireplace front slightly and slide the metal safety
strips under front bottom edge about 1¹⁄₂" (38 mm), al-
lowing the remainder to extend in front of firebox. Over-
FP557
BR
11/10/97
1¹⁄₂"
FP557
Fig. 13 Safety strip installation.
1/2" Min.
Overlap
Metal Safety
Strips
(1, 2 or 3 pieces)
"Z" Safety
Strip
(not sup-
plied)
Fire-
place
Plat-
form Hearth Ext.
lap strips at least 1/2" (13 mm) to provide a positive
joint. (Flat safety strips are packed with fireplace.) (Fig. 13)
Safety strips are used to ensure that any combustible
materials in front of the fireplace are protected even
though a noncombustible hearth extension is required.
If fireplace is to be elevated above the floor, a “Z”
shaped metal safety strip must be fabricated and used
to protect combustible surfaces in front of the fireplace.
This “Z” shaped safety strip is not provided but must be
fabricated of metal with each horizontal leg at least 1¹⁄₂"
(38mm) wide and equal in length to the metals strips
provided with the fireplace.
NOTE: Safety strips are not required over noncombus-
tible floors where all supports at the base of the fire-
place are noncombustible.
Four (4) nailing flanges are incorporated on each corner
of the surround. Bend the nailing flanges out, level the
box, then secure it firmly in place by nailing the flanges
to the framing members as shown in Figure 14.
FP549
Fig. 14 Fasten fireplace in position.
FP549
9/29/97
BR/BC
Nail Top
Standoffs
Nail Side-
Nailing
Flanges

11
Majestic Fireplaces® ODSR Series "A"
20006811
FP270/271
CR Series
2/19/99 djt
Elbow Strap
Angled Strap
Fig. 16 Attach straps to a structural framing member.
FP270/271
Support Structure
Elbow Strap
(must be tight)
Ceiling Hole
Framing
Angle Firestop
Chimney Support Strap
(must be tight)
Installing Outside Air Kit
An outside air kit is not installed in all ODSR Series "A"
Fireplaces. If desired, or if local codes mandate the use
of an air kit, then an AKU1 is required . If the outside air
kit is to be used, the AKU1 MUST be installed BEFORE
the fireplace is enclosed. Refer to the AKU1 instructions
for field installation.
Installing the Chimney System
Start by attaching the first chimney section to the collar
on top of the fireplace.
Install the pipe as pictured in Figure 15. When you
get a good lock, you will hear the pipe clearly snap
together. Once sections are snap-locked in place, it is
extremely difficult to get them apart. Make sure the
pipe is firmly snapped and locked together as each
pipe section is mounted.
UP
FP558
BR
11/10/97
FP558
Fig. 15 Install pipe, listening for the snap-lock to fasten.
Pipe Section
Pipe
Rim
Hem
Pipe
Rim
Lance
When installing elbows, only outer pipe will snap-
lock. Middle pipes simply slide into position. Be sure
to always attach straps on upper elbow to a structural
framing member. (Fig. 16)
Continue installing the pipe as required until pipe is
installed up through the ceiling. At this point, you must
install a firestop spacer.
Installing the Firestop Spacer
in the Ceiling Hole
A firestop spacer is used to keep pipe spaced properly
and required for safety.
Nail the firestop spacer (at each corner) to the framing
members of the ceiling hole. NOTE: A firestop spacer
is not required at the roof.
Hole sizes listed in Figure 11 for angled firestop spac-
ers provide minimum required air space to chimney
pipe for ceiling thickness up to 8" (203 mm). When
combined thickness of ceiling material, ceiling joists and
flooring material exceeds 8" (203 mm), adjustments
must be made in framing to assure that minimum air
spaces to chimney are maintained.
Proper Firestop Spacer Installation
Figure 17 shows different installation procedures for
both an area that is an attic and an area that is not an
attic.
If the area above the ceiling is not an attic, position the
firestop spacer with the flange on the ceiling side and
the angled portion extending up into the hole.
If the area above the ceiling is an attic, position the
firestop spacer with the flange on the top of the framed
hole and the angled portion extending down into the
hole.
Firestop spacers are not available for nor are they
required on vertical walls.
DO NOT put any sealant around the area where the
outer pipe slides through the firestop spacer. If you
seal this area, it may cause a fire hazard.
Canadian Requirements
for Insulation Shield
In Canada, an attic insulation shield is required to pre-
vent attic insulation from contacting the chimney sec-
tion. Framing dimensions for the chimney hole should
measure 14¹⁄₂" x 14¹⁄₂" (368 x 368 mm). An attic shield
MUST be installed on top of attic joists (above the floor
level). (Fig. 18)

12
Majestic Fireplaces® ODSR Series "A"
20006811
FP593
SR/C
11/20/97
Fig. 17 Installing firestop spacer.
FP593
Attic Installation
Ceiling Installation
Nails (4)
Firestop
Spacer
Joist
Joist
Firestop Spacer
Nails (4)
Install the attic insulation shield with the flanges on its
base extending down into the framing hole. Nail each
corner of attic insulation shield to the framing members
of the ceiling hole using 8d nails. Attic shields are not
required at the roof.
FP263
Fig. 18 Attic shield installlation (Canadian requirement).
FP263
MBUF
5/9/96
Attic
Insulation
Shield
Nails
(4 required)
Attic
Joist
Ceiling
Base
Flanges
Continue Installing Pipe to Complete Run
Continue attaching pipe sections to complete system
to next level always being careful that the pipe is firmly
snapped locked in place before proceeding to next pipe
section.
Chimney Supports
If chimney supports are required, they are installed the
same as elbows. Nail chimney support straps to adja-
cent structural framing, as shown on, Page 7, Figure
8. Bend straps as necessary and make sure they are
secure so they will support the weight of the chimney. A
chimney support is 2¹⁄₂" (64 mm) long when installed.
Consider this dimension when determining how many
straight chimney sections are needed.
NOTE: Chimney supports are generally used in long
runs in a chase installation.
Additional Ceilings
If you encounter additional ceilings, repeat same steps
required for first ceiling installation. Refer to firestop
illustration on Figure 17.
Penetrating the Roof
Run pipe to roofline. Since chimney system must be
vented to the out-of-doors, you must use an approved
CFM Corporation termination.
If a chase is used, refer to the installation manual pro-
vided with the termination cap.
Locate Chimney Centerpoint On Roof
Use same procedure detailed in locating centerpoint of
the flue system.
Drive a nail up through roof at the center point. This will
determine center point on outside of the roof.
Cut and Frame Roof Hole
Size of roof hole varies with the type of chimney
termination installed. Refer to installation instructions
provided with CFM Corporation chimney termination to
find correct size of roof hole.
There must be a 1¹⁄₂ (38 mm) air space between out-
ermost portion of chimney sections and any adjacent
combustible surfaces. (Combustible surfaces include
burnable materials such as: ceiling members, joists,
flooring, combustible insulation and roof structures.)
WARNING: DO NOT PACK REQUIRED AIR SPACES
WITH INSULATION OR OTHER MATERIALS.
Mark an outline of the roof hole around the center of the
point nail. NOTE: Hole dimensions given in the chim-
ney top installation instructions are horizontal dimen-
sions; therefore, the hole size must be marked on the
roof accordingly.
Cover the opening of the installed chimney so debris
cannot get into the system.

13
Majestic Fireplaces® ODSR Series "A"
20006811
Cut and frame the hole. It is good practice to use fram-
ing lumber that is the same size as the rafters. Install
the frame securely because the chimney top and flash-
ing anchored to the frame must be able to withstand
heavy winds.
Install Remainder of Chimney Sections
Since you have already preplanned the height of your
termination according to the Ten Foot Rule, continue to
install pipe to the predetermined height.
Check the chimney top installation instructions for
details on how high above the roof top the chimney
sections (all pipes) should extend.
Installing Top Housing
or Termination
Follow the installation instructions provided with the
chimney termination you have selected.
Installing Chimney In a Chase
Refer to Page 4, Figure 3 for an illustration of a typical
chase installation.
CAUTION: Treatment of firestop spacers and con-
struction of chase may vary with type of building.
These instructions are not a substitute for local building
codes. You must check your local building codes to
determine specific requirements for your city or state.
NOTE: Other building materials may be required in ad-
dition to CFM Corporation Firestop Spacers.
Finishing
CAUTION: All joints between the finished wall and
the fireplace surround (top/sides) must be sealed with
non-combustible material to prevent cold air leakage
into the room. Only noncombustible material may be
applied to the facing of the fireplace surround. (Black
painted area) (Fig. 19)
Finish Wall
Finish the wall with material of your choice. Do not
install a combustible mantel shelf less than 12"
(305 mm) from the top of the fireplace opening. Do
not install a mantel face plate less than 6" (159 mm)
from top of fireplace opening. (Fig. 21) If a combus-
tible material is used below a flat mantel shelf, consult
your local building codes for minimum clearance from
top of fireplace opening to bottom of mantel shelf.
All joints (top, bottom and sides) where wall or deco-
rative facing material meets fireplace surround must
be completely sealed with a noncombustible material.
(Figs. 20 and 21)
FP559
Fig. 19 Minimum clearances to combustibles.
Front View Side View
Standoff
Combustible framing material MUST NOT
penetrate AIR SPACE (shaded areas).
Air Space Clearances
Only noncombustible
material may be applied
as facing to the black
fireplace surround.
Wall
Shield
Hearth
Extension
0" Clearance
to Floor
Firestop
¹⁄₂" Air
Space
to Back
¹⁄₂" Air
Space
to Sides
FP559
BR/BC-AIR SPACES
11/10/97
1¹⁄₂"
¹⁄₂" air space
to sides
NOTE: No side wall protection is required for fireplaces
installed at 45° to two (2) side walls (corner installation).
Often a decorative surround or vertical portion of the
mantel is desired. If this is constructed of any combus-
tible material it must be within the safe zone indicated in
Figure 22.

14
Majestic Fireplaces® ODSR Series "A"
20006811
12"
(305mm)
Max.
FP531a
BR/BC
mantel clearances
9/03 djt
¹⁄₂"
12"
(305mm)
Max.
12"
(305mm)
Min.
1¹⁄₂"
(38mm)
*
12"
(305mm)
Min.
1¹⁄₂"
(38mm)
6"
(159mm)
Min.
Mantel Clearance -
No Noncombustible Facing Material
Mantel Clearance -
with Noncombustible Facing Material
Combustible Mantel
and Trim
Combustible Mantel
and Trim
Finished Wall
Header
Standoff
Noncombustible
Material
Radiant
Surround
Face
Fireplace Opening
* Minimum width from top of surround
to bottom of screen rail
Finished Wall
Header
Standoff
Noncombustible
Material
Radiant
Surround
Face
Noncombustible
Facing Material
Radiant Surround Face
2 x 4 Stud
Finished Wall
Must be sealed with
Noncombustible Material FP531a
Fig. 20 Mantel clearances.
MA81
Fig. 21 Combustible mantel clearances.
MA81
rev. 8/5/97
1¹⁄₂"
Ref.
Combustible materials are
permitted within a shaded area
shown in Figure 23 titled
Minimum Wall Clearances.
*
**
*12" from top of fireplace opening for radiant
models.
**6" from top of fireplace opening for radiant
models. (Noncombustible material must separate
the black face surround of the fireplace and any
combustible mantel material.)
Face Plate

15
Majestic Fireplaces® ODSR Series "A"
20006811
Minimum Wall Clearances
WITH
Noncombustible
Surround Facing
WITHOUT
Noncombustible
Surround Facing
Minimum Hearth Extension Dimensions
(for On-Site Construction)
G
HG
J
Seal cracks
between the
fireplace
and hearth
extension with
noncombustible
material
Safety strips
must overlap
¹⁄₂" minimum
May install
noncombustible
decorative
covering
OR .018" min.
sheet metal FIREPLACE
HEARTH
COMBUSTIBLE
FLOOR
MINIMUM
INSULATION
VALUE "R"
4" MIN.
FP594
SR/SC
11/20/97
FIREBOX
OPENING
A - Min. clearance
to combustible
perpendicular wall
B - Min. clearance
to combustible
perpendicular wall when
using noncombustible wall shield*
SIDE
WALL SIDE
WALL
F**
C**
E
ED
4" BRICK
(Example material)

Combustible material permitted within shaded area.
* Noncombustible wall shield requires 1" CFM Corporation
EH2416 insulation (minimum R Value = 1.85) between
decorative noncombustible rigid covering and combustible wall.
Minimum height and width is 40" x 40".
** Dimension/degree of angle will vary depending on thickness
of noncombustible surround facing.
4"
Shaded area starts
1/2" away from
edge of unit.
FP594
Fig. 22 Combustible side wall protection and hearth extension dimensions.
A B C D E F G H J
ODSR36A 16" 12" 48° 41° 18" 14" 7³⁄₄" 16" 48"
406 mm 305 mm 457 mm 356 mm 197 mm 406 mm 1219 mm
ODSR42A 20" 12" 42° 35° 18" 14" 11¹⁄₂" 20" 61¹⁄₂"
508 mm 305 mm 457 mm 356 mm 292 mm 508 mm 1562 mm
Side Wall Protection
Adjacent combustible side walls that are within the
minimum dimensions shown in Figure 22 of fireplace
opening must be protected with CFM Corporation Wall
Shield Model SP40 or a specifically built wall shield
described below.
The special wall shield design described in Figure 20 is
an alternate method of adding protection to side walls
and can be used in place of the SP40 with the same
wall clearances specified for the SP40. Rt must =1.85
minimum.
Examples of wall shield insulation:
1. Manville - CERAFORM 126, K=.27,
1/2 inches thick
2. Majestic - EH2416, K = .458,
1 inch thick required.
Hearth Installation
A hearth extension is required to protect a combustible
floor in front of the fireplace. Refer to Figure 22 for mini-
mum dimensions and mounting detail.
NOTE: Hearth Extension must not cover the air
inlet opening of a fireplace.
The hearth extension described in Figure 22 must be a
durable noncombustible material with a minimum (total)
Rt value of 1.09; refer to Figure 23 for examples. The
overall height (above a combustible floor), depth and
width must be as indicated, with the extension centered
to the fireplace opening.
The top of insulation must be covered with a noncom-
bustible decorative covering or a piece of .018” mini-
mum sheet metal, to protect hearth extension material.
(Fig. 22)
Secure the hearth extension to the floor to prevent
shifting, using trim molding or other similar means at
three (3) outer edges. Seal crack between the fireplace
hearth and hearth extension with a noncombustible
material. (Figs. 22 and 24)

16
Majestic Fireplaces® ODSR Series "A"
20006811
WARNING: HEARTH EXTENSION MUST BE IN-
STALLED IN ACCORDANCE WITH FIGURE 23 AND
MUST NOT COVER THE BOTTOM FRONT OPENING
OF THE CIRCULATING MODEL.
Alternate noncombustible materials may be used pro-
viding the (total) thermal resistance (Rt value) of the al-
ternate material employed is greater than or equal to R
= 1.09. Thermal resistance (R) or thermal conductivity
(K), may be obtained from manufacturer of the material.
Factors are related by the formula K = 1/R.
T = given thickness
R = thermal resistance for a given thickness (T)
K = thermal conductivity
Noncombustible material with a lower R value may
be used, provided thickness of material is sufficiently
greater to maintain an equivalent (total) thermal resis-
tance (Rt).
Example of Determining Hearth Extension Equiva-
lents
To determine the thickness required for any new mate-
rial:
NEW K of new material (per inch) Thickness
required = X of listed
thickness K of listed material (per inch) material
Example for Common Brick
T (new) = 5.0/0.458 x 0/50 in. = 5.46 in. (new required
thickness).
COMMON MATERIALS AND FACTORS
MATERIAL K* RMINIMUM
THICKNESS
EH2416
Common Brick
0.458
5.0
1.09 0.50 in.**
0.10 5.46 in.**
(CFM Corporation)
R Value is for 1/2 inch.
* Units of K = BTU/SQ FT/HR/˚F/IN
** Thickness of Listed Material
FP533ADD
Addendum
6/1/99 djt
8/4/99 changed .2 to .1
one inch to 1/2 inch djt
FP533ADD
Fig. 23 Hearth extension material factors.
FP550
Fig. 24 Sealing gaps.
FP550
BR/BC - SEALING
DETAILS
9/29/97
Wall Covering
Noncombus-
tible Decorative
Facing
2 x 4 Header
(Do not notch
at standoffs)
Seal all cracks
between fireplace sur-
round and wall materi-
als with noncombus-
tible material
Noncombustible
Decorative Cov-
ering
Hearth Extension
Insulation
Safety Strips
Must be overlapped 1/2"
minimum
Seal crack between
fireplace and hearth
extension with noncom-
bustible material
Side View

17
Majestic Fireplaces® ODSR Series "A"
20006811
CAUTION: WHEN USING DECORATIVE
GAS APPLIANCE, FLUE DAMPER MUST
BE SET IN FULLY OPEN POSITION. IF YOU
HAVE GLASS DOORS ON THE FIREPLACE,
THEY MUST ALSO BE FULLY OPENED.
WARNING: DO NOT OPERATE AN
UNVENTED GAS LOG SET IN THIS FIRE-
PLACE WITH THE CHIMNEY REMOVED.
WARNING: WHEN INSTALLING AN
UNVENTED AS LOG SET, THE CFM
CORPORATION MODEL AH3244BK OR
AH3244PB 4" ADJUSTABLE HOOD MUST
BE USED.
Only unvented gas logsets which have been found to com-
ply with the Standard for Unvented Room Heaters, ANSI
Z21.11.2, are to be installed in this fireplace.
If installing an unvented gas log set, refer to statement below:
FP560
Fig. 25 Gas line access.
1"
Min.
FP560
BR/BC
11/10/97
1/2"
Hole in Outer Casing
Gas Line
Tube
Ceramic
Knockout
Supply
Line
Repack Insula-
tion
Ceramic
Knockout
(Both sides)
Hole in
Casing
Fireplace Top View
Installing Line for Gas Logs
Majestic Fireplaces' fireplaces are designed to accept
a 1/2" (13 mm) gas line for installation of an approved
gas appliance. (CFM Corporation manufactures a wide
variety of gas logs for use in Majestic Firepalces.)
Be sure to have the appliance installed in accordance
with building codes.
Gas connection may enter from either left or right side
of the fireplace.
Locate appropriate gas line in the outer casing of fire-
place and remove insulation from gas line tube. (Fig.
25)
From inside the fireplace, locate the knockout on the
firebrick -- be sure you are on the appropriate or "gas
line" side of the fireplace. Using a flat bladed screw-
driver or small chisel and hammer, carefully tap around
the knockout until it loosens and falls out.
Install 1/2" (13 mm) certified gas pipe through opening.
After gas pipe installation is complete, use insulation
that was removed from gas line tube to repack space
around the pipe. Material should be inserted from
outside of the fireplace and packed tightly to totally seal
between the pipe and tube.
NOTE: Gas pipe should not come in contact with
any wood structures until it has reached a point at
least one (1) inch away from fireplace side.
NOTE: When installing an ANSI Z21.11.2 ventless ap-
pliance the finishing material used for the mantel must
be rated at 250°F or greater.
BTU input of a gas appliance installed in fireplace
should be rated less than 100,000 BTU/Hr.
Gas pipe installation is intended for connection to a
decorative gas appliance only when (1.) incorporating
an automatic shutoff device and (2.) complying with the
Standard for Decorative Gas Appliances for Installa-
tion in Vented Fireplaces (ANSI Z21.60) or CSA draft
requirements for Gas-Fired Log Lighters for Woodburn-
ing Fireplaces (Draft No. 4, August 1993).
Decorative gas appliance should be installed in accor-
dance with the National Fuel Gas Code, ANSI Z223.1/
NFPA 54 (latest edition).

18
Majestic Fireplaces® ODSR Series "A"
20006811
1
2
3
4
5
6
a
b
c
7
8
9
10
6811
ODSR parts
9/2/03 djt
d
11
e
ODSR36A/42A Outdoor Woodburning Fireplace
Item/Model Number ODSR36A ODSR42A
1. Damper Weld Assembly RP199 RP199
2. Damper Bracket 3030176 3030176
3. Screen Rod Assembly 20006805 20006863
4. Screen Assembly (two per fireplace) 20006583 20006861
5. Screen Pulls 20002225 20002225
6a. Firebrick - Hearth 20005621 20005421
6b. Firebrick - Rear 20005627 20005462
6c. Firebrick - Right Side 20005626 20005461
6d. Firebrick - Left Side 20005625 20005460
6e. Firebrick - Ashlip 20005619 20005418
7. Top Brick Retainers (three per fireplace) 3030172 3030172
8. Cable Clips (four per fireplace) 20006869 20006869
9. Outer Collar Assembly (SK8 Chimney) 3030143 3030143
10. Basket Grate 20006701 20002230
11. O.S.A. Assy. 20003076 20003076
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
6811

19
Majestic Fireplaces® ODSR Series "A"
20006811
Glass Door — Standard Bi-Fold door set Brushed Brass finish 36GDKBBSR (ODSR36A)
42GDKBBSR (ODSR42A)
Black finish 36GDKBKSR (ODSR36A)
42GDKBKSR (ODSR42A)
Polished Brass finish 36GDKDBSR (ODSR36A)
42GDKDBSR (ODSR42A)
Pewter finish 36GDKSSR (ODSR36A)
42GDKSSR (ODSR42A)
Stainless Steel 36GDKSSSR (ODSR36A)
42GDKSSSR (ODSR42A)
Outside Air Kit Complete kit for connection from fireplace AKU1
to out-of-doors
Chimney Adapter Converts fireplace to 3-wall system TWABR
Hearth Extension Insulation Provides hearth extension floor protection EH2416
Hearth Patch Compound Patch cracks in hearth HPC-1
Model NumberDescriptionAccessory
The following accessories for this appliance are available from your local Majestic Fireplaces distributor. Should you
need additional information beyond what your distributor can furnish, contact: CFM Corporation, 2695 Meadowvale
Blvd., Mississauga, Ontario, Canada L5N 8A3, Attn: Technical Services.
CAUTION: This fireplace and chimney assembly is a highly engineered system, and, as such, must be oper-
ated only with CFM Corporation approved components. If you use an unapproved component to make any
modifications, you may create a possible fire hazard and will void the CFM Corporation warranty. In addi-
tion, such action may void the coverage provided by the owner’s insurance.
Accessories
Contact your Majestic Fireplaces distributor or dealer for finishing
Marble and Mantels, available in a wide selection of styles.

20
Majestic Fireplaces® ODSR Series "A"
20006811
Chimney Components
Round Top Termination Top used to terminate chimney at roof. RLTSK8
(Flashing not included.)
Round Top Termination - Top used to terminate chimney at chase. RLTSK8L
Extended (Flashing not included.)
Flashing Metal finishing required around Contemporary 8-6-12 with 8" flue:
Termination to prevent rain leakage. 0-6/12 pitch
8-12-12 with 8" flue:
6/12-12/12 pitch
Square Termination Top housing of simulated brick pattern S20B (R, T, W)
Housing available in red, tan or white. Appropriate Must also include:
adapter required. Flashing included. PLTSK8 or SLTSK8
Adapter Kit Unites Square Termination with chimney CF8CA
pipe (required).
Housing Extensions Extends Square Termination on steep 202036
pitched roofs.
Square Chase Termination Housing used to terminate chimney through CT100
a chase top. Appropriate adapter required.
(Flashing not included.)
Adapter Kit Unites Square Chase Termination with chimney CTSK
pipe (required).
Chase Top Housing Low profile pyramid-style chimney cap used to PLTSK8
terminate chimney through a chase. Includes
adapter. (Flashing not included.)
Chase Top Housing Square chimney cap used to terminate chimney SLTSK8
through a chase. Terra Cotta Masonry. Includes
adapter. (Flashing not included.)
SK8 Chimney Sections Pipe used to build 8" (SK8) flue systems. SK81 (1' Long)
SK818 (1¹⁄₂' Long)
SK83 (3' Long)
SK84 (4' Long)
SK8 Chimney Elbows Elbow used to create an offset in an 8" SK830-2
chimney system. Only 30˚ elbows available.
Packaged 2 per carton (offset and return).
Firestop Required at each floor level of chimney SKFS2A —
installation. (Plus attic on multi-story installation.) (8" straight flue)
SKFS6A —
(8" 30˚ inclined flue)
Chimney Support Used to support chimney for each of: 30' vertical SKCS8
height and 6' of angled chimney run.
U.S.
Model NumberDescriptionComponent
