Majestic DVR33 User manual

INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER 10002823
9/00 Rev. 0
INSTALLATION INSTRUCTIONS & HOMEOWNER'S MANUAL
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS AND/OR
LIQUIDS IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance.
* Do not touch any electric switch
* Do not use any phone in your building.
* Immediately call your gas supplier from
your neighbours phone. Follow the gas
suppliers instructions.
* If you cannot reach your gas supplier
call the re department
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
Installation and service must be performed
by a qualied installer, service agency or
your gas supplier.
410 Admiral Blvd. Mississauga, Ontario, Canada. L5T 2N6
www.majesticproducts.com / www.vermontcastings.com
REAR VENTED
DIRECT VENT
GAS FIREPLACE
DVR33
The Vermont Castings,
Majestic products company

Vermont Castings, Majestic Products
2 DVR33 10002823/0
TABLE OF CONTENTS
Thank You & Congratulations On Your Purchase of a Vermont Castings, Majestic Products Fireplace.
Please Read The Installation & Operating Instructions Carefully before Using The Appliance.
Important: Read all the instructions and warnings carefully before starting the installation. Failure
to follow these instructions fully may result in a possible re hazard and will void the manufacturers
warranty.
Appliance Installation Instructions
Important curing/burning instructions ........................................................................................3
Locating your replace ...............................................................................................................3
Fireplace dimensions ..................................................................................................................4
Clearance to combustibles ..........................................................................................................5
Mantels........................................................................................................................................5
Hearths ........................................................................................................................................5
Framing and nishing .................................................................................................................5
Final nishing .............................................................................................................................6
Gas specications .......................................................................................................................6
Gas inlet & manifold pressures...................................................................................................6
Gas line installation ....................................................................................................................6
Remote switch installation..........................................................................................................7
EB-1 electrical box connection...................................................................................................7
Converting the appliance from LP to Natural Gas......................................................................8
General Venting Information - Terminal Location .....................................................................10
Venting Installation Instructions
Connecting Direct Vent components ........................................................................................12
Rear vent applications & installation........................................................................................12
How to use the Vent Graph .......................................................................................................14
Vertical sidewall applications & installation ............................................................................14
Below grade installations..........................................................................................................17
Vertical through-the-roof applications & installation ...............................................................18
Venting components list............................................................................................................20
Operating Instructions
Glass warning ...........................................................................................................................22
General maintenance.................................................................................................................22
Louvre removal.........................................................................................................................22
Glass/Frame removal ................................................................................................................22
Glass Cleaning ..........................................................................................................................22
Installation of logs & lava rock.................................................................................................23
Flame & temperature adjustment..............................................................................................23
Flame characteristics & appearance..........................................................................................23
Lighting instructions .................................................................................................................24
Troubleshooting guide ..............................................................................................................25
Replacement Parts
Part number list.........................................................................................................................27
Parts pictorial ............................................................................................................................29
Optional Accessories
Fan kits......................................................................................................................................30
Ceramic refractory lining..........................................................................................................31
Decorative bay window ............................................................................................................31
Remote controls ........................................................................................................................32
Decorative trim frames .............................................................................................................32

10002823/0 DVR33 3
Vermont Castings, Majestic Products
APPLIANCE INSTALLATION INSTRUCTIONS
This gas replace should be installed by a qualied installer
in accordance with local building codes and with current CAN
/CGA-B149 (. 1 or .2) Installation codes for Gas Burning
Fireplaces and Equipment. If the unit is being installed in a
mobile home the installation should comply with the current
CAN/CSA Z 240 .4 code.
FOR U.S.A Installations follow local codes and/or the current
National Fuel Gas Code. ANSI Z223.1.
FOR SAFE INSTALLATION AND OPERATION PLEASE
NOTE THE FOLLOWING:
1. This replace gives off high temperatures and should be
located out of high trafc areas and away from furniture
and draperies.
2. Children and adults should be alerted to the hazards of the
high surface temperatures of this replace and should stay
away to avoid burns or ignition of clothing.
3. Caution, due to high glass surface temperature children
should be carefully supervised when they are in the same
room as the replace.
4. Under no circumstances should this replace be modied.
Parts removed for servicing should be replaced prior to
operating the replace again.
5. Installation and any repairs to this replace should be
carried out by a qualied service person. A professional
service person should be contacted to inspect this replace
annually. Make it a practice to have all of your gas re-
places checked annually. More frequent cleaning may
be required due to excess lint and dust from carpeting,
bedding material, etc.
6. Control compartments, burners and air passages in this
replace should be kept clean and free of dust and lint.
Make sure that the gas valve and pilot light are turned off
before you attempt to clean this replace.
7. The venting system (chimney) of this replace should be
checked at least once a year and if needed your venting
system should be cleaned.
8. Keep the area around your replace clear of combustible
materials, gasoline and other ammable vapour and liq-
uids. This replace should not be used as a drying rack for
clothing, nor should Christmas stockings or decorations
be hung on or around the replace.
9. Under no circumstances should any solid fuels (wood,
coal, paper or cardboard etc.) be used in this replace.
10. The ow of combustion and ventilation air must not be
obstructed in any way.
11. When the replace is installed directly on carpeting, vinyl
tile or any combustible material other than wood, the
replace must be installed on a metal or wood panel
extending the full width and depth of the replace.
12. This replace requires adequate ventilation and combus-
tion air to operate properly.
13. This replace must not be connected to a chimney ue
serving a separate solid fuel burning replace.
14. When the replace is not in use it is recommended that the
gas control valve be left in the OFF position.
This appliance has been approved for
after-market mobile home installations
IMPORTANT:
PLEASE REVIEW THE FOLLOWING CAREFULLY
Remove any plastic from trim parts before turning the
replace ON.
It is normal for replaces fabricated of steel to give off
some expansion and/or contraction noises during the start
up or cool down cycle. Similar noises are found with your
furnace heat exchanger or car engine.
It is not unusual for your Majestic gas replace to give
off some odour the rst time it is burned. This is due to
the curing of the paint and any undetected oil from the
manufacturing process.
Please ensure that your room is well ventilated - open all
windows.
It is recommended that you burn your Majestic replace for
a least six (6) hours the rst time you use it. If the optional
fan kit has been installed, place the fan switch in the OFF
position during this time.
LOCATING YOUR FIREPLACE
A - Flat on the wall B - Cross corner
C - **Island D - *Room divider
E - *at on wall, corner F - Chase Installation
Note:
** Island (C) and room divider (D) installation is possible as
long as he horizontal portion of the vent system (X) does not
exceed 20' (6.1 m). See the venting instructions for details
* When you install the appliance in a room divider (D) or at
in a corner (E) you must have a minimum of 6" (152 mm)
between the edge of the replace and the adjacent wall (Y).
Fig. 1

Vermont Castings, Majestic Products
4 DVR33 10002823/0

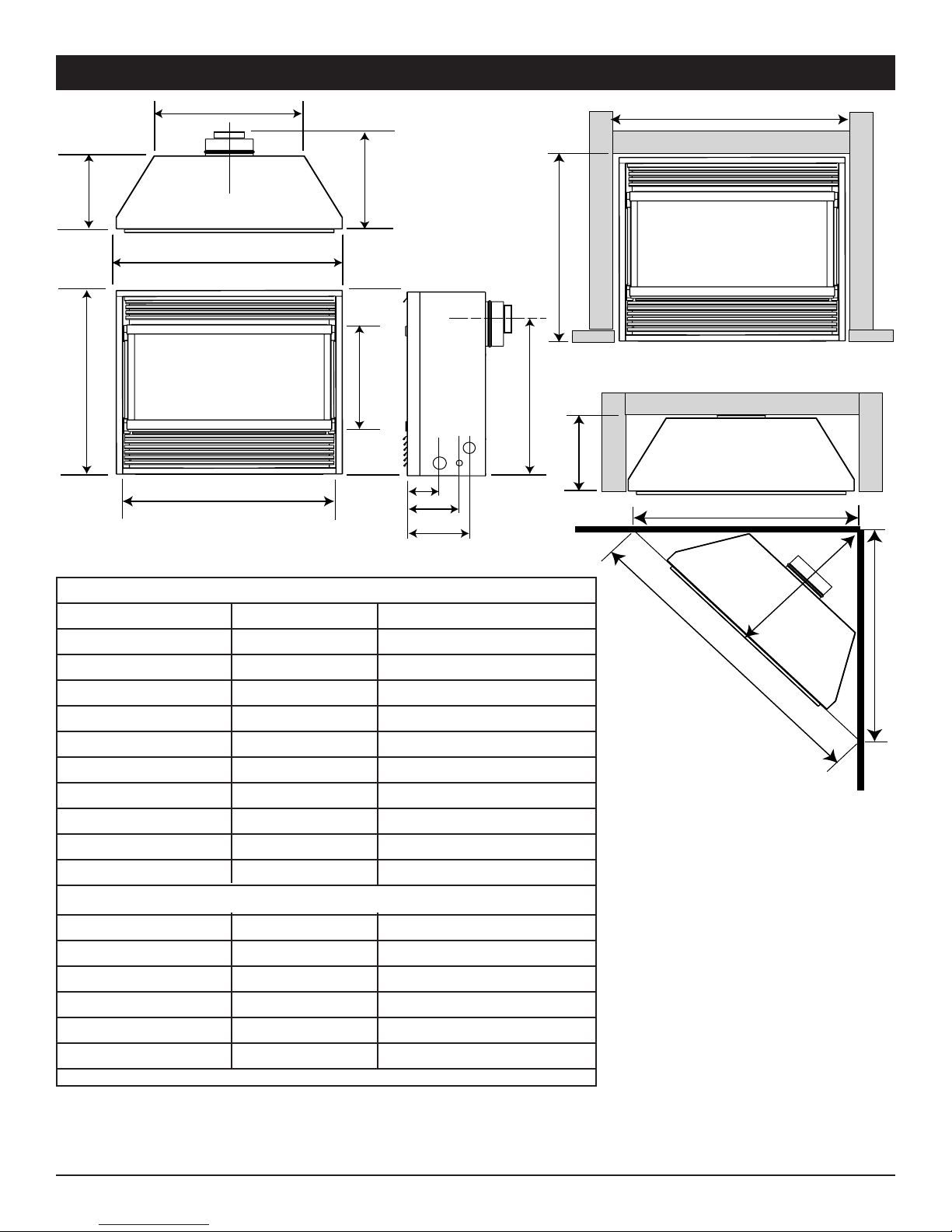

APPLIANCE & FRAMING DIMENSIONS
A
BC
D
E
FG
H
I
J
K
L
L
M
N
O
P
Q
Appliance Dimensions DVR33
A 838 mm 33"
B 733 mm 28-7/8"
C 416 mm 16-3/8"
D 787 mm 31"
E 560 mm 22-1/16"
F 292 mm 11-1/2"
G 375 mm 14-3/4"
H 622 mm 24-1/2"
I 127 mm 5"
J 191 mm 7-1/2"
K 216 mm 8-1/2"
Framing Dimensions
L 914 mm 36"
M 1295 mm 51"
N 648 mm 25-1/2"
O 305 mm 12"
P 737 mm 29"
Q 851 mm 33-1/2"

10002823/0 DVR33 5
Vermont Castings, Majestic Products
CLEARANCE TO COMBUSTIBLES
Appliance
Top.................................... 0 mm (0")
Bottom .............................. 0 mm (0")
Vent End ........................... 0 mm (0")
Non-vent End.................... 0 mm (0")
Venting
Concentric sections of DV Vent
Top, sides & bottom ......... 25 mm (1")
Non-concentric sections of DV Vent
Sides and bottom .............. 25 mm (1")
Top.................................... 50 mm (2")
MANTELS
The height that a combustible mantel is installed above the
replace is dependent on the depth of the mantel. This also
applies to the distance between the mantel leg (if tted) and
the replace.
For the correct mounting height refer and widths refer to Fig. 2
and the Mantel Chart below.
The tting of a bay window trim kit does not effect the
distances and reference points referred to in the diagram and
chart.
Non-combustible mantels and legs may be installed at any
height and width around the appliance.
When using paint or lacquer to nish the mantel, such paint
or lacquer must be heat resistant to prevent discolouration.
Mantel Leg Dimensions (Minimum Width
Ref. Mantel Leg Depth Distance From Edge of Glass
A 10" (254 mm) 10" (254 mm)
B 8" (203) mm) 8" (203 mm)
C 6" (152 mm) 6" (152 mm)
D 4" (101 mm) 4" (101 mm)
E 2" (51 mm) 2" (51 mm)
HEARTH
A hearth is not mandatory but it is recommended for aesthetic
purpose. We recommend a non-combustible hearth which
projects out 12" (305 mm) or more from the front of the
replace.
Cold climate Installation Recommendation:
When installing this unit against a non-insu-
lated exterior wall or chase, it is mandatory
that the outer walls be insulated to conform to
applicable insulation codes.
FRAMING AND FINISHING
1 Choose the unit location.
2 Place the unit into position and secure it to the oor with
1.5" (38 mm) screws, or nails. The holes to secure the
unit to the oor are located just behind the access door
grille on the left and right side of the unit.
3 Frame in the replace with a header across the top. It is
important to allow for the nished wall face when setting
the depth of the frame.

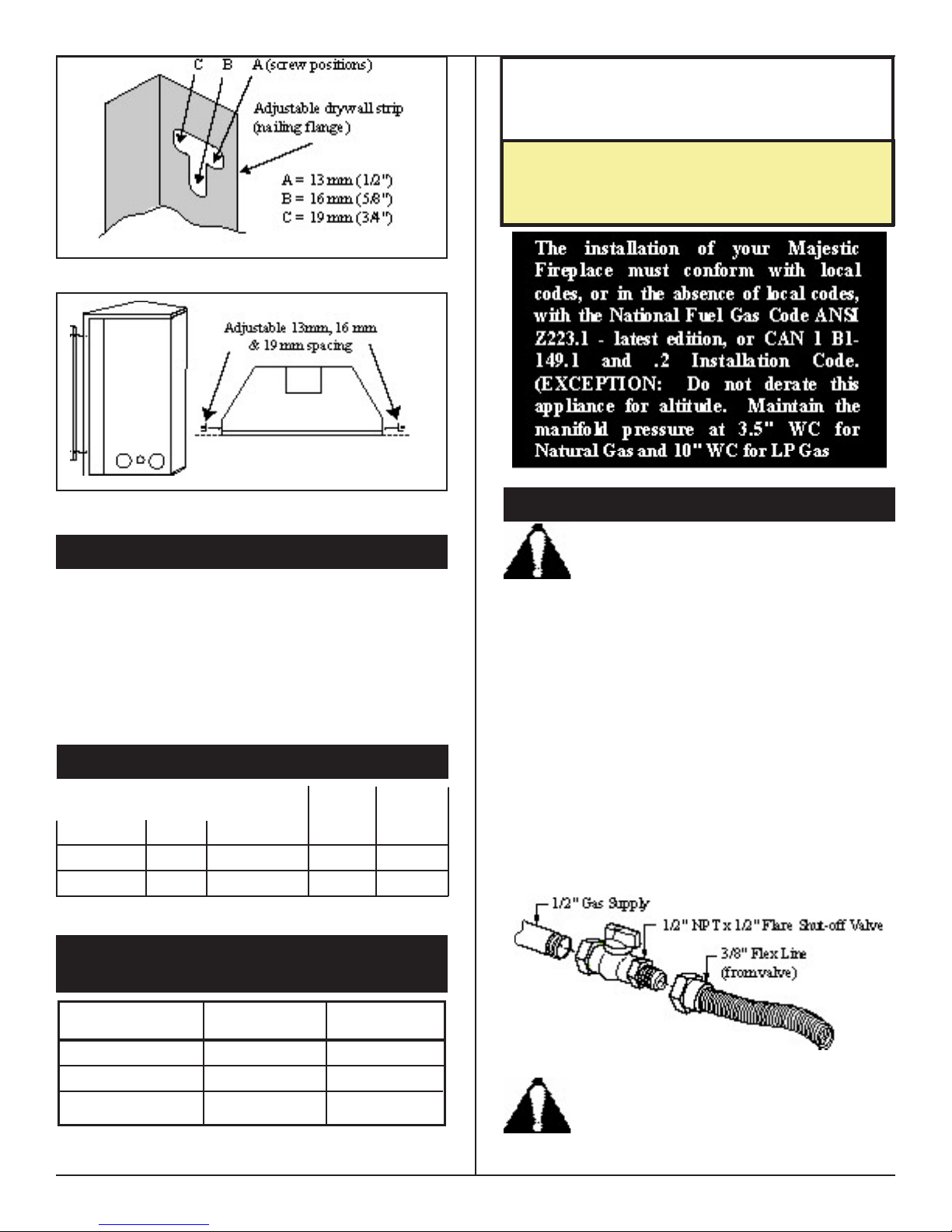

4 Attach the replace to the frame using the adjustable
frame drywall strips (located behind the access door for
shipping). Preset the depth to suit the facing material of
the wall. The strips are adjustable to 1/2"(13 mm), 5/8"
(16 mm) or 3/4" (19 mm), Fig. 3 & 4
5 Screw through the slotted holes in the drywall strip and
into the pre-drilled holes in the replace side. Measure
from the face of the replace to the face of the drywall
strip to conrm the nal depth.
Fig. 2
Mantel Shelf Chart (Minimum Height)
Ref. Mantel Depth Ref. Height above louvre
V 10" (254 mm) A 12" (305 mm)
W 8" (203 mm) B 10" (254 mm)
X 6" (152 mm) C 8" (203 mm)
Y 4" (101 mm) D 6" (152 mm)
Z 2" (50 mm) E 4" (101 mm)

Vermont Castings, Majestic Products
6 DVR33 10002823/0
FINAL FINISHING
Non-combustible materials such as brick or tile may be
extended over the edges of the face of the appliance. DO NOT
cover any vent or grille panels.
If a Trim Kit is going to be installed on the replace, the brick
or tile will have to be installed ush with the edges of the
appliance.
GAS SPECIFICATIONS
Max Min
Input Input
Model Fuel Gas Control BTU/h BTU/h
DVR33RN Nat. Millivolt 20,000 14,000
DVR33RP Prop. Millivolt 20,000 15,000
DVR33
CERTIFIED TO
ANSI Z21.88b-1999 / CSA Z2.33b-M99
Vented Gas Fireplace Heaters
GAS LINE INSTALLATION
When purging the gas lines, the front glass must
be removed.
The gas pipeline can be brought in through the rear of the
replace as well as the bottom. Knockouts are provided on the
bottom behind the valve to allow for the gas pipe installation
and testing of any gas connection. It is most convenient to
bring the gas line in from the rear right side of the valve as
this allows fan installation or removal without disconnecting
the gas line.
The gas line connection can be made with properly tinned
3/8" copper tubing, 3/8" rigid pipe or an approved ex con-
nector. Since some municipalities have some additional local
codes it is always best to consult your local authority and the
CAN/CGA-B149 (.1 or .2) installation codes.
For U.S.A. Installations consult the current National Fuel Gas
Code, ANSI Z223.1
Always check for gas leaks with a mild soap and
water solution. Do not use an open ame for
leak testing.
GAS INLET &
MANIFOLD PRESSURES
Inlet Minimum
Inlet Maximum
Manifold Pressure
Natural Gas LP (Propane)
4.5" WC
7" WC
3.5" WC
11" WC
13" WC
10" WC
Fig. 3
Fig. 4
Fig. 5

10002823/0 DVR33 7
Vermont Castings, Majestic Products

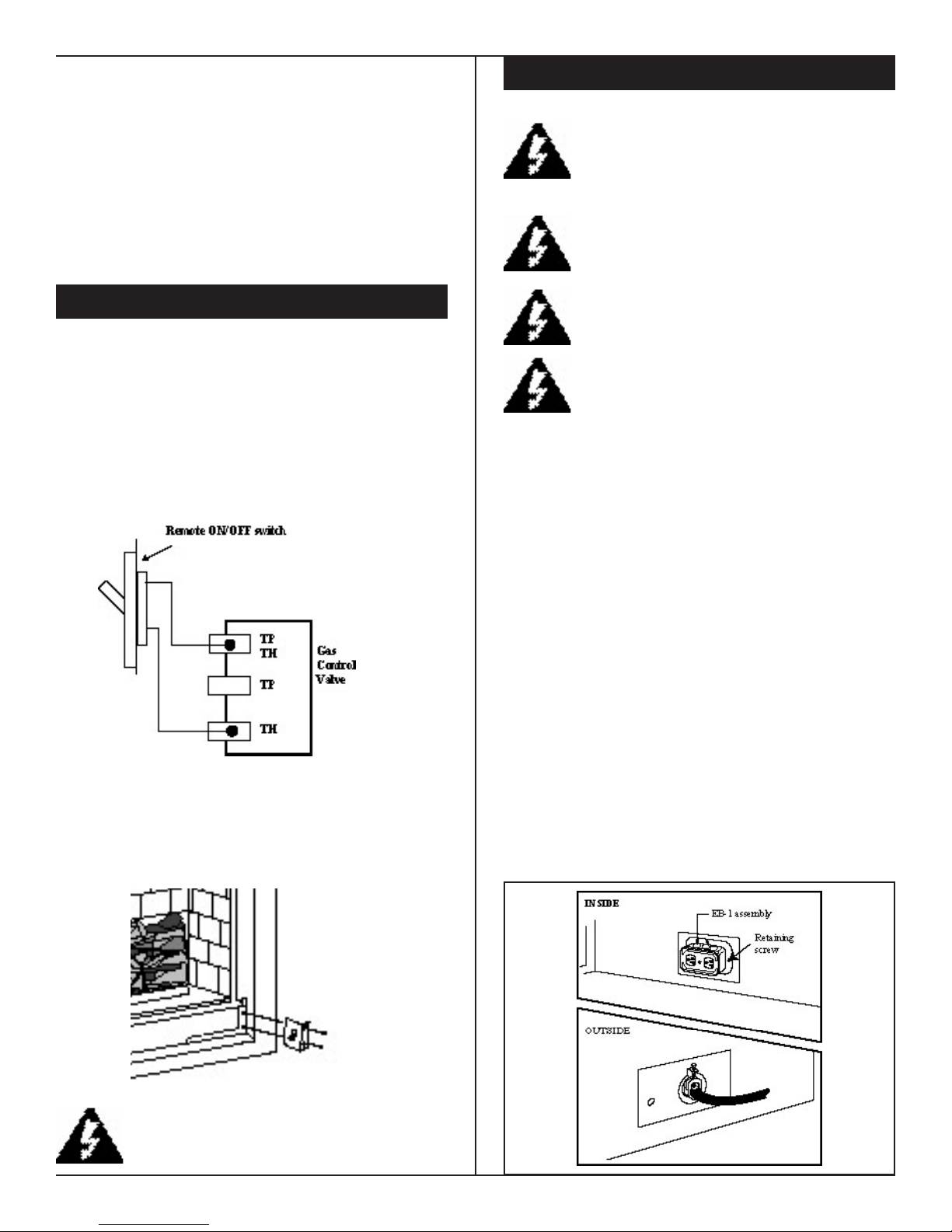

REMOTE ON/OFF SWITCH
Installation
1. Thread the wiring through the holes on the end panels of
the appliance. Take care not to cut the wire or insulation
on metal edges. Route the wire to a conveniently located
receptacle box.
2. Attach the wire to the ON/OFF switch and install the
switch into the receptacle box.
3. Connect the other ends of the wire to the gas control valve
as shown in Fig. 6.
Alternative Switch Location
The remote switch can be installed on the front/side of the
access door. Simply mount the switch to the bracket provided
and screw the bracket to either side of the frame, lining up the
screws with the pre-punched holes, Fig. 7.
EB-1 ELECTRICAL BOX
The replace, when installed, must be electri-
cally connected and grounded in accordance
with local codes or, in the absence of local
codes, with the current CSA C22.1 Canadian
Electric Code.
For U.S.A. installations follow the local codes
and the national electrical code ANSI/NFPA No
70.
It is strongly recommended that the wiring of
the EB-1 Electrical Junction Box be carried out
by a licensed electrician.
Ensure that the power to the supply line has
been disconnected before commencing this pro-
cedure.
The EB-1 Electrical junction box has been supplied standard
on this model to allow for the easy installation of the optional
fan kits.
To connect the EB-1 box to the house electrical supply follow
the steps below.
1. Unscrew the retaining screw from the EB-1 base plate,
Fig. 8 and remove the EB-1 assembly from the appliance
2. Remove the front cover of the EB-1 box.
3. Remove the plug socket assembly from the EB-1 box.
4. Feed the electrical supply line in through the EB-1 open-
ing in the side of the appliance and then through the back
of the EB-1 assembly.
5. Connect the ground wire of the supply line to the green
screw of the socket assembly.
6. Connect the white wire of the power line to the chrome
screw of the socket assembly.
7. Connect the black wire of the power supply line to the
brass screw (polarized) of the socket assembly.
8. Ret the socket assembly back into the electrical box and
replace the cover plate. Secure the cable with the clamp
on the outside of the EB-1 base plate and ret the EB-1
assembly to the appliance with the retaining screw.
The gas control is equipped with a captured screw type pres-
sure test point, therefore it is not necessary to provide a 1/8"
test point up stream of the control.
When using copper or ex connectors use only approved t-
tings. Always provide a union when using black iron pipe so
that the gas line can be easily disconnected for burner or fan
servicing, see Fig 5. See the gas specication for pressure
details and ratings.
The replace valve must not be subjected to any test pressures
exceeding 1/2 p.s.i.. Isolate or disconnect this and any other
gas appliance control from the gas line when pressure testing.
Do not wire the remote ON/OFF switch into any
120 volt power supply
Fig. 6
Fig. 7
Fig. 8

Vermont Castings, Majestic Products
8 DVR33 10002823/0
CONVERTING THE APPLIANCE
FROM LP TO NATURAL GAS
OR NATURAL GAS TO LP.
This appliance can be converted from Natural Gas to LP gas
(or LP to Natural) with the use of an approved conversion kit.
The kits are specic to individual appliances. Contact your
authorized distributor to obtain the correct kit.
The conversion of this appliance from one gas
to another must be carried out by an authorized
service provider.
1. Disconnect power to the unit and shut off the gas supply.
2. Remove the glass/frame assembly.
3. Carefully remove the logs & lava rock material
4. Remove the screws that are holding the burner housing
in place.
5. Remove the burner housing. Depending on the model of
the appliance you may have to loosen the pilot bracket
retaining screw/nut to allow the pilot and bracket assem-
bly to tilt and give enough clearance to remove the burner
housing.
6. Remove the front and rear orice and replace them with
the corresponding orice supplied in the conversion kit.
That is, use the orice with the smallest hole (from the
kit) to replace the orice with the smallest hole (from the
appliance). Similarly, use the larger orice in the kit to
replace the larger orice in the appliance.
7. SIT Top Convertible Pilot
Gently lift off the pilot hood from the pilot. (Do not
remove the spring clip holding the hood in place). Using
a correctly sized Allen key unscrew the exposed orice.
Insert the new orice supplied in the kit, do not over
tighten the orice. Replace the pilot hood ensuring the
index tab aligns with the notch on the hood.
PSE Pilot
Using a suitable wrench on the hexagonal body unscrew
the pilot hood assembly from the pilot, do not twist the
hood itself. Remove the orice and replace it with the
new orice supplied in the kit. Ret the pilot hood
assembly. Do not over-tighten the pilot hood. The hood
must return to its original alignment. Take care not to
damage the thermocouple, thermopile or igniter.

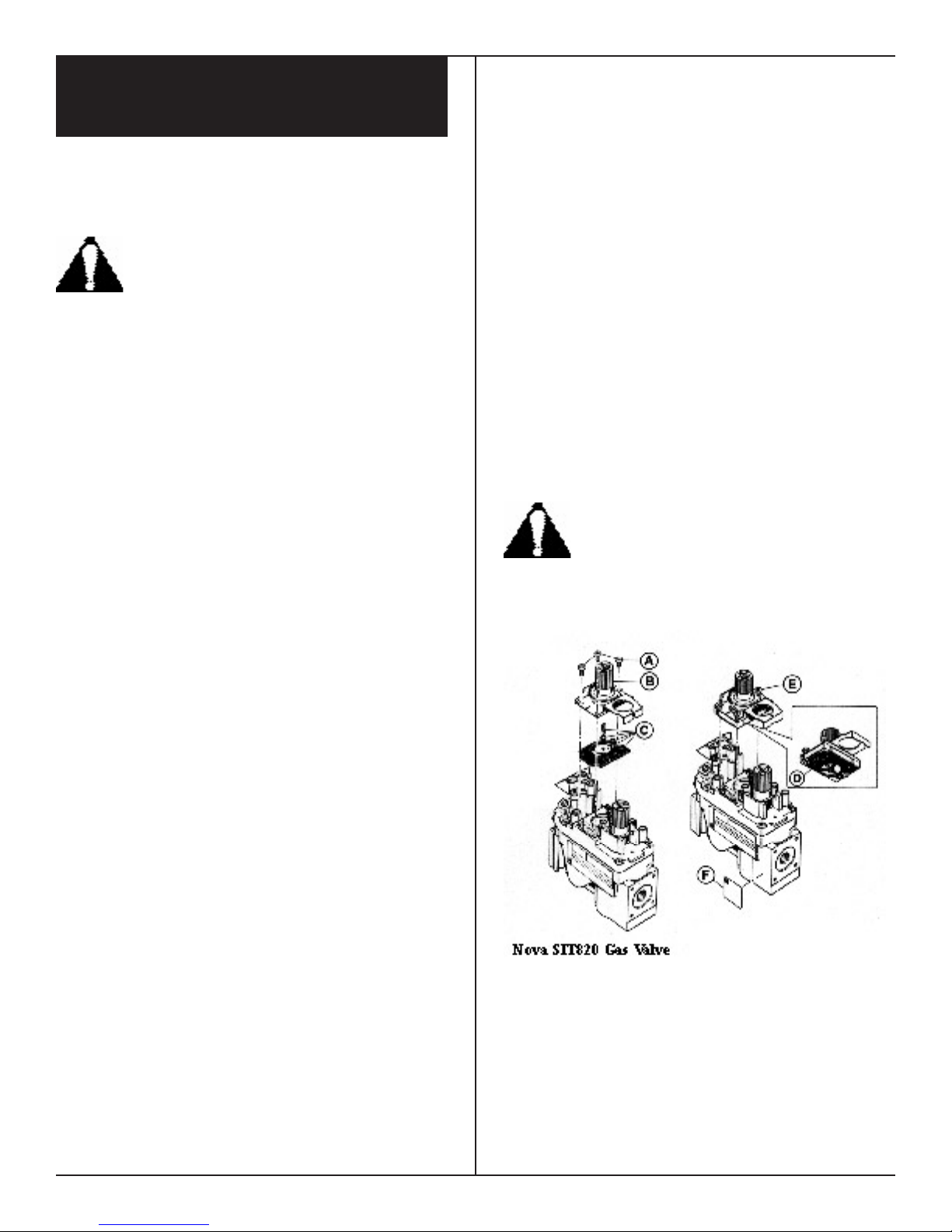

8. SIT 820 NOVA Gas Control Valve (Fig. 9)
a) Using a Torx T20 or slotted screwdriver, remove and
save the three pressure regulator mounting screws (A),
pressure regulator tower (B) and diaphragm (C).
b) Ensure the rubber gasket (D) is properly positioned and
install the new Hi/Lo pressure regulator to the valve using
the new screws (E) supplied with the kit. Tighten screws
securely. (Reference torque - 25 in.Lb).
c) Install the enclosed identication label (F) to the valve
body where it can be easily seen.
Honeywell Gas Control Valve (Fig. 10)
The Honeywell valve tted to this unit is suitable for use
with LP or Natural Gas. It is converted to the required gas
application by the installation of a colour coded "conver-
sion screw".
a) Using a suitable small screwdriver lift out the central
regulator cap from the 'Hi - Lo' knob on the valve.
b) Unscrew the exposed 'conversion screw'.
c) Insert the new colour coded 'conversion screw'. Do not
over-tighten the screw, it must be nger tight.
d) Ret the regulator cap.
e) Mount the conversion label supplied with the conver-
sion screw to the valve in a visible position.
9. Reassemble the replace in the reverse order, except for
the front glass. Leave this off until the unit has been
checked for leaks and the gas supply line has been bled.
10. After bleeding the gas line and checking for leaks with a
soap solution, replace the front glass. Fire up the unit,
check for ame impingement on the logs, adjusting them
if necessary. Check the manifold and supply pressures
against the appliance specications.
The procedure for converting from one gas to
another is the same regardless of the initial gas
used. The only variation is in the orice sizes
and component part numbers. Your authorized
service provider will ensure the correct parts are
used.
Fig. 9

10002823/0 DVR33 9
Vermont Castings, Majestic Products
Fig. 10

Vermont Castings, Majestic Products
10 DVR33 10002823/0
V
V
V
V
V
V
V
V
V
X
X
X
D
E
B
B B
C
BM
B
A
J
K
A
F
L
G
G
TERMINATION CAP AIR SUPPLY INLET GAS METER RESTRICTED AREA
(TERMINATION PROHIBITED)
H
I
Fixed
Closed
Fixed
Closed
Openable
Openable Fixed
Closed G
G
N
N
A = clearance above grade, veranda, porch, deck, or bal-
cony [* 12 inches (305mm) minimum]
B = clearance to window or door that may be opened [12"
(306mm)].
C = clearance to permanently closed window [minimum 12
inches (305mm) recommended to prevent condensation
on window]
D = vertical clearance to ventilated soft located above
the terminal within a horizontal distance of 24 inches
(610mm) from the centre-line of the terminal [18 inches
(458mm) minimum]
E = clearance to unventilated soft [12 inches (305mm) min-
imum].
F = clearance to outside corner see next page
G = clearance to inside corner see next page
H = * not to be installed above a meter/regulator assembly
within 36 inches (914mm) horizontally from the centre-
line of the regulator
† a vent shall not terminate directly above a side-walk or paved driveway which is located between two single
family dwellings and serves both dwellings *
‡ only permitted if veranda, porch, deck, is fully open on a minimum 2 sides beneath the oor *
* as specied in CAN/CGA B149 (.1 or .2) Installation Codes (1991) for Canada or for U.S.A. Installations follow
the current National Fuel Gas Code, ANSI Z223.1.
Note: Local codes or regulations may require different clearances.
I = clearance to service regulator vent outlet [*72 inches
(1828mm) minimum]
J = clearance to non-mechanical air supply inlet to building
or the combustion air inlet to any other replace [ *12
inches (305mm) minimum]
K = clearance to a mechanical air supply inlet [* 72 inches
(1828mm) minimum]
L = † clearance above paved side-walk or a paved driveway
located on public property [*84 inches (2133mm) mini-
mum]
M = clearance under veranda, porch, deck [*12 inches
(305mm) minimum ‡]
N = Clearance above a roof shall extend a minimum of 24"
(610mm) above the highest point when it passes through
the roof surface, and any other obstruction within a
horizontal distance of 18" (450mm).
Do not locate termination hood where excessive snow or ice
build up may occur. Be sure to check vent termination area
after snow falls, and clear to prevent accidental blockage of
venting system. When using snow blowers, make sure snow is
not directed towards vent termination area.
Location of Vent Termination
It is imperative that the vent termination be located observing
the minimum clearances as shown on this page.
*Check with local codes or in absence of same with CAN/
CGA B149 (.1 or .2) Installation Codes (1991) for Canada or
for U.S.A. Installations follow the current National Fuel Gas
Code, ANSI Z223.1.
Your replace is approved to be vented either through the side
wall, or vertically through the roof.
– Only venting components specically approved and
labelled for this replace may be used.
– Minimum clearances between vent pipes and combusti-
ble materials is one (1") inch (25 mm).
– Venting terminals shall not be recessed into a wall or
siding.
– Horizontal venting must be installed on a level plane
without any incline or decline.
There must not be any obstruction such as bushes, garden sheds,
fences, decks or utility buildings within 24" from the front of the
termination hood.
GENERAL VENTING INFORMATION — TERMINATION LOCATION

10002823/0 DVR33 11
Vermont Castings, Majestic Products
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
A =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
B =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
A
Balcony -
with no side wall
G =
Combustible&
Non-Combustible
12"(305mm)
G
Balcony -
with perpendicular side wall
H = 24"(610mm)
J = 20"(508mm)
H
J
B
Recessed Location
C = Maximum depth of 48"
(1219mm) for recessed
location.
D = Minimum width for back wall
of a recessed location.
Combustible 38"(965mm)
Noncombustible 24"(610mm)
E = Clearance from corner in
recessed location.
Combustible 6"(152mm)
Noncombustible 2"(50mm)
C
D
C
E
V
V
Combustible &
Non-Combustible
VV
V
Fig. 11

Vermont Castings, Majestic Products
12 DVR33 10002823/0
VENTING INSTALLATION INSTRUCTIONS
GENERAL INFORMATION ON
ASSEMBLING THE VENT PIPES IN
DIRECT VENT APPLICATIONS.
Crimped End Pipes
Before joining elbows and pipes apply a bead of high tempera-
ture sealant to the crimped end of the elbow or pipe.
Join the pipes using a 2" (50 mm) overlap and secure the
joints with three sheet metal screws, Fig. 12. Wipe off excess
sealant.
CANADIAN INSTALLATIONS:
The venting system must be installed in accordance with the
current CAN/CGA-B149 (.1 or .2) installation code.
U.S.A. INSTALLATIONS:
The venting system must conform to local codes and/or the
current National Fuel Code ANSI Z223.1.
Only venting components manufactured by the CFM Majestic
Products Company may be used in Direct Vent systems.
Twist Lock Pipes
When using CFM Majestic twist lock pipe it is not necessary
to use sealant on the joints.
The only areas of the venting system that need to be sealed
with high temperature silicone sealant are the collars on the
replace and termination, and the sliding joint of any tele-
scopic vent section used in the system.
To join the twist lock pipes together, simply align the beads of
the male end with the grooves of the female end, then while
bringing the pipes together, twist the pipe until the ange on
the female end contacts the external ange on the male end.
It is recommended that you secure the joints with three sheet
metal screws however this is not mandatory with twist lock
pipe.
To make it easier to assemble the joints we suggest putting a
lubricant (Vaseline or similar) on the male end of the twist lock
pipe prior to assembly.
REAR WALL VENT APPLICATION
When installed as a rear vent unit this appliance may be vented
directly to a termination located on the rear wall behind the
appliance.
• Specic rear vent starter kits must be used in these appli-
cations (see ‘venting components’). The appliance may
be placed at against the rear wall or at 45º across the
corner.
• The maximum horizontal distance between the rear of the
appliance (or the end of the transition elbow in a corner
application) and the outside face of the rear wall is 20"
(508 mm), Fig. 14.
• Only one 45º elbow is allowed in these installations
• The minimum clearances between any combustible mate-
rial and the vent pipe sections are:
Top 2" (50 mm)
Sides 1" (25 mm)
Bottom 1" (25 mm)
Fig. 12
Fig. 13
Fig. 14

10002823/0 DVR33 13
Vermont Castings, Majestic Products
REAR WALL VENT INSTALLATION
Step 1

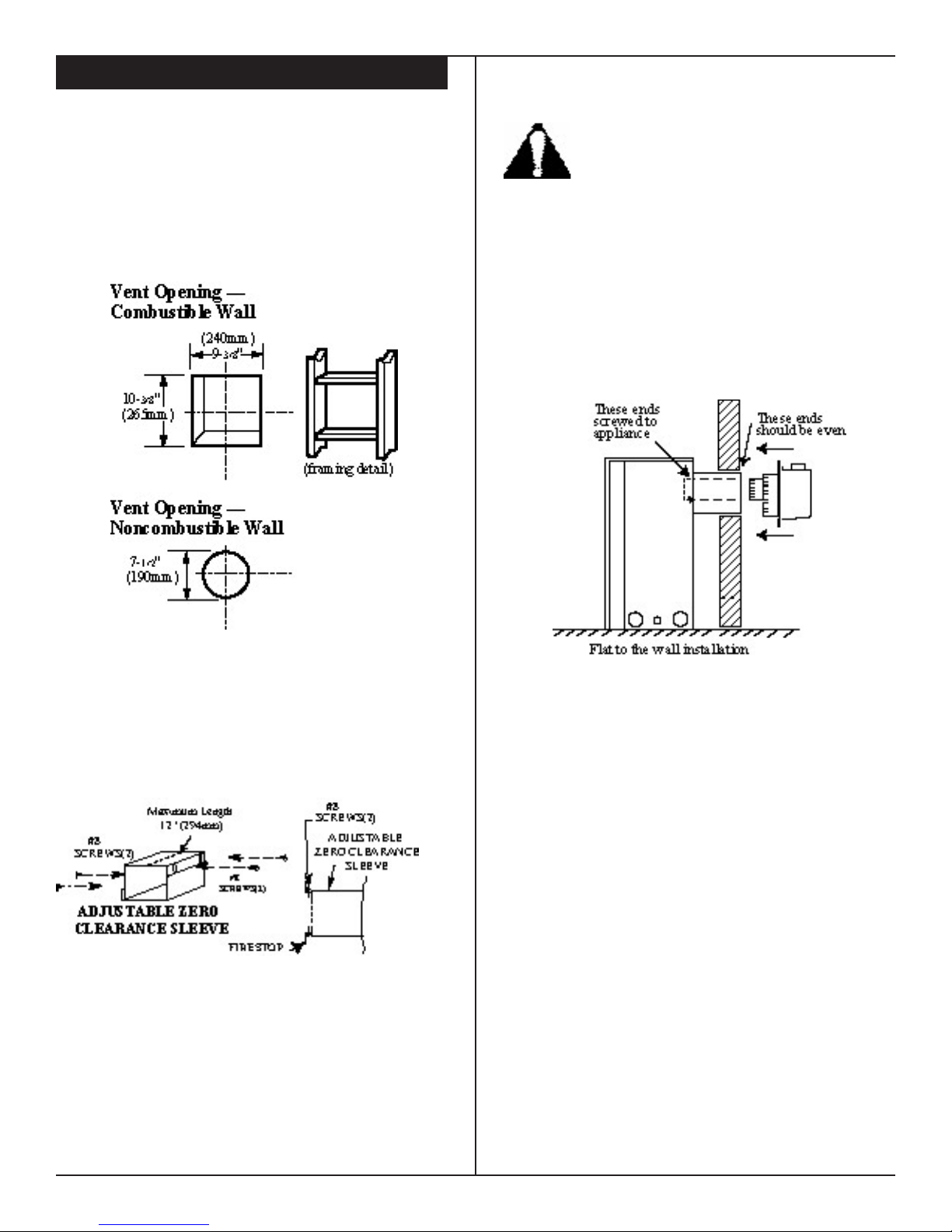

Locate and cut the vent opening in the wall, Fig. 15
For combustible walls rst frame in opening, Fig. 15.
COMBUSTIBLE WALLS : Cut a 10-3/8"H x 9-3/8"W (265
mm x 240 mm) hole through the exterior wall and frame as
shown (Fig. 15).
NON-COMBUSTIBLE WALLS : Hole opening should be
7.5" (190 mm) in diameter.
Step 2
Measure wall thickness and cut zero clearance sleeve parts
to proper length (MAXIMUM 12" / 305 mm). Assemble
sleeve to its maximum opening (10-3/8" x 9-3/8") and attach to
restop with #8 sheet metal screws (supplied). Install restop
assembly (Fig. 16).
Zero clearance sleeve is only required for combustible walls.
Step 3
Measure the horizontal length requirement for the venting
including a 2" (50 mm) overlap, i.e. from the elbow to the
outside wall face plus 2” (50 mm)(or the distance required if
installing a second 90º elbow). (Fig. 14).
Step 4
Install the 4" (100 mm) vent to the appliance collar and secure
with 3 sheetmetal screws. Install the 7" (175 mm) vent pipe to
the appliance collar and secure with 3 sheetmetal screws. It is
not necessary to seal this connection. If a 45º elbow is being
used attach the elbow to the appliance in the same manner then
attach the venting to the elbow.
It is critical that there is no downward slope away
from the appliance when connecting the vent or
elbow.
Step 5
Guide the venting through the vent hole as you place the appli-
ance in its installed position. Guide the 4" (100 mm) and 7"
(175 mm) collars of the vent termination into the outer ends of
the venting, Fig. 17. Do not force the termination. If the vent
pipes do not align with the termination remove and realign the
venting at the appliance ue collars. Attach the termination
to the wall as outlined in the instruction sheet supplied with
the termination.
Fig.15
Fig. 16
Fig. 17

Vermont Castings, Majestic Products
14 DVR33 10002823/0

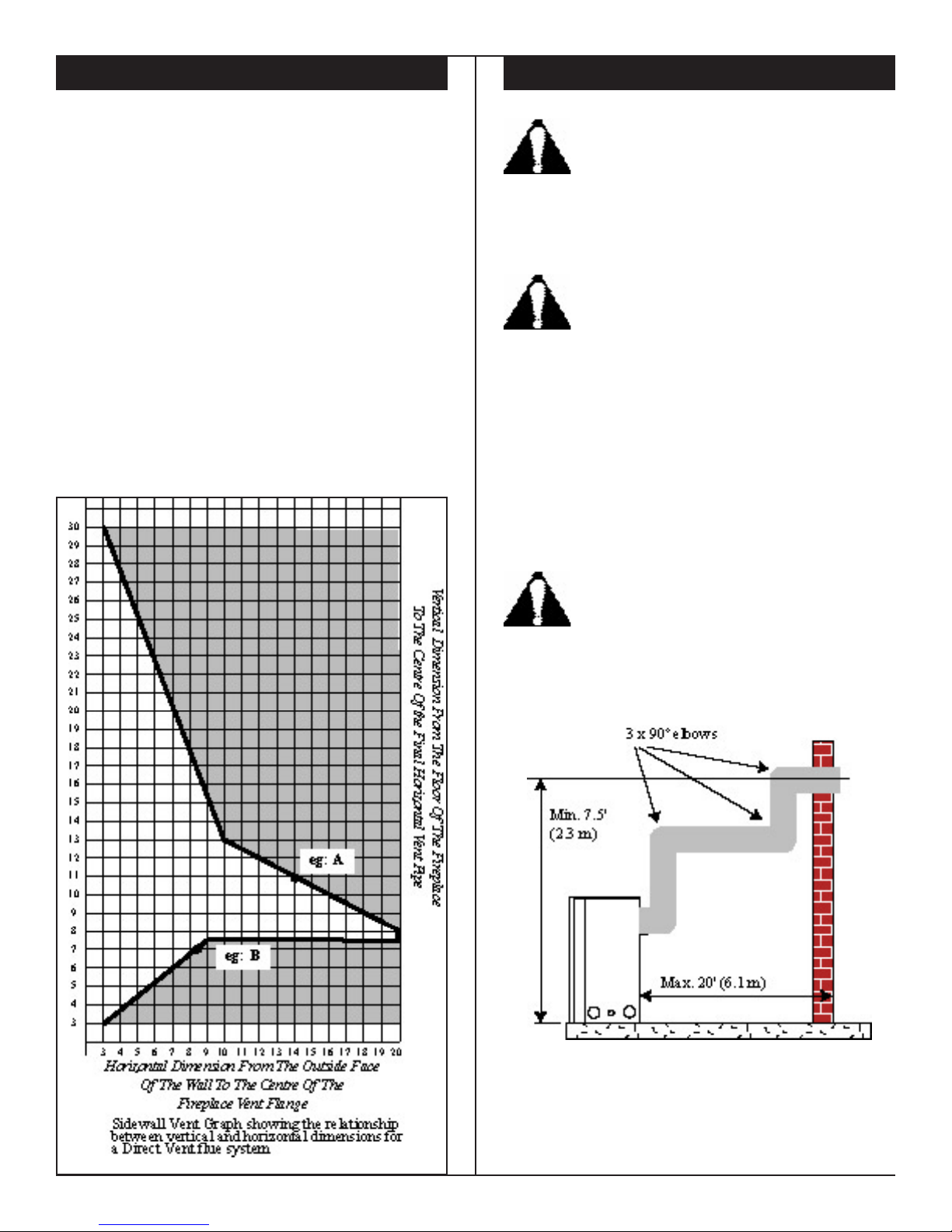

HOW TO USE THE VENT GRAPH
The Vent Graph should be read in conjunction with the follow-
ing vent installation instructions to determine the relationship
between the vertical and horizontal dimensions of the vent
system.
1. Determine the height of the centre of the horizontal vent
pipe exiting through the outer wall. Using this dimension
on the Sidewall Vent Graph below, locate the point it
intersects with the slanted graph line.
2. From the point of this intersection, draw a vertical line to
the bottom of the graph.
3. Select the indicated dimension, and position the replace
in accordance with same.
EXAMPLE A:
If the vertical dimension from the oor of the replace is
11' (3.4 m) the horizontal run to the face of the outer wall
must not exceed 14' (4.3 m).
EXAMPLE B:
If the vertical dimension from the oor of the replace is
7' (214cm), the horizontal run to the face of the outer wall
must not exceed 8-1/2' (2.6 m).
VERTICAL SIDEWALL APPLICATIONS
Since it is very important that the venting system
maintain its balance between the combustion air
intake and the ue gas exhaust, certain limita-
tions as to vent congurations apply and must
be strictly adhered to.
The Sidewall Vent Graph, showing the relationship between
vertical and horizontal venting dimensions will help to deter-
mine the various vent lengths allowable.
Minimum clearance between vent pipes and
combustible materials is one 1"(25mm) on top,
bottom and sides unless otherwise noted.
When vent termination exits through foundations less than 20"
(508 mm) below siding outcrop, the vent pipe must ush up
with the siding.
It is always best to locate the replace in such a way that
minimizes the number of offsets and horizontal vent length.
The horizontal vent run refers to the total length of vent pipe
from the ue collar of the replace to the face of the outer
wall.
Horizontal plane means no vertical rise exists on this portion
of the vent assembly.
When installing a rear vent unit the 90º Transi-
tion Elbow attached directly to the rear of the
unit is not included in the following criteria and
calculations, and unless specically mentioned
should be ignored when calculating venting lay-
outs.
• The maximum number of 90º elbows per side wall instal-
lation is three (3).
Fig. 18

10002823/0 DVR33 15
Vermont Castings, Majestic Products
• If a 90º elbow is tted directly onto transition elbow
attached to the appliance ange the maximum horizontal
vent run before the termination or a vertical rise is 36"
(914 mm), Fig. 19.
• If a 90º elbow is used in the horizontal vent run (level
height maintained) the maximum horizontal vent length is
reduced by 36" (914 mm), (Fig. 20). This does not apply
if the 90º elbows are used to increase or redirect a vertical
rise (Fig. 18).
Example: According to the chart the maximum horizontal
vent length in a system with a 7.5' vertical rise is 20' (6 m)
and if a 90º elbow is required in the horizontal vent it must
be reduced to 17' (5.2 m).
In Fig. 20 Dimension A plus B must not be greater than
17' (5.2 m).
• The maximum number of 45º elbows permitted per side
wall installation is two (2). These elbows can be installed
in either the vertical or horizontal run.
• For each 45º elbow installed in the horizontal run, the
length of the horizontal run MUST be reduced by 18"
(45cm). This does not apply if the 45º elbows are
installed on the vertical part of the vent system.
• The maximum number of elbow degrees in a system
is 270º (See Fig. 21).
Example: In Figure 21
Elbow 1 = 90º
Elbow 2 = 45º
Elbow 3 = 45º
Elbow 4 = 90º
Total angular variation = 270º
Fig. 19
Fig. 20
Fig. 21

Vermont Castings, Majestic Products
16 DVR33 10002823/0
VERTICAL SIDEWALL INSTALLATIONS
Step 1
Locate vent opening on the wall. It may be necessary to
rst position the replace and measure to obtain hole location.
Depending on whether the wall is combustible or non-combus-
tible, cut opening to size. (Fig. 22)
(For combustible walls rst frame in opening. Fig. 22).
COMBUSTIBLE WALLS : Cut a 9-3/8"H x 9-3/8"W (240
mm x 240 mm) hole through the exterior wall and frame as
shown (Fig. 22).
NON-COMBUSTIBLE WALLS : Hole opening must be 7.5"
(190 mm) in diameter.
Step 2
Measure wall thickness and cut zero clearance sleeve parts to
proper length (MAXIMUM 12" / 305 mm). Assemble sleeve
and attach to restop with #8 sheet metal screws (supplied).
Install restop assembly (Fig. 23).
Zero clearance sleeve is only required for combustible walls.
Step 3
Apply a bead of high temperature sealant to the vent anges
on the back of the appliance and attach a 90º transition elbow.
Ensure that the inner and outer elbow ends are concentric
before attaching the vertical lengths of venting. Place the
replace into position. (Fig. 24). Measure the vertical height
(X) required from the end of the transition elbow to the centre
of the wall opening.
Step 4
Attach appropriate lengths of venting using the joining meth-
ods outlined in 'Assembling Vent Pipes'. When the desired
height has been reached attach the top inner and outer elbow,
again secure joints as described on page earlier.
Step 5
Measure the horizontal length requirement including a 2" (50
mm) overlap, i.e. from the elbow to the outside wall face plus
2" (50 mm) (or the distance required if installing a second
90º elbow. (Fig. 21). Use appropriate length of pipe sections
- telescopic or xed - and install. The sections which go
through the wall are packaged with the starter kit, and can be
cut to suit if necessary. (Fig. 25).
Always install horizontal venting on a level plane.
Sealing vent pipe and restop gaps with high temperature
sealant will restrict cold air being drawn in around replace.
Fig. 22
Fig. 23
Fig. 24
Fig. 25

10002823/0 DVR33 17
Vermont Castings, Majestic Products
of the exterior wall. See the Sidewall Vent Graph for extended
horizontal run if the vertical exceeds 24”.
1 Establish vent hole through the wall (Fig. 22).
2 Remove soil to a depth of approximately 16" (405 mm)
below base of snorkel. Install drain pipe. Install window
well (not supplied). Rell hole with 12" (305 mm) of
coarse gravel leaving a clearance of approximately 4"
(100 mm) below snorkel. (Fig. 27)
3 Install vent system.
4 Ensure a watertight seal is made around the vent pipe
coming through the wall.
5 Apply high temperature sealant caulking (supplied)
around the 4" and 7" snorkel collars.
6 Slide the snorkel into the vent pipes and secure to the
wall.
7 Level the soil so as to maintain a 4" (100 mm) clearance
below snorkel. (Fig. 27)
DO NOT BACK FILL AROUND SNORKEL.
A CLEARANCE OF AT LEAST 4” MUST BE
MAINTAINED BETWEEN THE SNORKEL
AND THE SOIL
Step 7
Apply high temperature sealant to 4" (100 mm) and 7" (175
mm) collars or the termination one inch away from crimped
end. Guide the vent terminations 4" and 7" collars into their
respective vent pipes. Double check that the vent pipes over-
lap the collars by 2" (50 mm). Secure the termination to the
wall with screws provided and caulk around the wall plate
to weatherproof, Fig. 26. As an alternative to screwing the
termination directly to the wall you may also use expanding
plugs or an approved exterior construction adhesive. You may
also attach the termination with screws through the inner body
into the 4" vent pipe however for this method you must extend
the 4" pipe approximately 6" (150 mm) beyond the outer face
of the wall.
Support horizontal pipes every 3' (91 cm) with metal pipe
straps.
Check replace to make sure it is levelled and properly posi-
tioned.
BELOW GRADE INSTALLATIONS
When it is not possible to meet the required vent terminal
clearances of 12" (305mm) above grade level a starter vent
kit is recommended. It allows installation depth of down to
7" (178mm) below grade level. The 7" is measured from the
centre of the horizontal vent pipe as it penetrates through the
wall.
If venting system is installed below ground, we
recommend a window well with adequate and
proper drainage be installed around the termi-
nation area.
Ensure sidewall vent termination clearances are
observed.
If installing a snorkel a minimum 24" (610 mm) vertical rise
is necessary. The maximum horizontal run with the 24" (610
mm) vertical pipe is 36" (915mm). This measurement is taken
from the collar of the replace (or transition elbow) to the face
If the foundation is recessed, use recess brackets (not supplied)
for securing lower portion of the snorkel. Fasten brackets to
wall rst and then secure to snorkel with self-drilling #8 x 1/2
sheet metal screws. It will be necessary to extend the vent
pipes out as far as the protruding wall face (Fig. 28).
Fig. 26
Fig. 27
Fig. 28

Vermont Castings, Majestic Products
18 DVR33 10002823/0
• Up to two 45º elbows may be used within the horizontal
run. For each 45º elbow used on the horizontal level the
maximum horizontal length must be reduced by 18" (457
mm).
Example: Maximum horizontal length
0 x 45º elbows = 10' (3.1 m)
1 x 45º elbow = 8.5' (2.6 m)
2 x 45º elbows = 7' (2.1 m)
• A minimum of an 8' (2.4 m) vertical rise.
• Two sets of 45º elbow offsets within these vertical instal-
lations. From 0 to a maximum of 8' (2.4 m) of vent pipe
can be used between elbows. (Fig. 30)
• A 7DVCS bracket must be used to support offsets. This
application will require that you rst determine the roof
pitch and use the appropriate starter kit. (See Venting
Components List)
• The minimum height of the vent termination above the
highest point of penetration through the roof is 2' (610
mm), Fig. 31.
VERTICAL THROUGH-THE-ROOF
APPLICATIONS
This Gas Fireplace has been approved for,
• Vertical installations up to 40' (12 m) in height. Up to
a 10' (3.1 m) horizontal vent run can be installed within
the vent system using a maximum of two 90º elbows.
(Fig. 29)
Fig. 29
Fig. 30
Fig. 31
Fig. 32
Fig. 33

10002823/0 DVR33 19
Vermont Castings, Majestic Products
VERTICAL THROUGH-THE-ROOF
INSTALLATION
1. Locate your replace.
2. Plumb to centre of the 4" (100 mm) ue collar from the
ceiling above and mark the position.
3. Cut an opening equal to 9-3/8" x 9-3/8" (240 mm x 240
mm).
4. Proceed to plumb for additional openings through the
roof. In all cases, the opening must provide a minimum of
1" (25 mm) clearance to the vent pipe, i.e., the hole must
be at least 9-3/8" x 9-3/8" (240 mm x 240 mm).
5. Place the replace into position and secure it to the oor.
6. Place restop(s) #7DVFS and Attic Insulation Shield
#7DVAIS (if required) into position and secure with
screws or nails. (Fig. 34)
7. Install roof support (Fig. 32) and roof ashing making
sure the upper ange of the ashing is under the shingles.
Fig. 33.
8. Install appropriate pipe sections until the ue is above the
ashing. (See Fig. 33).
9. Install the storm collar and seal around the pipe.
10. Add additional vent lengths to achieve the require termi-
nation height. Fig. 31.
11. Apply high temperature sealant to 4" (100 mm) and 7"
(175 mm) collars of vertical vent termination and install
onto the venting.
If there is a room above ceiling level, restop
spacer must be installed on both the bottom and
the top side of the ceiling joists. If an attic is
above ceiling level a 7DVAIS (Attic Insulation
Shield) must be installed.
The enlarged ends of the vent section always
face downward,
Fig. 34
CFM100

Vermont Castings, Majestic Products
20 DVR33 10002823/0
TWIST LOCK VENTING COMPONENTS
7DVRVT - Through the wall Rear Vent Termination
Starter Kit -Model 7TDVSK - Sidewall Venting
Starter Kit - Model 7TDVSKV - Vertical Venting
for 7TDVSKV-A order 1/12 to 6/12 roof pitch
for 7TDVSKV-B order 7/12 to 12/12 roof pitch
for 7TDVSKV-F order at roof
Starter Kit - Model 7TDVSKS -Snorkel Kit
for Below Grade Installation
45º elbow kit
7TDV45 for Vertical Installation Offsets
7TDR45 for Rear Vent Application
90º transition elbow kit
7TDVRT90 for Vertical Sidewall Applications
or thru-the-roof.
Telescopic vent sections
7TDVP1218 - 12" to 18" adjustable length
7TDVP3564 - 35" to 64" adjustable length
Pipe sections for vertical or horizontal venting
Model 7TDVP8"
Model 7TDVP12"
Model 7TDVP24"
Model 7TDVP36"
Model 7TDVP48"
Firestop Spacer
Model 7DVFS
Attic Insulation Shield
Model 7DVAIS
Vertical/Horizontal Combination Offset Support
Model 7DVCS
7DVSS Siding Shield (to protect siding)
FP892-7TDV45
Twist Lock-45° Elbow
9-22-00
FP893-7TDVRT90
Twist Lock 4"-90¡ Elbow
9-22-00
FP892
FP893
