MAKINEX JHT User manual

Jackhammer Trolley
JHT
OPERATOR’S MANUAL

JHT Operator’s Manual Rev 0117 Page 2 of 17
CONTENTS
ABOUT THIS MANUAL
3
PRODUCT INFORMATION
4
- General Safety Instructions
4
- Safety Stickers
4
- Warranty
6
- Product Description and Specifications
9
INSTRUCTIONS FOR USE
10
- Fitting A Jackhammer
11
- Using the JHT
14
- Servicing the JHT
15
APPENDIX
16
A. BLOCK SETS BREAKDOWN
B. HAZARD ASSESSMENT
C. SALES AND SPARES

JHT Operator’s Manual Rev 0117 Page 3 of 17
ABOUT THIS MANUAL
This manual is designed to provide the user with the information
required to operate and maintain the Jackhammer Trolley
correctly and safely.
Key Terms
READ
CAREFULLY
READ CAREFULLY – refers to important
information that should be paid careful
attention.
CAUTION
CAUTION - indicates a situation that may cause
injury or damage to the machine if the user does
not follow the instructions.
WARNING
WARNING – indicates a situation that may
cause injury or death if the user does not follow
the instructions correctly.
DANGER
DANGER – indicates a situation that will cause
injury or death if the user does not follow the
instructions as written.
PROHIBITED
PROHIBITED – identifies actions that should
never be carried out by any one interacting
with the machine.
Disclaimer
MAKINEX, and its affiliates, takes no responsibility for any
damage, injury or death resulting from the incorrect or unsafe
use of this machine. Use of this machine should be undertaken
by competent persons only. It is the operators’ responsibility to
ensure that the following safety procedures are followed.

JHT Operator’s Manual Rev 0117 Page 4 of 17
PRODUCT INFORMATION
General Safety Instructions
Throughout this document there are several safety warnings.
The user should read through this complete document before
using the Jackhammer Trolley.
READ
CAREFULLY
Ensure you read all information contained in
this manual before using the Jackhammer
Trolley
READ
CAREFULLY
Ensure you read the manual and safety
instructions for the Jackhammer and other
components that are part of this unit. See
Appendix for more information
DANGER
Always wear the recommended personal
protective equipment
PROHIBITED
Never expose the machine to moisture or rain
Safety Stickers
There is a safety and information panel provided on the front of
the Jackhammer Trolley to alert the user of potential safety
risks/hazards. Please read and adhere to all instructions on the
Unit.

JHT Operator’s Manual Rev 0117 Page 5 of 17
PROHIBITED
It is forbidden to remove any safety or
instructional stickers or panels from the
Jackhammer Trolley
READ
CAREFULLY
Read all safety and instructional stickers
displayed on each component of the
Jackhammer Trolley

JHT Operator’s Manual Rev 0117 Page 6 of 17
Warranty
WARRANTY: (Ex-factory/ Reseller premise)
MAKINEX warrants to the original purchaser:
• MAKINEX provides a Limited One Year Warranty that
applies to Jackhammer Trolley only (this excludes the
Jackhammer and any other attachments and consumables).
• Any unauthorized repair or part replacement will void
warranty. Refer to manufacturer for all repairs.
• Regular service must be carried out by competent persons
only; failure to comply will void warranty.
• Jackhammer (where purchased) is to be covered by original
manufacturer. Please refer to their manual for more
information.
Transportation charges on product submitted for repair or replacement
under this warranty are the sole responsibility of the purchaser. This
warranty only applies to the original purchaser and is not transferable.
Warranty Exclusions:
• Warranty does not cover wear and tear, breakage, misuse or
theft.
• Warranty does not cover consumables (e.g. blades). Warranty
does not cover attachments (e.g. Shanks and Tile Smasher
heads).
• Warranty will not apply to parts and/or labour if this
Jackhammer Trolley is deemed to be misused, neglected,
installed improperly or set up incorrectly.
• Cosmetic defects such as decals and coating.
• Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
• Problems caused by parts that are not original MAKINEX parts.

JHT Operator’s Manual Rev 0117 Page 7 of 17
Responsibility of the consumer under this Limited Warranty:
• Strict adherence to the maintenance checks and schedule with
proof of scheduled maintenance service required by an
authorised agent or qualified mechanic.
• Maintenance services are not covered under warranty.
• It is the consumer’s responsibility to deliver the machine in
question to our service premises or to the premises of our
appointed agent at the consumer’s expense for replacement or
repair as applicable.
Claim Procedure:
- Contact MAKINEX by phone or email informing us of your
machines problem or defect.
- Once the extent of the claim has been assessed, we retain the
right to compensate the consumer for such defect, or repair
(parts & labour), or replace the machine under warranty.
- All warranties will be carried out by MAKINEX authorised staff
or appointed agents at a premises to be determined by the
Manufacturer.
- It is the responsibility (and cost) of MAKINEX or our appointed
agent to return the machine to be repaired or replaced under
warranty to the consumer- this is valid for domestic territories
only (e.g. machine purchased in USA will repaired/replaced
under warranty and returned to the USA consumer. Machine
purchased in Australia will be repaired/ or replaced under
warranty and returned to the Australian consumer etc.)
- Where the specific warranty component (e.g. Jackhammer) is
under a Manufacturer’s warranty other than MAKINEX (e.g.
Bosch, Hitachi, Makita, Hilti etc), the consumer can either
contact MAKINEX or the applicable Manufacturer for repairs
where such warranty was registered with that manufacturer at
purchase.
- Warranty calls will only be carried out by our representatives
and not via client’s choice of repairer. We will not accept back
charges for any work not carried out by our representatives, or

JHT Operator’s Manual Rev 0117 Page 8 of 17
accept any charges due to equipment being un-operational for
any reason even during its warranty period.
Product Description and Specifications
The Jackhammer Trolley enables your demolition hammer to
lifts most types of Ceramic Floor Tiles, Vinyl and Cork with less
effort.
With a wide range of angle the Jackhammer Trolley adapts to
any situation with a maximum leverage.
Features
• Durable zinc coated frame
• Easy Angle adjustment
• Will suit most 16kg (35lbs) hammers
• Anti-vibration ergonomic design
• Large wheels
TABLE 2: Product Specifications
HEIGHT WHEN RAISED
1100mm/43.3’’
HEIGHT WHEN LOWERED
600mm/23.6’’
OVERALL WIDTH
510mm/20’’
OVERALL LENGTH
1100mm/43.3’’
ANGLE OF ADJUSTMENT
73° (93° closed, 20° open)
WEIGHT (WITHOUT
JACKHAMMER)
28kg/62lb

JHT Operator’s Manual Rev 0117 Page 9 of 17
INSTRUCTIONS FOR USE
WARNING
Do not operate the Jackhammer without
wearing the appropriate personal protective
equipment and assessing the surrounding
area for hazards.
Fitting a Jackhammer
Tools Required
▪ 17mm spanner
▪ 2mm allen key
▪ 19mm spanner
▪ Pliers

JHT Operator’s Manual Rev 0117 Page 10 of 17

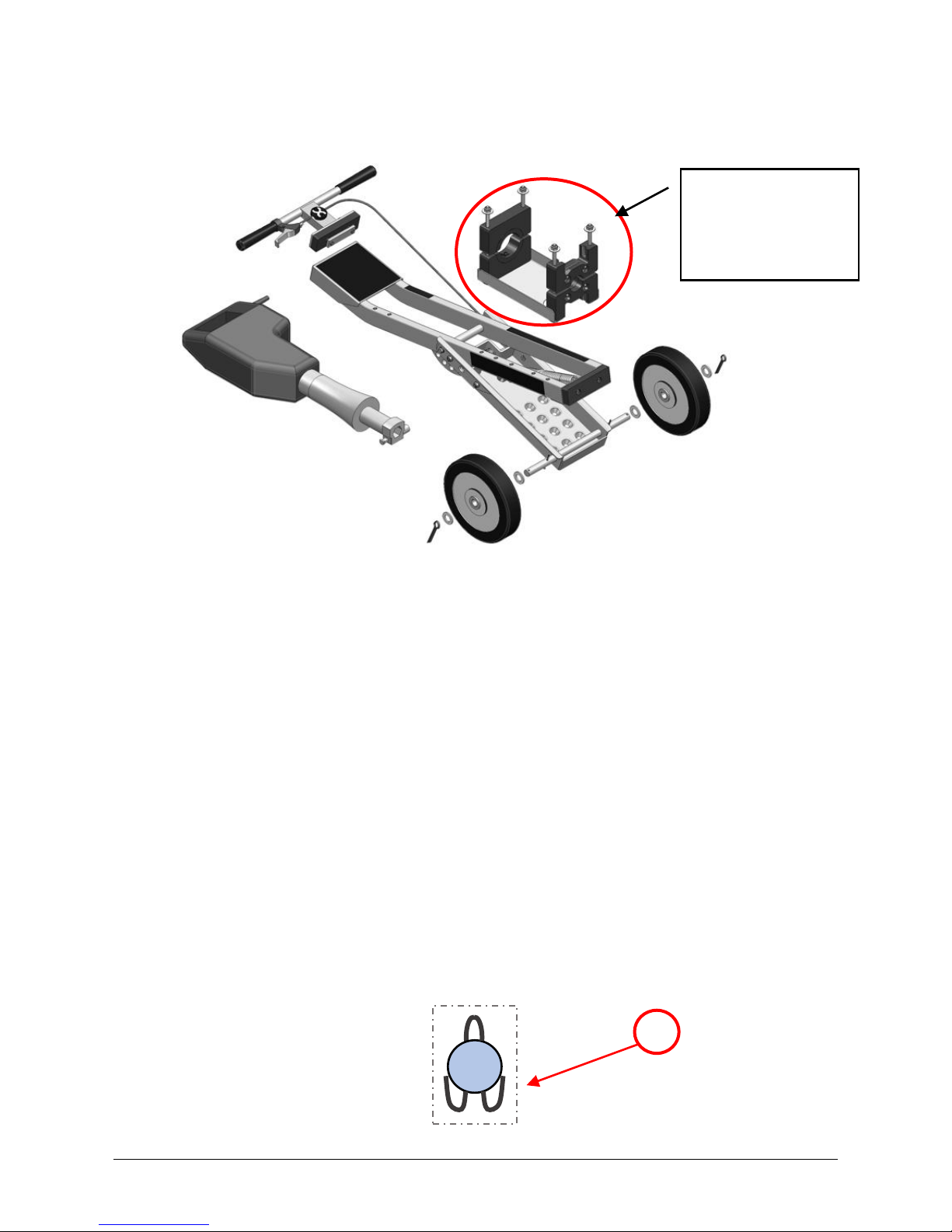

Product Breakdown
Jackhammer sold separately
Step 1:
Block Set to
suit particular
Jackhammer
brand provided

JHT Operator’s Manual Rev 0117 Page 11 of 17
Step 2:
Step 3:

JHT Operator’s Manual Rev 0117 Page 12 of 17
Step 4:
Brake Lever Adjustment
Instructions
1. Ensure cable is not kinked anywhere along its length

JHT Operator’s Manual Rev 0117 Page 13 of 17
2. Tighten retaining screw with pliers
3. Tighten adjustment screw with 2mm allen key to remove
slack from the cable. Note that some slack in the
mechanism is normal.
USING THE JHT
WARNING
Ensure the machine is switched OFF before
plugging in
CAUTION
Ensure Chisel or Tile Smasher is correctly
inserted and locked in position before use
1. Ensure Hammer/Breaker is secure and cannot rotate.
2. Position and angle before commencing work.
To change angle - lift handles to take weight off lock
mechanism then pull the brake lever to disengage the
lock mechanism. Lift or lower the height of the handles
to achieve the desired angle of jackhammer then
release brake lever to reengage the lock mechanism.
3. Never allow Hammer/Breaker or moil to overheat.
4. Switch on Hammer/Breaker with trigger
5. Refer to Hammer/Breaker Instruction Manual for more
detail on operation and service
WARNING
Always switch off machine before
unplugging
Servicing the Hammer Trolley
Every Use:
▪ Inspect frame for damage

JHT Operator’s Manual Rev 0117 Page 14 of 17
▪ Ensure bolts are secure
Every 3 Months:
▪ Adjust brake lever to eliminate free-play
▪ Lubricate brake lever cable
o Drip light weight oil from the top of the cable so it runs
through the cable housing
▪ Grease the pivot axle
APPENDICES
A. BLOCK SETS BREAKDOWN
B. JACKHAMMER TROLLEY - HAZARD ASSESSMENT
C. SALES AND SPARES

JHT Operator’s Manual Rev 0117 Page 15 of 17
Appendix C – Hazard Assessment
Appendix A – BLOCK SETS BREAK DOWN
www.makinexusa.com Makinex Support #: US 407-446-1966 , 407-826-0000

JHT Operator’s Manual Rev 0117 Page 16 of 17
Appendix B – JHT Risk Assessment

JHT Operator’s Manual Rev 0117 Page 17 of 17
Appendix C – Sales and Spare Parts
For sales and spare parts please refer to your local distributor or
contact us on
www.makinex.com [email protected]
www.makinex.com.au [email protected]
