INSTRUCTION MANUAL
Cordless Chain Saw
DUC122
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model DUC122
Standard guide bar Guidebar length 115 mm
Cutting length 11.5 cm
Type Carving bar
Standard saw chain Type 25 AP
Pitch 6.35 mm (1/4")
Gauge 1.3 mm (0.05")
No. of drive links 42
Sprocket Number of teeth 9
Pitch 6.35 mm (1/4")
Overall length 422 mm
Net weight *1 1.7 kg
*2 2.4 - 2.7 kg
Chain speed per minute (min-1)5.0 m/s (300 m/min)
Chain oil tank volume 80 cm3
Rated voltage D.C. 18 V
WARNING: Use appropriate combination of the guide bar and saw chain. Otherwise personal injury may result.
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydi󰀨erfromcountrytocountry.
*1: Weight, without the saw chain, guide bar, guide bar cover, oil and battery cartridge(s).
*2:Thelightestandheaviestcombinationofweight,accordingtoEPTA-Procedure01/2014.Theweightmaydi󰀨er
depending on the attachment(s), including the battery cartridge(s).
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
andchargersmaycauseinjuryand/orre.
Symbols
The followings show the symbols which may be used
for the equipment. Be sure that you understand their
meaning before use.
Read instruction manual.
Wear safety glasses.
Wear ear protection.
Wear a helmet, goggles and ear protection.
Use appropriate protection for foot-leg and
hand-arm.
Do not expose to moisture.
Maximum permissible cut length
Always use two hands when operating the
chain saw.
Beware of chain saw kickback and avoid
contact with bar tip.
Direction of chain travel
Saw chain oil adjustment

3ENGLISH
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household
waste!
In accordance with the European Directive
on waste electrical and electronic equip-
ment and on accumulators and batteries
and waste accumulators and batteries,
as well as their adaptation to national law,
waste electrical equipment, batteries and
accumulators should be stored separately
and delivered to a separate collection point
for municipal waste, operating in accor-
dance with the regulations on environmen-
tal protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on the
equipment.
Guaranteed sound power level according
to EU Outdoor Noise Directive.
Sound power level according to Australia
NSW Noise Control Regulation.
Intended use
The tool is intended for cutting branches / pruning trees.
It is not suitable for tree felling.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7.
Power tools can produce electromagnetic elds
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device and/
or doctor for advice before operating this power tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.

4ENGLISH
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5.
Maintain power tools and accessories. Check for
misalignment or binding of moving parts, break-
age of parts and any other condition that may
a󰀨ect the power tool’s operation. If damaged, have
the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
foroperationsdi󰀨erentfromthoseintendedcould
result in a hazardous situation.
8.
Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acci-
dentally occurs, ush with water. If liquid con-
tacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
may exhibit unpredictable behaviour resulting in
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
Cordless Chain saw safety warnings
1. Keep all parts of the body away from the saw
chain when the chain saw is operating. Before
you start the chain saw, make sure the saw
chain is not contacting anything. A moment of
inattention while operating chain saws may cause
entanglement of your clothing or body with the
saw chain.
2. Always hold the chain saw with your right
hand on the rear handle and your left hand on
the front handle. Holding the chain saw with a
reversedhandcongurationincreasestheriskof
personal injury and should never be done.

5ENGLISH
3.
Hold the chain saw by insulated gripping sur-
faces only, because the saw chain may contact
hidden wiring. Saw chains contacting a "live" wire
may make exposed metal parts of the chain saw
"live" and could give the operator an electric shock.
4. Wear eye protection. Further protective equip-
ment for hearing, head, hands, legs and feet is
recommended. Adequate protective equipment
willreducepersonalinjuryfromyingdebrisor
accidental contact with the saw chain.
5. Do not operate a chain saw in a tree, on a lad-
der, from a rooftop, or any unstable support.
Operation of a chain saw in this manner could
result in serious personal injury.
6. Always keep proper footing and operate the
chain saw only when standing on xed, secure
and level surface. Slippery or unstable surfaces
may cause a loss of balance or control of the
chain saw.
7. When cutting a limb that is under tension, be
alert for spring back. When the tension in the
woodbresisreleased,thespringloadedlimb
may strike the operator and/or throw the chain
saw out of control.
8.
Use extreme caution when cutting brush and sap-
lings. The slender material may catch the saw chain
andbewhippedtowardyouorpullyouo󰀨balance.
9. Carry the chain saw by the front handle with
the chain saw switched o󰀨 and away from your
body. When transporting or storing the chain
saw, always t the guide bar cover. Proper
handling of the chain saw will reduce the likelihood
of accidental contact with the moving saw chain.
10. Follow instructions for lubricating, chain
tensioning and changing the bar and chain.
Improperly tensioned or lubricated chain may
either break or increase the chance for kickback.
11. Cut wood only. Do not use chain saw for pur-
poses not intended. For example: do not use
chain saw for cutting metal, plastic, masonry
or non-wood building materials. Use of the
chainsawforoperationsdi󰀨erentthanintended
could result in a hazardous situation.
12. This chain saw is not intended for tree felling.
Useofthechainsawforoperationsdi󰀨erentthan
intended could result in serious injury to the opera-
tor or bystanders.
13. Causes and operator prevention of kickback:
Kickback may occur when the nose or tip of the
guide bar touches an object, or when the wood
closes in and pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden
reverse reaction, kicking the guide bar up and
back towards the operator. Pinching the saw chain
along the top of the guide bar may push the guide
bar rapidly back towards the operator. Either of
these reactions may cause you to lose control of
the saw which could result in serious personal
injury. Do not rely exclusively upon the safety
devices built into your saw. As a chain saw user,
you should take several steps to keep your cutting
jobs free from accident or injury.
Kickback is the result of chain saw misuse and/or
incorrect operating procedures or conditions and
can be avoided by taking proper precautions as
given below:
• Maintain a rm grip, with thumbs and
ngers encircling the chain saw handles,
with both hands on the saw and position
your body and arm to allow you to resist
kickback forces. Kickback forces can be
controlled by the operator, if proper precau-
tions are taken. Do not let go of the chain
saw.
• Do not overreach and do not cut above
shoulder height. This helps prevent unin-
tended tip contact and enables better control
of the chain saw in unexpected situations.
• Only use replacement guide bars and saw
chains specied by the manufacturer.
Incorrect replacement guide bars and saw
chains may cause chain breakage and/or
kickback.
• Follow the manufacturer’s sharpening
and maintenance instructions for the saw
chain. Decreasing the depth gauge height
can lead to increased kickback.
14. Follow all instructions when clearing jammed
material, storing or servicing the chain saw.
Make sure the switch is o󰀨 and the battery
pack is removed. Unexpected actuation of the
chain saw while clearing jammed material or
servicing may result in serious personal injury.
ADDITIONAL SAFETY RULES
1. Before starting work, check that the chain
saw is in proper working order and that its
condition complies with the safety regulations.
Check in particular that:
• Thebarandthesprocketcoveraretted
correctly;
• The chain has been sharpened and ten-
sioned in accordance with the regulations.
2. Do not start the chain saw with the chain cover
being installed on it. Starting the chain saw with
the chain cover being installed on it may cause
the chain cover to thrown out forward resulting in
personal injury and damage to objects around the
operator.
3. Avoid dangerous environment. Don't use the
tool in damp or wet locations or expose it to
rain. Water entering the tool will increase the
risk of electric shock.
4. Do not dispose of the battery(ies) in a re. The
cell may explode. Check with local codes for
possible special disposal instructions.

6ENGLISH
5. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be
toxic if swallowed.
6. Do not charge battery in rain, or in wet
locations.
Protective equipment
1. In order to avoid head, eye, hand or foot
injuries as well as to protect your hearing the
following protective equipment must be used
during operation of the chain saw:
— The kind of clothing should be appropriate,
i.e.itshouldbetight-ttingbutnotbea
hindrance. Do not wear jewelry or clothing
which could become entangled with bushes
or shrubs. If you have long hair, always wear
a hairnet!
— It is necessary to wear a protective helmet
whenever working with the chain saw. The
protective helmet is to be checked in regu-
lar intervals for damage and is to be replaced
after 5 years at the latest. Use only approved
protective helmets.
— The face shield of the protective helmet (or
the goggles) protects against sawdust and
wood chips. During operation of the chain
saw always wear a goggle or a face shield to
prevent eye injuries.
— Wear adequate noise protection equip-
ment(earmu󰀨s,earplugs,etc.)
— The protective jacket consists of 22 layers
of nylon and protects the operator against
cuts.
— The protective brace and bib overall is
made of a nylon fabric with 22 layers and
protects against cuts. We strongly recom-
mend its use.
— Protective gloves made of thick leather are
part of the prescribed equipment and must
always be worn during operation of the chain
saw.
— During operation of the chain saw safety
shoes or safety bootsttedwithantiskid
sole, steel toe caps and protection for the
leg must always to be worn. Safety shoes
equipped with a protective layer provide
protection against cuts and ensure a secure
footing.
Vibration
1. Individuals with poor circulation who are exposed
to excessive vibration may experience injury to
blood vessels or the nervous system. Vibration
may cause the following symptoms to occur in the
ngers,handsorwrists:“Fallingasleep”(numb-
ness), tingling, pain, stabbing sensation, alteration
of skin colour or of the skin. If any of these symp-
toms occur, see a physician! To reduce the risk
of“whitengerdisease”,keepyourhandswarm
during operation and well maintain the equipment
and accessories.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge.Itmayresultinare,excessiveheat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re,excessiveheat,orexplosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tapeormasko󰀨opencontactsandpackupthe
battery in such a manner that it cannot move
around in the packaging.

7ENGLISH
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may result in poor performance or
breakdown of the tool or battery cartridge.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).

8ENGLISH
PARTS DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
12
Top handle
Battery cartridge
Sprocket cover
Front hand guard
Guide bar
Tip guard
Saw chain
knob
Lock off button
Switch trigger
Front handle
Chain cover
13 Carabiner or rope
attachment point

9ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION:
• Alwaysbesurethatthetoolisswitchedo󰀨and
the battery cartridge is removed before adjust-
ing or checking function on the tool.
Installing or removing battery
cartridge
1
23
►1. Red indicator 2. Button 3. Battery cartridge
CAUTION:
• Alwaysswitcho󰀨thetoolbeforeinstallingor
removing of the battery cartridge.
• Hold the tool and the battery cartridge rmly
when installing or removing battery car-
tridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipo󰀨your
hands and result in damage to the tool and
battery cartridge and a personal injury.
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION:
• Always install the battery cartridge fully until the
red indicator cannot be seen. If not, it may acci-
dentally fall out of the tool, causing injury to you
or someone around you.
• Do not install the battery cartridge forcibly. If the
cartridge does not slide in easily, it is not being
inserted correctly.
Battery protection system (Lithium-
ion battery with star marking)
The tool will automatically stop during operation if the
tool and/or battery are placed under one of the following
conditions:
• Overloaded:
The tool is operated in a manner that causes
it to draw an abnormally high current.
In this situation, release the trigger switch on
the tool and stop the application that caused
the tool to become overloaded. Then pull the
trigger switch again to restart.
If the tool does not start, the battery is over-
heated. In this situation, let the battery cool
before pulling the trigger switch again.
• Low battery voltage:
The remaining battery capacity is too low
and the tool will not operate. In this situation,
remove and recharge the battery.
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
1
2
►1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.

10 ENGLISH
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydi󰀨erslightly
from the actual capacity.
NOTE:Therst(farleft)indicatorlampwillblinkwhen
the battery protection system works.
Switch action
CAUTION:
• Before inserting the battery cartridge into the
tool, always check to see that the switch trigger
actuates properly and returns to the "OFF"
position when released.
12
►1.Lock-o󰀨button2. Switch trigger
To prevent the switch trigger from being accidentally
pulled,alock-o󰀨buttonisprovided.
Tostartthetool,depressthelock-o󰀨buttonandpullthe
switch trigger. Release the switch trigger to stop.
ASSEMBLY
CAUTION:
• Alwaysbesurethatthetoolisswitchedo󰀨and
the battery cartridge is removed before carrying
out any work on the tool.
Installing or removing saw chain
CAUTION:
• Alwaysbesurethatthetoolisswitchedo󰀨and
the battery cartridge is removed before installing
or removing the saw chain.
• Always wear gloves when installing or removing
the saw chain.
• Use only saw chain and guide bar with bar tip
designed for this chain saw (see the Extract
from the spare parts list).
• In order to prevent kickback, do not remove the
bar tip or replace the guide bar with one without
a bar tip.
1
2
3
►1. Cutter 2. Guide bar 3. Arrow
Fit in one end of the saw chain on the top of guide bar.
Atthistime,tthesawchainasshowninthegure
because it rotates in the direction of arrow.
2
1
►1. Spring 2. Sprocket
Place the saw chain so that the spring is positioned
insideitandtintheotherendofsawchainaroundthe
sprocketasshowninthegure.

11 ENGLISH
12
►1. Spring 2. Guide bar
While turning the guide bar counterclockwise, install it
so that the end of guide bar contacts the spring.
2
3
1
►1. Sprocket cover 2. Hook 3. Hole
Insert the hook of sprocket cover into the hole in the tool
and then place the sprocket cover on the tool.

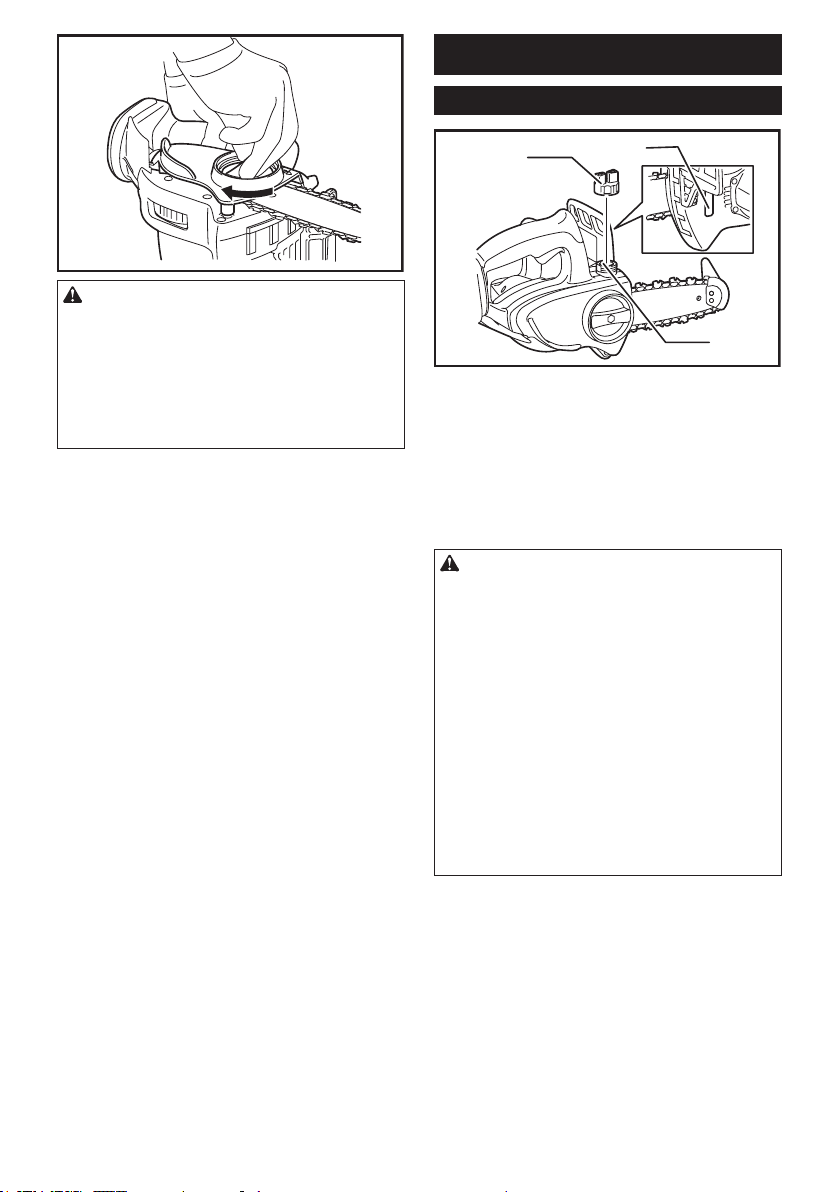

Turntheknobclockwisetotightenthescrewrmly.
12
►1. Sprocket cover 2. Knob
Loosen the screw by turning counterclockwise the knob
untilthesprocketcovercomeso󰀨.
Remove the sprocket cover.
Remove saw chain and guide bar from the tool.
Adjusting saw chain tension
12
Just a slight loosening of the screw allows the saw
chain tension to be adjusted. After adjusting, retighten
thescrewrmly.

12 ENGLISH
CAUTION:
• For a while after a new saw chain is installed, it
tends to become loosened. From time to time
check the saw chain tension before use.
• Low tension of saw chain may cause coming out
of place.
• Installing or removing saw chain should be
carried out in a clean place free from sawdust
and the like.
OPERATION
Lubrication
2
1
3
►1. Oil tank cap 2. Oil inspection window 3. Oil tank
opening
Saw chain is automatically lubricated when the tool is
in operation.
Check the amount of remaining oil in the oil tank
through the oil inspection window.
Torellthetank,removethecapfromtheoiltank
opening.
Afterrellingthetank,alwaysscrewtheprovidedoil
tank cap on the chain saw.
CAUTION:
• Do not operate the chain saw when the tank is
empty. Replenish the oil in due time before the
tank is empty.
• Whenllingthechainsawwithchainoilforthe
rsttime,orrellingthetankafterithasbeen
completely emptied, add oil up to the bottom
edgeofthellerneck.Theoildeliverymay
otherwise be impaired.
• As a saw chain oil, use oil exclusively for Makita
chain saws or oil available in market.
• Never use oil including dust and particles or
volatile oil.
• When pruning trees, use botanical oil. Mineral
oil may harm trees.
• Never force the chain saw when pruning trees.
• Before cutting out, make sure that the provided
oil tank cap is screwed in place.
Hold the chain saw away from the tree. Start it and wait
until lubrication on saw chain is adequate.
Bring the tip guide/lower guide into contact with the
branch to be cut before switching on. Cutting without
bringing the tip guide/lower guide into contact with the
branch may cause the guide bar to wobble, resulting in
injury to operator.
Saw the wood to be cut by just moving it down.

13 ENGLISH
WORKING WITH THE CHAIN SAW
CAUTION: The rst time user should, as a
minimum practice, do cutting logs on a saw-horse
or cradle.
Pruning trees
1
►1. Tip guide
1
►1. Lower guide
CAUTION:
• Keep all parts of the body away from the saw
chain when the motor is operating.
• Holdthechainsawrmlywithbothhandswhen
the motor is running.
• Do not overreach. Keep proper footing and
balance at all times.
Bring the tip guide/lower guide into contact with the
branch to be cut before switching on. Cutting without
bringing the tip guide/lower guide into contact with the
branch may cause the guide bar to wobble, resulting in
injury to operator.
Whencuttingthickbranches,rstmakeashallow
undercutandthenmakethenishcutfromthetop.
1
2
Ifyoutrytocuto󰀨thickbranchesfromthebottom,the
branch may close in and pinch the saw chain in the cut.
Ifyoutrytocuto󰀨thickbranchesfromthetopwithouta
shallow undercut, the branch may splinter.
If you cannot cut the timber right through with a single
stroke:
Apply light pressure to the handle and continue saw-
ing and draw the chain saw back a little; then apply
thespikealittlelowerandnishthecutbyraisingthe
handle.

14 ENGLISH
Carrying tool
1
2
►1. Battery cartridge 2. Scabbard (chain cover)
Always remove the battery cartridge from the tool and
overlap the guide bar with the scabbard before carrying
the tool. Also cover the battery cartridge with the battery
cover.
MAINTENANCE
CAUTION:
• Alwaysbesurethatthetoolisswitchedo󰀨and
the battery cartridge is removed before attempt-
ing to perform inspection or maintenance.
• Always wear gloves when performing any
inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol
or the like. Discoloration, deformation or cracks
may result.
Sharpening the saw chain
CAUTION:
• Always remove the battery cartridge and wear
safety gloves when performing work on the saw
chain.
Sharpen the saw chain when:
— Mealy sawdust is produced when damp wood is cut;
— Thechainpenetratesthewoodwithdi󰀩culty,even
when heavy pressure is applied;
— The cutting edge is obviously damaged;
— The saw pulls to the left or right in the wood. The
reason for this behaviour is uneven sharpening of
the saw chain, or damage to one side only.
Sharpen the saw chain frequently, but
remove only a little material each time.
Twoorthreestrokeswithaleareusuallysu󰀩cientforroutine
resharpening. When the saw chain has been resharpened sev-
eral times, have it sharpened in a MAKITA specialist repair shop.
File and le guiding
— Useaspecialroundle(optionalaccessory)for
saw chains, with a diameter of 4 mm, to sharpen
thechain.Normalroundlesarenotsuitable.
— Theleshouldonlyengagethematerialontheforward
stroke.Lifttheleo󰀨thematerialonthereturnstroke.
— Sharpentheshortestcutterrst.Thelengthofthis
cutter is then the gauge dimension for all other
cutters on the saw chain.
— Guidetheleasshowninthegure.
—
Thelecanbeguidedmoreeasilyifaleholder
(accessory)isemployed.Theleholderhasmark-
ings for the correct sharpening angle of 30 ° (align
the markings parallel to the saw chain) and limits the
depthofpenetration(to4/5ofthelediameter).
Guidetheleasshowninthegure.
—
After sharpening the chain, check the height of the depth
gauge using the chain gauge tool (optional accessory).

15 ENGLISH
— Remove any projecting material, however small,
withaspecialatle(optionalaccessory).
— Roundo󰀨thefrontofthedepthgaugeagain.
— Wash away dust and particles from saw chain
after adjusting the height of depth gauge.
Cleaning guide bar
Chips and sawdust will build up in the guide bar groove,
cloggingitandimpairingoilow.Alwayscleanoutthe
chips and sawdust when sharpening or replacing the
saw chain.
Cleaning the oil lter at the oil
discharge hole
Smalldustorparticlesmaybebuiltupintheoillterat
the oil discharge hole during operation.
Smalldustorparticlesbuiltupintheoilltermayimpair
theoildischargeowandcauseaninsu󰀩cientlubrica-
tion on the whole saw chain.
When a poor chain oil delivery occurs at the top of
guidebar,cleanthelterasfollows.
Remove the battery cartridge from the tool.
Remove the sprocket cover and saw chain from the
tool. (Refer to the section titled " Installing or removing
saw chain ".)
12
►1. Push nut 2. Slotted bit screwdriver
Remove the push nut using a slotted bit screwdriver
with a slender shaft or the like.
1
►1. Filter
Takethelteroutofthechainsawandremovesmall
dustorparticlesfromit.Whenthelteristoodirty,
replace it with a new one.
Insert the battery cartridge into the tool.
Pulltheswitchtriggertoowbuilt-updustorparticles
o󰀨theoildischargeholebydischargingchainoil.
Remove the battery cartridge from the tool.
1
►1. Filter
Insertthecleanedoillterintotheoildischargehole.
Whenthelteristoodirty,replaceitwithanewone.

16 ENGLISH
1

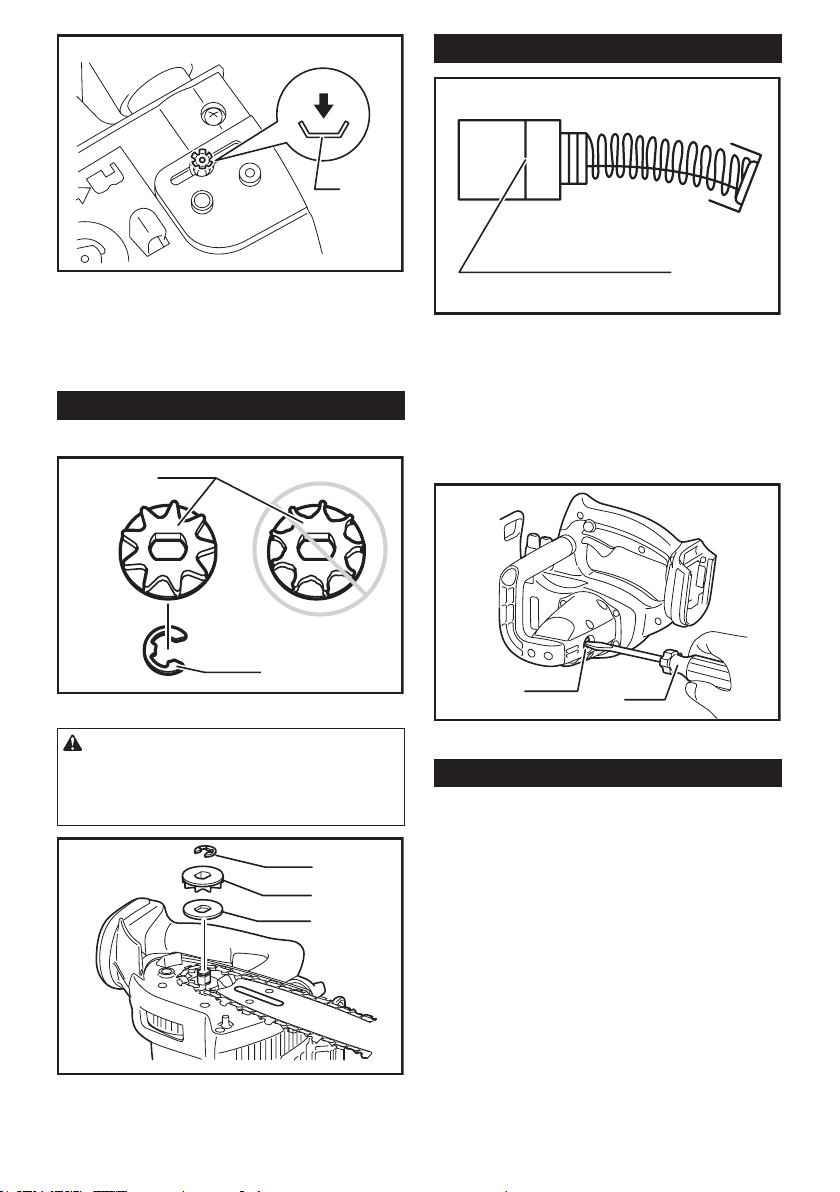

►1. Push nut
Insert the push nut with its correct side facing up as
showninthegureintotheoildischargeholetosecure
thelter.Whentheltercannotbesecuredwithadisg-
ured push nut, replace the push nut with a new one.
Reinstall the sprocket cover and saw chain on the tool.
Replacing the sprocket
Beforettinganewsawchain,checktheconditionofthesprocket.
1
2
►1. Sprocket 2. Locking ring
CAUTION:
• A worn sprocket will damage a new saw chain.
Have the sprocket replaced in this case. The
sprocket need to be installed so that it always
facesasshowninthegure.
1
2
3
►1. Locking ring 2. Sprocket 3. Washer
Alwaystanewlockingringwhenreplacingthe
sprocket.
Replacing carbon brushes
1
►1. Limit mark
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
12
►1. Brush holder cap 2. Screwdriver
Storing tool
Clean the tool before storing. Remove any chips and
sawdust from the tool after removing the sprocket cover.
After cleaning the tool, run it under no load to lubricate
the saw chain and guide bar.
Cover the guide bar with the scabbard.
Remove oil from the oil tank to empty it and place the
chain saw with the tank cap facing upward.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be per-
formed by Makita Authorized Service Centers, always
using Makita replacement parts.

17 ENGLISH
Instructions for periodic maintenance
To ensure long life, prevent damage and ensure the full functioning of the safety features the following maintenance
must be performed regularly.
Warranty claims can be recognized only if this work is performed regularly and properly. Failure to perform the pre-
scribed maintenance work can lead to accidents!
The user of the chain saw must not perform maintenance work which is not described in the instruction manual. All
such work must be carried out by authorized service centre.
Remove from the chain
saw.
Guide bar
Chain lubrication
Switch trigger
Lock-off button
Oil tank cap
Chain catcher
Screws and nuts
Chain saw
Saw chain
Before
storage
Annually
Every 3
month
Every
week
Everyday
Before
operation
Item
Operating
time
Inspection.
Cleaning.
Check at authorized service
center.
Inspection.
Inspection.
Inspection.
Inspection.
Inspection.
Inspection.
Sharpening if necessary.
Check the oil feed rate.
Check tightness.

18 ENGLISH
TROUBLE SHOOTING
Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedinthemanual,
do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace-
ment parts for repairs.
Adjust the guide bar and saw chain
tension.
Ask your local authorized service
center for repair.
Malfunction status Cause Action
Chain saw does not start.
Motor stops running after a little use.
No oil on the chain.
It does not reach maximum RPM.
Chain does not stop:
Stop the machine immediately!
Abnormal vibration:
Stop the machine immediately!
Battery problem (under voltage).
Battery's charge level is low.
Oil tank is empty.
Oil guide groove is dirty.
Malfunction of oil pump.
Battery cartridge is installed improperly.
The drive system does not work
correctly.
Malfunction of switch.
Loose guide bar or saw chain.
Tool malfunction.
Recharge the battery cartridge. If
recharging is not effective, replace
battery cartridge.
Recharge the battery cartridge. If
recharging is not effective, replace
battery cartridge.
Fill the oil tank.
Clean the groove.
Install the battery cartridge as
described in this manual.
Recharge the battery cartridge. If
recharging is not effective, replace
battery cartridge.
Ask your local authorized service
center for repair.
Ask your local authorized service
center for repair.
Ask your local authorized service
center for repair.
Battery cartridge is not installed.
Battery's charge level is low.
Install the charged battery cartridge.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are recom-
mendedforusewithyourMakitatoolspecied
in this manual. The use of any other accessories
or attachments might present a risk of injury to
persons. Only use accessory or attachment for
its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Various type of Makita genuine batteries and
chargers
• Saw chain
• Chain cover
• Guide bar complete
• File
NOTE:
• Some items in the list may be included in the
tool package as standard accessories. They
maydi󰀨erfromcountrytocountry.

19

Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japan
www.makita.com
885298-907
EN
20210525
