Makita DCS3410 User manual

1
Instruction Manual
Important:
Read this instruction manual carefully before putting the chain saw into operation and strictly observe the safety
regulations! Only persons who have completed training in working from elevated platforms (cherry pickers, lifts), from
platforms mounted on ladders or who are procient in climbing with ropes are permitted to operate this chain saw.
Keep this Instruction Manual!
DCS3410

2
Table of contents Page
EU conformity declaration .................................................2
Packing ................................................................................2
Delivery inventory ..............................................................3
Symbols ..............................................................................3
SAFETY PRECAUTIONS
General precautions .......................................................4
Protective equipment ......................................................4
Fuels / Refuelling ............................................................5
Putting into operation ......................................................5
Kickback .........................................................................6

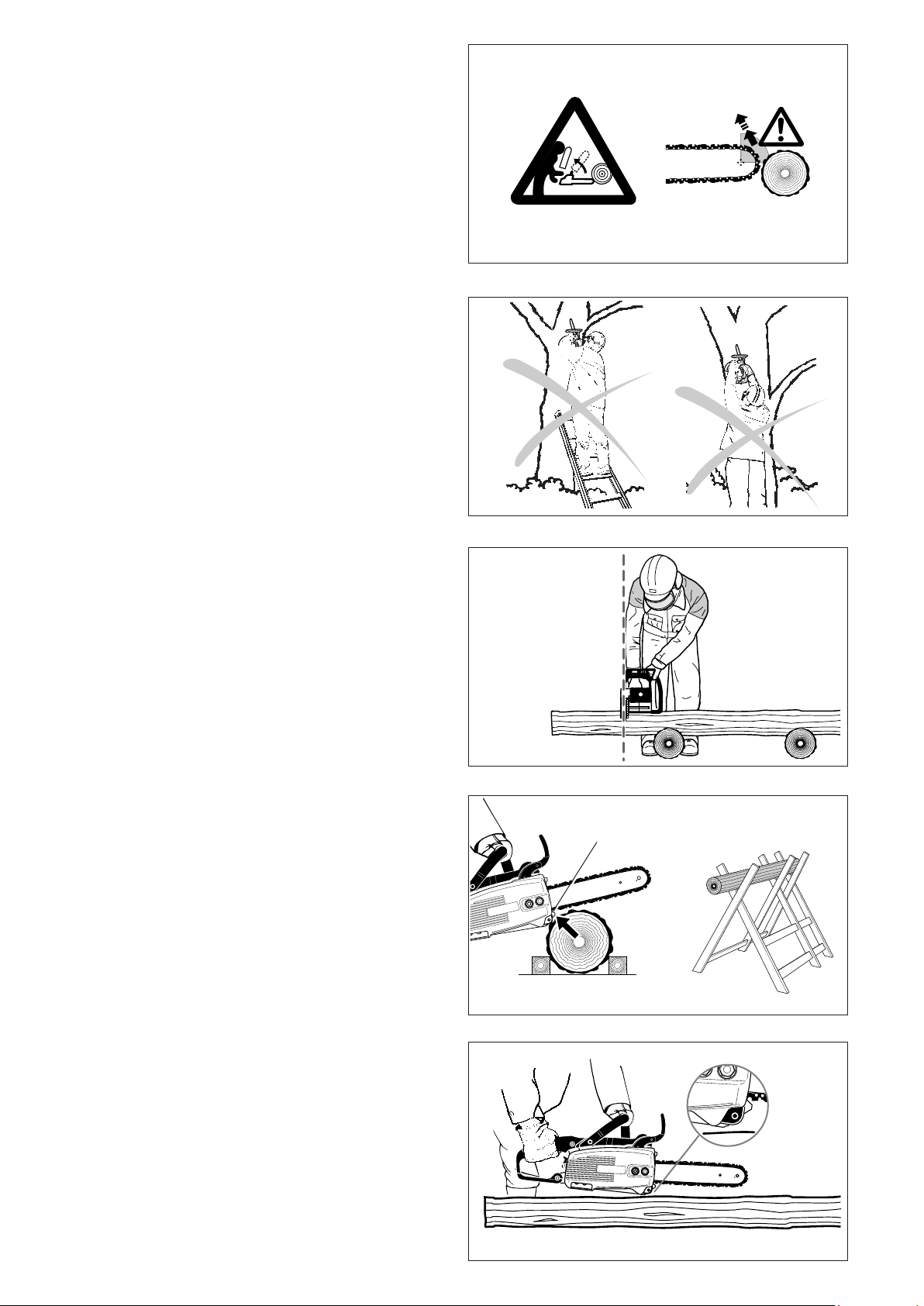

Working behavior/Method of working ...........................6-7
Transport and storage .....................................................8
Maintenance ................................................................... 8
First aid ..........................................................................8
Technical data .....................................................................9
Denomination of components ...........................................9
PUTTING INTO OPERATION

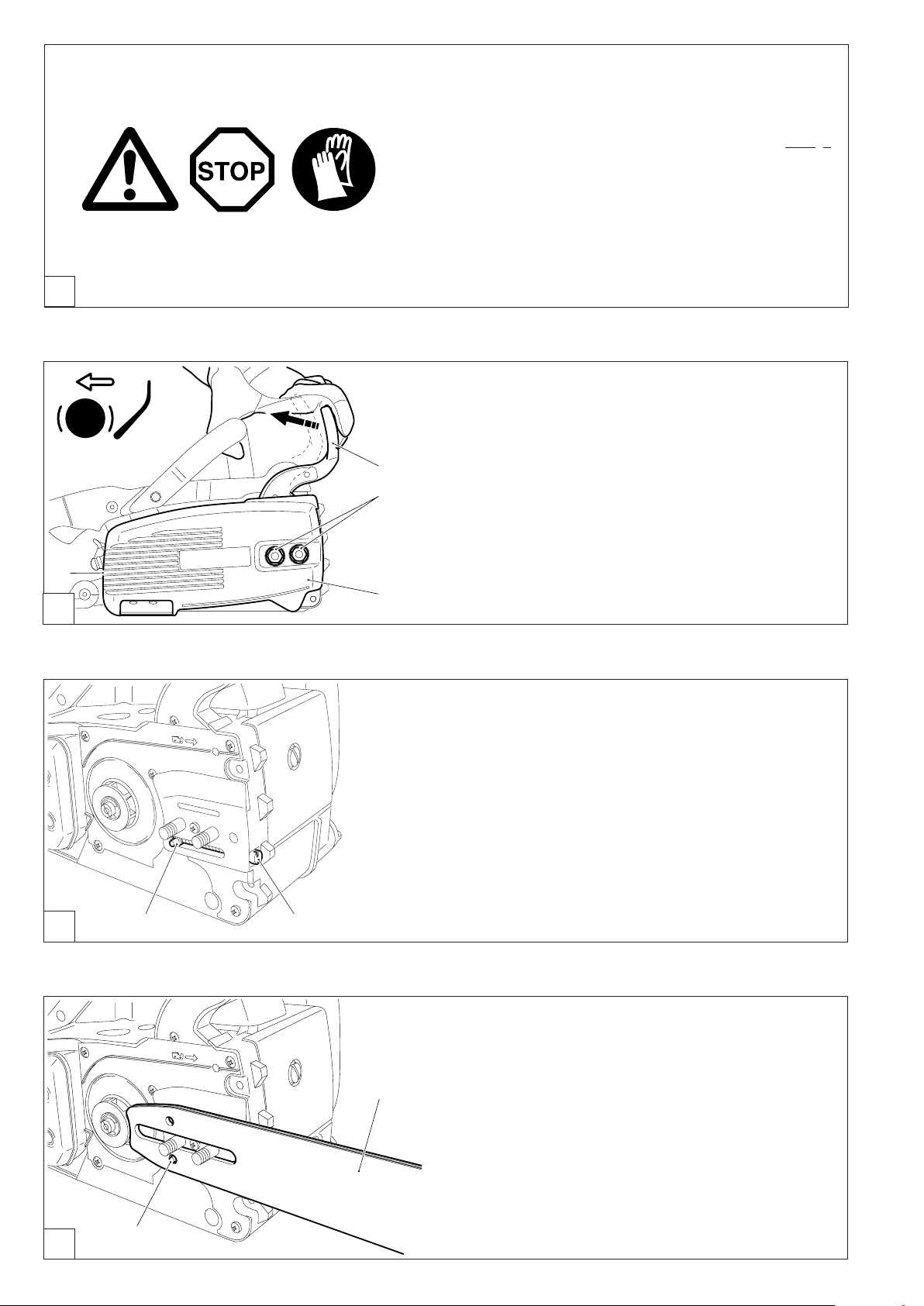

Mounting the guide bar and saw chain .................... 10-11

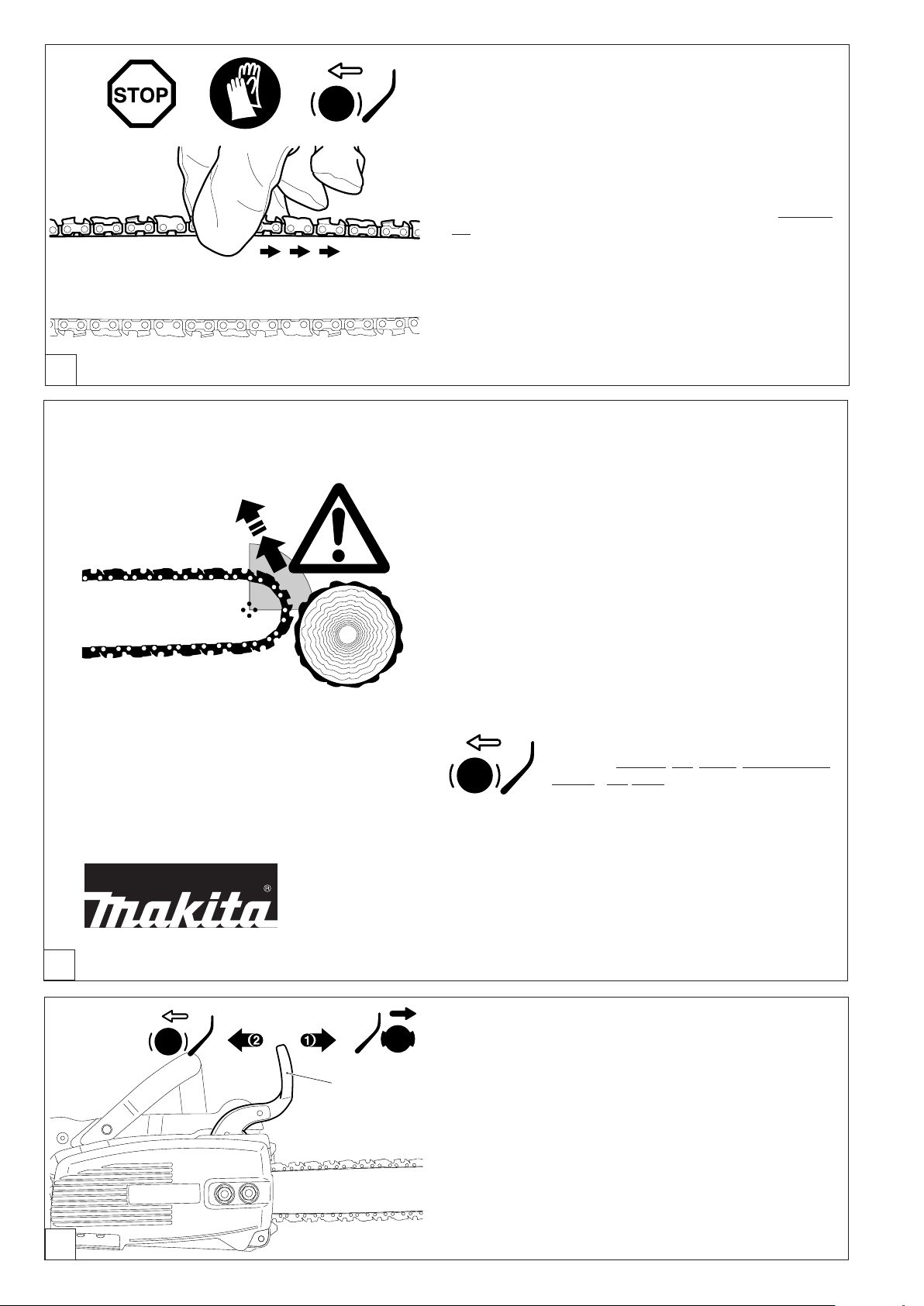

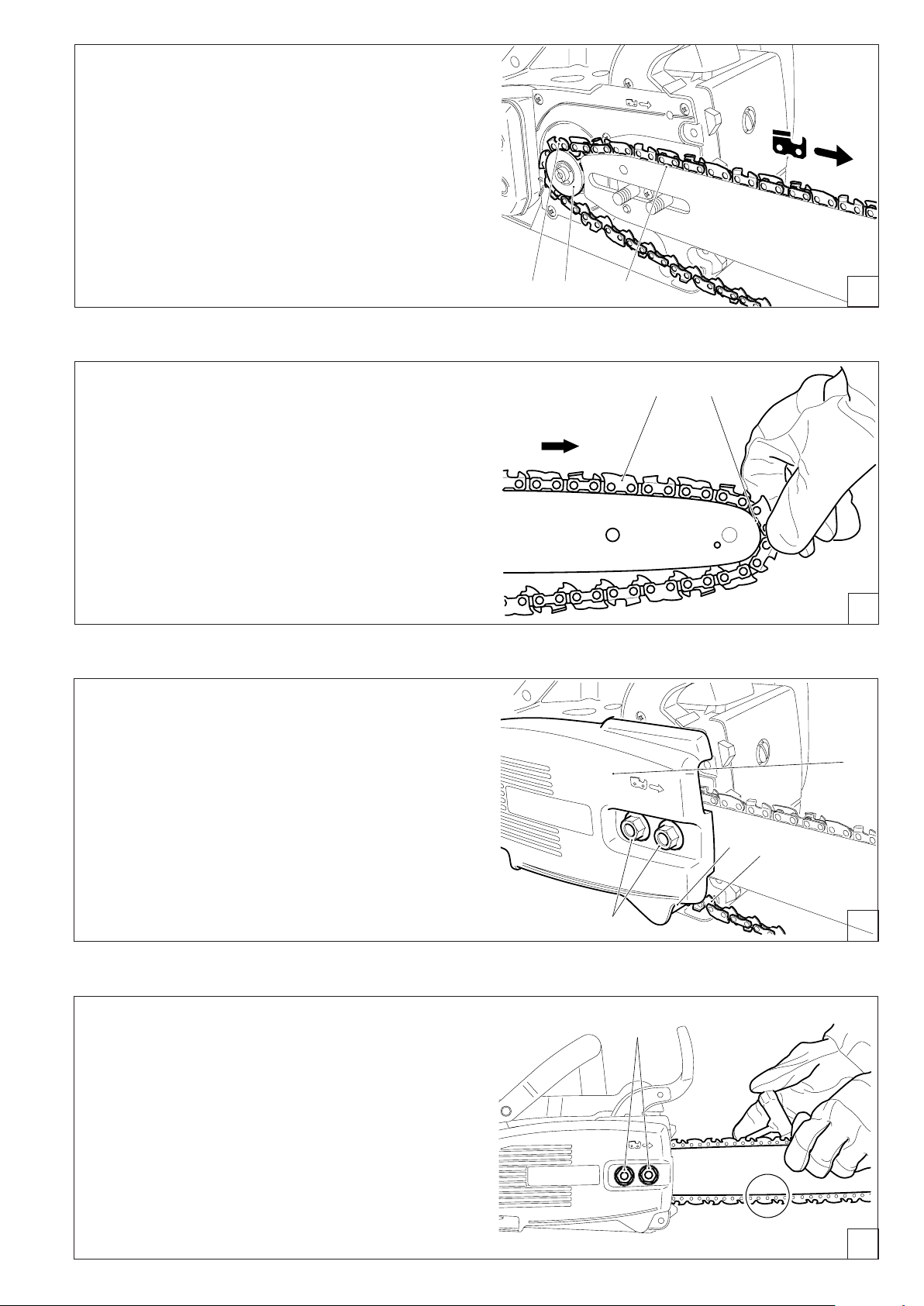

Tightening the saw chain .............................................. 11
Chain brake ..................................................................12

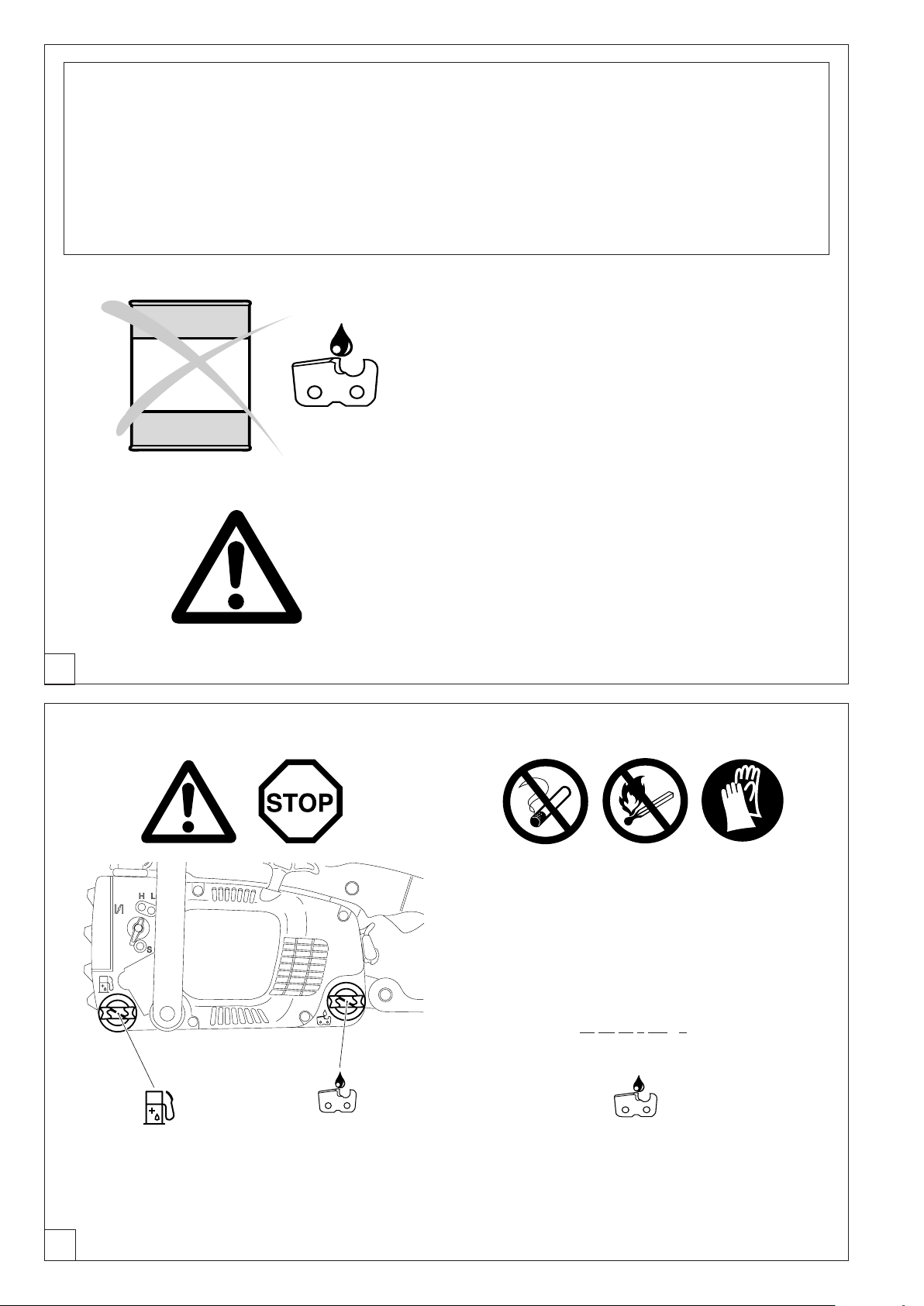

Fuels / Refuelling ..........................................................14

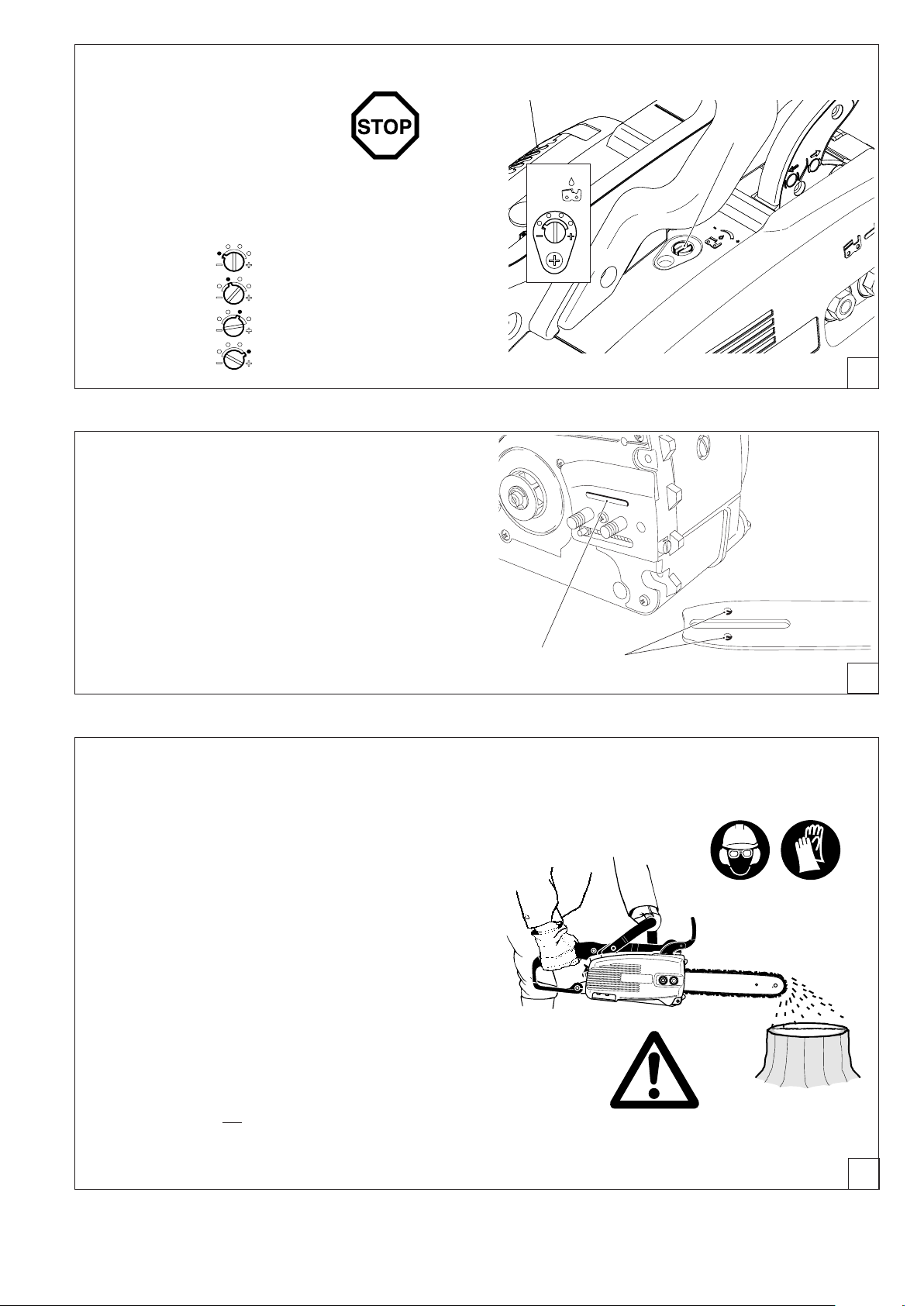

Adjusting the chain lubrication ......................................15
Checking the chain lubrication ......................................15
Starting the engine ........................................................16
Cold start .....................................................................16
Warm start ....................................................................16
Stopping the engine .......................................................16
Checking the chain brake ............................................. 17

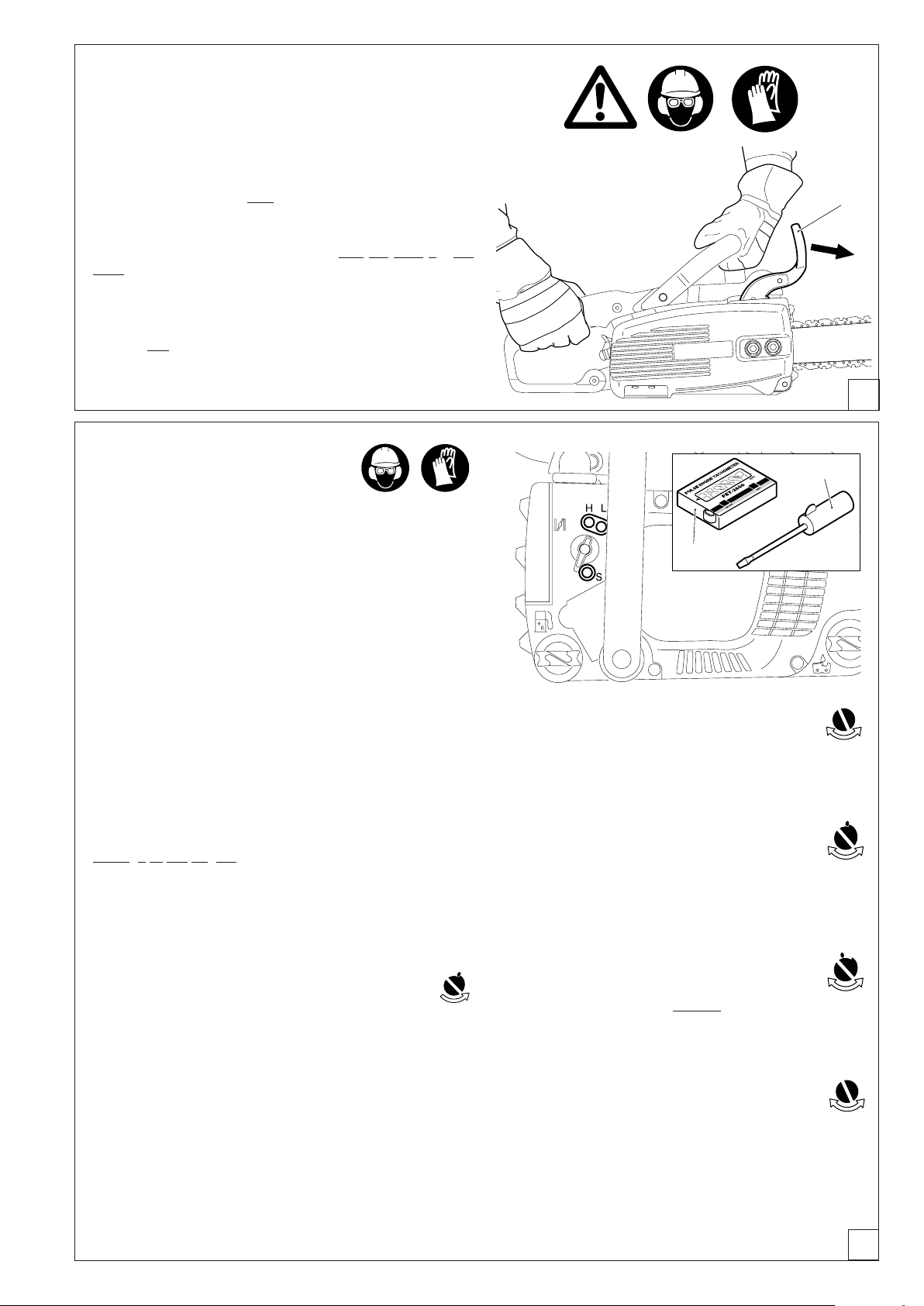

Adjusting the carburetor (only for EU-countries) .............17
Adjusting the carburetor (only for not EU-countries).......18
MAINTENANCE

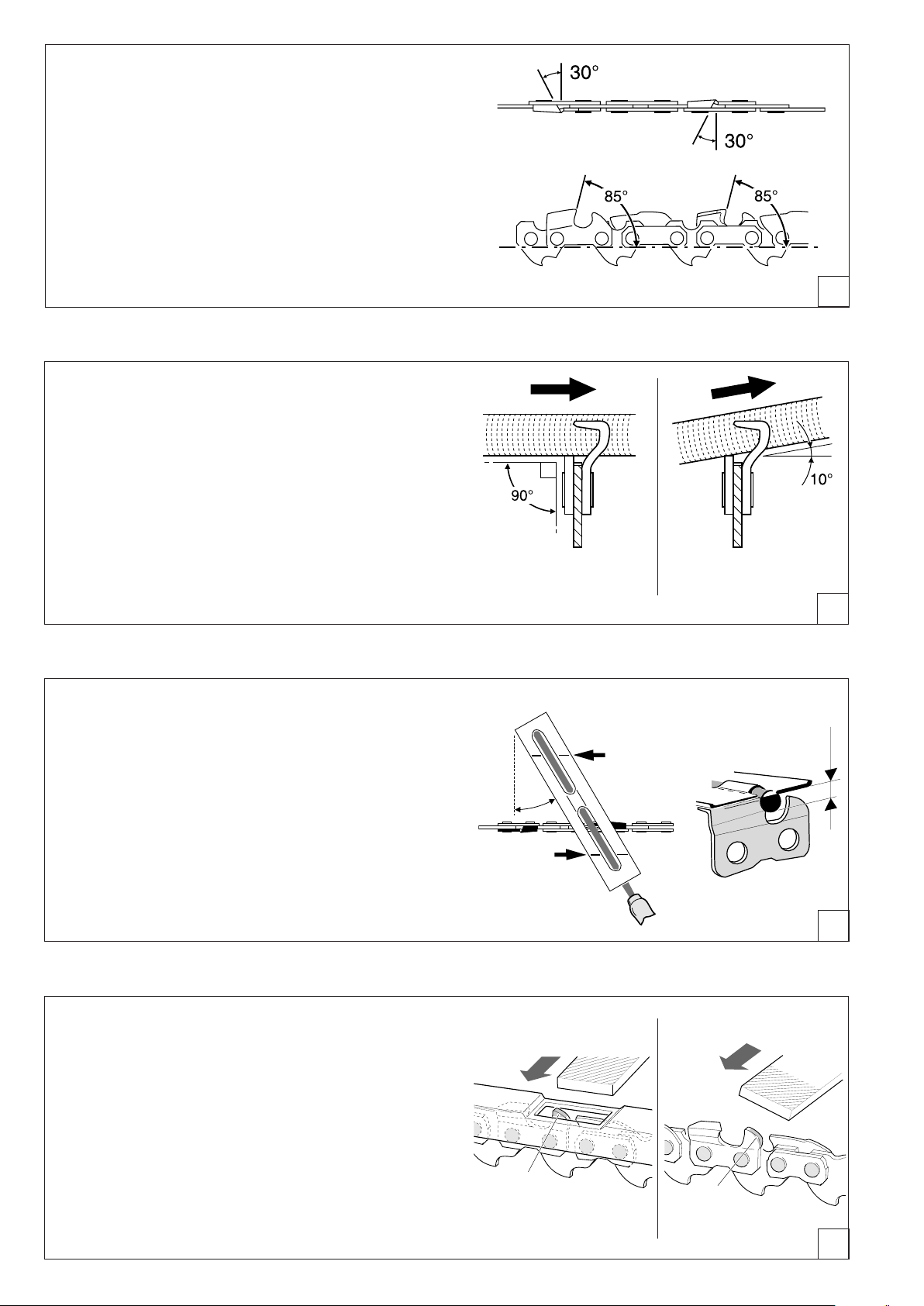

Sharpening the saw chain .......................................19-20
Cleaning the brake band and sprocket interior .............21
Replacing the chain catch sleeve .................................. 21
Cleaning the guide bar, lubricating the sprocket nose ..21
Replacing the saw chain ...............................................22
Replacing the sprocket ................................................. 22
Replacing the suction head ..........................................22
Cleaning the air lter .....................................................22
Replacing the spark plug .............................................. 23
Replacing the starter cable ...........................................23
Replacing the return spring unit .....................................24
Cleaning the mufer ......................................................24
Cleaning the cylinder space ..........................................24
Instructions for periodic maintenance ...........................25
Service, spare parts and guarantee ..........................25-26
Troubleshooting ...............................................................26
Extract from spare parts list ...........................................27
Accessories ..................................................................27
Thank you for purchasing a MAKITA product!
Congratulations on choosing a MAKITA chain saw! We are
condent that you will be satised with this modern piece of
equipment.
The DCS3410 are very handy and robust chain saws with a
new Design.
The automatic chain lubrication with variable‑ow oil pump
and maintenance-free electronic ignition ensure trouble-free
operation, while the hand-saving anti-vibration system and
ergonomic grips and controls make work easier, safer, and
less tiring for the user.
The PS-3410, chain saws are equipped with the latest safety
features and meet all international standards.
They include handguards on both grips, grip safety, chain catch,
safety saw chain, and chain brake. The chain brake can be
actuated manually, and is also inertia-actuated automatically
in case of kickback.
In order to guarantee the optimal function and performance of
your power chain saw and to ensure your personal safety we
would request you to perform the following:
Read this instruction manual carefully before
putting the chain saw into operation for the
rst time, and strictly observe the safety regu-
lations!
Failure to observe these precautions can lead
to severe injury or death!
RE Y
Packing
The MAKITAchain saw will be delivered in a protective cardboard
box to prevent transport damage.
Cardboard is a basic raw material and is consequently reuseable
or suitable for recycling (waste paper recycling).
EU Conformity Declaration
The undersigned, Shigeharu Kominami and Rainer Bergfeld,
as authorized by DOLMAR GmbH, declare that the MAKITA
machines,
Type: 170 EU prototype test certicate No.
DCS3410 M6 02 08 24243 048
manufactured by DOLMAR GmbH, Jenfelder Str. 38, 22045
Hamburg, Germany, conforms to the basic safety and health
requirements of the applicable EU guidelines:
EU Machinery Directive 98/37/ EG,
EU EMC Directive 89/336/ EWG (modied by 91/263/ EWG,
92/31/ EWG and 93/68/ EWG),
Outdoor Noise Directive 2000/14/EG.
Starting on 29 Dec. 2009, Directive 2006/42/EG will come into
force, replacing Directive 98/37/EG. This product meets the
requirements of the new Directive.
The most important standards applied to properly meet the
requirements of the above EU Directive were: EN 14982, EN
ISO 11681‑2, EN 61000‑4‑2, EN 61000‑4‑3, CISPR 12.
The conformity assessment procedure 2000/14/EG was per-
formed per Annex V. The measured noise level (Lwa) is 106
dB(A). The guaranteed noise level (Ld) is 108 dB(A).
The EU Type‑Examination Certicate was performed by: TÜV
Product Service GmbH, Zertizierungsstelle, Ridlerstraße 31,
D‑80339 München.
The technical documentation is on le at DOLMAR GmbH, Abtei-
lung FZ, Jenfelder Strasse 38, 22045 Hamburg, Germany.
Hamburg, 24.9.2007
For DOLMAR GmbH
Shigeharu Kominami Rainer Bergfeld
Managing Director Managing Director

3
145
3
2
Chain brake
Fuel and oil mixture
Chain oil ll/oil pump
Saw chain oil
adjustment screw
Direction of chain
travel
First aid
Recycling
CE-Marking
RE Y
I/STOP-switch
(short-circuit switch)
Stop engine!
Start the engine
Choke lever
Carburetor adjustment
Caution, kickback!
Hold the saw with both
hands while working!
One-handed use is
extremely hazardous!
In case one of the parts listed should not be included in the
delivery inventory, please consult your sales agent.

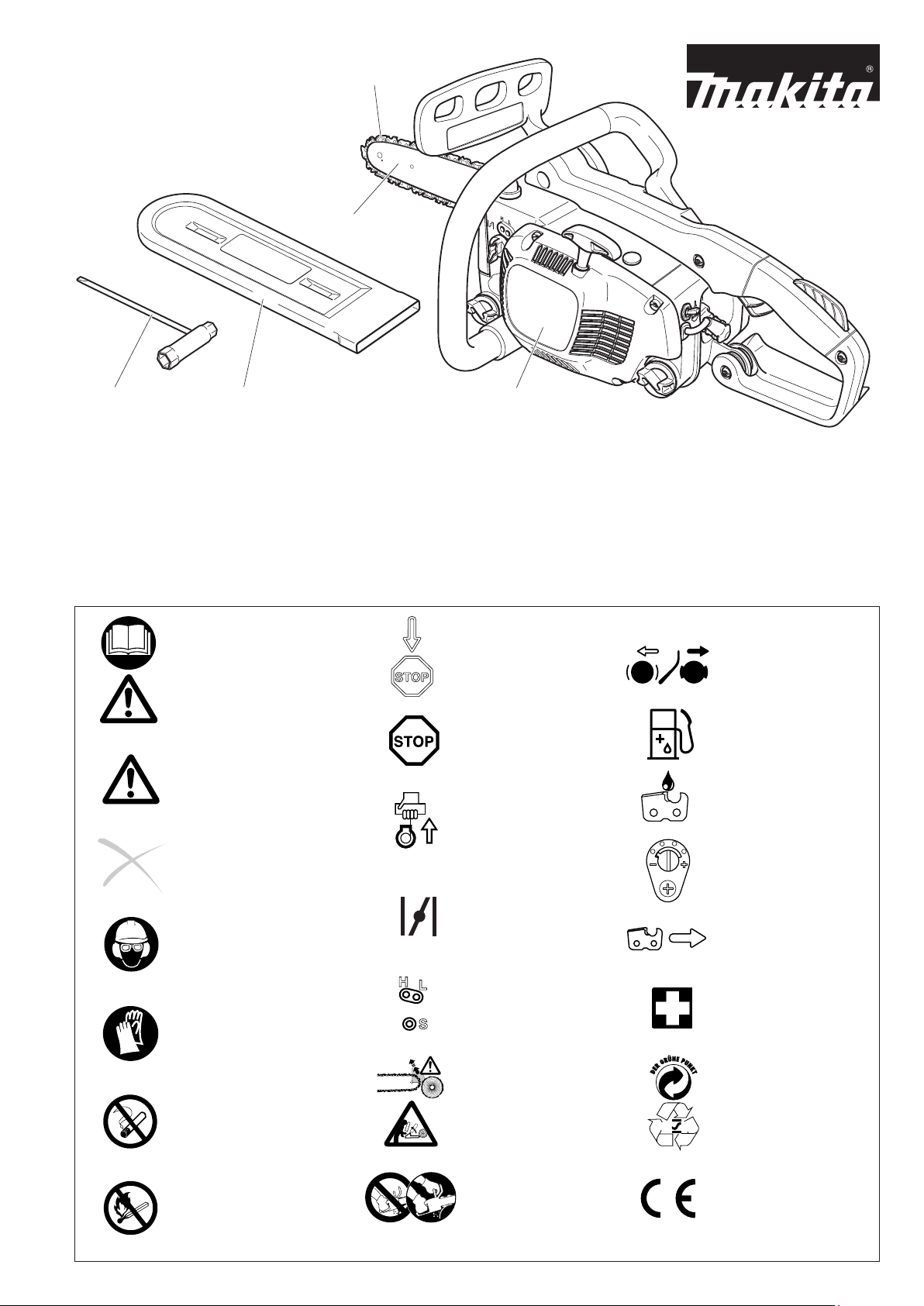

Symbols
You will note the following symbols on the chain saw and when studying this instruction manual:
Read the instruction manual
and follow all warnings and
safety instructions!
Particular care and caution!
Forbidden!
Wear protective helmet,
eye and ear protection!
Wear protective gloves!
No smoking!
No open re!
Delivery inventory
1. Chain saw
2. Guide bar
3. Saw chain
4. Chain protection cover
5. Assembly tool
6. Instruction manual (not shown)

4
4
56
7
1
2
3
1
4
3
2
SAFETY PRECAUTIONS
Power chain saws
This power chain saw may be used only for sawing wood out
of doors. It is intended for the followung uses depending on its
class:
- Professional and mid-class:
Use on small, medium and large
trees: felling, limb removal, cutting to length, thinning.
- Hobbyklasse: Occasional use on small trees, fruit-tree care,
felling, limb removal, cutting to length.
Unauthorised users:
Persons who are not familiar with the Instruction Manual, children,
young people, and persons under the inuence of drugs, alcohol
or medication must not use this saw.
General precautions
- To ensure correct operation the user has to read this instruc-
tion manual to make himself familiar with the characteristics
of the chain saw. Users insufciently informed will endanger
themselves as well as others due to improper handling.
- It is recommended to lend the chain saw only to people who
are experienced in working with chain saws. Always hand over
the instruction manual.
- First users should ask the dealer for basic instructions to be-
come familiarized with the characteristics of engine powered
sawing or even attend a recognized course of instruction.
- Children and young persons aged under 18 years must not
be allowed to operate the chain saw. Persons over the age of
16 years may, however, use the chain saw for the purpose of
being trained as long as they are under the supervision of a
qualied trainer.
‑ Use chain saws always with the utmost care and attention.
‑ Operate the chain saw only if you are in good physical condition.
If you are tired, your attention will be reduced. Be especially
careful at the end of a working day. Perform all work calmly
and carefully. The user has to accept liability for others.
- Never use the chain saw after consumption of alcohol, drugs
or medication.
‑ A re extinguisher must be available in the immediate vicinity
when working in easily inammable vegetation or when it has
not rained for a long time (danger of re).

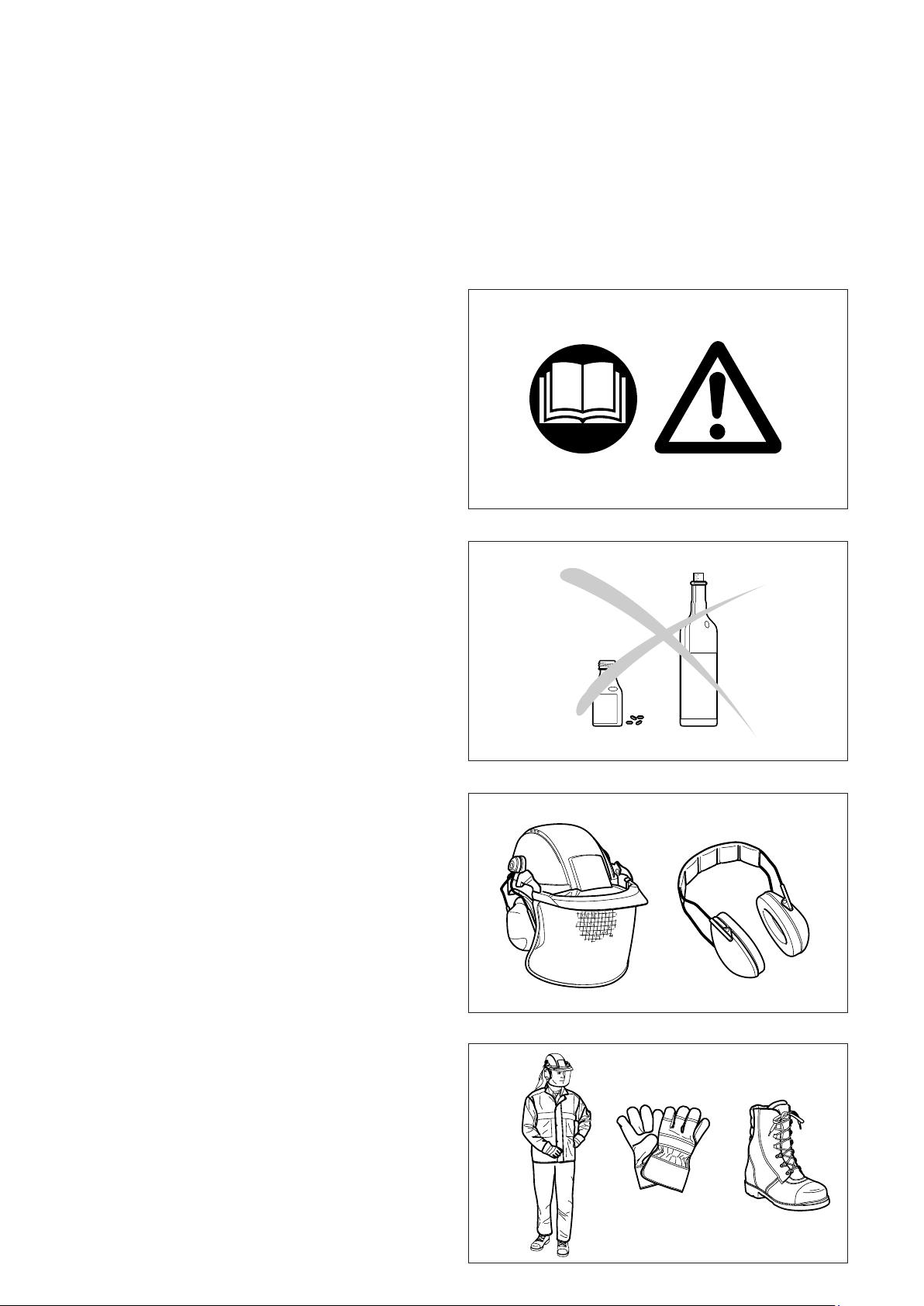

Protective equipment
- In order to avoid head, eye, hand or foot injuries as well
as to protect your hearing the following protective equip-
ment must be used during operation of the chain saw:
‑ The kind of clothing should be appropriate, i. e. it should be
tight‑tting but not be a hindrance. Do not wear jewellery or
clothing which could become entangled with bushes or shrubs.
If you have long hair, always wear a hairnet!
- It is necessary to wear a protective helmet whenever working
with the chain saw. The protective helmet (1) is to be checked
in regular intervals for damage and is to be replaced after 5
years at the latest. Use only approved protective helmets.
- The face shield (2) of the protective helmet (or the goggles)
protects against sawdust and wood chips. During operation of
the chain saw always wear a goggle or a face shield to prevent
eye injuries.
- Wear adequate noise protection equipment (ear muffs (3),
ear plugs, etc.). Octave brand analysis upon request.
- The safety jacket (4) is provided with special signal-coloured
shoulder straps and is comfortable and easy to care for.
- The protective brace and bib overall (5) is made of a nylon
fabric with 22 layers and protects against cuts. We strongly
recommend its use.
- Protective gloves (6) made of thick leather are part of the
prescribed equipment and must always be worn during
operation of the chain saw.
- During operation of the chain saw safety shoes or safety
boots (7) tted with anti skid sole, steel toe caps and pro-
tection for the leg must always to be worn. Safety shoes
equipped with a protective layer provide protection against
cuts and ensure a secure footing.

5
6
5
7
9
8
3 meters
Fuels / Refuelling
‑ Stop the engine before refuelling the chain saw.
‑ Do not smoke or work near open res (5).
‑ Let the engine cool down before refuelling.
‑ Fuels can contain substances similar to solvents. Eyes and skin
should not come in contact with mineral oil products. Always wear
protective gloves when refuelling. Frequently clean and change
protective clothes. Do not breathe in fuel vapors. Inhalation of fuel
vapours can be hazardous to your health.
‑ Do not spill fuel or chain oil. When you have spilt fuel or oil im-
mediately clean the chain saw. Fuel should not come in contact
with clothes. If your clothes have come in contact with fuel, change
them ot once.
- Ensure that no fuel or chain oil oozes into the soil (environmental
protection). Use an appropriate base.
‑ Refuelling is not allowed in closed rooms. Fuel vapors will ac-
cumulate near the oor (explosion hazard).
‑ Ensure to rmly tighten the screw caps of the fuel and oil tanks.
- Change the place before starting the engine (at least 3 m from
the place of refuelling) (6).
‑ Fuel cannot be stored for an unlimited period of time. Buy only as
much as will be consumed in the near future.
- Use only approved and marked containers for the transport and
storage of fuel and chain oil. Ensure children have no access to
fuel or chain oil.
Putting into operation
- Do not work on your own. There must be someone around
in case of an emergency (within shouting distance).
- Ensure that there are no children or other people within the working
area. Pay attention to any animals in the working area, as well (7).
- Before starting work the chain saw must be checked for
perfect function and operating safety according to the
prescriptions.
Checkespeciallythefunction ofthechainbrake,thecorrectmount-
ing of the guide bar, the correct sharpening and tightening of the
chain, the rm mounting of the sprocket guard, the easy motion
of the throttle lever and the function of the throttle lever lock, the
cleanliness and dryness of the handles, and the function of the
ON/OFF switch.
‑ Start the chain saw only after complete assembly and inspection.
Operation of the device is only permitted after all the appropriate
accessories are attached!
- Before starting the chain saw ensure that you have a safe
footing.
- Put the chain saw into operation only as described in this instruc-
tion manual (8). Other starting methods are not allowed.
- When starting the chain saw it must be well supported and se-
curely held. The guide bar and chain must not be in contact with
any object.
- When working with the chain saw always hold it with both
hands. Take the back handle with the right hand and the tubular
handle with the left hand. Hold the handles tightly with your thumbs
facing your ngers.
- CAUTION: When releasing the throttle lever the chain will
keep on running for a short period of time (free-wheeling).
‑ Continuously ensure that you have a safe footing.
- Hold the chain saw such that you will not breathe in the exhaust
gas. Do not work in closed rooms (danger of poisoning).
- Switch off the chain saw immediately if you observe any
changes in its operating behavior.
- The engine must be switched off before checking the
chain tension, tightening the chain, replacing it or clearing
malfunctions (9).
- When thesawingdevice is hitbystones,nails or otherhardobjects,
switch off the engine immediately and check the sawing device.
- When stopping work or leaving the working place switch off the
chain saw (9) and put it down such that nobody is endangered.
- Do not put the overheated power chain saw in dry grass or on any
inammable objects. The mufer is very hot (danger of re).
- CAUTION: Oil dropping from the chain or guide bar after having
stopped the saw chain will pollute the soil. Always use an appro-
priate base. ● Maintenance ● Stopping work
● Refuelling ● Transport
● Sharpening the chain ● Putting out of function

6
10
12
13
14
11
Z
Kickback
- When working with the chain saw dangerous kickbacks may
occur.
- Kickback occurs when the upper part of the end of the guide
bar inadvertently touches wood or other hard objects (10).
- This causes the saw to be thrown back toward the user with
great force and out of control. Risk of injury!
In order to prevent kickback, follow these rules:
‑ Only specially‑trained persons should perform plunge cuts, i.e.,
piercing timber or wood with the tip of the saw!
‑ Always observe the end of the guide bar. Be careful when
continuing an already started cut.
‑ When starting to cut the chain must be running.
‑ Ensure that the chain is always sharpened correctly. Pay special
attention to the height of the depth limiter.
‑ Never cut several branches at the same time. When cutting a
branch ensure that no other branch is touched.
‑ When crosscutting a trunk be aware of the trunks next to it.
Working behavior/Method of working
‑ Only use the chain saw during good light and visibility periods.
Be aware of slippery or wet areas, and of ice and snow (risk of
slipping). The risk of slipping is extremely high when working
on recently peeled wood (bark).
‑ Never work on unstable surfaces. Make sure that there are no
obstacles in the working area, risk of stumbling. Always ensure
that you have a safe footing.
‑ Never saw above your shoulder height (11).
‑ Never saw while standing on a ladder (11).
- Never climb up into trees to perform sawing with the chain
saw.
‑ Do not work leaning too far over.
- Guide the chain saw in such a way that no part of your body is
within the elongated swivelling range of the saw (12).
‑ Use the chain saw for sawing wood only.
- Avoid touching the ground with the chain saw while it is still
running.
- Never use the chain saw for lifting up or removing pieces of
wood or other objects.
- Remove foreign objects such as sand, stones and nails found
within the working area. Foreign objects may damage the saw-
ing device and can cause dangerous kickback.
- When sawing precut timber use a safe support (sawing jack,
13). Do not steady the workpiece with your foot, and do not
allow anyone else to hold or steady it.
‑ Secure round pieces against rotation.
-For cutting down trees or performing crosscuts the spike
bar (13, Z) must be applied to the wood to be cut.
- Before performing a crosscut rmly apply the spike bar to the
timber, only then can the timber be cut with the chain running.
For this the chain saw is lifted at the back handle and guided
with the tubular handle. The spike bar serves as a centre of
rotation. Continue by slightly pressing down the tubular handle
and simultaneously pulling back the chain saw. Apply the spike
bar a little bit deeper and once again lift the back handle.
- When the timber must be pierced for cutting or longitudi-
nal cuts are to be performed it is urgently recommended
to have this carried out by specially trained persons only
(high risk of kickback).
- Do longitudinal - lengthwise - cuts at the lowest possible
angle (14). Be very careful when doing this type of cut, as the
spike bar cannot grip.
- The saw must be running whenever you remove the chain saw
from the wood.
- When performing several cuts the throttle lever must be released
in between.

7
15
16
17
18
19
45o
2 1/2
45o
B
A
B
‑ Be careful when cutting splintery wood. Cut pieces of wood
may be pulled along (risk of injuries).
- When cutting with the upper edge of the guide bar, the chain
saw may be pushed in the direction of the user if the chain
gets clamped. For this reason use the lower edge of the bar
whenever possible. The chain saw will then be pushed away
from you (15).
‑ If the timber is under tension (16), rst cut the pressure side
(A). Then the crosscut can be performed on the tension side
(B). Thus clamping of the guide bar can be avoided.
CAUTION: People felling trees or cutting of branches must
be specially trained. High risk of injuries!
- When cutting of branches, the chain saw should be supported
on the trunk. Do not use the end of the bar for cutting (risk of
kickback).
‑ Be aware of branches under tension. Do not cut free branches
from below.
‑ Never perform detensioning cuts while standing on the trunk.
- Before cutting down a tree ensure that
a) only those people are within the working area which are
actually involved in cutting down the tree.
b) every worker involved can withdraw without stumbling (the
people should withdraw backwards in a diagonal line, i. e.
at a degree of 45°).
c) the bottom part of the trunk is free from foreign objects,
underbrush and branches. Make sure to have a safe footing
(risk of stumbling).
d) the next working place is at least 2 1/2 tree lengths away
(17). Before cutting down the tree check the direction of fall
and make sure that there are neither people nor objects
within a distance of 2 1/2 tree lengths.
-Judging the tree:
Direction of hanging - loose or dry branches - height of the tree
- natural overhang - is the tree rotten?
‑ Take into account the direction and speed of the wind. If strong
gusts are occurring, do not do any felling.
-Cutting the roots:
Start with the strongest root. First do the vertical and then the
horizontal cut.
-Notching the trunk (18, A):
The notch determines the direction of fall and guides the tree.
The trunk is notched perpendicular to the direction of fall and
penetrates 1/3 ‑1/5 of the trunk diameter. Perform the cut near
the ground.
- When correcting the cut, always do so over the whole width of
the notch.
- Cut down the tree (19, B) above the bottom edge of the notch
(D). The cut must be exactly horizontal. The distance between
both cuts must be approx. 1/10 of the trunk diameter.
- The material between both cuts (C) serves as a hinge. Never
cut it through, otherwise the tree will fall without any control.
Insert felling wedges in time.
‑ Secure the cut only with wedges made of plastic or aluminium.
Do not use iron wedges. If the saw hits an iron wedge the chain
can be seriously damaged or torn.
- When cutting down a tree always stay sidewards of the falling
tree.
- When withdrawing after having performed the cut, be alert for
falling branches.
- When working on sloping ground the user of the chain saw
must stay above or sidewards of the trunk to be cut or the tree
already cut down.
‑ Be alert for trunks which may roll towards you.
= cutting down area

8
20
21
22
24
Transport and storage
-When changing your location during work switch off the
chain saw and actuate the chain brake in order to prevent
an inadvertent start of the chain.
-Never carry or transport the chain saw with the chain
running.
- When transporting the chain saw over long distances the guide
bar protection cover (delivered with the chain saw) must be
applied.
‑ Carry the chain saw with the tubular handle. The guide bar
points backwards (20). Avoid coming in contact with the mufer
(danger of burns).
- Ensure safe positioning of the chain saw during car trans-
portation to avoid fuel or chain oil leakage.
‑ Store the chain saw safely in a dry place. It must not be stored
outdoors. Keep the chain saw out of reach of children.
- Before storing the chain saw over a long period of time or ship-
ping it the fuel and oil tanks must be completely emptied.
Maintenance
- Before performing maintenance work switch off the chain
saw (21) and pull out the plug cap.
- Before starting work always check the operating safety of the
chain saw, in particular the function of the chain brake. Make
sure that the chain is always sharpened and tightened cor-
rectly (22).
‑ Operate the chain saw only at a low noise and emission level.
For this ensure the carburetor is adjusted correctly.
‑ Regularly clean the chain saw.
‑ Regularly check the tank cap for tightness.
Observe the accident prevention instructions issued by
trade associations and insurance companies. Do not
perform any modications on the chain saw. You will put
your safety at risk.
Perform only the maintenance and repair works described in
the instruction manual. All other work must be carried out by
MAKITA Service.
Use only original MAKITA spare parts and accessories.
Using spare parts other than original MAKITA parts or ac-
cesories and guide bar/chain combinations or lengths which
are not approved bring a high risk of accidents. We cannot
accept any responsibility for accidents and damage resulting
from using sawing devices or accesories which have not been
approved.
First aid
For the event of a possible accident, please make sure that a
rst aid kit is always immediately available close by. Immediately
replace any items used from the rst aid box.
When calling for help, give the following information:
- Place of the accident
- What happened
- Number of injured people
- Kind of injuries
- Your name!
NOTE
Individuals with poor circulation who are exposed to excessive
vibration may experience injury to blood vessels or the nervous
system.
Vibration may cause the following symptoms to occur in the n-
gers, hands or wrists: ”Falling asleep” (numbness), tingling, pain,
stabbing sensation, alteration of skin colour or of the skin. If any
of these symptoms occur, see a physician!
SERVICE
23

9
Denomination of components
1Rear handle
2 Safety locking button (throttle lock)
3 Throttle lever
4 Hand guard (release for chain brake)
5Spike bar (Toothed stop, accessories)
6 Chain
7 Guide bar
8 Chain protection cover
9 Sprocket guard quick tensioner
10 Chain catch (safety device)
11 Sprocket guard
12 Mufer
13 Spark plug
14 Serial number
15 Adjusting screw for oil pump
16 Front grip (tubular handle)
17 Starter grip
18 I/STOP-switch (short-circuit switch)
19 Rear hand guard
20 Oil tank cap
21 Fan housing with starting assembly
22 Fuel tank cap
23 Air lter cover
24 Choke lever
25 Adjusting screws for carburetor
26 Fuel pump (Primer)
1
15
14
2 3
4 65
9 8
1011
181716
20 192122
24
23
12
13
7
25
26
Stroke volume cm3 34
Bore mm 38
Stroke mm 30
Max. power at operating speed kW / rpm 1,4 / 8.500
Max. torque at speed Nm / rpm 1,6 / 6.500
Idling speed / max. engine speed with bar and chain rpm 3.000 / 12.500
Coupling speed rpm 4.500
Sound pressure level at the workplace LpA av per ISO/CD 22868 1) dB (A) 93,8
Sound power level LWA av per ISO/CD 22868 1) dB (A) 103,1
Vibration acceleration ah,w av per ISO 7505 1)
- Tubular handle m/s26,3
- Rear handle m/s28,7
Carburetor (diaphragm carburetor) Type WALBRO WT-778
Ignition system Type electronic
Spark plug Type NGK BPMR 7A
Electrode gap mm 0,5
Fuel consumption at max. load per ISO 7293 kg/h 0,65
Specic consumption at max. load per ISO 7293 g/kWh 463
Fuel tank capacity l 0,28
Chain oil tank capacity I 0,22
Mix ratio (fuel/two-stroke oil)
- when using MAKITA oil 50 : 1
- when using Aspen Alkalyt (two-stroke fuel) 50 : 1 (2%)
- when using other oils 40 : 1 (quality grade: JASO FC or ISO EGD)
Chain brake Actuation manually or by kickback
Chain speed 2) m/s 21
Sprocket pitch inch 3/8 / 1/4
Number of teeth Z 6 / 8
Chain type - see the Extract from the spare-parts list
Pitch / Driving element strength inch 3/8 / .050 / 1/4 / .050
Guide bar, length of a cut cm 30 / 35 / 40
Guide-bar type - see the Extract from the spare-parts list
Weight (fuel tank empty, without chain and guide bar) kg 3,5
1) Figures derived in equal part from idle, full‑load, and top‑speed operation.
2) At 1,33 x operating speed.
Technical data DCS3410

10
1
2
3
4
56
Position the guide bar (7). Make sure that the pin (8) of the chain
tightener is in the hole on the guide bar.
Turn the chain adjusting screw (5) to the left (counterclockwise)
until the pin (6) is at the left stop.
Mounting the guide bar and saw chain
Use the universal wrench delivered with the chain saw for the
following work.
Put the chain saw on a stable surface and carry out the following
steps for mounting the guide bar and chain:
Disengage the chain brake by pulling the hand guard (1) in the
direction of the arrow.
Unscrew retaining nuts (2).
Carefully spread the sprocket guard (3), pull it from its xture
(4) and remove it.
A
B
C
D
PUTTING INTO OPERATION
CAUTION:
Before doing any work on the guide bar or chain, always
switch off the engine and pull the plug cap off the spark
plug (see „Replacing the spark plug“). Always wear pro-
tective gloves!
CAUTION:
Do not start the saw until it has been completely assembled
and inspected!
7
8
