Makita 6073D User manual

Cordless Driver Drill
Capacities
Steel Wood Wood screw Machine screw
10mm 15” 51mmx35mm 6mm
(318”) (19132”) (13164’’
x 1 318”) (15164”)
Equipped with Electric Brake
10 mm (3/8”) MODEL 60731)
10 mm (3/8”) MODEL 6073DW
With Fast Charger
Dimensions
(L x W x H)
255 mm x 58 mm x 223 mm
(10” x 2 114” x 8 25132”)
No load speed IRPMI
High Low
-- 850
- 3oo
INSTRUCTION MANUAL
SPEC IF I CAT I 0 N S
Model 60730
Net
weight
1.5 kg
(3 3 Ibs)
Voltage I Charging tlme I Input Output
I
7.2 V I 1 Hr I A C. only 50 Hr ~ 60 Hr I D.C. 7.2 V
x Manufacturer reserves the right to change specifications without notice.
Note: Specifications may differ from country to country.

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids
or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from
work area.
Don't let visitors contact
tool or extension cord.
STORE IDLE TOOLS. When not in use, tools should be stored in dry, and high
or locked-up place - out of reach of children.
DON'T FORCE TOOL. It
will dothe job better and safer at the rate for which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool
for purpose not intended.
DRESS PROPERLY. Don't wear
loose clothing or jewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering
to contain long hair.
USE SAFETY GLASSES. Also use face
or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cord
or yank it todisconnect from
receptacle. Keep cord from heat,
oil, and sharp edges.
SECURE WORK. Use clamps
or a vise to hold work. It's safer than using
your hand and it frees both hands to operate
tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean
for better and
safer performance.
Follow instructions for lubricating and changing acces-
sories. Inspecttool cords periodically and if damaged, have repaired by autho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS.When not in use, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removed from tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING.Don‘t carry plugged-in tool with finger
on switch.
Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSION CORDS. When tool is used outdoors, useonly
extension cords intended
for use outdoors and so marked.
17. STAY ALERT. Watch what you are doing, usecommon sense. Don’t operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that
is damaged should be carefully checked to determine that it will
operate properly and perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and any
other conditions that may affect its operation. A guard
or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere in this instruction manual.
Have defective switches replaced by authorized service center. Don’t use
tool if switch does not turn it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces.
For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENT PARTS. When servicing,useonly identical replacement parts.
VOLTAGE WARNING: Before connecting the tool toa power source (receptacle,
outlet,
etc.J be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY to the user - as well as damage to
the
tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage
less than the nameplate rating is harmful to the motor.
3

I. SAVE THESE INSTRUCTIONS - This manual
Length of Cord (Feet)
AWG Size
of Cord
contains important safety and operating instructions for battery charger.
2. Before using battery charger, read all instructions and cautionary markings
on
(1) battery charger, (2) battery, and (3) product using battery.
3. CAUTION - To reduce risk of injury, charge only MAKITA Battery 7000.
Other types of batteries may burst causing personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger
manufacturer may result in a risk of fire, electric shock, or injury topersons.
6. To reduce risk of damage to electric plug and cord, pull by plug rather than
cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of
improper extension cord could result in a
risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins on plug of extension cord are the same number, size, and shape
b. That extension cord is properly wired and in good electrical condition; and
c. That wire size is at least aslarge asthe one specified in the table below.
TABLE
1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS
as those of plug on charger;
25 50 100 150
18 18 18 16
9. Do not operate charger with damaged cord or plug - replace them im-
mediately.
IO. Do not operate charger if it has received a sharp blow, been dropped, or other-
wise damaged in any way; take it to a qualified serviceman.
11. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service
or repair is required. Incorrect reassembly may
result in a
risk of electric shock or fire.
12. To reduce risk of electric shock, unplug charger from outlet before attempt-
ing any maintenance
or cleaning.Turning off controls will not reduce this risk.
4

ADDITIONAL SAFETY RULES
FOR CHARGER & BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5OoF)
or ABOVE 4OoC (104OF).
2. Do not attempttousea step-uptransformer, an engine generator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the battery terminals with the battery cover when the battery
5. Do not short the battery cartridge:
receptacle.
cartridge is not used.
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such
(3) Do not expose battery cartridge to water or rain.
as nails, coins, etc.
A battery short can causea large current flow, overheating, possible burns
and even a breakdown.
6. Do not store the tool and Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
ture may reach or exceed 5OoC (122OF).
completely worn out. The battery cartridge can explode in a fire.
ADDITIONAL SAFETY RULES
1. Be aware that this tool is always in an operating condition, because it does
2. Always be sure you have a firm footing.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. When drilling into walls, floors or wherever "live" electrical wires may be
encountered, DO NOT TOUCH ANY METAL PARTS
OF THE TOOL!
Hold the
tool only by the insulated grasping surfaces to prevent electric shock
if you drill into a "live" wire.
not have to be plugged into an electrical outlet.
Be sure no one
is below when using the tool in high locations.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. Do not touch the drill bit or the workpiece immediately after operation: they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

Installing or removing battery cartridge
0 Always switch off the tool before insertion or removal of the battery cartridge.
0 To remove the battery cartridge, pull out
the set plate on the tool and grasp both
sides
of the cartridge while withdrawing it
from the barrel.
0 To insert the battery cartridge, align the
tongue
on the battery cartridge with the
groove in the housing and slip
it into
place. Snap the set plate back into place.
Be sure
to close the set plate fully before
using the tool.
0 Do not use force when inserting the battery cartridge.
If the cartridge does not slide in easily, it is not being inserted correctly.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides as their
respective markings on the fast charger.
Insert the cartridge fully into the port
so
that it rests on the charger port floor.
The charging light will come on and charg-
ing will begin.
If the charging light does
not come
on, press the reset button. If the
charging light goes
out within 10 seconds
even after pressing the reset button a
couple
of times, the battery cartridge is dead. (CAUTION : Wait for more than 5 seconds
after the charging light goes out
to press the reset button again.) Replace it with a new
one. When the charging light goes
out after about one hour, you may remove the fully
charged battery cartridge.
After charging, unplug the charger from the power source.
CAUTION
:
0 Your new battery cartridge is not charged. You will need to charge it before use.
0 If you try to charge a cartridge from a just-operated tool, sometimes the charging light
will not come on. If this occurs, let the cartridge cool off for a while. Then re-insert it
and try to charge it once more.
When you charge a new battery cartridge or a battery cartridge which has not been used
for a long period, it may not accept a full charge. This is a normal condition and does
not indicate a problem. You can recharge the battery cartridge fully after discharging
it almost completely a couple
of times.
0 If you wish to charge two battery cartridges, allow 15 minutes between chargings on the
fast charger.
6

Installing or removing drill bit or driver bit
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
installing
or removing the bit.
To install the bit, place it in the chuck as
far as
it will go. Tighten the chuck by hand.
Place the chuck key in each
of the three
holes and tighten clockwise. Be sure
to
tighten all three chuck holes evenly.
To remove the bit, turn the chuck key
counterclockwise in just one hole, then
loosen the chuck
by hand.
Chuck key
I I
Chuck key
7

CAUTION :
Before inserting the battery cartridge into the tool, always check to see that the trigger
switch actuates properly and returns to the
"OFF" position when released.
Reversing switch action
This tool has a reversing switch to change
the direction
of rotation. Slide the revers-
ing switch to the right
for clockwise rota-
tion
or to the left for counterclockwise.
CAUTION :
0 Always check the direction of rotation before operation.
*Use the reversing switch
only when the tool comes to a complete stop. Changing the
direction of rotation before the tool stops may ruin the tool.
Speed change
To change the tool speed, turn the speed
change knob
so that the arrow of the de-
sired speed on the knob is aligned with the
reference arrow on the tool body.
If the
speed change knob does not
turn easily,
switch on the tool and turn the knobagain
while the tool is running under no load.
Speed change knob
0 - 300 R/min.
8

Adjusting fastening torque
The fastening torque can be adjusted in six
stages by turning the adjusting ring
so that
the pointer on the adjusting ring points to
a number on the tool body. The fastening
torque
is minimum when the pointer
points to the number
1 and maximum
when it points
to the -8- marking. The
clutch will slip at varying torque levels
when the pointer is set at the numbers
1 to
5. The clutch is designed not to slip at the
.\- marking.
..
Before actual operation, drive a trial screw into your material or a piece of duplicate
material to determine which torque level is required
for a particular application.
NOTE :
The adjusting ring cannot be locked with the pointer positioned half-way between the
numbers.
Screwdriving operation
Place the point of the driver bit in the
screw head and apply pressure to the tool.
Start the tool
slowly and then increase the
speed gradually. Release the trigger
as soon
as the clutch cuts in.
9

NOTE :
0 Use the proper bit for the head of the screw that you wish to use.
0 Make sure that the driver bit is inserted straight in the screw head, or the screw and/or
bit may be damaged.
When driving wood screws, predrill pilot
holes
to make driving easier and to pre-
vent splitting
of the workpiece. See the
chart.
2.5 - 2.8
(3/32"
- 7/64")
3.8 (5/32")
2.9 - 3.2
4.5 (11164") I (7/64,, - 1/8,,)
3.1 - 3.4
(1 18" - 9/64")
4.8 (3/16')
3.3 - 3.6
5.1 (13/64") I (118,, -9,64,,)
Drilling operation
0 Drilling in wood
When drilling in wood, best results are obtained with wood drills equipped with a guide
screw. The guide screw makes drilling easier by pulling the bit into the workpiece.
0 Drilling in metal
To prevent the bit from slipping when starting a hole, make an indentation with a
centerpunch and hammer at the point
to be drilled. Place the point of the bit in the
indentation and start drilling.
Use a cutting lubricant when drilling metals. The exceptions are iron and brass which
should be drilled dry.
CAUTION :
0 Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pres-
sure will only serve
to damage the tip of your bit, decrease the tool performance and
shorten the service life
of the tool.
.There is a tremendous force exerted on the tool/bit at the time of hole breakthrough.
Hold the
tool firmly and exert care when the bit begins to break through the workpiece.
0 A stuck bit can be removed simply by setting the reversing switch to reverse rotation in
order to back out. However, the tool may back out abruptly if you donot hold it firmly.
0 Always secure small workpieces in a vise or similar hold-down device.
10

Overload protector
The overload protector automatically cuts out to break the circuit whenever heavy work
is prolonged. Wait 20-30 seconds before resuming operation.
11

MA1 NTENANCE
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removed before
attempting
to perform inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, maintenance or adjustment
should be performed by Makita Authorized
or Factory Service Centers, always using
Makita replacement parts.
12

ACCESSORI ES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The
use of any other accessories or attachments might present a risk of injury to persons.
The accessories
or attachments should be used only in the proper and intended manner.
Ph i I I ips
SI o tted
Square drill bit
0 Bits
Size Part No.
#2 784214-0A
#3 784215-0A
#5F 784010-0A
#7F 78401 1-OA
784606-0A
0 Rubber pad assembly
Part
No. 123001-2
0 Wool bonnet
Part No. 743401-6
0 Foam polishing pad
Part
No. 743023-2
0 Steel carrying case
Part No. 823087-3
0 Fast charger
Model DC7100
Part
No. 11 3086-6
0 Charger 12V for car
Model DC 71
12
Part No. 113109-0
w
0 Battery cartridge 7000
Part No. 632003-2
0 Battery cover
Part No. 414938-7
0 Chuck key S10
Part No. 763419-1
0 Battery holster
Holster holds extra battery.
Part
No. 823033-3C
Keyless drill chuck
Part
No. 763083-8
13

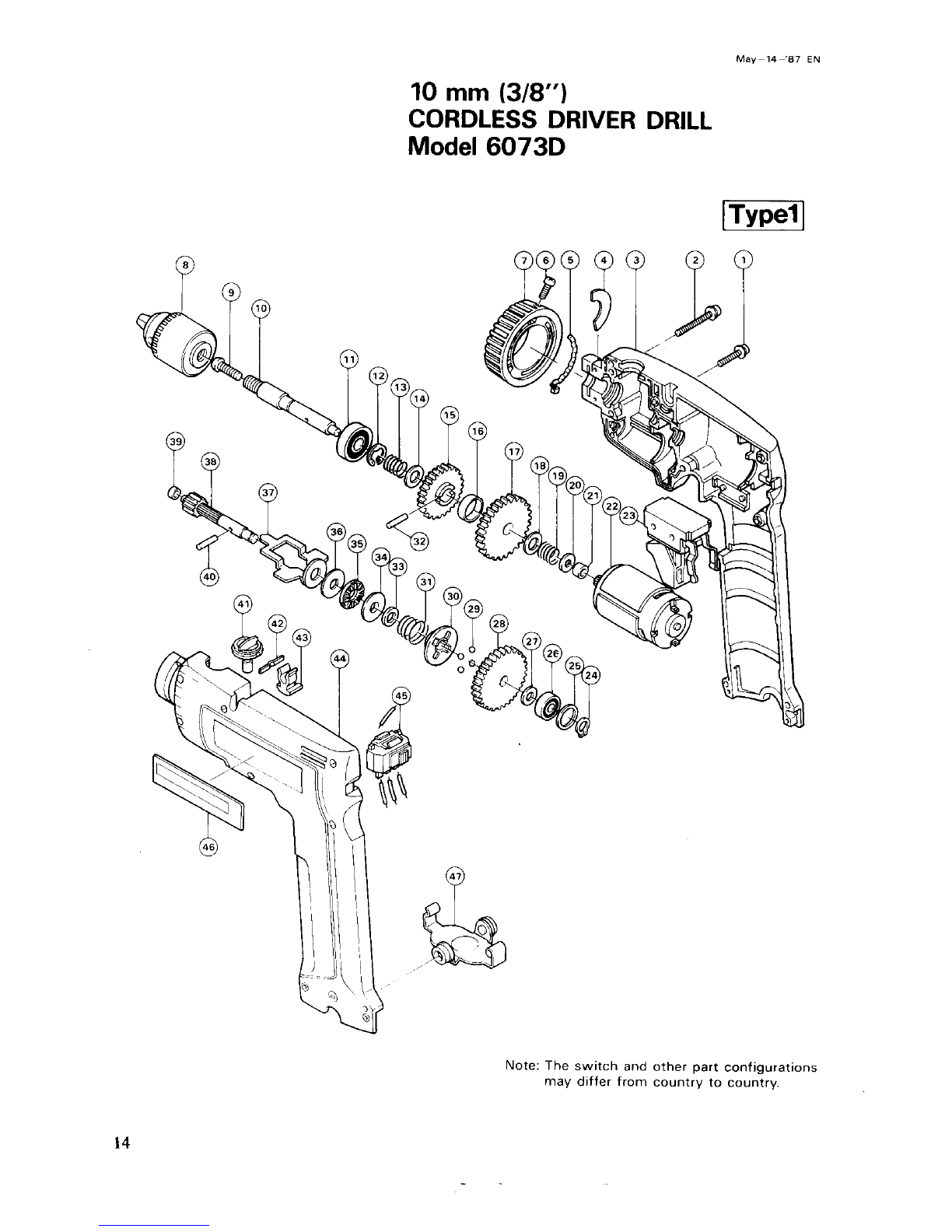

May-14-'87 EN
10 mm (3/8")
CORDLESS DRIVER DRILL
Model 6073D
Note: The switch and other part configurations
may differ
from country to country.
14

May 14-'87 EN
MODEL 6073D
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
,&, DESCRIPTION ""0" DESCRIPTION
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Pan Head Screw M4x22 iWifh Washer1
Pan Head Screw M4x35 IWith Washer1
Housing Set IWith Item 441
Guide Plate
Cam Plate
Pan Head Screw M5x12
Change Ring
Drill Chuck S10
Pan Head Screw M5x18
Spindle
Ball Bearing 6000LL0
Stop Ring E-9
Thin Washer 10
Spur Gear 78
Ring 16
Spur Gear 93
Thin Washer 10
Compresslo" Spr,ng 10
Flat Washer 5
Plane Bearing 5
DC Motor J 2 V
Switch
Retaining Ring S-6
Compresslo" Sprtng 10
16
22
31
42
51
62
71
81
91
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Flat Washer 14
Ball Bearing 626LL0
Flat Washer 6
Spur Gear 76
Steel Ball 4 8
Clutch Cam
Conical Compression Spring 16-21
PI" 3
Ring 8
Disc
ThrusT Needle Gauge 1023
Flat Washer 8
Slider
Gear Complete 12-28
P," 3
Shifter
Holder 6
Housing Set IWtlh Item 31
Switch
Name Plate
Set Plate
Plane Bearmg 4
Leaf Spmg
Note The switch and other part specifications may differ from country to country
15

P
,+-
I
MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the
COMPLETE
tool, freightprepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita
will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterations have been made to the tool.
IN NO LVLNT SHALL MAKITA Bt LIABLE tOR ANY INDIRECT, lNClDE,NTAL OR CON-
SFOUL NTlAL DAMAGtS FROM
THF SALE OR USL OF THE PRODllCT
THIS DIWl AIMFR
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTltS, INCLUDING IMPLItD
WARRANTltS
OF “MERCHANTABILITY” AND “FITNESS FOR A SPtCIFIC PURPOSE,”
AFT1.R THE ON1 -YFAR TERM
01 THIS WARRANTY
Ths Warranty gwes you specific legal nghts, and you may also have other nghts which vary from
state to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply
to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi 446 Japan
883607D067
PRINTED IN JAP
1992 - ?
