Makita 6OLOSDW User manual

Cordless Drill
Dimensions
(L x W x HI
Capacities No load speed
SteeliWood Wood screw
10 mm (3/8") MODEL 6OlOSD
10 mm (318") MODEL 6OlOSDW
With Quick Charger
Net
weight
INSTRUCTION MANUAL
SPEC IF I CAT IONS
Model 6010SD
I 205 mm x 48 mm x 175 mm 0.95 kg
1 12.1 Ibsl
(8" x 1-7/8" x 6-718")
1 600 R/mm
10 mm
(318"l I 13/16" x 34")
4.5 mm x 20 mm
Model DC7020 Quick Charger
1 DC 7.2V. I 3 Hr
A.C. only
50 Hz - 60 Hz
* Manufacturer reserves the right to change specifications without notice.
Note: Specifications may differ from country to country.

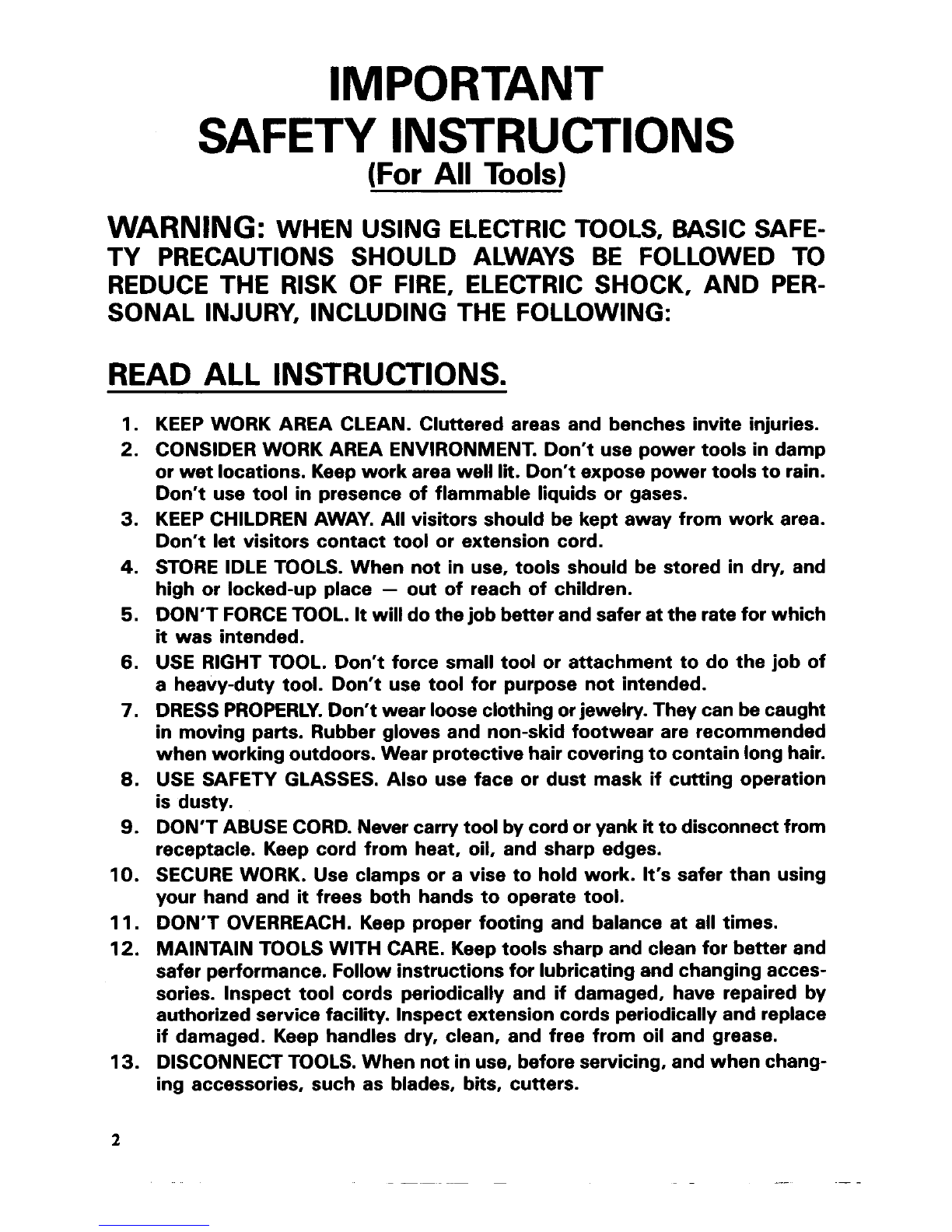

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids
or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't
let visitors contact tool or extension cord.
STORE IDLE TOOLS. When not in use, tools should be stored in dry, and
high
or locked-up place - out of reach of children.
DON'T FORCE TOOL. It
will dothejob better and safer atthe rate for which
it was intended.
USE RIGHT TOOL. Don't force small tool
or attachment to do the job of
a heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't
wear loose clothing or jewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering
to containlong hair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation
is dusty.
DON'T ABUSE CORD. Never carry
tool by cord or yank it to disconnect from
receptacle. Keep cord from heat,
oil, and sharp edges.
SECURE WORK.
Use clamps or a vise to hold work. It's safer than using
your hand and it frees both hands
to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance.
Follow instructions for lubricating and changing acces-
sories. Inspect tool cords periodically and if damaged, have repaired by
authorized service facility. Inspect extension cords periodically and
replace
if damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECT TOOLS. When not in use, before servicing, and when chang-
ing
accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removed from tool before turn-
ing it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-in tool with finger
on switch.
Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSION CORDS. When tool is used outdoors, useonly
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use common sense. Don't oper-
ate tool when you
are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that
is damaged should be carefully checked to determine that it will
operate properly and perform its intended function. Check for alignment
of moving
parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard
or other part
that
is damaged should be properly repaired or replaced by an authorized
service center unlessotherwiseindicated elsewhere in this instruction manu-
al. Have defective switches replaced by authorized service center. Don't
use tool if switch does not turn it on and
off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces.
For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENT PARTS. When servicing, use only identical replacement
parts.
VOLTAGE WARNING: Before connecting the tool to a power source (receptacle,
outlet, etc.) be sure the voltage supplied
is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY tothe user
- as well as damage to
the
tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage
less than the nameplate rating is harmful to the motor.
3

IMPORTANT SAFETY INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
SAVE THESE INSTRUCTIONS - This manual
contains important safety and operating instructions
for battery charger.
Before using battery charger, read all instructions and cautionary markings
on
(1) battery charger, (2) battery, and (3) product using battery.
CAUTION
- To reduce risk of injury, charge only MAKITA type recharge-
able batteries. Other types of batteries may burst causing personal injury
and damage.
Do not expose charger to rain or snow.
Use of an attachment not recommended or sold by the battery charger
manufacturer may result in a
risk of fire, electric shock, or injury topersons.
To reduce
risk of damage toelectric plug and cord, pull by plug rather than
cord when disconnecting charger.
Make sure cord
is located so that it will not be stepped on, tripped over,
or otherwise subjected to damage or stress.
Do not operate charger with damaged cord or plug - replace them im-
mediately.
Do not operate charger if it has received a sharp blow, been dropped, or
otherwise damaged in any way; take it to a qualified serviceman.
Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service
or repair is required. Incorrect reassembly may
result in a risk of electric shock or fire.
To reduce risk of electric shock, unplug charger from outlet before attempt-
ing any maintenance
or cleaning. Turning off controls will not reduce this
risk.
4

ADDITIONAL SAFETY RULES
FOR CHARGER AND TOOL
1. The Charger and the tool are specifically designed to work together. Do not
attempt to charge any other cordless tool with this Charger.
Do not attempt
to charge the tool with any other charger.
2. Do not charge the tool when temperature is BELOW 10°C (5OOF) or ABOVE
45OC (113°F).
3. Do not use charger in damp or wet locations.
4. Do not attempt to use a step-up transformer, an engine generator or DC
5. Do not storethe tool in locations where the temperature may reach or exceed
6. Do not incinerate the tool even if it is severely damaged or is completelyworn
power receptacle.
5OoC
(122OF).
out. The tool can explode in a fire.
ADDITIONAL SAFETY RULES
FOR CORDLESS DRILL
1. Be aware that this tool is always in an operating condition, because it does
2. Always be sure you have a firm footing
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. When drilling into walls, floors or wherever "live" electrical wires may be en-
countered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Hold the tool only by the plastic handle
or plastic tool body toprevent electric
shock if you drill into a "live"
wire.
not have to be plugged into an electrical outlet.
Be sure no one
is below when using the tool in high locations.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. Do not touch the drill bit or the workpiece immediately after operation, they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

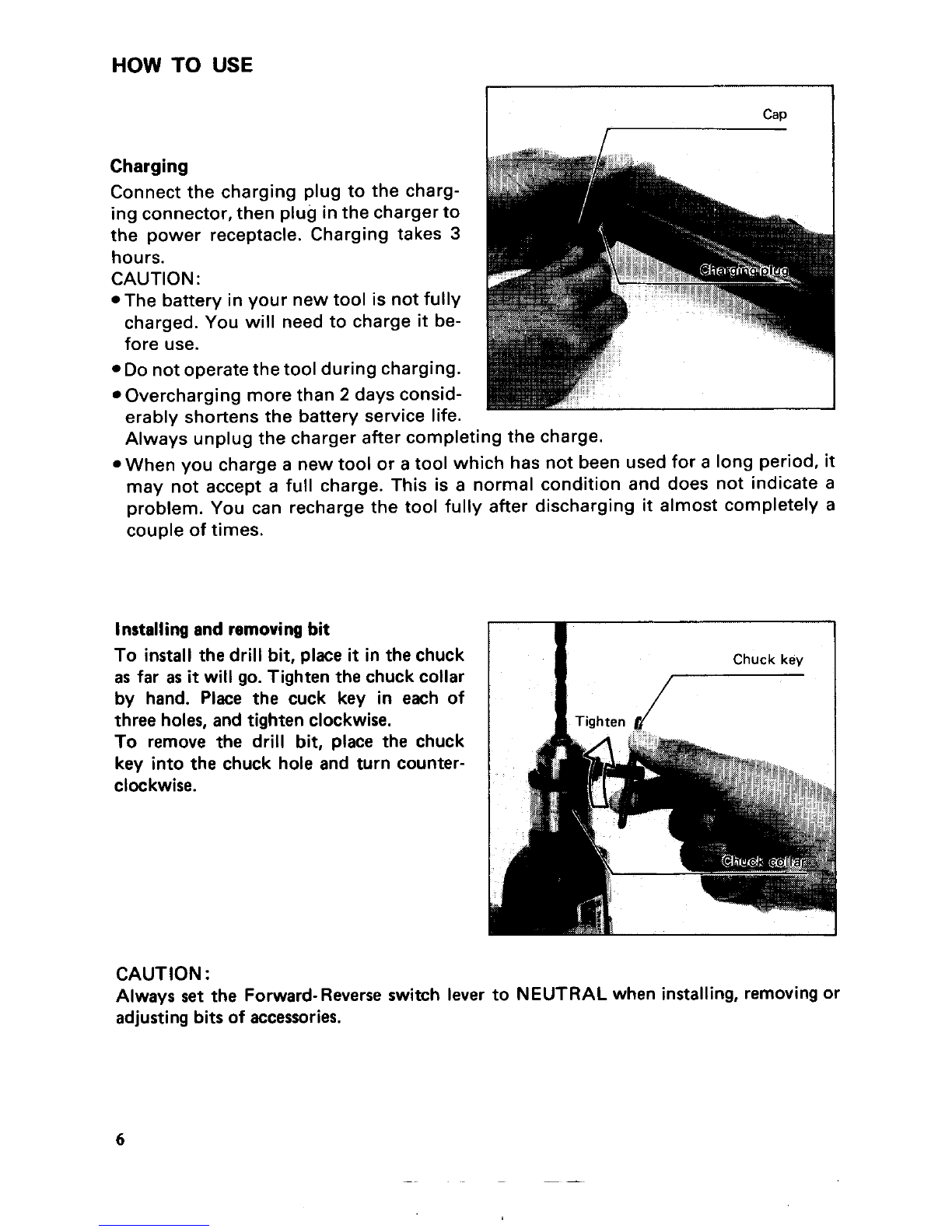

HOW TO USE
Charging
Connect the charging plug to the charg-
ing connector, then plug
in the charger to
the power receptacle. Charging takes
3
hours.
CAUTION:
The battery in your new tool is not fully
charged. You will need to charge it be-
fore use.
Do not operate the tool during charging.
Overcharging more than 2 days consid-
erably shortens the battery service life.
Always unplug the charger after completing the charge.
When you charge a new tool or a tool which has not been used for a long period, it
may not accept a
full charge. This is a normal condition and does not indicate a
problem. You can recharge the tool fully after discharging it almost completely a
couple of times.
Installing and removing bit
To install the drill bit, place
it in the chuck
as
far as it will go. Tighten the chuck collar
by hand. Place the cuck key
in each of
three holes, and tighten clockwise.
To remove the drill bit, place the chuck
key into the chuck hole and
turn counter-
clockwise.
CAUTION :
Always set the Forward-Reverse switch lever to NEUTRAL when installing, removing or
adjusting bits
of accessories.
6

After use, return the chuck key to the
storage cavity
on the tool.
I
Switch action
Set the reversing switch lever just
in front
of the trigger switch to Forward
(FWD) or
Reverse
(REV). Then pull the trigger to
turn the tool ON and release it to turn it
OFF.
To change the direction of bit rota-
tion, release the trigger, let the tool come
to
a complete stop, and then slide the
reversing switch lever to the opposite side.
When the reversing switch lever is
in the
neutral position, the tool will not start
even
if you pull the trigger.
CAUTIONS :
When not operating the tool, keep the reversing switch lever in the neutral position.
0 Before operation, always check to be sure that the reversing switch lever is set for the
desired direction of rotation.
7

Holding tool
Hold the tool as shown in the figure.
When drilling a large diameter hole,
the tool frimly with both hands. hold
Drilling in metal
Punch a small hole in the metal to prevent
the bit from skittering when starting
to
drill a hole.
Use cutting lubricant on the bitto facilitate
drilling if necessary.
Pressing down too hard on the tool will not speed up the drilling. In fact, this undue pres-
sure will only serve to damage the tip of your drill bit, decrease your drilling performance
and shorten the service life of the tool.
There is a tremendous force exerted on the tool/bit at the time of hole break through.
Grip the drill firmly and exert care when the bit begins to break through the material.
8

Screwdriving
Match your bit to your screw.
~~
Item I Nominal Diameter (mm)
Bit No. Wood Screw
2.1 - 2.7 (3132" - 118")
1. Phillips bits
Selectyourscrews and nominal diameter
with thechart
on the right.
No. 2 3.1 - 4.5 (118" - 3/16")
2. Slotted bits
Select a slotted bit to match the slot on the screw heads. If the bit is too small for the
screw
slot, the bit and/or screw head may be damaged.
Overload protector
The overload protector automatically cuts
out to break the circuit whenever heavy work
is prolonged. Wait
20-30 seconds before resuming operation.
9

Hole
The hole on the heel of the tool is a con-
venient way to carry it by a cord, hook or
other means.
MAINTENANCE
CAUTION :
Always be sure that the tool is switched off before attempting to perform inspection or
maintenance.
To maintain product SAFETY and RELIABILITY, repairs, maintenance and adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacement parts.
10

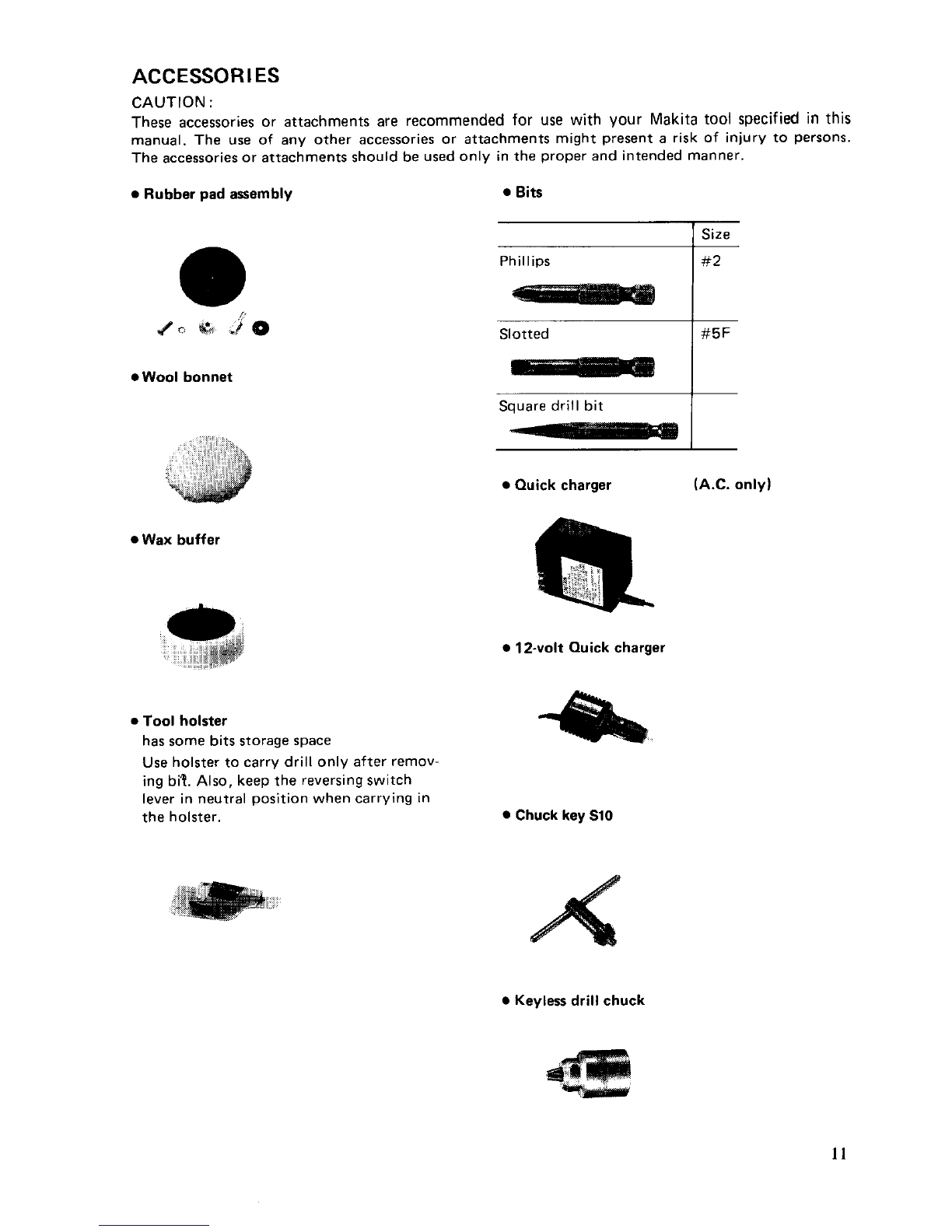

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories or attachments might present a risk of injury to persons.
The accessories
or attachments should be used only in the proper and intended manner.
Rubber pad assembly Bits
Phillips
Slotted
Wool bonnet
Square drill bit
0 Tool holster
has some bits storage space
Use holster to carry drill only after remov-
ing bi?.
Also, keep the reversing switch
lever in neutral position when carrying in
the holster.
-
Size
#2
-
Quick charger (A.C. only)
Wax buffer
12-volt Quick charger
#5F
~
Chuck key S10
Keyless drill chuck
11

10 mm (3/8")
CORDLESS DRILL
Model 6010SD
Note: The switch and other part configurations
may differ from country
to country.
12

MODEL 6010SD
13
14
15
16
17
18
19
20
22
'ZM $zD DESCRIPTION
1
1
1
1
1
1
1
1
1
1
2
4
5
6
7
8
9
10
11
12
Gto DESCRIPTION
6 Screw 3x20
1
1 Holder 6
1 Drill Chuck S10
1 Screw M5x18
1 Gear
1 Plane Bearing 5
1 Motor
1 Plane Bearing 3
1 Gear 13-58
1 Plane Bearing 3
Hou~ing Set (With Item 221
Current Relay
Re 5 4 s I a n c e
Diode
cap
Inlet
Battery
Switch
Name Plate
Housing Set (With Item 21
Note The switch and other part specifications may differ from country to country
13

MAKmA LlMmED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free
of defects from workmanshipand materials for the period ofONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, retum the COMPLETE
tool, freight prepaid, to one
of Makita’s Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship
or material, Makita will repair (or at our option,
replace) without charge.
This Warranty doesnot apply where:
repairs have been made or attempted by others:
repairs are requiredbecause of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT INCIDENTAL OR CON-
APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY.
SEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PROD~CT. THIS DISCLAIMER
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY”
AND “FITNESS FOR A’ SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM OF THIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation
on how long an implied warranty lasts, so the above limitation may not apply toyou.
Makita Corporation of America
Buford, GA
8834 1 OD991
PRINTED IN USA
1991 -8-C
