Makita DGA520 User manual

DGA520
EN Cordless Angle Grinder INSTRUCTION MANUAL 6
SL Brezžični kotni brusilnik NAVODILA ZA UPORABO 16
SQ Rektikuesi me kënd me
bateri MANUALI I PËRDORIMIT 26
BG Акумулаторен ъглошлайф РЪКОВОДСТВО ЗА
ЕКСПЛОАТАЦИЯ 37
HR Bežična kutna brusilica PRIRUČNIK S UPUTAMA 49
МК Безжична брусилка за агли УПАТСТВО ЗА УПОТРЕБА 59
SR Бежична угаона брусилица УПУТСТВО ЗА УПОТРЕБУ 71
RO Polizor unghiular cu
acumulator MANUAL DE INSTRUCŢIUNI 82
UK Бездротова кутова
шліфувальна машина ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 93
RU Аккумуляторная угловая
шлифмашина РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ 105

2
1
3
Fig.1
1
2
Fig.2
1
Fig.3
2
1
Fig.4
1
Fig.5
Fig.6
3
2
1
Fig.7
2

2
B
1
A
B
Fig.8
2
B
1
A
B
B
C
C
Fig.9
1
2
Fig.10
1
2
Fig.11
1
Fig.12
1
2
Fig.13
3

B
A
1
2
Fig.14
2
1
4
3
Fig.15
1
2
Fig.16
B
A
1
Fig.17
15°
Fig.18
Fig.19
Fig.20
4

Fig.21
Fig.22
2
1
Fig.23
1
Fig.24
2
6
7
4
5
2
3
1
Fig.25
5

6ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: DGA520
Wheel diameter 125 mm (5″)
Max. wheel thickness 6 mm
Rated speed (n) 8,500 min-1
Overall length 376 mm
Rated voltage D.C. 18 V
Net weight 2.4 - 3.0 kg
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may di󰀨er from country to country.
• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.
Recommended cord connected power source
Portable power pack PDC01
• The cord connected power source(s) listed above may not be available depending on your region of residence.
• Before using the cord connected power source, read instruction and cautionary markings on them.
Intended use
The tool is intended for grinding, sanding, wire brushing
and cutting of metal and stone materials without the use
of water.
Noise
The typical A-weighted noise level determined accord-
ing to EN60745-2-3:
Sound pressure level (LpA) : 80 dB(A)
Uncertainty (K) : 3 dB(A)
The noise level under working may exceed 80 dB (A).
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE: The declared noise emission value(s)
may also be used in a preliminary assessment of
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can di󰀨er from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).

7ENGLISH
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN60745-2-3:
Work mode: surface grinding with normal side grip
Vibration emission (ah, AG) : 5.5 m/s2
Uncertainty (K) : 1.5 m/s2
Work mode: surface grinding with anti vibration side grip
Vibration emission (ah, AG) : 7.0 m/s2
Uncertainty (K) : 1.5 m/s2
Work mode: disc sanding with normal side grip
Vibration emission (ah, AG) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
Work mode: disc sanding with anti vibration side grip
Vibration emission (ah, AG) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during
actual use of the power tool can di󰀨er from the
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
WARNING: The declared vibration emission
value is used for main applications of the power tool.
However if the power tool is used for other applica-
tions, the vibration emission value may be di󰀨erent.
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listed below may result in electric shock, re and/or
serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Cordless grinder safety warnings
Safety Warnings Common for Grinding, Sanding,
Wire Brushing or Abrasive Cutting-O󰀨 Operations:
1. This power tool is intended to function as a
grinder, sander, wire brush or cut-o󰀨 tool.
Read all safety warnings, instructions, illus-
trations and specications provided with this
power tool. Failure to follow all instructions listed
below may result in electric shock, re and/or
serious injury.
2.
Operations such as polishing are not recom-
mended to be performed with this power tool.
Operations for which the power tool was not designed
may create a hazard and cause personal injury.
3. Do not use accessories which are not speci-
cally designed and recommended by the tool
manufacturer. Just because the accessory can
be attached to your power tool, it does not assure
safe operation.
4. The rated speed of the accessory must be at
least equal to the maximum speed marked on
the power tool. Accessories running faster than
their rated speed can break and y apart.
5. The outside diameter and the thickness of your
accessory must be within the capacity rating
of your power tool. Incorrectly sized accessories
cannot be adequately guarded or controlled.
6.
Threaded mounting of accessories must match
the grinder spindle thread. For accessories
mounted by anges, the arbour hole of the
accessory must t the locating diameter of the
ange. Accessories that do not match the mounting
hardware of the power tool will run out of balance,
vibrate excessively and may cause loss of control.
7. Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad for
cracks, tear or excess wear, wire brush for loose
or cracked wires. If power tool or accessory
is dropped, inspect for damage or install an
undamaged accessory. After inspecting and
installing an accessory, position yourself and
bystanders away from the plane of the rotating
accessory and run the power tool at maximum
no-load speed for one minute. Damaged acces-
sories will normally break apart during this test time.
8. Wear personal protective equipment.
Depending on application, use face shield,
safety goggles or safety glasses. As appro-
priate, wear dust mask, hearing protectors,
gloves and workshop apron capable of stop-
ping small abrasive or workpiece fragments.
The eye protection must be capable of stopping
ying debris generated by various operations.
The dust mask or respirator must be capable of
ltrating particles generated by your operation.
Prolonged exposure to high intensity noise may
cause hearing loss.
9. Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.
Fragments of workpiece or of a broken accessory
may y away and cause injury beyond immediate
area of operation.

8ENGLISH
10. Hold the power tool by insulated gripping
surfaces only, when performing an operation
where the cutting tool may contact hidden
wiring. Contact with a "live" wire will also make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
11. Never lay the power tool down until the acces-
sory has come to a complete stop. The spinning
accessory may grab the surface and pull the
power tool out of your control.
12. Do not run the power tool while carrying it at
your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the
accessory into your body.
13. Regularly clean the power tool’s air vents. The
motor’s fan will draw the dust inside the housing
and excessive accumulation of powdered metal
may cause electrical hazards.
14. Do not operate the power tool near ammable
materials. Sparks could ignite these materials.
15. Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or snagged
rotating wheel, backing pad, brush or any other acces-
sory. Pinching or snagging causes rapid stalling of the
rotating accessory which in turn causes the uncon-
trolled power tool to be forced in the direction opposite
of the accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or
pinched by the workpiece, the edge of the wheel that is
entering into the pinch point can dig into the surface of
the material causing the wheel to climb out or kick out.
The wheel may either jump toward or away from the
operator, depending on direction of the wheel’s move-
ment at the point of pinching. Abrasive wheels may also
break under these conditions.
Kickback is the result of power tool misuse and/or
incorrect operating procedures or conditions and can be
avoided by taking proper precautions as given below.
1. Maintain a rm grip on the power tool and
position your body and arm to allow you to
resist kickback forces. Always use auxiliary
handle, if provided, for maximum control over
kickback or torque reaction during start-up.
The operator can control torque reactions or kick-
back forces, if proper precautions are taken.
2. Never place your hand near the rotating acces-
sory. Accessory may kickback over your hand.
3. Do not position your body in the area where
power tool will move if kickback occurs.
Kickback will propel the tool in direction opposite
to the wheel’s movement at the point of snagging.
4. Use special care when working corners, sharp
edges etc. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing
have a tendency to snag the rotating accessory
and cause loss of control or kickback.
5. Do not attach a saw chain woodcarving blade
or toothed saw blade. Such blades create fre-
quent kickback and loss of control.
Safety Warnings Specic for Grinding and Abrasive
Cutting-O󰀨 Operations:
1. Use only wheel types that are recommended
for your power tool and the specic guard
designed for the selected wheel. Wheels for
which the power tool was not designed cannot be
adequately guarded and are unsafe.
2. The grinding surface of centre depressed
wheels must be mounted below the plane of
the guard lip. An improperly mounted wheel that
projects through the plane of the guard lip cannot
be adequately protected.
3.
The guard must be securely attached to the
power tool and positioned for maximum safety,
so the least amount of wheel is exposed towards
the operator. The guard helps to protect the opera-
tor from broken wheel fragments, accidental contact
with wheel and sparks that could ignite clothing.
4. Wheels must be used only for recommended
applications. For example: do not grind with the
side of cut-o󰀨 wheel. Abrasive cut-o󰀨 wheels are
intended for peripheral grinding, side forces applied
to these wheels may cause them to shatter.
5. Always use undamaged wheel anges that are
of correct size and shape for your selected
wheel. Proper wheel anges support the wheel
thus reducing the possibility of wheel breakage.
Flanges for cut-o󰀨 wheels may be di󰀨erent from
grinding wheel anges.
6. Do not use worn down wheels from larger
power tools. Wheel intended for larger power tool
is not suitable for the higher speed of a smaller
tool and may burst.
Additional Safety Warnings Specic for Abrasive
Cutting-O󰀨 Operations:
1. Do not “jam“ the cut-o󰀨 wheel or apply exces-
sive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel
increases the loading and susceptibility to twisting
or binding of the wheel in the cut and the possibil-
ity of kickback or wheel breakage.
2. Do not position your body in line with and
behind the rotating wheel. When the wheel, at
the point of operation, is moving away from your
body, the possible kickback may propel the spin-
ning wheel and the power tool directly at you.
3. When wheel is binding or when interrupting
a cut for any reason, switch o󰀨 the power
tool and hold the power tool motionless until
the wheel comes to a complete stop. Never
attempt to remove the cut-o󰀨 wheel from the
cut while the wheel is in motion otherwise
kickback may occur. Investigate and take correc-
tive action to eliminate the cause of wheel binding.
4. Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed and
carefully re-enter the cut. The wheel may bind,
walk up or kickback if the power tool is restarted in
the workpiece.
5. Support panels or any oversized workpiece to
minimize the risk of wheel pinching and kick-
back. Large workpieces tend to sag under their
own weight. Supports must be placed under the
workpiece near the line of cut and near the edge
of the workpiece on both sides of the wheel.

9ENGLISH
6. Use extra caution when making a “pocket cut”
into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes, elec-
trical wiring or objects that can cause kickback.
Safety Warnings Specic for Sanding Operations:
1. Do not use excessively oversized sanding
disc paper. Follow manufacturers recommen-
dations, when selecting sanding paper. Larger
sanding paper extending beyond the sanding
pad presents a laceration hazard and may cause
snagging, tearing of the disc or kickback.
Safety Warnings Specic for Wire Brushing
Operations:
1. Be aware that wire bristles are thrown by the
brush even during ordinary operation. Do not
overstress the wires by applying excessive
load to the brush. The wire bristles can easily
penetrate light clothing and/or skin.
2. If the use of a guard is recommended for wire
brushing, do not allow any interference of the
wire wheel or brush with the guard. Wire wheel
or brush may expand in diameter due to work load
and centrifugal forces.
Additional Safety Warnings:
1. When using depressed centre grinding wheels,
be sure to use only berglass-reinforced
wheels.
2. NEVER USE Stone Cup type wheels with this
grinder. This grinder is not designed for these
types of wheels and the use of such a product
may result in serious personal injury.
3. Be careful not to damage the X-LOCK holder.
Damage to the parts could result in wheel
breakage.
4. Make sure the wheel is not contacting the
workpiece before the switch is turned on.
5. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate poor installation
or a poorly balanced wheel.
6. Use the specied surface of the wheel to per-
form the grinding.
7. Do not leave the tool running. Operate the tool
only when hand-held.
8. Do not touch the workpiece immediately after
operation; it may be extremely hot and could
burn your skin.
9. Do not touch accessories immediately after
operation; it may be extremely hot and could
burn your skin.
10. Observe the instructions of the manufacturer
for correct mounting and use of wheels.
Handle and store wheels with care.
11. Do not use separate reducing bushings or
adaptors to adapt large hole abrasive wheels.
12. Check that the workpiece is properly
supported.
13. Pay attention that the wheel continues to
rotate after the tool is switched o󰀨.
14. If working place is extremely hot and humid,
or badly polluted by conductive dust, use a
short-circuit breaker (30 mA) to assure opera-
tor safety.
15. Do not use the tool on any materials contain-
ing asbestos.
16. When use cut-o󰀨 wheel, always work with
the dust collecting wheel guard required by
domestic regulation.
17. Cutting discs must not be subjected to any
lateral pressure.
18. Do not use cloth work gloves during operation.
Fibers from cloth gloves may enter the tool, which
causes tool breakage.
19. Before operation, make sure that there is no
buried object such as electric pipe, water pipe
or gas pipe in the workpiece. Otherwise, it may
cause an electric shock, electrical leakage or gas
leak.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper with the battery
cartridge. It may result in a re, excessive heat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re, excessive heat, or explosion.
9. Do not use a damaged battery.

10 ENGLISH
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may result in poor performance or
breakdown of the tool or battery cartridge.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2.
Never recharge a fully charged battery cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room tempera-
ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot
battery cartridge cool down before charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).

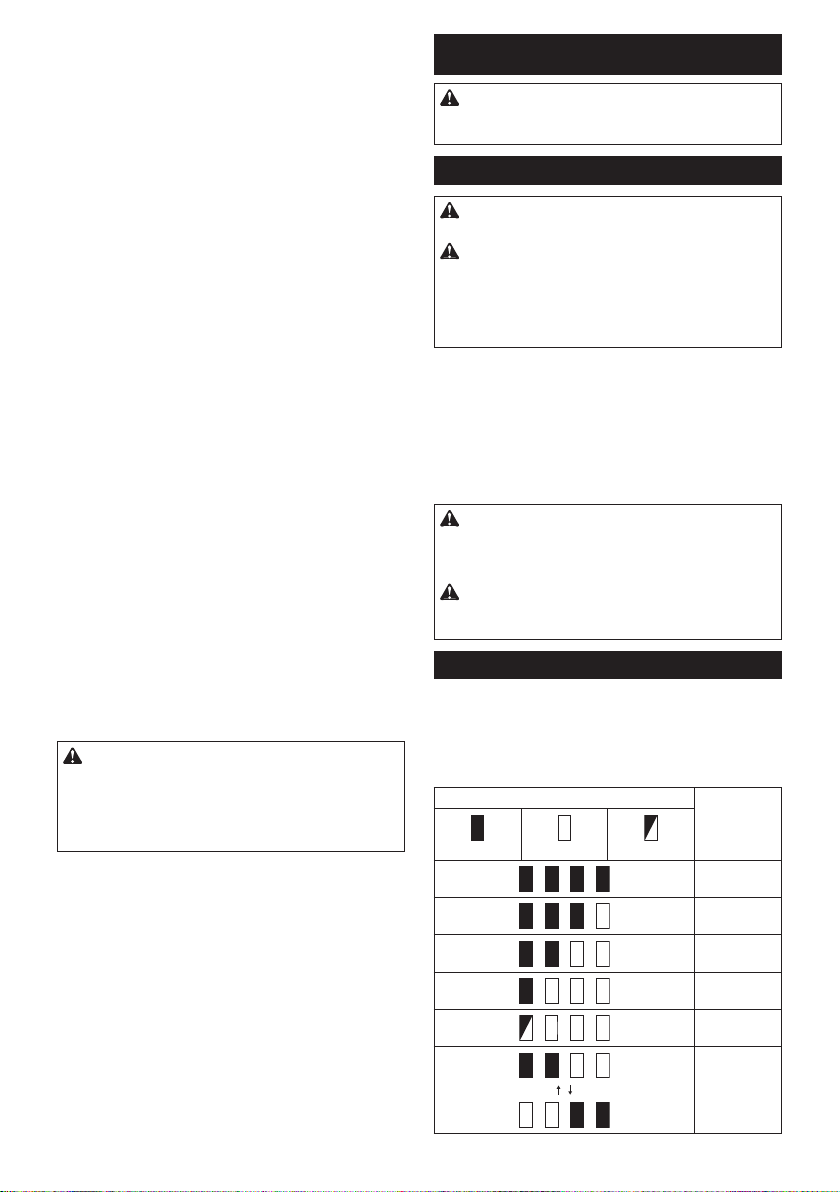

FUNCTIONAL DESCRIPTION
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery cartridge
CAUTION: Always switch o󰀨 the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip o󰀨 your hands
and result in damage to the tool and battery cartridge
and a personal injury.
► Fig.1: 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as
shown in the gure, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
► Fig.2: 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.

11 ENGLISH
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
NOTE: The rst (far left) indicator lamp will blink when
the battery protection system works.
Indicating the remaining battery capacity
When you turn the tool on, the battery indicator shows
the remaining battery capacity.
► Fig.3: 1. Battery indicator
The remaining battery capacity is shown as the follow-
ing table.
Battery indicator status Remaining
battery
capacity
On O󰀨 Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts o󰀨 power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions:
Overload protection
When the tool/battery is operated in a manner that
causes it to draw an abnormally high current, the tool
automatically stops without any indication. In this sit-
uation, turn the tool o󰀨 and stop the application that
caused the tool to become overloaded. Then turn the
tool on to restart.
Overheat protection
When the tool is overheated, the tool stops automati-
cally and the battery indicator shows following state. In
this situation, let the tool cool before turning the tool on
again.
On Blinking
If the tool does not start, the battery may be overheated.
In this situation, let the battery cool before starting the
tool again.
Overdischarge protection
When the battery capacity is not enough, the tool stops
automatically. In this case, remove the battery from the
tool and charge the battery.
Releasing protection lock
When the protection system works repeatedly, the tool
is locked and the battery indicator shows the following
state.
In this situation, the tool does not start even if turning
the tool o󰀨 and on. To release the protection lock,
remove the battery, set it to the battery charger and wait
until the charging nishes.
On O󰀨 Blinking
Switch action
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch lever actuates properly and returns to the
"OFF" position when released.
CAUTION: For your safety, this tool is
equipped with lock-o󰀨 lever which prevents the
tool from unintended starting. NEVER use the tool
if it runs when you simply pull the switch trigger
without pulling the lock-o󰀨 lever. Return the tool
to our authorized service center for proper repairs
BEFORE further usage.
CAUTION: Do not pull the switch lever hard
without pulling the lock-o󰀨 lever. This can cause
switch breakage.
CAUTION: NEVER tape down or defeat pur-
pose and function of lock-o󰀨 lever.
To prevent the switch lever from being accidentally
pulled, a lock-o󰀨 lever is provided.
To start the tool, pull the lock-o󰀨 lever toward the opera-
tor and then pull the switch lever.
To stop the tool, release the switch lever.
► Fig.4: 1. Lock-o󰀨 lever 2. Switch lever
Automatic speed change function
► Fig.5: 1. Mode indicator
Mode indicator status Operation mode
High speed mode
High torque mode
This tool has "high speed mode" and "high torque
mode". It automatically changes operation mode
depending on the work load. When mode indicator
lights up during operation, the tool is in high torque
mode.

12 ENGLISH
Accidental re-start preventive function
When installing the battery cartridge while pulling the
switch lever, the tool does not start.
To start the tool, rst release the switch lever. Then pull
the lock-o󰀨 lever, and pull the switch lever.
Active Feedback sensing Technology
The tool electronically detects situations where the
wheel or accessory may be at risk to be bound. In the
situation, the tool is automatically shut o󰀨 to prevent
further rotation of the spindle (it does not prevent
kickback).
To restart the tool, switch o󰀨 the tool rst, remove the
cause of sudden drop in the rotation speed, and then
turn the tool on.
Soft start feature
Soft start feature reduces starting reaction.
Electric brake
Electric brake is activated after the tool is switched o󰀨.
The brake does not work when the power supply is shut
down, such as the battery is removed accidentally, with
the switch still on.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing side grip (handle)
CAUTION: Always be sure that the side grip is
installed securely before operation.
Screw the side grip securely on the position of the tool
as shown in the gure.
► Fig.6
Installing or removing wheel guard
WARNING: When using a depressed center
wheel, ap disc or wire wheel brush, the wheel
guard must be tted on the tool so that the
closed side of the guard always points toward the
operator.
WARNING: Make sure that the wheel guard is
securely locked by the lock lever with one of the
holes on the wheel guard.
WARNING: When using an abrasive cut-o󰀨
/ diamond wheel, be sure to use only the special
wheel guard designed for use with cut-o󰀨 wheels.
(In some European countries, when using a diamond
wheel, the ordinary guard can be used. Follow the
regulations in your country.)
For depressed center wheel, ap
disc, wire wheel brush / abrasive cut-
o󰀨 wheel, diamond wheel
1. While pushing the lock lever, mount the wheel
guard with the protrusions on the wheel guard aligned
with the notches on the bearing box.
► Fig.7: 1. Lock lever 2. Notch 3. Protrusion
2.
While pushing the lock lever toward A, push in the wheel
guard by holding down the portions B as shown in the gure.
► Fig.8: 1. Wheel guard 2. Hole
NOTE: Push down the wheel guard straight.
Otherwise, you cannot push the wheel guard
completely.
3. While keeping the lock lever and wheel guard
position as described in step 2, rotate the wheel guard
toward C, and then, change the angle of the wheel
guard according to the work.
► Fig.9: 1. Wheel guard 2. Hole
NOTE: Push the wheel guard completely. Otherwise,
you cannot rotate the wheel guard.
To remove wheel guard, follow the installation proce-
dure in reverse.
When using a depressed center
wheel or ap disc
Optional accessory
WARNING: When using a depressed center
wheel or a ap disc, the wheel guard must be
tted on the tool so that the closed side of the
guard always points toward the operator.
► Fig.10: 1. Depressed center wheel 2. Wheel guard
When using an abrasive cut-o󰀨 /
diamond wheel
Optional accessory
WARNING: When using an abrasive cut-o󰀨
/ diamond wheel, be sure to use only the special
wheel guard designed for use with cut-o󰀨 wheels.
(In some European countries, when using a diamond
wheel, the ordinary guard can be used. Follow the
regulations in your country.)
WARNING: NEVER use cut-o󰀨 wheel for side
grinding.
► Fig.11: 1. Abrasive cut-o󰀨 wheel / diamond wheel
2. Wheel guard for abrasive cut-o󰀨 wheel /
diamond wheel
When using a wire cup brush
Optional accessory
CAUTION: Do not use wire cup brush that is
damaged, or which is out of balance. Use of dam-
aged brush could increase potential for injury from
contact with broken brush wires.
► Fig.12: 1. Wire cup brush

13 ENGLISH
When using a wire wheel brush
Optional accessory
CAUTION: Do not use wire wheel brush that
is damaged, or which is out of balance. Use of
damaged wire wheel brush could increase potential
for injury from contact with broken wires.
CAUTION: ALWAYS use guard with wire
wheel brushes, assuring diameter of wheel ts
inside guard. Wheel can shatter during use and
guard helps to reduce chances of personal injury.
► Fig.13: 1. Wire wheel brush 2. Wheel guard
Installing or removing X-LOCK wheel
WARNING: Never actuate the release lever of
the X-LOCK holder during operation. Make sure
that the X-LOCK wheel has stopped completely
when removing it. Otherwise, the X-LOCK wheel
comes o󰀨 from the tool and may cause serious injury.
CAUTION: Use only original X-LOCK wheels
with the X-LOCK logo. This tool is dedicated to
X-LOCK.
The maximum clamping gauge of 1.6 mm can only be
guaranteed with original X-LOCK wheels.
Use of any other wheels may lead to insecure clamp-
ing, and cause the clamp tool to come loose.
CAUTION: Do not touch the X-LOCK wheel
immediately after operation. It may be extremely
hot and could burn your skin.
CAUTION: Make sure that the X-LOCK wheel
and holder of the tool are not deformed and are
free from dust or foreign matters.
CAUTION: Do not put your nger near the
holder while installing or removing the X-LOCK
wheel. It may pinch your nger.
CAUTION: Do not put your nger near the
release lever while installing the X-LOCK wheel. It
may pinch your nger.
NOTE: No additional parts such as inner anges
or lock nuts are required to install or remove the
X-LOCK wheels.
1. To install the X-LOCK wheel, make sure that both
catches are in the unlocked position.
If not, push the release lever from A side to lift B
side, then pull the release lever from B side as
illustrated. The catches are set in the unlocked
position.

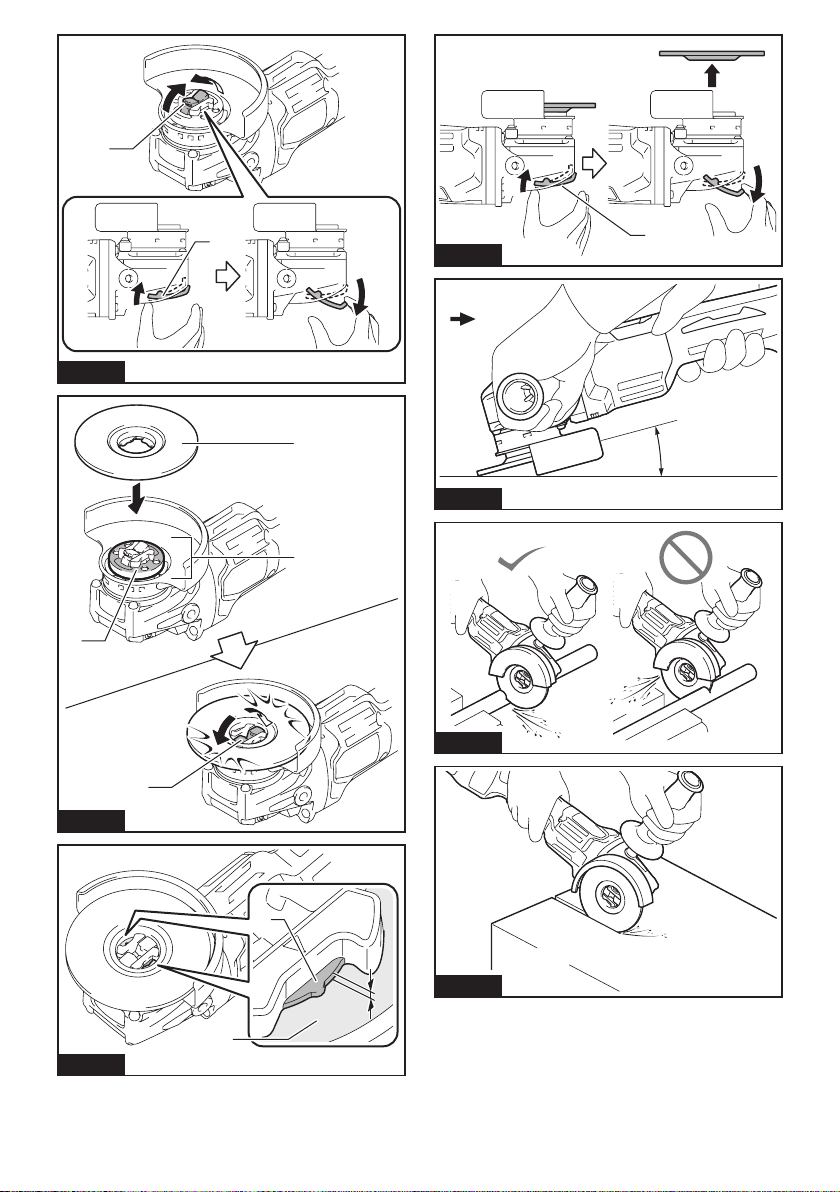

► Fig.14: 1. Catch 2. Release lever
2. Place a central position of the X-LOCK wheel on
the holder.
Make sure the X-LOCK wheel is parallel to the
ange surface and with the correct side facing up.
3. Push the X-LOCK wheel into the holder. The
catches snap into the lock position with a click and
x the X-LOCK wheel.
► Fig.15: 1. X-LOCK wheel 2. Holder 3. Flange sur-
face 4. Catch
4. Make sure the X-LOCK wheel is xed correctly.
The surface of the X-LOCK wheel is no higher
than the surface of the holder as shown in the
gure.
If not, the holder must be cleaned or the X-LOCK
wheel must not be used.
► Fig.16: 1. Surface of the holder 2. Surface of the
X-LOCK wheel
To remove the X-LOCK wheel, push the release lever
from A side to lift B side, then pull the release lever from
B side as illustrated.
The X-LOCK wheel is released and can be removed.
► Fig.17: 1. Release lever
OPERATION
WARNING: It should never be necessary to
force the tool. The weight of the tool applies ade-
quate pressure. Forcing and excessive pressure
could cause dangerous wheel breakage.
WARNING: ALWAYS replace wheel if tool is
dropped while grinding.
WARNING: NEVER hit the workpiece with the
wheel.
WARNING: Avoid bouncing and snagging
the wheel, especially when working corners,
sharp edges etc. This can cause loss of control and
kickback.
WARNING: NEVER use tool with wood cutting
blades and other saw blades. Such blades when
used on a grinder frequently kick and cause loss of
control leading to personal injury.
WARNING: Never actuate the release lever of
the X-LOCK holder during operation. The X-LOCK
wheel comes o󰀨 from the tool and may cause serious
injury.
WARNING: Make sure that the X-LOCK wheel
is xed rmly.
CAUTION: Never switch on the tool when it
is in contact with the workpiece, it may cause an
injury to operator.
CAUTION: Always wear safety goggles or a
face shield during operation.
CAUTION: After operation, always switch o󰀨
the tool and wait until the wheel has come to a
complete stop before putting the tool down.
CAUTION: ALWAYS hold the tool rmly with
one hand on housing and the other on the side
grip (handle).

14 ENGLISH
Grinding and sanding operation
► Fig.18
Turn the tool on and then apply the wheel or disc to the
workpiece.
In general, keep the edge of the wheel or disc at an
angle of about 15° to the workpiece surface.
During the break-in period with a new wheel, do not
work the grinder in forward direction or it may cut into
the workpiece. Once the edge of the wheel has been
rounded o󰀨 by use, the wheel may be worked in both
forward and backward direction.
Operation with abrasive cut-o󰀨 /
diamond wheel
Optional accessory
WARNING: Do not "jam" the wheel or apply
excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel
increases the loading and susceptibility to twisting
or binding of the wheel in the cut and the possibility
of kickback, wheel breakage and overheating of the
motor may occur.
WARNING: Do not start the cutting operation
in the workpiece. Let the wheel reach full speed
and carefully enter into the cut moving the tool
forward over the workpiece surface. The wheel
may bind, walk up or kickback if the power tool is
started in the workpiece.
WARNING: During cutting operations, never
change the angle of the wheel. Placing side pres-
sure on the cut-o󰀨 wheel (as in grinding) will cause
the wheel to crack and break, causing serious per-
sonal injury.
WARNING: A diamond wheel shall be oper-
ated perpendicular to the material being cut.
Usage example: operation with abrasive cut-o󰀨
wheel
► Fig.19
Usage example: operation with diamond wheel
► Fig.20
Operation with wire cup brush
Optional accessory
CAUTION: Check operation of brush by run-
ning tool with no load, insuring that no one is in
front of or in line with brush.
NOTICE: Avoid applying too much pressure
which causes over bending of wires when using
the wire cup brush. It may lead to premature
breakage.
Usage example: operation with wire cup brush

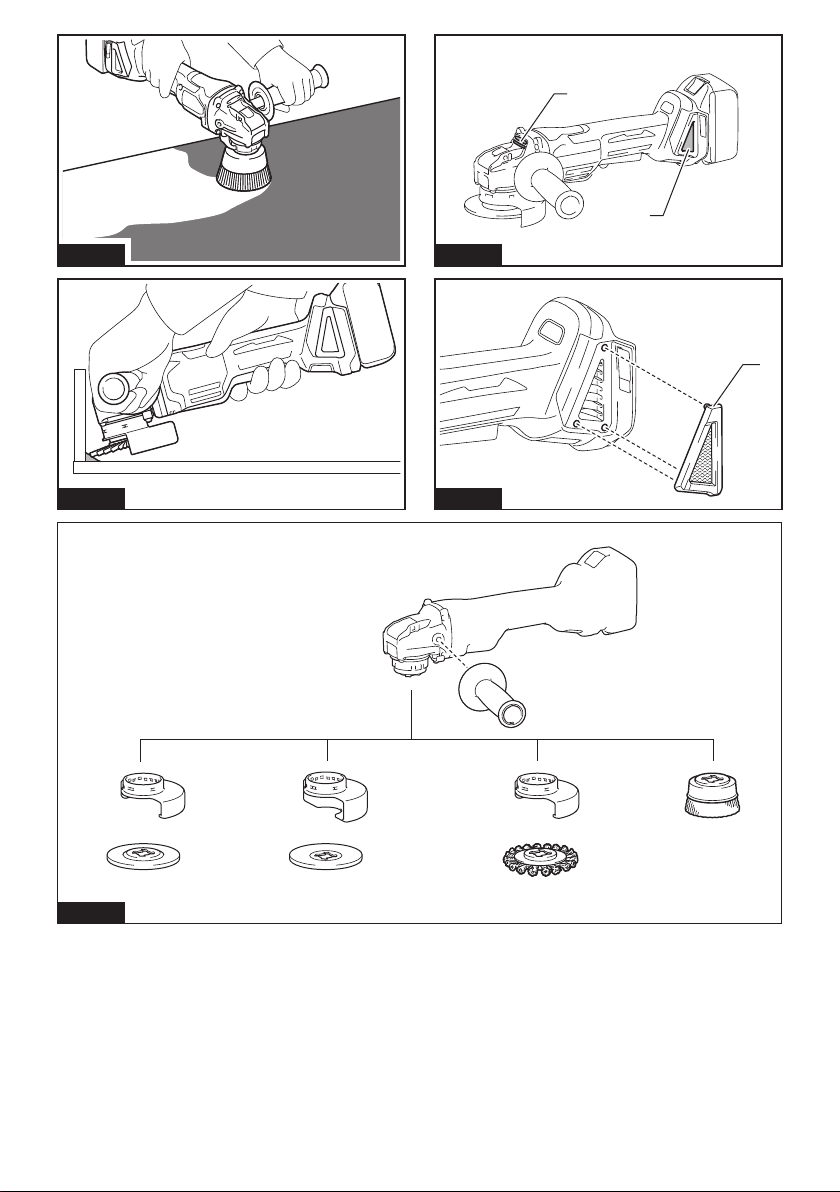

► Fig.21
Operation with wire wheel brush
Optional accessory
CAUTION: Check operation of wire wheel
brush by running tool with no load, insuring that
no one is in front of or in line with the wire wheel
brush.
NOTICE: Avoid applying too much pressure
which causes over bending of wires when
using wire wheel brush. It may lead to premature
breakage.
Usage example: operation with wire wheel brush
► Fig.22
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be per-
formed by Makita Authorized Service Centers, always
using Makita replacement parts.
Air vent cleaning
The tool and its air vents have to be kept clean.
Regularly clean the tool's air vents or whenever the
vents start to become obstructed.
► Fig.23: 1. Exhaust vent 2. Inhalation vent
Remove the dust cover from inhalation vent and clean it
for smooth air circulation.
► Fig.24: 1. Dust cover
NOTICE: Clean out the dust cover when it is
clogged with dust or foreign matters. Continuing
operation with a clogged dust cover may damage the
tool.

15 ENGLISH
OPTIONAL ACCESSORIES
CAUTION: These accessories or attachments are recommended for use with your Makita tool spec-
ied in this manual. The use of any other accessories or attachments might present a risk of injury to persons.
Only use accessory or attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.
• Makita genuine battery and charger
► Fig.25
1Grip 36
2Wheel Guard (for grinding wheel)
3Depressed center wheel / Flap disc
4Wheel Guard (for cut-o󰀨 wheel) *1
5Abrasive cut-o󰀨 wheel / Diamond wheel
6Wire wheel brush
7Wire cup brush
NOTE: *1 In some European countries, when using a diamond wheel, the ordinary guard can be used instead of the
special guard covering the both side of the wheel. Follow the regulations in your country.
NOTE: Some items in the list may be included in the tool package as standard accessories. They may di󰀨er from
country to country.

16 SLOVENŠČINA
SLOVENŠČINA (Originalna navodila)
TEHNIČNI PODATKI
Model: DGA520
Premer rezalne plošče 125 mm (5″)
Največja debelina plošče 6 mm
Nazivna hitrost (n) 8.500 min-1
Celotna dolžina 376 mm
Nazivna napetost D.C. 18 V
Neto teža 2,4 – 3,0 kg
• Ker nenehno opravljamo raziskave in razvijamo svoje izdelke, se lahko tehnični podatki v tem dokumentu
spremenijo brez obvestila.
• Tehnični podatki se lahko razlikujejo od države do države.
• Teža se lahko razlikuje glede na priključke, vključno z akumulatorsko baterijo. Najlažja in najtežja kombinacija v
skladu s postopkom EPTA 01/2014 sta prikazani v preglednici.
Uporabna akumulatorska baterija in polnilnik
Baterijski vložek BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Polnilnik DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH
• Nekatere zgoraj navedene akumulatorske baterije in polnilniki morda v vaši državi prebivališča niso na voljo.
OPOZORILO: Uporabljajte le zgoraj navedene akumulatorske baterije in polnilnike. Uporaba drugih
akumulatorskih baterij in polnilnikov lahko povzroči telesne poškodbe in/ali požar.
Priporočen vir napajanja s kablom
Prenosna polnilna enota PDC01
• Vir(i) napajanja s kablom, navedeni zgoraj, morda v vaši državi prebivališča niso na voljo.
• Pred uporabo vira napajanja s kablom preberite navodila in opozorilne znake na njem.
Predvidena uporaba
Stroj je namenjen brušenju, glajenju, žičnemu ščetkanju
ter rezanju kovine in kamna brez uporabe vode.
Hrup
Običajna A-ovrednotena raven hrupa v skladu z
EN60745-2-3:
Raven zvočnega tlaka (LpA): 80 dB (A)
Odstopanje (K): 3 dB (A)
Nivo hrupa med delom lahko preseže 80 dB (A).
OPOMBA: Navedene vrednosti oddajanja hrupa so
bile izmerjene v skladu s standardnimi metodami
testiranja in se lahko uporabljajo za primerjavo orodij.
OPOMBA: Navedene vrednosti oddajanja hrupa
se lahko uporabljajo tudi pri predhodni oceni
izpostavljenosti.
OPOZORILO: Uporabljajte zaščito za sluh.
OPOZORILO: Oddajanje hrupa med dejansko
uporabo električnega orodja se lahko razlikuje od
navedenih vrednosti, odvisno od načina uporabe
orodja in predvsem vrste obdelovanca.
OPOZORILO: Upravljavec mora za lastno
zaščito poznati varnostne ukrepe, ki temeljijo
na oceni izpostavljenosti v dejanskih pogojih
uporabe (poleg časa proženja je treba upoštevati
celoten delovni cikel, vključno s časom, ko je
orodje izklopljeno, in časom, ko deluje v prostem
teku).
Vibracije
Skupne vrednosti vibracij (vektorska vsota treh osi) v
skladu z EN60745-2-3:
Delovni način: brušenje površin z običajnim stranskim držalom
Oddajanje tresljajev (ah, AG): 5,5 m/s2
Odstopanje (K): 1,5 m/s2
Delovni način: brušenje površin z antivibracijskim držalom
Oddajanje tresljajev (ah, AG): 7,0 m/s2
Odstopanje (K): 1,5 m/s2

17 SLOVENŠČINA
Delovni način: peskanje s ploščo z običajnim stranskim držalom
Oddajanje tresljajev (ah, AG): 2,5 m/s2 ali manj
Odstopanje (K): 1,5 m/s2
Delovni način: peskanje s ploščo z antivibracijskim držalom
Oddajanje tresljajev (ah, AG): 2,5 m/s2 ali manj
Odstopanje (K): 1,5 m/s2
OPOMBA: Navedene skupne vrednosti oddajanja
vibracij so bile izmerjene v skladu s standardnimi
metodami testiranja in se lahko uporabljajo za primer-
javo orodij.
OPOMBA: Navedene skupne vrednosti oddajanja
vibracij se lahko uporabljajo tudi pri predhodni oceni
izpostavljenosti.
OPOZORILO: Oddajanje vibracij med
dejansko uporabo električnega orodja se lahko
razlikuje od navedenih vrednosti, odvisno
od načina uporabe orodja in predvsem vrste
obdelovanca.
OPOZORILO: Upravljavec mora za lastno
zaščito poznati varnostne ukrepe, ki temeljijo
na oceni izpostavljenosti v dejanskih pogojih
uporabe (poleg časa proženja je treba upoštevati
celoten delovni cikel, vključno s časom, ko je
orodje izklopljeno, in časom, ko deluje v prostem
teku).
OPOZORILO: Navedena vrednost oddajanja
vibracij se uporablja za glavno uporabo električnega
orodja. Vendar če električno orodje uporabljate za
druge namene, se lahko vrednosti oddajanja vibracij
razlikujejo.
Izjava o skladnosti ES
Samo za evropske države
Izjava ES o skladnosti je vključena v dodatku A, ki je
priložen tem navodilom za uporabo.
VARNOSTNA
OPOZORILA
Splošna varnostna opozorila za
električno orodje
OPOZORILO: Preberite vsa varnostna opo-
zorila in navodila s slikami in tehničnimi podatki,
ki so dobavljeni skupaj z električnim orodjem.
Ob neupoštevanju spodaj navedenih navodil obstaja
nevarnost električnega udara, požara in/ali hudih
telesnih poškodb.
Shranite vsa opozorila in navo-
dila za poznejšo uporabo.
Izraz „električno orodje“ v opozorilih se nanaša na vaše
električno orodje (s kablom) ali baterijsko električno
orodje (brez kabla).
Varnostna opozorila pri uporabi
brezžičnega brusilnika
Varnostna opozorila za brušenje, glajenje, žično
ščetkanje ali abrazivno rezanje:
1. Kotni brusilnik je namenjen za brušenje, glaje-
nje, žično ščetkanje ali rezanje. Preberite vsa
varnostna opozorila in navodila s slikami in
tehničnimi podatki, ki so dobavljeni skupaj z
električnim orodjem. Ob neupoštevanju spodaj
navedenih navodil obstaja nevarnost električnega
udara, požara in/ali hudih telesnih poškodb.
2.
Kotni brusilnik ni primeren za poliranje. Izvajanje
opravil, za katere električno orodje ni bilo zasnovano,
je nevarno in lahko povzroči hude telesne poškodbe.
3. Uporabljajte le nastavke, ki jih je posebej za to
orodje zasnoval oz. jih priporoča proizvajalec. Če
je nastavek mogoče pritrditi na električno orodje, to
še ne pomeni, da je uporaba tega nastavka varna.
4. Nazivno število vrtljajev nastavka mora ustre-
zati vsaj največjemu številu vrtljajev, ki je
označeno na električnem orodju. Nastavek,
ki se vrti hitreje od nazivnega števila vrtljajev, se
lahko zlomi in razleti.
5. Zunanji premer in debelina nastavka morata
ustrezati nazivni moči električnega orodja.
Nastavka neustrezne velikosti ni mogoče pravilno
zavarovati s ščitniki ali ga povsem nadzorovati.
6.
Pritrditev nastavkov z navoji se mora prilegati
navojem vretena brusilnika. Pri nastavkih, name-
ščenih s prirobnicami, se morajo osne luknje
nastavkov natančno prilegati premeru prirobnice.
Nastavkov, ki se ne ujemajo, ni mogoče ustrezno
namestiti na električno orodje, kar lahko povzroči neu-
ravnoteženost, čezmerno vibriranje in izgubo nadzora.
7. Ne uporabljajte poškodovanih nastavkov. Pred
vsako uporabo preverite nastavke (npr. plošče),
če se morda niso odkrušile, če brusilni krožniki
niso počeni, pretrgani ali čezmerno obrabljeni ali
če so na žičnih ščetkah ohlapne ali počene žice.
Če pade električno orodje ali nastavek na tla,
preverite, če so nastale poškodbe, in po potrebi
namestite nepoškodovani nastavek. Po pregledu
in namestitvi nastavka se postavite izven ravnine
vrtenja nastavka in opozorite osebe v vaši bližini,
naj se oddaljijo, ter vključite orodje in ga pustite
teči eno minuto brez obremenitve. Med tem preiz-
kusom poškodovani nastavki običajno počijo.
8. Uporabljajte osebna zaščitna sredstva. Odvisno
od dela, ki ga opravljate, uporabljajte zaščitno
masko za obraz in oči ali zaščitna očala. Če je
potrebno, uporabljajte zaščitno masko proti
prahu, glušnike, rokavice ali predpasnik za zaš-
čito pred drobci materiala. Zaščita za oči mora
zadržati leteče drobce, ki so prisotni pri različnih
načinih dela. Protiprašna maska ali maska za zaš-
čito dihal mora zadržati prah, ki nastaja med delom.
Izpostavljanje hrupu lahko povzroči izgubo sluha.
9. Pri delu poskrbite, da bodo druge osebe varno
oddaljene od delovnega območja. V delovno
območje lahko vstopajo samo osebe z ustre-
zno osebno zaščitno opremo. Leteči drobci
materiala obdelovanca ali počenega nastavka so
nevarni in lahko povzročijo poškodbe tudi izven
delovnega območja.

18 SLOVENŠČINA
10.
Če obstaja nevarnost, da bi z rezalnim orodjem pre-
rezali skrito električno napeljavo, držite električno
orodje samo na izoliranih držalnih površinah. Če
pride do stika z vodniki pod napetostjo, so pod nape-
tostjo vsi neizolirani kovinski deli električnega orodja,
zaradi česar lahko uporabnik utrpi električni udar.
11. Ne odlagajte električnega orodja iz rok, dok-
ler se nameščeni nastavek ne neha vrteti.
Nastavek, ki se še vedno vrti, lahko pride v stik
z odlagalno površino in povzroči izgubo nadzora
nad električnim orodjem.
12. Ne puščajte električnega orodja vključenega
brez nadzora. Vrteči se nastavek se lahko nepri-
čakovano zaplete v vašo obleko in vas poškoduje.
13.
Redno čistite hladilne reže električnega orodja.
Ventilator motorja vsesava v ohišje prah, ki povzroča ško-
dljivo kopičenje prahu in s tem nevarnost električne okvare.
14. Ne uporabljajte električnega orodja v bližini gorljivih
snovi. Gorljive snovi se lahko vnamejo zaradi iskrenja.
15. Ne uporabljajte nastavkov, ki so predvideni
za uporabo s tekočim hladilnim sredstvom.
Uporaba vode ali drugih tekočin za hlajenje lahko
povzroči električni udar.
Opozorila v zvezi s povratnim udarcem
Povratni udarec je nenadna reakcija, če se stisne ali zagozdi
vrteča se plošča, brusilni krožnik, ščetka ali drug nastavek.
Blokada ali zagozdenje namreč povzroči hitro zaustavitev
vrtečih se delov orodja, pri čemer električno orodje sune v
obratno smer od smeri gibanja vrtečih se delov.
Če pride na primer do blokade abrazivne plošče v obdelo-
vancu, lahko rob v točki zagozdenja zareže v površino, pri tem
pa nastala sila rezalno ploščo odbije od materiala. Rezalna
plošča lahko odskoči bodisi proti vam ali v nasprotni smeri,
kar je odvisno od smeri vodenja rezalne plošče v točki zagoz-
denja. Abrazivna plošča se lahko pod temi pogoji tudi zlomi.
Povratni udarec je posledica nestrokovnega ravnanja z
električnim orodjem ali neugodnih okoliščin. Preprečite
ga lahko z upoštevanjem spodaj navedenih opozoril.
1.
Električno orodje držite s trdnim prijemom in
se postavite v takšen položaj, da lahko prestre-
žete sile povratnega udarca. Če je na električno
orodje mogoče namestiti dodatni ročaj, ga
tudi uporabljajte, saj vam omogoča najboljši
nadzor nad povratnimi udarci ali reakcijskim
vrtilnim momentom. Reakcijske vrtilne momente
ali povratne udarce je mogoče učinkovito preprečiti
z upoštevanjem previdnostnih ukrepov.
2. Ne približujte rok vrtečim se delom električ-
nega orodja. Nameščeni nastavek lahko udari
nazaj prek vaše roke.
3.
S telesom se postavite stran od smeri, v katero orodje
lahko skoči v primeru, da pride do povratnega udarca.
Povratni udarec sunkovito potisne orodje v nasprotni smeri
vrtenja rezalne plošče v točki zagozdenja.
4. Pri obdelavi vogalov, ostrih robov ipd. je
potrebna večja previdnost. Izogibajte se polo-
žajem, v katerih lahko orodje odskoči iz obde-
lovanca ali se zagozdi. V vogalih in na ostrih
robovih obstaja povečana nevarnost povratnega
sunka ali zagozdenja nastavka. Posledica tega je
lahko izguba nadzora ali povratni udarec.
5. Ne uporabljajte verižnih ali nazobčanih žagi-
nih listov. Tovrstna orodja pogosto povzročijo
povratni udarec ali izgubo nadzora nad električnim
orodjem.
Varnostna opozorila pri izvajanju brušenja in rezanja:
1. Uporabljajte samo plošče, ki jih za vaše orodje
in ščitnik posebej priporoča proizvajalec.
Plošče, ki niso posebej namenjene za delo z
vašim orodjem, ni možno ustrezno namestiti, zato
je njihova uporaba lahko nevarna.
2. Površino za brušenje plošč z ugreznjenim
centrom je treba namestiti pod ploskvijo ščit-
nika. Nepravilno nameščene plošče, ki gleda prek
ravnine ščitnika, ni mogoče zadostno zaščititi.
3. Za zagotavljanje maksimalne varnosti pri delu
mora biti ščitnik rezila pravilno nameščen
in tako ustrezno zakrivati kar največ plošče
na delu, obrnjenem proti uporabniku. Ščitnik
varuje uporabnika pred izmetom odlomljenih
delcev in stikom s ploščo ter iskrenja, ki lahko
povzroči vžig oblačil.
4. Rezalne plošče se lahko uporabljajo le za pri-
poročene naprave. Primer: ne uporabljajte jih
za brušenje s stransko ploskvijo. Namenjene so
brušenju z robom rezila. Pri izvajanju bočne sile
na rezalno ploščo lahko ta poči.
5. Uporabljajte samo nepoškodovane prirobnice
plošč, ki po dimenziji in obliki ustrezajo upo-
rabljeni plošči. Ustrezne prirobnice podpirajo
ploščo in zmanjšujejo nevarnost zloma plošče.
Prirobnice za rezalne plošče se lahko razlikujejo
od prirobnic plošč.
6. Ne uporabljajte izrabljenih rezalnih plošč, ki
ste jih predhodno uporabljali na večjih električ-
nih orodjih. Plošče večjih električnih orodij niso
primerne za višje število obratov na manjših orodij
in lahko zato počijo.
Dodatna varnostna opozorila pri izvajanju brušenja
in rezanja:
1. Rezalne plošče ne „blokirajte“ ali preobreme-
njujte. Ne skušajte narediti preglobokih rezov.
Preobremenjevanje plošče povečuje možnost
zvijanja ali zagozdenja plošče v obdelovancu ter s
tem možnost povratnega udarca ali zloma plošče.
2. Ne postavljajte se v položaje, v katerih ste v
primeru povratnega udarca lahko izpostavljeni
sunku električnega orodja. Ko se plošča med
delovanjem premika stran od vašega telesa, lahko
eventualni povratni udarec potisne vrtečo se plo-
ščo in električno orodje neposredno v upravljavca.
3. Če je rezalna plošča ovirana ali če iz katerega
koli razloga rezanje prekinete, držite elek-
trično orodje pri miru, dokler se rezalna plo-
šča popolnoma ne ustavi. Nikoli ne skušajte
odstraniti rezalne plošče iz obdelovanca, dok-
ler se plošča še vrti. Preverite in odpravite vzrok
oviranja rezalne plošče.
4. Rezanja ne začnite ponovno v obdelovancu.
Najprej počakajte, da plošča doseže polno hit-
rost, nato pa pazljivo začnite ponovno rezati.
Če začnete z rezanjem v obdelovancu, se lahko
rezalna plošča zagozdi, lahko pa pride tudi do
povratnega udarca.
5.
Pod plošče in velike obdelovance postavite pod-
poro, da zmanjšate možnost zagozdenja rezalne
plošče ali povratnega udarca. Veliki obdelovanci
se lahko zaradi lastne teže povesijo. Pod obdelo-
vance je treba poleg linije reza in poleg roba obdelo-
vanca na obeh straneh plošče postaviti podporo.

19 SLOVENŠČINA
6. Bodite še posebej pozorni, ko v obstoječe
zidove ali druge slepe točke izvajate „slepe
reze“. Rezalna plošča lahko zadene v plinske,
vodovodne ali električne napeljave ali predmete, ki
lahko povzročijo povratni udarec.
Varnostna opozorila za brušenje:
1. Ne uporabljajte prevelikega brusnega papirja.
Pri izbiri brusnega papirja upoštevajte priporo-
čile proizvajalca. Večji brusni papir, ki sega prek
brusilne blazinice, predstavlja nevarnost pretrga
in lahko povzroči zagozditev, trganje ali povratni
udarec rezalne plošče.
Varnostna opozorila za žično ščetkanje:
1. Žice ščetke lahko med delovanjem odpadajo.
Ne izvajajte čezmernega pritiska na žice, da jih
ne preobremenite. Žice ščetke enostavno prod-
rejo v lahka oblačila in/ali kožo.
2. Če je za žično ščetkanje priporočena uporaba
ščitnika zagotovite, da se žična plošča ali
ščetka ne dotika ščitnika. Zaradi obremenitev
in centrifugalnih sil se lahko poveča premer žične
plošče ali ščetke.
Dodatna varnostna opozorila:
1. Pri uporabi brusilne plošče z ugreznjenim cen-
trom vedno uporabljajte samo posebej ojačene
plošče s steklenimi vlakni.
2. S tem brusilnikom NIKOLI NE UPORABLJAJTE
plošč za rezanje kamna. Ta brusilnik ni namenjen
za uporabo s temi vrstami plošč, saj lahko povzro-
čijo hude telesne poškodbe.
3. Pazite, da ne poškodujete držala X-LOCK.
Poškodba delov lahko povzroči zlom plošče.
4. Ko zaženete napravo, brusni nastavek ne sme
biti v stiku z obdelovancem.
5. Pred začetkom dela na obdelovancu pustite
orodje delovati nekaj časa v prostem teku.
Bodite pozorni na morebitne vibracije ali
tresljaje, ki bi lahko nakazovali na nepravilno
nameščeno oziroma slabo centrirano ploščo.
6. Za brušenje uporabljajte brusni nastavek z
ustrezno brusilno površino.
7. Orodja ne pustite delovati brez nadzora.
Dovoljeno ga je uporabljati samo ročno.
8. Takoj po končani obdelavi se ne dotikajte
obdelovanca; ta je lahko zelo vroč in lahko
povzroči opekline kože.
9. Ne dotikajte se dodatne opreme takoj po koncu
obdelave, saj je lahko zelo vroča in vas lahko
opeče.
10. Za pravilno namestitev in uporabo plošč sle-
dite navodilom proizvajalca. Skrbno ravnajte s
ploščami in jih pravilno shranjujte.
11. Ne uporabljajte puš ali adapterjev za prilagodi-
tev velikosti lukenj plošč.
12. Poskrbite za ustrezno podporo obdelovanca.
13. Preverite, če se plošča vrti tudi potem, ko ste
orodje že izklopili.
14. Če je v delovnem prostoru zelo vroče in vlažno
ali pa je ta poln prevodnega prahu, uporabite
stikalo za diferenčni tok (30 mA) in tako zago-
tovite varnost upravljavca.
15. Orodja ne uporabljajte na materialih, ki vsebu-
jejo azbest.
16. Ko uporabljate rezalne plošče, jih vedno upo-
rabljajte s ščitnikom za zbiranje prahu, kot
zahtevajo lokalni predpisi.
17.
Na rezalne plošče ne izvajajte bočnega pritiska.
18. Pri delu ne uporabljajte tekstilnih delovnih
rokavic. Vlakna iz tekstilnih rokavic lahko prodrejo
v orodje, zaradi česar se lahko orodje poškoduje.
19. Pred delom se prepričajte, da se v obdelo-
vancu ne skriva noben predmet, na primer
električna, vodovodna ali plinska cev. V
nasprotnem primeru lahko to povzroči električni
udar, odvajanje elektrike ali uhajanje plina.
SHRANITE TA NAVODILA.
OPOZORILO: NE dovolite, da bi zaradi udob-
nejšega dela ali znanja o uporabi izdelka (prido-
bljenega z večkratno uporabo) opustili strogo
upoštevanje varnostnih zahtev v okviru pravilne
uporabe orodja. ZLORABA ali neupoštevanje var-
nostnih zahtev v teh navodilih za uporabo lahko
povzroči resne telesne poškodbe.
Pomembna varnostna navodila za
akumulatorsko baterijo
1. Pred uporabo baterijskega vložka preberite
vsa navodila in opozorilne oznake na (1) pol-
nilniku akumulatorja, (2) akumulatorju in (3)
izdelku, ki uporablja akumulator.
2. Ne razstavljajte ali spreminjajte akumulatorske
baterije. S tem lahko povzročite požar, preko-
merno vročino ali eksplozijo.
3. Če se je čas delovanja občutno skrajšal, takoj
prenehajte uporabljati orodje. V nasprotnem
primeru lahko pride do pregretja, morebitnih
opeklin in celo eksplozije.
4. Če pride elektrolit v stik z očmi, jih sperite s
čisto vodo in takoj poiščite zdravniško pomoč.
Posledica je lahko izguba vida.
5. Ne povzročite kratkega stika baterijskega
vložka:
(1) Ne dotikajte se priključkov s kakršnim
koli prevodnim materialom.
(2) Izogibajte se shranjevanju baterijskega
vložka v vsebniku z drugimi kovinskimi
predmeti kot so žeblji, kovanci itn.
(3) Ne izpostavljajte baterijskega vložka vodi
ali dežju.
Kratek stik akumulatorja lahko povzroči velik
električni tok, pregrevanje, morebitne opekline
in celo okvaro.
6. Ne shranjujte in uporabljajte orodja in akumu-
latorske baterije na mestih, kjer lahko tempera-
tura doseže ali preseže 50 °C (122 °F).
7. Ne sežigajte baterijskega vložka, tudi če je
hudo poškodovan ali v celoti izpraznjen.
Baterijski vložek lahko v ognju eksplodira.
8. Ne pribijajte, režite, drobite, mečite, spuščajte
akumulatorske baterije oziroma ne udarjajte
z akumulatorsko baterijo po trdem predmetu.
Takšno ravnanje lahko povzroči požar, preko-
merno vročino ali eksplozijo.
9. Ne uporabljajte poškodovanih akumulatorjev.

20 SLOVENŠČINA
10. Priložene litij-ionske baterije ustrezajo zahte-
vam zakonodaje v zvezi z nevarnim blagom.
Za komercialne prevoze, npr. tiste, ki jih opravljajo
tretje stranke in carinski posredniki, je treba upoštevati
posebne zahteve v zvezi z embalažo in označevanjem.
Med postopkom priprave na odpremo izdelka se je
treba posvetovati s strokovnjakom za nevarne snovi. Pri
tem upoštevajte tudi podrobnejše nacionalne predpise.
Odprte stike oblepite z lepilnim trakom ali jih dru-
gače zaščitite, baterijo pa zapakirajte tako, da se v
embalaži ne more premikati.
11. Ko odstranjujete akumulatorsko baterijo, jo
vzemite iz orodja in varno zavrzite. Upoštevajte
lokalne uredbe glede odlaganja baterije.
12. Baterije uporabljajte le z izdelki, ki jih določi
Makita. Če namestite baterije v neskladne izdelke,
lahko pride do požara, pregrevanja, eksplozije ali
puščanja elektrolita.
13. Če orodja dlje časa ne uporabljate, morate iz
njega odstraniti baterijo.
14. Med uporabo in po uporabi lahko akumu-
latorska baterija postane vroča in povzroči
opekline. Z vročimi akumulatorskimi baterijami
ravnajte pazljivo.
15.
Ne dotikajte se priključka orodja takoj po uporabi,
ker se lahko dovolj segreje, da povzroči opekline.
16. Ne dovolite, da bi se v priključke, odprtine in utore
akumulatorske baterije zlepili ostružki, prah ali
zemlja. Umazanija lahko povzroči slabše delovanje ali
okvaro orodja oziroma akumulatorske baterije.
17. Razen če orodje podpira uporabo v bližini
visokonapetostnih električnih vodov, akumula-
torske baterije ne uporabljajte v bližini visoko-
napetostnih električnih vodov. Takšna uporaba
lahko povzroči motnje v delovanju ali okvaro
orodja oziroma akumulatorske baterije.
18. Baterijo hranite izven dosega otrok.
SHRANITE TA NAVODILA.
POZOR: Uporabljajte le originalne baterije
Makita. Če uporabljate neoriginalne baterije Makita
ali baterije, ki so bile spremenjene, lahko pride do
eksplozije baterije in posledično do požara, telesnih
poškodb ali materialne škode. S takšno uporabo
boste tudi razveljavili garancijo Makita za orodje in
polnilnik Makita.
Nasveti za ohranjanje največje
zmogljivosti akumulatorja
1. Napolnite baterijski vložek, preden se v celoti
izprazni. Ko opazite, da ima orodje manjšo
moč, vedno ustavite delovanje orodja in napol-
nite baterijski vložek.
2. Nikoli znova ne polnite popolnoma napol-
njenega baterijskega vložka. Prenapolnjenje
skrajša življenjsko dobo akumulatorja.
3. Baterijski vložek s sobno temperaturo pol-
nite pri temperaturi okolja od 10 °C do 40 °C.
Počakajte, da se vroč baterijski vložek pred
polnjenjem ohladi.
4. Ko akumulatorske baterije ne uporabljate, jo
odstranite iz orodja ali polnilnika.
5. Če baterijskega vložka ne uporabljate dalj časa
(več kot 6 mesecev), ga napolnite.
OPIS DELOVANJA
POZOR: Pred nastavljanjem ali preizkusom
delovanja orodja se prepričajte, ali je orodje
izključeno in ali je akumulatorska baterija
odstranjena.
Nameščanje ali odstranjevanje
akumulatorske baterije
POZOR: Vedno izklopite orodje, preden name-
stite ali odstranite akumulatorsko baterijo.
POZOR: Kadar nameščate ali odstranjujete
akumulatorsko baterijo, trdno držite orodje in
akumulatorsko baterijo. Če orodja in akumulatorske
baterije ne držite trdno, se lahko zgodi, da vam zdr-
sneta iz rok, posledica pa je lahko poškodba orodja in
akumulatorske baterije ter telesna poškodba.
► Sl.1: 1. Rdeči indikator 2. Gumb 3. Baterijski vložek
Če želite odstraniti akumulatorsko baterijo, jo potisnite iz
orodja, pri tem pa pomikajte gumb na sprednji strani vložka.
Akumulatorsko baterijo vstavite tako, da poravnate
jeziček na bateriji z utorom na ohišju in jo potisnete v
ležišče. Potisnite jo do konca, da se zaskoči. Če vidite
rdeči indikator, kot je prikazano na sliki, se akumulator-
ska baterija ni ustrezno zaskočila.
POZOR: Vedno namestite akumulatorsko
baterijo tako, da rdeči indikator ni več viden. Če
tega ne upoštevate, lahko baterija nepričakovano
pade iz orodja in poškoduje vas ali osebe v neposre-
dni bližini.
POZOR: Ne nameščajte akumulatorske bate-
rije s silo. Če se akumulatorska baterija ne zaskoči
zlahka, ni pravilno vstavljena.
Prikazuje preostalo raven
napolnjenosti akumulatorja
Samo za akumulatorske baterije z indikatorjem
► Sl.2: 1. Indikatorske lučke 2. Gumb za preverjanje
Pritisnite gumb za preverjanje na baterijskem vložku,
da preverite raven napolnjenosti akumulatorja.
Indikatorske lučke na kratko zasvetijo.
Indikatorske lučke Prikaz pre-
ostale ravni
napolnjenosti
Sveti Ne sveti Utripa
od 75 % do
100 %
od 50 % do
75 %
od 25 % do
50 %
od 0 % do
25 %
Napolnite
akumulator.
