Makita DGA521 User manual

DGA521
EN Cordless Angle Grinder INSTRUCTION MANUAL 7
SV Batteridriven
vinkelslipmaskin BRUKSANVISNING 17
NO Batteridrevet vinkelsliper BRUKSANVISNING 27
FI Akkukäyttöinen
kulmahiomakone KÄYTTÖOHJE 37
DA Ledningsfri vinkelsliber BRUGSANVISNING 47
LV Bezvada leņķa slīpmašīna LIETOŠANAS INSTRUKCIJA 57
LT Belaidis kampinis šlifuoklis NAUDOJIMO INSTRUKCIJA 67
ET Juhtmeta nurklihvija KASUTUSJUHEND 77
RU Аккумуляторная угловая
шлифмашина РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ 87

2
1
3

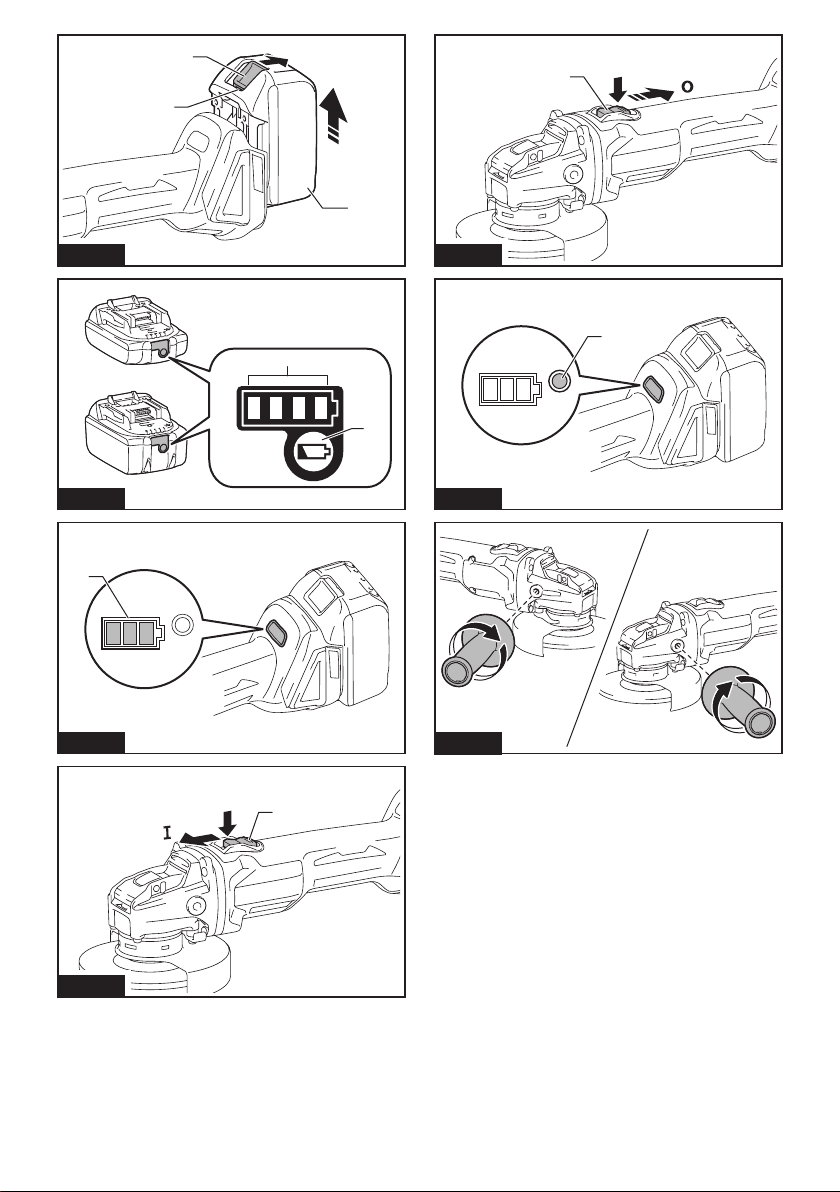

Fig.1
1
2
Fig.2
1
Fig.3
1
Fig.4
1
Fig.5
1
Fig.6
Fig.7
2

3
2
1
Fig.8
2
B
1
A
B
Fig.9
2
B
1
A
B
B
C
C
Fig.10
1
2
Fig.11
1
2
Fig.12
3

1
Fig.13
1
2
Fig.14
1
2
A
B
Fig.15
2
4
3
1
Fig.16
1
2
Fig.17
1
A
B
Fig.18
4

15°
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
1
2
Fig.24
1
Fig.25
5

2
6
7
4
5
2
3
1
Fig.26
6

7ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: DGA521
Wheel diameter 125 mm (5″)
Max. wheel thickness 6 mm
Rated speed (n) 8,500 min-1
Overall length 375 mm
Rated voltage D.C. 18 V
Net weight 2.4 - 3.0 kg
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may di󰀨er from country to country.
• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.
Recommended cord connected power source
Portable power pack PDC01
• The cord connected power source(s) listed above may not be available depending on your region of residence.
• Before using the cord connected power source, read instruction and cautionary markings on them.
Intended use
The tool is intended for grinding and cutting of metal
and stone materials without the use of water.
Noise
The typical A-weighted noise level determined accord-
ing to EN60745-2-3:
Sound pressure level (LpA) : 80 dB(A)
Uncertainty (K) : 3 dB(A)
The noise level under working may exceed 80 dB (A).
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE: The declared noise emission value(s)
may also be used in a preliminary assessment of
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can di󰀨er from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN60745-2-3:
Work mode: surface grinding with normal side grip
Vibration emission (ah, AG) : 5.0 m/s2
Uncertainty (K) : 1.5 m/s2
Work mode: surface grinding with anti vibration side grip
Vibration emission (ah, AG) : 6.5 m/s2
Uncertainty (K) : 1.5 m/s2

8ENGLISH
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during
actual use of the power tool can di󰀨er from the
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
WARNING: The declared vibration emission
value is used for main applications of the power tool.
However if the power tool is used for other applica-
tions, the vibration emission value may be di󰀨erent.
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listed below may result in electric shock, re and/or
serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Cordless grinder safety warnings
Safety Warnings Common for Grinding, Wire
Brushing, or Abrasive Cutting-O󰀨 Operations:
1. This power tool is intended to function as a
grinder, wire brush or cut-o󰀨 tool. Read all
safety warnings, instructions, illustrations and
specications provided with this power tool.
Failure to follow all instructions listed below may
result in electric shock, re and/or serious injury.
2. Operations such as sanding or polishing are
not recommended to be performed with this
power tool. Operations for which the power tool
was not designed may create a hazard and cause
personal injury.
3. Do not use accessories which are not speci-
cally designed and recommended by the tool
manufacturer. Just because the accessory can
be attached to your power tool, it does not assure
safe operation.
4. The rated speed of the accessory must be at
least equal to the maximum speed marked on
the power tool. Accessories running faster than
their rated speed can break and y apart.
5. The outside diameter and the thickness of your
accessory must be within the capacity rating
of your power tool. Incorrectly sized accessories
cannot be adequately guarded or controlled.
6. Threaded mounting of accessories must
match the grinder spindle thread. For acces-
sories mounted by anges, the arbour hole of
the accessory must t the locating diameter
of the ange. Accessories that do not match the
mounting hardware of the power tool will run out of
balance, vibrate excessively and may cause loss
of control.
7. Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad for
cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or acces-
sory is dropped, inspect for damage or install
an undamaged accessory. After inspecting and
installing an accessory, position yourself and
bystanders away from the plane of the rotating
accessory and run the power tool at maximum
no-load speed for one minute. Damaged acces-
sories will normally break apart during this test
time.
8. Wear personal protective equipment.
Depending on application, use face shield,
safety goggles or safety glasses. As appro-
priate, wear dust mask, hearing protectors,
gloves and workshop apron capable of stop-
ping small abrasive or workpiece fragments.
The eye protection must be capable of stopping
ying debris generated by various operations.
The dust mask or respirator must be capable of
ltrating particles generated by your operation.
Prolonged exposure to high intensity noise may
cause hearing loss.
9. Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.
Fragments of workpiece or of a broken accessory
may y away and cause injury beyond immediate
area of operation.
10. Hold the power tool by insulated gripping
surfaces only, when performing an operation
where the cutting tool may contact hidden
wiring. Contact with a "live" wire will also make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
11. Never lay the power tool down until the acces-
sory has come to a complete stop. The spinning
accessory may grab the surface and pull the
power tool out of your control.
12. Do not run the power tool while carrying it at
your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the
accessory into your body.

9ENGLISH
13. Regularly clean the power tool’s air vents. The
motor’s fan will draw the dust inside the housing
and excessive accumulation of powdered metal
may cause electrical hazards.
14. Do not operate the power tool near ammable
materials. Sparks could ignite these materials.
15. Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or snagged
rotating wheel, backing pad, brush or any other acces-
sory. Pinching or snagging causes rapid stalling of the
rotating accessory which in turn causes the uncon-
trolled power tool to be forced in the direction opposite
of the accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched
by the workpiece, the edge of the wheel that is entering into
the pinch point can dig into the surface of the material caus-
ing the wheel to climb out or kick out. The wheel may either
jump toward or away from the operator, depending on
direction of the wheel’s movement at the point of pinching.
Abrasive wheels may also break under these conditions.
Kickback is the result of power tool misuse and/or
incorrect operating procedures or conditions and can be
avoided by taking proper precautions as given below.
1. Maintain a rm grip on the power tool and
position your body and arm to allow you to
resist kickback forces. Always use auxiliary
handle, if provided, for maximum control over
kickback or torque reaction during start-up.
The operator can control torque reactions or kick-
back forces, if proper precautions are taken.
2. Never place your hand near the rotating acces-
sory. Accessory may kickback over your hand.
3. Do not position your body in the area where
power tool will move if kickback occurs.
Kickback will propel the tool in direction opposite
to the wheel’s movement at the point of snagging.
4. Use special care when working corners, sharp
edges etc. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing
have a tendency to snag the rotating accessory
and cause loss of control or kickback.
5. Do not attach a saw chain woodcarving blade
or toothed saw blade. Such blades create fre-
quent kickback and loss of control.
Safety Warnings Specic for Grinding and Abrasive
Cutting-O󰀨 Operations:
1. Use only wheel types that are recommended
for your power tool and the specic guard
designed for the selected wheel. Wheels for
which the power tool was not designed cannot be
adequately guarded and are unsafe.
2.
The grinding surface of centre depressed wheels
must be mounted below the plane of the guard lip.
An improperly mounted wheel that projects through the
plane of the guard lip cannot be adequately protected.
3. The guard must be securely attached to the
power tool and positioned for maximum safety,
so the least amount of wheel is exposed
towards the operator. The guard helps to protect
the operator from broken wheel fragments, acci-
dental contact with wheel and sparks that could
ignite clothing.
4. Wheels must be used only for recommended
applications. For example: do not grind with
the side of cut-o󰀨 wheel. Abrasive cut-o󰀨 wheels
are intended for peripheral grinding, side forces
applied to these wheels may cause them to
shatter.
5. Always use undamaged wheel anges that are
of correct size and shape for your selected
wheel. Proper wheel anges support the wheel
thus reducing the possibility of wheel breakage.
Flanges for cut-o󰀨 wheels may be di󰀨erent from
grinding wheel anges.
6. Do not use worn down wheels from larger
power tools. Wheel intended for larger power tool
is not suitable for the higher speed of a smaller
tool and may burst.
Additional Safety Warnings Specic for Abrasive
Cutting-O󰀨 Operations:
1. Do not “jam“ the cut-o󰀨 wheel or apply exces-
sive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel
increases the loading and susceptibility to twisting
or binding of the wheel in the cut and the possibil-
ity of kickback or wheel breakage.
2. Do not position your body in line with and
behind the rotating wheel. When the wheel, at
the point of operation, is moving away from your
body, the possible kickback may propel the spin-
ning wheel and the power tool directly at you.
3. When wheel is binding or when interrupting
a cut for any reason, switch o󰀨 the power
tool and hold the power tool motionless until
the wheel comes to a complete stop. Never
attempt to remove the cut-o󰀨 wheel from the
cut while the wheel is in motion otherwise
kickback may occur. Investigate and take correc-
tive action to eliminate the cause of wheel binding.
4. Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed and
carefully re-enter the cut. The wheel may bind,
walk up or kickback if the power tool is restarted in
the workpiece.
5. Support panels or any oversized workpiece to
minimize the risk of wheel pinching and kick-
back. Large workpieces tend to sag under their
own weight. Supports must be placed under the
workpiece near the line of cut and near the edge
of the workpiece on both sides of the wheel.
6. Use extra caution when making a “pocket cut”
into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes, elec-
trical wiring or objects that can cause kickback.
Safety Warnings Specic for Wire Brushing
Operations:
1. Be aware that wire bristles are thrown by the
brush even during ordinary operation. Do not
overstress the wires by applying excessive
load to the brush. The wire bristles can easily
penetrate light clothing and/or skin.
2. If the use of a guard is recommended for wire
brushing, do not allow any interference of the
wire wheel or brush with the guard. Wire wheel
or brush may expand in diameter due to work load
and centrifugal forces.

10 ENGLISH
Additional Safety Warnings:
1. When using depressed centre grinding wheels,
be sure to use only berglass-reinforced
wheels.
2. NEVER USE Stone Cup type wheels with this
grinder. This grinder is not designed for these
types of wheels and the use of such a product
may result in serious personal injury.
3. Be careful not to damage the X-LOCK holder.
Damage to the parts could result in wheel
breakage.
4. Make sure the wheel is not contacting the
workpiece before the switch is turned on.
5. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate poor installation
or a poorly balanced wheel.
6. Use the specied surface of the wheel to per-
form the grinding.
7. Do not leave the tool running. Operate the tool
only when hand-held.
8. Do not touch the workpiece immediately after
operation; it may be extremely hot and could
burn your skin.
9. Do not touch accessories immediately after
operation; it may be extremely hot and could
burn your skin.
10. Observe the instructions of the manufacturer
for correct mounting and use of wheels.
Handle and store wheels with care.
11. Do not use separate reducing bushings or
adaptors to adapt large hole abrasive wheels.
12. Check that the workpiece is properly
supported.
13. Pay attention that the wheel continues to
rotate after the tool is switched o󰀨.
14. If working place is extremely hot and humid,
or badly polluted by conductive dust, use a
short-circuit breaker (30 mA) to assure opera-
tor safety.
15. Do not use the tool on any materials contain-
ing asbestos.
16. When use cut-o󰀨 wheel, always work with
the dust collecting wheel guard required by
domestic regulation.
17. Cutting discs must not be subjected to any
lateral pressure.
18. Do not use cloth work gloves during operation.
Fibers from cloth gloves may enter the tool, which
causes tool breakage.
19. Before operation, make sure that there is no
buried object such as electric pipe, water pipe
or gas pipe in the workpiece. Otherwise, it may
cause an electric shock, electrical leakage or gas
leak.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge. It may result in a re, excessive heat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re, excessive heat, or explosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.

11 ENGLISH
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may result in poor performance or
breakdown of the tool or battery cartridge.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL DESCRIPTION
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery cartridge
CAUTION: Always switch o󰀨 the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip o󰀨 your hands
and result in damage to the tool and battery cartridge
and a personal injury.
► Fig.1: 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as
shown in the gure, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.

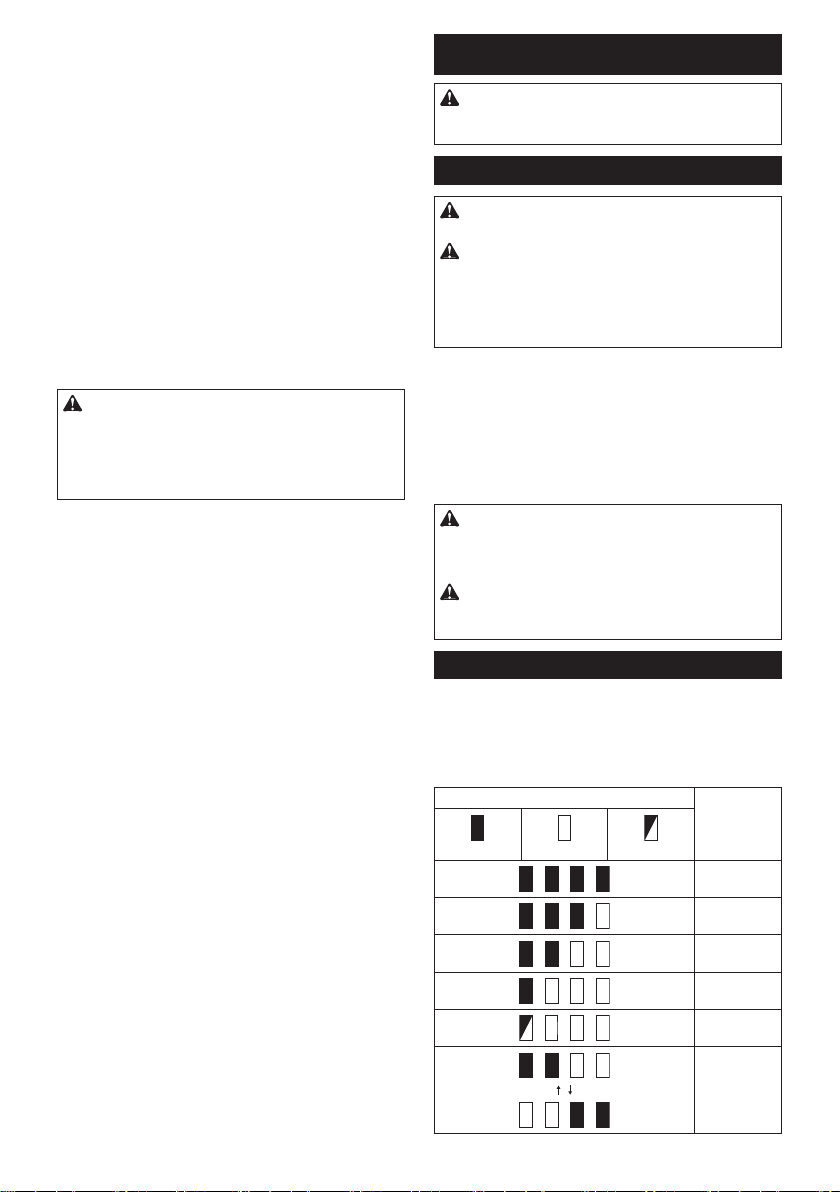

Indicating the remaining battery capacity
Only for battery cartridges with the indicator
► Fig.2: 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.

12 ENGLISH
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
NOTE: The rst (far left) indicator lamp will blink when
the battery protection system works.
Indicating the remaining battery capacity
When you turn the tool on, the battery indicator shows
the remaining battery capacity.
► Fig.3: 1. Battery indicator
The remaining battery capacity is shown as the follow-
ing table.
Battery indicator status Remaining
battery
capacity
On O󰀨 Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts o󰀨 power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions:
Overload protection
When the tool/battery is operated in a manner that
causes it to draw an abnormally high current, the tool
automatically stops without any indication. In this sit-
uation, turn the tool o󰀨 and stop the application that
caused the tool to become overloaded. Then turn the
tool on to restart.
Overheat protection
When the tool is overheated, the tool stops automati-
cally and the battery indicator shows following state. In
this situation, let the tool cool before turning the tool on
again.
On Blinking
If the tool does not start, the battery may be overheated.
In this situation, let the battery cool before starting the
tool again.
Overdischarge protection
When the battery capacity is not enough, the tool stops
automatically. In this case, remove the battery from the
tool and charge the battery.
Releasing protection lock
When the protection system works repeatedly, the tool
is locked and the battery indicator shows the following
state.
In this situation, the tool does not start even if turning
the tool o󰀨 and on. To release the protection lock,
remove the battery, set it to the battery charger and wait
until the charging nishes.
On O󰀨 Blinking
Switch action
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
slide switch actuates properly and returns to the
"OFF" position when the rear of the slide switch
is depressed.
CAUTION: Switch can be locked in "ON" posi-
tion for ease of operator comfort during extended
use. Apply caution when locking tool in "ON"
position and maintain rm grasp on tool.
To start the tool, press down the rear end of the slide
switch and then slide it toward the “I (ON)” position. For
continuous operation, press down the front end of the
slide switch to lock it.
► Fig.4: 1. Slide switch
To stop the tool, press down the rear end of the slide
switch so that it returns to the “O (OFF)” position.
► Fig.5: 1. Slide switch
Automatic speed change function
► Fig.6: 1. Mode indicator
Mode indicator status Operation mode
High speed mode
High torque mode
This tool has "high speed mode" and "high torque
mode". It automatically changes operation mode
depending on the work load. When mode indicator
lights up during operation, the tool is in high torque
mode.

13 ENGLISH
Accidental re-start preventive
function
When installing the battery cartridge while the slide
switch in the "I (ON)" position, the tool does not start.
To start the tool, rst slide the slide switch toward the
"O (OFF)" position and then slide it toward the "I (ON)"
position.
Active Feedback sensing
Technology
The tool electronically detects situations where the
wheel or accessory may be at risk to be bound. In the
situation, the tool is automatically shut o󰀨 to prevent
further rotation of the spindle (it does not prevent
kickback).
To restart the tool, switch o󰀨 the tool rst, remove the
cause of sudden drop in the rotation speed, and then
turn the tool on.
Soft start feature
Soft start feature reduces starting reaction.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing side grip (handle)
CAUTION: Always be sure that the side grip is
installed securely before operation.
Screw the side grip securely on the position of the tool
as shown in the gure.
► Fig.7
Installing or removing wheel guard
WARNING: When using a depressed center
wheel or wire wheel brush, the wheel guard must
be tted on the tool so that the closed side of the
guard always points toward the operator.
WARNING: Make sure that the wheel guard is
securely locked by the lock lever with one of the
holes on the wheel guard.
WARNING: When using an abrasive cut-o󰀨
/ diamond wheel, be sure to use only the special
wheel guard designed for use with cut-o󰀨 wheels.
(In some European countries, when using a diamond
wheel, the ordinary guard can be used. Follow the
regulations in your country.)
For depressed center wheel, wire
wheel brush / abrasive cut-o󰀨 wheel,
diamond wheel
1. While pushing the lock lever, mount the wheel
guard with the protrusions on the wheel guard aligned
with the notches on the bearing box.
► Fig.8: 1. Lock lever 2. Notch 3. Protrusion
2. While pushing the lock lever toward A, push in the
wheel guard by holding down the portions B as shown
in the gure.
► Fig.9: 1. Wheel guard 2. Hole
NOTE: Push down the wheel guard straight.
Otherwise, you cannot push the wheel guard
completely.
3. While keeping the lock lever and wheel guard
position as described in step 2, rotate the wheel guard
toward C, and then, change the angle of the wheel
guard according to the work.
► Fig.10: 1. Wheel guard 2. Hole
NOTE: Push the wheel guard completely. Otherwise,
you cannot rotate the wheel guard.
To remove wheel guard, follow the installation proce-
dure in reverse.
When using a depressed center wheel
Optional accessory
WARNING: When using a depressed center
wheel, the wheel guard must be tted on the tool
so that the closed side of the guard always points
toward the operator.
► Fig.11: 1. Depressed center wheel 2. Wheel guard
When using an abrasive cut-o󰀨 /
diamond wheel
Optional accessory
WARNING: When using an abrasive cut-o󰀨
/ diamond wheel, be sure to use only the special
wheel guard designed for use with cut-o󰀨 wheels.
(In some European countries, when using a diamond
wheel, the ordinary guard can be used. Follow the
regulations in your country.)
WARNING: NEVER use cut-o󰀨 wheel for side
grinding.
► Fig.12: 1. Abrasive cut-o󰀨 wheel / diamond wheel
2. Wheel guard for abrasive cut-o󰀨 wheel /
diamond wheel

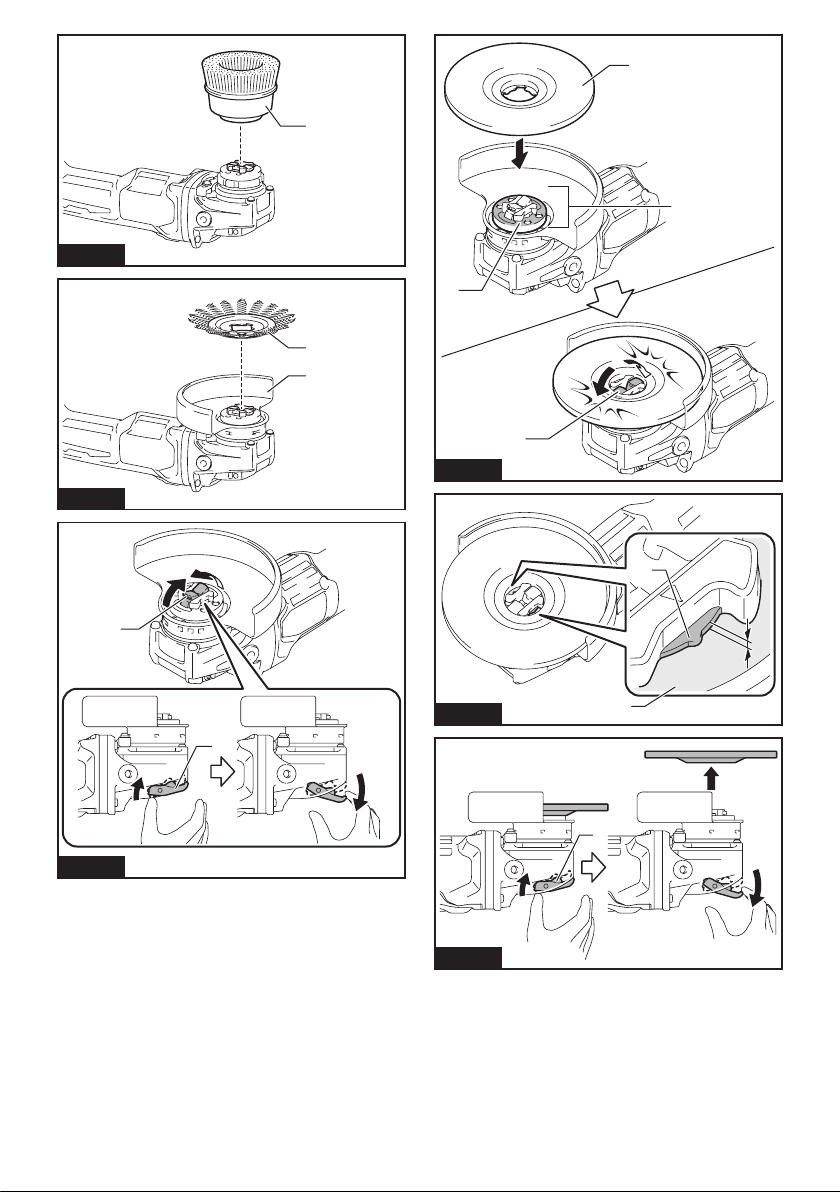

When using a wire cup brush
Optional accessory
CAUTION: Do not use wire cup brush that is
damaged, or which is out of balance. Use of dam-
aged brush could increase potential for injury from
contact with broken brush wires.
► Fig.13: 1. Wire cup brush

14 ENGLISH
When using a wire wheel brush
Optional accessory
CAUTION: Do not use wire wheel brush that
is damaged, or which is out of balance. Use of
damaged wire wheel brush could increase potential
for injury from contact with broken wires.
CAUTION: ALWAYS use guard with wire
wheel brushes, assuring diameter of wheel ts
inside guard. Wheel can shatter during use and
guard helps to reduce chances of personal injury.
► Fig.14: 1. Wire wheel brush 2. Wheel guard
Installing or removing X-LOCK wheel
WARNING: Never actuate the release lever of
the X-LOCK holder during operation. Make sure
that the X-LOCK wheel has stopped completely
when removing it. Otherwise, the X-LOCK wheel
comes o󰀨 from the tool and may cause serious injury.
CAUTION: Use only original X-LOCK wheels
with the X-LOCK logo. This tool is dedicated to
X-LOCK.
The maximum clamping gauge of 1.6 mm can only be
guaranteed with original X-LOCK wheels.
Use of any other wheels may lead to insecure clamp-
ing, and cause the clamp tool to come loose.
CAUTION: Do not touch the X-LOCK wheel
immediately after operation. It may be extremely
hot and could burn your skin.
CAUTION: Make sure that the X-LOCK wheel
and holder of the tool are not deformed and are
free from dust or foreign matters.
CAUTION: Do not put your nger near the
holder while installing or removing the X-LOCK
wheel. It may pinch your nger.
CAUTION: Do not put your nger near the
release lever while installing the X-LOCK wheel. It
may pinch your nger.
NOTE: No additional parts such as inner anges
or lock nuts are required to install or remove the
X-LOCK wheels.
1. To install the X-LOCK wheel, make sure that both
catches are in the unlocked position.
If not, push the release lever from A side to lift B
side, then pull the release lever from B side as
illustrated. The catches are set in the unlocked
position.
► Fig.15: 1. Catch 2. Release lever
2. Place a central position of the X-LOCK wheel on
the holder.
Make sure the X-LOCK wheel is parallel to the
ange surface and with the correct side facing up.
3. Push the X-LOCK wheel into the holder. The
catches snap into the lock position with a click and
x the X-LOCK wheel.
► Fig.16: 1. X-LOCK wheel 2. Holder 3. Flange sur-
face 4. Catch
4. Make sure the X-LOCK wheel is xed correctly.
The surface of the X-LOCK wheel is no higher
than the surface of the holder as shown in the
gure.
If not, the holder must be cleaned or the X-LOCK
wheel must not be used.
► Fig.17: 1. Surface of the holder 2. Surface of the
X-LOCK wheel
To remove the X-LOCK wheel, push the release lever
from A side to lift B side, then pull the release lever from
B side as illustrated.
The X-LOCK wheel is released and can be removed.
► Fig.18: 1. Release lever
OPERATION
WARNING: It should never be necessary to
force the tool. The weight of the tool applies ade-
quate pressure. Forcing and excessive pressure
could cause dangerous wheel breakage.
WARNING: ALWAYS replace wheel if tool is
dropped while grinding.
WARNING: NEVER hit the workpiece with the
wheel.
WARNING: Avoid bouncing and snagging
the wheel, especially when working corners,
sharp edges etc. This can cause loss of control and
kickback.
WARNING: NEVER use tool with wood cutting
blades and other saw blades. Such blades when
used on a grinder frequently kick and cause loss of
control leading to personal injury.
WARNING: Never actuate the release lever of
the X-LOCK holder during operation. The X-LOCK
wheel comes o󰀨 from the tool and may cause serious
injury.
WARNING: Make sure that the X-LOCK wheel
is xed rmly.
CAUTION: Never switch on the tool when it
is in contact with the workpiece, it may cause an
injury to operator.
CAUTION: Always wear safety goggles or a
face shield during operation.
CAUTION: After operation, always switch o󰀨
the tool and wait until the wheel has come to a
complete stop before putting the tool down.
CAUTION: ALWAYS hold the tool rmly with
one hand on housing and the other on the side
grip (handle).

15 ENGLISH

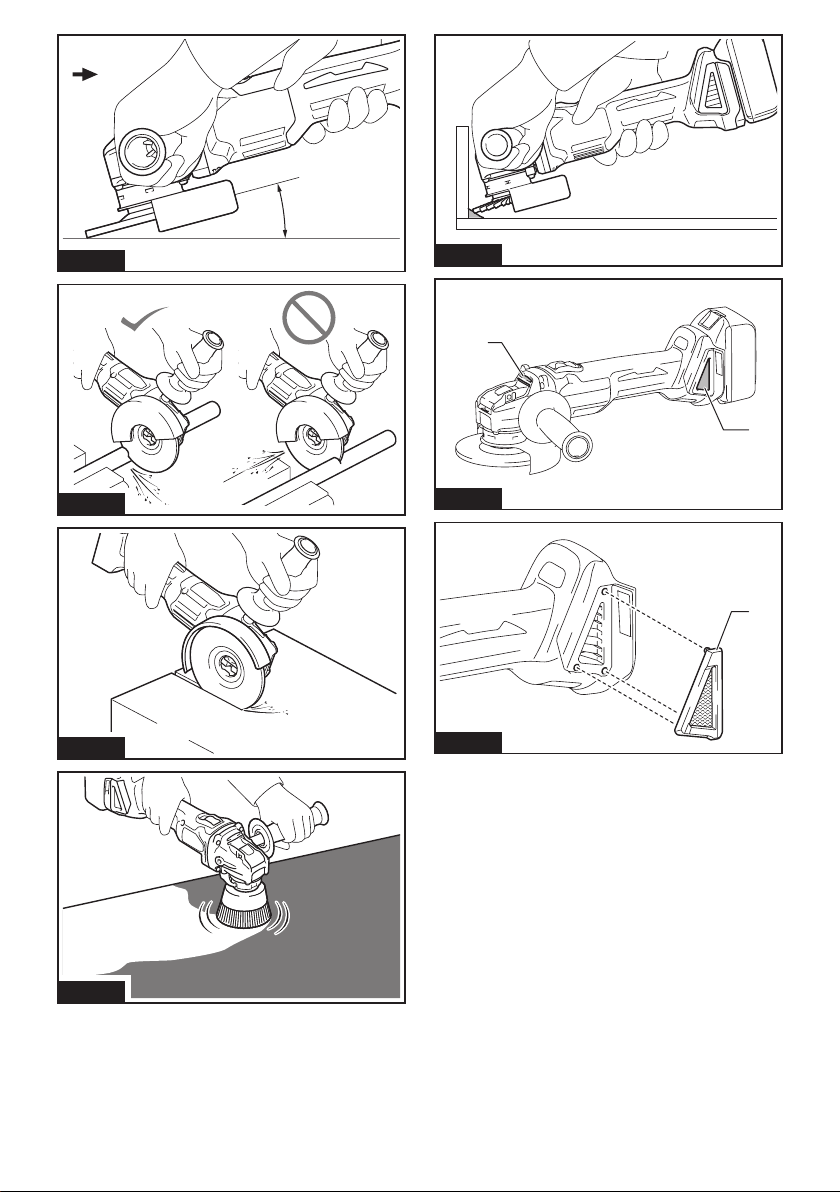

Grinding operation
► Fig.19
Turn the tool on and then apply the wheel or disc to the
workpiece.
In general, keep the edge of the wheel or disc at an
angle of about 15° to the workpiece surface.
During the break-in period with a new wheel, do not
work the grinder in forward direction or it may cut into
the workpiece. Once the edge of the wheel has been
rounded o󰀨 by use, the wheel may be worked in both
forward and backward direction.
Operation with abrasive cut-o󰀨 /
diamond wheel
Optional accessory
WARNING: Do not "jam" the wheel or apply
excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel
increases the loading and susceptibility to twisting
or binding of the wheel in the cut and the possibility
of kickback, wheel breakage and overheating of the
motor may occur.
WARNING: Do not start the cutting operation
in the workpiece. Let the wheel reach full speed
and carefully enter into the cut moving the tool
forward over the workpiece surface. The wheel
may bind, walk up or kickback if the power tool is
started in the workpiece.
WARNING: During cutting operations, never
change the angle of the wheel. Placing side pres-
sure on the cut-o󰀨 wheel (as in grinding) will cause
the wheel to crack and break, causing serious per-
sonal injury.
WARNING: A diamond wheel shall be oper-
ated perpendicular to the material being cut.
Usage example: operation with abrasive cut-o󰀨
wheel
► Fig.20
Usage example: operation with diamond wheel
► Fig.21
Operation with wire cup brush
Optional accessory
CAUTION: Check operation of brush by run-
ning tool with no load, insuring that no one is in
front of or in line with brush.
NOTICE: Avoid applying too much pressure
which causes over bending of wires when using
the wire cup brush. It may lead to premature
breakage.
Usage example: operation with wire cup brush
► Fig.22
Operation with wire wheel brush
Optional accessory
CAUTION: Check operation of wire wheel
brush by running tool with no load, insuring that
no one is in front of or in line with the wire wheel
brush.
NOTICE: Avoid applying too much pressure
which causes over bending of wires when
using wire wheel brush. It may lead to premature
breakage.
Usage example: operation with wire wheel brush
► Fig.23
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be per-
formed by Makita Authorized Service Centers, always
using Makita replacement parts.
Air vent cleaning
The tool and its air vents have to be kept clean.
Regularly clean the tool's air vents or whenever the
vents start to become obstructed.
► Fig.24: 1. Exhaust vent 2. Inhalation vent
Remove the dust cover from inhalation vent and clean it
for smooth air circulation.
► Fig.25: 1. Dust cover
NOTICE: Clean out the dust cover when it is
clogged with dust or foreign matters. Continuing
operation with a clogged dust cover may damage the
tool.

16 ENGLISH
OPTIONAL ACCESSORIES
CAUTION: These accessories or attachments are recommended for use with your Makita tool spec-
ied in this manual. The use of any other accessories or attachments might present a risk of injury to persons.
Only use accessory or attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.
• Makita genuine battery and charger
► Fig.26
1Grip 36
2Wheel Guard (for grinding wheel)
3Depressed center wheel
4Wheel Guard (for cut-o󰀨 wheel) *1
5Abrasive cut-o󰀨 wheel / Diamond wheel
6Wire wheel brush
7Wire cup brush
NOTE: *1 In some European countries, when using a diamond wheel, the ordinary guard can be used instead of the
special guard covering the both side of the wheel. Follow the regulations in your country.
NOTE: Some items in the list may be included in the tool package as standard accessories. They may di󰀨er from
country to country.

17 SVENSKA
SVENSKA (Originalinstruktioner)
SPECIFIKATIONER
Modell: DGA521
Kapskivans diameter 125 mm (5″)
Max. skivtjocklek 6 mm
Nominellt varvtal (n) 8 500 min-1
Total längd 375 mm
Märkspänning 18 V likström
Nettovikt 2,4 - 3,0 kg
• På grund av vårt pågående program för forskning och utveckling kan dessa specikationer ändras utan föregå-
ende meddelande.
• Specikationer kan variera mellan olika länder.
• Vikten kan variera beroende på tillbehören, inklusive batterikassett. Den lättaste och den tyngsta kombinatio-
nen enligt EPTA-procedur 01/2014 visas i tabellen.
Tillgänglig batterikassett och laddare
Batterikassett BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Laddare DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH
• Vissa av batterikassetterna och laddarna på listan ovan kanske inte nns tillgängliga i din region.
VARNING: Använd endast batterikassetter och laddare från listan ovan. Användning av andra batterikas-
setter och laddare kan orsaka personskada och/eller brand.
Rekommenderad sladdansluten strömkälla
Bärbart strömpaket PDC01
• De(n) sladdanslutna strömkällan/strömkällorna på listan ovan kanske inte nns tillgängliga i din region.
• Innan du använder den sladdanslutna strömkällan ska du läsa instruktionen och varningsmärkena på den.
Avsedd användning
Verktyget är avsett för slipning och skärning av metall-
och stenmaterial utan användning av vatten.
Buller
Den normala bullernivån för A-belastning är bestämd
enligt EN60745-2-3:
Ljudtrycksnivå (LpA) : 80 dB (A)
Mättolerans (K): 3 dB (A)
Bullernivån vid arbete kan överstiga 80 dB (A).
OBS: Det deklarerade bullervärdet har uppmätts i
enlighet med standardtestmetoden och kan användas
för jämförandet av en maskin med en annan.
OBS: Det deklarerade bulleremissionsvärdet kan
också användas i en preliminär bedömning av expo-
nering för vibration.
VARNING: Använd hörselskydd.
VARNING: Bulleremissionen under faktisk
användning av maskinen kan skilja sig från det
deklarerade värdet, beroende på hur maskinen
används och särskilt vilken typ av arbetsstycke
som behandlas.
VARNING: Var noga med att identiera säker-
hetsåtgärder för att skydda användaren, vilka är
grundade på en uppskattning av graden av expo-
nering för vibrationer under de faktiska använd-
ningsförhållandena, (ta, förutom avtryckartiden,
med alla delar av användarcykeln i beräkningen,
som till exempel tiden då maskinen är avstängd
och när den går på tomgång).
Vibration
Det totala vibrationsvärdet (treaxlad vektorsumma)
bestämt enligt EN60745-2-3:
Arbetsläge: planslipning med normalt sidohandtag
Vibrationsemission (ah, AG): 5,0 m/s2
Mättolerans (K): 1,5 m/s2
Arbetsläge: planslipning med anti-vibrationssidohandtag
Vibrationsemission (ah, AG): 6,5 m/s2
Mättolerans (K): 1,5 m/s2

18 SVENSKA
OBS: Det deklarerade totala vibrationsvärdet har
uppmätts i enlighet med standardtestmetoden och
kan användas för jämförandet av en maskin med en
annan.
OBS: Det deklarerade totala vibrationsvärdet kan
också användas i en preliminär bedömning av expo-
nering för vibration.
VARNING: Vibrationsemissionen under fak-
tisk användning av maskinen kan skilja sig från
det deklarerade värdet, beroende på hur maski-
nen används och särskilt vilken typ av arbetss-
tycke som behandlas.
VARNING: Var noga med att identiera säker-
hetsåtgärder för att skydda användaren, vilka är
grundade på en uppskattning av graden av expo-
nering för vibrationer under de faktiska använd-
ningsförhållandena, (ta, förutom avtryckartiden,
med alla delar av användarcykeln i beräkningen,
som till exempel tiden då maskinen är avstängd
och när den går på tomgång).
VARNING: Det deklarerade vibrationsemis-
sionsvärdet används för maskinens huvudsakliga
arbetsuppgifter. Om maskinen används för andra
arbetsuppgifter kan däremot vibrationsemissionsvär-
det bli annorlunda.
EG-försäkran om överensstämmelse
Gäller endast inom EU
EG-försäkran om överensstämmelse inkluderas som
bilaga A till denna bruksanvisning.
SÄKERHETSVARNINGAR
Allmänna säkerhetsvarningar för
maskiner
VARNING: Läs alla säkerhetsvarningar, anvis-
ningar, illustrationer och specikationer som
medföljer det här maskinen. Underlåtenhet att följa
instruktionerna kan leda till elstötar, brand och/eller
allvarliga personskador.
Spara alla varningar och instruk-
tioner för framtida referens.
Termen ”maskin” som anges i varningarna hänvisar till
din eldrivna maskin (sladdansluten) eller batteridrivna
maskin (sladdlös).
Säkerhetsvarningar för batteridriven
slipmaskin
Gemensamma säkerhetsvarningar för slipning,
stålborstning eller abrasiv skärning:
1. Den här maskinen är utformad för att använ-
das för slipning, stålborstning eller som skär-
verktyg. Läs igenom alla säkerhetsvarningar,
anvisningar, illustrationer och specikationer
som medföljer detta verktyg. Underlåtenhet att
följa instruktionerna kan leda till elstötar, brand
och/eller allvarliga personskador.
2. Den här maskinen rekommenderas inte
för sandpapprings- eller poleringsarbeten.
Om verktyget används till andra arbeten än
de avsedda kan det orsaka fara och leda till
personskada.
3. Använd inte tillbehör som inte är särskilt till-
verkade och rekommenderade av maskinens
tillverkare. Även om ett tillbehör kan fästas på
maskinen garanterar detta inte säker funktion.
4. Tillbehörets nominella varvtal måste vara
minst lika med det maximala varvtalet som
anges på verktyget. Tillbehör som används över
det nominella varvtalet kan gå sönder och orsaka
skador.
5. Tillbehörets ytterdiameter och tjocklek måste
vara anpassad till elverktygets kapacitets-
klassning. Tillbehör i olämplig storlek kan inte
skyddas eller styras tillräckligt väl.
6. Gängorna på tillbehör som monteras måste
stämma överens med spindelgängorna på
slipmaskinen. För tillbehör som monteras med
änsar måste tillbehörets centrumhål passa i
änsens lokaliseringsdiameter. Tillbehör som
inte passar exakt på maskinens monteringsbeslag
roterar ojämnt, vibrerar kraftigt och kan leda till att
du förlorar kontrollen.
7. Använd inte ett skadat tillbehör. Kontrollera
tillbehör som sliprondeller efter hack och
sprickor, underlagsplattor efter sprickor,
slitage och stålborstar efter lösa eller brutna
trådar. Om du tappar maskinen eller ett tillbe-
hör ska du kontrollera att det inte har uppstått
några skador, eller så ska tillbehöret bytas ut
mot ett oskadat. Efter kontroll och montering
av tillbehöret ska du och åskådare hålla er
borta från det roterande tillbehöret samtidigt
som du kör maskinen på full fart utan last i
en minut. Skadade tillbehör går normalt sönder
under den här testtiden.
8. Använd personlig skyddsutrustning. Använd
visir, korgglasögon eller skyddsglasögon
beroende på arbetsuppgift. Använd vid
behov dammskydd, hörselskydd, handskar
och skyddsförkläde som stoppar små bitar
slipmaterial eller fragment från arbetss-
tycket. Ögonskyddet måste kunna stoppa y-
gande fragment som uppstår vid olika arbeten.
Dammskyddet eller andningsskyddet måste kunna
ltrera partiklar som uppstår vid olika arbeten.
Lång tid i kraftigt buller kan orsaka hörselskador.

19 SVENSKA
9. Håll personer i omgivningen på säkert avstånd
från arbetsområdet. Alla som benner sig
i arbetsområdet måste använda skyddsut-
rustning. Delar av arbetsstycket eller defekta
tillbehör kan yga iväg och orsaka skador utanför
arbetsområdet.
10. Håll maskinen endast i de isolerade handtagen
om det nns risk för att skärverktyget kan
komma i kontakt med en dold elkabel. Om skär-
verktyget kommer i kontakt med en strömförande
ledning blir maskinens metalldelar strömförande
och kan ge användaren en elektrisk stöt.
11.
Lägg aldrig elverktyget åt sidan förrän det har
stannat helt. Det roterande tillbehöret kan gripa tag i
underlaget och du kan förlora kontrollen över maskinen.
12. Kör inte verktyget samtidigt som du bär det.
Oavsiktlig kontakt med det roterande tillbehöret
kan leda till att det fastnar i dina kläder och dras in
mot kroppen.
13. Rengör regelbundet verktygets ventilations-
öppningar. Motorns äkt suger in damm i höljet
och överdriven ansamling av pulveriserad metall
kan orsaka elektrisk fara.
14. Använd inte verktyget i närheten av lättan-
tändliga material. Gnistor kan antända dessa
material.
15.
Använd inte tillbehör som kräver ytande kyl-
vätskor. Att använda vatten eller andra ytande
kylvätskor kan orsaka dödsfall eller elektriska stötar.
Bakåtkast och relaterade varningar
Bakåtkast är en plötslig reaktion på fastnypt roterande
hjul, underlagsplatta, borste eller annat tillbehör. Nyp
och kärvning orsakar stegring av det roterande tillbehö-
ret, och orsakar i sin tur att den okontrollerade maski-
nen tvingas i motsatt riktning vid kärvningspunkten.
Om till exempel en slipskiva fastnar i eller kläms fast av
arbetsstycket kan skivans kapande kant gräva sig in i
materialytan vid klämpunkten, vilket leder till att skivan
klättrar eller kastas tillbaka. Skivan kan antingen hoppa
mot eller från användaren, beroende på skivans rörel-
seriktning vid klämpunkten. Slipskivorna kan även gå
sönder under dessa omständigheter.
Bakåtkast beror på ovarsamhet och/eller felaktiga
arbetsrutiner, och kan undvikas genom att vidta nedan-
stående förebyggande åtgärder.
1. Se till att hålla verktyget i ett fast grepp och
placera kroppen och din arm på ett sätt som
gör att du kan stå emot kraften från bakåtkast.
Använd alltid ett extrahandtag, om sådant
nns, för maximal kontroll vid bakåtkast eller
vridrörelsen vid start. Användaren kan kontroll-
era vridrörelsen eller krafterna vid bakåtkast om
rätt försiktighetsåtgärder vidtas.
2. Placera aldrig din hand nära det roterande
tillbehöret. Tillbehöret kan kastas bakåt över din
hand.
3. Ställ dig inte där maskinen kommer att förytta
sig i händelse av bakåtkast. Bakåtkast driver
verktyget i motsatt riktning till kapskivans rörelse
vid kärvningspunkten.
4. Var extra försiktig när du bearbetar hörn,
vassa kanter osv. Undvik att studsa och stöta
tillbehöret. Hörn, skarpa kanter eller studsning
har en tendens att klämma det roterande tillbehö-
ret och orsaka förlorad kontroll eller bakåtkast.
5. Montera inte en sågkedja, snidarblad eller ett
tandat sågblad. Sådana blad orsakar ofta bakåt-
kast och förlorad kontroll.
Säkerhetsvarningar för slipning och abrasiv
skärning:
1. Använd endast de skivor som rekommenderas
för din maskin och det särskilda sprängskyd-
det för skivan. Skivor som inte tillverkats för
maskinen kan inte skyddas tillräckligt och är inte
tillförlitliga.
2. Slipytan på nedsänkta skivor måste monte-
ras under planet från sprängskyddets kant.
En felaktigt monterad skiva som sticker utanför
planet från sprängskyddets kant är inte tillräckligt
skyddad.
3. Sprängskyddet måste vara ordentligt fäst vid
maskinen och placerat för maximal säkerhet,
så att minsta möjliga yta av skivan är öppen
mot användare. Sprängskyddet skyddar använ-
daren mot trasiga skivdelar, oavsiktlig kontakt med
skivan och gnistor som kan antända kläder.
4. Kapskivorna får endast användas till rekom-
menderade arbetsuppgifter. Till exempel: Slipa
inte med en kapskivas utsida. Slipande kapski-
vor är avsedda för periferislipning. Sidokrafter kan
spränga sådana skivor.
5. Använd alltid oskadade skivänsar i rätt stor-
lek och form till din skiva. Rätt skivänsar stöder
kapskivan och minskar därigenom risken för att
skivan går sönder. Flänsar till kapskivor kan skilja
sig från änsar till slipskivor.
6. Använd inte nedslitna skivor för större maski-
ner. Skivor avsedda för större maskiner är inte
lämpliga för mindre maskiners högre varvtal och
kan spricka.
Ytterligare särskilda säkerhetsvarningar för abrasiv
skärning:
1.
”Pressa” inte skivan eller utsätt den för överdrivet
tryck. Försök inte att göra ett alltför stort kapdjup.
Om kapskivan överbelastas ökar belastningen och
risken för att skivan vrids eller fastnar i kapet samt
risken för bakåtkast eller att skivan går sönder.
2. Placera inte din kropp längs med eller bakom
den roterande skivan. När skivan rör sig ifrån
dig, kan ett bakåtkast skicka den roterande skivan
och maskinen mot dig.
3. Om kapskivan kärvar eller om ett kap avbryts
stänger du av elverktyget och håller det stilla
tills skivan har stannat helt. Försök aldrig att ta
ut kapskivan ur skäret när skivan är i rörelse,
för att undvika bakåtkast. Undersök och vidta
korrigeringsåtgärder för att eliminera orsaken till
att kapskivan fastnar.
4. Starta inte om kapningen med verktyget kvar i
arbetsstycket. Låt maskinen nå full hastighet
och gå tillbaka i skäret. Kapskivan kan fastna,
vandra uppåt eller kastas bakåt om elverktyget
startas om i arbetsstycket.
5. Stötta långa eller stora arbetsstycken för att
minimera risken för att kapskivan fastnar
och kastas bakåt. Stora arbetsstycken tenderar
att svikta på grund av sin egen vikt. Stöd måste
placeras under arbetsstycket nära såglinjen och
nära arbetsstyckets kanter på båda sidorna om
kapskivan.

20 SVENSKA
6. Var extra försiktig vid genomstickssågning i
en bentlig vägg eller andra dolda utrymmen.
Den utskjutande kapskivan kan kapa gas- eller
vattenledningar, elledningar eller föremål som kan
orsaka bakåtkast.
Säkerhetsvarningar särskilt vid stålborstning:
1. Var uppmärksam på att trådbitar kastas ut
från borsten även vid normal användning.
Överbelasta inte trådarna genom att anlägga
onödigt stor kraft mot borsten. Trådarna kan
enkelt gå igenom tunnare klädsel och/eller huden.
2. Om användning av skydd rekommenderas
vid stålborstningfår inte borstskivan eller
borsten gå emot skyddet. Borstens diameter
kan expandera på grund av belastningen eller
centrifugalkraften.
Ytterligare säkerhetsvarningar:
1. Vid användning av nedsänkta center-rondel-
ler ska endast glasberförstärkta rondeller
användas.
2. ANVÄND ALDRIG sten-skålskivor med denna
slipmaskin. Denna slipmaskin är inte konstrue-
rad för denna typ av skivor och användningen av
dessa kan resultera i allvarlig personskada.
3. Var noga med att inte skada X-LOCK-hållaren.
Skador på delarna kan medföra att rondellen
förstörs.
4. Se till att rondellen inte är i kontakt med
arbetsstycket när du trycker på avtryckaren.
5. Låt verktyget vara igång en stund innan det
används på arbetsstycket. Kontrollera att ski-
van inte vibrerar eller skakar, vilket kan inne-
bära att den är felaktigt monterad eller dåligt
balanserad.
6. Slipa endast med den del av rondellen som är
avsedd för slipning.
7. Lämna inte maskinen igång. Använd endast
maskinen när du håller den i händerna.
8. Rör inte vid arbetsstycket omedelbart efter
arbetet. Det kan vara extremt varmt och orsaka
brännskador.
9. Rör inte vid tillbehör omedelbart efter arbe-
tet. Det kan vara extremt varmt och orsaka
brännskador.
10. Följ tillverkarens anvisningar för korrekt mon-
tering och användning av rondeller. Hantera
rondellerna varsamt och förvara dem på en
säker plats.
11. Använd inte separata reducerhylsor eller adap-
trar för att kunna använda sliprondeller med
större hål.
12. Kontrollera att arbetsstycket är ordentligt
fastsatt.
13. Tänk på att rondellen fortsätter att rotera efter
att maskinen stängts av.
14. Om arbetsplatsen är extremt varm och fuk-
tig, eller har hög koncentration av elektriskt
ledande damm, ska jordfelsbrytare (30 mA)
användas för användarens säkerhet.
15. Använd inte maskinen för material som
innehåller asbest.
16. Använd alltid föreskrivet dammuppsamlande
sprängskydd när du arbetar med kapskiva.
17. Kapskivor får inte utsättas för sidokrafter.
18. Använd inte arbetshandskar i tyg när du arbe-
tar med maskinen. Fibrer från tyghandskar kan
komma in i maskinen och orsaka fel.
19. Innan användning måste du se till att det inte
nns några begravda föremål som elrör, vat-
tenrör eller gasrör i arbetsstycket. Annars kan
det orsaka elstöt, elektriskt läckage eller gasläcka.
SPARA DESSA ANVISNINGAR.
VARNING: GLÖM INTE att också fortsätt-
ningsvis strikt följa säkerhetsanvisningarna för
maskinen även efter att du blivit van att använda
den. Vid FELAKTIG HANTERING av maskinen
eller om inte säkerhetsanvisningarna i denna
bruksanvisning följs kan följden bli allvarliga
personskador.
Viktiga säkerhetsanvisningar för
batterikassetten
1. Innan batterikassetten används ska alla
instruktioner och varningsmärken på (1) bat-
teriladdaren, (2) batteriet och (3) produkten
läsas.
2. Montera inte isär eller mixtra med batterikas-
setten. Det kan leda till brand, överdriven värme
eller explosion.
3. Om drifttiden blivit avsevärt kortare ska
användningen avbrytas omedelbart. Det kan
uppstå överhettning, brännskador och t o m en
explosion.
4. Om du får elektrolyt i ögonen ska de sköljas
med rent vatten och läkare uppsökas omedel-
bart. Det nns risk för att synen förloras.
5. Kortslut inte batterikassetten.
(1) Rör inte vid polerna med något strömfö-
rande material.
(2) Undvik att förvara batterikassetten till-
sammans med andra metallobjekt som
t.ex. spikar, mynt o.s.v.
(3) Skydda batteriet mot vatten och regn.
En batterikortslutning kan orsaka ett
stort strömöde, överhettning, brand och
maskinhaveri.
6. Förvara och använd inte verktyget och batteri-
kassetten på platser där temperaturen kan nå
eller överstiga 50 °C.
7. Bränn inte upp batterikassetten även om
den är svårt skadad eller helt utsliten.
Batterikassetten kan explodera i öppen eld.
8. Spika inte i, krossa, kasta, tappa eller slå bat-
terikassetten mot hårda föremål. Dylika hän-
delser kan leda till brand, överdriven värme eller
explosion.
9. Använd inte ett skadat batteri.
10. De medföljande litiumjonbatterierna är föremål
för kraven i gällande lagstiftning för farligt
gods.
För kommersiella transporter (av t.ex. tredje parter
som speditionsrmor) måste de särskilda trans-
portkrav som anges på emballaget och etiketter
iakttas.
